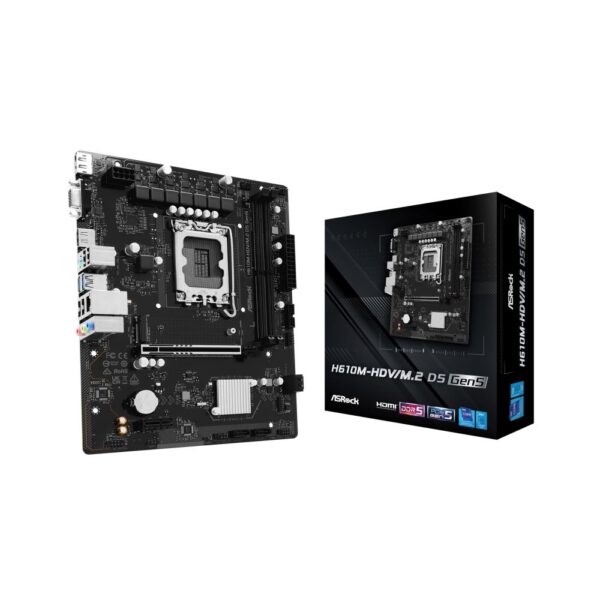

Asrock H610M-HDV/M.2 D5 Motherboard
£56.96 inc VAT
40 in stock
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- Supports 14th, 13th & 12th Gen Intel Core processors (LGA1700)
- Dual Channel DDR5 memory with 2 DIMM slots, up to 128GB
- PCIe 5.0 x16 slot for graphics, PCIe 3.0 x1 slot
- 1x Ultra M.2 socket (PCIe Gen3x4) and 4x SATA3 connectors
- Micro-ATX form factor with HDMI 2.1, DisplayPort 1.4, and GbE LAN
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:
You may also like
ASRock H610M-HDV/M.2 D5 | Intel 12th-14th Gen DDR5 Micro-ATX Motherboard
The ASRock H610M-HDV/M.2 D5 is a micro-ATX motherboard built for Intel’s 12th to 14th Gen processors, featuring PCIe 5.0, DDR5 memory, and M.2 Gen3x4 storage in a compact form factor.
Key Specs
| Metric | Spec |
|---|---|
| Socket | LGA1700 |
| Memory | 2x DDR5 DIMM slots (up to 128GB) |
| PCIe | 1x PCIe 5.0 x16, 1x PCIe 3.0 x1 |
| Storage | 1x M.2 (PCIe Gen3x4), 4x SATA3 |
| Graphics | Intel® Xe Graphics with HDMI 2.1, DisplayPort 1.4, D-Sub |
| LAN | Gigabit LAN (Realtek 8111H) |
| Form Factor | Micro ATX (9.6″ x 7.6″) |
Next-Gen DDR5 Memory Support
This motherboard supports dual-channel DDR5 memory, offering speeds up to 5600 MT/s for 14th and 13th Gen Intel CPUs, and up to 4800 MT/s for 12th Gen. With two DIMM slots and a maximum capacity of 128GB, it’s ideal for multitasking and memory-intensive workloads. The Intel 4-Layer Memory POOL technology ensures stable, high-frequency memory performance.
PCIe 5.0 Graphics Ready
Equipped with a PCIe 5.0 x16 slot, this board is ready for the latest graphics cards, delivering up to 16 GT/s bandwidth for future-proof gaming and content creation. Whether you’re building a high-end gaming rig or a creative workstation, the PCIe 5.0 slot ensures your GPU can run at its full potential.
M.2 Gen3x4 Storage
The Ultra M.2 socket supports type 2280 drives with PCIe Gen3x4 speeds, offering up to 32 Gb/s for rapid storage access. Combined with four SATA3 ports, you have flexible storage options for SSDs, HDDs, or a mix of both, making it easy to build a fast and reliable system.
Comprehensive I/O & Connectivity
With a range of rear panel ports including HDMI 2.1, DisplayPort 1.4, D-Sub, USB 3.2 Gen1, and USB 2.0, this motherboard covers all your connectivity needs. The Gigabit LAN ensures stable wired internet, while the 7.1 CH HD audio delivers clear sound for gaming and media.
Box Contents
- 1 x I/O Shield
- 2 x SATA Data Cables
- 1 x Screw for M.2 Socket
Check Before You Buy
- Confirm your CPU is 12th, 13th, or 14th Gen Intel Core (LGA1700).
- Verify your power supply has an 8-pin 12V connector.
- Check your case supports micro-ATX (9.6″ x 7.6″) form factor.
- Ensure your DDR5 memory is compatible (non-ECC, unbuffered).
Frequently Asked Questions
Q: Does this motherboard support overclocking?
A: No, the H610 chipset does not support CPU or memory overclocking.
Q: Can I use an M.2 SSD with this board?
A: Yes, it has one M.2 slot supporting PCIe Gen3x4 SSDs up to 2280 size.
Q: Is Wi-Fi included?
A: No, this motherboard does not include built-in Wi-Fi; you’ll need a Wi-Fi card or adapter.
Q: What is the maximum RAM capacity?
A: The board supports up to 128GB of DDR5 memory across two DIMM slots.
Q: Does it have USB-C ports?
A: No, it only has USB 3.2 Gen1 and USB 2.0 ports on the rear panel.
The Consultant’s Verdict & Warranty
The ASRock H610M-HDV/M.2 D5 is a solid choice for anyone building a mainstream or entry-level PC with Intel’s latest CPUs, offering DDR5 memory, PCIe 5.0 graphics, and fast M.2 storage in a compact micro-ATX package. It’s well-suited for everyday computing, light gaming, and content creation. Covered by the standard Manufacturer Warranty.
| Weight | 1.95 kg |
|---|
