Asrock H610M-HVS Intel H610 Micro ATX Motherboard

ASRock H610M-HVS/M.2 R2.0 | Intel H610 Micro ATX Motherboard

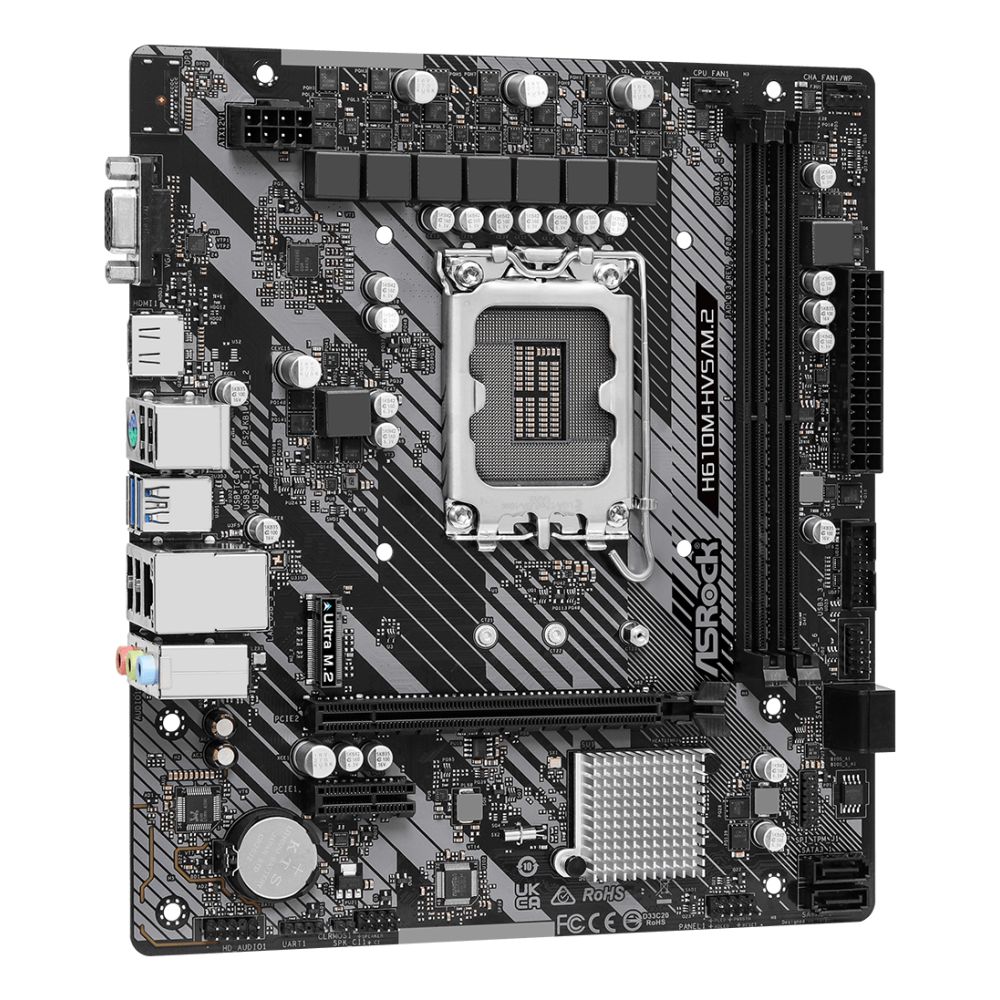

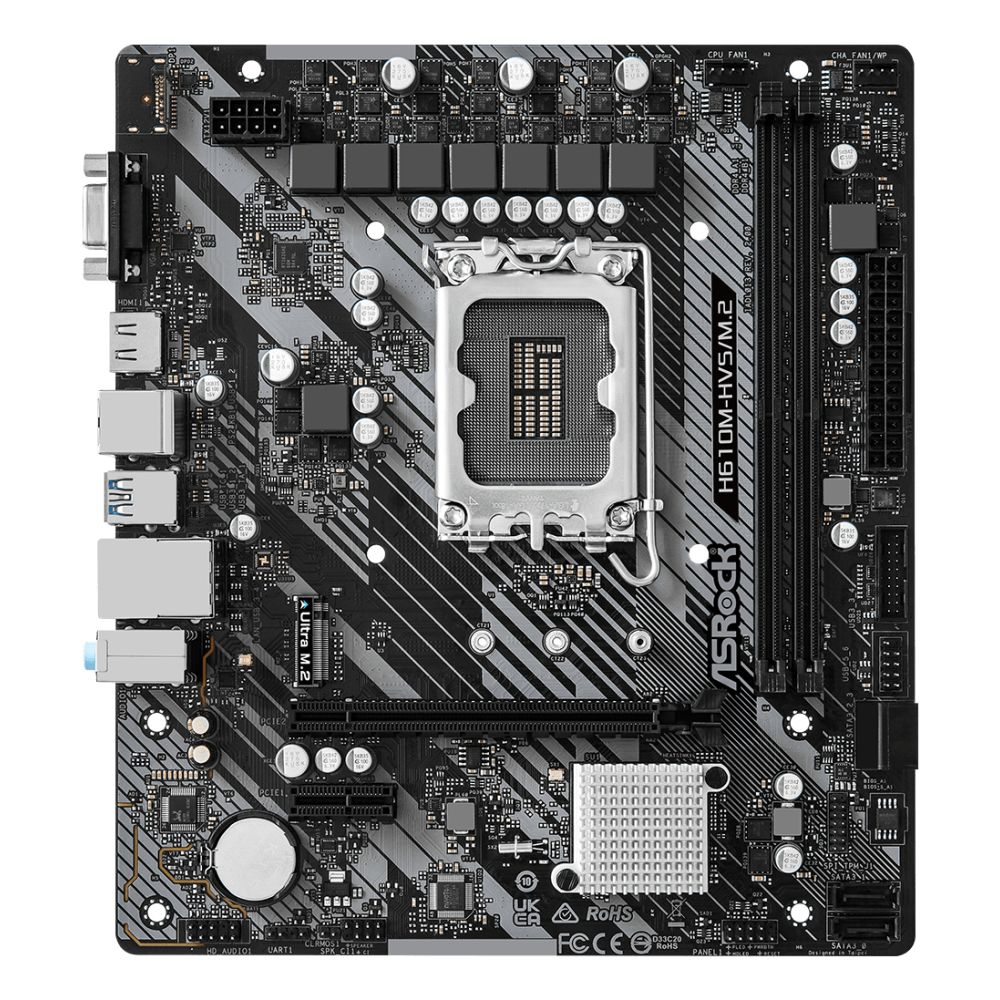

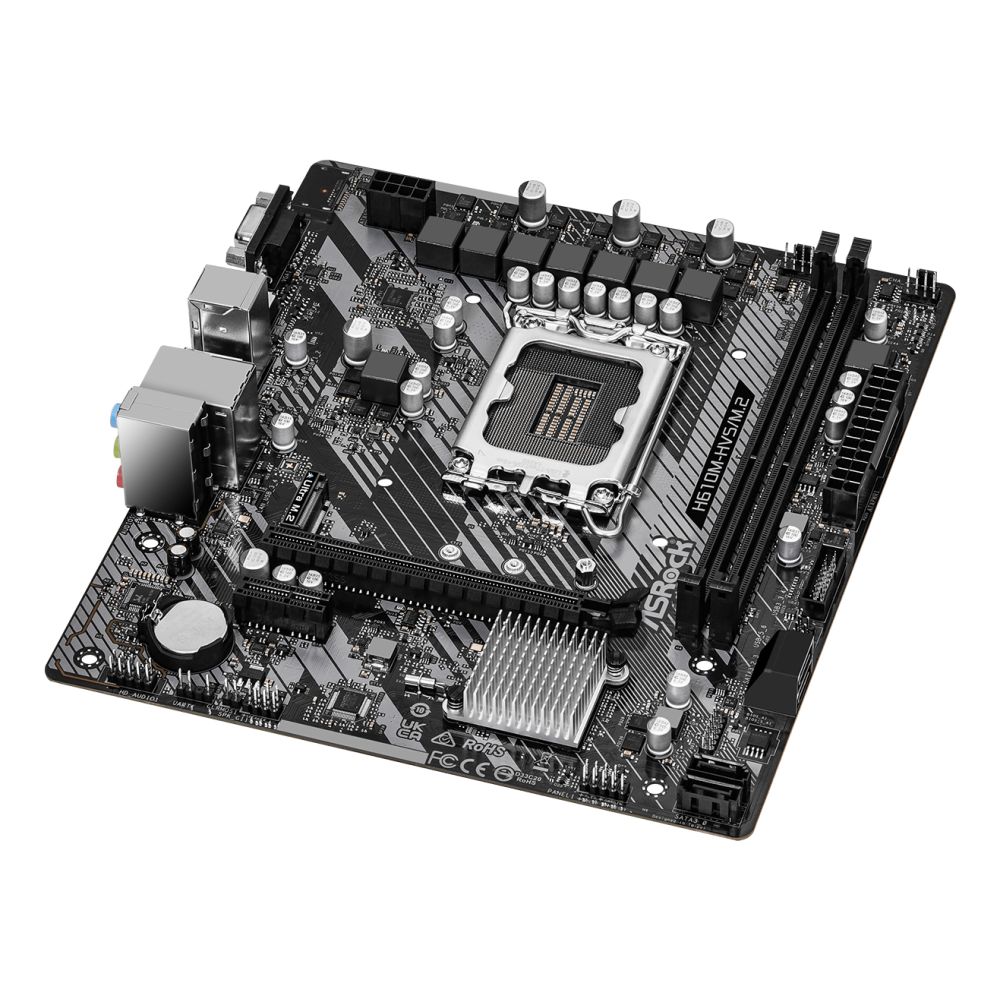

The ASRock H610M-HVS/M.2 R2.0 Intel H610 LGA 1700 micro ATX motherboard offers a reliable foundation for Intel Core processors with DDR4 memory support and modern M.2 storage options. Built around the Intel H610 chipset, this micro ATX board delivers essential features for everyday computing, home office setups, and light content creation without unnecessary complexity.

Key Specifications

Built for Intel Core Performance

This motherboard supports Intel Core i3, i5, and i7 processors on the LGA 1700 socket, making it suitable for mainstream desktop builds. The dual-channel DDR4 memory architecture with support for up to 64 GB ensures smooth multitasking and application responsiveness. With a maximum memory speed of 3200 MHz, you can pair it with high-performance RAM modules for optimal system responsiveness.

Storage Flexibility and Speed

The ASRock H610M-HVS/M.2 R2.0 provides versatile storage options with one Ultra M.2 slot supporting PCIe Gen3 x4 speeds up to 32 Gb/s, plus four SATA III ports for traditional hard drives and SSDs. This configuration allows you to create a balanced storage setup combining fast NVMe boot drives with additional SATA storage for files, games, or media libraries. The board supports both M.2 and SATA III interfaces, giving you flexibility in how you configure your storage solution.

Enhanced Power Delivery and Protection

Featuring ASRock’s Digi Power technology, this motherboard uses digital PWM design for more efficient and stable voltage delivery to the CPU. The premium power chokes provide up to three times better saturation current compared to traditional designs, ensuring consistent performance under load. Full Spike Protection safeguards sensitive components against unexpected voltage surges, while the Sapphire Black PCB design offers both durability and a professional aesthetic.

Comprehensive Connectivity

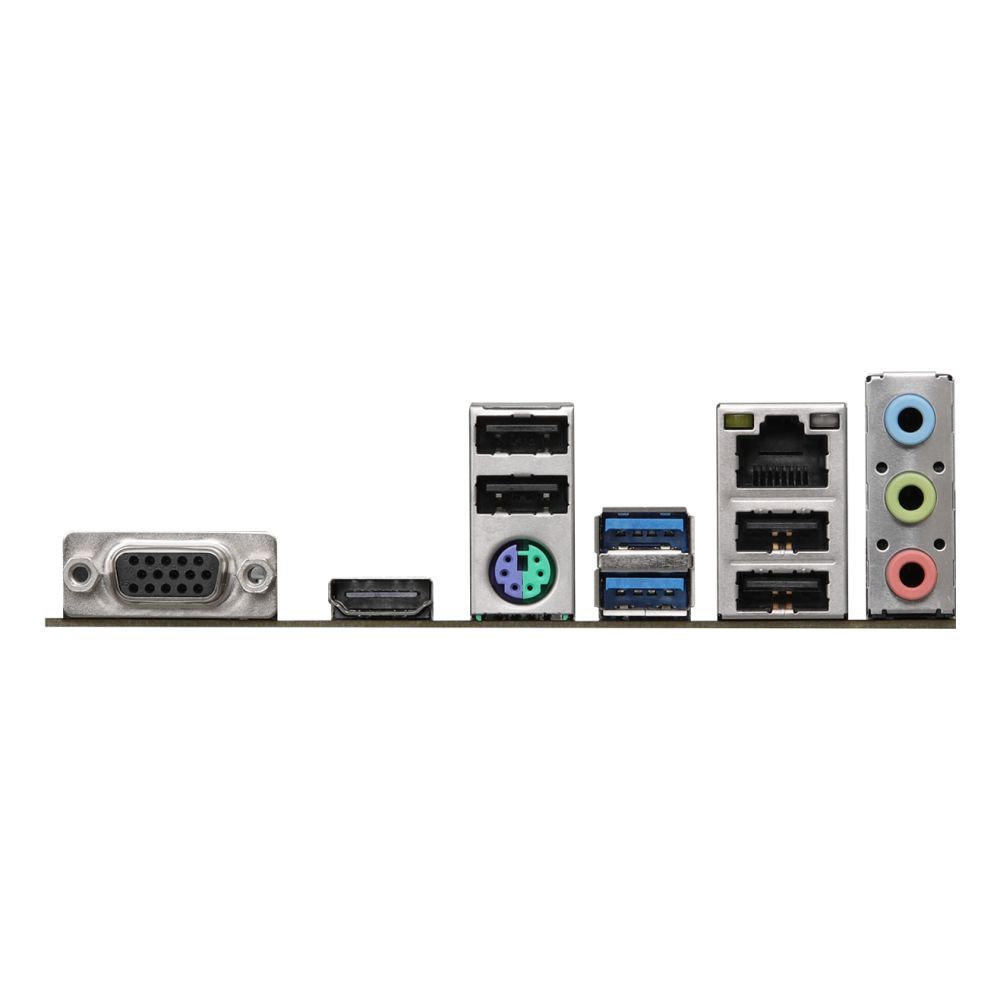

With a mix of USB ports including four USB 2.0 and two USB 3.2 Gen 1 Type-A ports, you’ll have ample connectivity for peripherals. The rear I/O includes HDMI and VGA outputs for flexible display options, a PS/2 port for legacy devices, and dedicated audio jacks. Gigabit Ethernet ensures reliable wired networking, while the Realtek ALC897 audio codec delivers 7.1 channel surround sound for an immersive experience.

Box contents

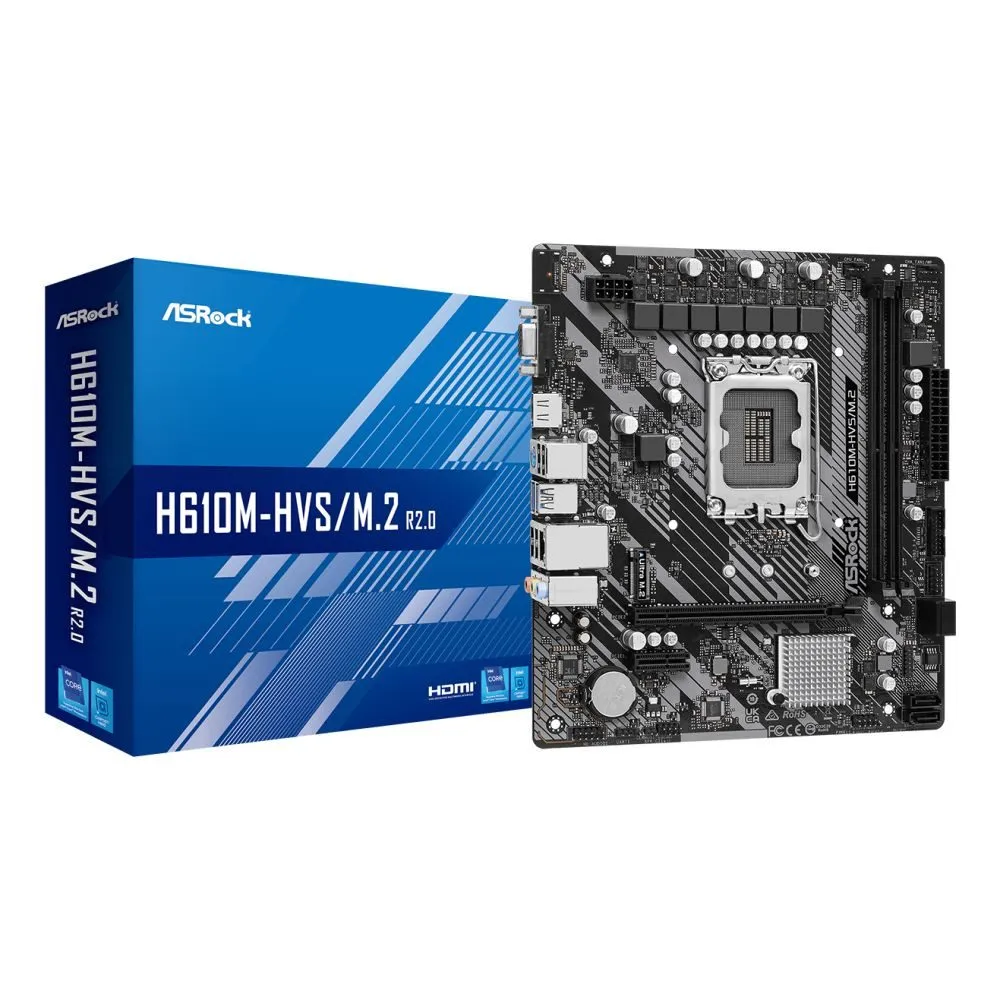

• ASRock H610M-HVS/M.2 R2.0 motherboard
• SATA cables (quantity not specified)
• I/O shield
• User manual and driver CD

Check before you buy

• Confirm your Intel processor is compatible with LGA 1700 socket
• Verify your CPU cooler fits micro ATX cases and clears the motherboard
• Check that your power supply has a 24-pin ATX and 8-pin EPS connector
• Ensure your case has the appropriate I/O shield cutout for micro ATX

Frequently Asked Questions

Q: Does this motherboard support Wi-Fi?

A: No, this model does not include built-in Wi-Fi. You’ll need a USB Wi-Fi adapter or PCIe Wi-Fi card for wireless connectivity.

Q: What type of memory does this motherboard support?

A: It supports DDR4-SDRAM memory up to 64 GB across two DIMM slots, with a maximum speed of 3200 MHz.

Q: Can I install a dedicated graphics card?

A: Yes, there is one PCIe x16 4.0 slot available for installing a dedicated graphics card.

Q: Does it support Windows 11?

A: Yes, this motherboard is compatible with both Windows 10 Education x64 and Windows 11 x64 operating systems.

Q: What is Digi Power technology?

A: Digi Power uses digital PWM design instead of analog power, providing more efficient voltage delivery and improved system stability.

The Consultant’s verdict & warranty

The ASRock H610M-HVS/M.2 R2.0 represents a solid choice for users building mainstream Intel systems who need reliable performance without premium features they won’t use. Its support for modern Intel processors, DDR4 memory, and fast M.2 storage makes it suitable for home office work, light content creation, and everyday computing tasks. The inclusion of Digi Power technology and comprehensive protection features adds value for users seeking system stability. Covered by the standard Manufacturer Warranty.
