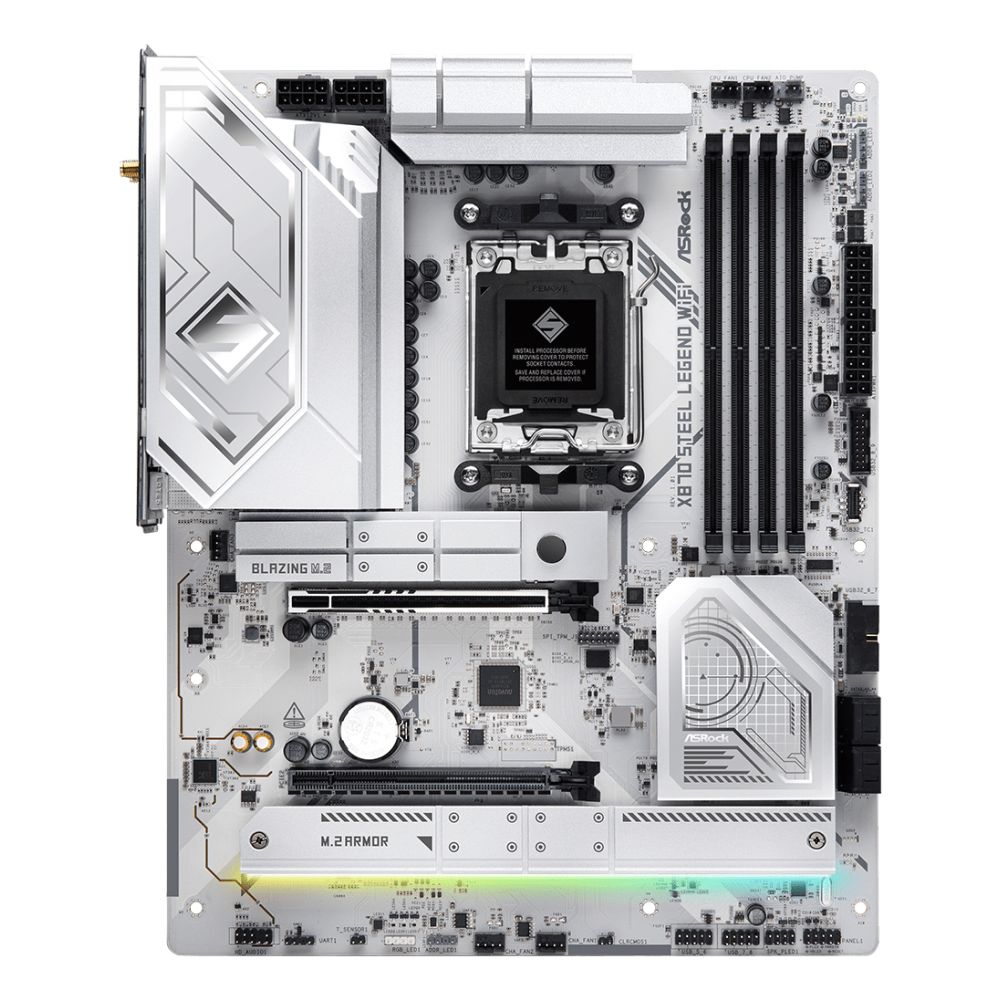

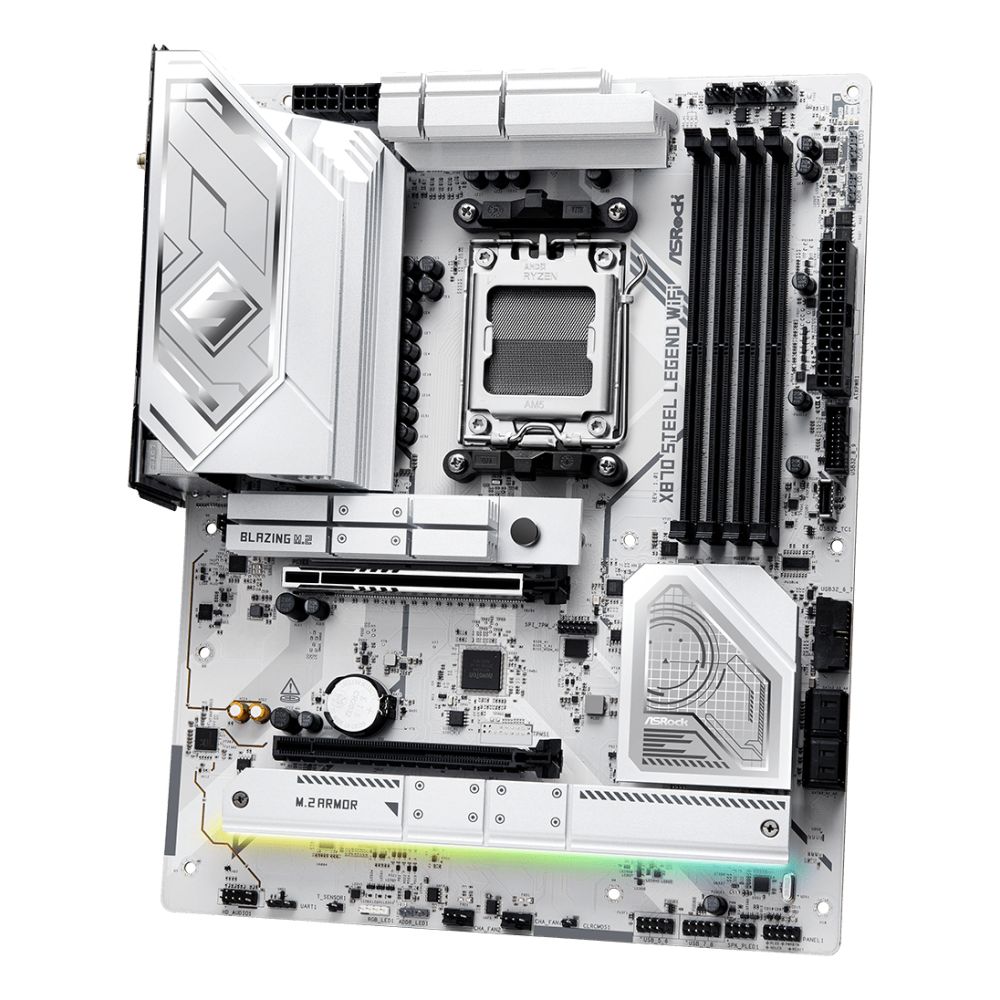

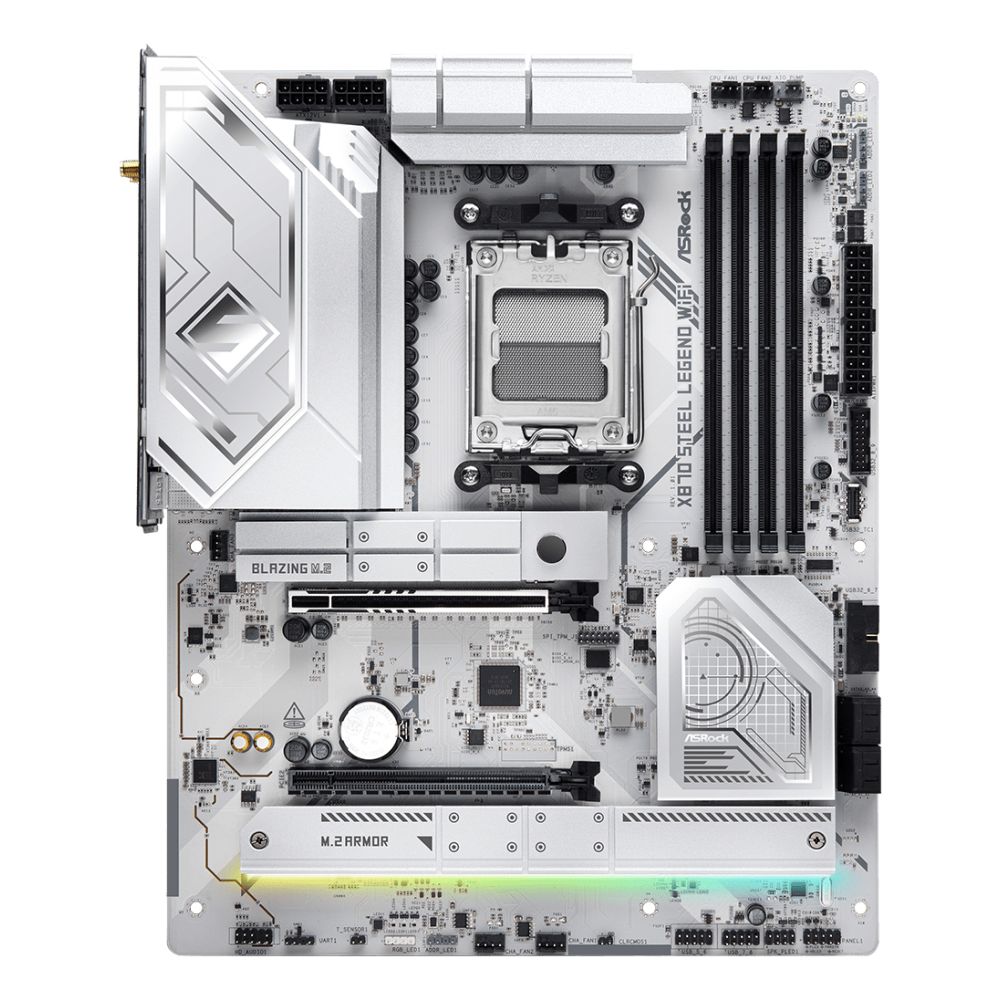

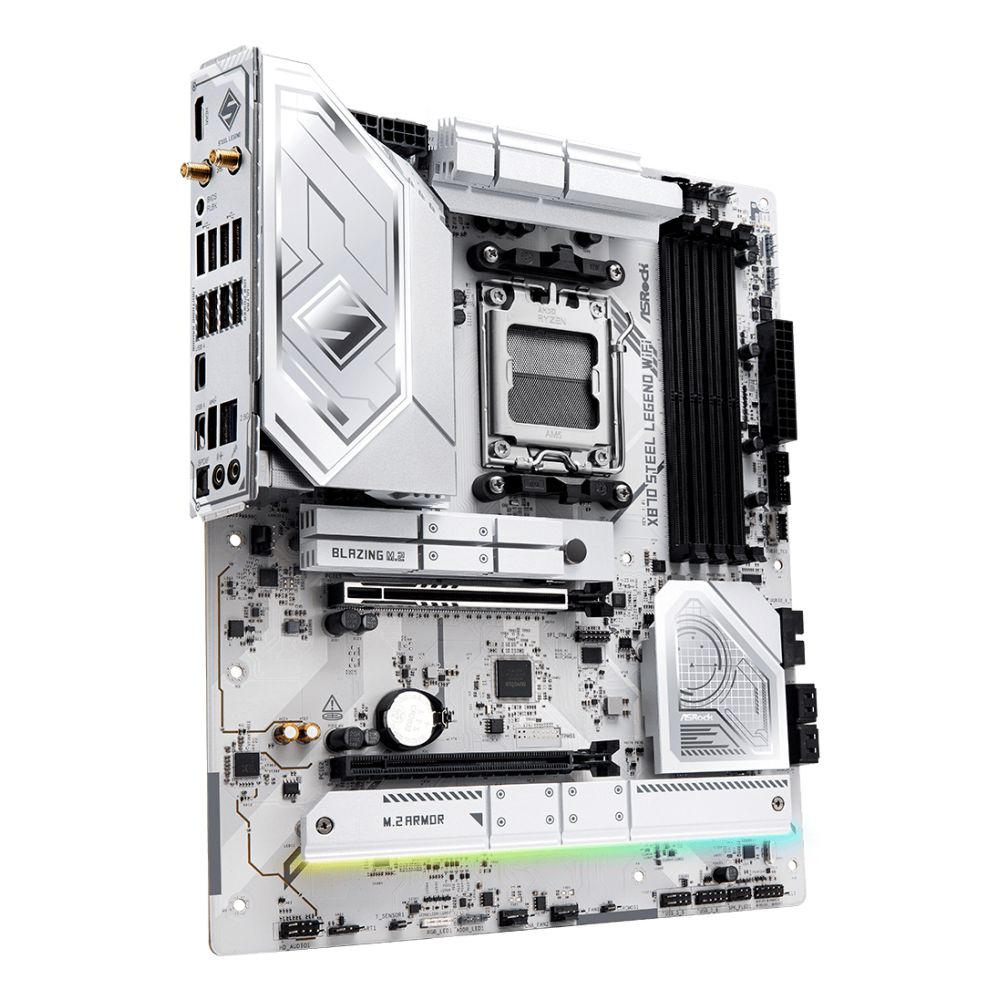

Asrock X870 Steel Legend WiFi AM5 ATX
£207.19 inc VAT
8 in stock
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- AMD X870 chipset with AM5 socket for AMD Ryzen 7 and 9 processors
- DDR5-SDRAM support with up to 256 GB memory and dual-channel architecture
- PCIe 5.0 x16 slot plus PCIe 4.0 x16 slot for high-speed graphics and storage
- 1 M.2 slot with PCIe 5.0 support for ultrafast NVMe SSDs
- Wi-Fi 7, Bluetooth 5.4, and 2.5 Gb/s Ethernet for advanced connectivity
- 7.1 channel audio, USB 3.2 Gen 2×2 Type-C, and USB4 Gen 3×2 ports
- ATX form factor with 305 x 244 mm dimensions for standard PC builds
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:
You may also like
ASRock X870 Steel Legend | AMD AM5 ATX Gaming Motherboard
The ASRock X870 Steel Legend WiFi is a high-performance AMD AM5 ATX motherboard designed for gamers and creators seeking rock-solid durability and cutting-edge connectivity. Built around the AMD X870 chipset, it delivers exceptional overclocking potential, advanced DDR5 memory support, and comprehensive storage and networking options.
Key Specifications
| Metric | Spec. |
|---|---|
| CPU Socket | AM5 |
| Memory Support | DDR5, up to 256 GB |
| PCIe Slots | 1x Gen 5, 1x Gen 4 |
| M.2 Slots | 1 |
| Wi-Fi Standard | Wi-Fi 7 (802.11be) |
| LAN Speed | 2.5 Gb/s |
| Form Factor | ATX |
14+2+1 Power Phase Design for Stable Overclocking
The Steel Legend features a robust 14+2+1 power phase design with Dr. MOS technology, delivering smooth and stable power to your CPU even under heavy overclocking loads. This ensures lower temperatures, enhanced performance, and unmatched reliability for demanding gaming and content creation workloads.
PCIe 5.0 & Blazing M.2 Storage
With PCIe 5.0 support for both graphics cards and M.2 SSDs, this motherboard offers twice the bandwidth of previous generations. The Blazing M.2 slot supports up to 128GB/s transfer speeds, ready to unleash the full potential of next-gen ultrafast NVMe SSDs for rapid game loading and massive file transfers.
Comprehensive Connectivity & Wi-Fi 7
Stay connected with Wi-Fi 7 (802.11be) for the latest wireless speeds, plus 2.5Gb/s Ethernet for lag-free online gaming and streaming. Multiple USB ports including USB4 Type-C, front panel USB 3.2 Gen2x2, and dedicated Lightning Gaming Ports ensure low-latency connections for peripherals.
Enhanced Thermal Management
An enlarged aluminum alloy M.2 heatsink and optimized aluminum heatsink design provide efficient heat dissipation to keep high-speed components cool under load. The 8-layer PCB further enhances signal stability and energy efficiency for long-lasting system performance.
Box Contents
- ASRock X870 Steel Legend WiFi motherboard
- I/O shield
- User manual
- SATA cables
- M.2 screws
- Wi-Fi antenna
- RGB extension cable
Check before you buy
- Confirm your AMD Ryzen 7000/8000/9000 series CPU is compatible with AM5 socket.
- Verify your DDR5 memory modules support XMP/EXPO for optimal performance.
- Ensure your case supports ATX form factor (305 x 244 mm).
- Check if your GPU and other PCIe devices fit with the PCIe 5.0 layout.
Frequently Asked Questions
Q: Does this motherboard support DDR5 memory?
A: Yes, it supports DDR5-SDRAM with dual-channel architecture and up to 256 GB capacity.
Q: What Wi-Fi standard is included?
A: It features Wi-Fi 7 (802.11be) for the latest wireless connectivity speeds.
Q: How many M.2 slots are available?
A: There is one M.2 slot supporting PCIe 5.0 for high-speed SSDs.
Q: Is the motherboard suitable for overclocking?
A: Yes, the 14+2+1 power phase design and Dr. MOS technology provide excellent overclocking stability.
Q: What LAN speed does it offer?
A: It includes a 2.5Gb/s Realtek RTL8125-BG Ethernet controller.
The Consultant’s verdict & warranty
The ASRock X870 Steel Legend WiFi is an excellent choice for UK gamers and creators wanting a durable, high-performance AMD AM5 motherboard with future-proof connectivity and robust overclocking capabilities. Its Steel Legend design combines reliability with stylish aesthetics. Covered by the standard Manufacturer Warranty.
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 3 |
| Front panel audio connector | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| Technical details | |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X870 |
| Motherboard form factor | ATX |
| Component for | PC |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X870 |
| RAID levels | 0, 1, 10 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen™ 7, AMD Ryzen™ 9 |
| Processor socket | Socket AM5 |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Maximum internal memory | 256 GB |
| ECC сompatibility | ECC & Non-ECC |
| Storage controllers | |
| RAID levels | 0, 1, 10 |
| RAID support | Yes |

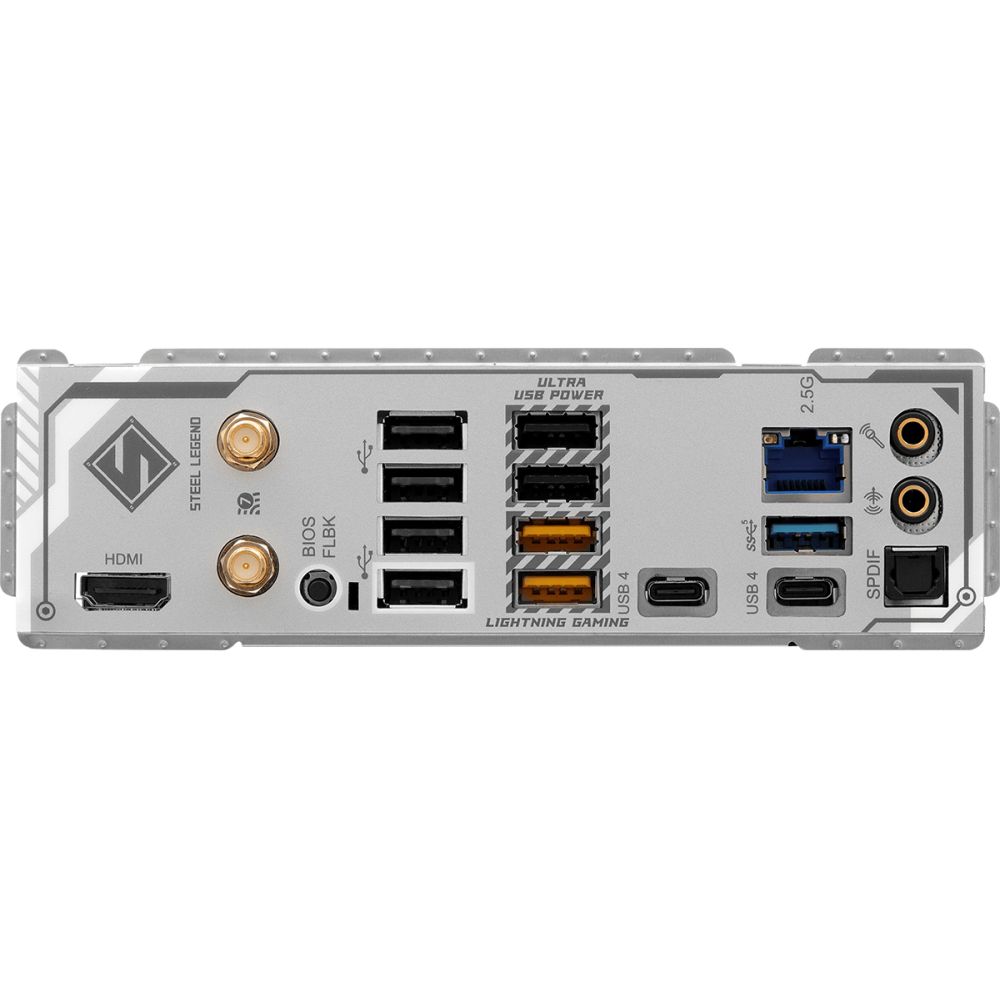

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 4 |
| S/PDIF out port | Yes |
| Microphone in | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB4 Gen 3x2 ports quantity | 4 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 7 (802.11be) |
| LAN controller | Realtek RTL8125-BG |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Features | |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X870 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Expansion slots | |
| Number of M.2 (M) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Software | |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Weight & dimensions | |
| Width | 305 mm |
| Depth | 244 mm |
