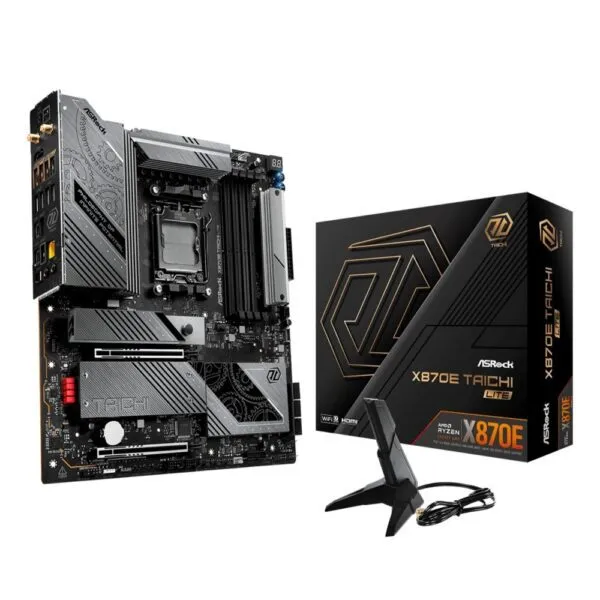

ASRock X870E TAICHI AM5 Motherboard E-ATX DDR5 5GbE Wi-Fi 7
£419.70 inc VAT
29 in stock
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- ASRock X870E TAICHI AM5 motherboard
- Supports AMD Ryzen 9000, 8000 and 7000 series processors
- 24+2+1 phase power design with 110A SPS
- 4 x DDR5 DIMMs, dual channel up to 8200+ (OC)
- E-ATX form factor with 2 PCIe 5.0 x16 slots
- 5GbE LAN and Wi-Fi 7 + Bluetooth
- 2 x USB4 Type-C, 1 x HDMI output
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:

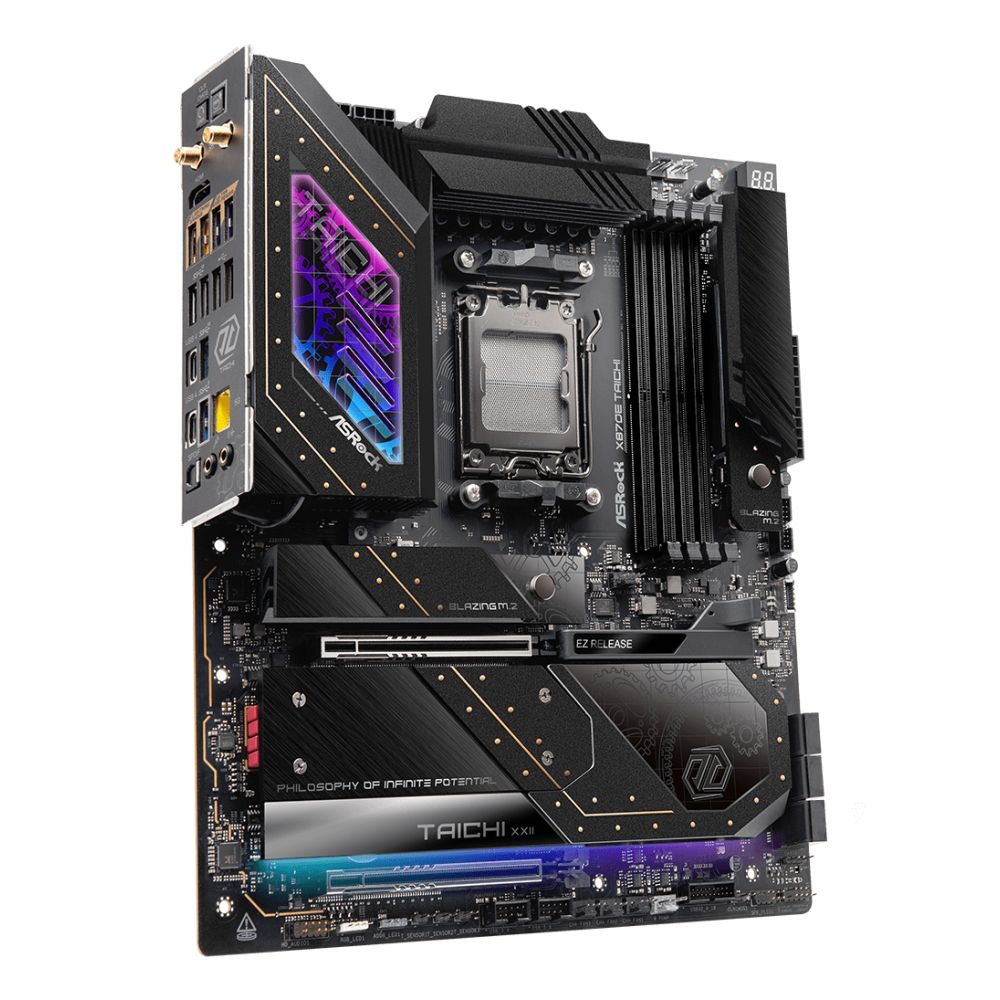

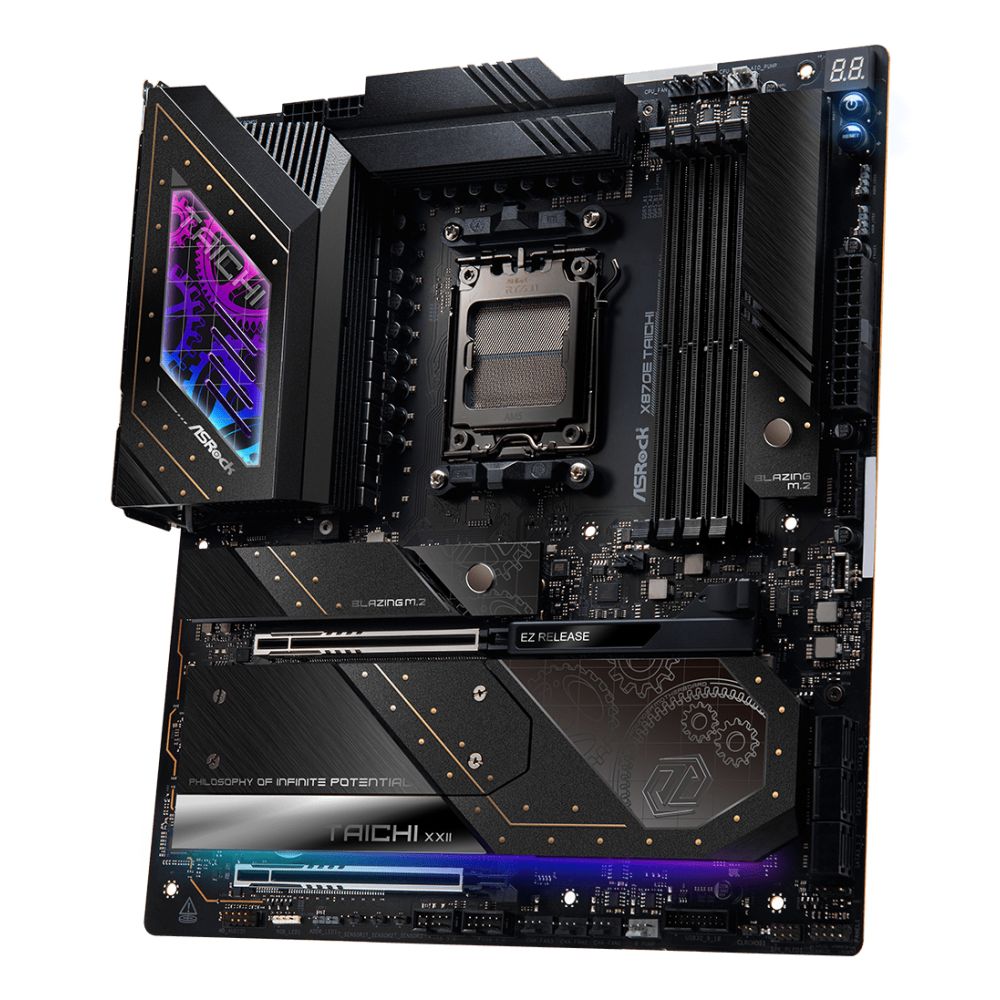

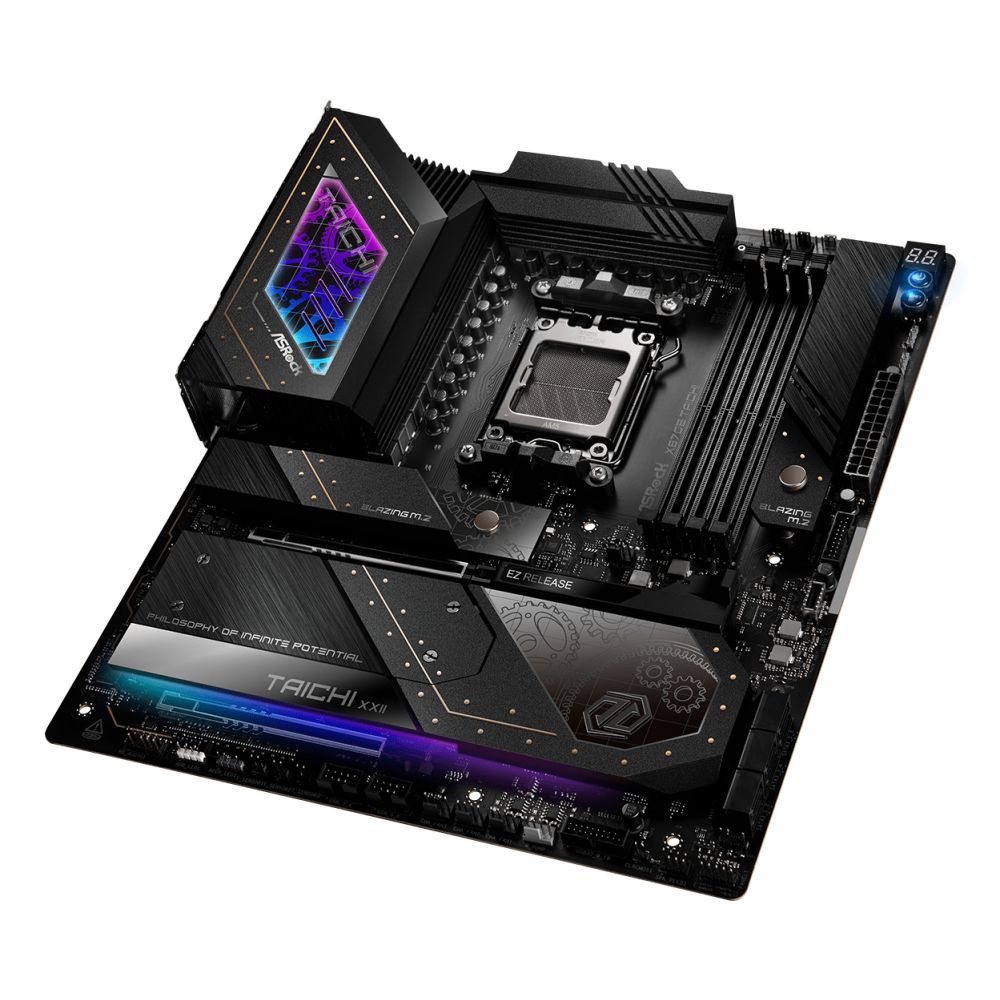

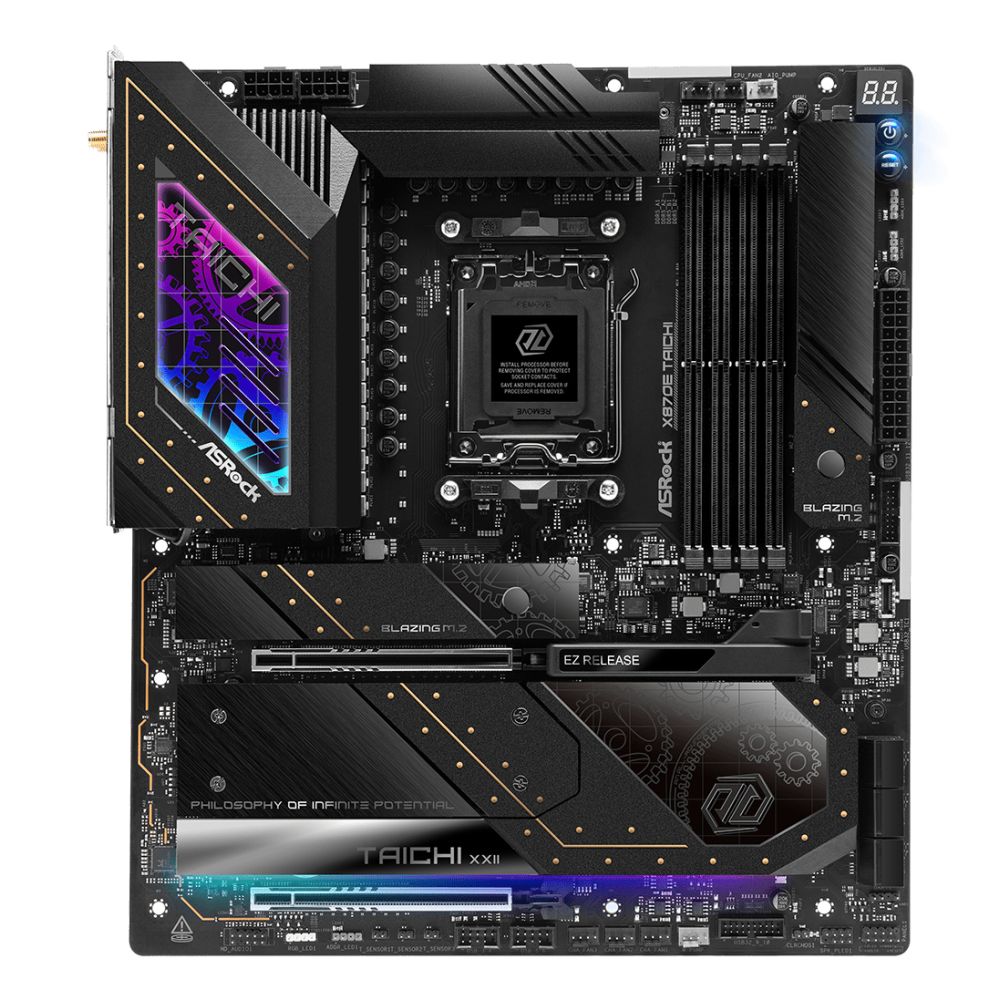

ASRock X870E TAICHI | AMD AM5 E-ATX Powerhouse
The ASRock X870E TAICHI AMD AM5 Socket Motherboard delivers elite performance for high-end AMD Ryzen™ 9000, 8000, and 7000 series processors. With PCIe 5.0 graphics support, four DDR5 slots, and blazing-fast M.2 storage, this E-ATX board is built for enthusiasts demanding maximum speed, connectivity, and durability.
Key Specifications
| Metric | Spec |
|---|---|
| Form Factor | E-ATX (12.0″ x 10.5″) |
| CPU Socket | AMD AM5 |
| Memory | 4x DDR5, up to 256GB, 8200+ OC |
| Storage | 4x M.2 (1x Gen5, 3x Gen4), 6x SATA |
| Expansion | 2x PCIe 5.0 x16 |
| Network | 5GbE + Wi-Fi 7 (802.11be) |
| Audio | Realtek ALC4082 + ESS SABRE9219 DAC |
PCIe 5.0 Graphics & Storage Ready
Two PCIe 5.0 x16 slots support the latest graphics cards at full x16 bandwidth with Ryzen™ 9000 and 7000 series CPUs, ensuring maximum gaming and content creation performance. The dedicated Blazing M.2 slot delivers PCIe Gen5x4 speeds for ultra-fast NVMe SSDs, while three additional Hyper M.2 sockets provide flexible Gen4 storage expansion.
DDR5 Memory Performance & Stability
Four DDR5 DIMM slots support up to 256GB of high-speed memory, with overclocking potential up to 8200+ MHz when paired with EXPO or XMP profiles. Dual-channel architecture and robust power delivery ensure rock-solid stability during intensive workloads or extended gaming sessions.
Advanced Connectivity & I/O
Lightning-fast 5GbE LAN and Wi-Fi 7 (802.11be) deliver multi-gigabit wired and wireless networking for lag-free streaming and downloads. Two USB4 Type-C ports offer 40 Gb/s speeds, while a mix of USB 3.2 Gen2 and Gen1 ports cover all peripheral needs. HDMI 2.1 and rear panel audio with ESS SABRE9219 DAC ensure premium multimedia output.
Rock-Solid Durability & Cooling
A 24+2+1 phase power design with 110A SPS delivers clean, stable power to the CPU and VRM. Server-grade low-loss PCB, enlarged heatsink armor, and high-quality conductive polymer capacitors provide long-term reliability. Smart fan headers with auto-detection support both 3-pin and 4-pin cooling solutions for optimal thermal management.

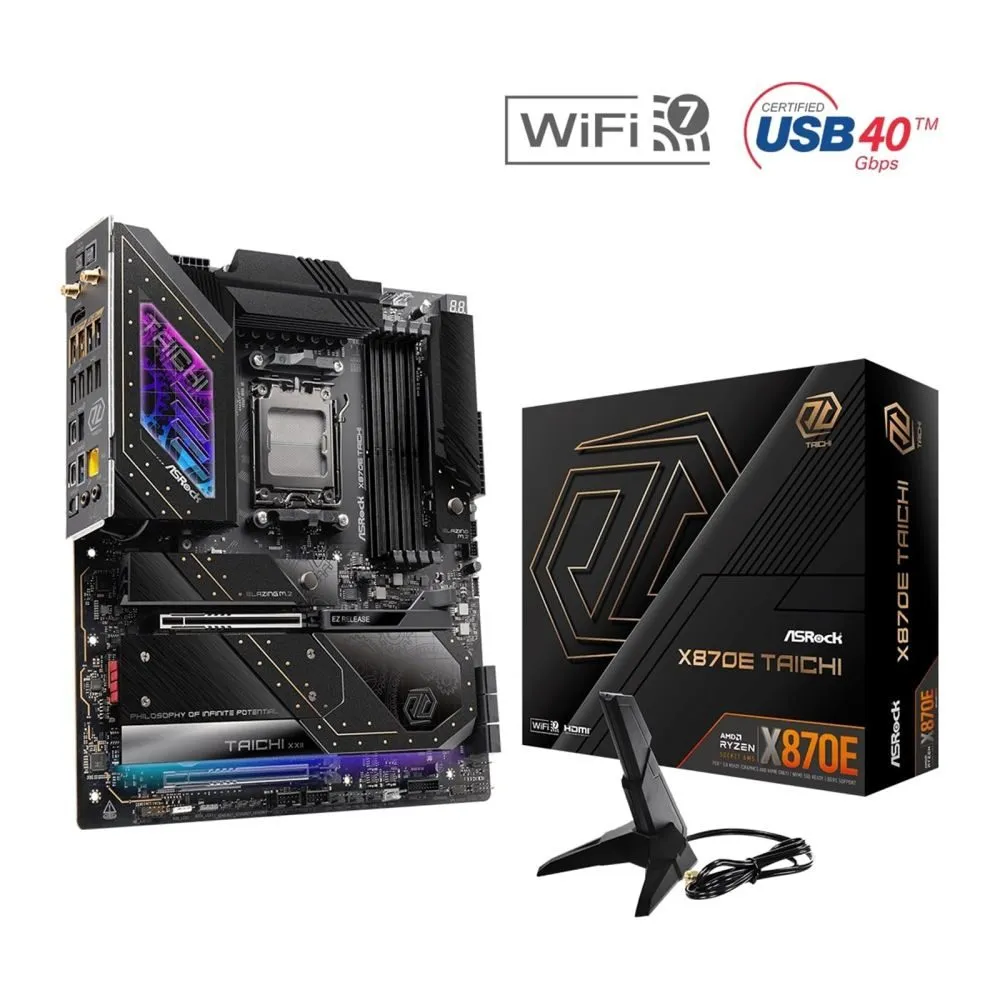

Box Contents
- ASRock X870E TAICHI motherboard
- 4 x SATA data cables
- 1 x ASRock Wi-Fi 2.4/5/6 GHz antenna
- 1 x ARGB splitter cable
- 3 x thermistor cables
Check Before You Buy
- Confirm your CPU is an AMD Ryzen™ 9000, 8000, or 7000 series with AM5 socket.
- Verify your case supports E-ATX (12.0″ x 10.5″) dimensions.
- Check Wi-Fi 7 driver compatibility (Windows 11 only).
- Ensure your PSU has the required 24-pin and dual 8-pin CPU power connectors.
Frequently Asked Questions
Q: Does this motherboard support PCIe 5.0 graphics cards?
A: Yes, it has two PCIe 5.0 x16 slots that run at x16 or x8/x8 modes depending on CPU and configuration.
Q: What is the maximum memory capacity?
A: The board supports up to 256GB of DDR5 memory across four DIMM slots.
Q: Is Wi-Fi 7 included?
A: Yes, it includes an 802.11be Wi-Fi 7 module with Bluetooth 5.4 support.
Q: Can I use this with Ryzen 7000 series CPUs?
A: Yes, it supports Ryzen 9000, 8000, and 7000 series processors on the AM5 socket.
Q: Are there any M.2 heatsinks included?
A: Yes, the board features a toolless multi-layer M.2 heatsink and a dedicated bottom M.2 heatsink.
The Consultant’s Verdict & Warranty
The ASRock X870E TAICHI is a top-tier choice for enthusiasts and professionals seeking maximum performance from AMD’s AM5 platform. With PCIe 5.0, DDR5, Wi-Fi 7, and premium audio, it delivers future-proof connectivity and rock-solid reliability. Covered by the standard Manufacturer Warranty.
| Weight | 2.85 kg |
|---|---|
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Processor socket | Socket AM5 |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed max | 8200 MHz |
| ECC сompatibility | ECC & Non-ECC |
| Supported storage drive types | HDD & SSD |
| RAID levels | 1, 10 |
| RAID support | Yes |
| 12V power connector | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 3.1 Gen 1 connectors | 2 |
| Number of SATA III connectors | 6 |
| Number of chassis fan connectors | 4 |
| Front panel audio connector | Yes |
| EPS power connector 8-pin | Yes |
| CPU fan connector | Yes |
| ATX Power connector 24-pin | Yes |
| RGB LED pin header | Yes |
| USB 3.2 Gen 2x2 connectors | 1 |
| Number of CPU fan connectors | 2 |
| USB 3.2 Gen 1 3.1 Gen 1 Type-A ports quantity | 3 |
| USB 3.2 Gen 2 3.1 Gen 2 Type-A ports quantity | 5 |
| USB 2.0 ports quantity | 2 |
| S/PDIF out port | Yes |
| Microphone in | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN RJ-45 ports | 1 |
| USB4 Gen 3x2 ports quantity | 2 |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| LAN controller | Realtek RTL8126 |
| Ethernet interface type | 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X870E |
| Audio output channels | 5.1 channels |
| Motherboard form factor | Extended ATX |
| Component for | PC |
| Audio chip | Realtek ALC4082 |
| Product colour | Multicolour |
| PCI Express x16 Gen 5.x slots | 2 |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Clear CMOS button | Yes |
| HDCP | Yes |
| Certification | – FCC, CE – ErP/EuP ready |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Width | 305 mm |
| Depth | 267 mm |
| Antenna included | Yes |
