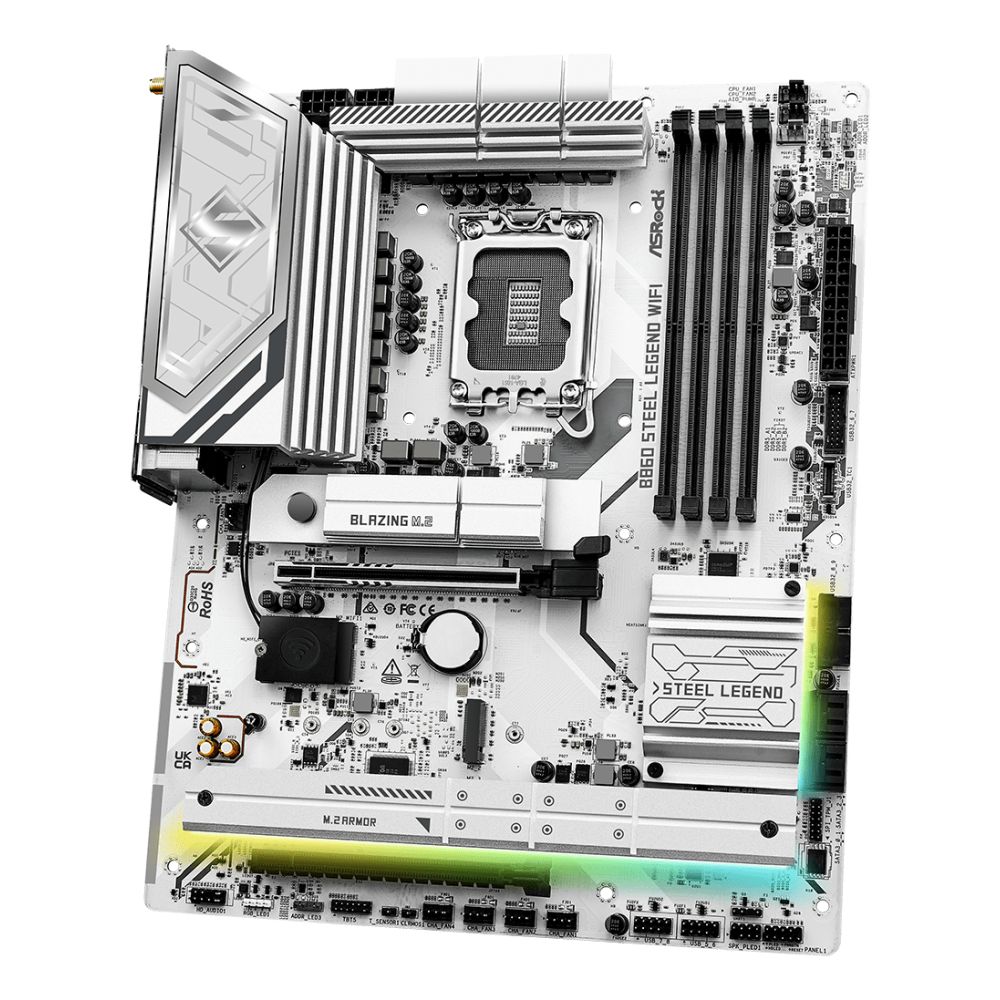

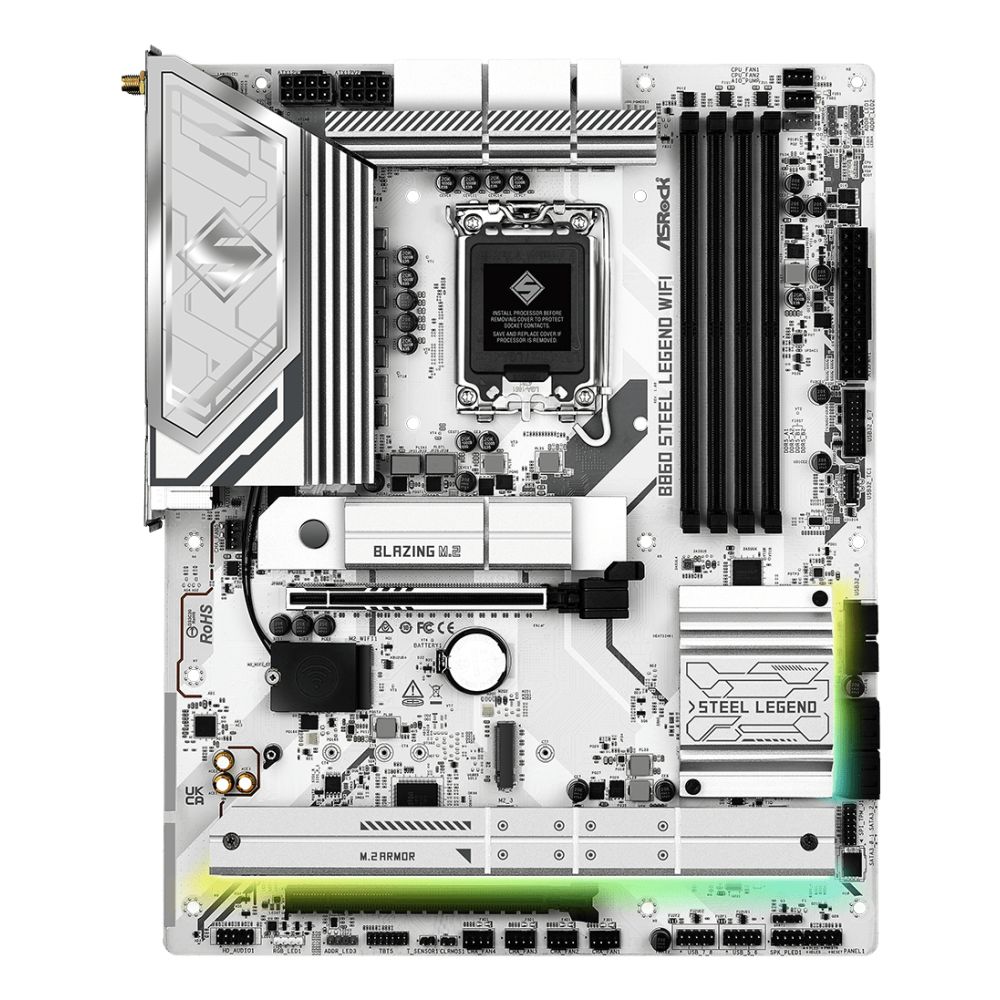

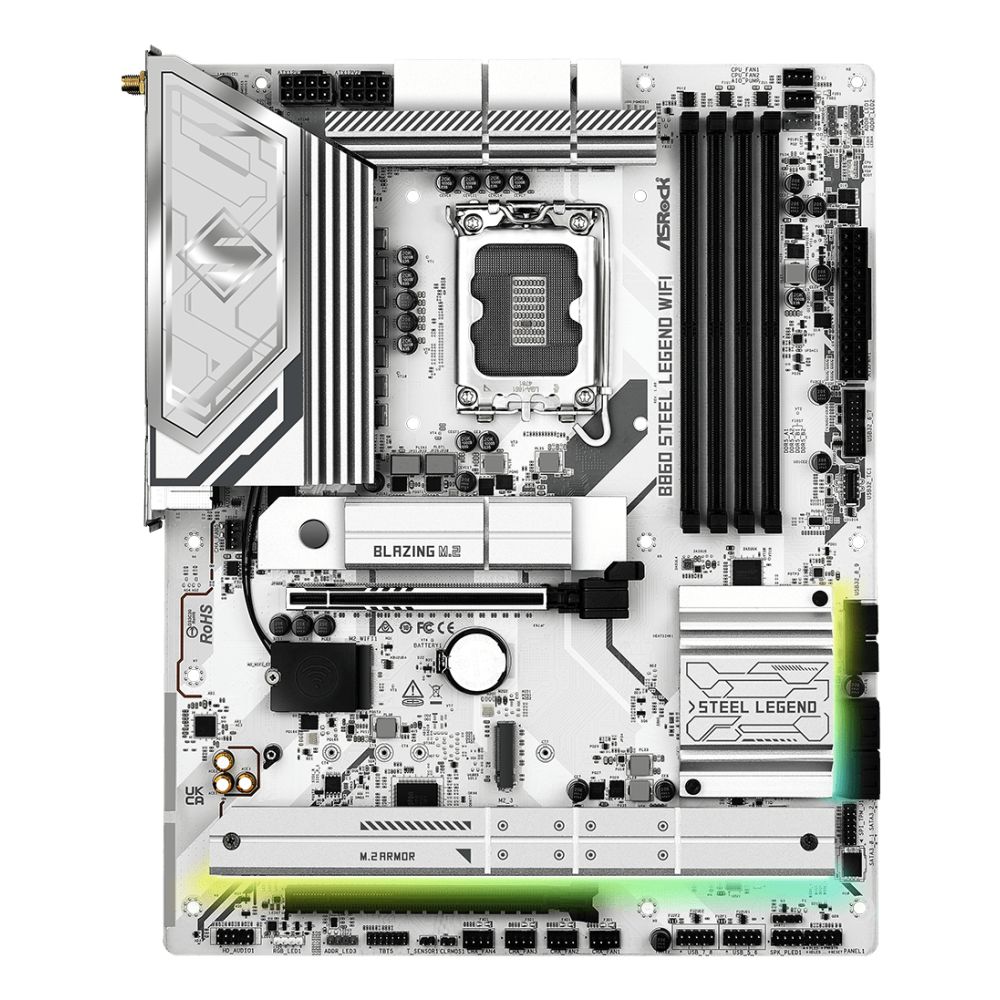

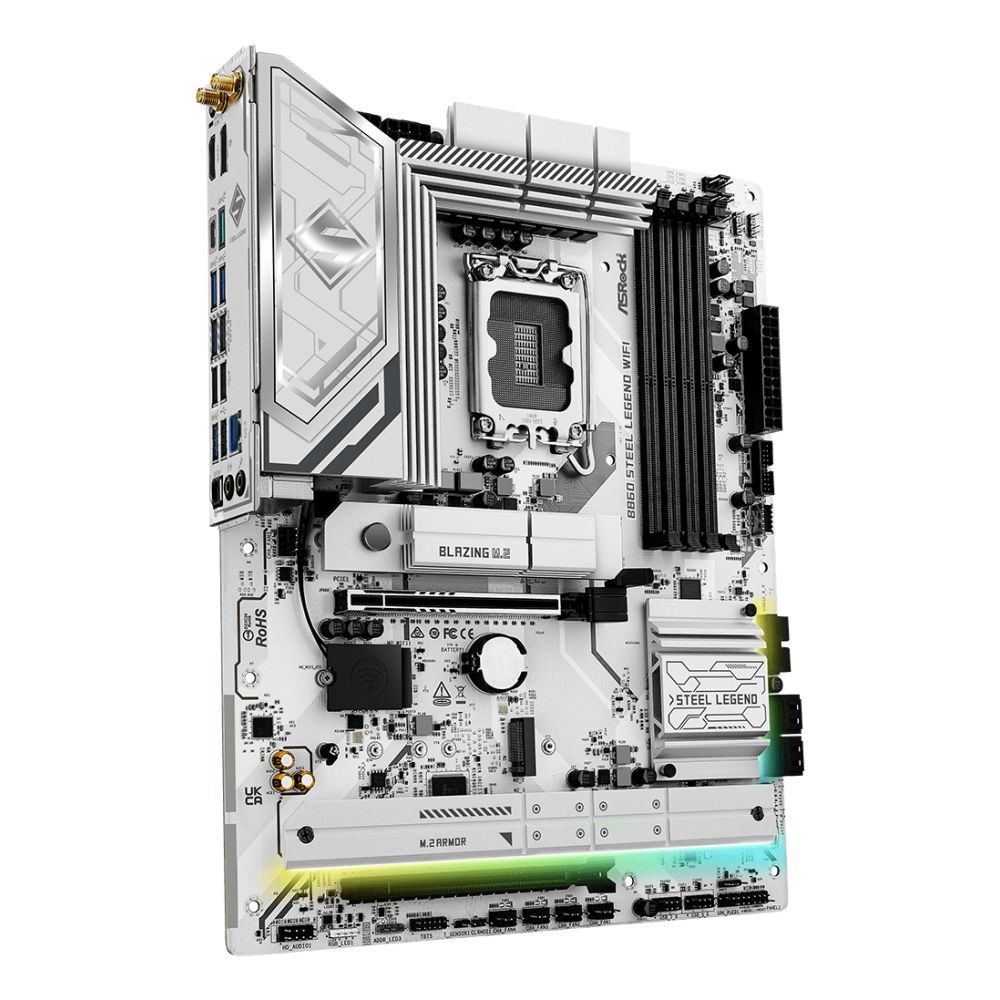

Asrock B860 Steel Legend WiFi ATX Motherboard
£162.28 inc VAT
8 in stock
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- Intel B860 chipset with LGA 1851 socket for Intel Core Ultra (Series 2) processors
- ATX form factor with 14+1+1 power phase design and 20K capacitor for enhanced stability
- Four M.2 slots supporting PCIe 4.0/5.0 and SATA III storage interfaces
- Wi-Fi 6E, Bluetooth 5.3, and 2.5Gb Ethernet for advanced connectivity
- Supports up to 256GB DDR5 memory in dual-channel configuration
- 7.1 channel audio with Realtek ALC1220 codec and Nahimic Audio enhancement
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:
You may also like
ASRock B860 Steel Legend WiFi | Intel B860 ATX Motherboard
The Asrock B860 Steel Legend WiFi Intel B860 LGA 1851 (Socket V1) ATX is a feature-rich ATX motherboard built for Intel Core Ultra (Series 2) processors on the LGA 1851 socket. Designed for enthusiasts seeking robust performance, advanced connectivity, and striking aesthetics, this board delivers next-gen capabilities including DDR5 memory support, PCIe 5.0, and Wi-Fi 6E.
Key Specifications
| Metric | Spec |
|---|---|
| Processor Support | Intel Core Ultra (Series 2) LGA 1851 |
| Memory | 4x DIMM DDR5, up to 256 GB, dual-channel |
| Storage | 4x M.2 (Gen5 + Gen4), 4x SATA III, RAID 0/1/5/10 |
| Expansion | 2x PCIe x16 (1x Gen5, 1x Gen4) |
| Network | 2.5Gb LAN, Wi-Fi 6E, Bluetooth 5.3 |
| Audio | 7.1-channel Realtek ALC1220 with Nahimic |
| USB Ports | 4x USB 3.2 Gen1, 2x USB 3.2 Gen2, 1x Type-C Gen2x2 |
Optimized VRM Design for Stable Overclocking
Engineered with a 14+1+1 power phase design and Dr. MOS technology, the motherboard delivers smooth, high-current power delivery to the CPU. The upgraded 20K Black capacitors (1000µF) improve capacitance, reduce ripple, and maintain stable output under heavy loads. Combined with 2oz copper PCB and Hi-Density Power Connectors, this ensures lower temperatures and enhanced durability during overclocking sessions.
High-Speed Storage and Memory Performance
This board supports the latest DDR5 memory with XMP/EXPO profiles for easy overclocking, offering up to 256 GB across four DIMM slots. Four M.2 slots include one PCIe 5.0 capable “Blazing M.2” for ultra-fast SSDs (up to 128 Gb/s) and three PCIe 4.0 slots for additional high-speed storage. SATA III ports and RAID support provide flexible storage configurations for gamers and creators.
Advanced Cooling and DIY-Friendly Features
A comprehensive cooling solution includes an enlarged aluminum heatsink, PWM/DC fan support, and a thermistor header for custom thermal management. The Fan-Tastic Tuning feature auto-detects fan minimum duty for quieter operation. Toolless M.2 heatsink designs, anti-drop screws, and an enlarged graphics card latch simplify installation and upgrades.
Next-Gen Connectivity and Audio
Equipped with Wi-Fi 6E (802.11ax) and Bluetooth 5.3, the motherboard ensures fast, low-latency wireless connections. The Dragon RTL8125BG 2.5Gb LAN delivers stable wired performance. Audio is powered by Realtek ALC1220 with Nahimic software, offering immersive 7.1 surround sound, noise cancellation, and voice stabilization for clear communication.

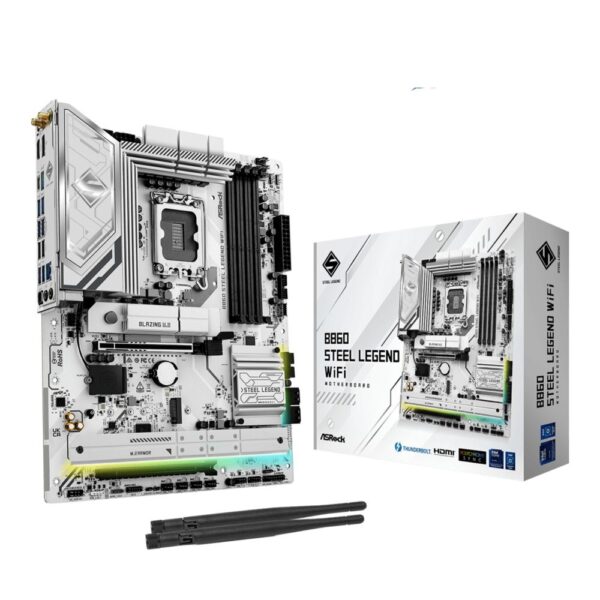

Box Contents
- ASRock B860 Steel Legend WiFi motherboard
- I/O shield
- SATA cables (quantity not specified)
- Wi-Fi antennas
- User manual and driver/software disc
Check Before You Buy
- Confirm your Intel Core Ultra (Series 2) processor is LGA 1851 compatible
- Verify DDR5 memory modules support XMP/EXPO for overclocking
- Ensure your chassis fits ATX (305 x 244 mm) and has adequate cooling
- Check that your power supply provides sufficient PCIe and CPU power connectors
Frequently Asked Questions
Q: Does this motherboard support Intel 12th or 13th Gen CPUs?
A: No, it only supports Intel Core Ultra (Series 2) processors on the LGA 1851 socket.
Q: How many M.2 SSDs can I install?
A: Four M.2 slots are available: one PCIe 5.0 and three PCIe 4.0.
Q: Is Wi-Fi 6E included?
A: Yes, the motherboard has onboard Wi-Fi 6E with dual antennas.
Q: Can I overclock memory on this board?
A: Yes, DDR5 XMP/AMD EXPO profiles are supported for easy memory overclocking.
Q: What audio features are included?
A: It features Realtek ALC1220 codec with Nahimic audio software for 7.1 surround and enhanced voice clarity.
The Consultant’s Verdict & Warranty
The ASRock B860 Steel Legend WiFi is ideal for users building a high-performance Intel Core Ultra (Series 2) system who want advanced storage, strong connectivity, and striking aesthetics. Its robust VRM design, PCIe 5.0 support, and comprehensive cooling make it a reliable foundation for gaming and content creation. Covered by the standard Manufacturer Warranty.
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 4 |
| 12V power connector | Yes |
| Supported storage drive interfaces | PCI Express 4.0, PCI Express 5.0, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| TPM connector | Yes |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 5 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| USB 3.2 Gen 2x2 connectors | 1 |
| Number of CPU fan connectors | 2 |
| Number of EPS power connectors (8-pin) | 2 |
| Number of water pump connectors | 1 |
| Number of RGB LED pin headers | 1 |
| Technical details | |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B860 |
| Supported processor sockets | LGA 1851 |
| Parallel processing technology support | Not supported |
| HDMI version | 2.1 |
| Motherboard form factor | ATX |
| Component for | PC |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 11 x64 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B860 |
| RAID levels | 0, 1, 5, 10 |
| Supported processor sockets | LGA 1851 |
| Certification | FCC, CE, ErP/EuP |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Supported processor sockets | LGA 1851 |
| Processor socket | LGA 1851 (Socket V1) |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
| ECC сompatibility | Non-ECC |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | PCI Express 4.0, PCI Express 5.0, SATA III |
| RAID levels | 0, 1, 5, 10 |
| Number of storage drives supported | 8 |
| RAID support | Yes |
| Graphics | |
| Parallel processing technology support | Not supported |
| Maximum resolution | 7680 x 4320 pixels |
| HDCP | Yes |

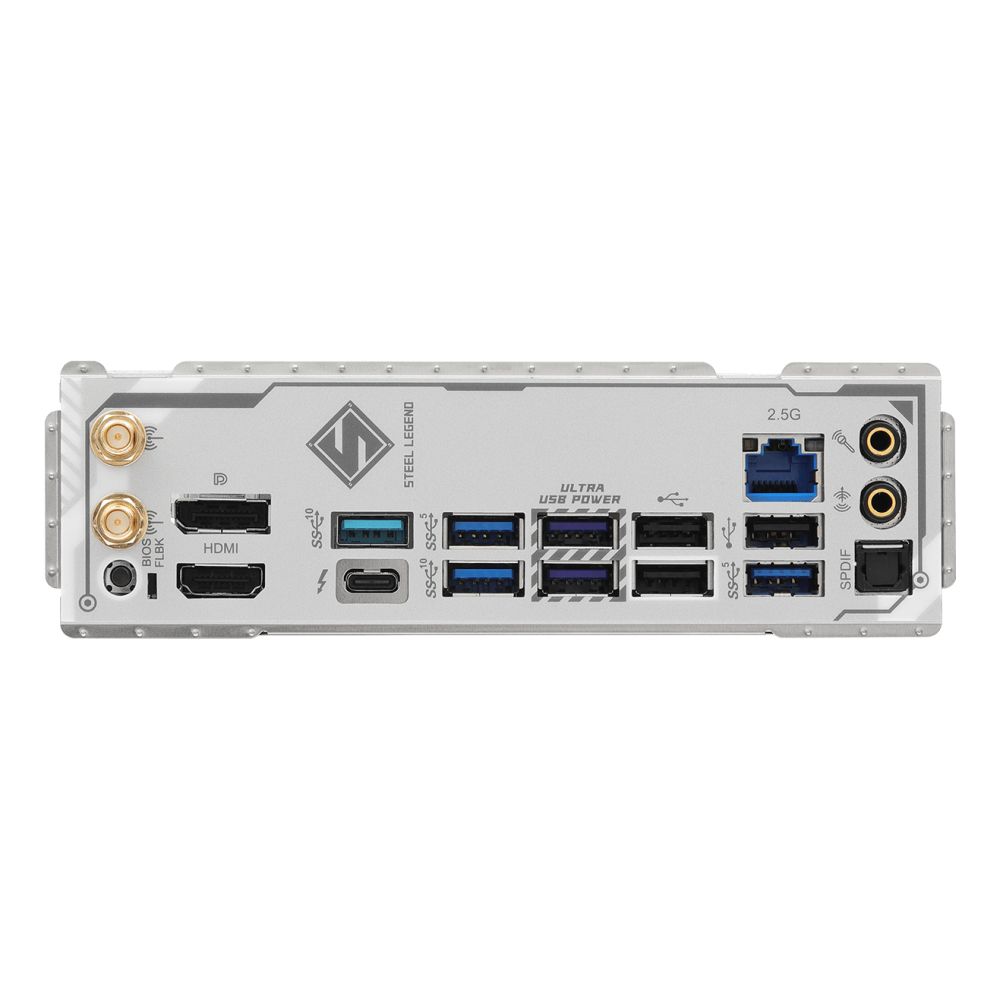

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| DisplayPort version | 1.4 |
| USB connector type | USB Type-A, USB Type-C |
| USB 2.0 ports quantity | 3 |
| WiFi-AP antenna jack | 2 |
| Thunderbolt ports quantity | 1 |
| S/PDIF out port | Yes |
| Microphone in | Yes |
| Headphone outputs | 1 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 1 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| LAN controller | Dragon RTL8125BG |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Features | |
| Windows operating systems supported | Windows 11 x64 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B860 |
| Supported processor sockets | LGA 1851 |
| Certification | FCC, CE, ErP/EuP |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Audio chip | Realtek ALC1220 |
| Product colour | White |
| Expansion slots | |
| Number of M.2 (M) slots | 4 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| 4th M.2 largest key size | 2280 |
| 4th M.2 highest PCI Express generation | 4.0 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Video | |
| Maximum resolution | 7680 x 4320 pixels |
| HDCP | Yes |
| Certificates | |
| Certification | FCC, CE, ErP/EuP |
| Software | |
| Windows operating systems supported | Windows 11 x64 |
| Weight & dimensions | |
| Width | 305 mm |
| Depth | 244 mm |
| Packaging content | |
| Cables included | SATA |
| Antenna included | Yes |
| Identifiers | |
| Distributor SKUs | 90-MXBR3-A0UAYZ, 548218, B860STLLNDWIFI |
