GIGABYTE B550M DS3H R2 Motherboard – AMD Ryzen 5000, DDR4, PCIe 4.0 M.2
£77.28 inc VAT
Out of stock
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- AMD B550 chipset for AMD Ryzen 5000 CPUs
- Micro ATX form factor with 4 DDR4 memory slots up to 128GB
- 2 M.2 slots (PCIe 4.0 + PCIe 3.0) and 4 SATA III connectors
- 1GbE LAN, Realtek ALC1220-VB audio, 7.1 channel support
- Passive cooling design with 3-year warranty
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:

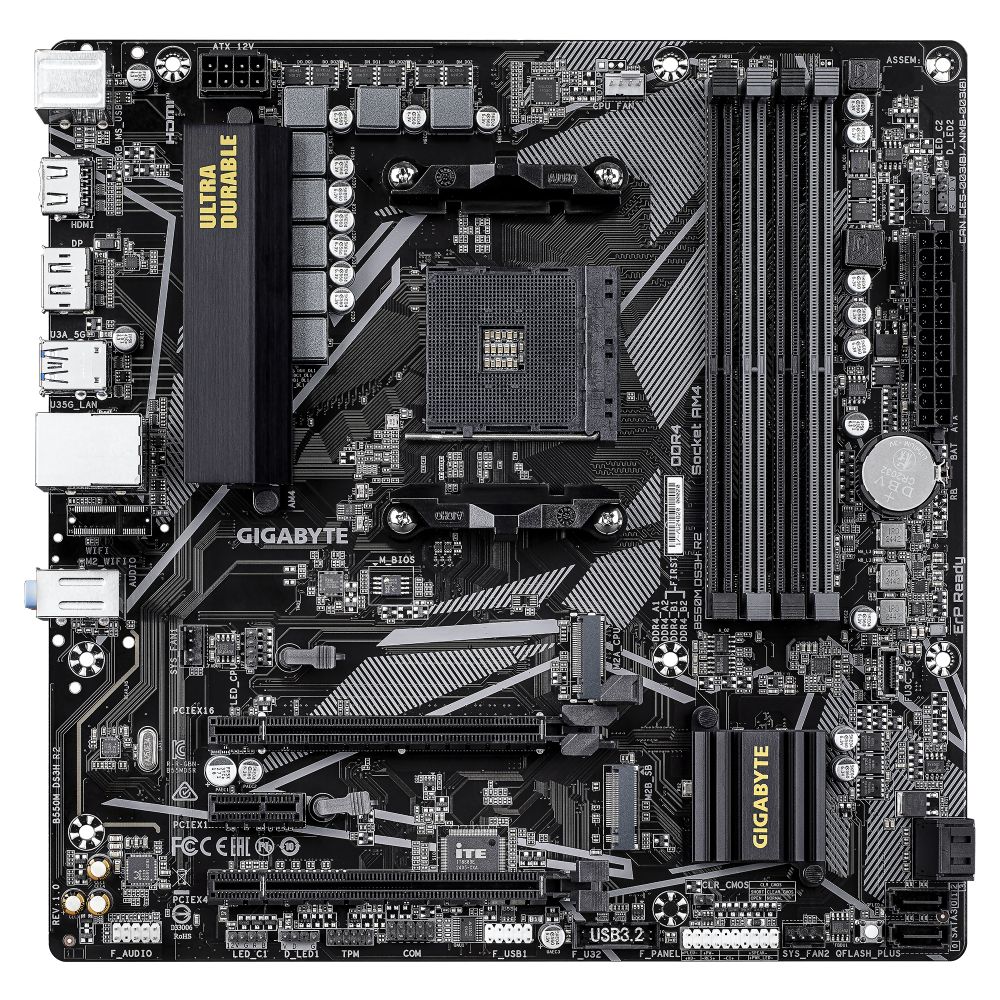

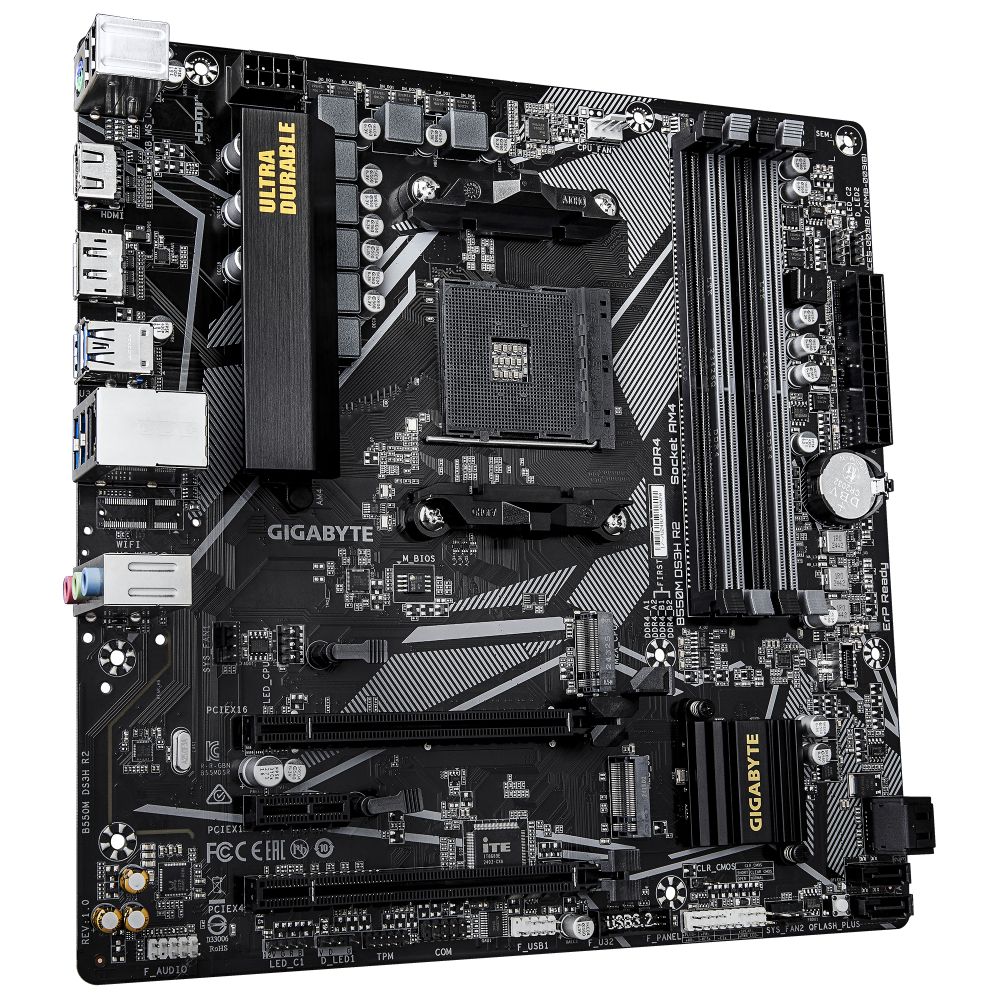

GIGABYTE B550M DS3H R2 | AMD Ryzen 5000 Ready Micro-ATX Motherboard
The GIGABYTE B550M DS3H R2 motherboard delivers a compact micro-ATX form factor with full support for AMD Ryzen 5000 series processors, making it an ideal choice for space-conscious builders seeking robust performance and future-ready connectivity.
Key Specifications
| Metric | Spec. |
|---|---|
| CPU Support | AMD Ryzen 3000/4000/5000 series |
| Memory Support | DDR4, up to 4733MHz (OC), 128GB max |
| M.2 Slots | 2 (1x PCIe 4.0, 1x PCIe 3.0) |
| Form Factor | Micro-ATX |
| Network | 1GbE LAN |
| USB Ports | 4x USB 3.2 Gen 1, 2x USB 2.0 |
PCIe 4.0 Storage for Faster Load Times
The B550M DS3H R2 features one PCIe 4.0 M.2 slot capable of delivering up to 64Gb/s bandwidth, significantly reducing game and application load times compared to SATA SSDs. The second M.2 slot supports PCIe 3.0 storage, giving you flexibility for dual-drive setups.
Enhanced Power Delivery for Ryzen 5000
With a 5+3 phase VRM design, this motherboard provides stable power delivery for AMD Ryzen 5000 processors during intensive workloads. The robust power architecture helps maintain consistent performance during gaming marathons or content creation tasks.
Comprehensive I/O and Connectivity

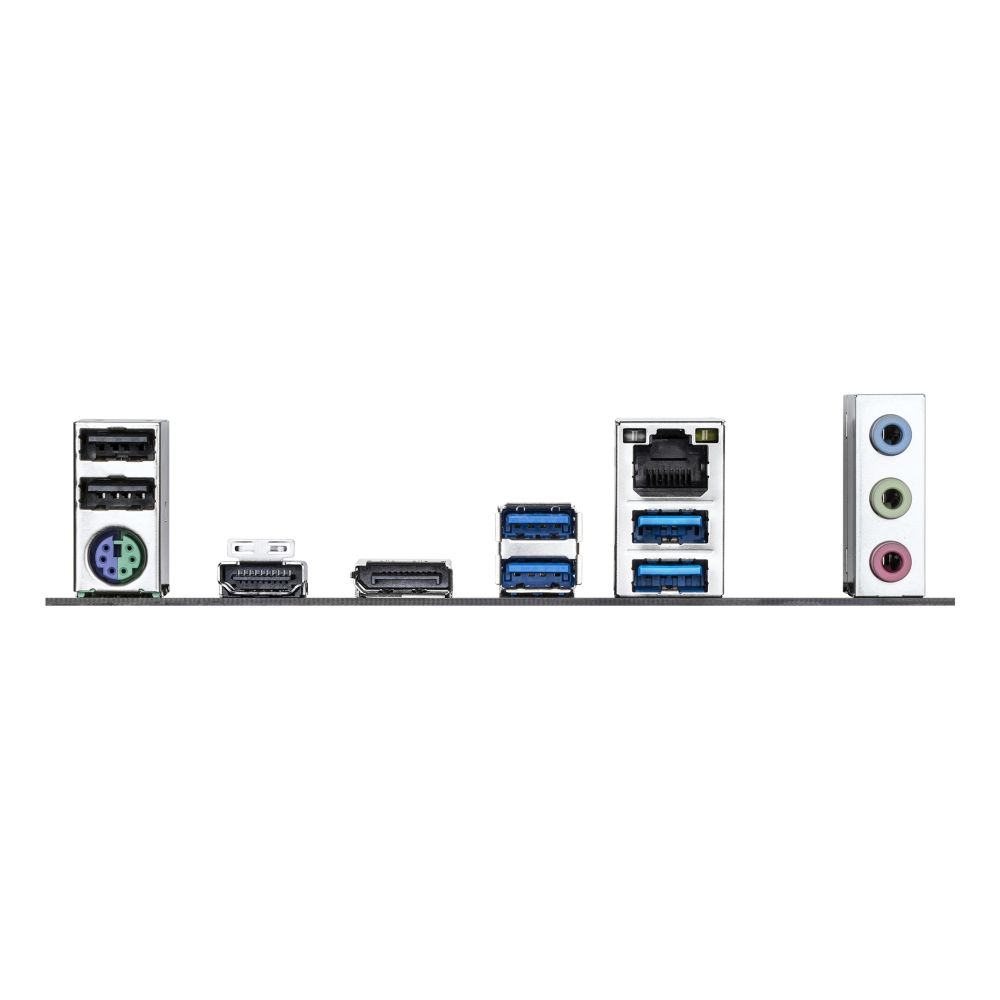

The rear I/O panel includes HDMI 2.1 with support for 4K 60Hz output, DisplayPort 1.4, and a full suite of USB ports including four USB 3.2 Gen 1 Type-A ports for high-speed peripherals. The 1GbE LAN ensures reliable wired connectivity for online gaming and streaming.
Advanced Cooling and System Monitoring
Passive cooling design keeps the motherboard running quietly while maintaining optimal temperatures. Built-in PC health monitoring tracks fan speeds, system temperature, and voltage levels, giving you complete oversight of your system’s performance and stability.

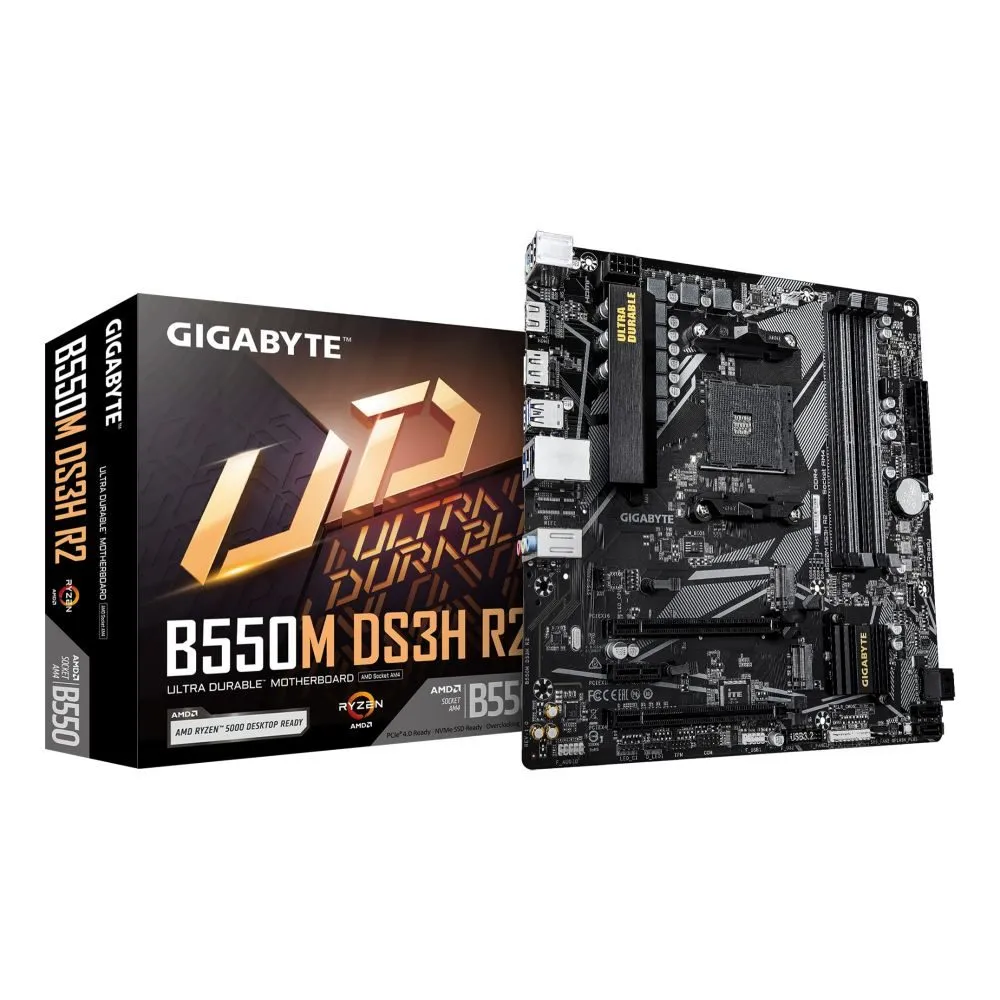

Box contents
- GIGABYTE B550M DS3H R2 motherboard
- I/O shield
- Motherboard drivers disk
- 4x SATA cables
- User manual
- Warranty registration card
- Screws for M.2 installation
Check before you buy
- Confirm your CPU is from the AMD Ryzen 3000/4000/5000 series for full compatibility
- Verify your case supports micro-ATX motherboards (244mm x 244mm)
- Check that your power supply has the required 24-pin ATX and 8-pin EPS connectors
- Ensure your RAM is DDR4 and compatible with the motherboard’s memory speeds
Frequently Asked Questions
Q: Does this motherboard support PCIe 5.0 graphics cards?
A: No, it supports PCIe 3.0 x16 for the primary graphics slot, which is compatible with all modern graphics cards.
Q: Can I use this motherboard for a compact gaming PC?
A: Yes, the micro-ATX form factor makes it ideal for smaller cases while maintaining full gaming performance.
Q: What is the maximum RAM capacity?
A: The motherboard supports up to 128GB of DDR4 memory across four DIMM slots.
Q: Does it have built-in Wi-Fi?
A: No, this model does not include Wi-Fi. You’ll need a Wi-Fi adapter for wireless connectivity.
Q: Is BIOS updating required for Ryzen 5000 processors?
A: Some Ryzen 5000 CPUs may require a BIOS update. Check the manufacturer’s website for the latest BIOS version.
The Consultant’s verdict & warranty
The GIGABYTE B550M DS3H R2 offers excellent value for budget-conscious builders seeking AMD Ryzen 5000 compatibility in a compact form factor. With PCIe 4.0 storage support, robust power delivery, and comprehensive connectivity options, it delivers reliable performance for gaming and productivity tasks. Covered by the standard Manufacturer Warranty.
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 2 |
| Front panel connector | Yes |
| Supported storage drive interfaces | M.2, PCI Express 3.0, PCI Express 4.0, SATA III |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| TPM connector | Yes |
| Serial port headers | 1 |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 2 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| Number of CPU fan connectors | 1 |
| Number of EPS power connectors (8-pin) | 1 |
| Number of RGB LED pin headers | 5 |
| Technical details | |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B550 |
| Supported processor sockets | Socket AM4 |
| Serial port headers | 1 |
| PC health monitoring | Fan, Temperature, Voltage |
| Parallel processing technology support | Not supported |
| HDMI version | 2.1 |
| Cooling type | Passive |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Warranty period | 3 year(s) |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B550 |
| RAID levels | 0, 1, 10 |
| Supported processor sockets | Socket AM4 |
| PC health monitoring | Fan, Temperature, Voltage |
| Cooling type | Passive |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series |
| Supported processor sockets | Socket AM4 |
| Processor socket | Socket AM4 |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 4733,4600,4400,4266,4133,4000,3866,3733,3600,3466,3400,3200,2933,2667,2400,2133 MHz |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed (max) | 4733 MHz |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory per slot | 32 GB |
| Storage controllers | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express 3.0, PCI Express 4.0, SATA III |
| RAID levels | 0, 1, 10 |
| Number of storage drives supported | 6 |
| RAID support | Yes |
| Graphics | |
| Parallel processing technology support | Not supported |
| Maximum resolution | 5120 x 2880 pixels |
| HDCP | Yes |
| DirectX version | 12.0 |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| DisplayPort version | 1.4 |
| USB 2.0 ports quantity | 2 |
| PS/2 ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 1 |
| Line-in | Yes |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| LAN controller | Realtek RTL8111H |
| Ethernet interface type | Gigabit Ethernet |
| Features | |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B550 |
| Supported processor sockets | Socket AM4 |
| PC health monitoring | Fan, Temperature, Voltage |
| Cooling type | Passive |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Audio chip | Realtek ALC1220-VB |
| Product colour | Dark brown |
| Expansion slots | |
| Number of M.2 (M) slots | 2 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 3.0 |
| BIOS | |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| BIOS memory size | 128 Mbit |
| ACPI version | 5.0 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Desktop Management Interface (DMI) version | 2.7 |
| Power | |
| Power source type | ATX |
| Video | |
| Maximum resolution | 5120 x 2880 pixels |
| HDCP | Yes |
| DirectX version | 12.0 |
| Packaging data | |
| Package width | 265 mm |
| Package depth | 265 mm |
| Package height | 54 mm |
| Package weight | 947 g |
| Software | |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Battery | |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Lithium weight per battery | 0.07 g |
| Battery type | CR2032 |
| Logistics data | |
| Products per shipping (inner) case | 1 pc(s) |
| Weight & dimensions | |
| Height | 35 mm |
| Package width | 265 mm |
| Package depth | 265 mm |
| Package height | 54 mm |
| Package weight | 947 g |
| Weight | 870 g |
| Width | 244 mm |
| Depth | 244 mm |
| Packaging content | |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Batteries included | Yes |
| Screws included | Yes |
| Other features | |
| Height | 35 mm |
| Package width | 265 mm |
| Package depth | 265 mm |
| Package height | 54 mm |
| Package weight | 947 g |
| Weight | 870 g |
