GIGABYTE B550M GAMING X WIFI6 Motherboard
£99.16 inc VAT
Out of stock
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- AMD B550 chipset with AM4 socket for Ryzen 5000 CPUs
- 5+3 phase VRM design for stable power delivery
- Dual M.2 slots with PCIe 4.0 and 3.0 support
- Built-in Wi-Fi 6 and 1GbE LAN for fast connectivity
- micro ATX form factor with 4 DIMM slots up to 128GB DDR4
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:

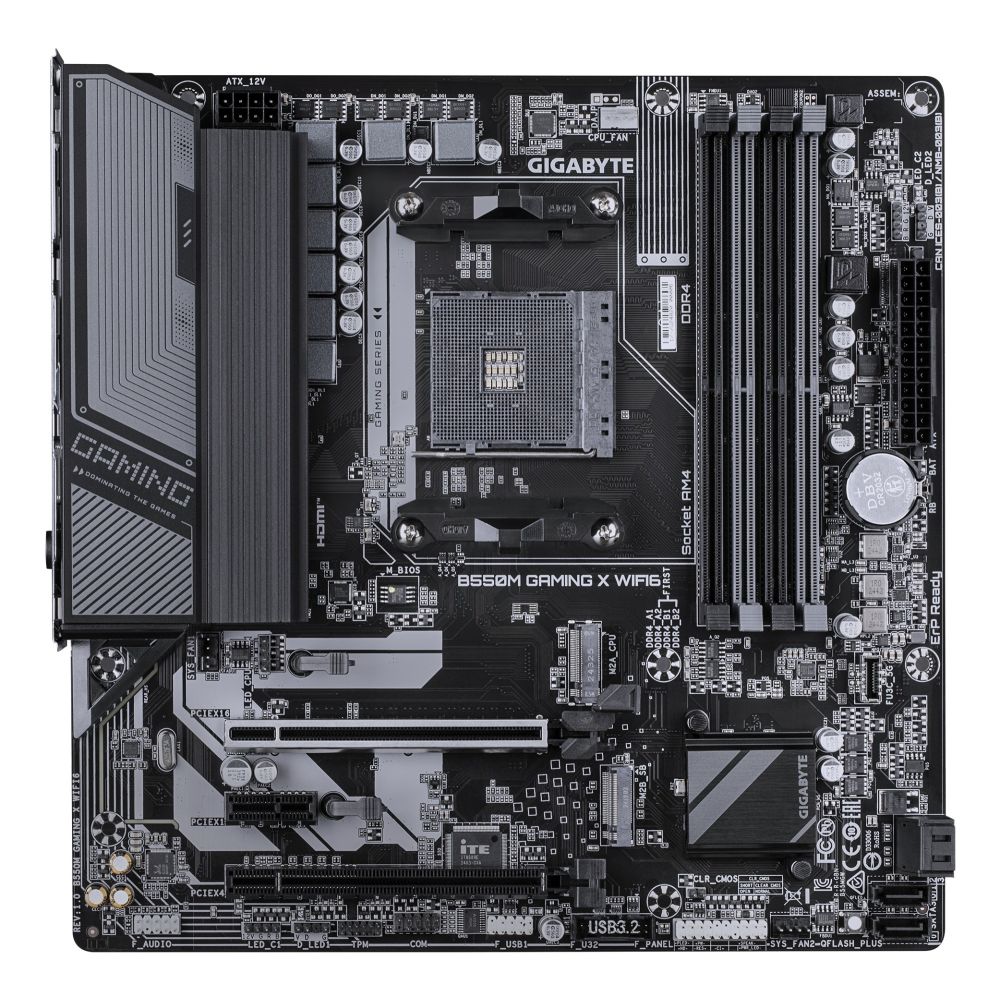

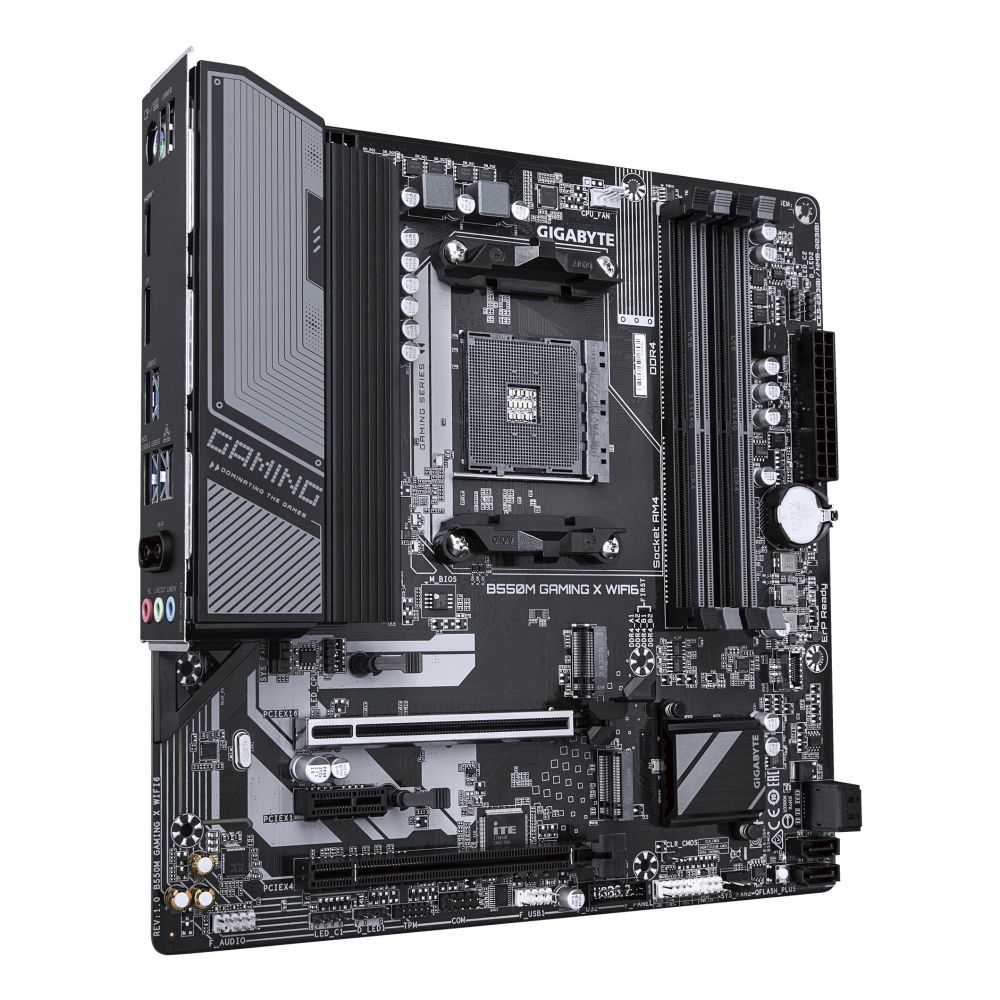

GIGABYTE B550M GAMING X WIFI6 | Compact Performance Motherboard
The GIGABYTE B550M GAMING X WIFI6 motherboard delivers robust performance for AMD Ryzen 5000 CPUs in a space-efficient micro ATX form factor. With its 5+3 phase VRM design, dual M.2 slots, and integrated Wi-Fi 6 connectivity, this board balances gaming capability with everyday computing needs.
Slim Specs Table
| Metric | Spec |
|---|---|
| CPU Support | AMD Ryzen 3000/4000/5000 Series |
| Memory Support | DDR4, up to 3200MHz, 128GB max |
| M.2 Slots | 2 (1 PCIe 4.0, 1 PCIe 3.0) |
| Wi-Fi | Wi-Fi 6 (802.11ax) + Bluetooth 5.3 |
| Form Factor | micro ATX |
Ryzen 5000 Ready with Robust Power Delivery
The B550M GAMING X WIFI6 features a 5+3 phase VRM design that provides stable power delivery for AMD Ryzen 5000 processors. This power architecture ensures consistent performance during demanding workloads and gaming sessions. The motherboard supports processors from the entire Ryzen 3000, 4000, and 5000 series, making it a versatile choice for various performance needs.
Dual M.2 Storage with PCIe 4.0 Speed
Storage performance reaches new heights with two M.2 slots supporting both PCIe 3.0 and 4.0 interfaces. The primary M.2 slot delivers PCIe 4.0 speeds for ultra-fast NVMe SSDs, while the secondary slot provides additional storage expansion via PCIe 3.0. This configuration allows for rapid game loading, quick file transfers, and responsive system boot times.
Comprehensive Connectivity Suite
Modern connectivity needs are met with Wi-Fi 6 (802.11ax) and Bluetooth 5.3 for wireless performance, complemented by a 1GbE LAN port for wired stability. The motherboard includes four USB 3.2 Gen 1 ports, HDMI 2.1 output supporting 4K resolution, and DisplayPort 1.4 for flexible display options. Audio is handled by the Realtek ALC1220-VB codec delivering 7.1 channel surround sound.
Compact Design with Expandability
The micro ATX form factor (244mm x 244mm) fits in smaller cases while maintaining expandability. One PCIe 4.0 x16 slot accommodates high-performance graphics cards, while an additional PCIe 3.0 x16 slot provides flexibility for other expansion cards. The board includes five RGB LED headers for customizable lighting and comprehensive fan control with multiple headers.

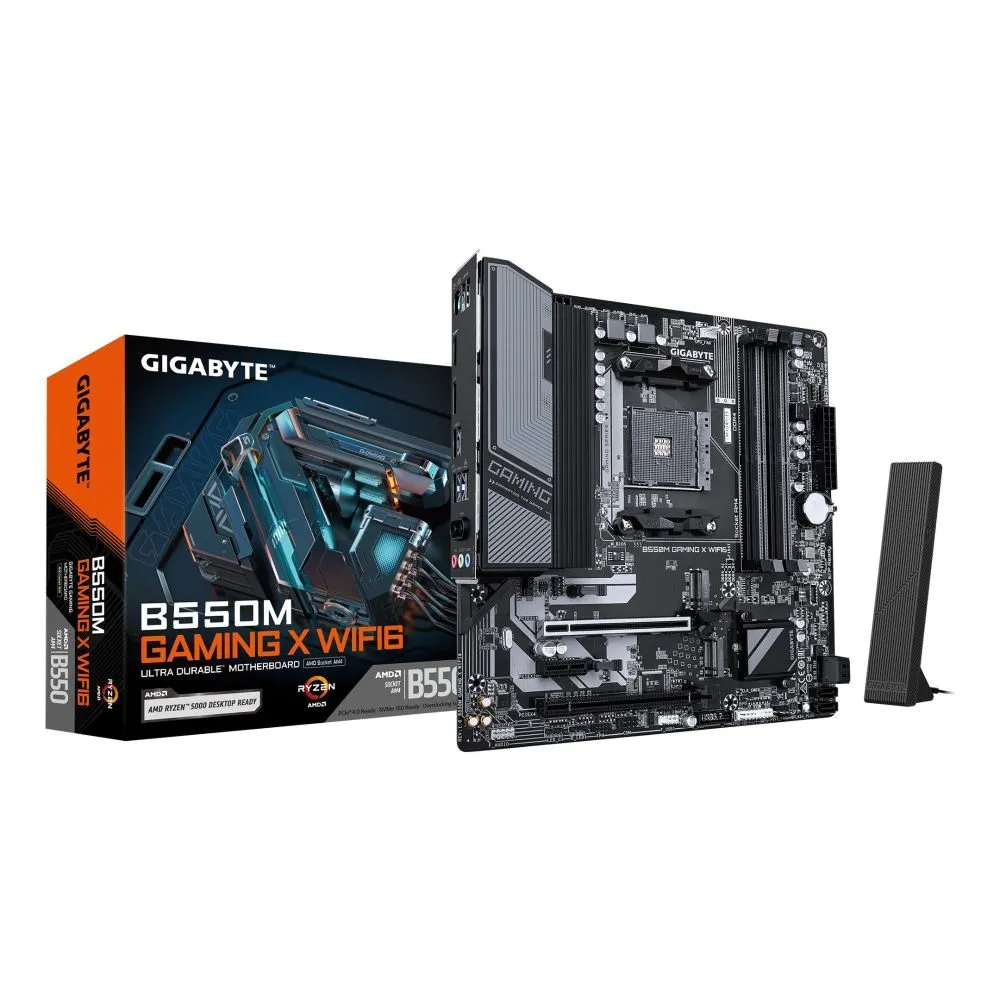

Box contents
- GIGABYTE B550M GAMING X WIFI6 motherboard
- I/O shield
- User manual
- Driver disk
- SATA cables
- Wi-Fi antennas
- M.2 screws
- CMOS battery
- Warranty card
Check before you buy
- Confirm your CPU is from AMD Ryzen 3000/4000/5000 series
- Verify your case supports micro ATX motherboards (244mm x 244mm)
- Check that your power supply has the required 24-pin ATX and 8-pin EPS connectors
- Confirm your CPU cooler is compatible with the AM4 socket
Frequently Asked Questions
Q: Does this motherboard support overclocking?
A: Yes, the B550M GAMING X WIFI6 supports memory overclocking up to 3200MHz and CPU overclocking for compatible Ryzen processors.
Q: What type of memory does this motherboard support?
A: It supports DDR4 memory with four DIMM slots, supporting up to 128GB total at speeds up to 3200MHz.
Q: Can I use a PCIe 4.0 SSD in both M.2 slots?
A: No, only the primary M.2 slot supports PCIe 4.0. The secondary slot supports PCIe 3.0 speeds.
Q: Does this motherboard have built-in Wi-Fi?
A: Yes, it includes Wi-Fi 6 (802.11ax) and Bluetooth 5.3 connectivity with included antennas.
Q: What is the maximum supported resolution?
A: The motherboard supports up to 5120 x 2880 pixels via HDMI 2.1 and DisplayPort 1.4 outputs.
The Consultant’s verdict & warranty
The GIGABYTE B550M GAMING X WIFI6 offers excellent value for users building compact systems with AMD Ryzen processors. Its combination of PCIe 4.0 storage, Wi-Fi 6 connectivity, and robust power delivery makes it suitable for both gaming and productivity tasks. Covered by the standard Manufacturer Warranty.
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 2 |
| Front panel connector | Yes |
| Supported storage drive interfaces | M.2, PCI Express 3.0, PCI Express 4.0, SATA III |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| TPM connector | Yes |
| Serial port headers | 1 |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 2 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| Number of CPU fan connectors | 1 |
| Number of EPS power connectors (8-pin) | 1 |
| Number of RGB LED pin headers | 5 |
| Technical details | |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B550 |
| Supported processor sockets | Socket AM4 |
| Serial port headers | 1 |
| PC health monitoring | Fan, Temperature, Voltage |
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| HDMI version | 2.1 |
| Cooling type | Passive |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Warranty period | 3 year(s) |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B550 |
| RAID levels | 0, 1, 10 |
| Supported processor sockets | Socket AM4 |
| PC health monitoring | Fan, Temperature, Voltage |
| Cooling type | Passive |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 3000 Series, AMD Ryzen 4000 Series, AMD Ryzen 5000 Series |
| Supported processor sockets | Socket AM4 |
| Processor socket | Socket AM4 |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 2133,2400,2667,2933,3200 MHz |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed (max) | 3200 MHz |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory per slot | 32 GB |
| Storage controllers | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express 3.0, PCI Express 4.0, SATA III |
| RAID levels | 0, 1, 10 |
| Number of storage drives supported | 6 |
| RAID support | Yes |
| Graphics | |
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| Maximum resolution | 5120 x 2880 pixels |
| HDCP | Yes |
| DirectX version | 12.0 |

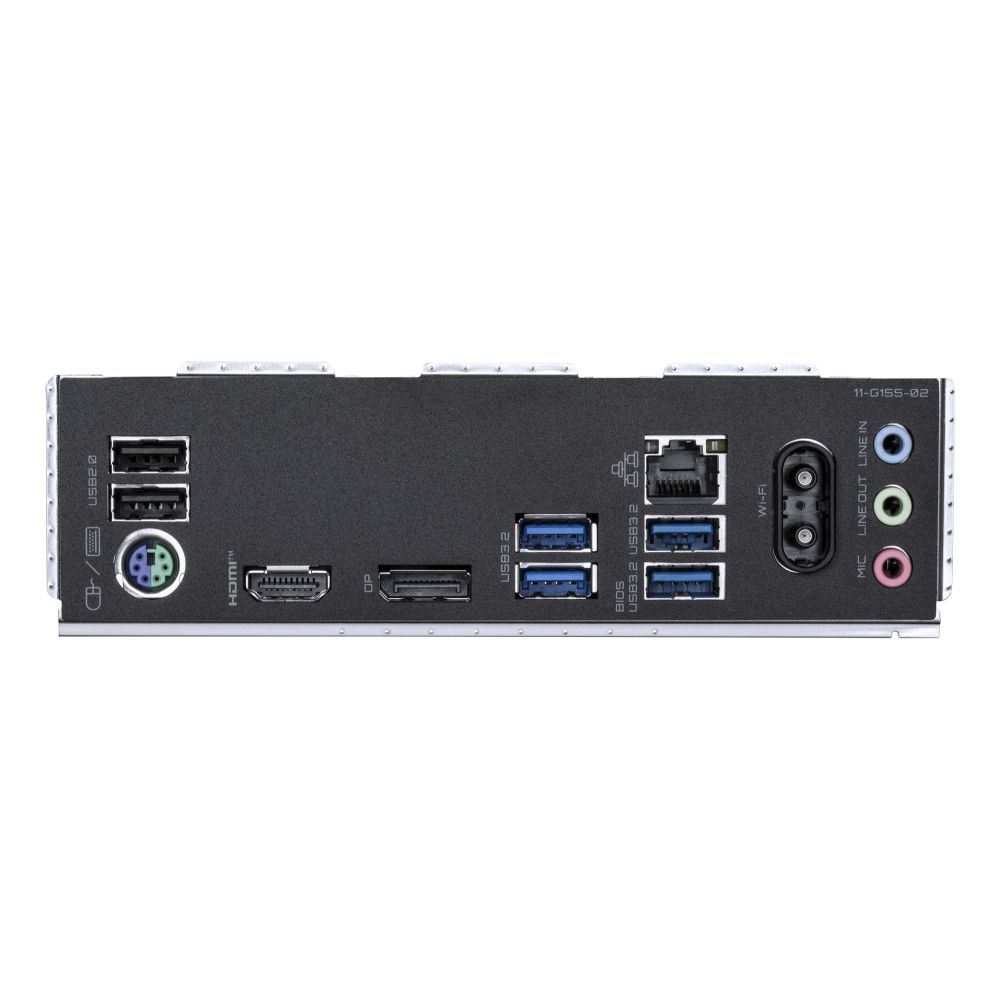

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| DisplayPort version | 1.4 |
| USB 2.0 ports quantity | 2 |
| WiFi-AP antenna jack | 2 |
| PS/2 ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 1 |
| Line-in | Yes |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| LAN controller | Realtek RTL8111H |
| Ethernet interface type | Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN controller model | Realtek RTL8851BE |
| Features | |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B550 |
| Supported processor sockets | Socket AM4 |
| PC health monitoring | Fan, Temperature, Voltage |
| Cooling type | Passive |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Audio chip | Realtek ALC1220-VB |
| Product colour | Dark brown |
| Expansion slots | |
| Number of M.2 (M) slots | 2 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 3.0 |
| BIOS | |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| BIOS memory size | 128 Mbit |
| ACPI version | 5.0 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Desktop Management Interface (DMI) version | 2.7 |
| Power | |
| Power source type | ATX |
| Video | |
| Maximum resolution | 5120 x 2880 pixels |
| HDCP | Yes |
| DirectX version | 12.0 |
| Packaging data | |
| Package width | 270 mm |
| Package depth | 268 mm |
| Package height | 68 mm |
| Package weight | 1.24 kg |
| Software | |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Battery | |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Lithium weight per battery | 0.07 g |
| Battery type | CR2032 |
| Logistics data | |
| Products per shipping (inner) case | 1 pc(s) |
| Weight & dimensions | |
| Height | 35 mm |
| Package width | 270 mm |
| Package depth | 268 mm |
| Package height | 68 mm |
| Package weight | 1.24 kg |
| Weight | 1.14 kg |
| Width | 244 mm |
| Depth | 244 mm |
| Packaging content | |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Batteries included | Yes |
| Screws included | Yes |
| Antenna included | Yes |
| Other features | |
| Height | 35 mm |
| Package width | 270 mm |
| Package depth | 268 mm |
| Package height | 68 mm |
| Package weight | 1.24 kg |
| Weight | 1.14 kg |
| Identifiers | |
| Additional EANs | 0889523048740 |
