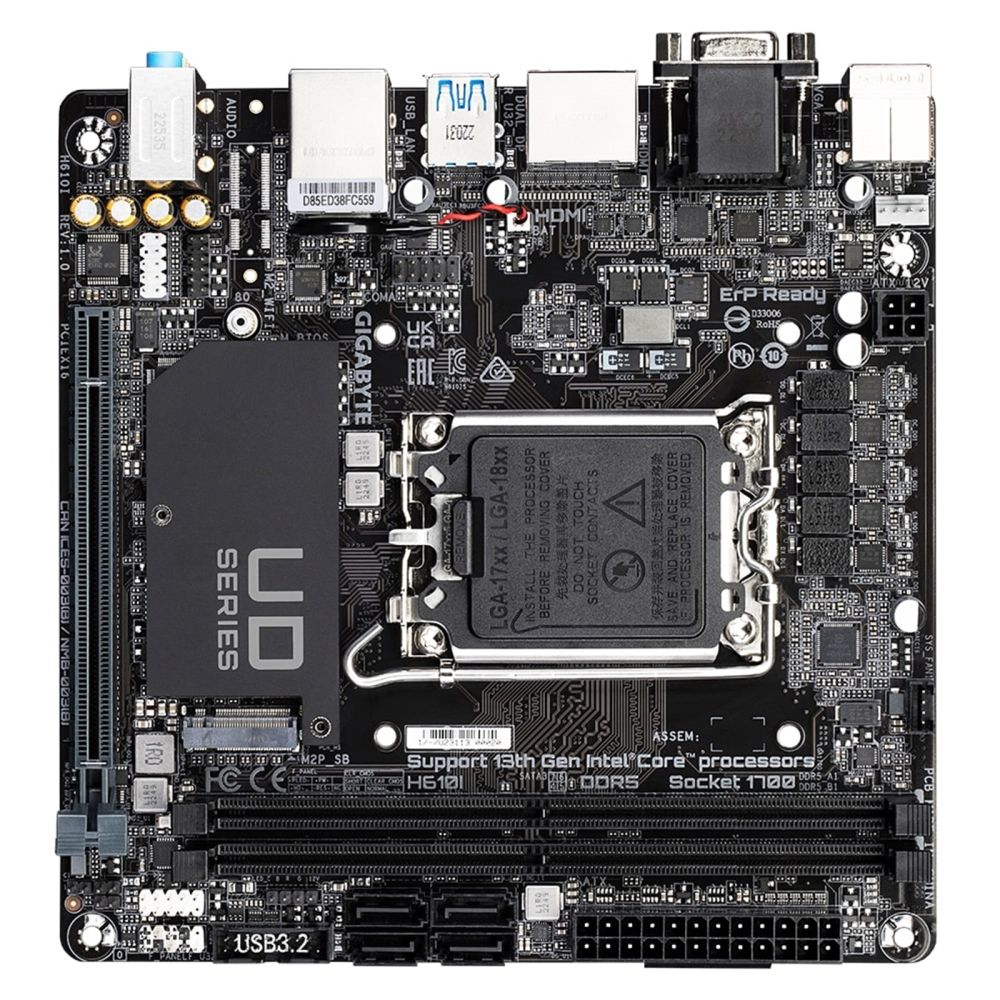

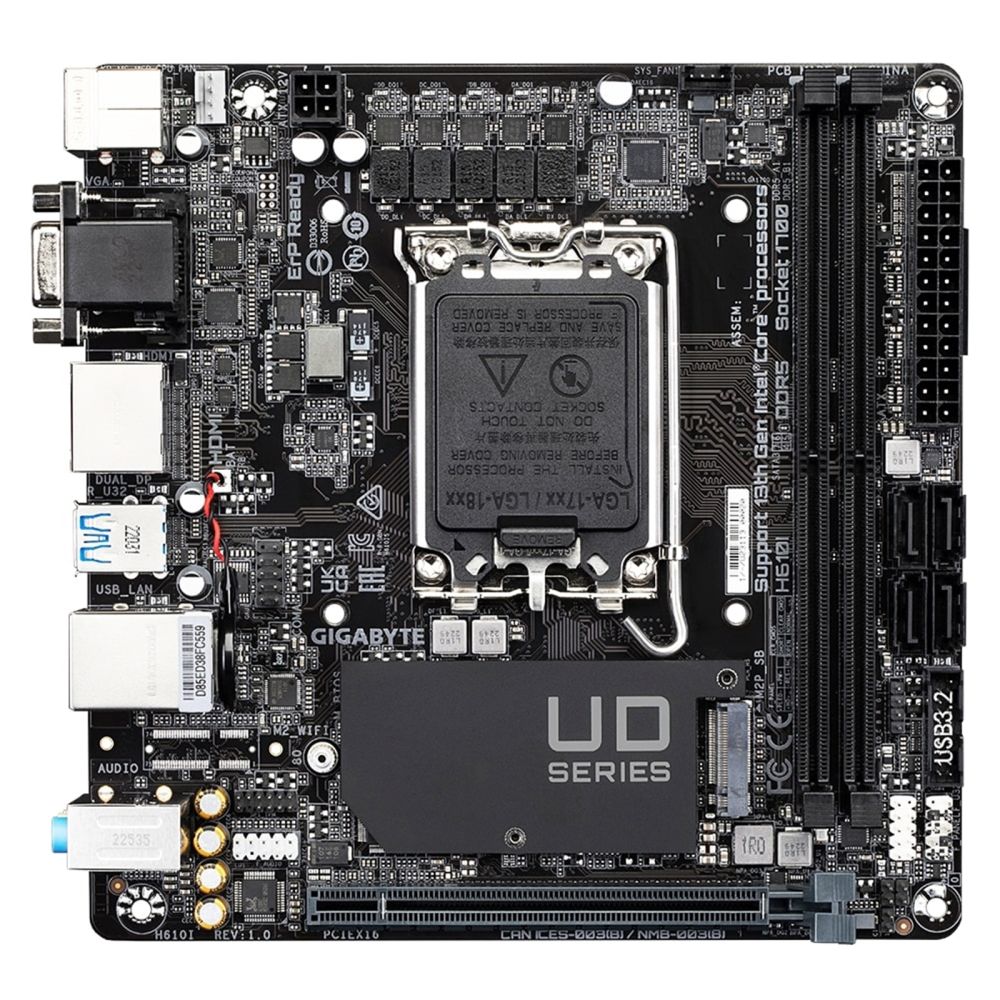

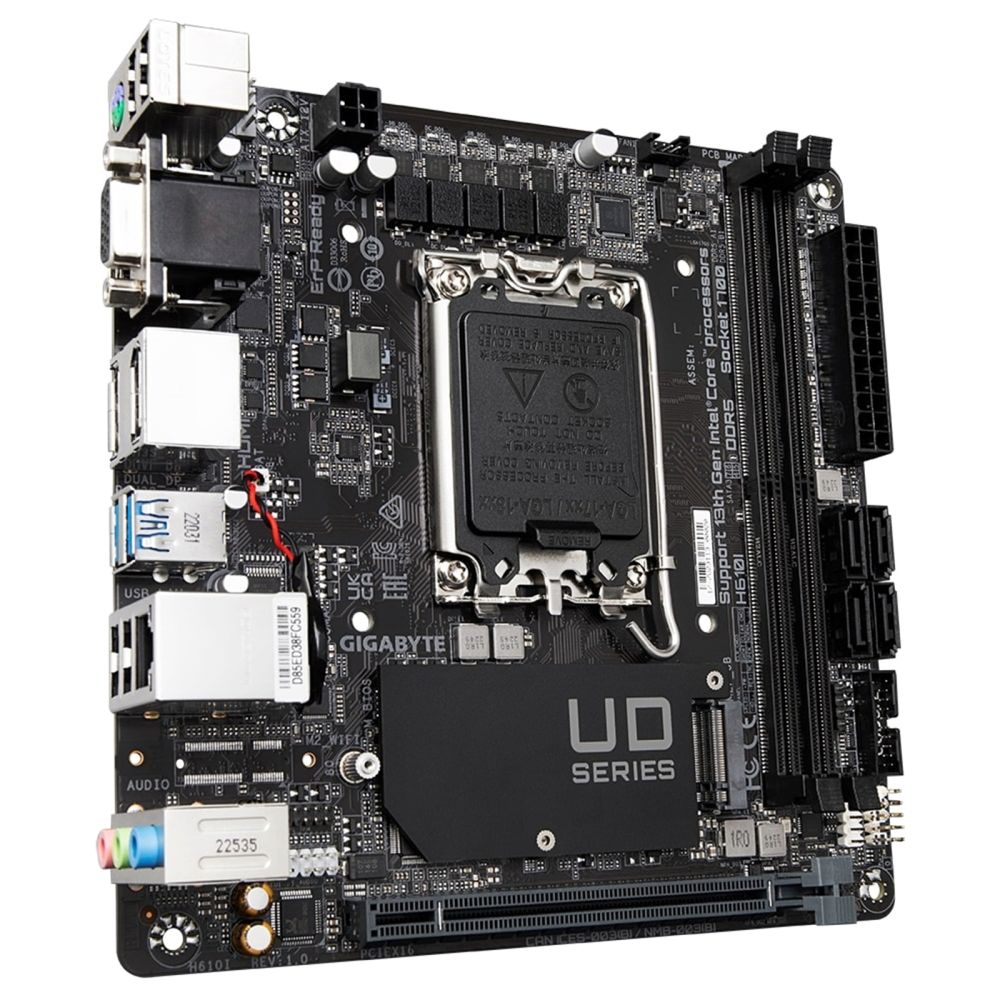

Gigabyte H610I DDR5 Mini-ITX Motherboard

Gigabyte H610I | Mini-ITX Intel Motherboard for Compact Builds

The Gigabyte H610I Intel 1700 Socket Motherboard, Mini-ITX, 2x DDR5 Slots, 1x M.2 Socket, GbE LAN, 1x D-Sub / 2x DisplayPort / 1x HDMI Port is a compact Mini-ITX platform designed for Intel’s 14th, 13th, and 12th Gen processors. It delivers reliable performance in small-form-factor builds, with dual-channel DDR5 memory support and a single M.2 PCIe 3.0 slot for fast storage.

Key Specs at a Glance

Compact Design Meets Expandability

The H610I’s Mini-ITX form factor makes it ideal for small builds without sacrificing essential features. Its 4+1+1 Hybrid Digital VRM design ensures stable power delivery for Intel Core processors, while the single PCIe 4.0 x16 slot accommodates high-performance graphics cards. The layout maximises airflow in tight cases, and the included Smart Fan 6 system supports multiple temperature sensors for efficient cooling.

Built for DDR5 Performance

With two DDR5 DIMM slots supporting up to 128 GB of memory, this motherboard is ready for demanding multitasking and content creation. Dual-channel architecture ensures balanced bandwidth, and support for Extreme Memory Profile (XMP) allows easy overclocking of compatible modules. DDR5 frequencies range from 4400 to 5600 MT/s depending on your CPU generation.

Reliable Connectivity & Storage

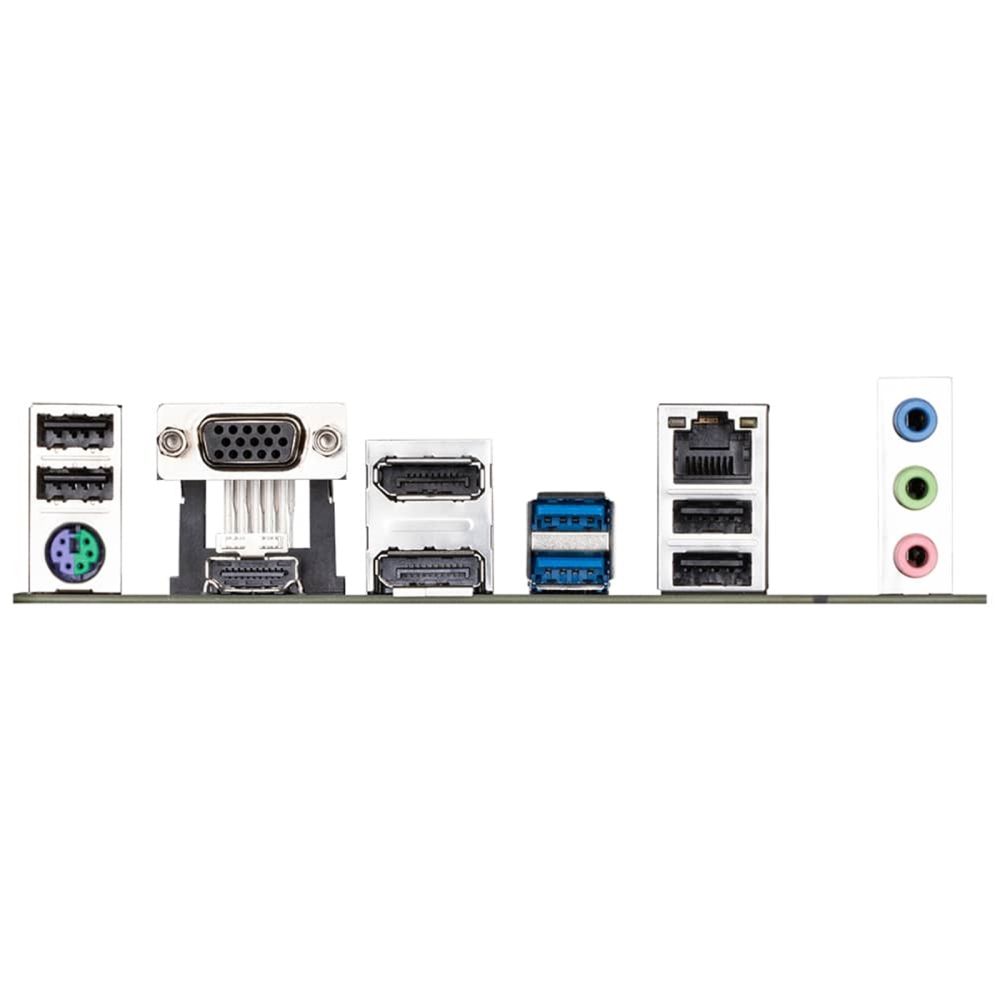

Storage options include one M.2 PCIe 3.0 x4 slot for ultra-fast NVMe SSDs and four SATA 6Gb/s ports for additional drives. The Intel GbE LAN with cFosSpeed software optimises online gaming and streaming. Rear I/O provides four USB 2.0 ports, two USB 3.2 Gen 1 ports, and a mix of legacy and modern display outputs, ensuring broad peripheral compatibility.

Box Contents

• Gigabyte H610I motherboard (Rev. 1.0)
• I/O shield
• User manual
• Driver/software support DVD
• SATA cables (quantity not specified)

Check Before You Buy

• Confirm your CPU is compatible with LGA1700 and listed in Gigabyte’s support table
• Verify your case supports Mini-ITX motherboards (17.0cm x 17.0cm)
• Ensure your power supply has a 24-pin ATX and 4-pin CPU connector
• Check that your DDR5 memory modules are on the qualified support list

Frequently Asked Questions

Q: Does this motherboard support overclocking?

A: Limited overclocking is supported via XMP for memory; CPU overclocking depends on the processor model.

Q: How many monitors can I connect at once?

A: Up to three displays simultaneously via the D-Sub, DisplayPort, and HDMI ports.

Q: Is Wi-Fi included?

A: No, this model does not include built-in wireless connectivity.

Q: What is the maximum supported RAM speed?

A: Up to 5600 MT/s with 13th Gen i9/i7 CPUs; lower speeds with other generations.

The Consultant’s Verdict & Warranty

The Gigabyte H610I is a well-balanced Mini-ITX motherboard for compact Intel systems, offering DDR5 memory, PCIe 4.0 support, and essential connectivity in a small footprint. It suits home theatre PCs, office builds, and light gaming rigs where space is at a premium. Covered by the standard Manufacturer Warranty.
