GIGABYTE X870E AORUS MASTER X3D ICE Motherboard
£460.69 inc VAT
1 in stock
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- Supports AMD Ryzen 9000 CPUs with AM5 socket
- 18+2+2 phases digital VRM for enhanced power delivery
- Up to 9000MHz DDR5 memory support for extreme performance
- Five M.2 slots with PCIe 5.0 and 4.0 configurations
- Wi-Fi 7 and 10GbE LAN for next-gen connectivity
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:

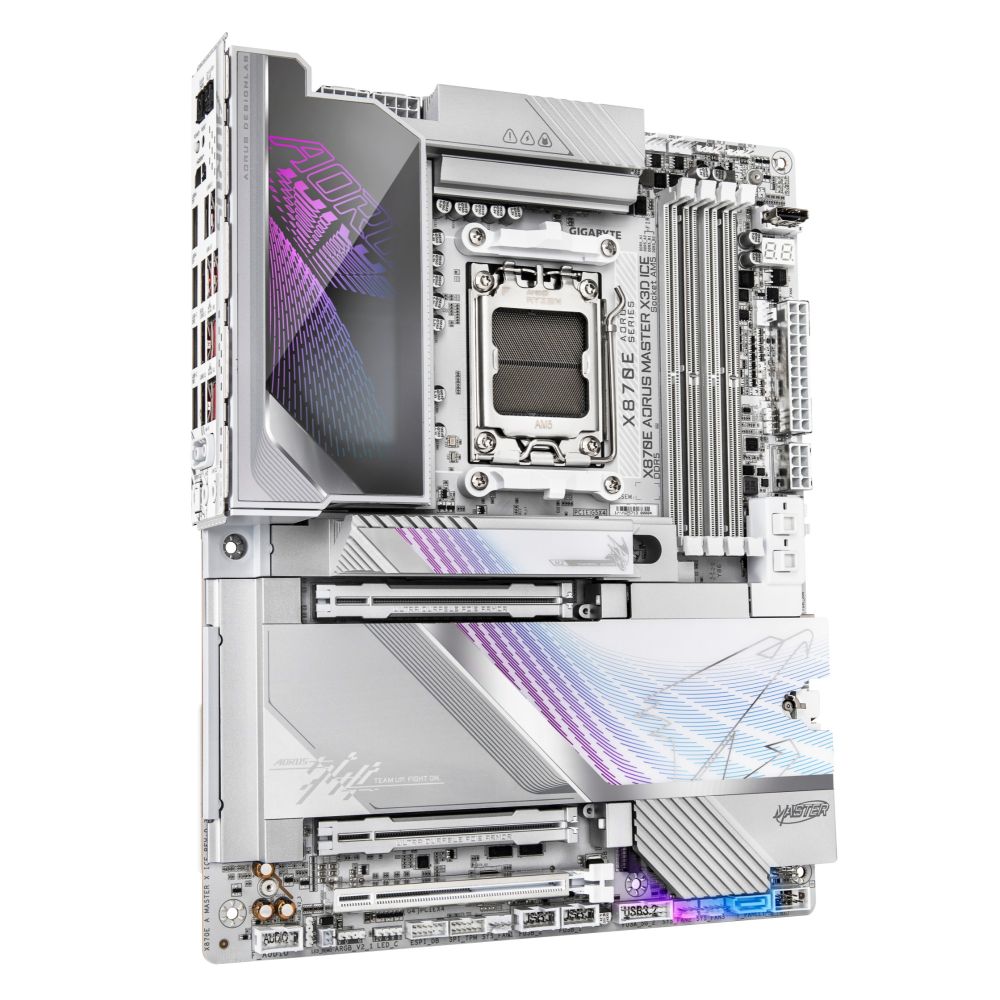

GIGABYTE X870E AORUS MASTER X3D ICE | High-End AMD AM5 Motherboard
The GIGABYTE X870E AORUS MASTER X3D ICE Motherboard delivers premium performance for AMD Ryzen 9000 CPUs with advanced power delivery and cutting-edge connectivity. This high-end ATX motherboard combines exceptional thermal management with extensive expansion options, making it ideal for enthusiasts seeking maximum performance from their AMD AM5 platform.
Slim Specs Table
| Metric | Spec. |
|---|---|
| Processor Support | AMD Ryzen 7000/8000/9000 Series |
| Memory Support | DDR5, up to 9000MHz (OC) |
| PCIe Slots | 2x PCIe 5.0, 3x PCIe 4.0 |
| Storage | 5x M.2 slots (2x PCIe 5.0, 3x PCIe 4.0) |
| Network | Wi-Fi 7, 10GbE LAN |
| VRM Design | 18+2+2 Phases Digital |
Advanced Power Delivery for Ryzen 9000 CPUs
The X870E AORUS MASTER X3D ICE features an impressive 18+2+2 phases digital VRM design that provides clean, stable power to AMD Ryzen 9000 processors. This robust power delivery system ensures consistent performance during intensive workloads and maintains lower temperatures under heavy loads. The digital controller monitors and adjusts power delivery in real-time, optimising efficiency and stability for both stock and overclocked configurations.
Exceptional Memory Performance
Supporting DDR5 memory speeds up to 9000MHz when overclocked, this motherboard offers exceptional memory bandwidth for demanding applications. The four DIMM slots support dual-channel configuration with a maximum capacity of 256GB, allowing users to run memory-intensive tasks smoothly. Whether you’re working with large datasets, video editing, or running multiple virtual machines, the high-speed memory support ensures responsive performance.
Comprehensive Storage Solutions
With five M.2 slots providing extensive storage options, the X870E AORUS MASTER X3D ICE supports the latest high-speed storage technologies. Two slots offer PCIe 5.0 support for ultra-fast NVMe SSDs, while three additional slots provide PCIe 4.0 connectivity. This configuration allows for multiple high-performance storage devices, perfect for content creators, gamers, and professionals who require rapid data access and large storage capacities.
Advanced Connectivity Features
This motherboard delivers comprehensive connectivity options including Wi-Fi 7 and 10GbE LAN for ultra-fast network speeds. The seven USB 3.2 Gen 2 ports provide rapid data transfer for peripherals, while the USB4 Gen 2×2 ports offer even faster connections for compatible devices. The inclusion of HDMI 2.1 and DisplayPort 1.4 ensures support for high-resolution displays, making this board suitable for both productivity and entertainment setups.
Premium Thermal Design
The X870E AORUS MASTER X3D ICE employs a passive cooling solution with extensive heatsink coverage to maintain optimal temperatures. The thermal design includes multiple heatpipes and strategically placed heatsinks that cover critical components including the VRM, chipset, and M.2 slots. This passive approach reduces noise while ensuring components remain within safe operating temperatures during extended use.

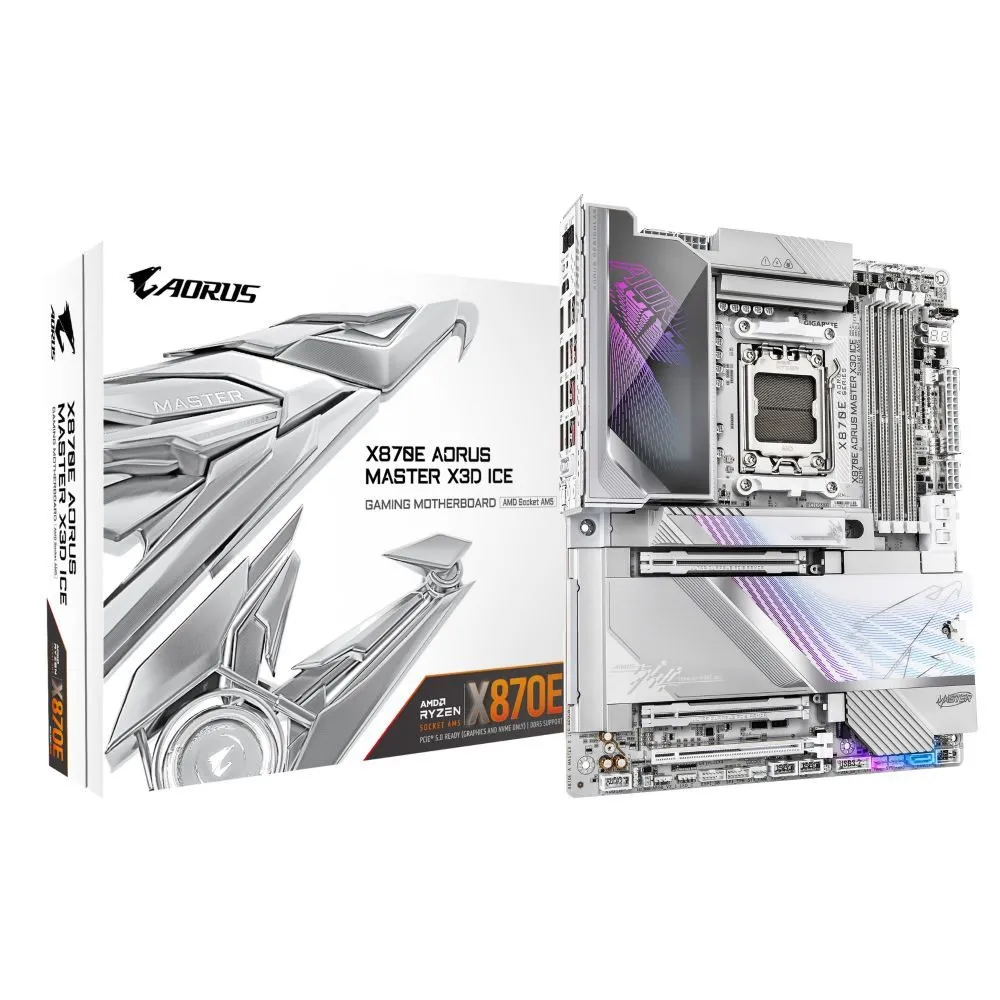

Box contents
- GIGABYTE X870E AORUS MASTER X3D ICE Motherboard
- I/O shield
- 4x SATA cables
- 2x Wi-Fi antennas
- M.2 screws
- User manual
- Driver DVD
- Norton® Internet Security (OEM version)
- Motherboard batteries (CR2032)
Check before you buy
- Confirm your AMD Ryzen CPU is compatible with Socket AM5
- Verify your case supports ATX motherboard dimensions (305mm x 244mm)
- Check your power supply has sufficient PCIe power connectors
- Confirm your DDR5 memory is on the motherboard’s QVL list
Frequently Asked Questions
Q: Does this motherboard support DDR5 memory?
A: Yes, it supports DDR5-SDRAM with speeds up to 9000MHz when overclocked.
Q: What type of graphics card slots are available?
A: The motherboard features 2x PCIe 5.0 x16 slots and 1x PCIe 4.0 x16 slot.
Q: Is Wi-Fi 7 supported on this motherboard?
A: Yes, it includes Wi-Fi 7 (802.11be) with dual Wi-Fi antennas.
Q: What is the maximum memory capacity supported?
A: The motherboard supports up to 256GB of DDR5 memory across four DIMM slots.
Q: Does this motherboard include RGB lighting?
A: Yes, it features RGB LED headers and supports various RGB lighting configurations.
The Consultant’s verdict & warranty
The GIGABYTE X870E AORUS MASTER X3D ICE represents a premium choice for users building high-performance AMD AM5 systems. With its robust power delivery, extensive storage options, and advanced connectivity features, it’s particularly well-suited for enthusiasts, content creators, and gamers who demand the best from their hardware. Covered by the standard Manufacturer Warranty.
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 5 |
| Front panel connector | Yes |
| Supported storage drive interfaces | M.2, PCI Express 4.0, PCI Express 5.0, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| TPM connector | Yes |
| Number of SATA III connectors | 2 |
| Number of chassis fan connectors | 6 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| USB 3.2 Gen 2x2 connectors | 1 |
| Number of CPU fan connectors | 2 |
| Number of EPS power connectors (8-pin) | 3 |
| Number of water pump connectors | 2 |
| Number of temperature sensor headers | 2 |
| Number of noise detection headers | 1 |
| Number of RGB LED pin headers | 5 |
| Technical details | |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X870E |
| Supported processor sockets | Socket AM5 |
| PC health monitoring | CPU, Fan, Temperature, Voltage, Water cooling |
| Parallel processing technology support | Not supported |
| HDMI version | 2.1 |
| Cooling type | Passive |
| Motherboard form factor | ATX |
| Component for | PC |
| Warranty period | 3 year(s) |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Number of HDDs supported | 2 |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 11 x64 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X870E |
| RAID levels | 0, 1, 5, 10 |
| Supported processor sockets | Socket AM5 |
| PC health monitoring | CPU, Fan, Temperature, Voltage, Water cooling |
| Cooling type | Passive |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Supported processor sockets | Socket AM5 |
| Processor socket | Socket AM5 |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 9000,8800,8600,8400,8200,8000,7800,7600,7200,7000,6800,6600,6400,6200,6000,5600,5200,4800 MHz |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed (max) | 9000 MHz |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory per slot | 64 GB |
| Storage controllers | |
| Number of HDDs supported | 2 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express 4.0, PCI Express 5.0, SATA III |
| RAID levels | 0, 1, 5, 10 |
| Number of storage drives supported | 7 |
| RAID support | Yes |
| Graphics | |
| Parallel processing technology support | Not supported |
| Maximum resolution | 4096 x 2304 pixels |
| HDCP | Yes |
| DirectX version | 12.0 |

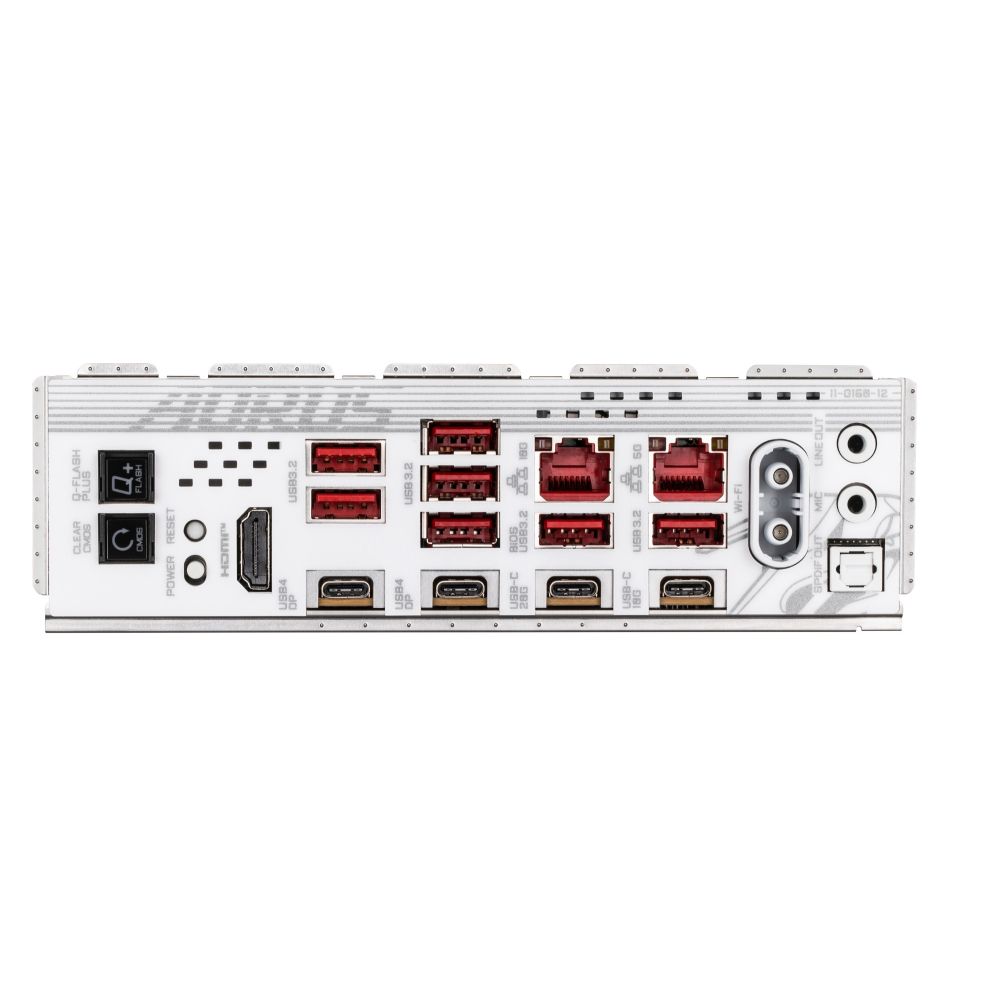

| Rear panel I/O ports | |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 7 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| DisplayPort version | 1.4 |
| WiFi-AP antenna jack | 2 |
| S/PDIF out port | Yes |
| Headphone outputs | 1 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Digital audio optical out | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| USB4 Gen 2x2 ports quantity | 2 |
| Line-in | Yes |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| LAN controller | Realtek RTL8126, Realtek RTL8127 |
| Ethernet interface type | 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| WLAN controller model | MediaTek MT7927 |
| Features | |
| Power source type | ATX |
| Windows operating systems supported | Windows 11 x64 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X870E |
| Supported processor sockets | Socket AM5 |
| PC health monitoring | CPU, Fan, Temperature, Voltage, Water cooling |
| Cooling type | Passive |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Audio chip | Realtek ALC1220-VB/ESS 9118 |
| Product colour | White |
| Expansion slots | |
| Number of M.2 (M) slots | 5 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 2 |
| 1st M.2 largest key size | 2580 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 5.0 |
| 3rd M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| 4th M.2 largest key size | 2280 |
| 4th M.2 highest PCI Express generation | 4.0 |
| 5th M.2 largest key size | 2280 |
| 5th M.2 highest PCI Express generation | 4.0 |
| BIOS | |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| BIOS memory size | 512 Mbit |
| ACPI version | 5.0 |
| Clear CMOS button | Yes |
| System Management BIOS (SMBIOS) version | 2.7 |
| Desktop Management Interface (DMI) version | 2.7 |
| Power | |
| Power source type | ATX |
| Video | |
| Maximum resolution | 4096 x 2304 pixels |
| HDCP | Yes |
| DirectX version | 12.0 |
| Packaging data | |
| Package width | 340 mm |
| Package depth | 310 mm |
| Package height | 92 mm |
| Package weight | 4.38 kg |
| Software | |
| Windows operating systems supported | Windows 11 x64 |
| Bundled software | Norton® Internet Security (OEM version) |
| Battery | |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Lithium weight per battery | 0.07 g |
| Battery type | CR2032 |
| Logistics data | |
| Products per shipping (inner) case | 1 pc(s) |
| Country of origin | Taiwan |
| Weight & dimensions | |
| Height | 35 mm |
| Package width | 340 mm |
| Package depth | 310 mm |
| Package height | 92 mm |
| Package weight | 4.38 kg |
| Weight | 3.82 kg |
| Width | 305 mm |
| Depth | 244 mm |
| Packaging content | |
| Bundled software | Norton® Internet Security (OEM version) |
| Batteries included | Yes |
| Screws included | Yes |
| Antenna included | Yes |
| Other features | |
| Height | 35 mm |
| Package width | 340 mm |
| Package depth | 310 mm |
| Package height | 92 mm |
| Package weight | 4.38 kg |
| Weight | 3.82 kg |
