GIGABYTE Z890 UD Motherboard – Intel Core Ultra, DDR5, PCIe 5.0

GIGABYTE Z890 UD WIFI6E | Intel Z890 Performance Platform

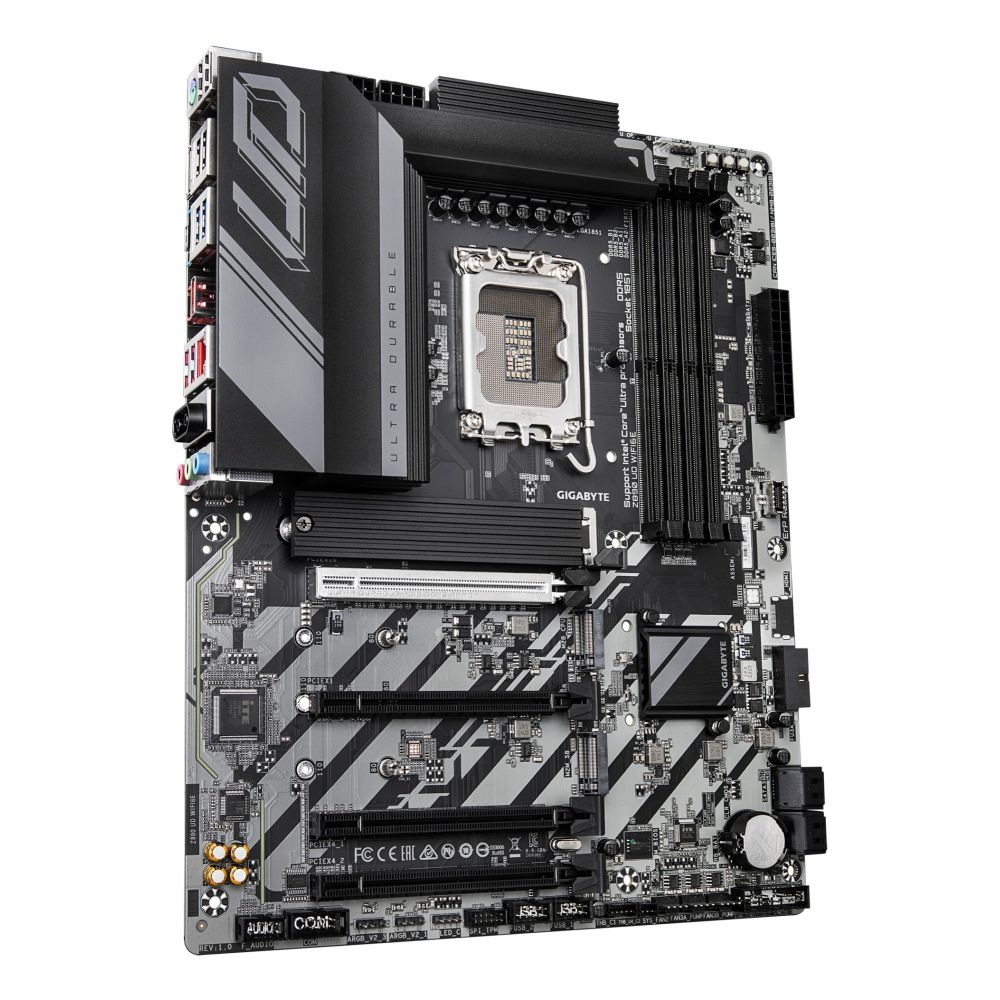

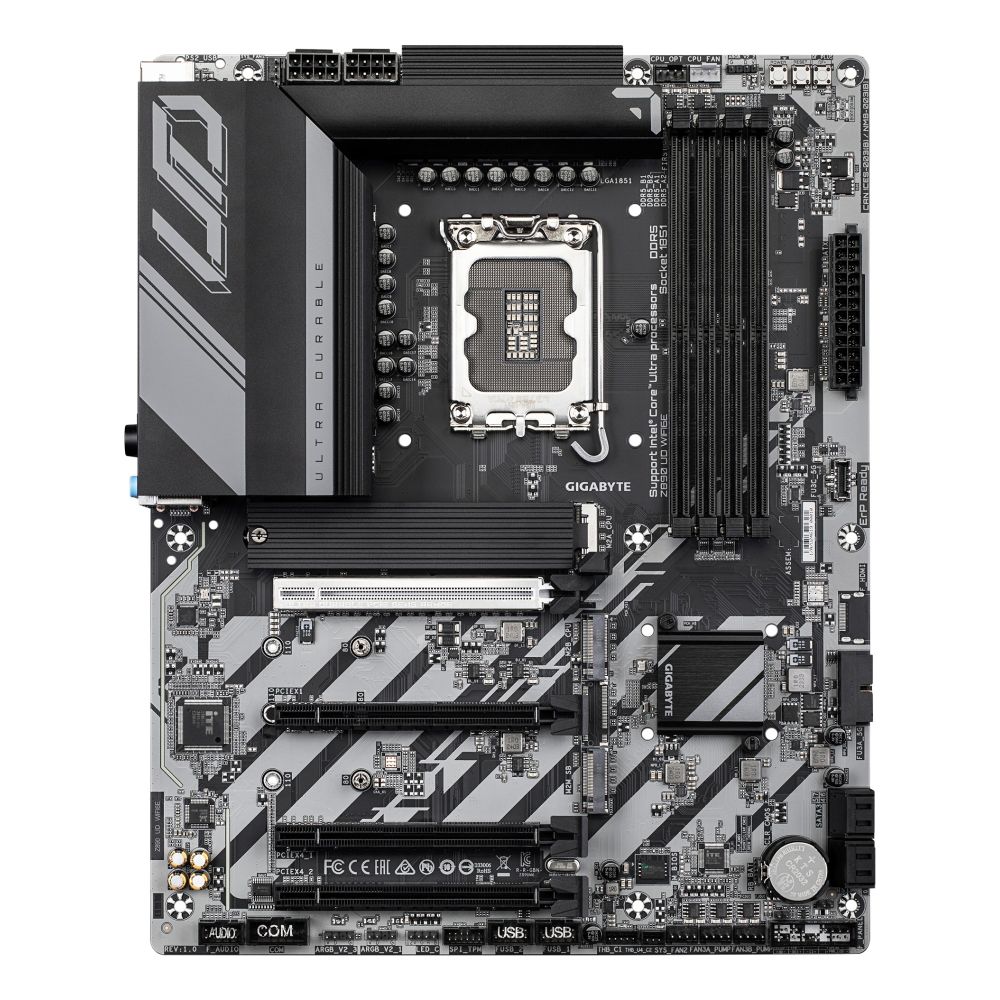

The GIGABYTE Z890 UD WIFI6E Motherboard delivers next-generation performance for Intel Core Ultra (Series 2) processors, featuring a robust 12+1+2 phase VRM, support for DDR5 memory up to 8800MHz (OC), and comprehensive connectivity including Wi-Fi 6E, 2.5GbE LAN, and USB 4. This ATX motherboard is engineered for enthusiasts and professionals seeking uncompromising stability and expandability.

Key Specifications

Intel Core Ultra (Series 2) Ready Performance

Built on the Intel Z890 chipset, this motherboard supports the latest Intel Core Ultra (Series 2) processors through the LGA 1851 socket. The 12+1+2 phase VRM design ensures stable power delivery even under heavy workloads, making it ideal for demanding applications from content creation to gaming. With support for up to 256GB of DDR5 memory across four DIMM slots, you can configure systems with massive memory capacity for professional workloads.

Comprehensive Connectivity Options

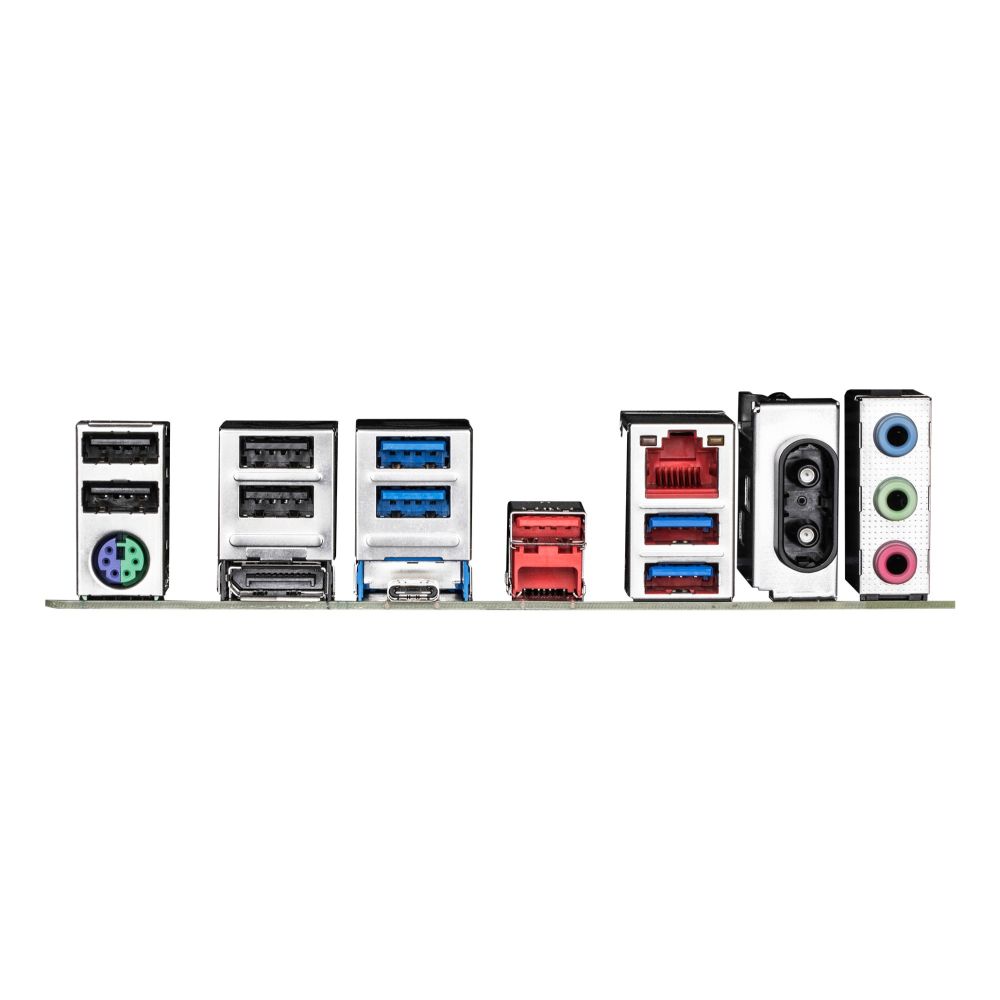

Connectivity is a standout feature of the Z890 UD WIFI6E. The motherboard includes Wi-Fi 6E with Intel AX211 controller for the latest wireless standards, plus 2.5GbE LAN for reliable wired connections. USB 4 support provides versatile high-speed connectivity, while the combination of 1x PCIe 5.0 and 2x PCIe 4.0 slots accommodates the latest GPUs and expansion cards. Three M.2 slots support the fastest NVMe SSDs, complemented by four SATA III ports for additional storage options.

Enhanced Storage and Expansion

Storage flexibility is exceptional with support for both M.2 and SATA III interfaces. The motherboard accommodates up to seven storage drives total, with RAID 0, 1, 5, and 10 configurations available for performance or redundancy. Four DIMM slots support dual-channel DDR5 memory with speeds ranging from 5600MHz to 8800MHz (overclocked), providing the bandwidth needed for memory-intensive applications. The ATX form factor offers ample space for components while maintaining a compact footprint.

Box Contents

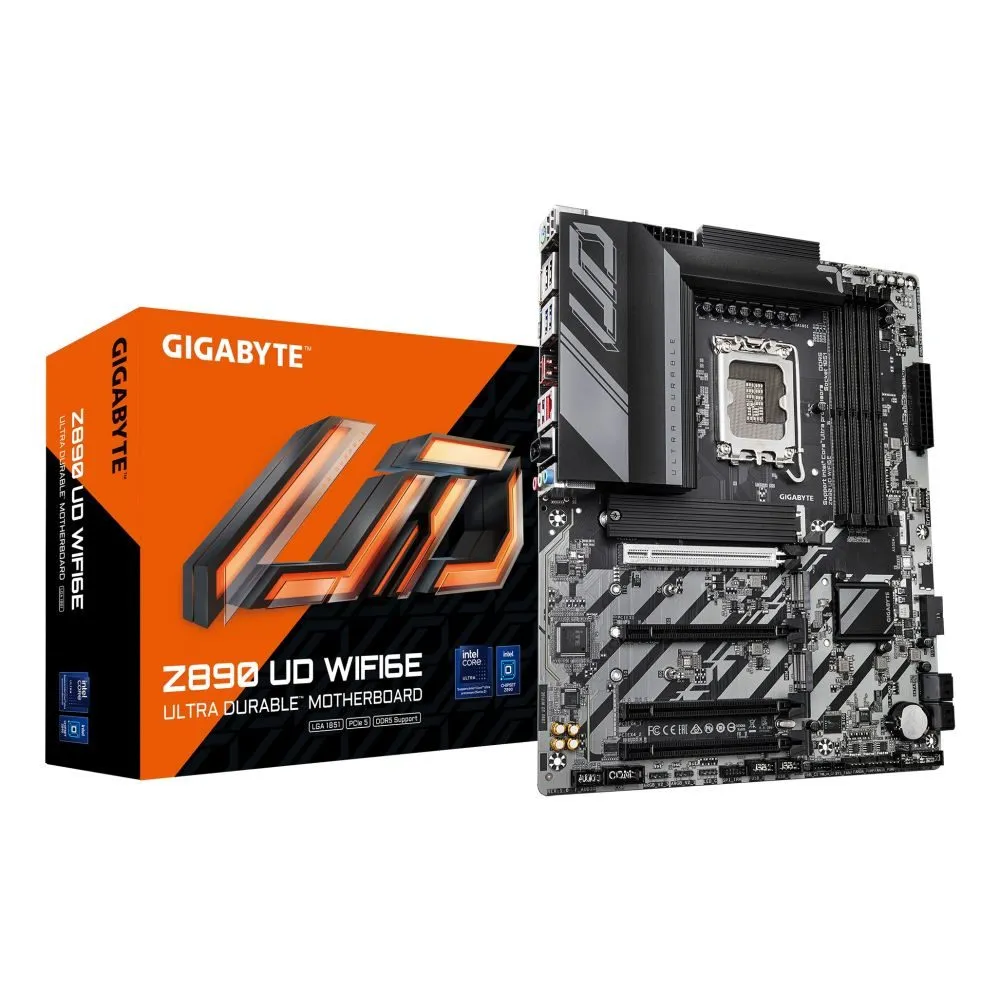

• GIGABYTE Z890 UD WIFI6E Motherboard
• I/O Shield
• User Manual
• SATA Cables
• M.2 Thermal Guards
• CMOS Battery (CR2032)
• Norton® Internet Security (OEM version)
• LAN Bandwidth Management Software

Check before you buy

• Confirm your Intel Core Ultra (Series 2) processor is compatible with LGA 1851 socket
• Verify your power supply has sufficient PCIe and CPU power connectors
• Check chassis clearance for ATX motherboard dimensions (305mm x 244mm)
• Ensure your DDR5 memory modules are on the motherboard’s qualified vendor list

Frequently Asked Questions

Q: What processors are supported by this motherboard?

A: Intel Core Ultra (Series 2) processors with LGA 1851 socket.

Q: Does this motherboard support DDR5 memory?

A: Yes, up to 256GB of DDR5-SDRAM across four DIMM slots.

Q: What Wi-Fi standard is included?

A: Wi-Fi 6E (802.11ax) with Intel AX211 controller.

Q: How many PCIe slots are available?

A: One PCIe 5.0 x16 slot and two PCIe 4.0 x16 slots.

Q: What is the maximum memory speed supported?

A: Up to 8800MHz (overclocked) DDR5 memory.

The Consultant’s verdict & warranty

The GIGABYTE Z890 UD WIFI6E Motherboard is an excellent choice for users building systems around Intel’s latest Core Ultra (Series 2) processors who need robust power delivery, extensive storage options, and modern connectivity. The combination of PCIe 5.0 support, Wi-Fi 6E, and DDR5 memory compatibility ensures this platform will remain relevant for years to come. Covered by the standard Manufacturer Warranty.
