ASUS H610M-A-CSM micro ATX motherboard

ASUS PRIME H610M-A-CSM | Micro ATX Intel Motherboard

The ASUS PRIME H610M-A-CSM Intel H610 LGA 1700 micro ATX motherboard delivers a compact yet capable foundation for Intel’s 12th and 13th generation processors. Built on the Intel H610 chipset, this micro ATX board supports DDR5 memory, PCIe 4.0, and multiple M.2 storage options, making it ideal for home office builds, small form factor gaming rigs, or budget-conscious professionals in the UK.

Compact micro ATX design for versatile builds

The micro ATX form factor (244 x 216 mm) makes this board perfect for space-conscious setups without sacrificing essential features. The ATX power connector, EPS 8-pin connector, and comprehensive I/O shield ensure straightforward installation in standard ATX cases. The reinforced PCIe slot provides added stability for graphics cards, while the onboard I/O includes HDMI, DisplayPort, and legacy VGA connections for flexible display options.

DDR5 memory support for future-proofing

With dual-channel DDR5 support and speeds ranging from 4800 to 5600 MHz, this motherboard delivers the bandwidth needed for modern applications and multitasking. The two DIMM slots support up to 96 GB of unbuffered, non-ECC memory, providing ample room for memory-intensive workloads. This DDR5 foundation ensures your system remains capable as software demands increase over time.

Multiple storage options for fast data access

Featuring two M.2 slots and four SATA III ports, the ASUS PRIME H610M-A-CSM supports up to six storage drives total. The M.2 slots accommodate both SATA and PCIe NVMe SSDs, while the SATA ports handle traditional HDDs and SSDs. This flexibility allows you to create a balanced storage configuration with fast boot drives and spacious secondary storage, all without requiring additional expansion cards.

Comprehensive connectivity and expansion

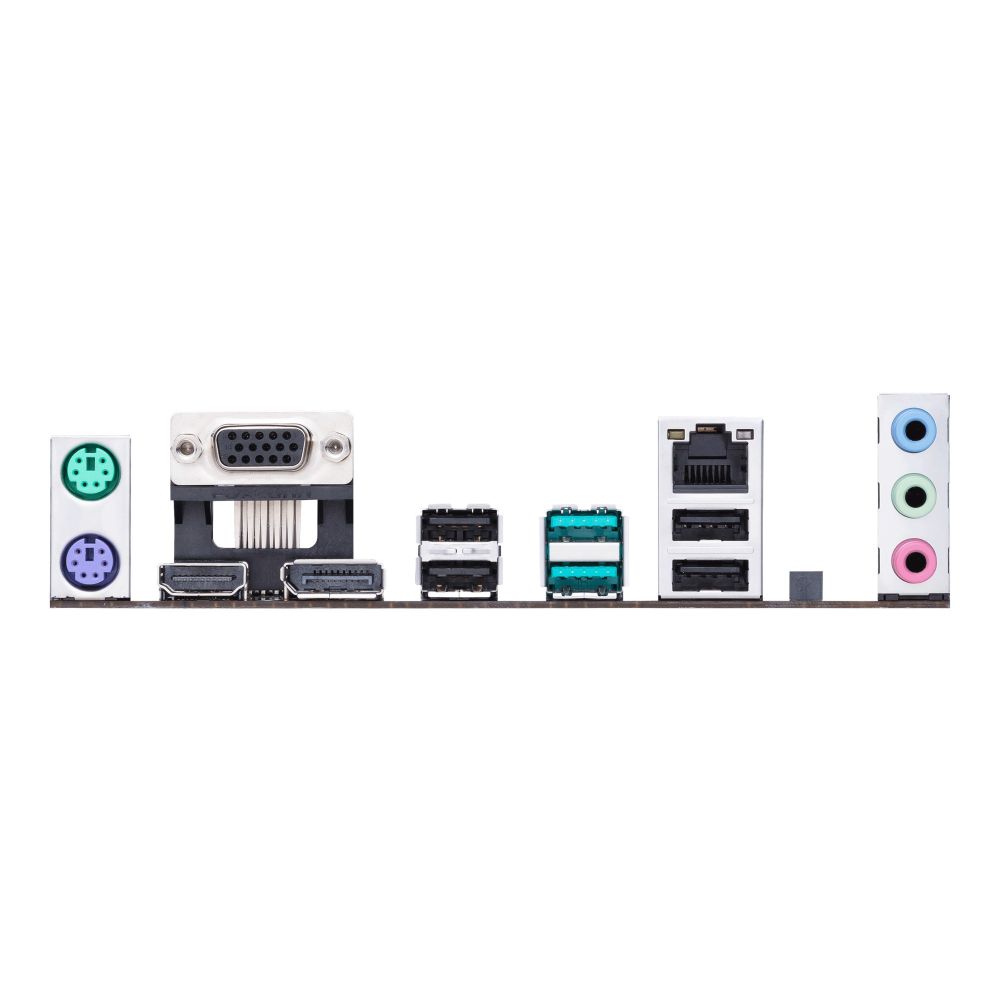

The motherboard includes four USB 2.0 ports, two USB 3.2 Gen 2 Type-A ports, and a Gigabit Ethernet port for reliable networking. The rear I/O also features PS/2 ports for legacy peripherals, plus front panel audio support for high-quality sound output through the 7.1 channel audio system. While Wi-Fi is not built-in, the Gigabit Ethernet connection provides stable, low-latency network performance for gaming and productivity.

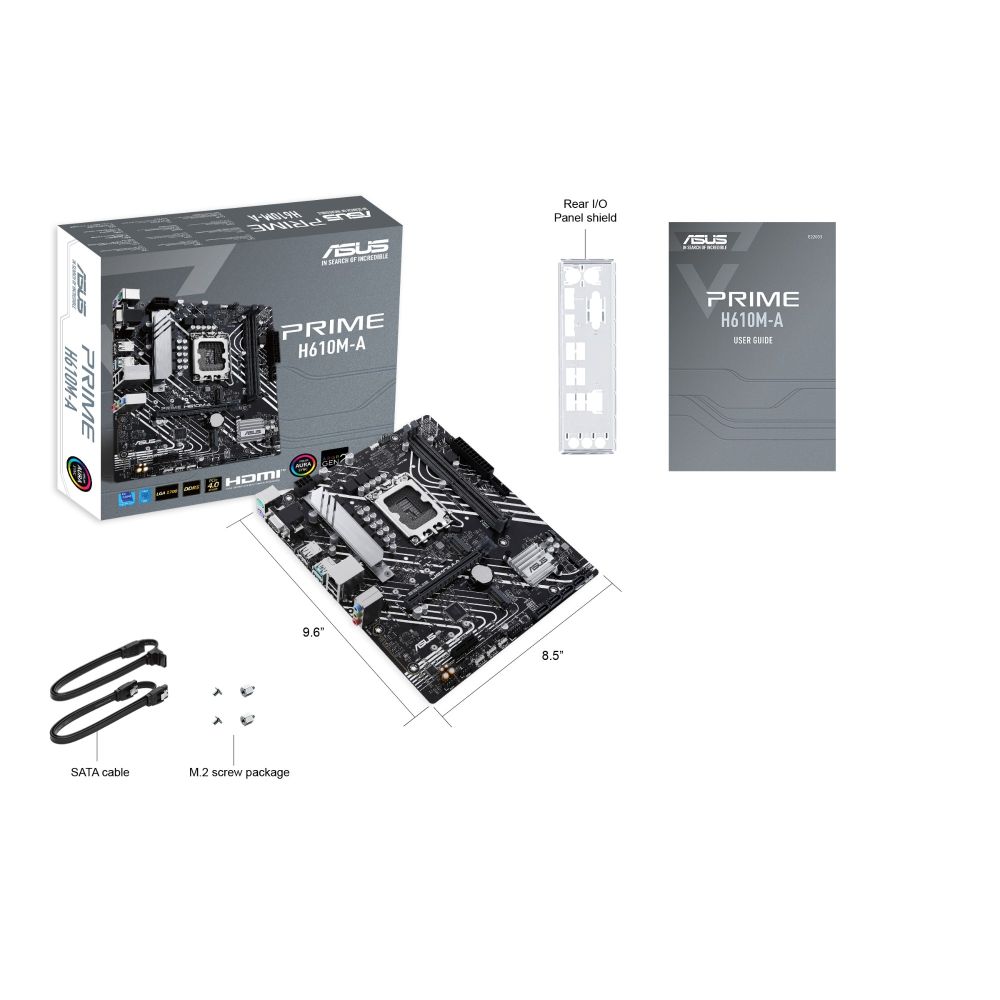

Box contents

• ASUS PRIME H610M-A-CSM motherboard

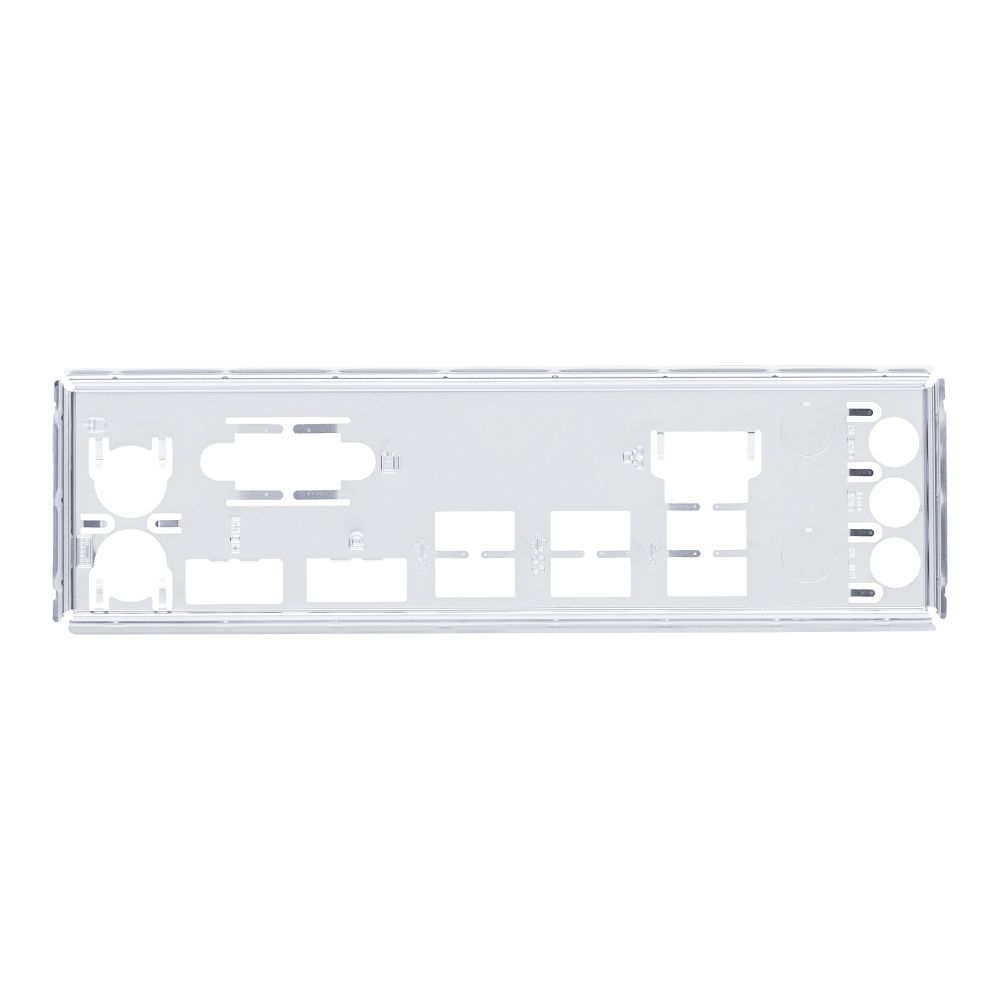

• I/O shield
• SATA cables (quantity not specified)
• User manual and warranty documentation
• Driver/software support DVD (where applicable)

Check before you buy

• Confirm your CPU is compatible with LGA 1700 socket and supports DDR5 memory
• Verify your case supports micro ATX motherboard dimensions (244 x 216 mm)
• Check that your power supply has both ATX 24-pin and EPS 8-pin connectors
• Ensure you have DDR5 memory modules, as DDR4 is not supported

Frequently Asked Questions

Q: Does this motherboard support Windows 11?

A: Yes, it supports Windows 10 x64 and Windows 11 x64 operating systems.

Q: Can I use DDR4 memory with this board?

A: No, this motherboard only supports DDR5-SDRAM memory modules.

Q: How many graphics cards can I install?

A: There is one PCIe 4.0 x16 slot for a single graphics card installation.

Q: Does it have built-in Wi-Fi?

A: No, Wi-Fi is not included. You’ll need a Wi-Fi adapter or use the Gigabit Ethernet port.

Q: What’s the maximum RAM capacity?

A: The motherboard supports up to 96 GB of DDR5 memory across two DIMM slots.

The Consultant’s verdict & warranty

The ASUS PRIME H610M-A-CSM Intel H610 LGA 1700 micro ATX motherboard offers excellent value for users building compact systems with Intel’s latest processors. Its DDR5 support, multiple storage options, and comprehensive connectivity make it suitable for both productivity and light gaming applications. The micro ATX form factor provides a balance between features and space efficiency. Covered by the standard Manufacturer Warranty.
