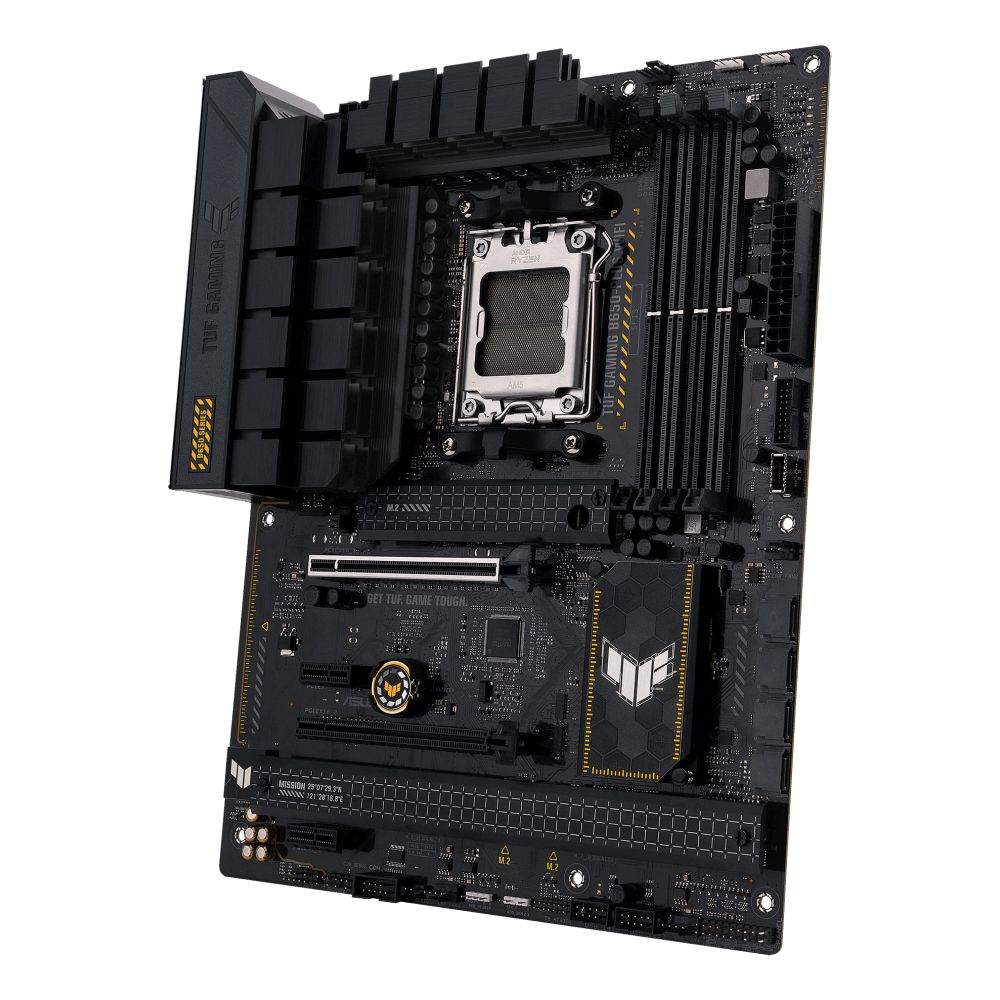

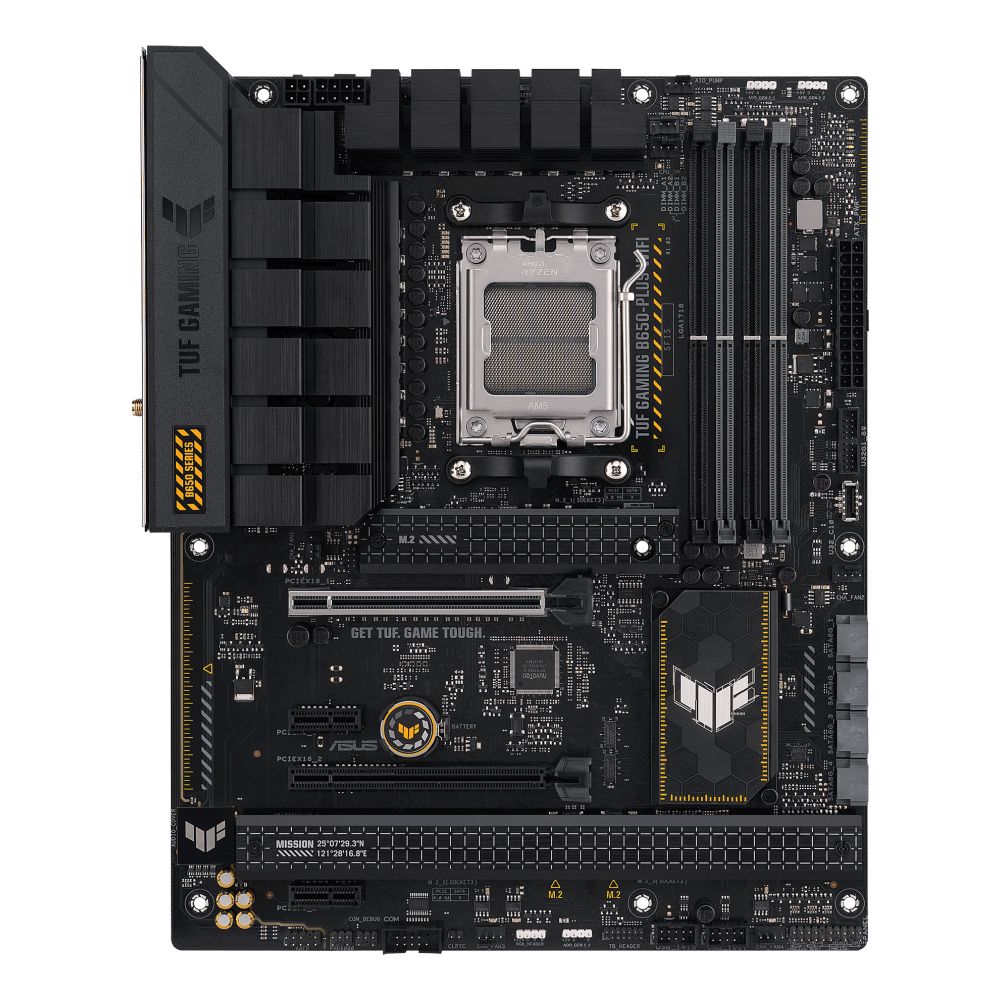

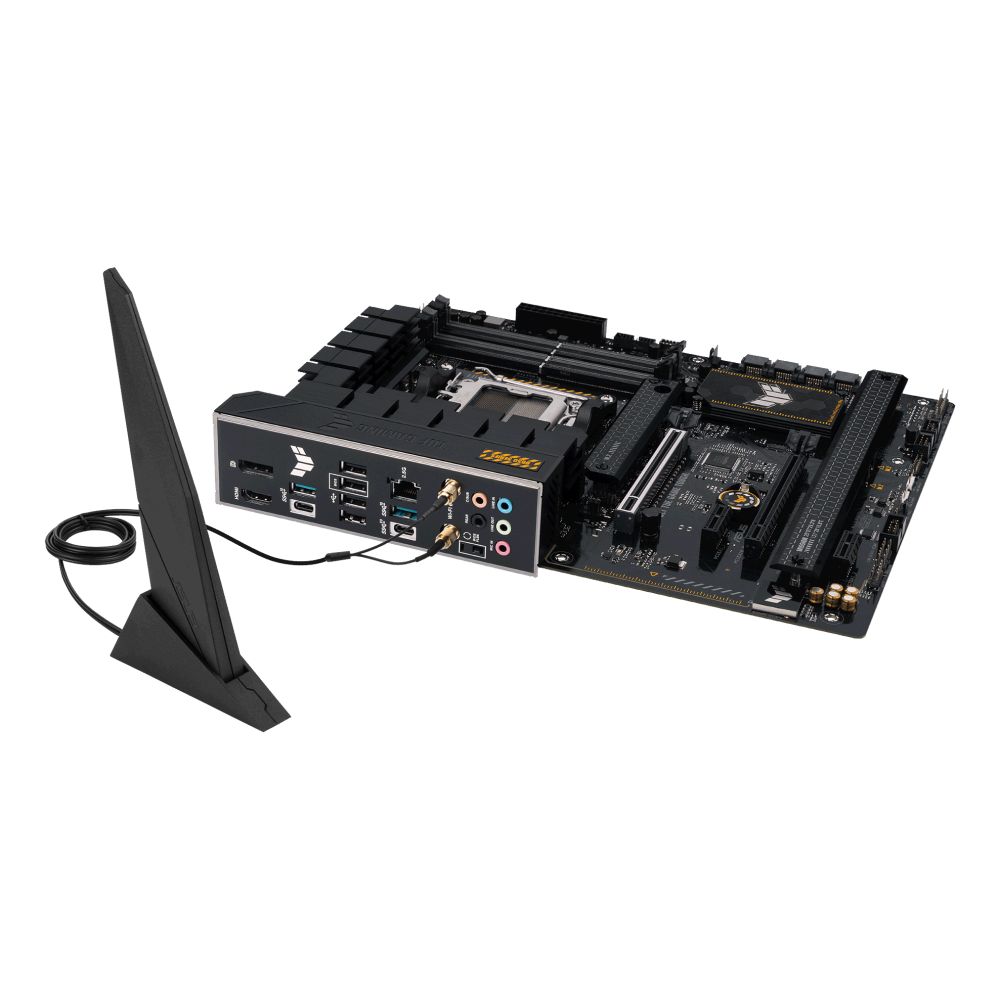

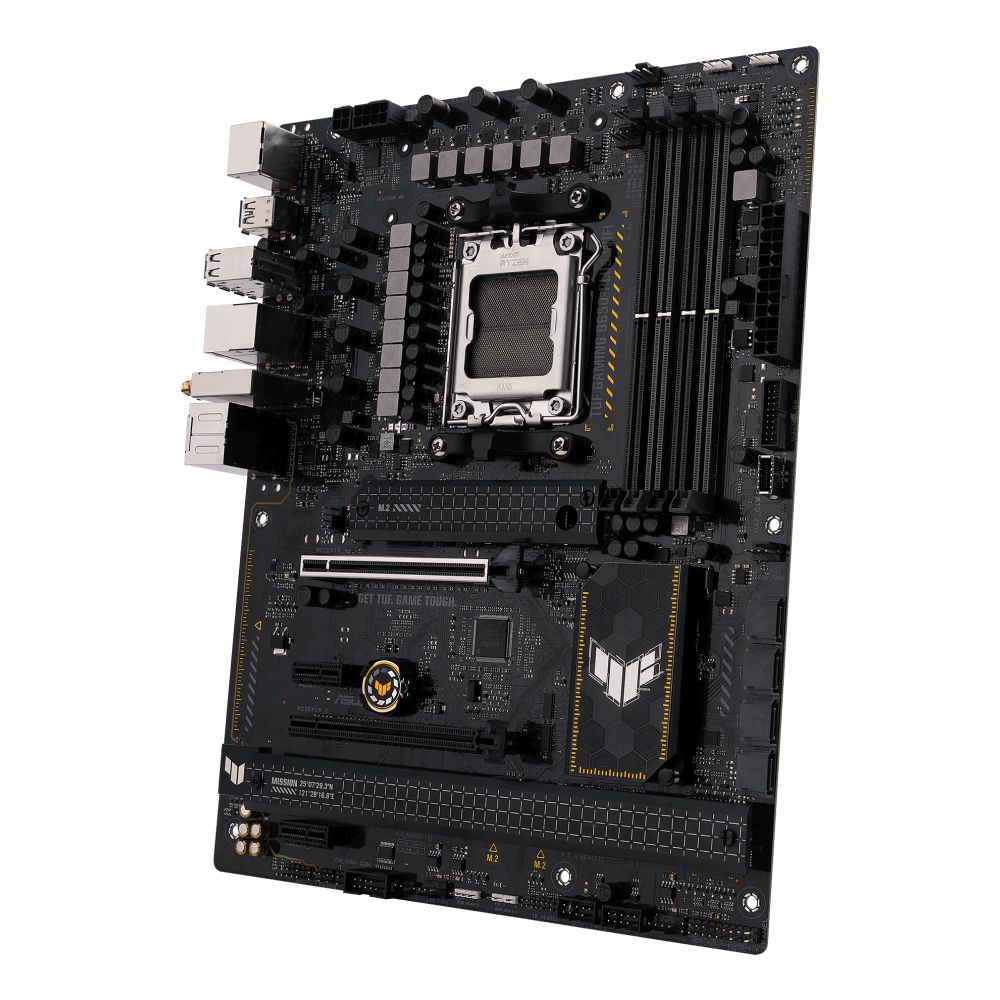

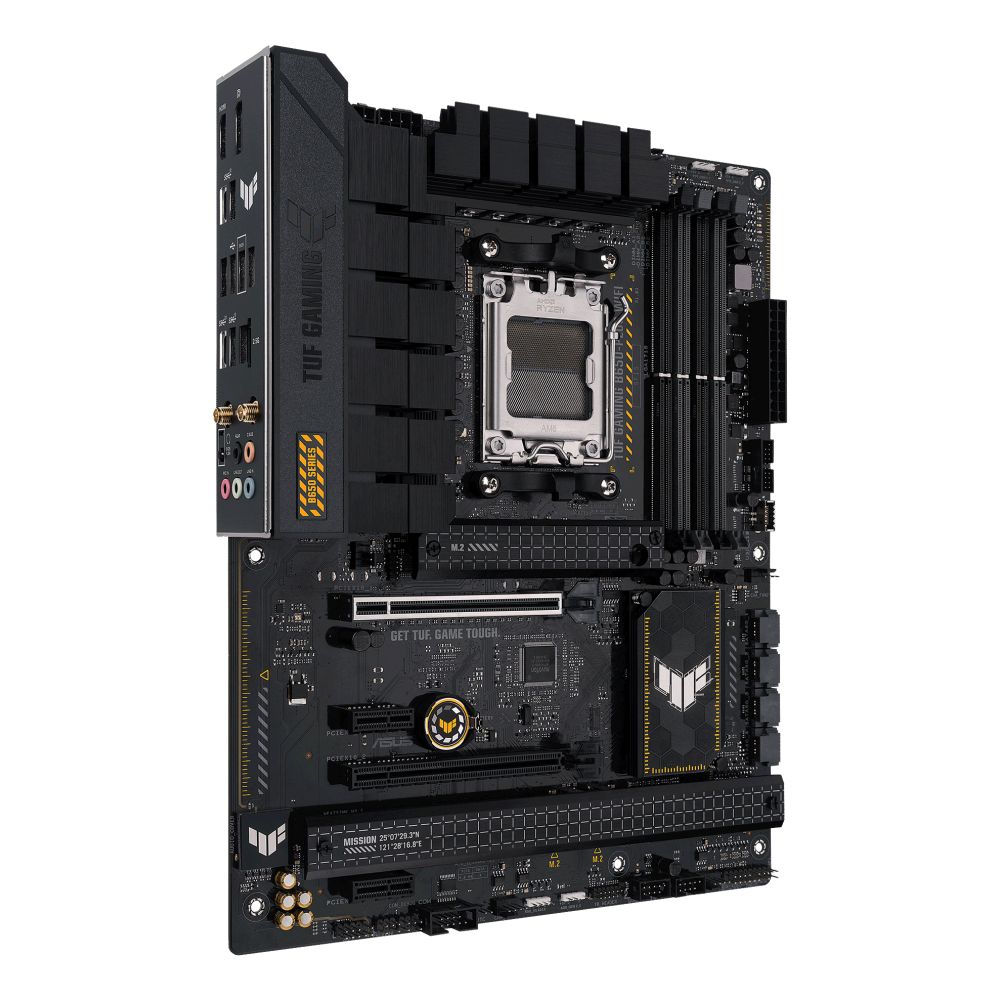

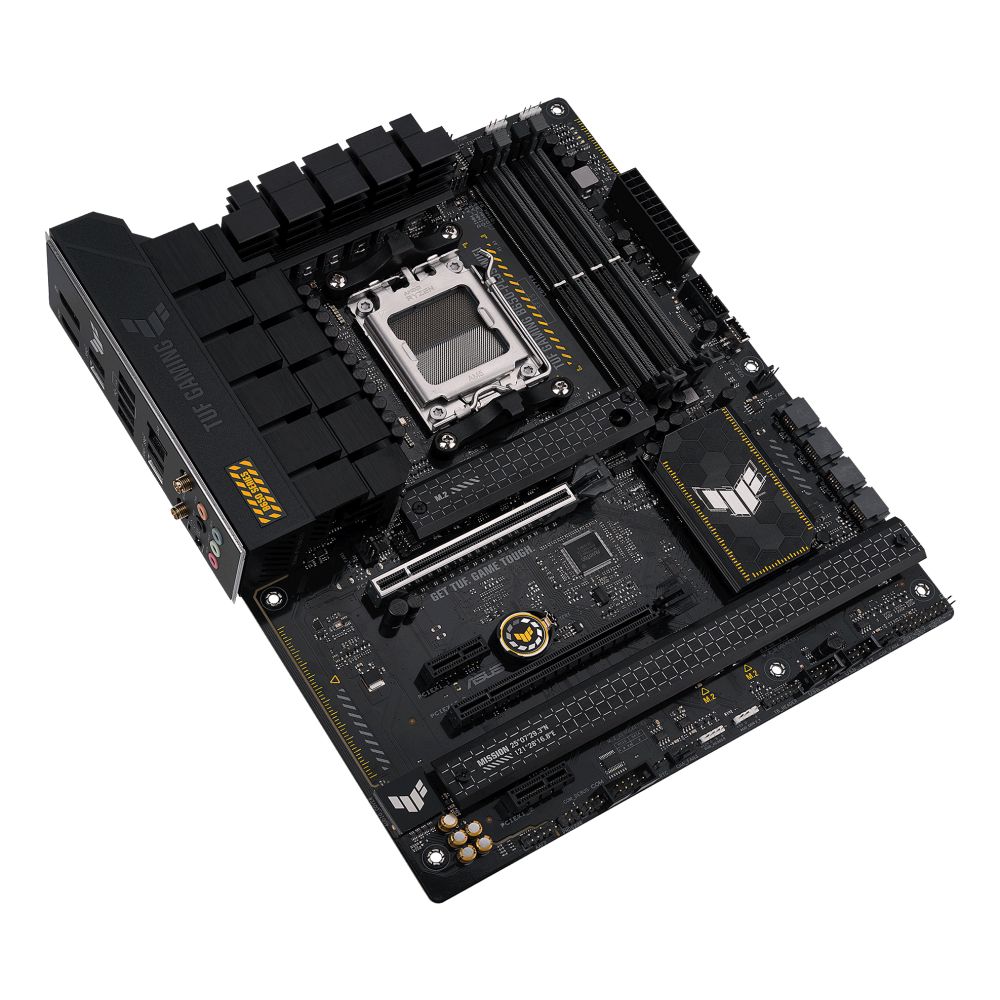

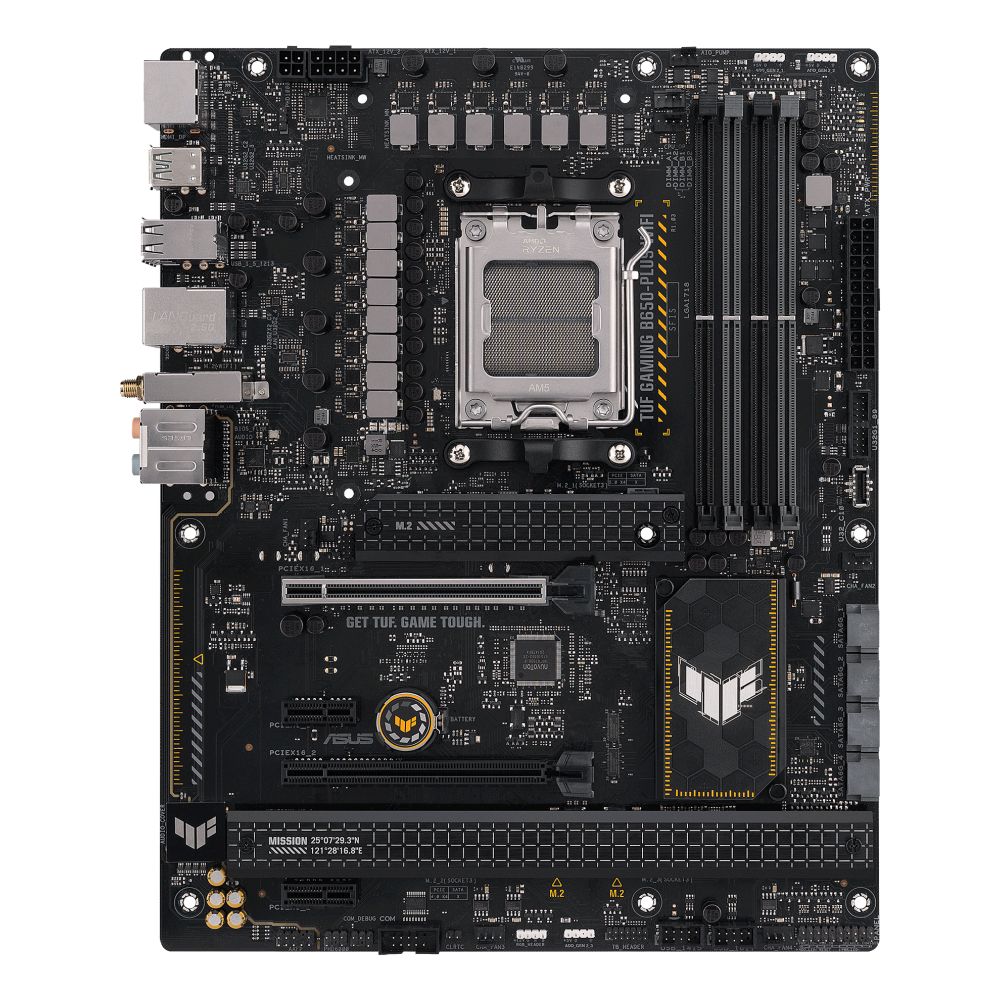

ASUS TUF GAMING B650-PLUS WIFI
£140.35 inc VAT
31 in stock
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- AMD B650 chipset with Socket AM5 for Ryzen 7000 Series CPUs
- Supports DDR5 memory up to 128 GB with speeds to 7600 MHz
- Three M.2 slots with PCIe 5.0 and NVMe RAID support
- 2.5 Gb Ethernet and Wi-Fi 6 for fast networking
- ATX form factor with 7.1-channel audio and RGB lighting
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:
You may also like
ASUS TUF GAMING B650-PLUS WIFI | AMD Ryzen 7000 Platform
The ASUS TUF GAMING B650-PLUS WIFI AMD B650 Socket AM5 ATX is engineered for UK gamers and PC builders seeking rock-solid performance with AMD’s latest Ryzen 7000 processors. Built with military-grade components, upgraded power delivery, and comprehensive cooling, this motherboard delivers marathon gaming stability and future-proof connectivity including Wi-Fi 6 and 2.5Gb Ethernet.
Key Specifications
| Metric | Spec |
|---|---|
| CPU Support | AMD Ryzen 7000 Series (Socket AM5) |
| Memory | DDR5, up to 6400MHz OC, 128GB max |
| Storage | 3x M.2 slots (PCIe 5.0), 7x SATA III |
| Wi-Fi | Wi-Fi 6 (802.11ax) with Bluetooth 5.2 |
| LAN | 2.5Gb Ethernet |
| Form Factor | ATX |
Engineered for AMD Ryzen 7000 Series
The TUF GAMING B650-PLUS WIFI is specifically designed to unlock the full potential of AMD’s Ryzen 7000 processors. With 12+2 teamed power stages rated at 60A each, military-grade TUF chokes, and Digi+ VRM technology, this motherboard provides clean, stable power delivery even under heavy multi-threaded workloads. The robust power design ensures consistent performance whether you’re gaming, streaming, or content creation.
DDR5 Memory Performance Unleashed
Comprehensive memory tuning options let you extract maximum performance from your DDR5 modules. The motherboard supports AMD EXPO technology for instant, optimised overclocking profiles, while experienced users can fine-tune settings via the UEFI BIOS. With support for speeds up to DDR5-6400 (OC), you’ll experience faster load times, smoother multitasking, and improved frame rates in memory-intensive applications.
Advanced Cooling for Sustained Performance
TUF GAMING B650-PLUS WIFI features an enlarged VRM heatsink that covers VRMs and chokes for superior heat dissipation. All M.2 slots include dedicated heatsinks to maintain optimal SSD temperatures, preventing thermal throttling during extended gaming sessions. The comprehensive fan control system via Fan Xpert 4 allows precise thermal management, ensuring components stay cool when pushing performance limits.
Future-Ready Connectivity
This motherboard offers extensive connectivity options including one PCIe 5.0 M.2 slot for the fastest NVMe SSDs, three Type-C USB ports, and Intel Wi-Fi 6 with Bluetooth 5.2. The 2.5Gb Ethernet provides up to 2.5x faster LAN speeds than standard Gigabit, perfect for lag-free online gaming and rapid file transfers. Thunderbolt headers expand your expansion possibilities for high-bandwidth devices.

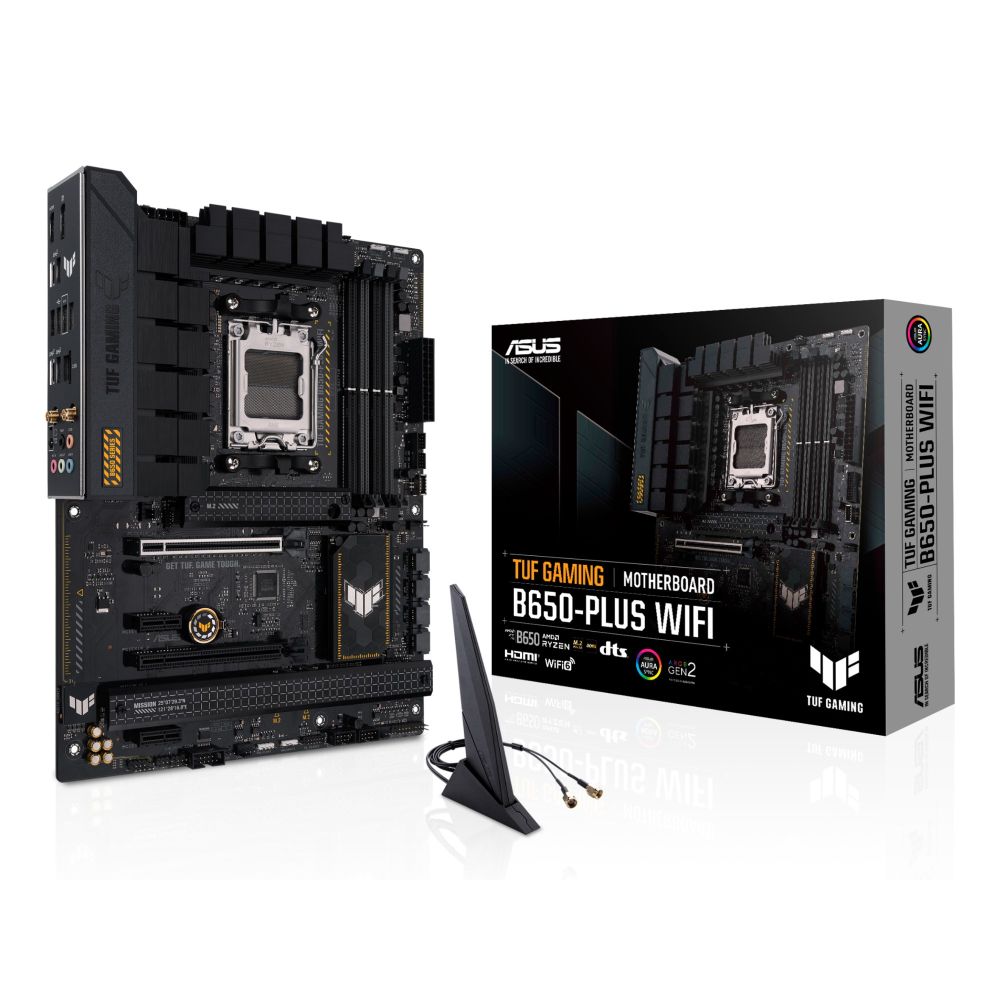

Box Contents
- ASUS TUF GAMING B650-PLUS WIFI motherboard
- I/O shield
- User manual
- Warranty card
- SATA cables
- M.2 screws
- Q-LED diagnostic card
Check before you buy
- Confirm your AMD Ryzen 7000 CPU is compatible with Socket AM5
- Verify your case supports ATX motherboard dimensions (305mm x 244mm)
- Check if your power supply has the required 8+4 pin CPU power connectors
- Ensure you have DDR5 memory modules for optimal performance
Frequently Asked Questions
Q: Does this motherboard support Windows 11?
A: Yes, the ASUS TUF GAMING B650-PLUS WIFI supports Windows 10 and Windows 11 with all necessary drivers and features.
Q: Can I use my existing DDR4 RAM with this board?
A: No, this motherboard only supports DDR5 memory modules and is not compatible with DDR4 RAM.
Q: How many graphics cards can I install?
A: The motherboard has two PCIe x16 slots, but for dual GPU setups you’ll need to check GPU clearance and power requirements.
Q: Is Wi-Fi 6 backwards compatible with older routers?
A: Yes, Wi-Fi 6 is backwards compatible with previous Wi-Fi standards, but you’ll get optimal performance with a Wi-Fi 6 router.
Q: What’s the benefit of PCIe 5.0 for storage?
A: PCIe 5.0 M.2 slots offer up to 128 Gbps bandwidth, significantly faster than PCIe 4.0, enabling quicker game load times and file transfers.
The Consultant’s Verdict & Warranty
The ASUS TUF GAMING B650-PLUS WIFI is ideal for UK gamers and PC enthusiasts building systems around AMD’s Ryzen 7000 processors. It combines rock-solid durability, comprehensive cooling, and future-ready connectivity in a feature-rich package. The military-grade components and extensive testing ensure reliability for marathon gaming sessions. Covered by the standard Manufacturer Warranty, this motherboard represents excellent value for those seeking performance without premium pricing.
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 3 |
| Thunderbolt headers | 1 |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| Number of COM connectors | 1 |
| Number of chassis fan connectors | 4 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| Technical details | |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B650 |
| Supported processor sockets | Socket AM5 |
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| Motherboard form factor | ATX |
| Component for | PC |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Supported storage drive types | HDD & SSD |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B650 |
| RAID levels | 0, 1, 10 |
| Supported processor sockets | Socket AM5 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 7000 Series |
| Supported processor sockets | Socket AM5 |
| Processor socket | Socket AM5 |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7600 MHz |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| ECC сompatibility | ECC & Non-ECC |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 0, 1, 10 |
| Number of storage drives supported | 7 |
| RAID support | Yes |
| Graphics | |
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| Rear panel I/O ports | |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 2.0 ports quantity | 4 |
| S/PDIF out port | No |
| Microphone in | Yes |
| Headphone outputs | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Line-in | Yes |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Features | |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B650 |
| Supported processor sockets | Socket AM5 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Product colour | Black |
| Expansion slots | |
| Number of M.2 (M) slots | 3 |
| PCI Express x1 (Gen 4.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 2 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Packaging data | |
| Package width | 338 mm |
| Package depth | 273 mm |
| Package height | 68 mm |
| Package weight | 1.36 kg |
| Weight & dimensions | |
| Height | 50 mm |
| Package width | 338 mm |
| Package depth | 273 mm |
| Package height | 68 mm |
| Package weight | 1.36 kg |
| Weight | 1.2 kg |
| Width | 305 mm |
| Depth | 244 mm |
| Other features | |
| Height | 50 mm |
| Package width | 338 mm |
| Package depth | 273 mm |
| Package height | 68 mm |
| Package weight | 1.36 kg |
| Weight | 1.2 kg |
| PCI Express x1 (Gen 4.x) slots | 2 |
| Identifiers | |
| Distributor SKUs | MBD-90MB1BY0-M0EAY0, MBD-90MB1BZ0-M0EAY0, 7925868, 7925869, 122516, 122517, W128279052, W128279050, 90MB1BY0-M0EAY0, TUF GAMING B650-PLUS, TUF GAMING B650-PLUS WIFI, 10374949, 437175, 476344, 494709, STD10143010, STD10198047, STD10215659, STD10215676, 1823509, 1823510, M2MMBD-90MB1BY0-M0EAY0, M2MMBD-90MB1BZ0-M0EAY0, 14902779000 |
| Additional EANs | 4711081912767 |
