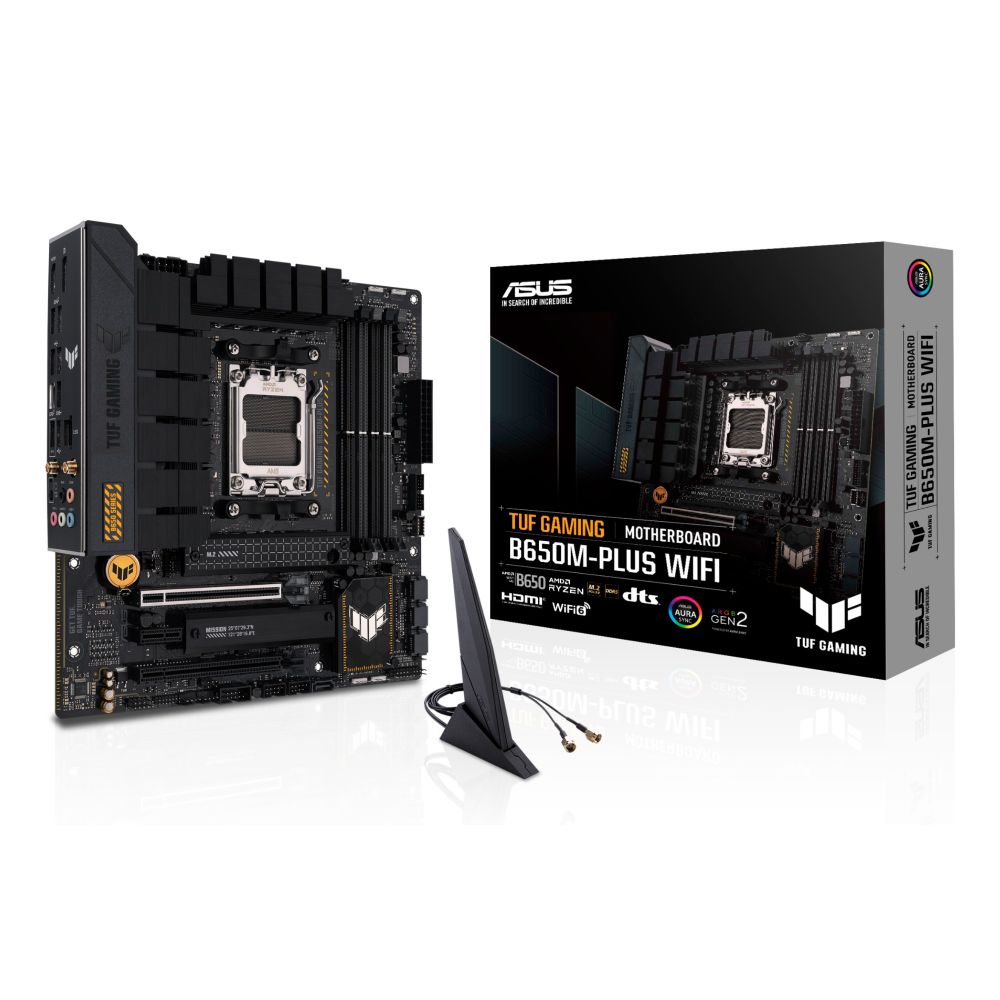

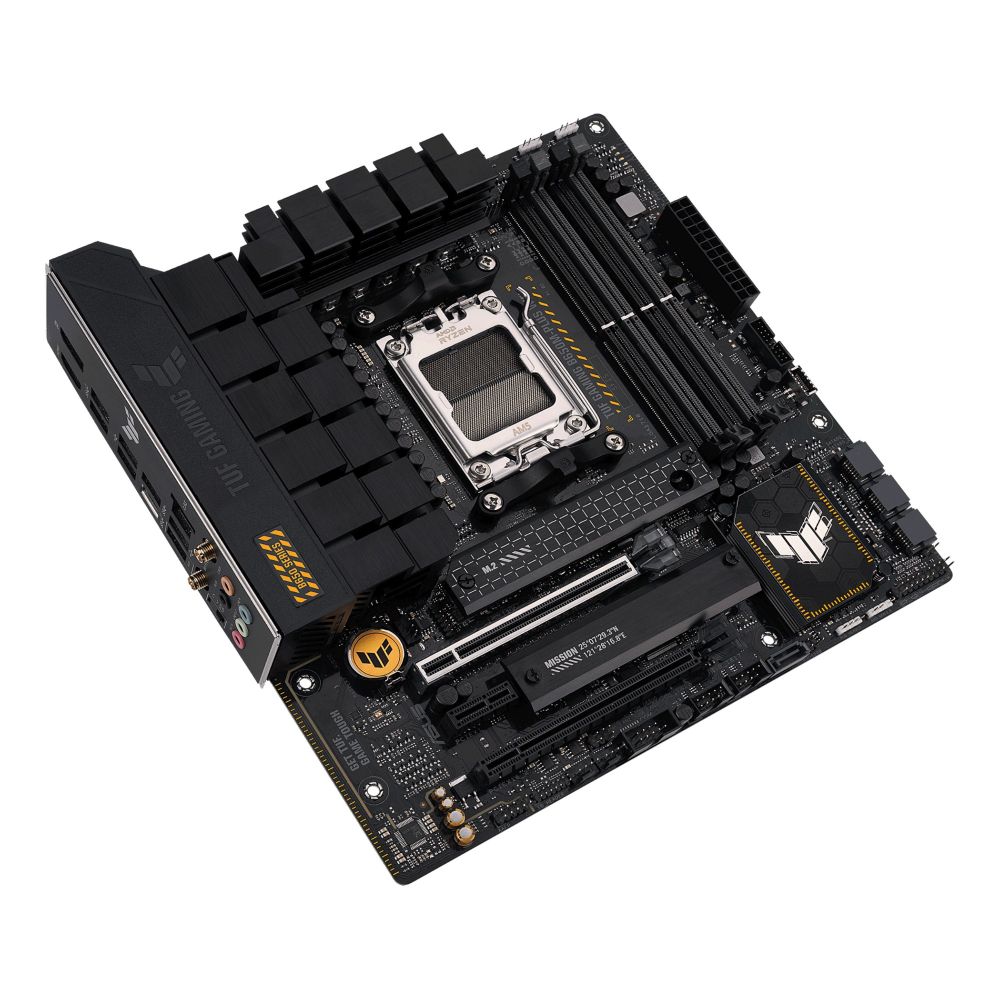

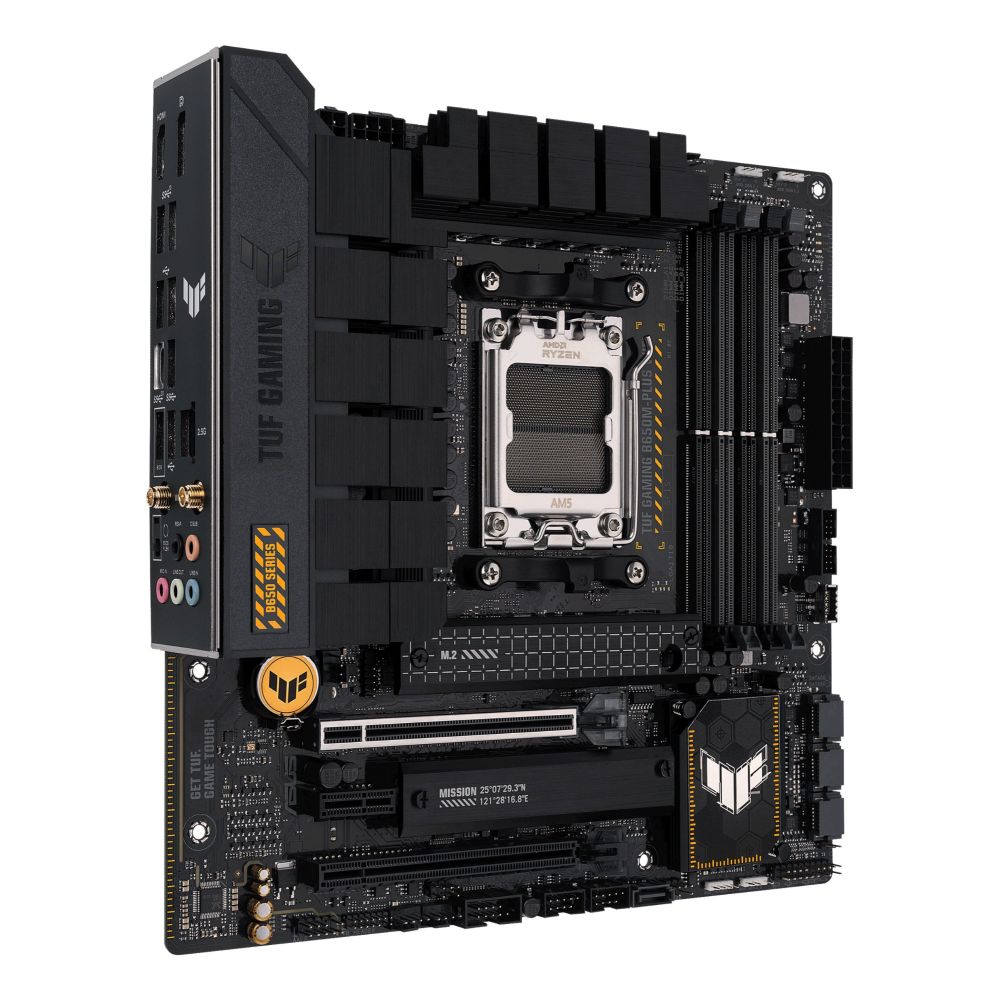

ASUS TUF GAMING B650M-PLUS WIFI AMD B650 AM5 micro ATX motherboard
£155.42 inc VAT
16 in stock
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- AMD B650 micro ATX motherboard with Socket AM5 for Ryzen 7000 CPUs
- Supports DDR5 memory up to 6400 MHz with dual-channel configuration
- Features 2 M.2 slots and 4 SATA III connectors for versatile storage
- Includes Wi-Fi 6 and 2.5 Gb Ethernet for fast networking
- Equipped with PCIe 5.0 M.2 slot and USB 3.2 Gen 2×2 Type-C ports
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:
You may also like
ASUS TUF GAMING B650M-PLUS WIFI | AMD B650 Micro ATX Motherboard

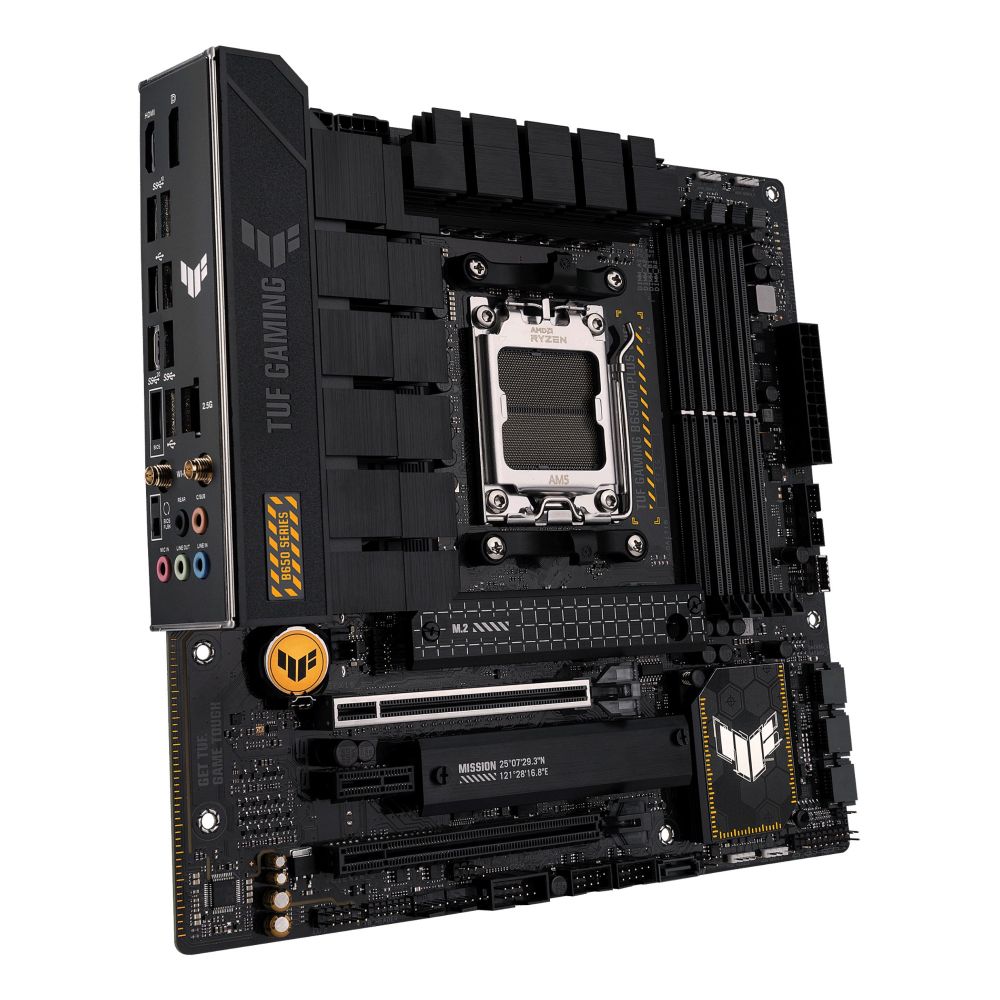

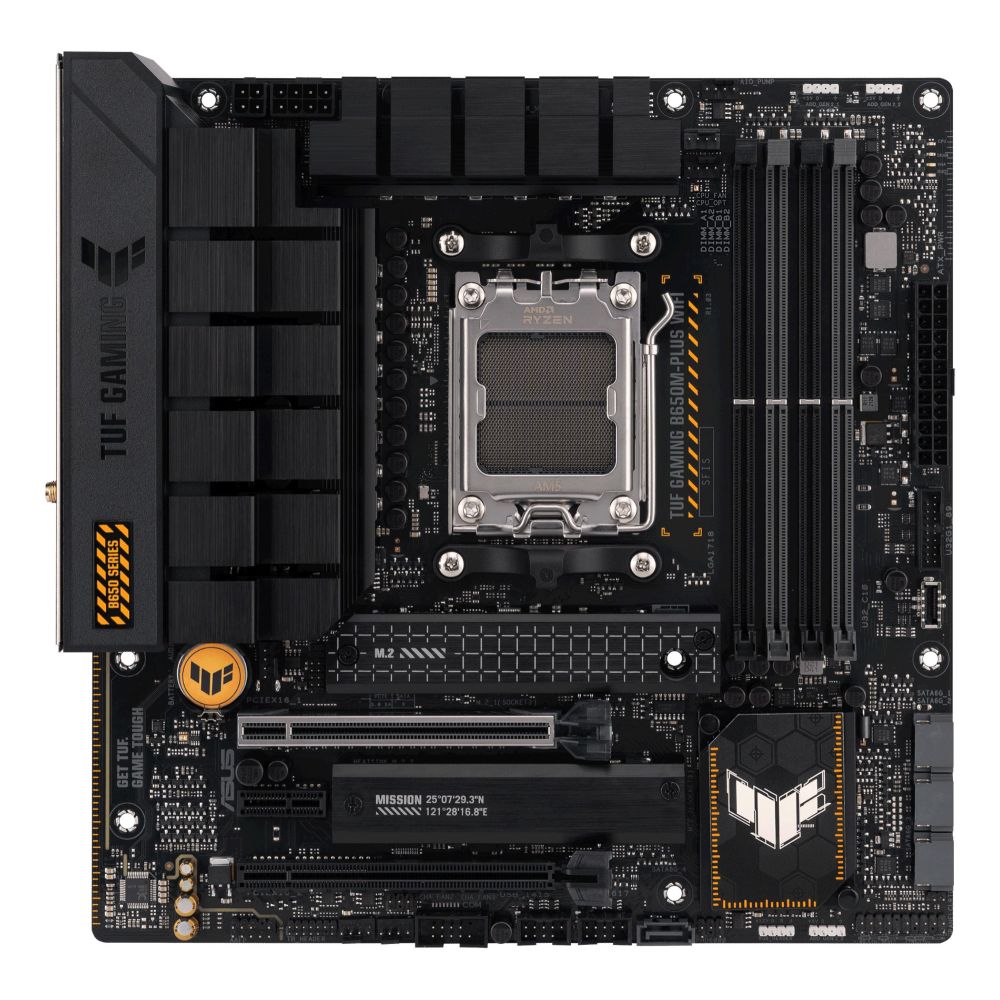

The ASUS TUF GAMING B650M-PLUS WIFI is a micro ATX motherboard built for AMD Ryzen 7000-series processors, combining military-grade durability with game-ready features. Engineered for marathon gaming sessions, it delivers rock-solid performance through upgraded power delivery, comprehensive cooling, and robust connectivity options.
Key Specifications
| Metric | Spec |
|---|---|
| Socket | AMD AM5 |
| Memory Support | DDR5, up to 128 GB |
| PCIe Slots | 2 x PCIe 4.0 x16, 1 x PCIe 4.0 x1 |
| M.2 Slots | 2 x PCIe 4.0 (with heatsinks) |
| Wi-Fi | Wi-Fi 6 (802.11ax) + Bluetooth 5.2 |
| Ethernet | 2.5 Gb + Gigabit |
Engineered for AMD Ryzen 7000 Series
Designed specifically for AMD’s latest AM5 platform, this motherboard unlocks the full potential of Ryzen 7000 CPUs. The 12+2 power stage design delivers clean, stable power to handle demanding workloads, while support for DDR5 memory ensures lightning-fast data access. Whether you’re gaming, streaming, or content creation, the B650M-PLUS WIFI provides the foundation for high-core-count performance.
Military-Grade Durability
TUF GAMING components undergo rigorous testing to ensure reliability in extreme conditions. Military-grade TUF chokes and capacitors offer 52% wider temperature tolerance and 2.5x longer lifespan than standard components. The reinforced SafeSlot Core+ PCIe slots prevent card damage during installation, while ESD guards protect against static discharge up to ±10 kV. This motherboard is built to last through years of heavy use.
Advanced Cooling Solutions

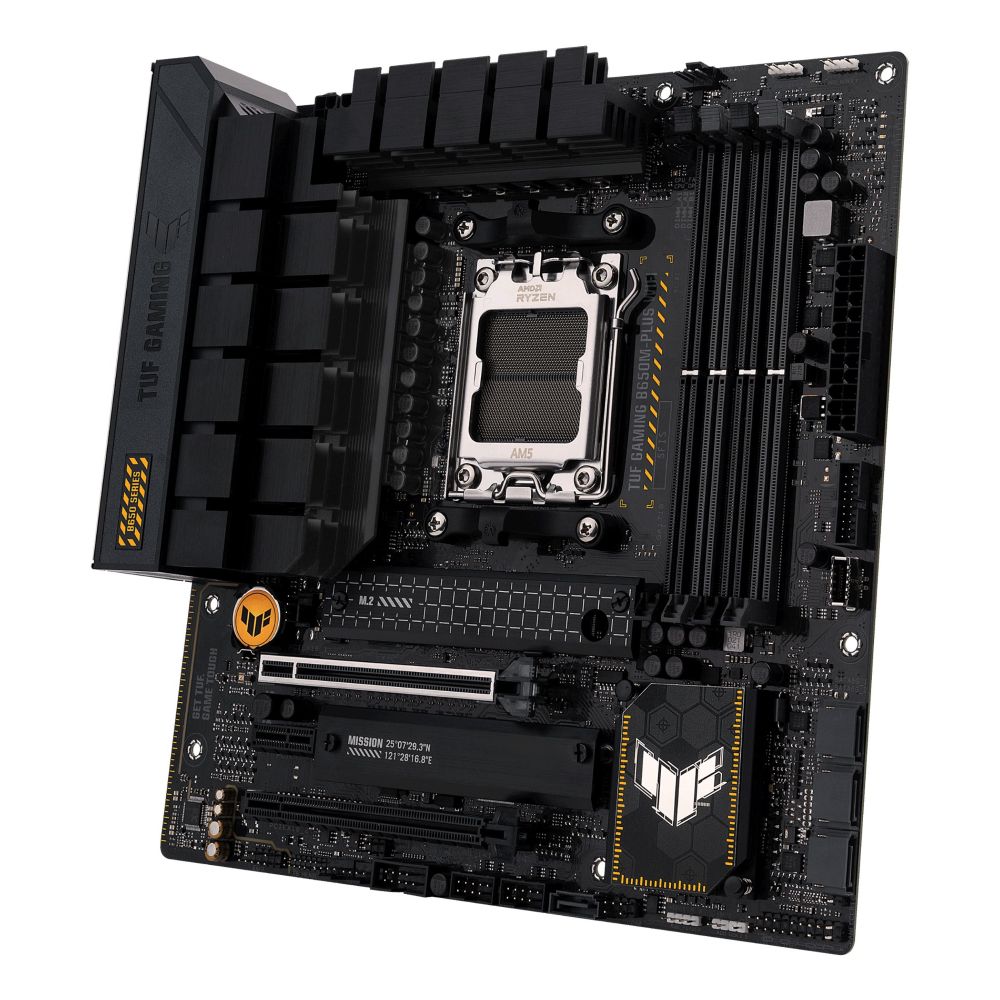

Comprehensive cooling keeps your system running optimally under load. The enlarged VRM heatsink covers VRMs and chokes for improved heat dissipation, while dedicated M.2 heatsinks prevent thermal throttling of your SSDs. Three chassis fan headers and a CPU fan connector support Fan Xpert 2+ for intelligent fan control, maintaining ideal temperatures without excessive noise.
Next-Generation Connectivity

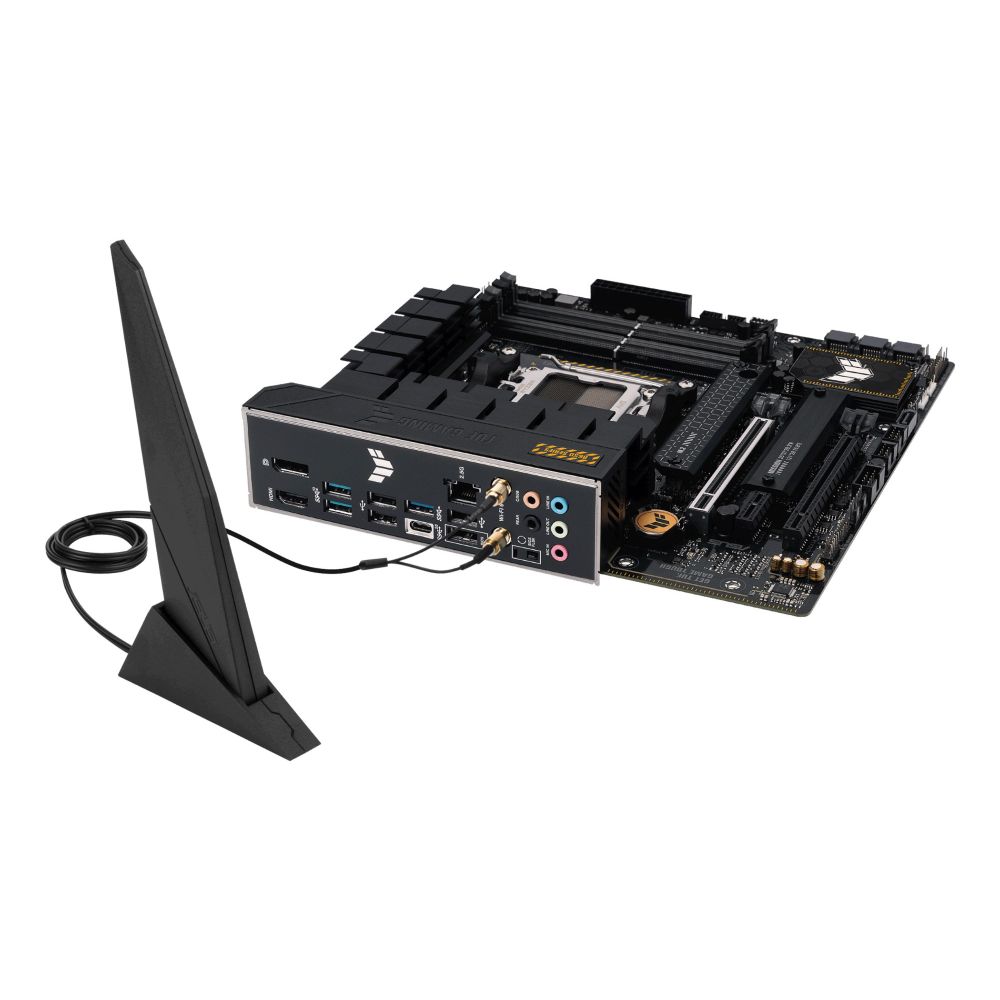

Stay connected with cutting-edge networking features. Wi-Fi 6 delivers up to 1.2 Gbps theoretical bandwidth with improved efficiency on crowded networks. The 2.5 Gb Ethernet port provides 2.5x faster LAN speeds for smoother online gaming and faster file transfers. Multiple USB ports include USB 3.2 Gen 2×2 Type-C for blazing-fast data transfers, plus three addressable Gen 2 RGB headers for synchronized lighting effects.
Intuitive Software Control
Armoury Crate centralizes system management with an intuitive interface. Fine-tune performance with CPU Performance Boost and Precision Boost Overdrive, optimize power consumption with energy-saving profiles, and customize RGB lighting through Aura Sync. The UEFI BIOS offers simplified options for beginners and advanced settings for enthusiasts, making system tuning accessible to all skill levels.

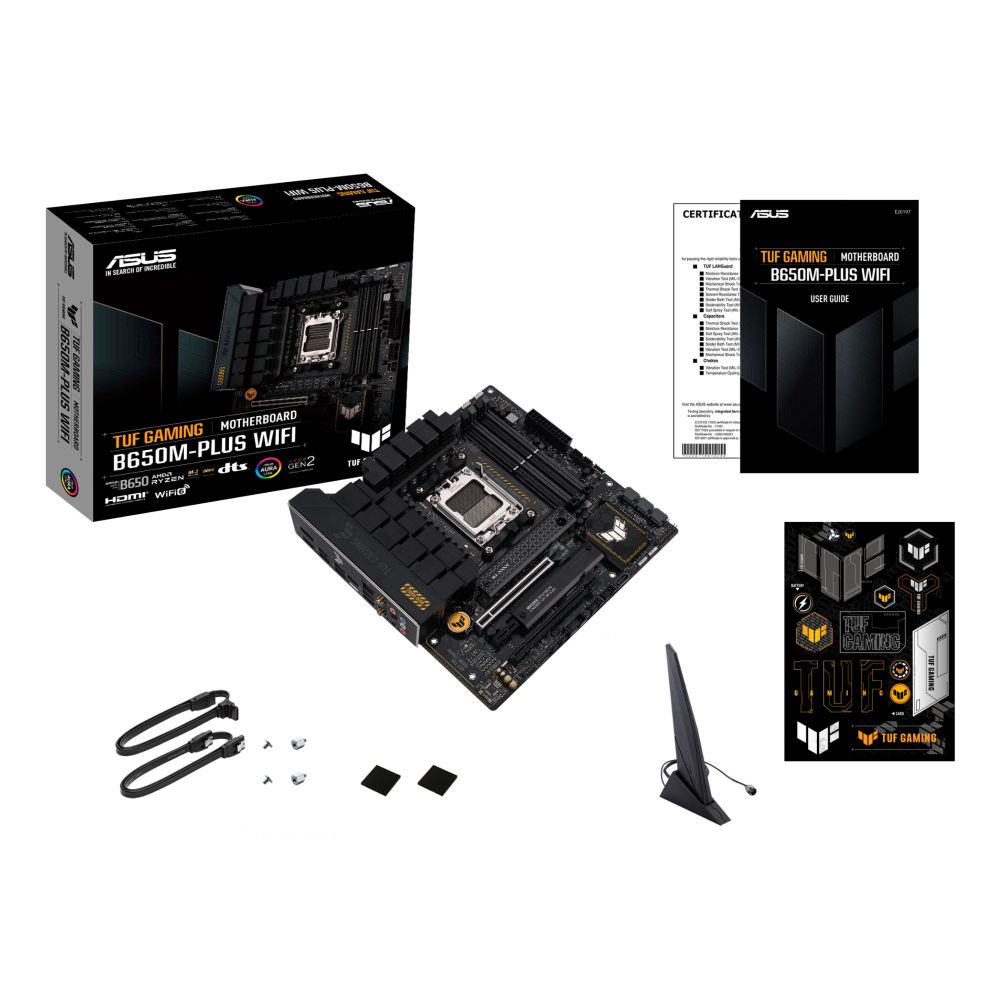

Box Contents
- ASUS TUF GAMING B650M-PLUS WIFI motherboard
- I/O shield
- User manual
- Warranty card
- SATA cables
- M.2 screws
- Q-LED diagnostic card
Check before you buy
- Confirm your CPU is compatible with AMD AM5 socket
- Verify your case supports micro ATX form factor (244mm x 244mm)
- Check that your power supply has required 8+4 pin CPU connectors
- Ensure you have DDR5 memory modules for optimal performance
Frequently Asked Questions
Q: Does this motherboard support DDR4 memory?
A: No, this motherboard only supports DDR5-SDRAM memory modules.
Q: Can I use this with an older AMD Ryzen processor?
A: No, this motherboard requires AMD Ryzen 7000 series processors with AM5 socket.
Q: How many graphics cards can I install?
A: You can install one graphics card in the primary PCIe x16 slot; the second x16 slot runs at x4 bandwidth.
Q: Is Wi-Fi 6 included or is it an add-on?
A: Wi-Fi 6 (802.11ax) is built-in with included antenna.
Q: Does it support RAID configurations?
A: Yes, it supports RAID 0, 1, and 10 configurations for both M.2 and SATA drives.
The Consultant’s verdict & warranty
The ASUS TUF GAMING B650M-PLUS WIFI delivers exceptional value for gamers and content creators seeking AMD AM5 performance in a compact micro ATX package. Its military-grade durability, comprehensive cooling, and next-gen connectivity make it ideal for building a reliable, high-performance system. Covered by the standard Manufacturer Warranty, this motherboard offers peace of mind alongside its impressive feature set.
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 2 |
| Thunderbolt headers | 1 |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| Number of COM connectors | 1 |
| Number of chassis fan connectors | 3 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| Technical details | |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B650 |
| On-board graphics card | No |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B650 |
| RAID levels | 0, 1, 10 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| ECC сompatibility | ECC & Non-ECC |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 0, 1, 10 |
| Number of storage drives supported | 6 |
| RAID support | Yes |
| Graphics | |
| On-board graphics card | No |

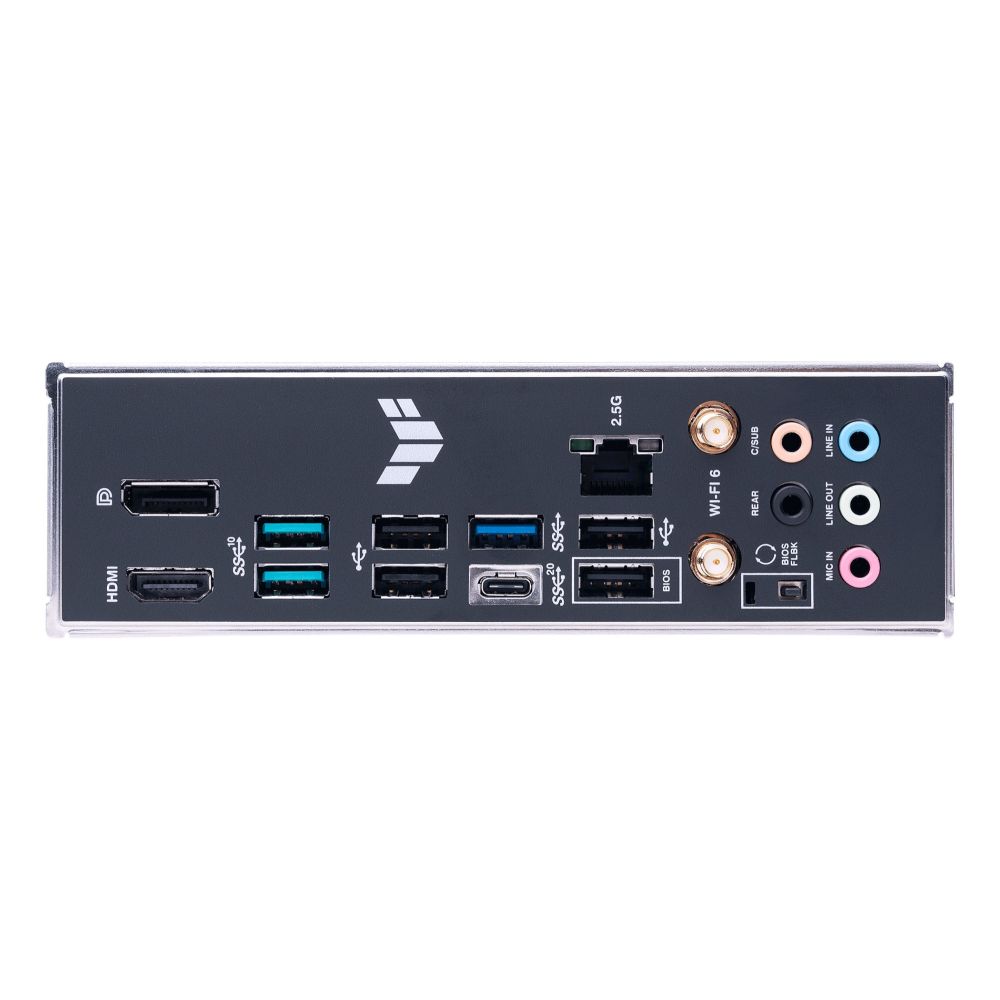

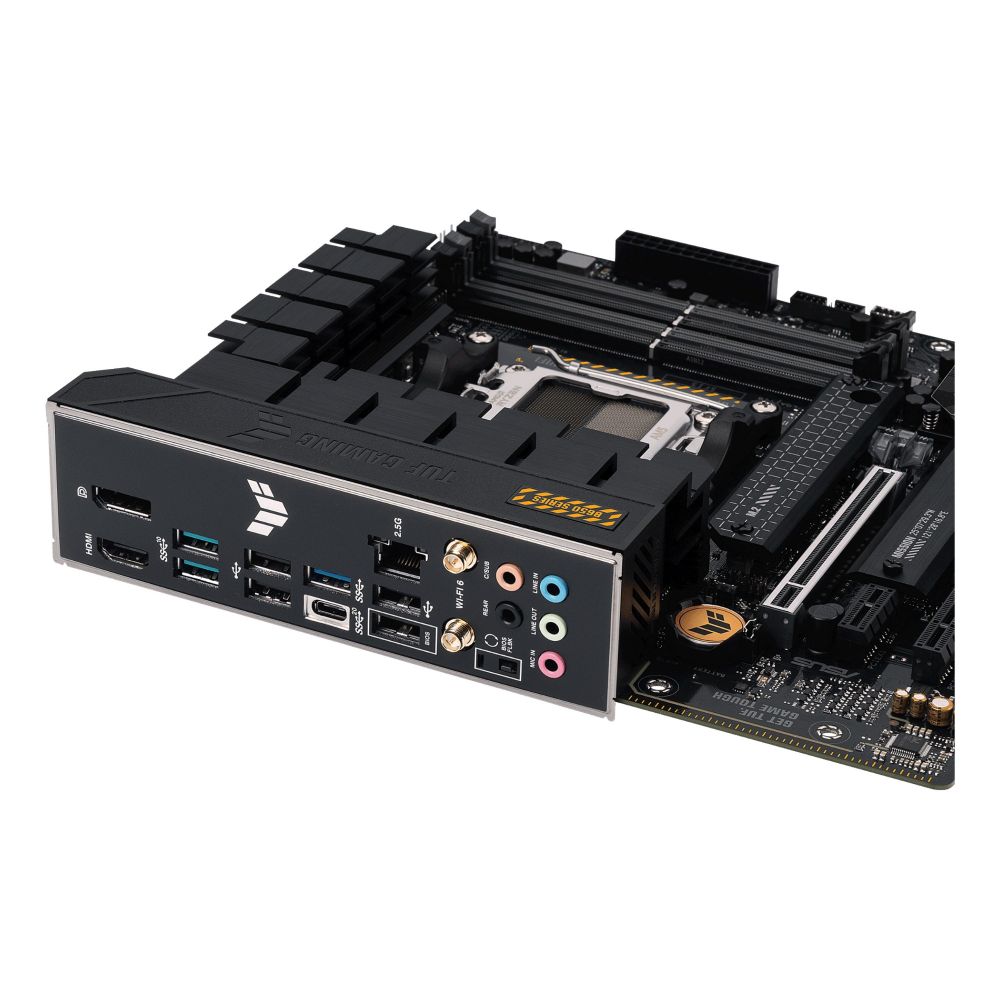

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 4 |
| Microphone in | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Line-in | Yes |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Ethernet interface type | 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Features | |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B650 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Product colour | Black |
| Expansion slots | |
| Number of M.2 (M) slots | 2 |
| PCI Express x1 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 2 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Software | |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Weight & dimensions | |
| Width | 244 mm |
| Depth | 244 mm |
| Other features | |
| PCI Express x1 (Gen 4.x) slots | 1 |
| Identifiers | |
| Distributor SKUs | MBD-90MB1BF0-M0EAY0, 7925870, 122518, TUF GAMING B650M-PLUS WIFI, 437174, 570678, STD10129933, STD10210040, CL90MB1BF0-M0EAY0 |
| Additional EANs | 0195553912112 |
