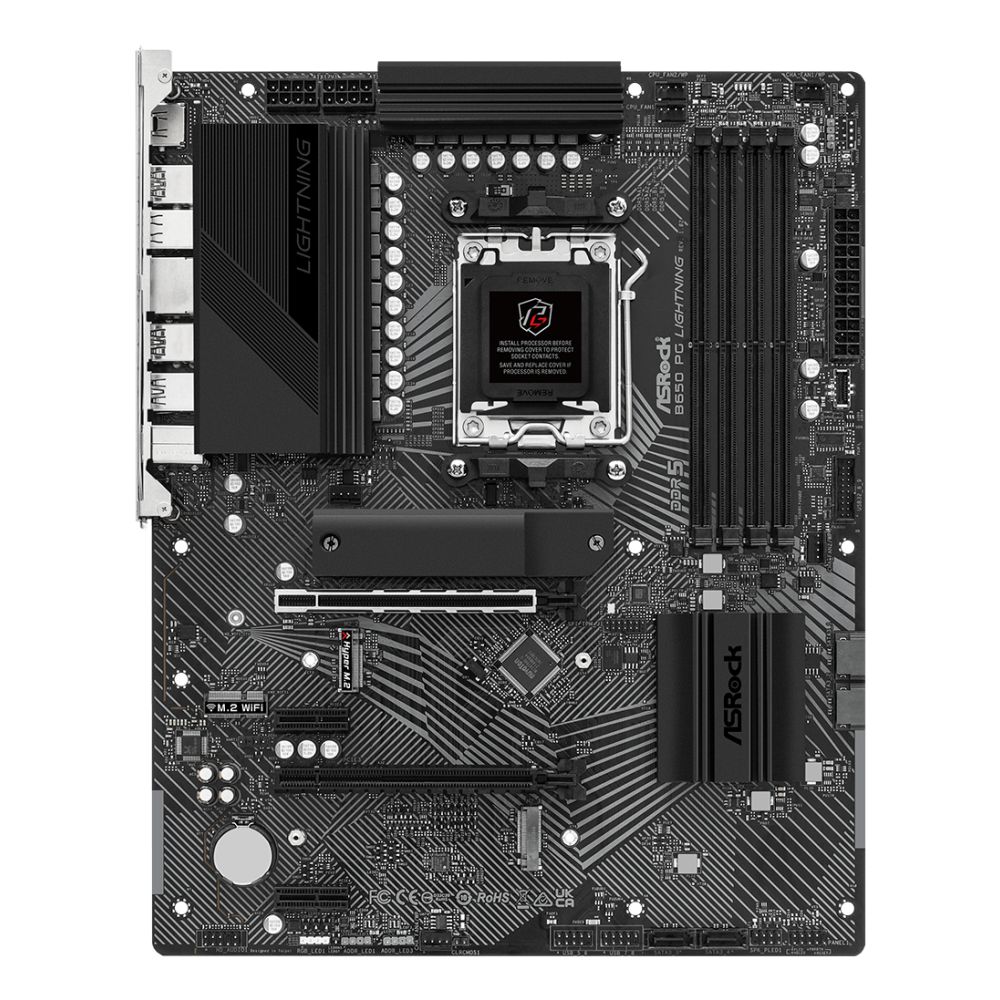

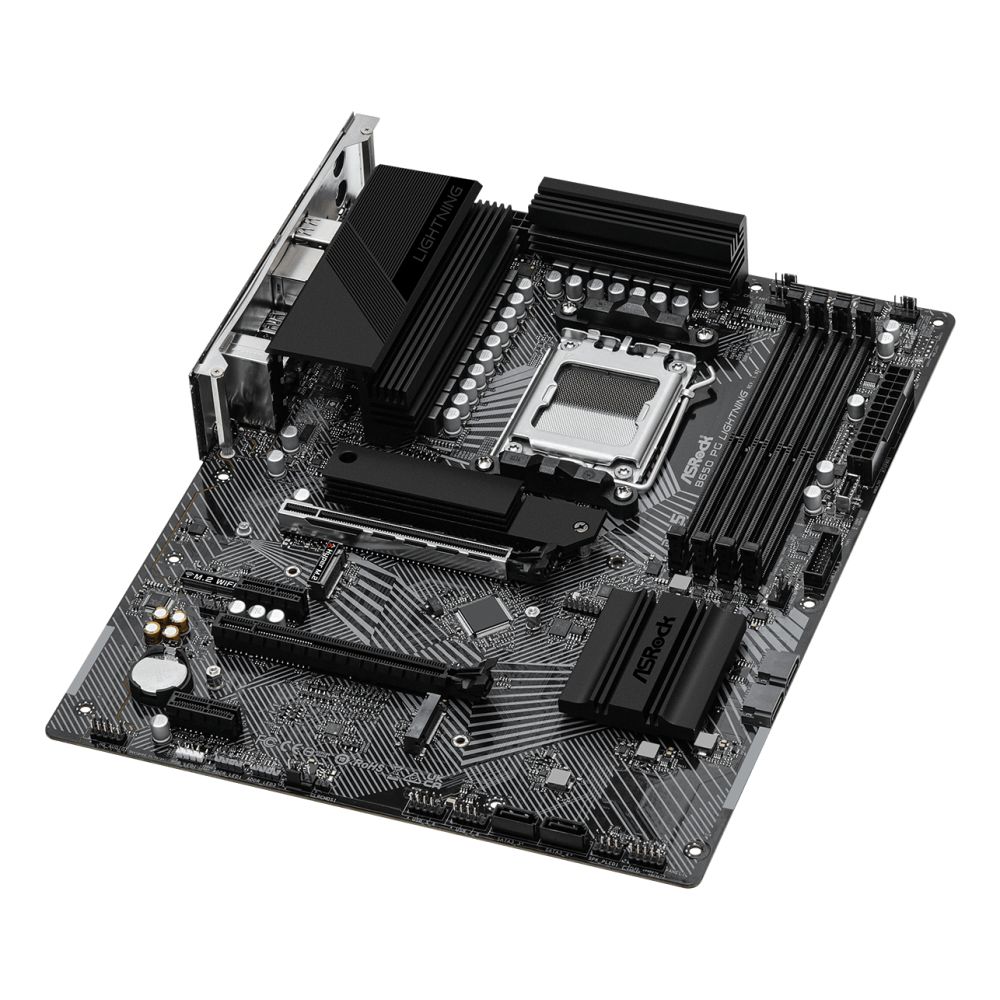

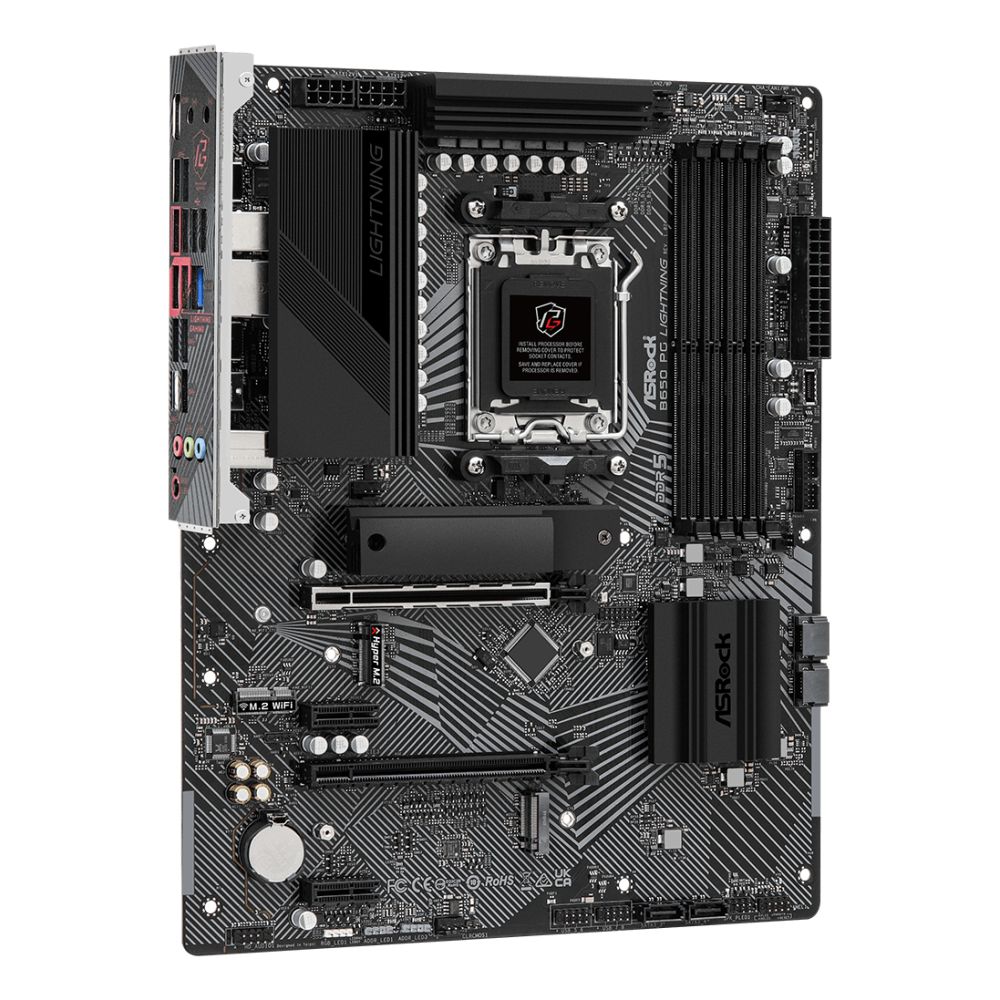

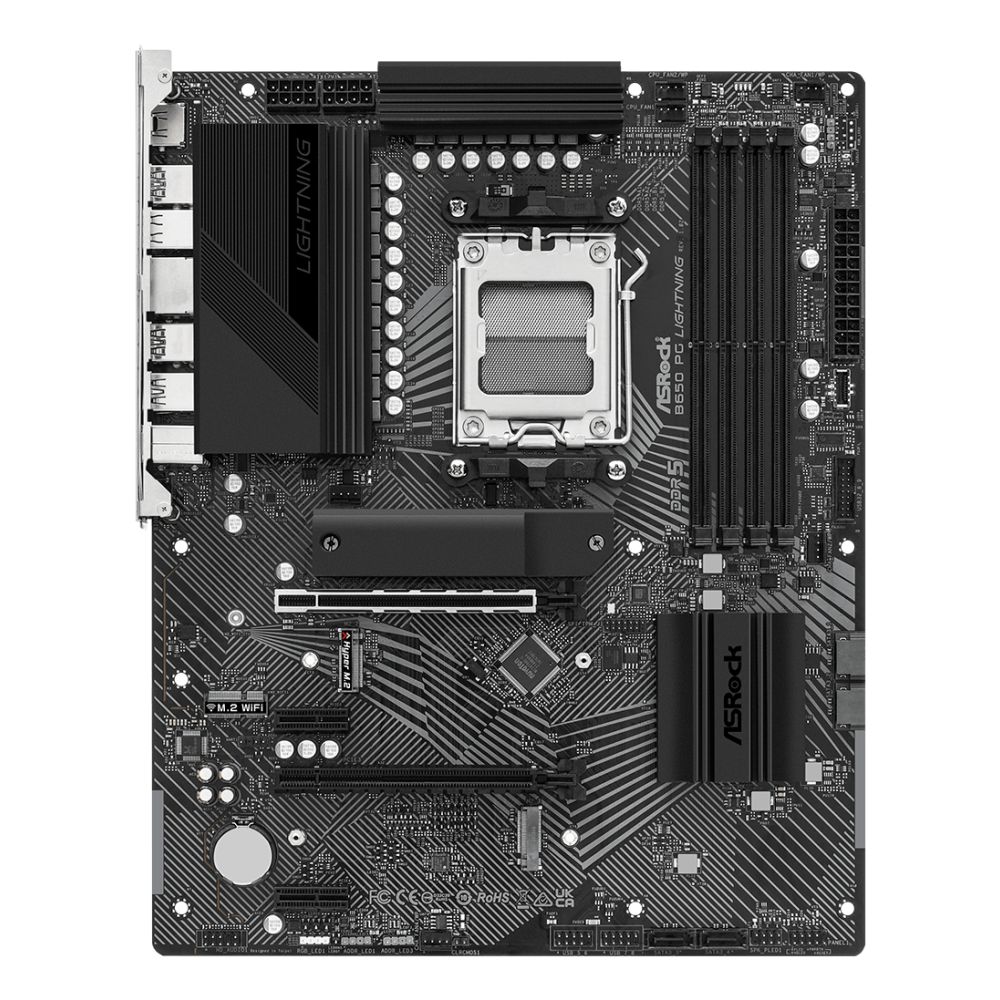

Asrock B650 PG Lightning AMD B650 ATX

ASRock B650 PG Lightning | AMD B650 AM5 Gaming Motherboard

The ASRock B650 PG Lightning AMD B650 Socket AM5 ATX motherboard delivers robust performance for AMD Ryzen 7000 Series processors with advanced features like PCIe Gen5 storage, DDR5 memory support, and 2.5Gb LAN. Built for gamers and creators, it combines reliable power delivery with modern connectivity.

Quick specs

Optimized power delivery for stable performance

The 14+2+1 phase SPS (Smart Power Stage) design uses Dr.MOS technology to monitor current and temperature per phase, delivering smoother, cleaner power to the CPU. This enhances both stability and overclocking potential, making it ideal for demanding workloads or gaming sessions.

Blazing-fast storage and memory

Featuring a PCIe Gen5 x4 M.2 slot, the motherboard supports next-gen NVMe SSDs with up to 128GB/s transfer speeds. Combined with DDR5 memory support up to 6400MHz+ via EXPO/XMP profiles, it ensures rapid data access and multitasking without bottlenecks.

Enhanced connectivity for modern builds

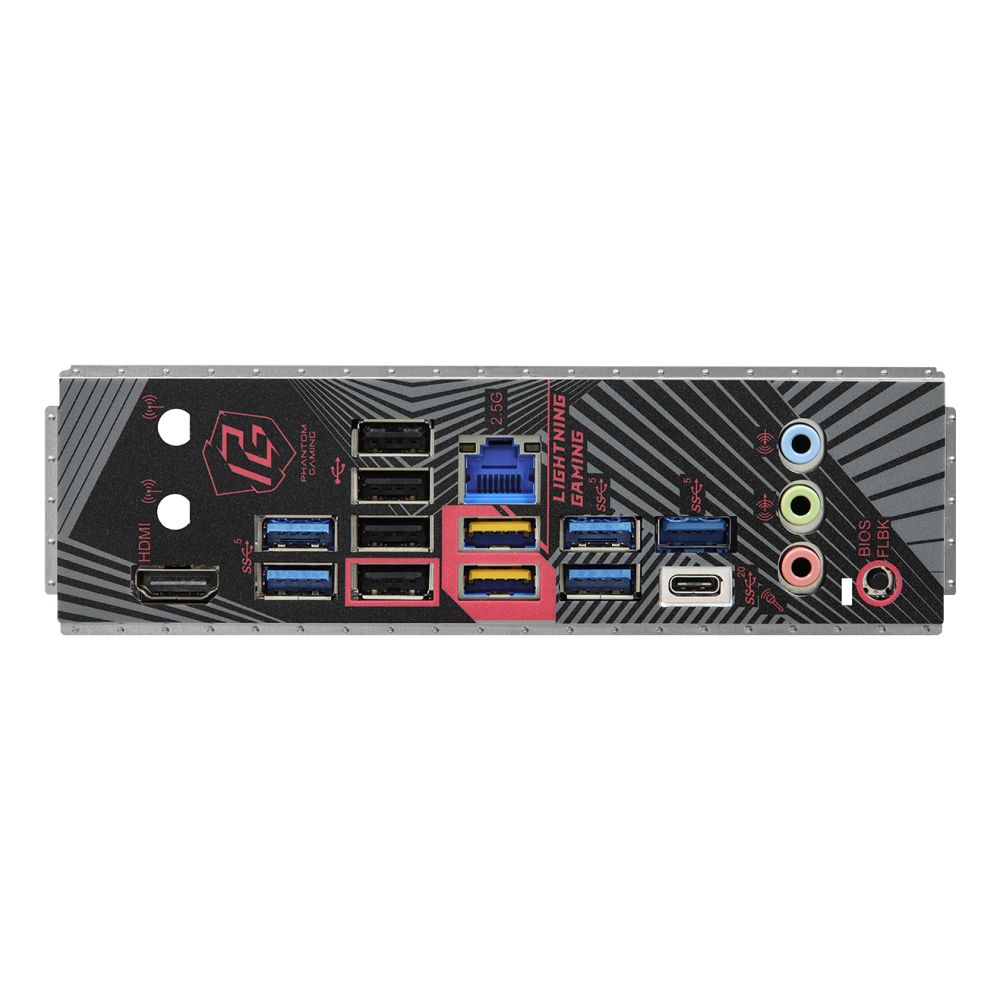

Dual-channel DDR5, 2.5Gb LAN, Wi-Fi 6E, and Bluetooth 5.2 keep you connected at high speeds. Seven rear USB 3.2 Gen1 ports, one USB 3.2 Gen2x2 Type-C, and front panel headers provide flexible peripheral expansion for gaming rigs or creative workstations.

Intelligent cooling and durability

An 8-layer PCB improves signal integrity and heat dissipation, while the XXL aluminum M.2 heatsink prevents thermal throttling of high-speed drives. Smart fan headers with speed control support both air and liquid cooling setups for quiet, efficient operation.

Box contents

• ASRock B650 PG Lightning motherboard
• 2 x SATA data cables
• 3 x M.2 screws
• User manual

Check before you buy

• Confirm your AMD Ryzen 7000 Series CPU is AM5 compatible.
• Verify your case supports ATX form factor (305 x 244 mm).
• Ensure your PSU has a 24-pin ATX and 8-pin CPU power connector.
• Check M.2 SSD clearance if using large heatsinks or GPUs.

Frequently Asked Questions

Q: Does this motherboard support integrated graphics?

A: Yes, it includes AMD RDNA 2 integrated graphics compatible with supported AM5 CPUs.

Q: What is the maximum RAM capacity?

A: It supports up to 128GB of DDR5 memory across four DIMM slots.

Q: Is Wi-Fi included or is an adapter needed?

A: Wi-Fi 6E is built-in; no separate adapter is required.

Q: Can I overclock the CPU and RAM?

A: Yes, the motherboard supports CPU overclocking and DDR5 memory overclocking via EXPO/XMP profiles.

Q: How many M.2 drives can I install?

A: You can install up to three M.2 drives: one PCIe Gen5 and two PCIe Gen4 slots.

The Consultant’s verdict & warranty

The ASRock B650 PG Lightning is a well-rounded AM5 motherboard offering strong power delivery, fast storage, and modern connectivity for gamers and creators alike. Its combination of PCIe Gen5, DDR5 support, and 2.5Gb LAN makes it a future-proof choice for high-performance builds. Covered by the standard Manufacturer Warranty.
