Asrock B760M-HDV/M.2 Intel Micro ATX Motherboard

ASRock B760M-HDV/M.2 | Intel B760 Micro ATX Motherboard

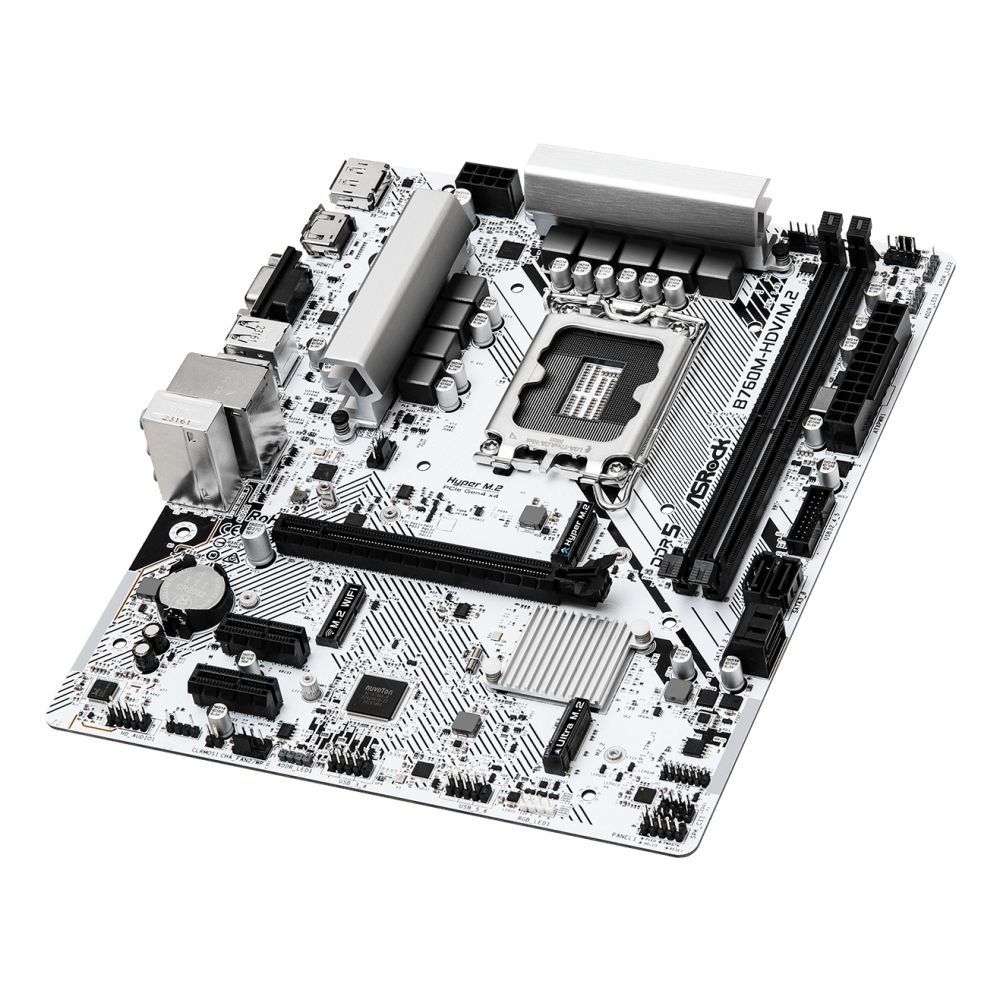

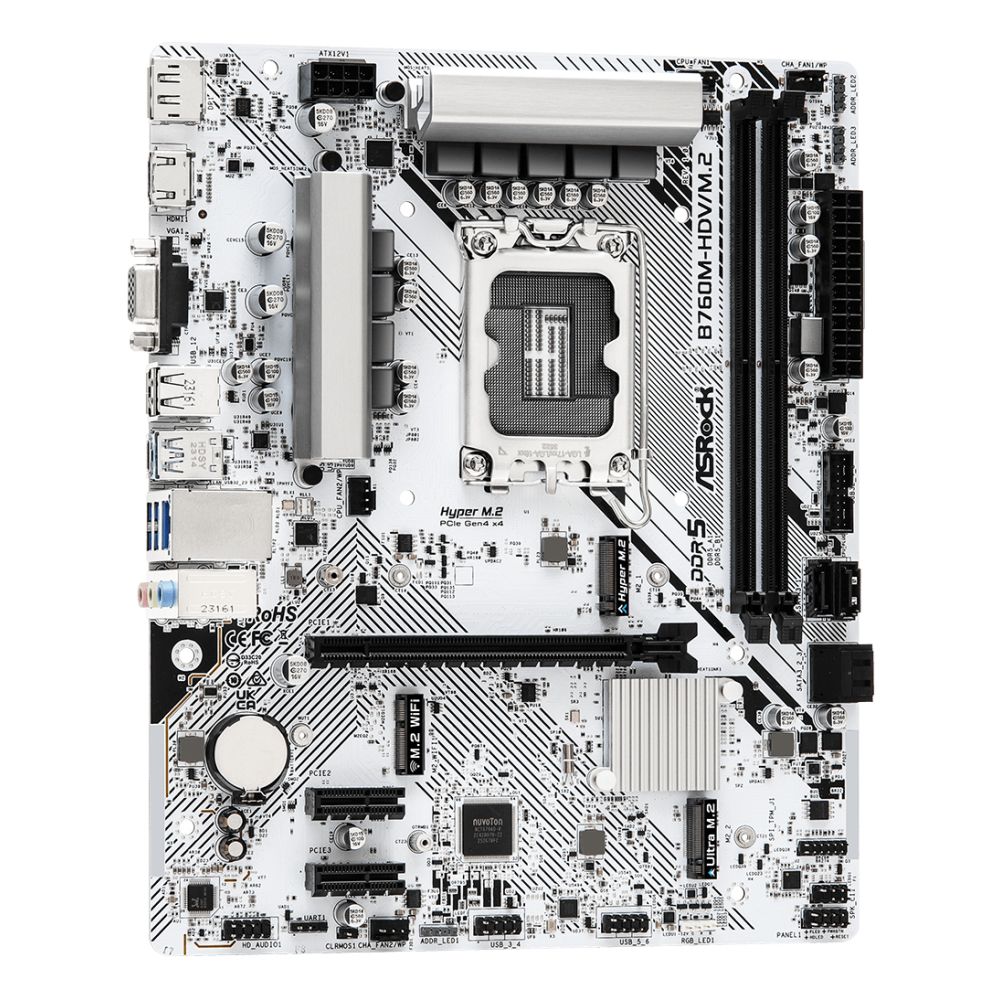

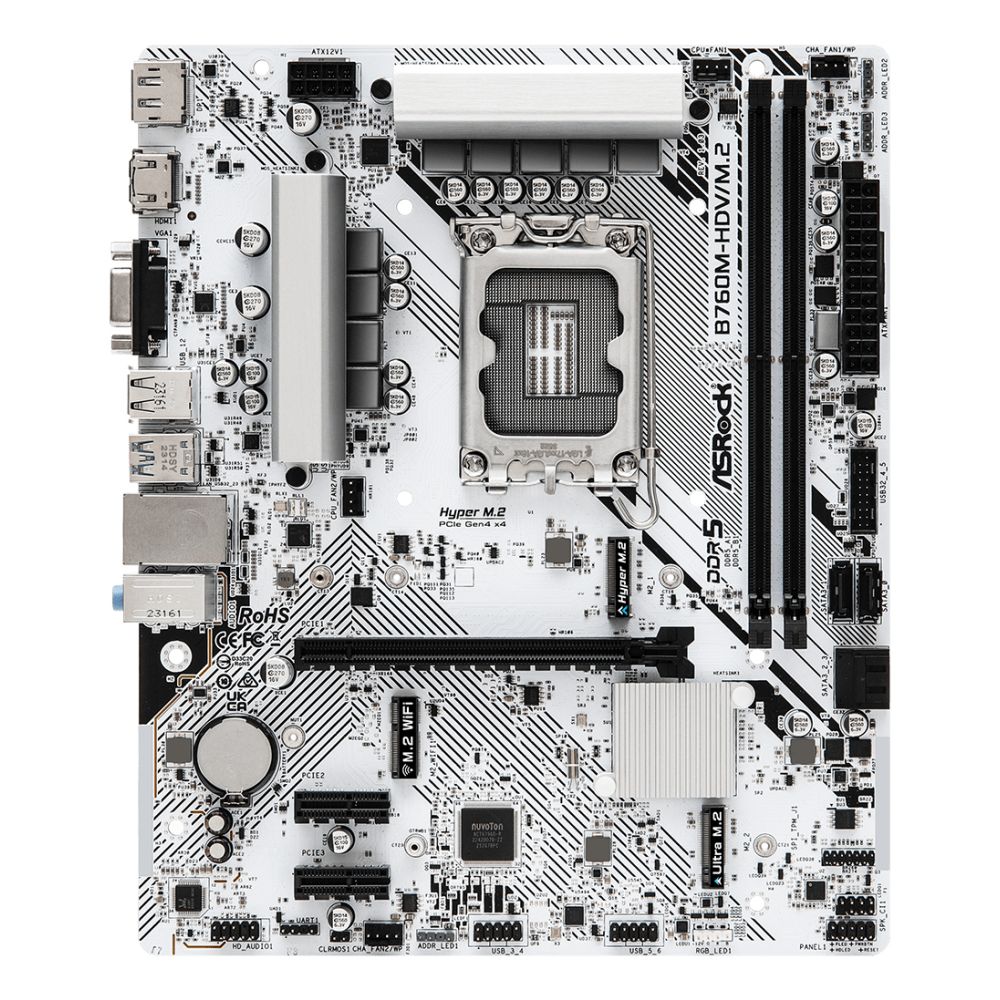

The ASRock B760M-HDV/M.2 motherboard Intel B760 LGA 1700 micro ATX delivers robust performance for Intel 12th, 13th, and 14th Gen processors in a compact micro ATX form factor. Built around the Intel B760 chipset, this board offers DDR5 memory support, PCIe 4.0 M.2 storage, and 2.5Gb Ethernet for responsive everyday computing and gaming.

Key Specifications

DDR5 Performance & Memory Overclocking

This motherboard supports DDR5-SDRAM across two DIMM slots with a maximum capacity of 96GB. ASRock’s DDR5 XMP and EXPO support allows enthusiasts to enable pre-tested memory profiles for stable, high-speed performance. For optimal results, ensure your memory modules are Intel XMP or AMD EXPO capable before enabling overclocking.

Enhanced Power Delivery

The +1+1 power phase design uses high-quality components to deliver smooth, consistent power to compatible Intel Core processors. This stable power architecture helps maintain system reliability during demanding workloads and gaming sessions, particularly when paired with 12th, 13th, or 14th Gen Intel CPUs.

Comprehensive Connectivity

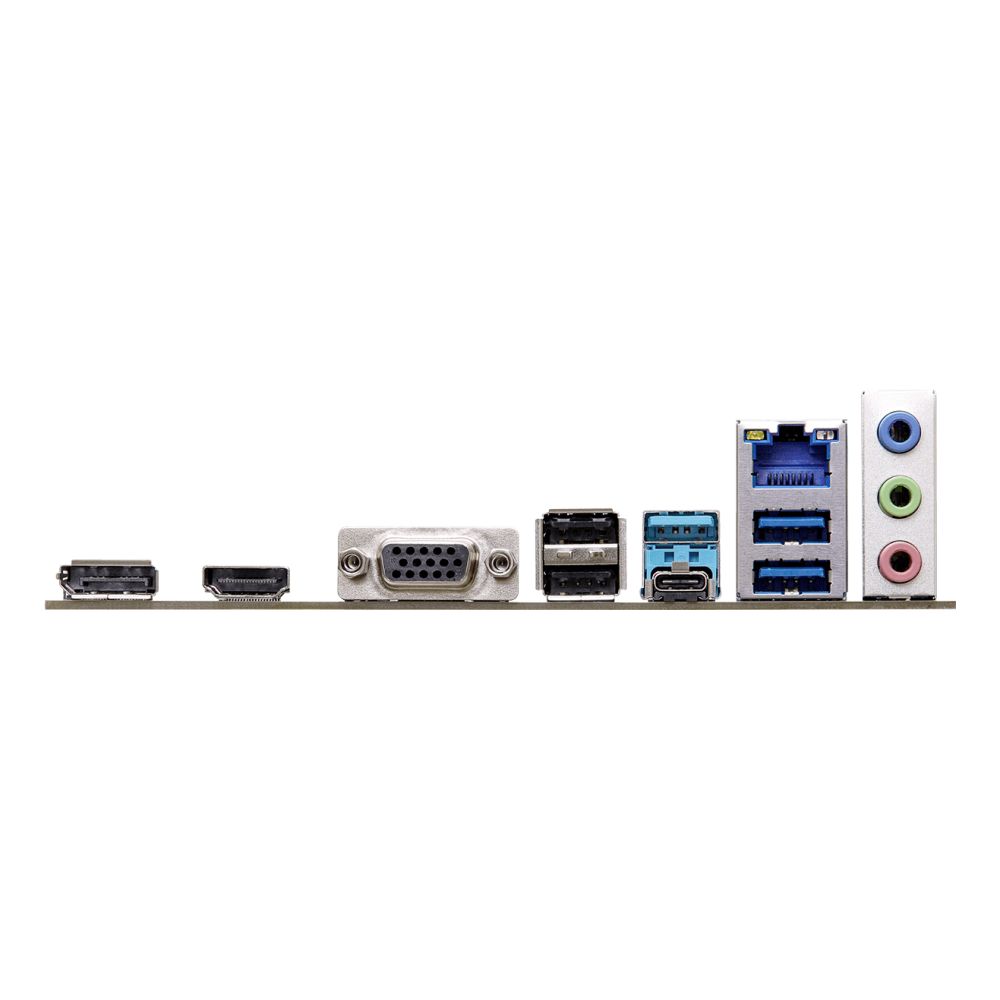

With three graphics outputs (D-Sub, DisplayPort 1.4, and HDMI), this board supports multiple display configurations. Storage options include one high-speed PCIe 4.0 M.2 slot and four SATA III ports. The rear I/O features USB 3.2 Gen 1 Type-A and Type-C ports, plus legacy USB 2.0 connections for peripheral flexibility.

Built-in Networking & Expansion

Dragon RTL8125BG 2.5Gb LAN provides up to 2.5X the bandwidth of standard gigabit Ethernet, ideal for online gaming, content creation, and large file transfers. An M.2 Key E slot allows for optional WiFi adapter installation, while two PCIe x1 Gen 3 slots and one PCIe x16 Gen 4 slot offer expansion possibilities.

Box Contents

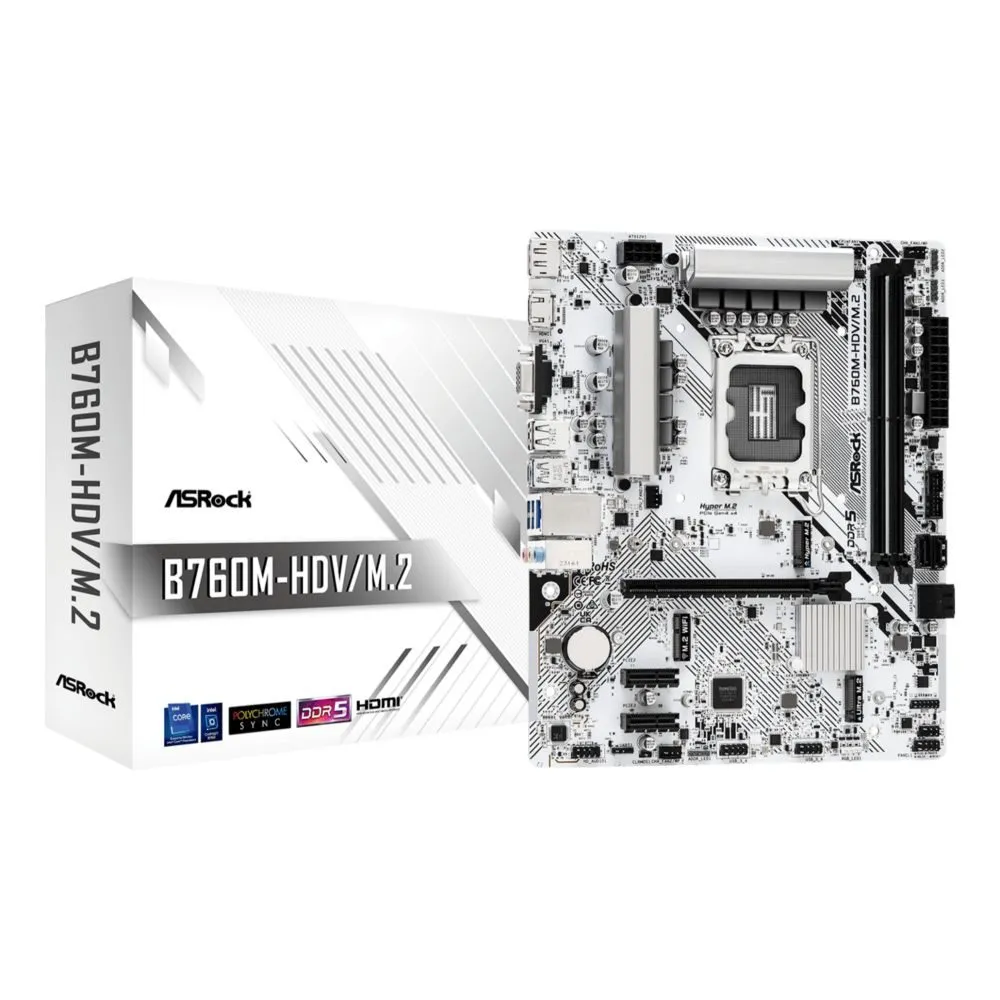

• ASRock B760M-HDV/M.2 motherboard
• SATA cables
• Screws
• I/O shield

Check before you buy

• Confirm your CPU is compatible with LGA 1700 socket (Intel 12th, 13th, or 14th Gen)
• Verify your DDR5 memory is XMP/EXPO capable for overclocking support
• Check your case dimensions accommodate micro ATX form factor (244mm x 201mm)
• Confirm your GPU and expansion cards fit with available PCIe slot configuration

Frequently Asked Questions

Q: Does this motherboard support WiFi out of the box?

A: No, WiFi is not built-in. You can add wireless connectivity using an M.2 Key E WiFi adapter.

Q: What type of memory does this board support?

A: This motherboard supports DDR5-SDRAM with a maximum of 96GB across two DIMM slots.

Q: Can I use this with my Intel Core i7 13th Gen processor?

A: Yes, this board is compatible with Intel Core i7 13th Gen processors that use the LGA 1700 socket.

Q: How many M.2 drives can I install?

A: This board has one M.2 slot that supports PCIe 4.0 x4 SSDs for high-speed storage.

Q: Does it have RGB lighting options?

A: Yes, the Polychrome RGB feature includes onboard and addressable RGB headers for custom lighting effects.

The Consultant’s verdict & warranty

The ASRock B760M-HDV/M.2 offers excellent value for users building systems with Intel 12th, 13th, or 14th Gen processors who want DDR5 performance and solid connectivity in a micro ATX package. The 2.5Gb LAN, PCIe 4.0 M.2 support, and comprehensive I/O make it suitable for gaming, content creation, and everyday computing. Covered by the standard Manufacturer Warranty.
