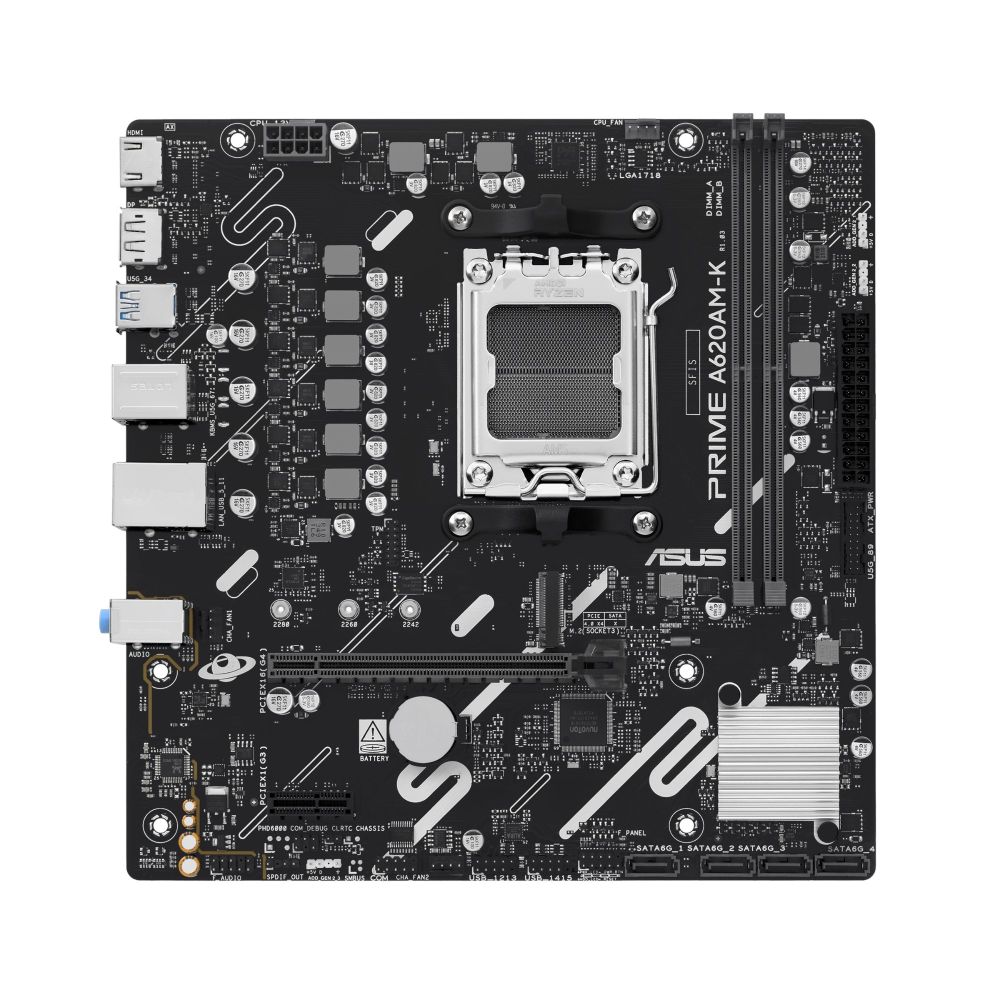

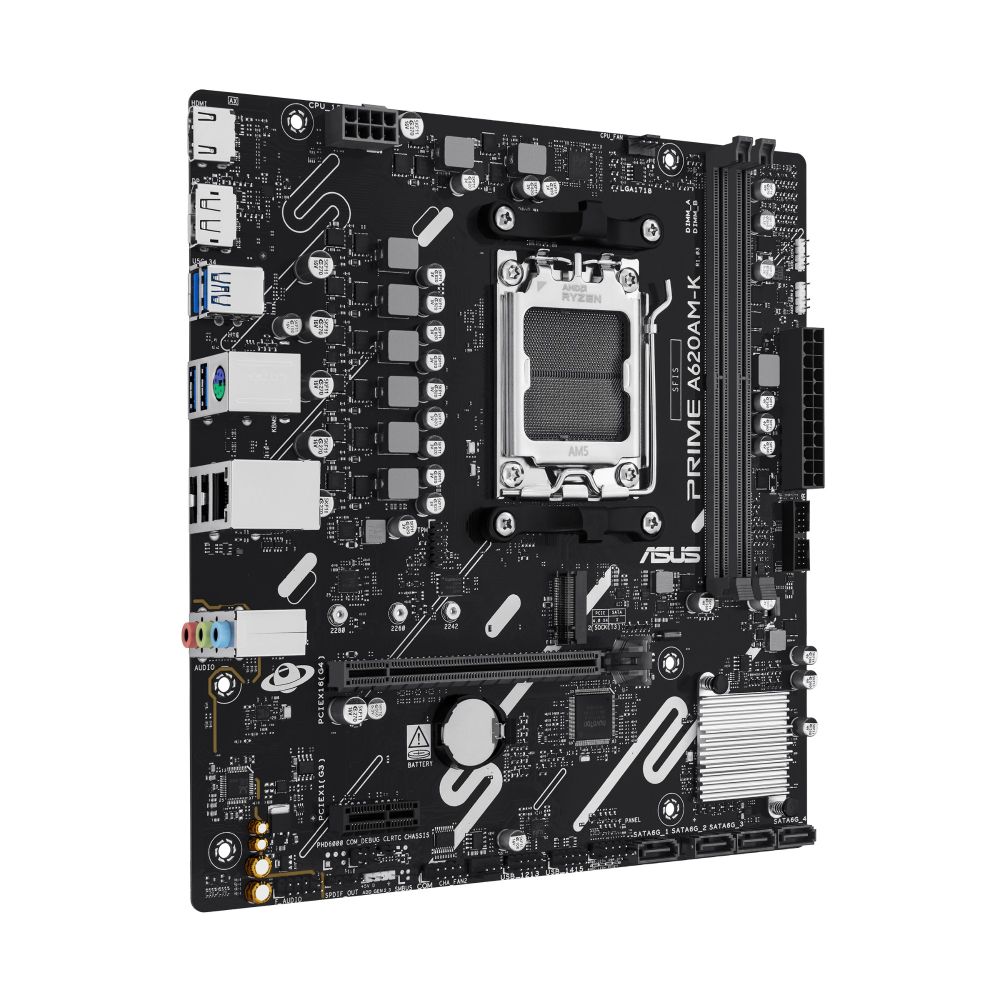

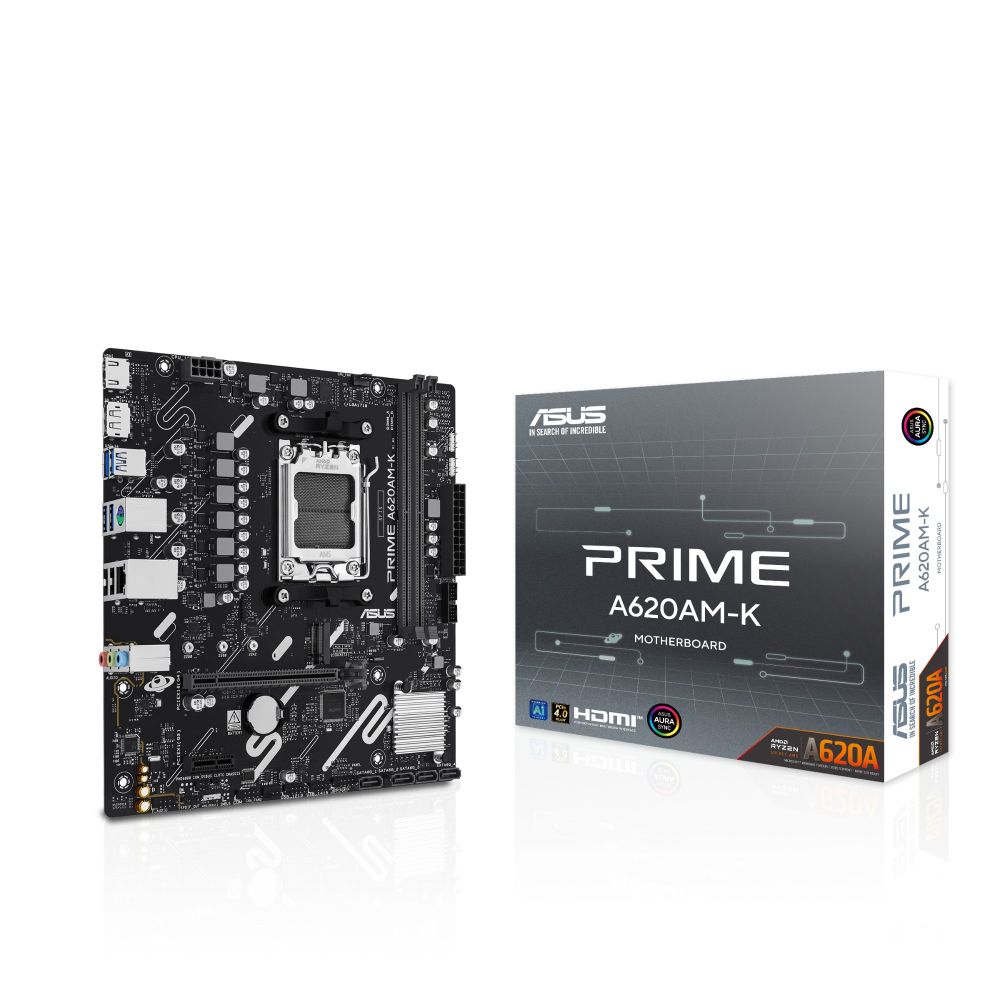

ASUS PRIME A620AM-K AM5 micro ATX motherboard
£78.99 inc VAT
Out of stock
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- AMD A620A chipset for Ryzen 7000/8000/9000 series
- micro ATX form factor with 6+2+1 phase power design
- Supports DDR5-SDRAM up to 128 GB in dual-channel
- 1 M.2 2280 slot (PCIe 4.0) plus 4 SATA III ports
- 7.1 channel audio with HDMI and DisplayPort outputs
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:
You may also like
ASUS PRIME A620AM-K | AMD A620A Socket AM5 micro ATX Motherboard
The ASUS PRIME A620AM-K AMD A620A Socket AM5 micro ATX motherboard delivers robust performance for AMD Ryzen 7000, 8000, and 9000 series processors. Built with the AMD A620A chipset, it offers stable power delivery, dual-channel DDR5 memory support up to 128 GB, and essential connectivity for modern PC builds.
Key Specifications
| Metric | Spec. |
|---|---|
| Processor Socket | Socket AM5 |
| Memory Support | DDR5-SDRAM, up to 128 GB |
| Storage Interfaces | 1x M.2, 4x SATA III |
| Expansion Slots | 1x PCIe x16 Gen 4, 1x PCIe x1 Gen 3 |
| USB Ports | 4x USB 3.2 Gen 2, 2x USB 2.0, 1x PS/2 |
| Network | Gigabit Ethernet |
| Audio | 7.1 Channel HD Audio |
| Form Factor | micro ATX |
Performance and Power Delivery
The PRIME A620AM-K features a 6+2+1 phase power design with discrete MOSFETs, ensuring efficient and stable power delivery for AMD processors. This robust VRM configuration supports consistent performance during demanding workloads and everyday computing tasks.
Storage and Expansion Options
With one M.2 slot supporting PCIe 4.0 and four SATA III ports, this motherboard accommodates both ultra-fast NVMe SSDs and traditional storage drives. The M.2 slot supports 2280 key size, allowing for high-capacity storage solutions. RAID support (0, 1, 5, 10) provides flexible data management options for different performance and redundancy needs.
Memory and Processing Power
Supporting dual-channel DDR5-SDRAM with a maximum capacity of 128 GB, the PRIME A620AM-K ensures smooth multitasking and responsive performance. The motherboard is compatible with AMD Ryzen 7000, 8000, and 9000 series processors, making it suitable for current and near-future CPU upgrades.
Connectivity and Ports
The motherboard offers comprehensive connectivity options including four USB 3.2 Gen 2 ports for high-speed peripherals, two USB 2.0 ports, and legacy PS/2 for older devices. Display outputs include HDMI and DisplayPort for flexible monitor configurations. Gigabit Ethernet provides reliable wired networking, though Wi-Fi is not built-in.
Box Contents
- ASUS PRIME A620AM-K motherboard
- SATA cables
- Screws
- User manual and driver DVD
Check before you buy
- Confirm your CPU is compatible with Socket AM5 and supports DDR5 memory
- Verify your case supports micro ATX form factor (226mm x 221mm)
- Check if you need Wi-Fi capability (this board requires separate adapter)
- Ensure your power supply has the necessary 24-pin ATX and 8-pin CPU connectors
Frequently Asked Questions
Q: Does this motherboard support PCIe 5.0 graphics cards?
A: No, it supports PCIe 4.0 on the x16 slot, which is compatible with PCIe 5.0 cards but at PCIe 4.0 speeds.
Q: Can I use ECC memory with this motherboard?
A: No, this motherboard supports non-ECC unbuffered DDR5 memory only.
Q: Is Wi-Fi included on this motherboard?
A: No, Wi-Fi is not built-in. You’ll need a separate Wi-Fi adapter for wireless connectivity.
Q: What is the maximum memory speed supported?
A: Maximum memory speed depends on your CPU’s memory controller. Check your specific Ryzen processor specifications for supported DDR5 speeds.
Q: Does this motherboard have RGB lighting?
A: Yes, it includes three RGB LED pin headers for connecting and controlling RGB lighting components.
The Consultant’s verdict & warranty
The ASUS PRIME A620AM-K offers excellent value for users building systems with AMD Ryzen processors, providing essential features and reliable performance in a micro ATX form factor. Its robust power delivery, DDR5 support, and comprehensive connectivity make it suitable for both work and gaming applications. Covered by the standard Manufacturer Warranty.
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 1 |
| Front panel connector | Yes |
| 12V power connector | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| TPM connector | Yes |
| S/PDIF out connector | Yes |
| Number of SATA III connectors | 4 |
| Number of COM connectors | 1 |
| Number of chassis fan connectors | 2 |
| Front panel audio connector | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| Number of CPU fan connectors | 1 |
| Number of RGB LED pin headers | 3 |
| Technical details | |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD A620A |
| Supported processor sockets | Socket AM5 |
| Parallel processing technology support | Not supported |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD A620A |
| RAID levels | 0, 1, 5, 10 |
| Supported processor sockets | Socket AM5 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Supported processor sockets | Socket AM5 |
| Processor socket | Socket AM5 |
| Memory | |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| ECC сompatibility | Non-ECC |
| Storage controllers | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 0, 1, 5, 10 |
| Number of storage drives supported | 5 |
| RAID support | Yes |
| Graphics | |
| Parallel processing technology support | Not supported |

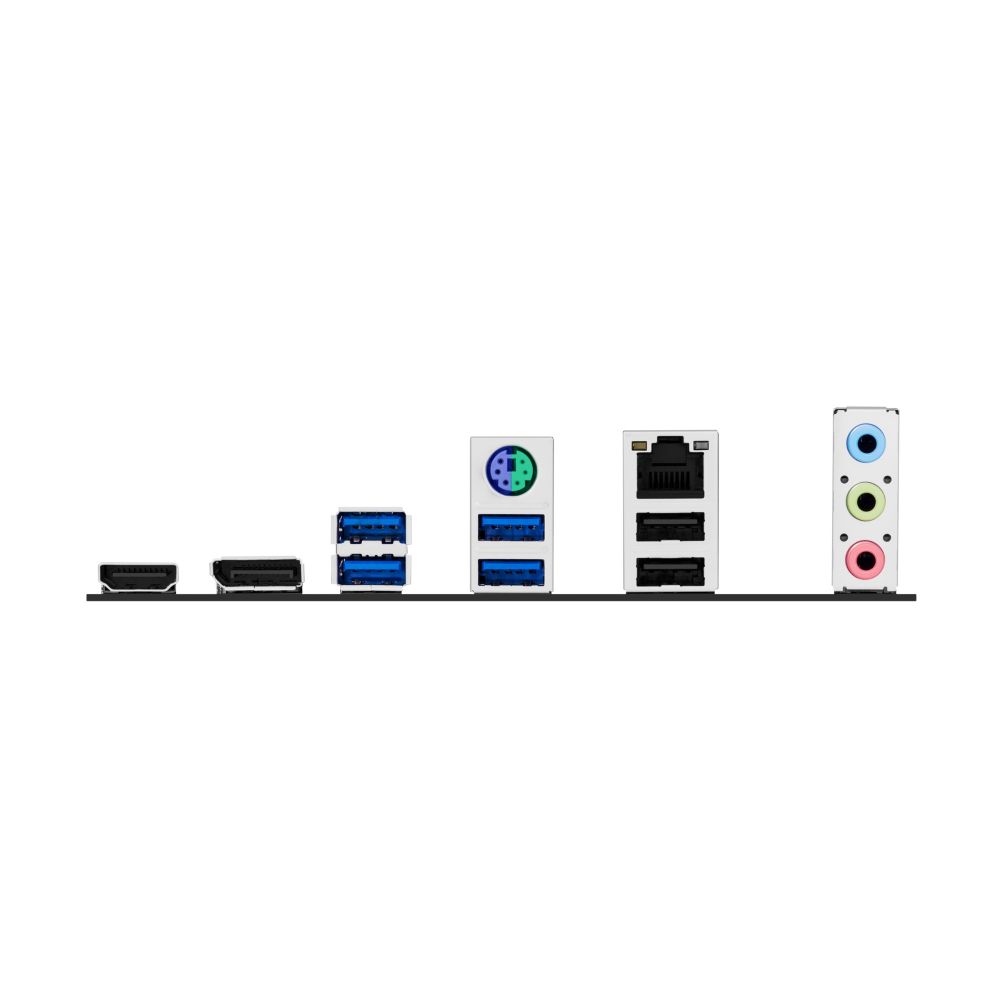

| Rear panel I/O ports | |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 2.0 ports quantity | 2 |
| PS/2 ports quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 1 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Ethernet interface type | Gigabit Ethernet |
| Features | |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD A620A |
| Supported processor sockets | Socket AM5 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Expansion slots | |
| Number of M.2 (M) slots | 1 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 4.0 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Packaging data | |
| Package width | 260 mm |
| Package depth | 270 mm |
| Package height | 51.5 mm |
| Package weight | 900 g |
| Software | |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Weight & dimensions | |
| Package width | 260 mm |
| Package depth | 270 mm |
| Package height | 51.5 mm |
| Package weight | 900 g |
| Width | 226 mm |
| Depth | 221 mm |
| Packaging content | |
| Cables included | SATA |
| Screws included | Yes |
| Other features | |
| Package width | 260 mm |
| Package depth | 270 mm |
| Package height | 51.5 mm |
| Package weight | 900 g |
| Identifiers | |
| Distributor SKUs | MBD-90MB1GX0-M0EAY0, 11914539, 127731, STD10225162, CL90MB1GX0-M0EAY0 |
| Additional EANs | 4711636227988 |
