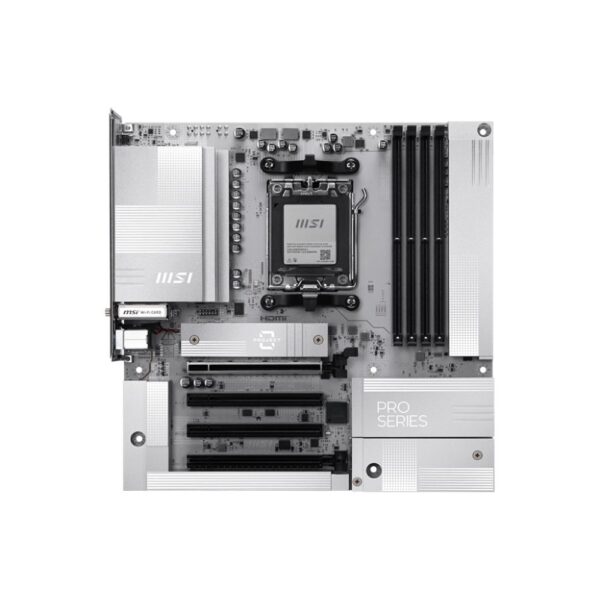

MSI AM5 PRO B850M-A WIFI M-ATX Motherboard

MSI AM5 PRO B850M-A WIFI PZ | AMD B850 Micro ATX Motherboard

The MSI AM5 PRO B850M-A WIFI PZ is a micro ATX motherboard built for AMD Ryzen 7000, 8000, and 9000 series processors on the AM5 socket. Engineered with AMD B850 chipset, it delivers stable performance for gaming, content creation, and everyday productivity, enhanced by Wi-Fi 7, 5G LAN, and PCIe 5.0 M.2 support.

Slim Specs Table

Enhanced Build & Cable Management

The PRO B850M-A WIFI PZ introduces a back-connect design that relocates major connectors—including power, CPU power, SATA, and fan headers—to the rear of the motherboard. This reduces visible cable clutter inside your case, resulting in a cleaner, more professional-looking build. For users prioritising aesthetics and airflow, this design makes a noticeable difference.

Simplified Installation & Maintenance

Installation is made easier with a pre-installed I/O shield that aligns perfectly without manual fitting. The EZ PCIe Clip II on the primary PCIe slot uses a rebounding lock mechanism, allowing graphics cards to be removed with a single finger press—even in tight case spaces. Onboard diagnostic LEDs instantly pinpoint hardware issues, while a dedicated memory fault LED removes guesswork from troubleshooting.

Reliable Power & Thermal Performance

A robust 8+2+1 digital power phase design, combined with 8+4-pin power connectors, ensures stable delivery under heavy workloads. Transient Voltage Suppressors (TVS) protect against voltage spikes, while MSI’s Cooling Wizard offers centralised fan and pump control for optimal thermal performance. The optimised PCB layout supports higher bandwidth and reliable signal transmission.

Next-Generation Connectivity

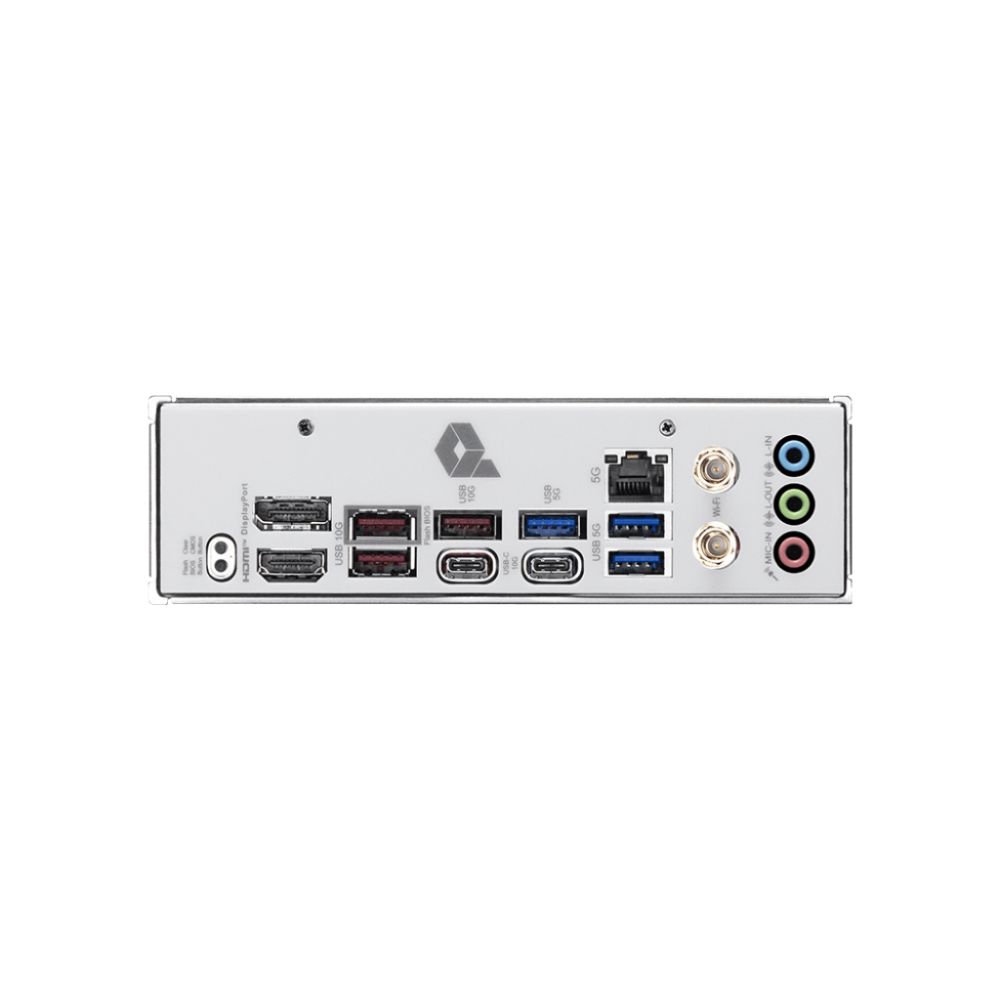

Stay connected with Wi-Fi 7 (802.11be) and Bluetooth 5.4, offering ultra-fast wireless speeds and low latency. The 5G LAN port delivers stable, high-bandwidth wired networking. USB 3.2 Gen 2 Type-C and multiple Type-A ports provide versatile front-panel connectivity. HDMI 2.1 and DisplayPort 1.4 outputs support high-refresh displays, while 7.1-channel audio delivers immersive sound.

Storage & Expansion Ready

With two M.2 slots (PCIe 5.0 and PCIe 4.0), plus six total storage interfaces including four SATA III ports, this motherboard supports ultra-fast NVMe SSDs and traditional HDDs. RAID 0, 1, and 10 configurations are available for performance or redundancy. PCIe 5.0 x16 and PCIe 4.0 x4 slots allow for future GPU and expansion card upgrades.

Box Contents

• MSI AM5 PRO B850M-A WIFI PZ motherboard
• I/O shield (pre-installed)
• User manual
• Driver/software installation disc or QR code for downloads
• SATA cables (quantity not specified—confirm with retailer)

Check before you buy

• Confirm your case supports micro ATX (9.6″ x 9.6″) dimensions.
• Verify your PSU has the required 8+4-pin CPU power connectors.
• Ensure your chosen Ryzen CPU is supported on the AM5 socket.
• Check if your existing DDR5 memory is on MSI’s qualified vendor list.

Frequently Asked Questions

Q: Does this motherboard support DDR4 memory?

A: No, it only supports DDR5-SDRAM memory modules.

Q: Is Wi-Fi 7 backwards compatible with older Wi-Fi standards?

A: Yes, it supports all previous Wi-Fi standards including Wi-Fi 6 and Wi-Fi 5.

Q: Can I use this board for overclocking?

A: Yes, the BIOS includes overclocking controls for supported Ryzen CPUs and DDR5 memory.

Q: How many GPUs can I install?

A: One full-length GPU on the PCIe 5.0 x16 slot; additional expansion cards can use the PCIe 4.0 x4 slot.

Q: Does it have built-in graphics?

A: No, a discrete GPU is required as there is no on-board graphics processor.

The Consultant’s verdict & warranty

The MSI AM5 PRO B850M-A WIFI PZ is ideal for users building a compact yet powerful AMD AM5 system, offering advanced connectivity, clean cable management, and strong power delivery. It suits gamers, creators, and professionals who want a reliable, future-ready platform without sacrificing space. Covered by the standard Manufacturer Warranty.
