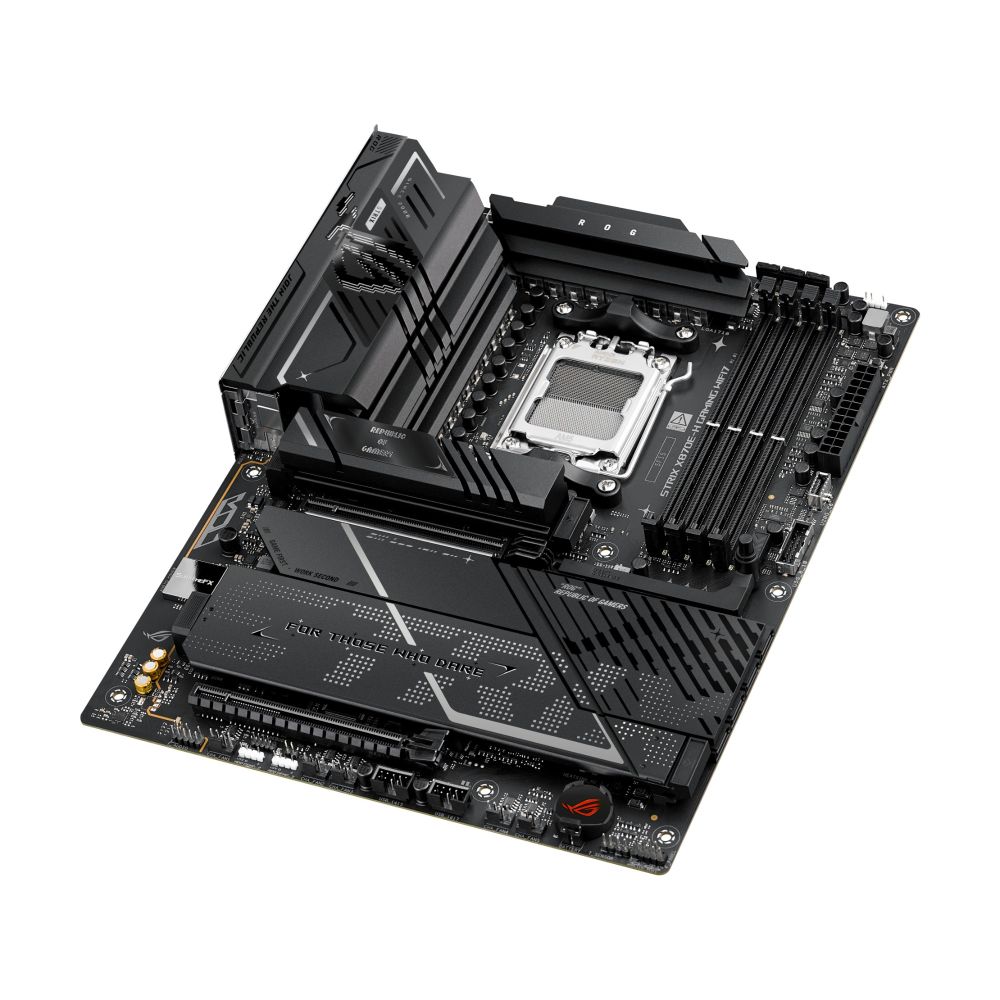

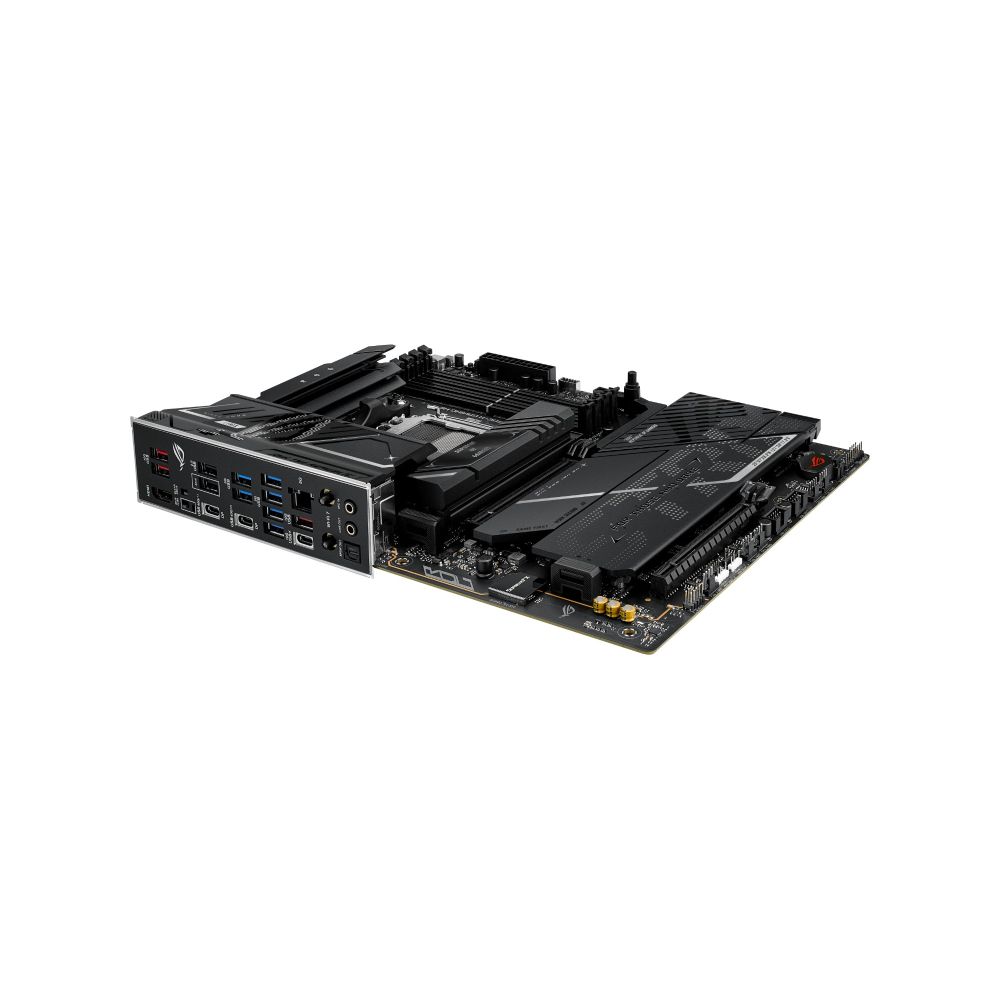

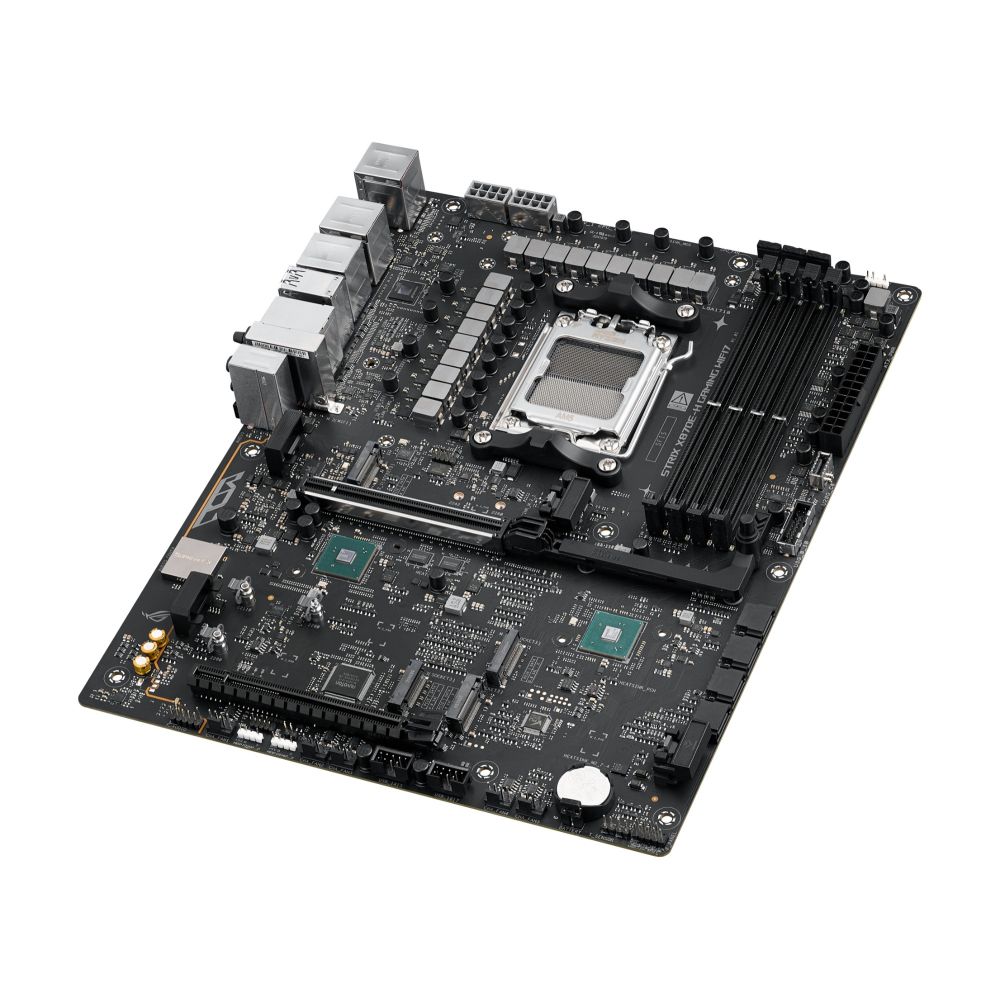

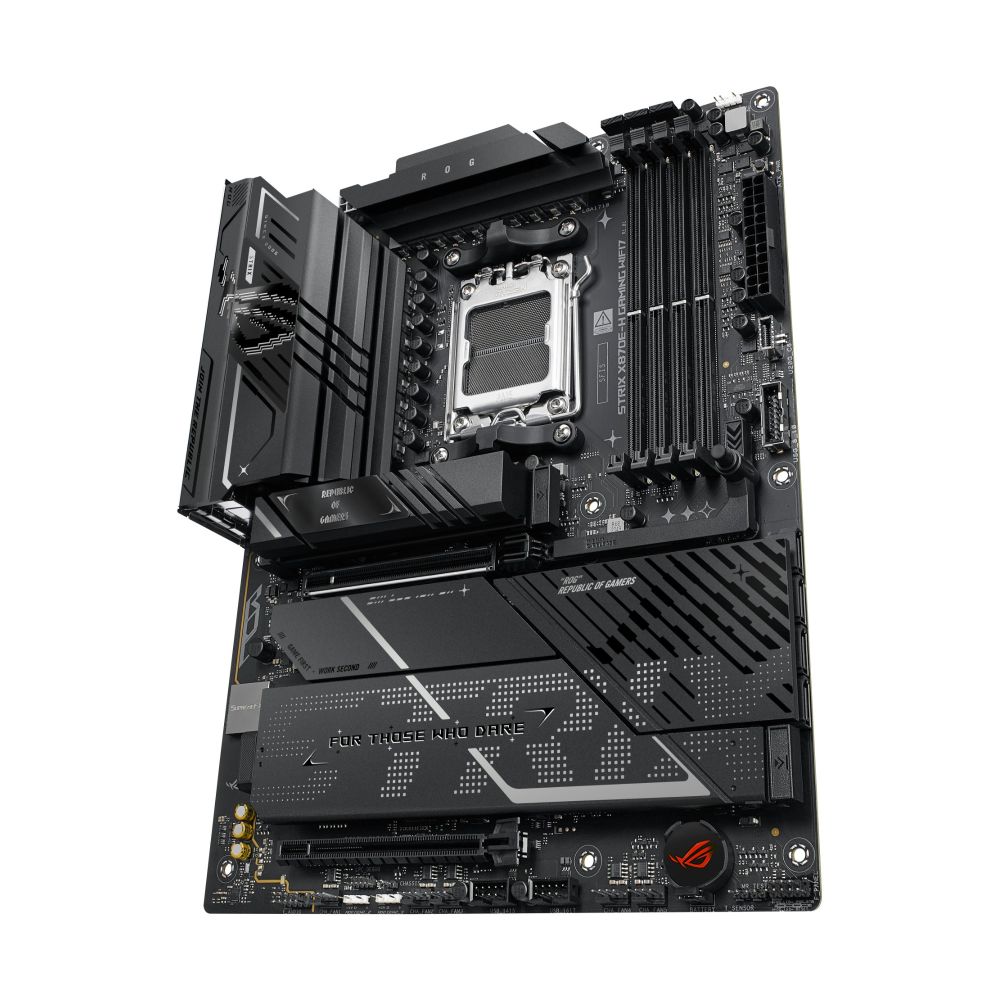

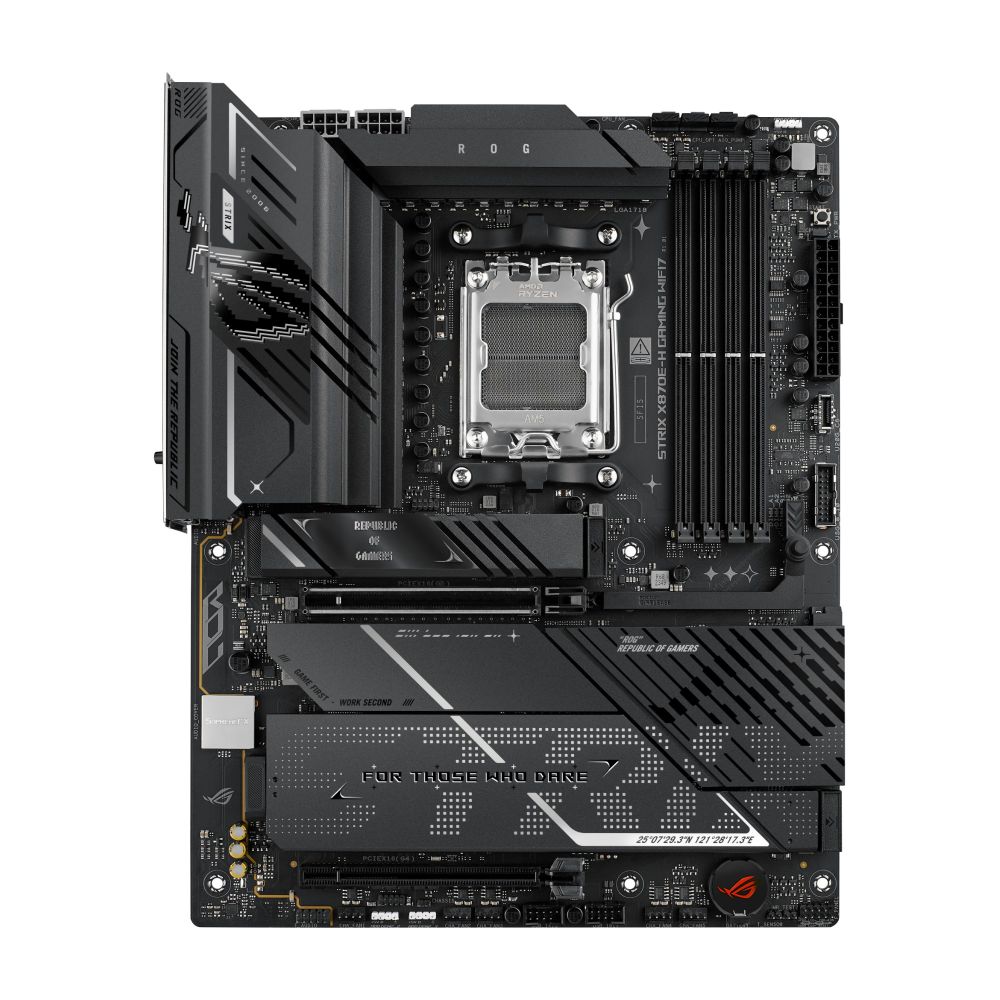

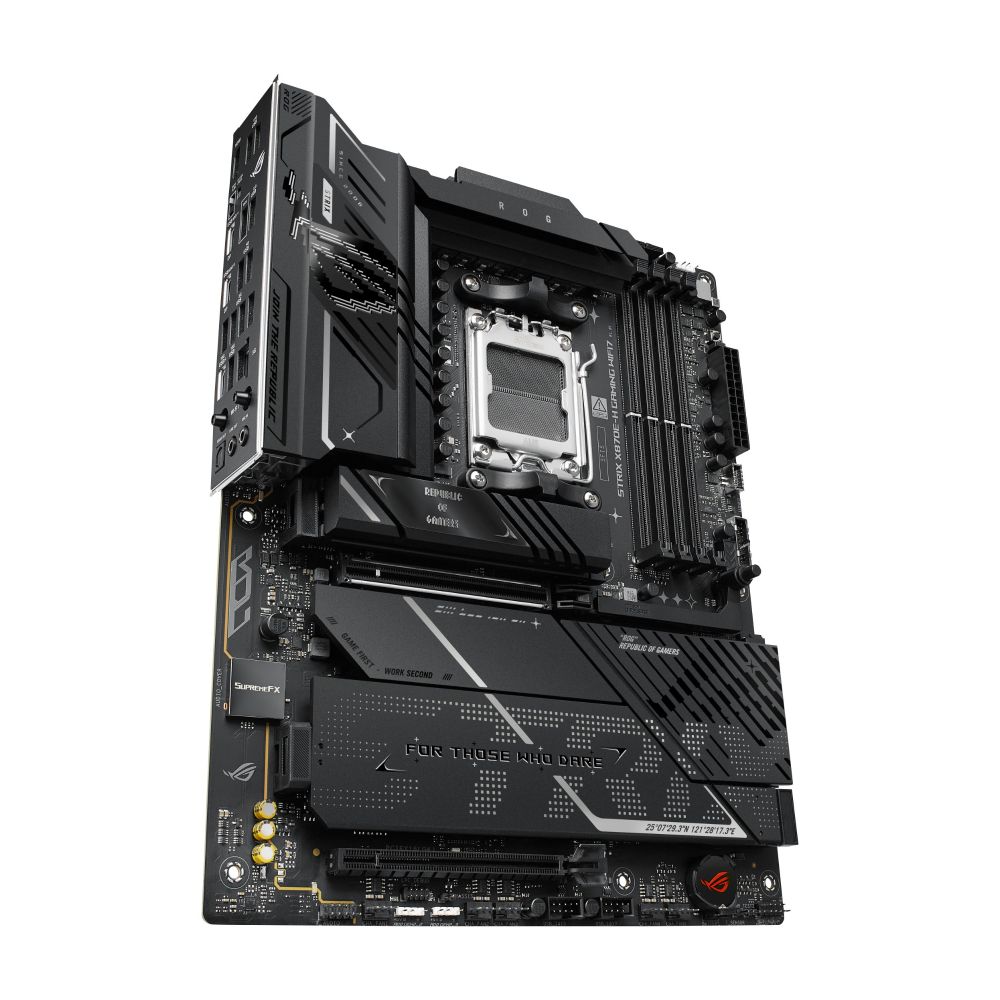

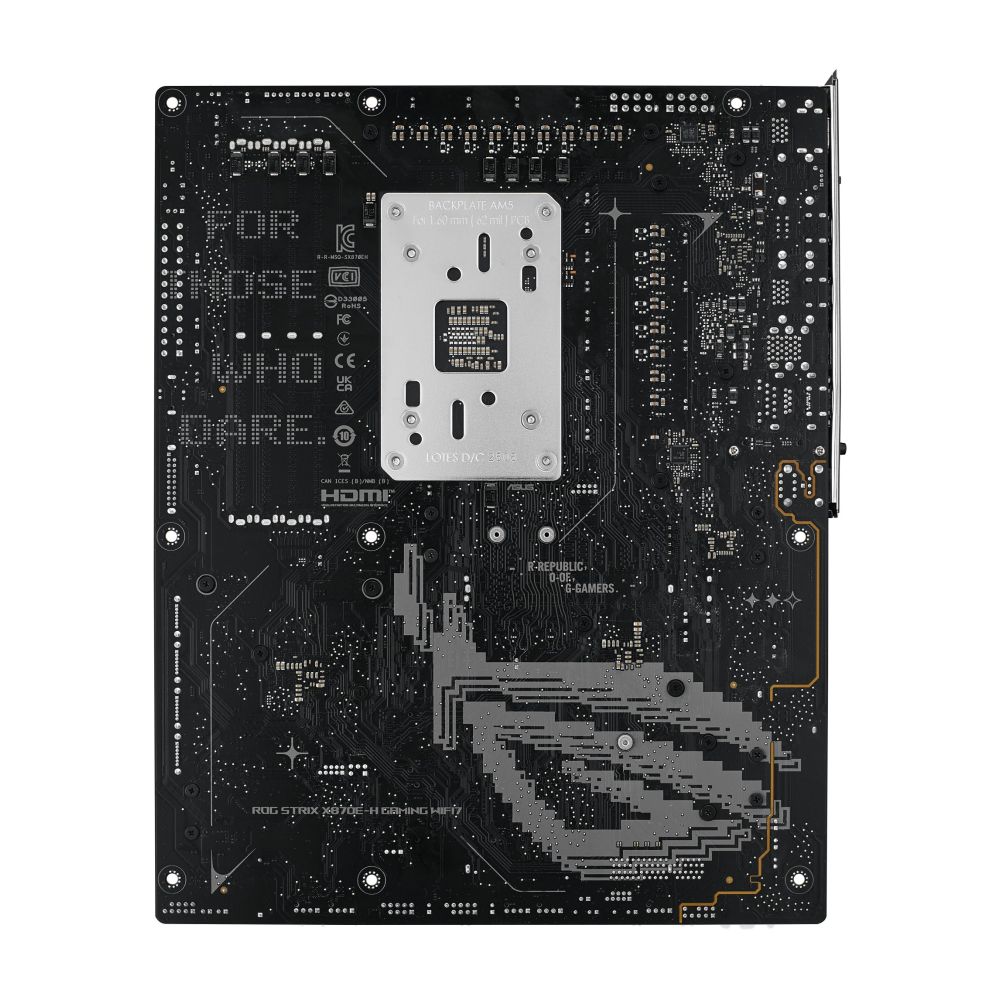

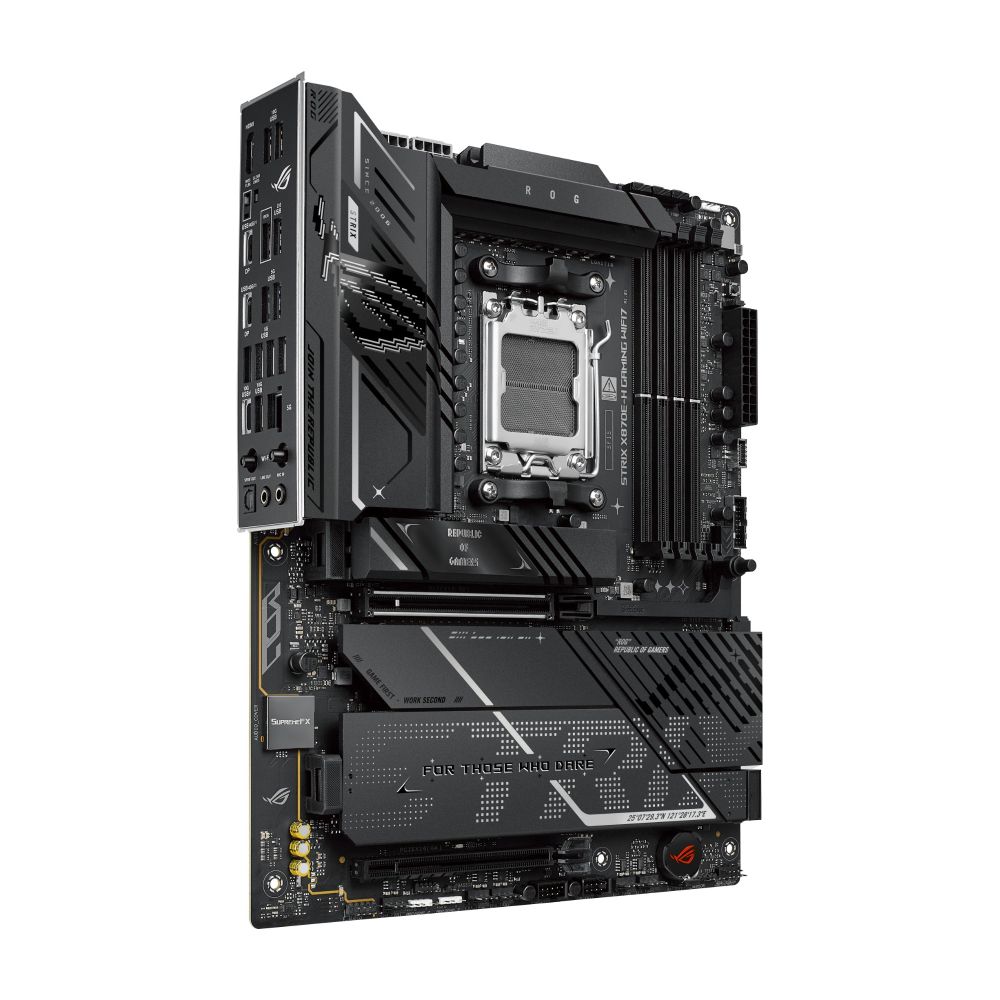

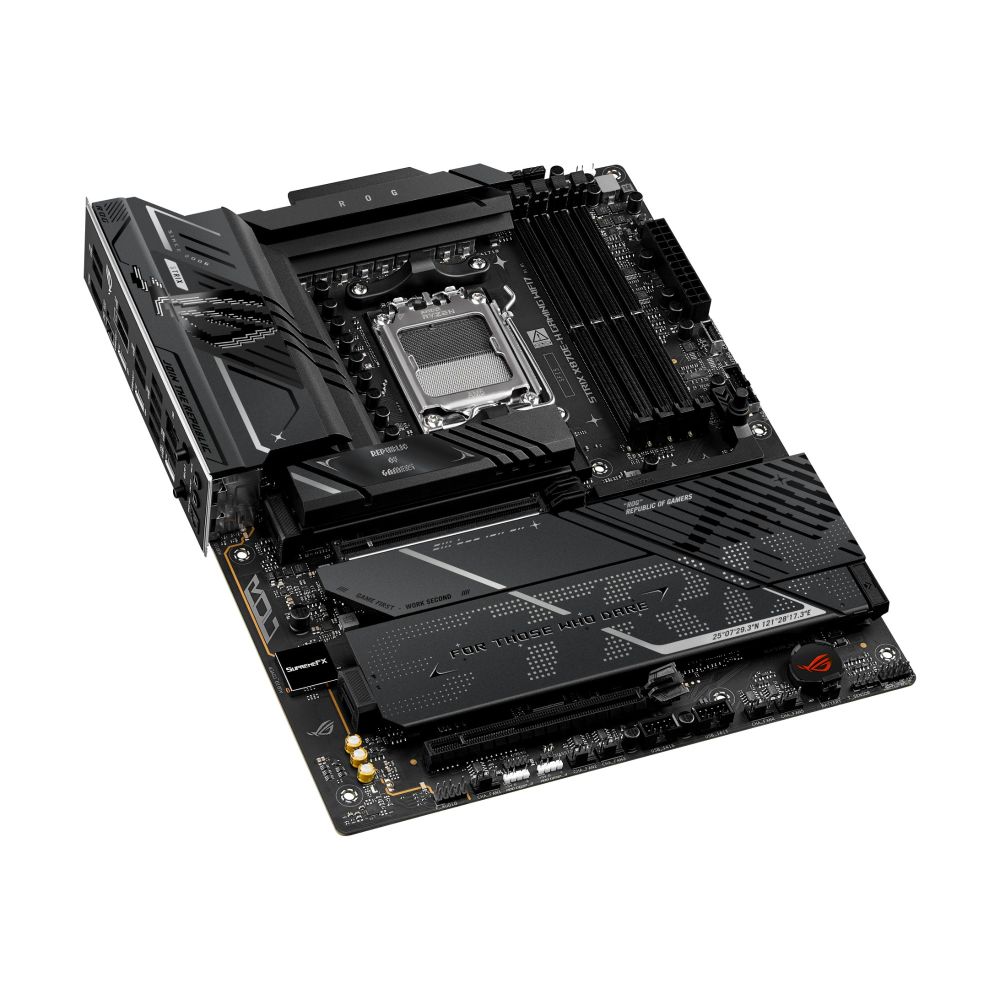

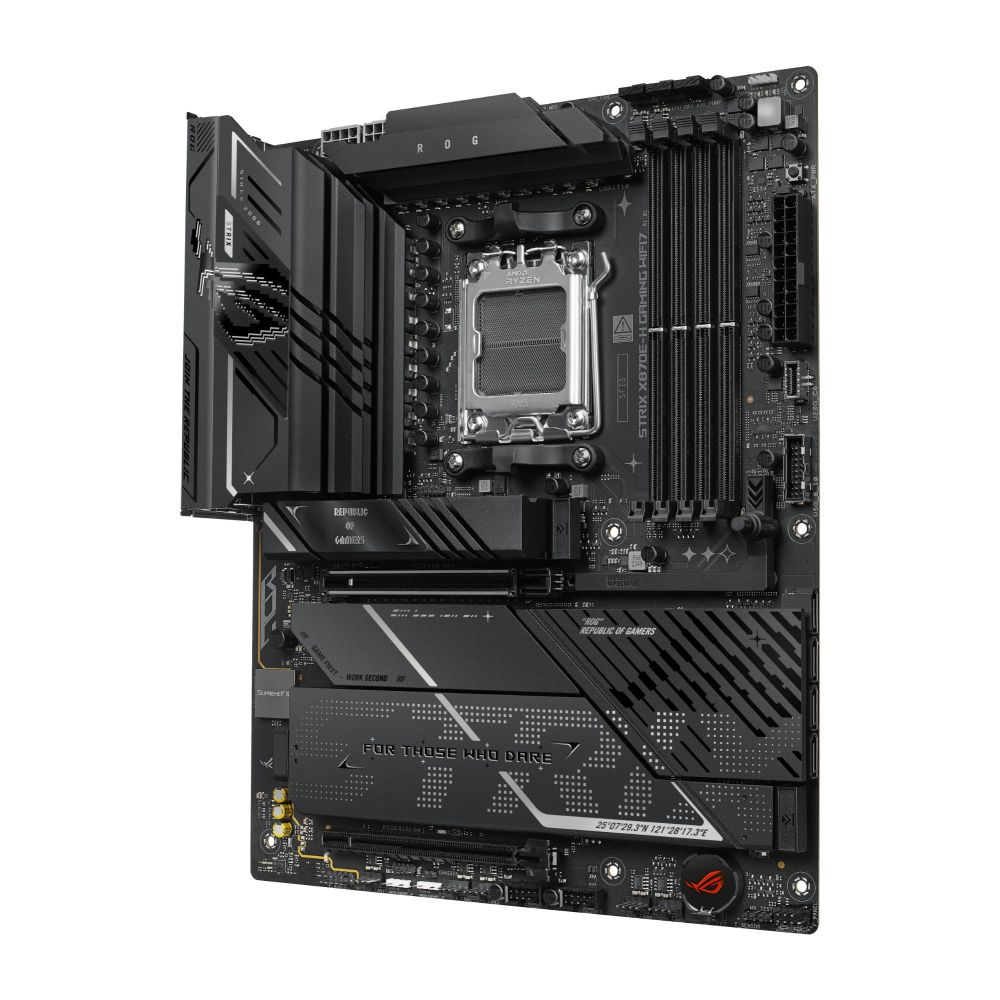

ASUS ROG Strix X870E-H Gaming Motherboard
£320.26 inc VAT
10 in stock
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- AMD X870E chipset for AMD Ryzen 9000 Series processors
- Four M.2 slots with PCIe 5.0 and 4.0 support for high-speed storage
- Wi-Fi 7 and 5Gb Ethernet for advanced network connectivity
- Dual-channel DDR5 memory up to 256 GB for high-performance computing
- PCIe 5.0 x16 and PCIe 4.0 x16 slots for next-gen graphics cards
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:
You may also like
ASUS ROG STRIX X870E-H | AMD X870E ATX Gaming Motherboard
The ASUS ROG STRIX X870E-H GAMING WIFI7 AMD X870E Socket AM5 ATX motherboard delivers premium performance for AMD Ryzen 9000 Series processors, combining advanced connectivity with AI-enhanced features for serious gamers and creators.
Key Specifications
| Metric | Spec |
|---|---|
| Socket | AMD AM5 |
| Memory | 4x DDR5 slots, up to 256GB |
| PCIe Slots | 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 |
| Wi-Fi | Wi-Fi 7 (802.11be) |
| LAN | 5Gb Ethernet |
| USB Ports | 6x USB 3.2 Gen 1, 3x USB 3.2 Gen 2, 1x USB 3.2 Gen 2 Type-C, 2x USB4 Type-C |
AI-Powered Performance for AMD Ryzen 9000
The ROG STRIX X870E-H harnesses AI-enhanced technologies to optimise performance for AMD Ryzen 9000 Series processors. The advanced power delivery system ensures stable operation under heavy workloads, while AI-driven thermal management maintains optimal temperatures during intense gaming sessions or content creation.
Next-Generation Connectivity
With Wi-Fi 7 support, this motherboard delivers ultra-fast wireless speeds and lower latency for competitive gaming. The dual USB4 Type-C ports provide up to 40Gbps data transfer and support for multiple 4K displays. Five SATA III ports and four M.2 slots (two PCIe 5.0, two PCIe 4.0) offer extensive storage options for your growing library of games and applications.
DIY-Friendly Design
ASUS has incorporated thoughtful features to simplify building and upgrading. The Q-Release mechanisms on all four M.2 slots and PCIe slots make component installation and removal effortless. Pre-mounted I/O shield and clearly labelled connectors reduce build time and frustration, making this motherboard accessible to both experienced builders and first-time upgraders.
Box Contents
- ASUS ROG STRIX X870E-H GAMING WIFI7 motherboard
- SATA cables (quantity not specified)
- Wi-Fi antenna
- User manual and driver CD
- I/O shield
Check Before You Buy
- Confirm your AMD Ryzen processor is AM5 socket compatible
- Verify your case supports ATX form factor (305mm x 244mm)
- Check that your PSU has a 24-pin ATX and 8-pin EPS connector
- Ensure your CPU cooler is compatible with AM5 socket mounting
Frequently Asked Questions
Q: Does this motherboard support DDR4 memory?
A: No, this motherboard supports DDR5-SDRAM only, with four DIMM slots supporting up to 256GB.
Q: Can I use this with Intel processors?
A: No, this motherboard is designed exclusively for AMD AM5 socket processors, including Ryzen 7000, 8000, and 9000 Series.
Q: How many graphics cards can I install?
A: You can install one graphics card in the PCIe 5.0 x16 slot, with a second PCIe 4.0 x16 slot available for other expansion cards.
Q: Does it support Windows 11?
A: Yes, this motherboard supports Windows 11 and includes UEFI BIOS for easy setup and configuration.
The Consultant’s Verdict & Warranty
The ASUS ROG STRIX X870E-H GAMING WIFI7 is ideal for gamers and content creators seeking cutting-edge performance with AMD’s latest Ryzen processors. Its combination of Wi-Fi 7, PCIe 5.0 support, and AI-enhanced features makes it a future-proof foundation for high-performance systems. Covered by the standard Manufacturer Warranty.
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 4 |
| Front panel connector | Yes |
| 12V power connector | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 5 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| USB 3.2 Gen 2x2 connectors | 1 |
| Number of temperature sensor headers | 1 |
| Number of RGB LED pin headers | 3 |
| Technical details | |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X870E |
| Supported processor sockets | Socket AM5 |
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| Motherboard form factor | ATX |
| Component for | PC |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 11 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X870E |
| RAID levels | 0, 1, 10, 5 |
| Supported processor sockets | Socket AM5 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Supported processor sockets | Socket AM5 |
| Processor socket | Socket AM5 |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
| ECC сompatibility | Non-ECC |
| Storage controllers | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 0, 1, 10, 5 |
| Number of storage drives supported | 8 |
| RAID support | Yes |
| Graphics | |
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| WiFi-AP antenna jack | 1 |
| S/PDIF out port | Yes |
| Microphone in | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB4 Gen 3x2 ports quantity | 2 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Ethernet interface type | 5 Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Features | |
| Windows operating systems supported | Windows 11 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X870E |
| Supported processor sockets | Socket AM5 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Audio chip | Realtek ALC1220P |
| Product colour | Black |
| Expansion slots | |
| Number of M.2 (M) slots | 4 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 5.0 |
| 3rd M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| 4th M.2 largest key size | 2280 |
| 4th M.2 highest PCI Express generation | 4.0 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Packaging data | |
| Package width | 353 mm |
| Package depth | 273 mm |
| Package height | 68 mm |
| Package weight | 2.07 kg |
| Software | |
| Windows operating systems supported | Windows 11 |
| Weight & dimensions | |
| Package width | 353 mm |
| Package depth | 273 mm |
| Package height | 68 mm |
| Package weight | 2.07 kg |
| Width | 305 mm |
| Depth | 244 mm |
| Packaging content | |
| Cables included | SATA |
| Antenna included | Yes |
| Other features | |
| Package width | 353 mm |
| Package depth | 273 mm |
| Package height | 68 mm |
| Package weight | 2.07 kg |
| Identifiers | |
| Distributor SKUs | MBD-90MB1M90-M0EAY0, 11924807, 127575, 612074, STD10230030, CL90MB1M90-M0EAY0 |
