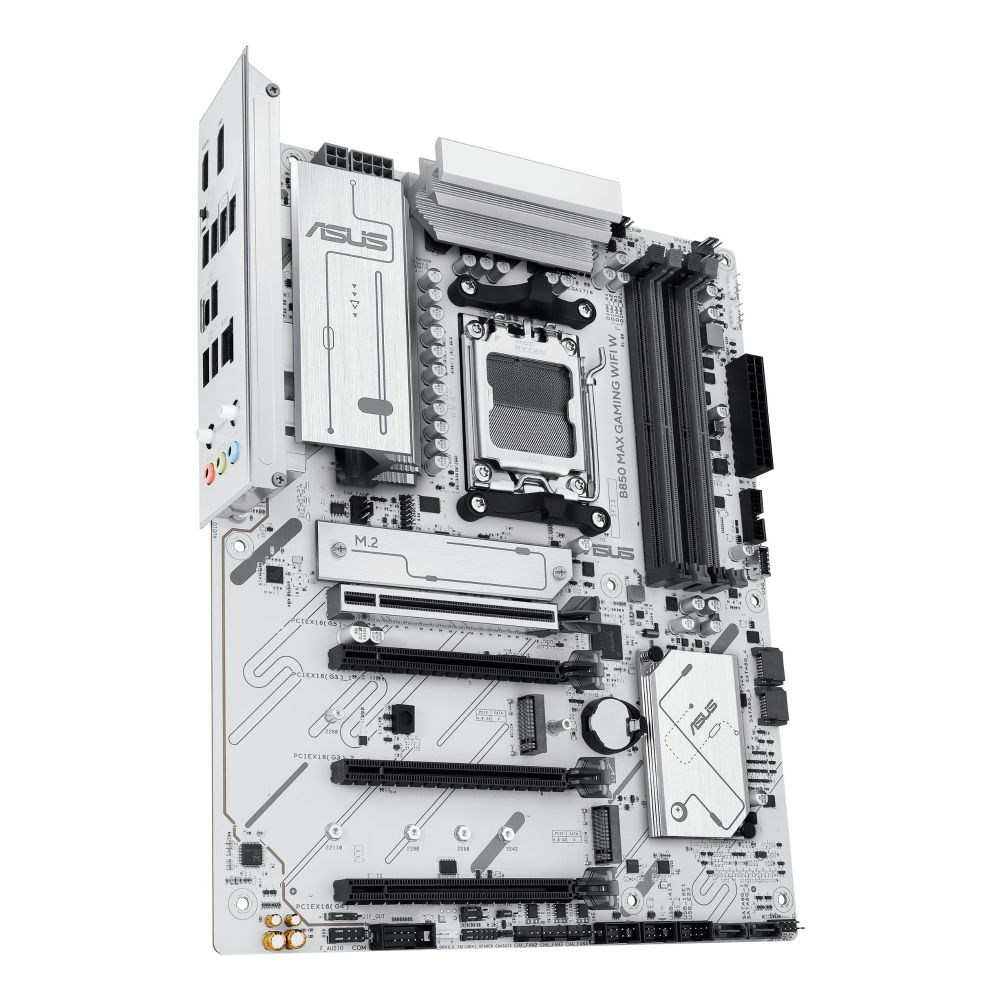

ASUS B850 MAX Gaming Motherboard
£178.96 inc VAT
20 in stock
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- Supports AMD Ryzen 7000/8000/9000 Series on Socket AM5
- 3 M.2 slots with PCIe 5.0/4.0 support for high-speed storage
- 7.1-channel audio with Wi-Fi 6E and 2.5Gb Ethernet connectivity
- 4 DIMM slots supporting up to 256GB DDR5 memory in dual-channel
- ATX form factor with 7 storage devices and RAID 0/1/5/10 support
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:
You may also like
ASUS B850 MAX GAMING WIFI W | AMD B850 Socket AM5 ATX Motherboard
The ASUS B850 MAX GAMING WIFI W AMD B850 Socket AM5 ATX motherboard delivers advanced gaming and AI-ready performance for AMD Ryzen 9000 series processors. This ATX motherboard combines robust connectivity, efficient cooling, and future-proof expansion for demanding PC builds.
Key Specifications
| Metric | Spec |
|---|---|
| Processor Socket | AM5 |
| Memory Support | DDR5, up to 256 GB |
| Storage | 3x M.2 (PCIe 5.0/4.0), 4x SATA III |
| Wireless | Wi-Fi 6E, Bluetooth 5.3 |
| Ethernet | 2.5 Gigabit LAN |
Advanced AI PC-Ready Performance
Engineered for AMD Ryzen 9000 series processors, this motherboard unlocks next-generation computing power. The B850 chipset provides optimised performance for both gaming and AI applications, with support for DDR5 memory up to 256 GB ensuring smooth multitasking and content creation workflows.
Comprehensive Connectivity Options
With three M.2 slots supporting PCIe 5.0 and 4.0, plus four SATA III ports, storage expansion is extensive. The 2.5 Gigabit Ethernet and Wi-Fi 6E connectivity provide reliable, high-speed networking for online gaming and streaming. Multiple USB ports including USB 3.2 Gen 2 Type-C ensure all peripherals connect seamlessly.
Enhanced Cooling and Power Delivery
The passive cooling design maintains optimal temperatures during intensive workloads. Robust power delivery supports overclocking and sustained performance. Four chassis fan headers and dedicated CPU fan connector allow for comprehensive cooling solutions, while the 12V power connector ensures stable operation.
Built for Expansion
Featuring two PCIe 3.0 x16 slots, one PCIe 4.0 x16 slot, and one PCIe 5.0 x16 slot, this motherboard accommodates multiple graphics cards and expansion cards. The ATX form factor provides ample space for custom builds, while RGB LED headers enable personalised lighting effects.

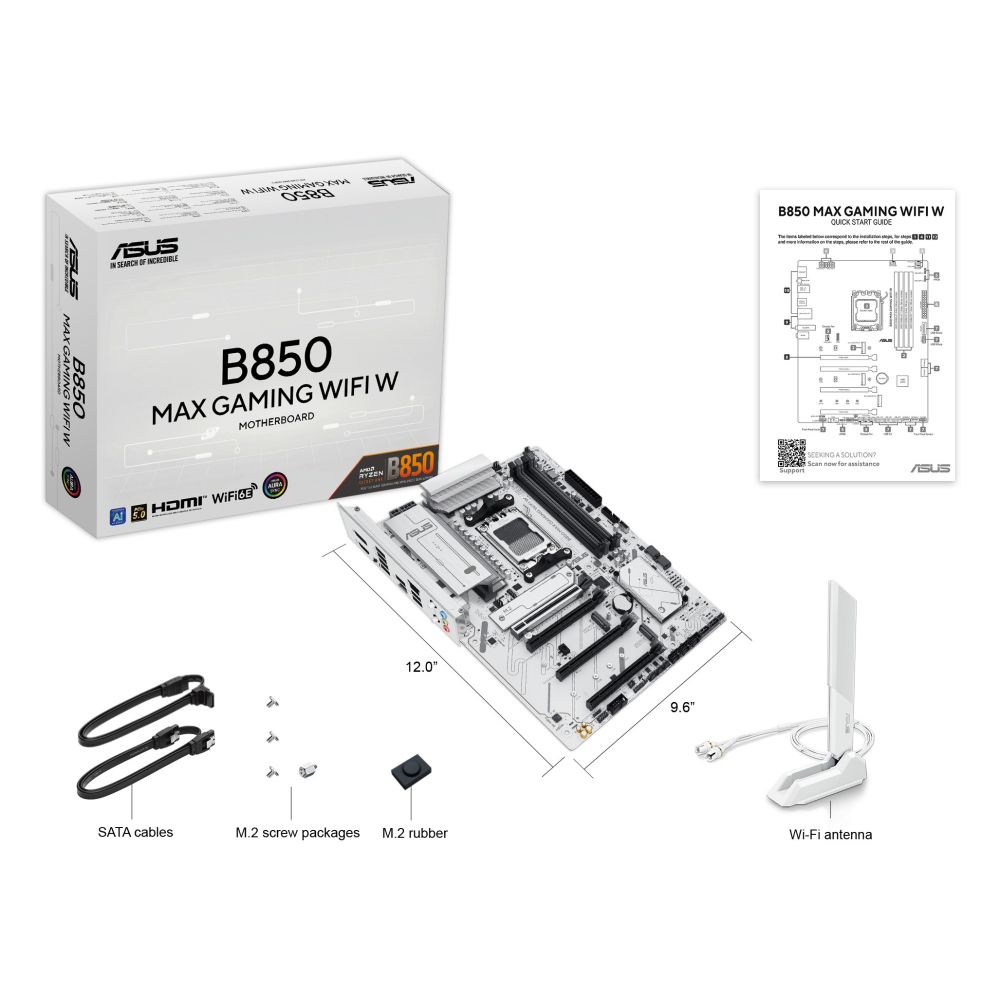

Box contents
- ASUS B850 MAX GAMING WIFI W motherboard
- SATA cables
- Screws
- Wi-Fi antenna
Check before you buy
- Confirm your AMD Ryzen processor is AM5 compatible
- Verify your case supports ATX form factor (305mm x 244mm)
- Check your power supply has required connectors (24-pin ATX, 8-pin EPS)
- Ensure you have DDR5 memory modules
Frequently Asked Questions
Q: What processors are compatible with this motherboard?
A: AMD Ryzen 7000, 8000, and 9000 series processors with AM5 socket.
Q: Does this motherboard support DDR4 memory?
A: No, it only supports DDR5-SDRAM memory modules.
Q: How many M.2 drives can I install?
A: Three M.2 drives are supported with varying PCIe generation capabilities.
Q: What Wi-Fi standard does this motherboard use?
A: Wi-Fi 6E (802.11ax) with Bluetooth 5.3 for wireless connectivity.
Q: Is this motherboard suitable for gaming?
A: Yes, it’s specifically designed for gaming with advanced features and connectivity.
The Consultant’s verdict & warranty
The ASUS B850 MAX GAMING WIFI W AMD B850 Socket AM5 ATX motherboard is ideal for gamers and content creators seeking a high-performance platform for AMD Ryzen 9000 series processors. With comprehensive connectivity, advanced cooling, and future-proof expansion, it delivers excellent value for demanding PC builds. Covered by the standard Manufacturer Warranty.
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 3 |
| Thunderbolt headers | 1 |
| Front panel connector | Yes |
| 12V power connector | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| TPM connector | Yes |
| S/PDIF out connector | Yes |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Number of SATA III connectors | 4 |
| Number of COM connectors | 1 |
| Number of chassis fan connectors | 4 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| Number of CPU fan connectors | 1 |
| Number of RGB LED pin headers | 3 |
| Technical details | |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B850 |
| Supported processor sockets | Socket AM5 |
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| Cooling type | Passive |
| Motherboard form factor | ATX |
| Component for | PC |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B850 |
| RAID levels | 0, 1, 5, 10 |
| Supported processor sockets | Socket AM5 |
| Cooling type | Passive |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Supported processor sockets | Socket AM5 |
| Processor socket | Socket AM5 |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
| ECC сompatibility | ECC & Non-ECC |
| Storage controllers | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 0, 1, 5, 10 |
| Number of storage drives supported | 7 |
| RAID support | Yes |
| Graphics | |
| Parallel processing technology support | Not supported |
| On-board graphics card | No |

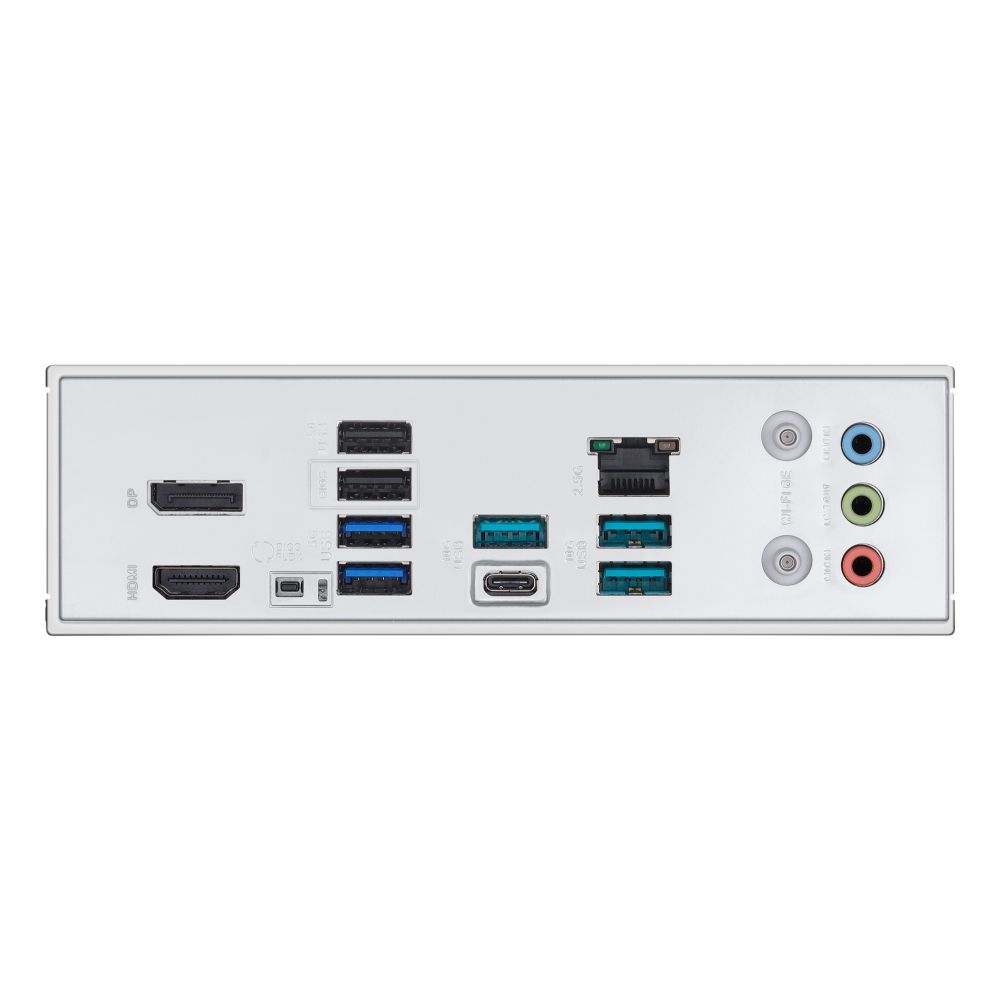

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| WiFi-AP antenna jack | 1 |
| Microphone in | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 1 |
| Line-in | Yes |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Features | |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B850 |
| Supported processor sockets | Socket AM5 |
| Cooling type | Passive |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Product colour | White |
| Expansion slots | |
| Number of M.2 (M) slots | 3 |
| PCI Express x16 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 22110 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Packaging data | |
| Package width | 353 mm |
| Package depth | 273 mm |
| Package height | 68 mm |
| Package weight | 1.26 kg |
| Software | |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Weight & dimensions | |
| Package width | 353 mm |
| Package depth | 273 mm |
| Package height | 68 mm |
| Package weight | 1.26 kg |
| Width | 305 mm |
| Depth | 244 mm |
| Packaging content | |
| Cables included | SATA |
| Screws included | Yes |
| Antenna included | Yes |
| Other features | |
| Package width | 353 mm |
| Package depth | 273 mm |
| Package height | 68 mm |
| Package weight | 1.26 kg |
| Identifiers | |
| Distributor SKUs | MBD-90MB1M10-M0EAY0, 11783521, 126852, 554898, STD10231039, M2MMBD-90MB1M10-M0EAY0 |
| Additional EANs | 0197105981010 |
