Gigabyte B650 EAGLE AMD AM5 ATX Motherboard

Gigabyte B650 EAGLE | AM5 Performance Platform

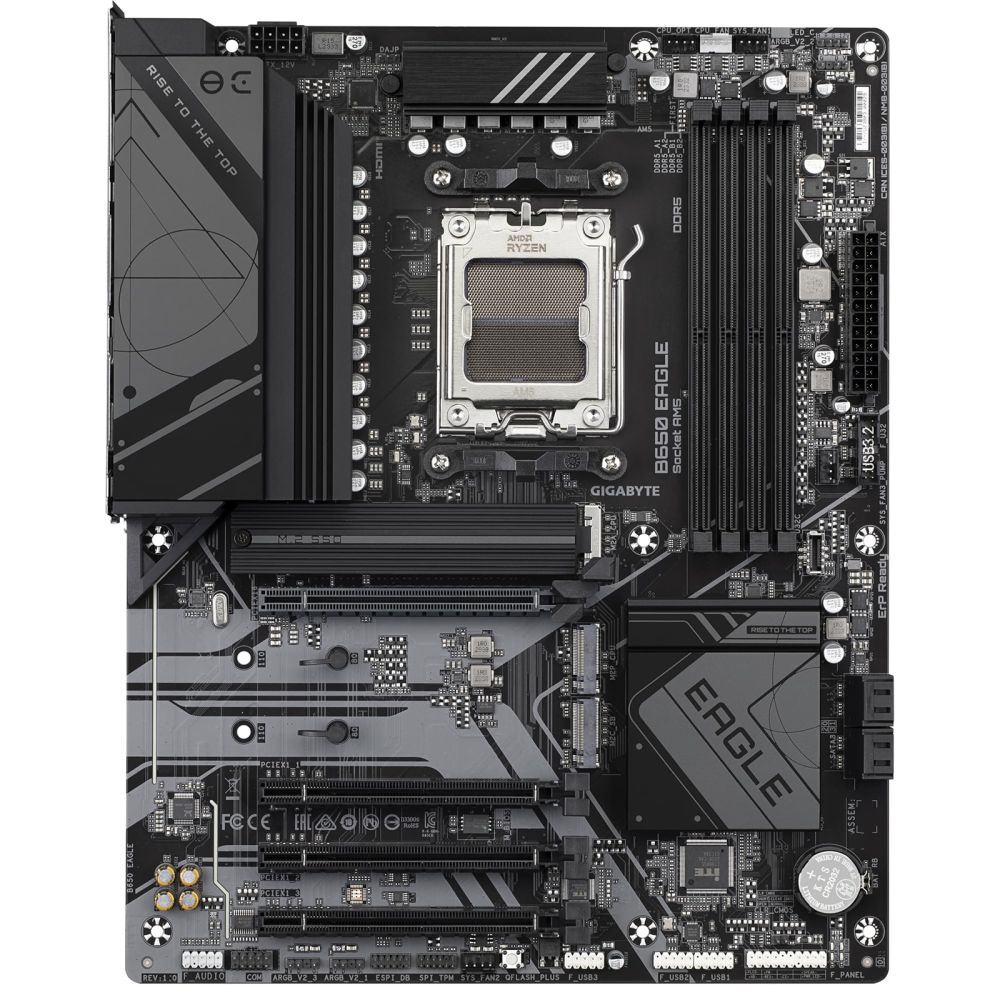

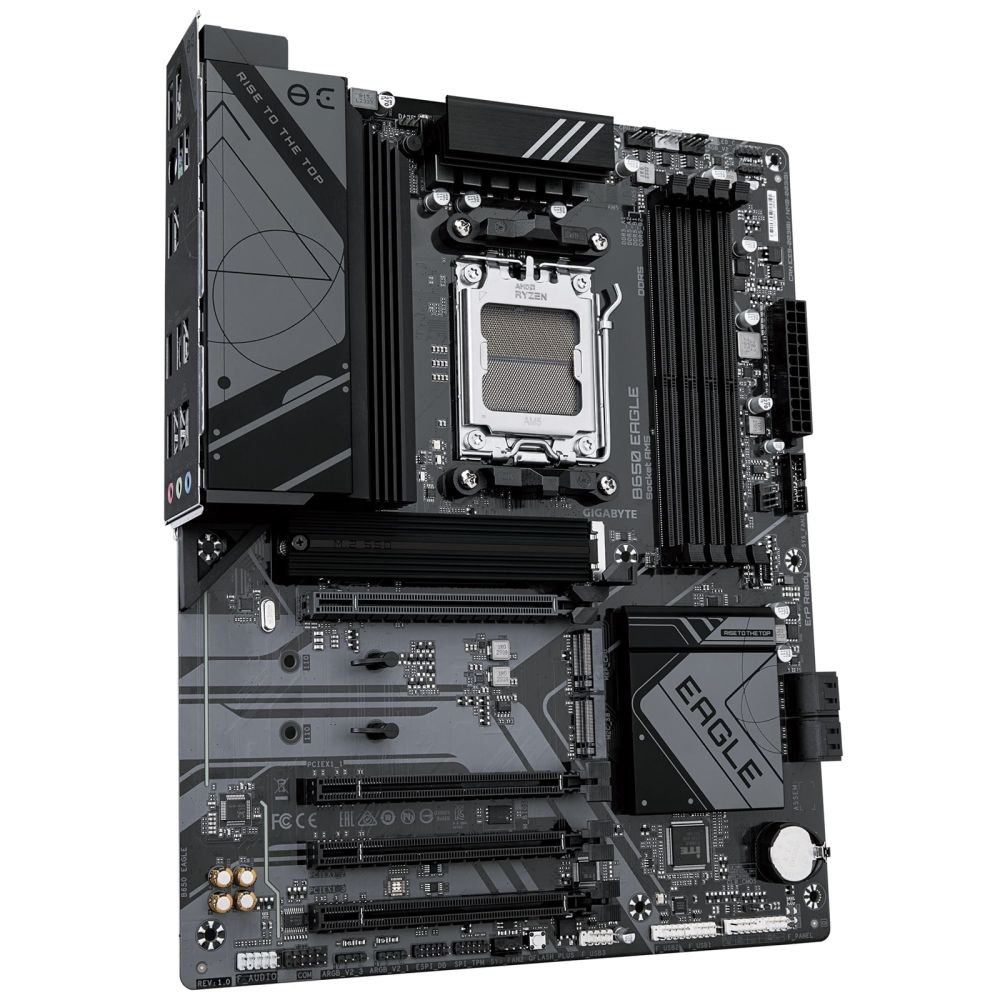

The Gigabyte B650 EAGLE AMD AM5 Socket Motherboard delivers a balanced foundation for AMD Ryzen 7000/8000/9000 series processors, combining robust power delivery with modern connectivity options including four DDR5 slots, three M.2 sockets, and integrated GbE LAN.

Slim Specs Table

Balanced Power Delivery for Ryzen AM5

The 12+2+2 phase digital VRM design ensures stable power delivery to demanding Ryzen CPUs. This configuration supports sustained workloads and moderate overclocking, making it suitable for both gaming and content creation tasks without excessive heat generation.

Expandable Storage with Next-Gen Speed

Three M.2 sockets provide flexible storage options: one PCIe 5.0 slot for ultra-fast Gen5 SSDs and two PCIe 4.0 slots for additional high-speed storage. Combined with four SATA 6Gb/s ports, this motherboard accommodates extensive storage needs across multiple RAID configurations.

Enhanced Thermal Management

Advanced thermal design includes a fully covered MOSFET heatsink and dedicated M.2 Thermal Guard to maintain optimal operating temperatures. The Smart Fan 6 system offers precise fan control with multiple temperature sensors and hybrid fan headers supporting both PWM and DC fans.

User-Friendly BIOS and Installation

Q-Flash Plus technology allows BIOS updates without installing CPU, memory, or GPU. The EZ-Latch PCIe slot enables quick graphics card installation and removal. These features streamline system building and maintenance for users of all experience levels.

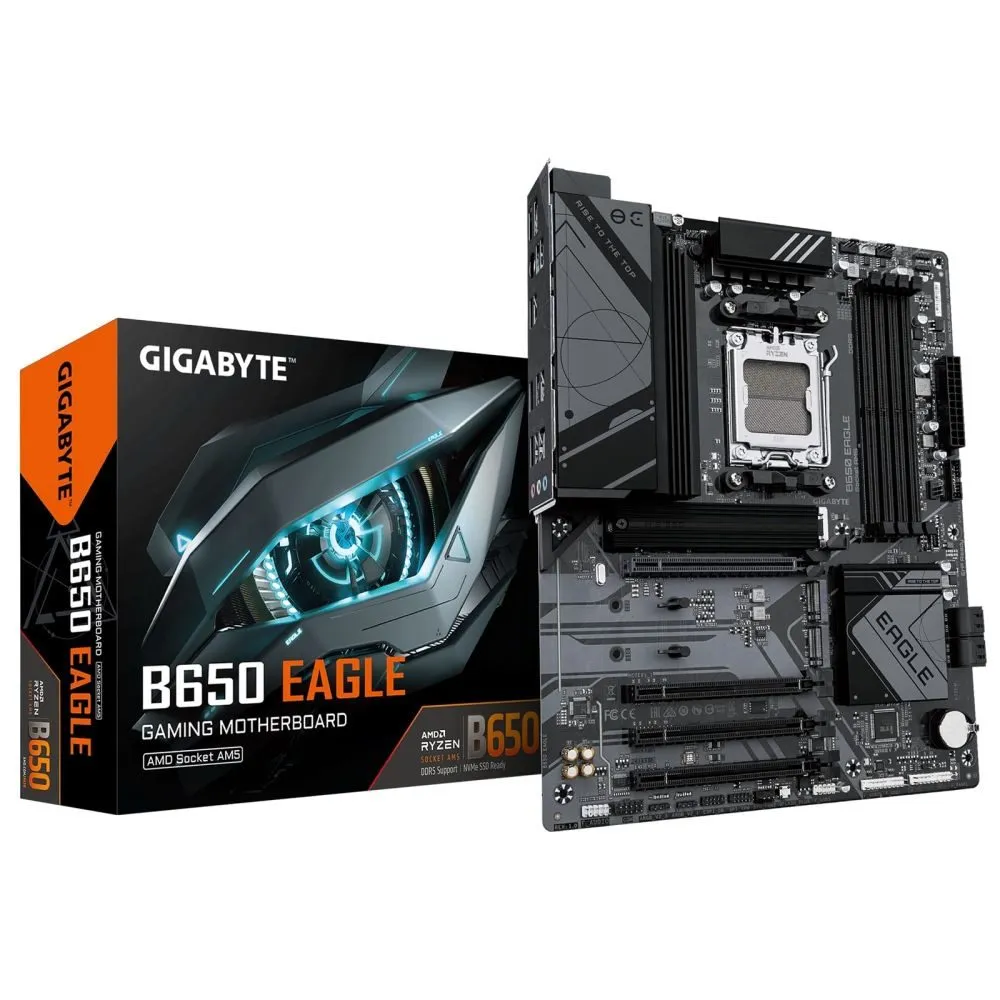

Box contents

• Gigabyte B650 EAGLE motherboard
• I/O shield
• User manuals
• Driver/software disc
• SATA cables

Check before you buy

• Confirm your CPU is compatible with AMD AM5 socket
• Verify your case supports ATX form factor (30.5cm x 24.4cm)
• Check that your power supply has 24-pin and 8-pin CPU connectors
• Ensure your GPU fits with EZ-Latch mechanism clearance

Frequently Asked Questions

Q: Does this motherboard support DDR5 memory overclocking?

A: Yes, it supports AMD EXPO and XMP profiles for DDR5 memory overclocking up to 7600 MT/s.

Q: Can I use PCIe 5.0 SSDs in all M.2 slots?

A: Only the primary M.2 slot supports PCIe 5.0; the other two support PCIe 4.0.

Q: Is Wi-Fi included on this motherboard?

A: No, this model does not include built-in Wi-Fi; you’ll need a separate adapter.

Q: How many RGB headers are available?

A: There are three addressable RGB Gen2 headers and one standard RGB header.

## The Consultant’s verdict & warrantyThe Gigabyte B650 EAGLE offers reliable performance for users building AMD AM5 systems who want solid power delivery, expandable storage, and user-friendly features without premium pricing. Covered by the standard Manufacturer Warranty.
