MSI B850I EDGE TI WIFI AM5 mini ITX
£244.99 inc VAT
Out of stock
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- mini ITX motherboard with AMD B850 chipset for AM5 socket
- supports DDR5 memory up to 128 GB at 8200 MHz
- 2 M.2 slots with PCIe 5.0 for NVMe storage
- Wi-Fi 7 and 5 Gb Ethernet for high-speed networking
- 2x USB 3.2 Gen 1 + 3x USB 3.2 Gen 2 + 1x USB 3.2 Gen 2×2 Type-C ports
- 7.1 channel audio with Audio Boost 5 technology
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:
You may also like
MSI B850I EDGE TI WIFI | AMD B850 Mini ITX Powerhouse
The MSI B850I EDGE TI WIFI AMD B850 Socket AM5 mini ITX delivers AMD B850 performance in a compact mini ITX form factor, featuring Wi-Fi 7, DDR5 support, and PCIe 5.0 for gamers and creators building space-efficient systems.
Key Specifications
| Metric | Spec |
|---|---|
| Form Factor | mini ITX (170×170 mm) |
| Processor Socket | AM5 |
| Memory Support | DDR5, up to 128 GB, 8200 MHz |
| Storage | 2× M.2 (PCIe 5.0), SATA III |
| Network | 5Gb LAN, Wi-Fi 7, Bluetooth 5.4 |
| USB Ports | 2× USB 3.2 Gen 1, 3× USB 3.2 Gen 2, 1× USB 3.2 Gen 2×2 Type-C |
| Audio | 7.1 channels, Audio Boost 5 |
Lightning Gen 5 PCIe Performance
Built with PCIe 5.0 support, this motherboard delivers up to 128GB/s bandwidth for graphics cards and storage. The single PCIe x16 Gen 5 slot ensures compatibility with the latest high-performance GPUs without bottlenecks, making it ideal for 4K gaming and content creation workflows.
Wi-Fi 7 and 5Gb Networking
Stay connected with Wi-Fi 7 technology, offering 5.8Gbps maximum throughput through a 320MHz channel. Combined with 5Gb Ethernet via Realtek RTL8126, you’ll experience ultra-low latency for online gaming and rapid file transfers in crowded network environments.
DDR5 Memory Boost
Support for DDR5 memory with MSI’s Memory Boost technology enables speeds up to 8200MHz. Dual-channel architecture and unbuffered ECC compatibility provide the bandwidth needed for multitasking, video editing, and running memory-intensive applications smoothly.
Advanced Cooling and Build Quality
The Frozr Heatsink Design with patented fan technology and double ball bearings keeps critical components cool under load. Six chassis fan headers plus dedicated CPU fan connector offer comprehensive cooling control, while M.2 Shield Frozr protects high-speed storage from thermal throttling.

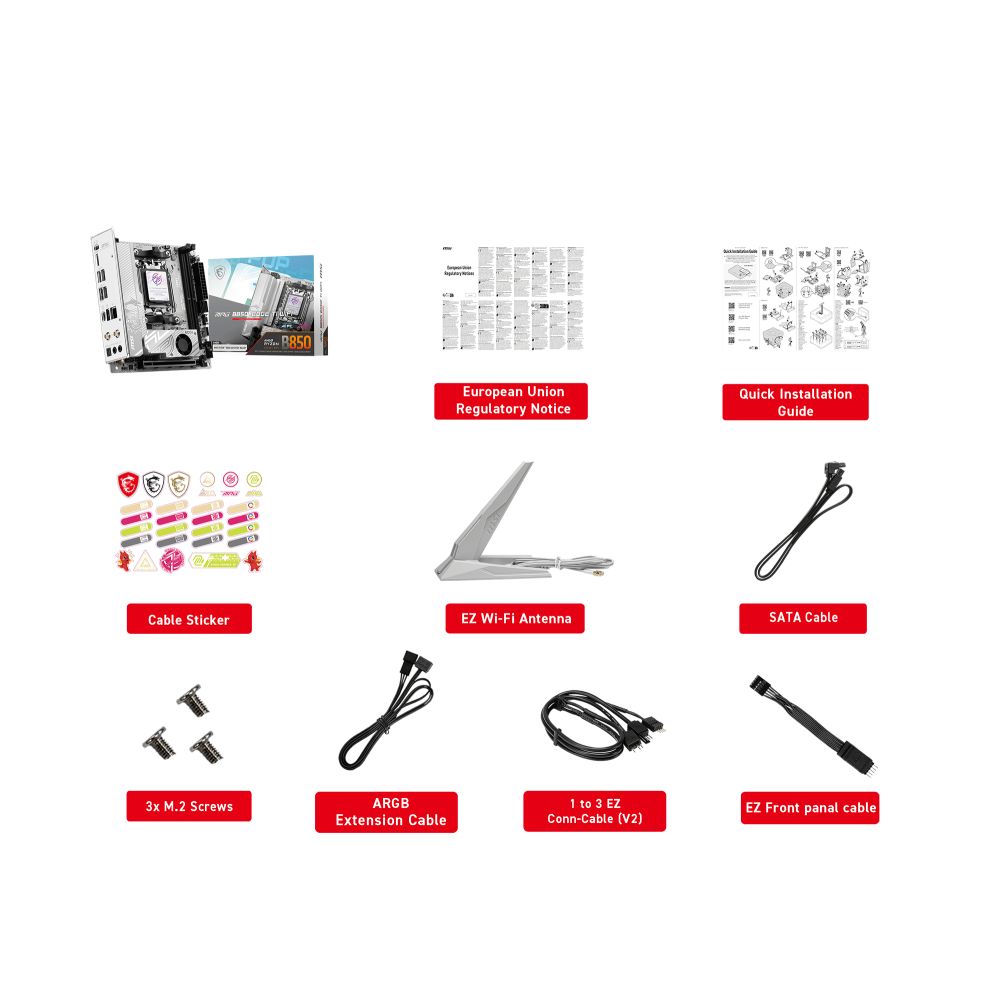

Box Contents
- MSI B850I EDGE TI WIFI motherboard
- SATA cables (quantity not specified)
- Mounting screws
- Wi-Fi antenna
- Quick installation guide
Check Before You Buy
- Confirm your CPU is from AMD Ryzen 7000/8000/9000 Series and uses AM5 socket
- Verify your case supports mini ITX (170×170 mm) dimensions
- Check that your PSU has a 24-pin ATX connector
- Ensure your DDR5 memory is compatible with 8200MHz speeds
Frequently Asked Questions
Q: Does this motherboard support PCIe 5.0 graphics cards?
A: Yes, it features one PCIe 5.0 x16 slot for the latest graphics cards.
Q: What Wi-Fi standard is included?
A: It includes Wi-Fi 7 with 5.8Gbps maximum speed and Bluetooth 5.4.
Q: How many M.2 drives can I install?
A: Two M.2 slots are available, with one supporting PCIe 5.0 speeds.
Q: Is there onboard graphics support?
A: No, this motherboard does not include onboard graphics.
Q: What audio features are included?
A: It offers 7.1 channel audio with Audio Boost 5 technology for enhanced sound quality.
The Consultant’s Verdict & Warranty
The MSI B850I EDGE TI WIFI is perfect for enthusiasts building compact, high-performance systems who need cutting-edge connectivity without sacrificing space. With Wi-Fi 7, PCIe 5.0, and DDR5 support in a mini ITX package, it’s ideal for modern gaming rigs and content creation workstations. Covered by the standard Manufacturer Warranty.
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Supported storage drive interfaces | M.2, NVMe, SATA III |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| TPM connector | Yes |
| Number of SATA III connectors | 2 |
| Number of chassis fan connectors | 6 |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| Number of CPU fan connectors | 1 |
| Technical details | |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B850 |
| Supported processor sockets | Socket AM5 |
| On-board graphics card | No |
| HDMI version | 2.1 |
| Motherboard form factor | mini ITX |
| Component for | PC |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B850 |
| RAID levels | 0, 1 |
| Supported processor sockets | Socket AM5 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | mini ITX |
| Component for | PC |
| Processor | |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Supported processor sockets | Socket AM5 |
| Processor socket | Socket AM5 |
| Memory | |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed (max) | 8200 MHz |
| ECC сompatibility | Non-ECC |
| Storage controllers | |
| Supported storage drive interfaces | M.2, NVMe, SATA III |
| RAID levels | 0, 1 |
| RAID support | Yes |
| Graphics | |
| On-board graphics card | No |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB connector type | USB Type-A, USB Type-C |
| S/PDIF out port | Yes |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| LAN controller | Realtek RTL8126 |
| Ethernet interface type | 5 Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Features | |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B850 |
| Supported processor sockets | Socket AM5 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | mini ITX |
| Component for | PC |
| Product colour | Grey |
| Expansion slots | |
| Number of M.2 (M) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Weight & dimensions | |
| Width | 170 mm |
| Depth | 170 mm |
| Packaging content | |
| Quick installation guide | Yes |
| Cables included | SATA |
| Screws included | Yes |
| Antenna included | Yes |
| Other features | |
| Quick installation guide | Yes |
| Identifiers | |
| Distributor SKUs | 10459223, 127056, 4711377360906, 911-7E79-04S, 593544 |
