ASUS ROG CROSSHAIR X870E APEX
£614.12 inc VAT
5 in stock
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- AMD X870E AM5 ATX motherboard with advanced AI PC-ready features
- 18+2+2 power stages with Dynamic OC Switcher and Core Flex for enhanced overclocking
- Five M.2 slots including three PCIe 5.0 and two PCIe 4.0 for high-speed storage
- Wi-Fi 7 with ASUS WiFi Q-Antenna and 5Gb Ethernet for next-gen connectivity
- Two USB4 ports and two USB 20Gbps Type-C front-panel connectors with Quick Charge 4+
- AI Overclocking, AI Cooling II, and AI Networking II for intelligent system optimization
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:
You may also like
ASUS ROG CROSSHAIR X870E APEX | Ultimate AM5 Overclocking Platform
The ASUS ROG CROSSHAIR X870E APEX AMD X870E Socket AM5 ATX motherboard is engineered for extreme performance enthusiasts who demand cutting-edge hardware for AMD Ryzen 7000/8000/9000 series processors. This premium motherboard combines advanced AI features, extensive connectivity, and robust power delivery to deliver uncompromising performance for gaming, content creation, and overclocking.
Key Specifications
| Metric | Spec |
|---|---|
| Socket | AM5 |
| Memory Support | DDR5, up to 128GB |
| PCIe Slots | 2x PCIe 5.0 x16, 2x PCIe 4.0 x16 |
| M.2 Slots | 5 (3x PCIe 5.0, 2x PCIe 4.0) |
| Wi-Fi | Wi-Fi 7 (802.11be) |
| LAN | 5 Gigabit Ethernet |
| USB Ports | USB4, USB 3.2 Gen 2×2, USB 3.2 Gen 1 |
Advanced Power Delivery for Extreme Overclocking
The CROSSHAIR X870E APEX features an 18+2+2 power stage design with Dynamic OC Switcher and Core Flex technology. This robust power delivery system ensures stable performance even under extreme overclocking conditions. The motherboard’s VRM cooling solution includes dedicated heatsinks and heatpipes to maintain optimal temperatures during intensive workloads, making it ideal for pushing your AMD Ryzen processor to its limits.
Comprehensive Storage and Expansion Options
With five M.2 slots supporting both PCIe 5.0 and 4.0 standards, this motherboard offers exceptional storage flexibility. The three PCIe 5.0 M.2 slots deliver blistering NVMe SSD speeds, while the two PCIe 4.0 slots on the ROG DIMM.2 card provide additional storage options. Combined with eight SATA III ports and RAID 0, 1, 5, and 10 support, you can create versatile storage configurations for any workload, from high-speed gaming to professional content creation.
Next-Generation Connectivity and AI Features
Experience cutting-edge connectivity with Wi-Fi 7, 5 Gigabit Ethernet, and comprehensive USB options including two USB4 ports and multiple USB 3.2 Gen 2×2 Type-C connectors. The motherboard’s AI features include AI Overclocking for automatic performance tuning, AI Cooling II for intelligent thermal management, and AI Networking II for optimized network traffic. These intelligent systems work together to maximize performance while maintaining system stability and efficiency.

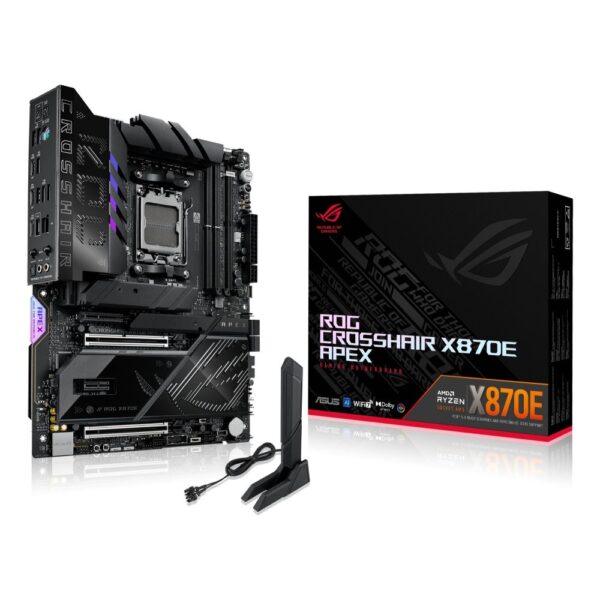

Box Contents
- ASUS ROG CROSSHAIR X870E APEX motherboard
- SATA cables
- Screws
- Wi-Fi antenna
- Drivers and documentation
Check before you buy
- Confirm your AMD Ryzen 7000/8000/9000 series processor compatibility
- Verify your case supports ATX form factor (305mm x 244mm)
- Check if your power supply has the required 24-pin ATX and 8-pin EPS connectors
- Ensure your cooling solution fits the AM5 socket and available clearance
Frequently Asked Questions
Q: Does this motherboard support DDR4 memory?
A: No, the ASUS ROG CROSSHAIR X870E APEX only supports DDR5-SDRAM memory.
Q: How many graphics cards can I install?
A: You can install up to two graphics cards using the PCIe 5.0 x16 slots.
Q: Is Wi-Fi included or do I need a separate card?
A: Wi-Fi 7 is built-in with the included ASUS WiFi Q-Antenna.
Q: Can I use this motherboard for professional video editing?
A: Yes, with its extensive storage options, high memory capacity, and robust power delivery, it’s excellent for professional workloads.
The Consultant’s verdict & warranty
The ASUS ROG CROSSHAIR X870E APEX represents the pinnacle of AMD AM5 motherboard technology, offering everything extreme enthusiasts need for maximum performance. Its combination of advanced power delivery, comprehensive connectivity, and intelligent AI features makes it ideal for serious gamers, content creators, and overclocking enthusiasts who refuse to compromise. Covered by the standard Manufacturer Warranty.
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 5 |
| Front panel connector | Yes |
| 12V power connector | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 2 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| USB 3.2 Gen 2x2 connectors | 2 |
| Number of RGB LED pin headers | 3 |
| Technical details | |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X870E |
| Supported processor sockets | Socket AM5 |
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| Motherboard form factor | ATX |
| Component for | PC |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 11 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X870E |
| RAID levels | 0, 1, 5, 10 |
| Supported processor sockets | Socket AM5 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Supported processor sockets | Socket AM5 |
| Processor socket | Socket AM5 |
| Memory | |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| ECC сompatibility | ECC & Non-ECC |
| Storage controllers | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 0, 1, 5, 10 |
| Number of storage drives supported | 9 |
| RAID support | Yes |
| Graphics | |
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 5 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| WiFi-AP antenna jack | 1 |
| S/PDIF out port | Yes |
| PS/2 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB4 Gen 3x2 ports quantity | 2 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Ethernet interface type | 5 Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Features | |
| Windows operating systems supported | Windows 11 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X870E |
| Supported processor sockets | Socket AM5 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Product colour | Black |
| Expansion slots | |
| Number of M.2 (M) slots | 5 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 2 |
| PCI Express x4 (Gen 4.x) slots | 1 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 5.0 |
| 3rd M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 5.0 |
| 4th M.2 largest key size | 22110 |
| 4th M.2 highest PCI Express generation | 4.0 |
| 5th M.2 largest key size | 22110 |
| 5th M.2 highest PCI Express generation | 4.0 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 512 Mbit |
| Packaging data | |
| Package width | 370 mm |
| Package depth | 312 mm |
| Package height | 108 mm |
| Package weight | 4.16 kg |
| Software | |
| Windows operating systems supported | Windows 11 |
| Drivers included | Yes |
| Weight & dimensions | |
| Package width | 370 mm |
| Package depth | 312 mm |
| Package height | 108 mm |
| Package weight | 4.16 kg |
| Width | 305 mm |
| Depth | 244 mm |
| Packaging content | |
| Drivers included | Yes |
| Cables included | SATA |
| Screws included | Yes |
| Antenna included | Yes |
| Other features | |
| Package width | 370 mm |
| Package depth | 312 mm |
| Package height | 108 mm |
| Package weight | 4.16 kg |
| Identifiers | |
| Distributor SKUs | MBD-90MB1KR0-M0EAY0, 11783519, 126704, ROG CROSSHAIR X870E APEX, 577123, STD10229284, CL90MB1KR0-M0EAY0 |
| Additional EANs | 0197105890244 |
