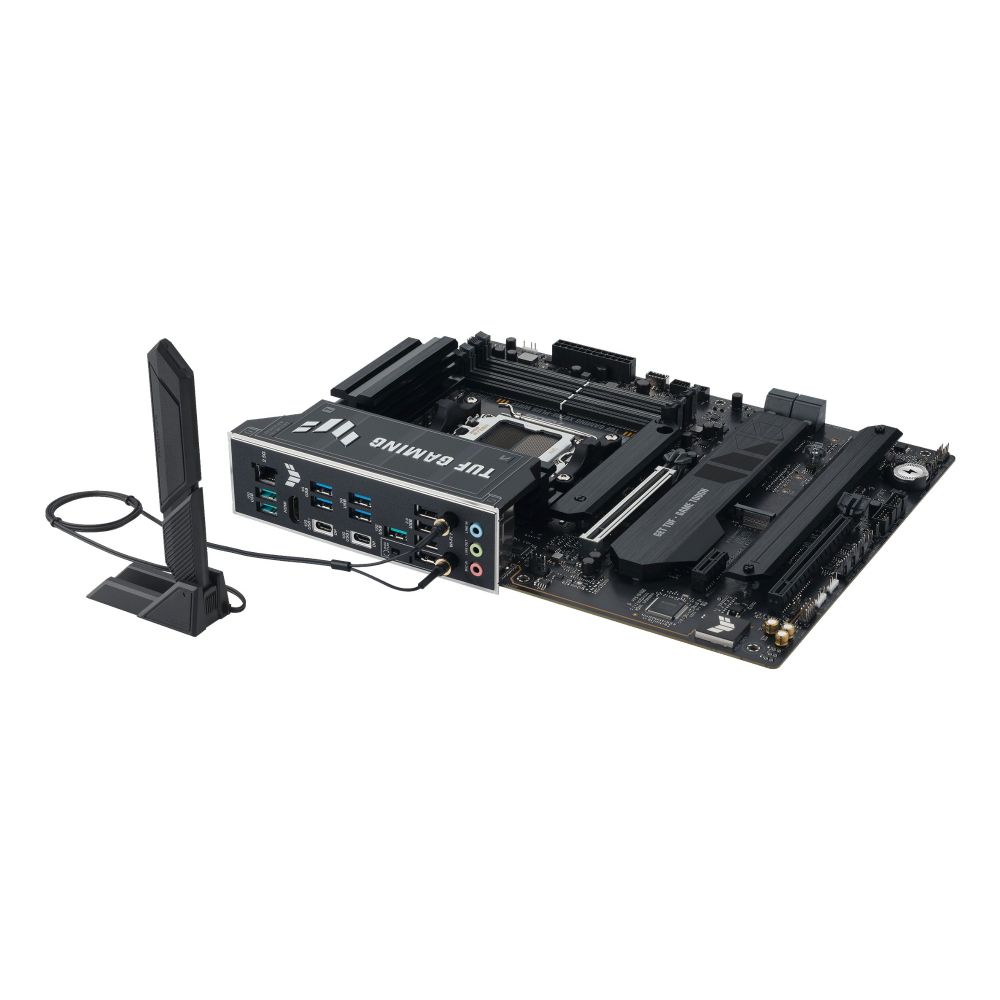

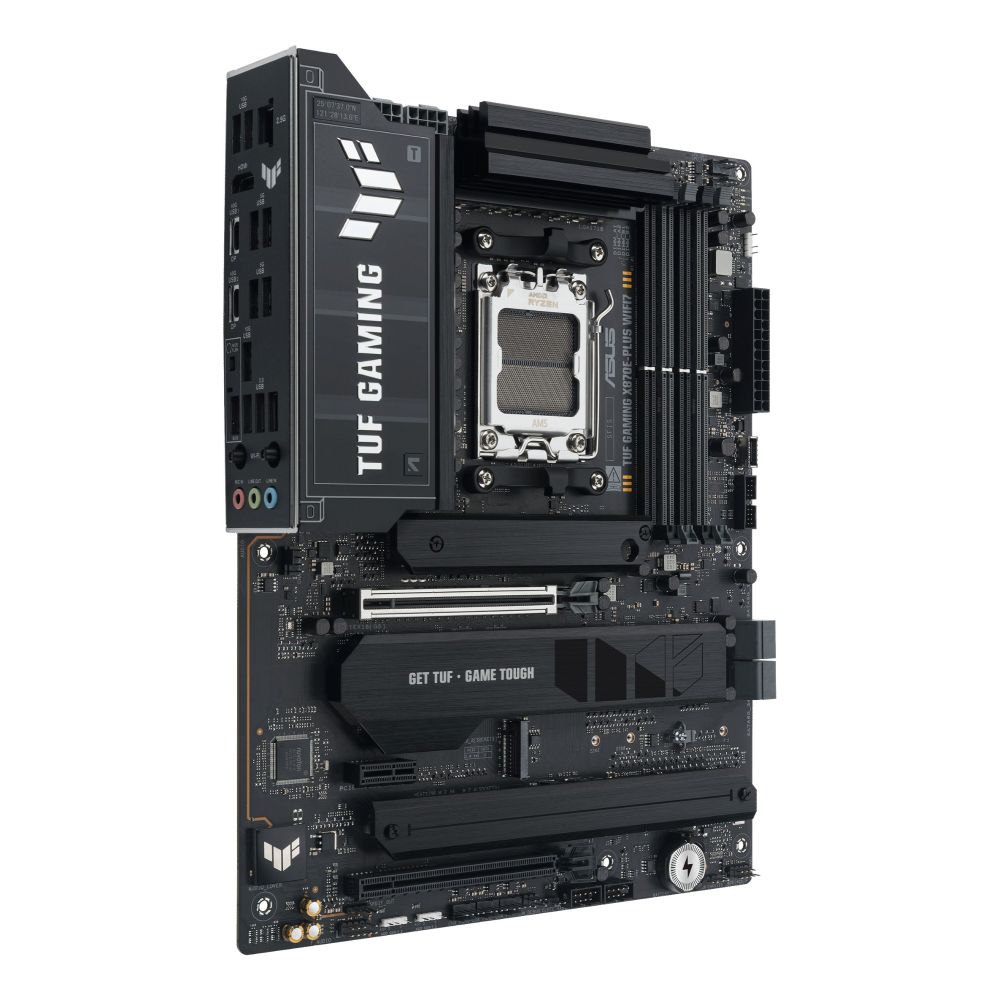

ASUS TUF Gaming X870E-Plus WIFI7 Motherboard
£282.56 inc VAT
5 in stock
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- AMD X870E chipset for Socket AM5 Ryzen 7000/8000/9000 processors
- 4 M.2 slots with PCIe 4.0/5.0 support for NVMe storage
- DDR5 memory up to 8000 MHz, dual-channel, 256 GB max
- Wi-Fi 7 and 2.5 Gb Ethernet for ultra-fast networking
- ATX form factor with 7.1 channel audio and RGB lighting headers
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:
You may also like

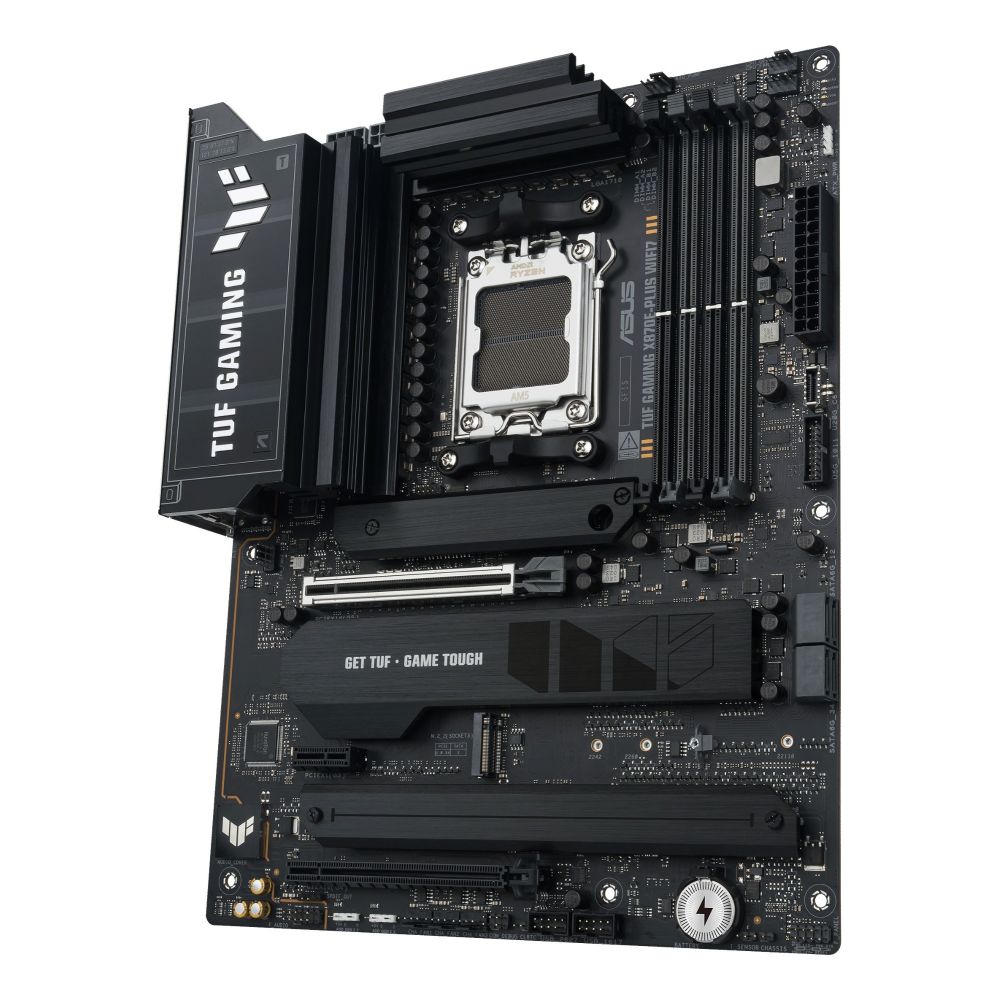

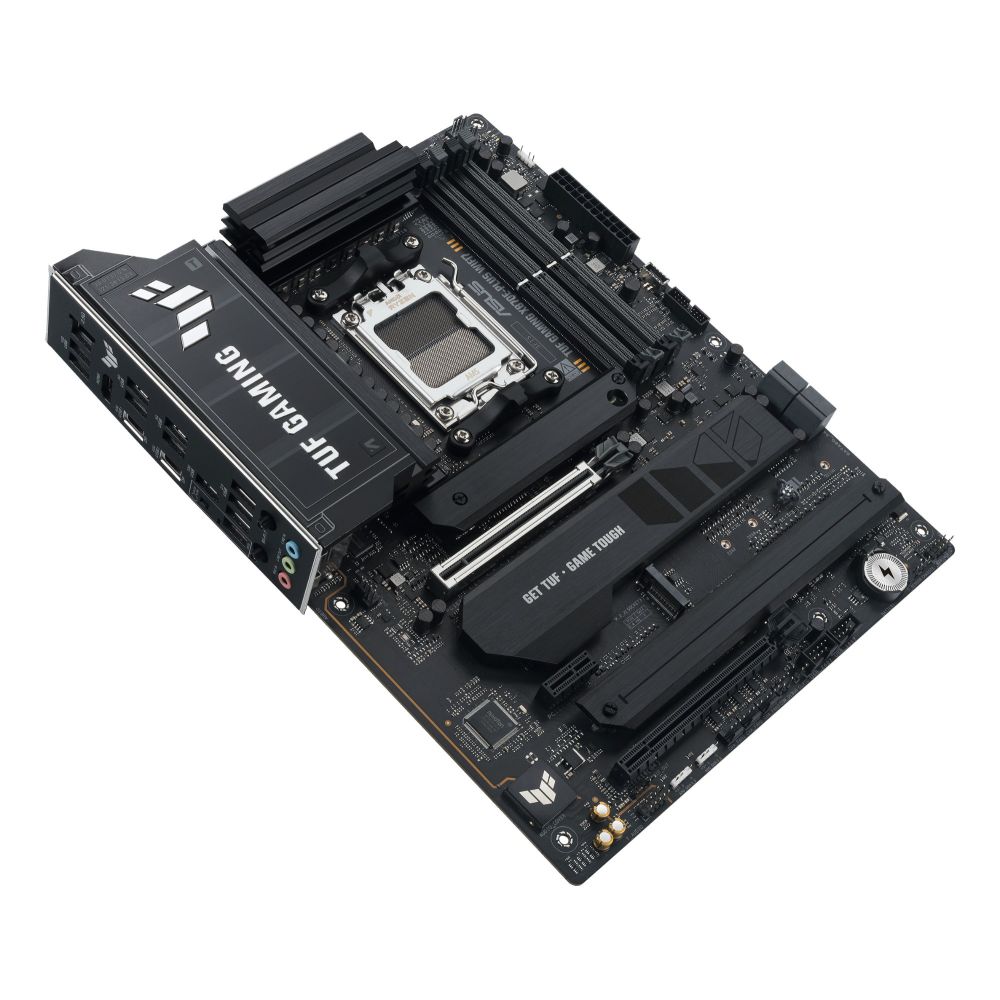

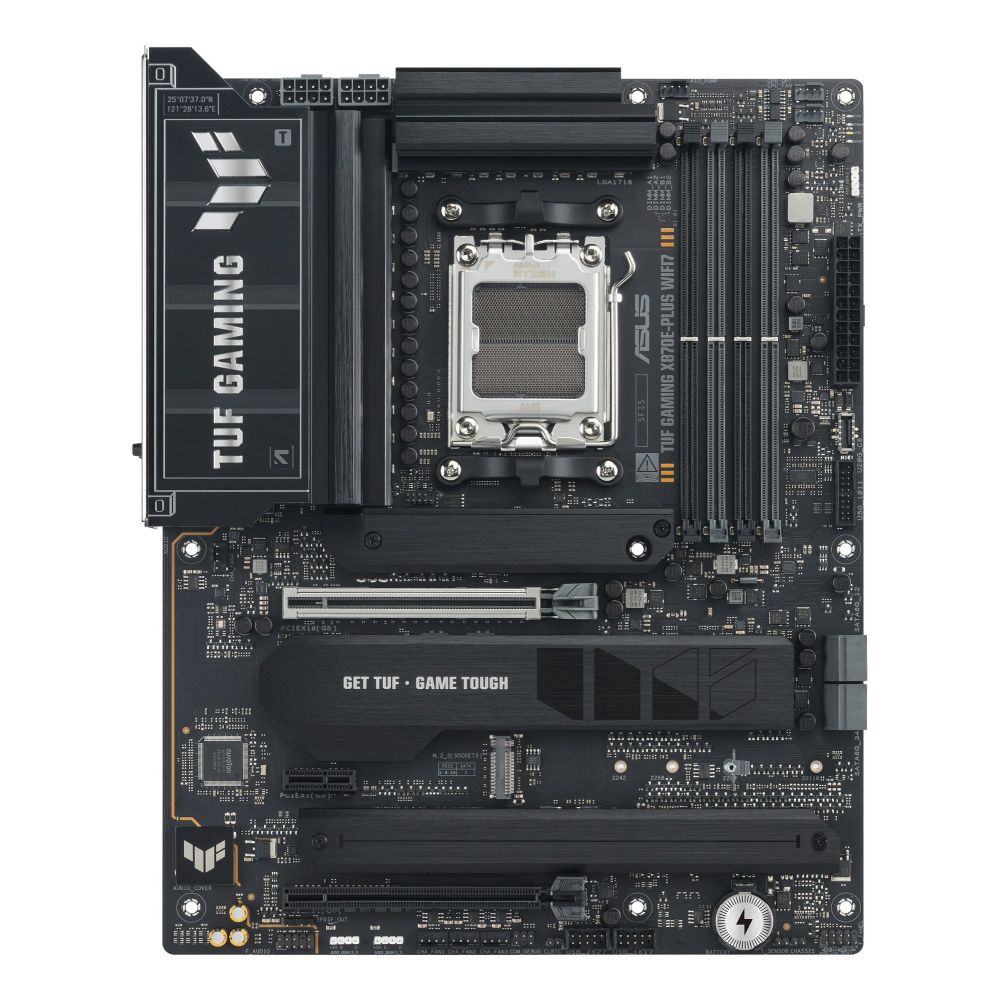

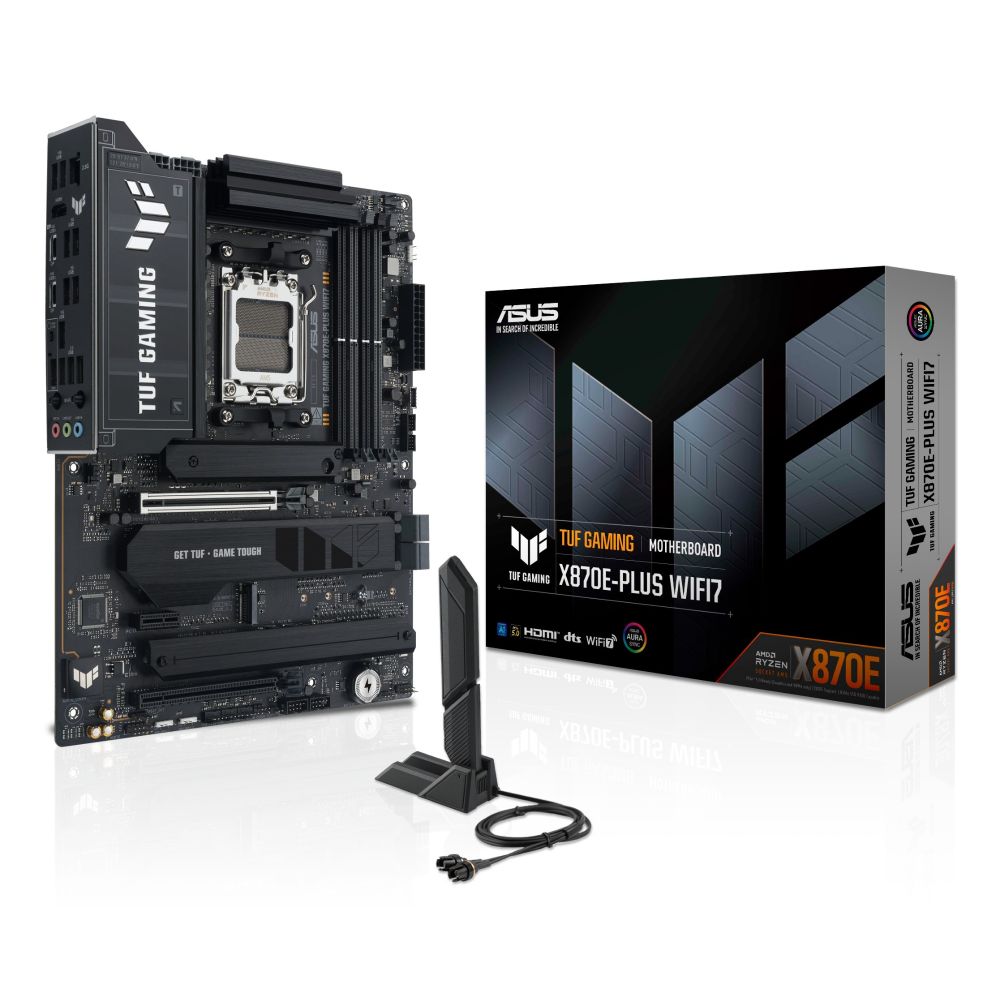

ASUS TUF GAMING X870E-PLUS WIFI7 | AMD X870E Gaming Motherboard
The ASUS TUF GAMING X870E-PLUS WIFI7 AMD X870E Socket AM5 ATX delivers rock-solid performance for AMD Ryzen 7000, 8000, and 9000 Series processors. Built with military-grade components and comprehensive cooling, this motherboard combines robust durability with advanced features like PCIe 5.0, WiFi 7, and intelligent AI overclocking for gamers and creators who demand stability under pressure.
Key Specifications
| Metric | Spec |
|---|---|
| Socket | AMD AM5 |
| Memory Support | DDR5, up to 8000 MHz |
| PCIe Slots | 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 |
| Storage | 4x M.2 (2x PCIe 5.0), 4x SATA III |
| Network | 2.5Gb Ethernet, WiFi 7, Bluetooth 5.4 |
| Form Factor | ATX |
AI-Powered Performance That Adapts to You
TUF GAMING X870E-PLUS WIFI7 features ASUS AI solutions that optimize your system in real-time. AI Overclocking pushes CPU performance to its limits while AI Cooling II maintains optimal thermals with minimal noise. The AI Networking II feature ensures stable WiFi 7 connections for lag-free gaming, automatically adjusting bandwidth allocation based on your usage patterns.
Rock-Solid Power Delivery for Demanding CPUs

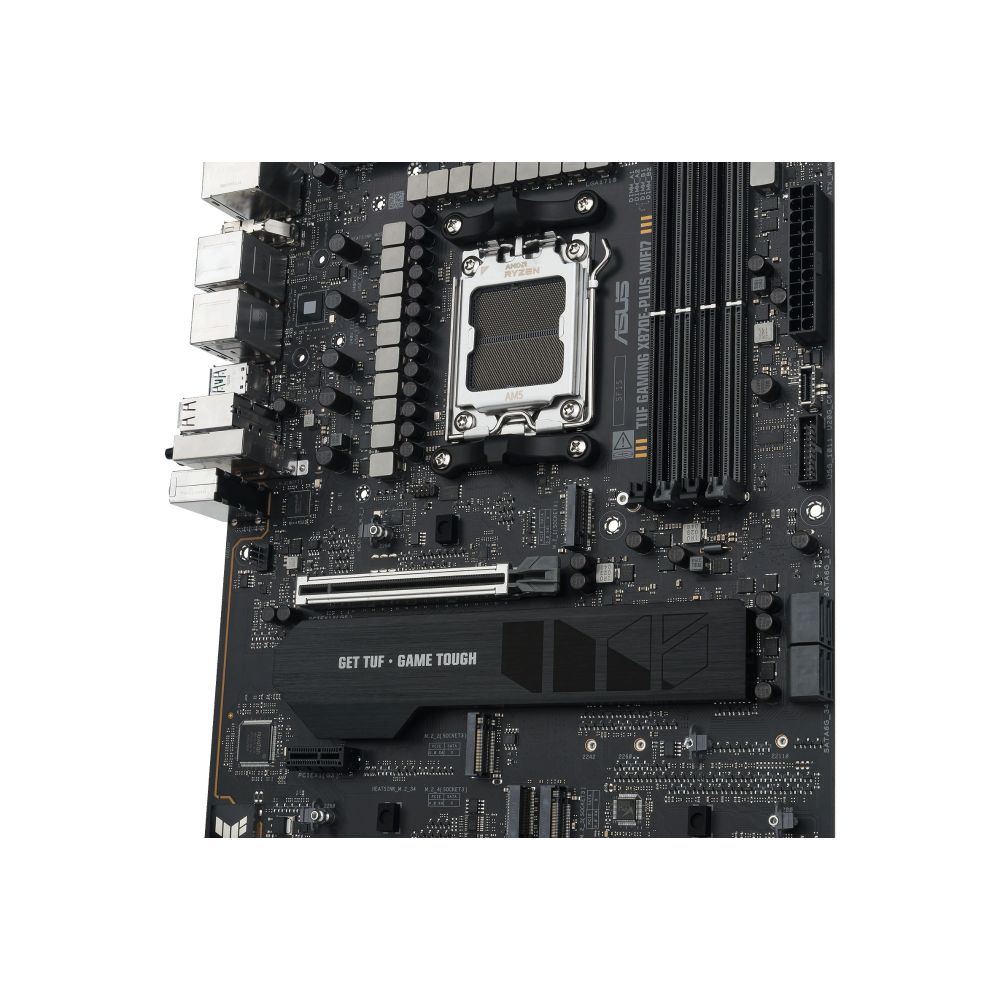

With a 16+2+1 DrMOS power stage design rated at 80A each, this motherboard delivers clean, stable power to high-core-count AMD processors. The eight-layer PCB design enhances signal integrity and overclocking potential, while ProCool connectors provide secure power delivery. TUF components including chokes and capacitors ensure long-term reliability even under heavy loads.
Blazing-Fast Storage and Memory Performance
Take advantage of DDR5 memory with AEMP (ASUS Enhanced Memory Profile) that automatically optimizes frequency, timing, and voltage for your modules. Two PCIe 5.0 M.2 slots support NVMe SSDs with up to 128 Gbps transfer speeds, while four SATA III ports provide flexibility for additional drives. RAID 0, 1, 5, and 10 configurations are supported for both M.2 and SATA storage.
Comprehensive Connectivity for Modern Gaming
This motherboard offers extensive connectivity options including USB4 40Gbps Type-C ports, front USB 20Gbps Type-C with fast charging, and HDMI output. The 2.5Gb Ethernet provides faster LAN speeds than standard gigabit, while WiFi 7 delivers improved range and lower latency. Q-Antenna technology ensures stronger wireless signal reception compared to previous generations.

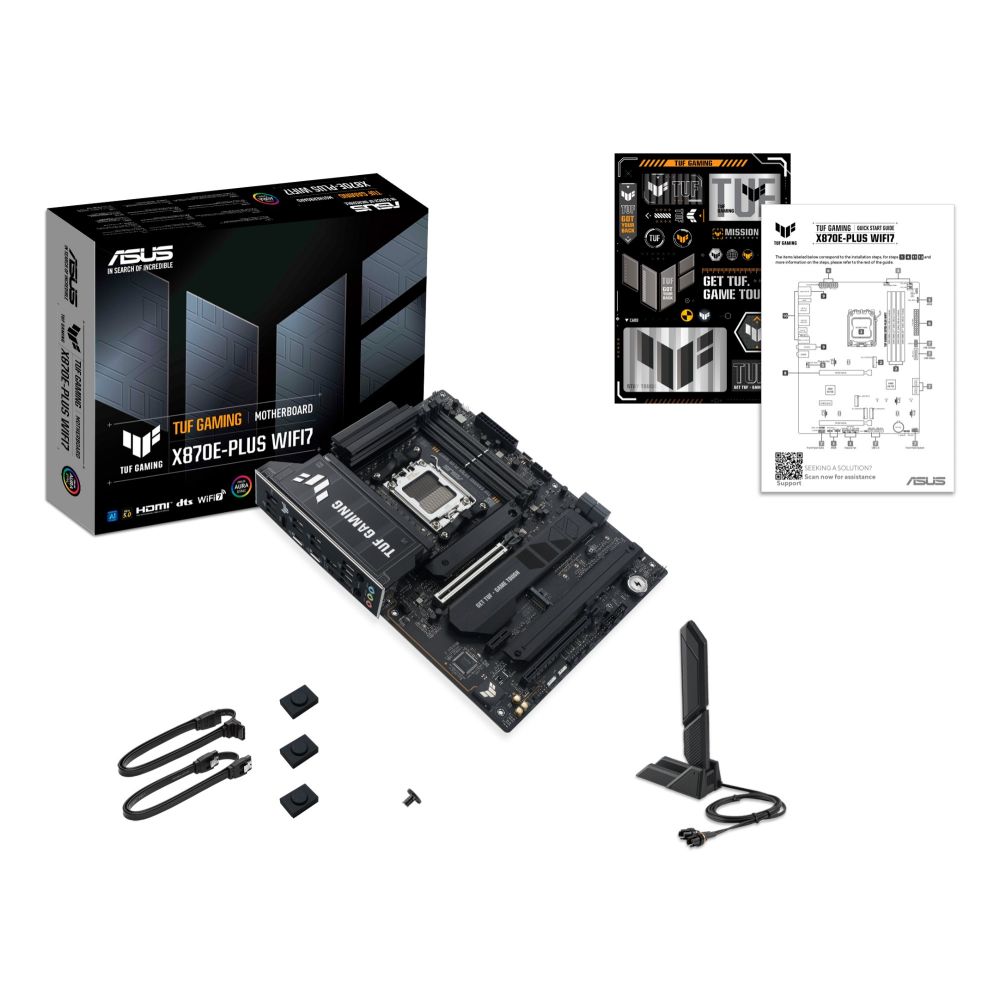

Box Contents
- ASUS TUF GAMING X870E-PLUS WIFI7 motherboard
- Quick installation guide
- SATA cables
- M.2 screws
- WiFi antennas
- I/O shield
Check before you buy
- Confirm your CPU is compatible with AMD AM5 socket (Ryzen 7000/8000/9000 Series)
- Verify your case supports ATX form factor (305mm x 244mm)
- Check if your power supply has the required 8+8 pin CPU power connectors
- Ensure your cooling solution fits with the motherboard’s VRM heatsink design
Frequently Asked Questions
Q: Does this motherboard support DDR4 memory?
A: No, this motherboard only supports DDR5 memory modules.
Q: Can I use this with an older Ryzen processor?
A: No, this AM5 motherboard requires a Ryzen 7000 series or newer processor.
Q: How many graphics cards can I install?
A: You can install one full-length graphics card in the PCIe 5.0 x16 slot.
Q: Does it come with WiFi pre-installed?
A: Yes, WiFi 7 is built-in with included antennas for wireless connectivity.
Q: What RGB lighting options are available?
A: Three addressable Gen 2 RGB headers and Aura Sync support for synchronized lighting effects.
The Consultant’s Verdict & Warranty
The ASUS TUF GAMING X870E-PLUS WIFI7 is ideal for gamers and content creators building AMD AM5 systems who prioritize stability, comprehensive cooling, and future-proof connectivity. With its military-grade components, AI optimization features, and extensive storage options, this motherboard delivers reliable performance for both current and next-generation hardware. Covered by the standard Manufacturer Warranty.
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Front panel connector | Yes |
| 12V power connector | Yes |
| Supported storage drive interfaces | M.2, PCI Express 4.0, PCI Express 5.0, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 4 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| Number of CPU fan connectors | 1 |
| Number of EPS power connectors (8-pin) | 2 |
| Number of water pump connectors | 1 |
| Number of temperature sensor headers | 1 |
| Number of RGB LED pin headers | 3 |
| Technical details | |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X870E |
| Supported processor sockets | Socket AM5 |
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| Cooling type | Passive |
| Motherboard form factor | ATX |
| Component for | PC |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 11 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X870E |
| RAID levels | 0, 1, 5, 10 |
| Supported processor sockets | Socket AM5 |
| Cooling type | Passive |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Supported processor sockets | Socket AM5 |
| Processor socket | Socket AM5 |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed (max) | 8000 MHz |
| ECC сompatibility | ECC & Non-ECC |
| Storage controllers | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express 4.0, PCI Express 5.0, SATA III |
| RAID levels | 0, 1, 5, 10 |
| Number of storage drives supported | 8 |
| RAID support | Yes |
| Graphics | |
| Parallel processing technology support | Not supported |
| On-board graphics card | No |

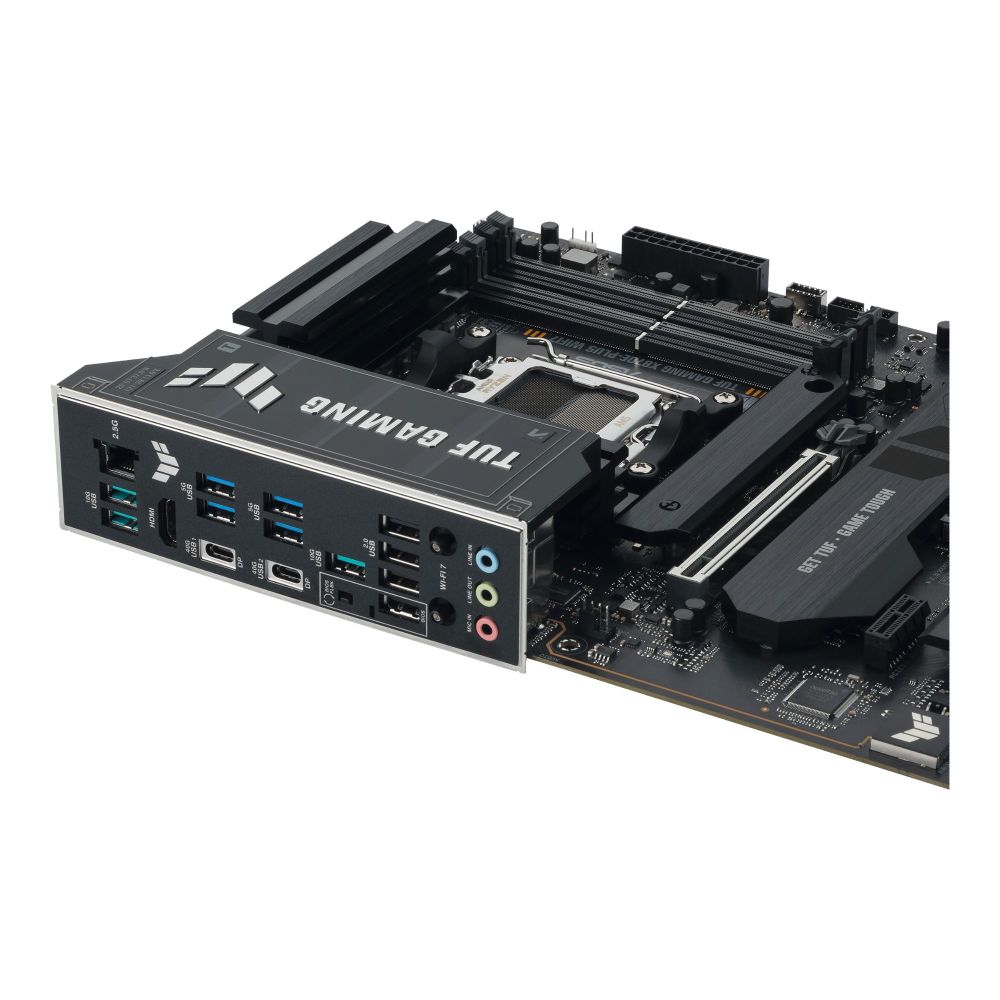

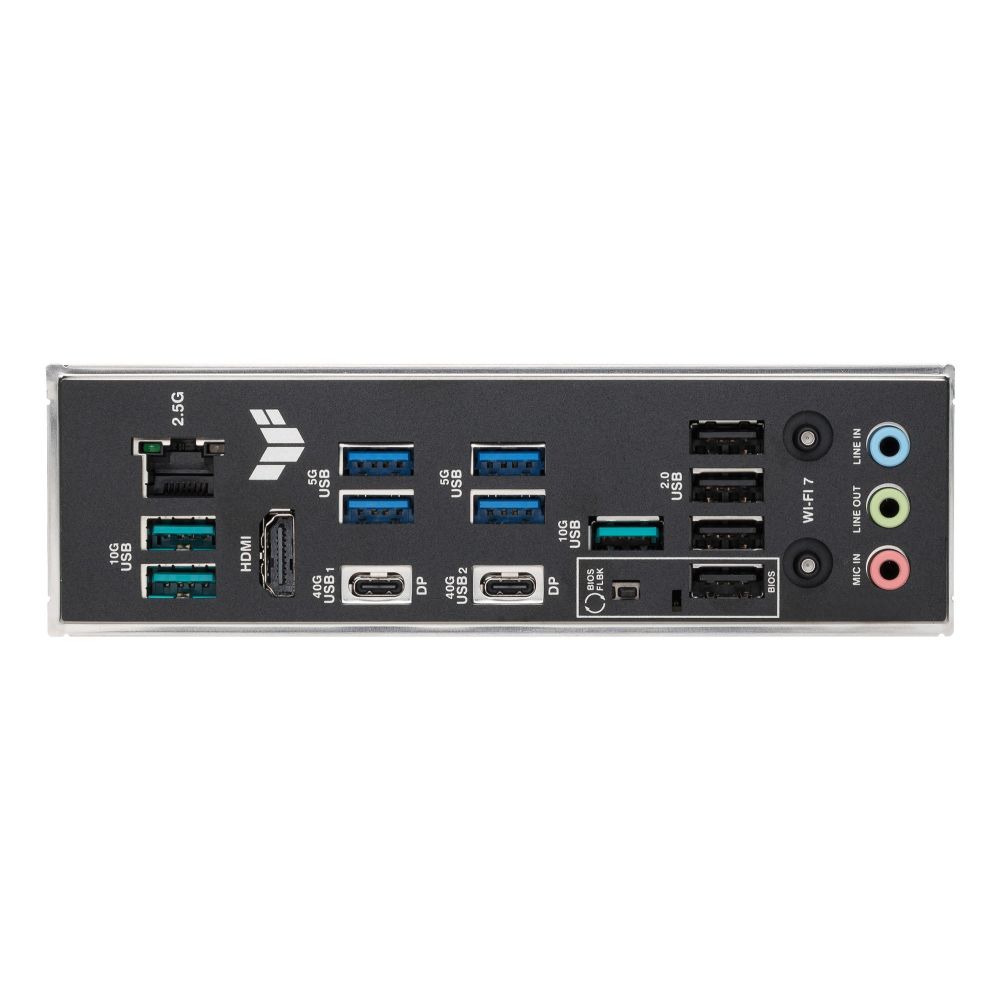

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 2.0 ports quantity | 4 |
| WiFi-AP antenna jack | 2 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB4 Gen 3x2 ports quantity | 2 |
| Line-in | Yes |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Features | |
| Power source type | ATX |
| Windows operating systems supported | Windows 11 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X870E |
| Supported processor sockets | Socket AM5 |
| Cooling type | Passive |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Product colour | Grey |
| Expansion slots | |
| Number of M.2 (M) slots | 4 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 5.0 |
| 3rd M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| 4th M.2 largest key size | 2280 |
| 4th M.2 highest PCI Express generation | 4.0 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Power | |
| Power source type | ATX |
| Packaging data | |
| Package width | 353 mm |
| Package depth | 273 mm |
| Package height | 68 mm |
| Package weight | 2.08 kg |
| Software | |
| Windows operating systems supported | Windows 11 |
| Weight & dimensions | |
| Height | 48 mm |
| Package width | 353 mm |
| Package depth | 273 mm |
| Package height | 68 mm |
| Package weight | 2.08 kg |
| Weight | 1.56 kg |
| Width | 305 mm |
| Depth | 244 mm |
| Packaging content | |
| Quick installation guide | Yes |
| Cables included | SATA |
| Screws included | Yes |
| Antenna included | Yes |
| Other features | |
| Height | 48 mm |
| Package width | 353 mm |
| Package depth | 273 mm |
| Package height | 68 mm |
| Package weight | 2.08 kg |
| Weight | 1.56 kg |
| Quick installation guide | Yes |
| Identifiers | |
| Distributor SKUs | MBD-90MB1M70-M0EAY0, 11808584, 127573, TUF GAMING X870E-PLUS WIFI7, 576236, STD10229289, CL90MB1M70-M0EAY0 |
