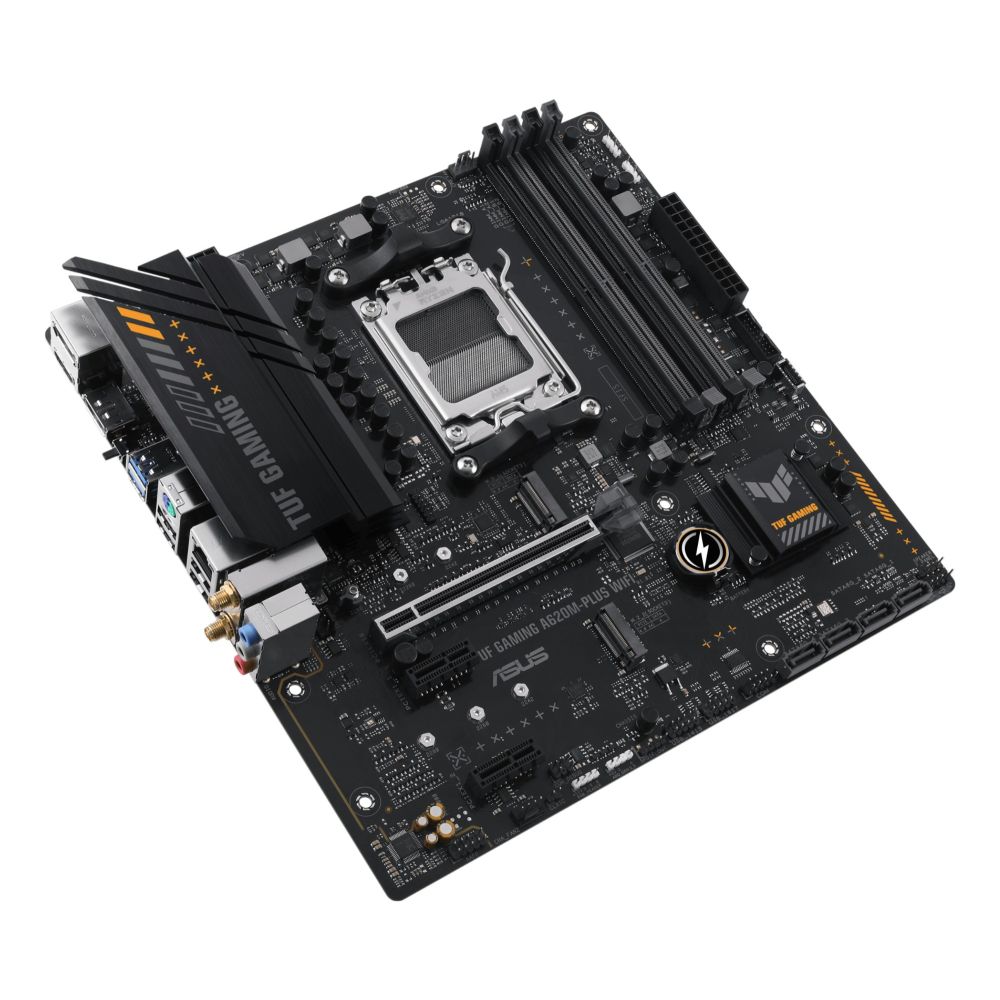

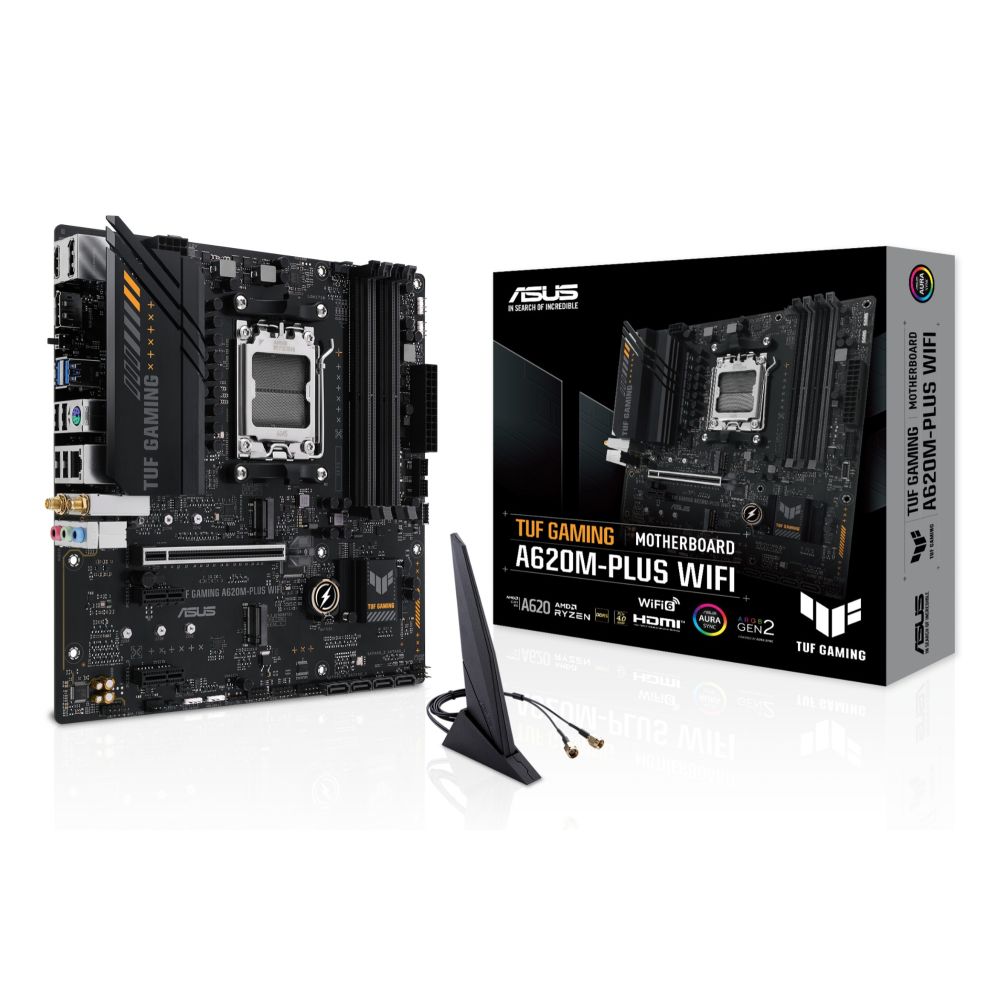

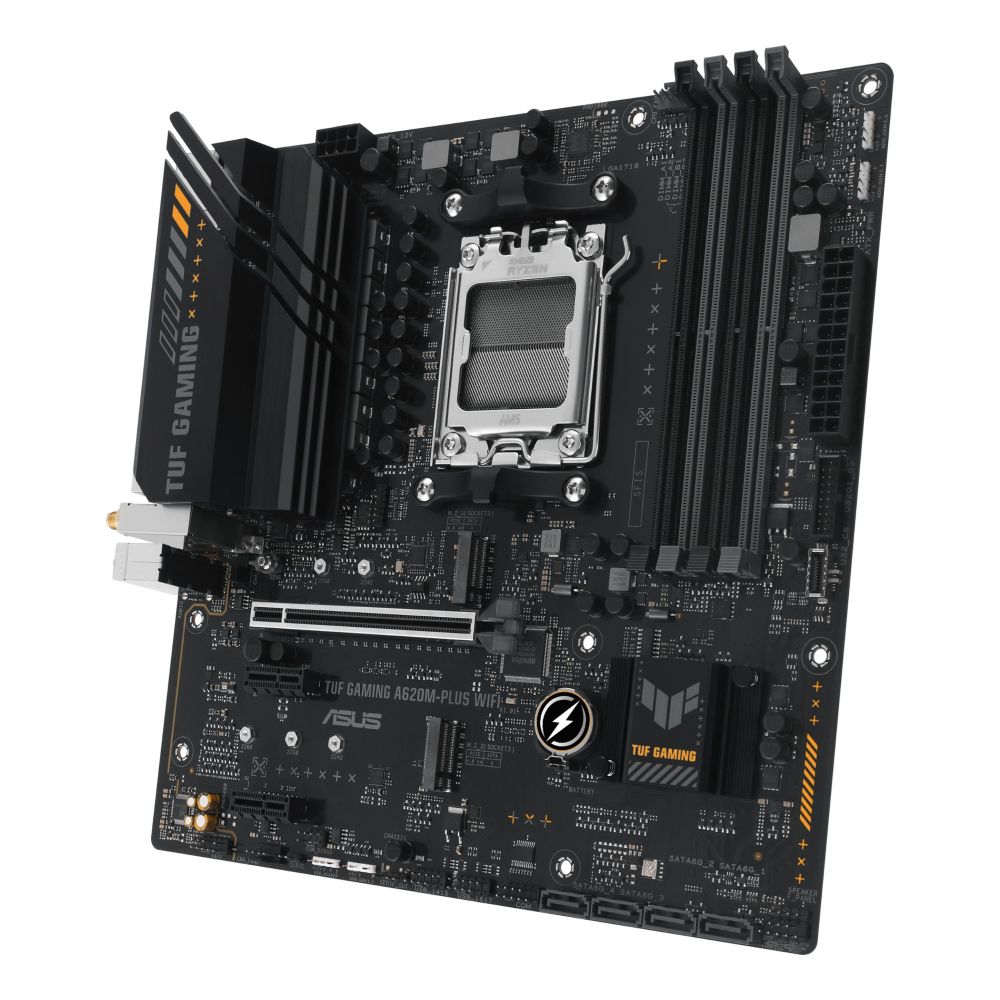

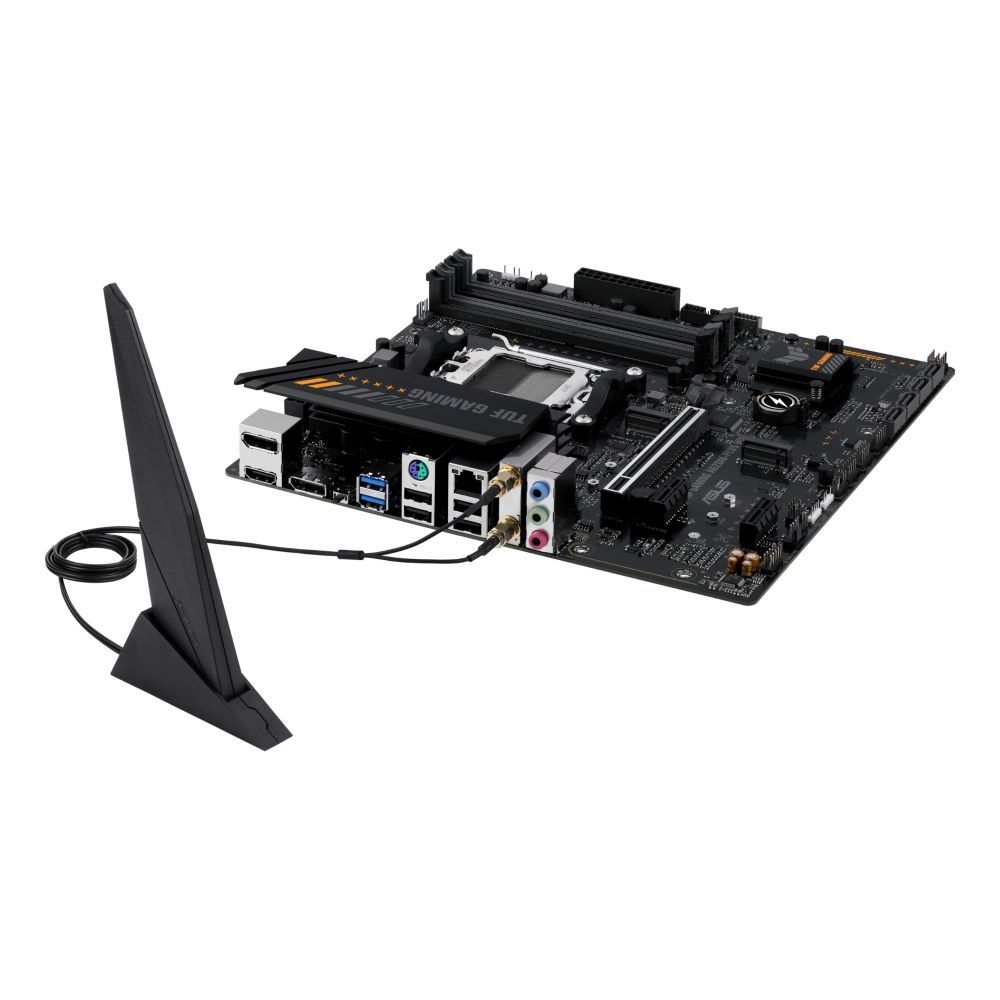

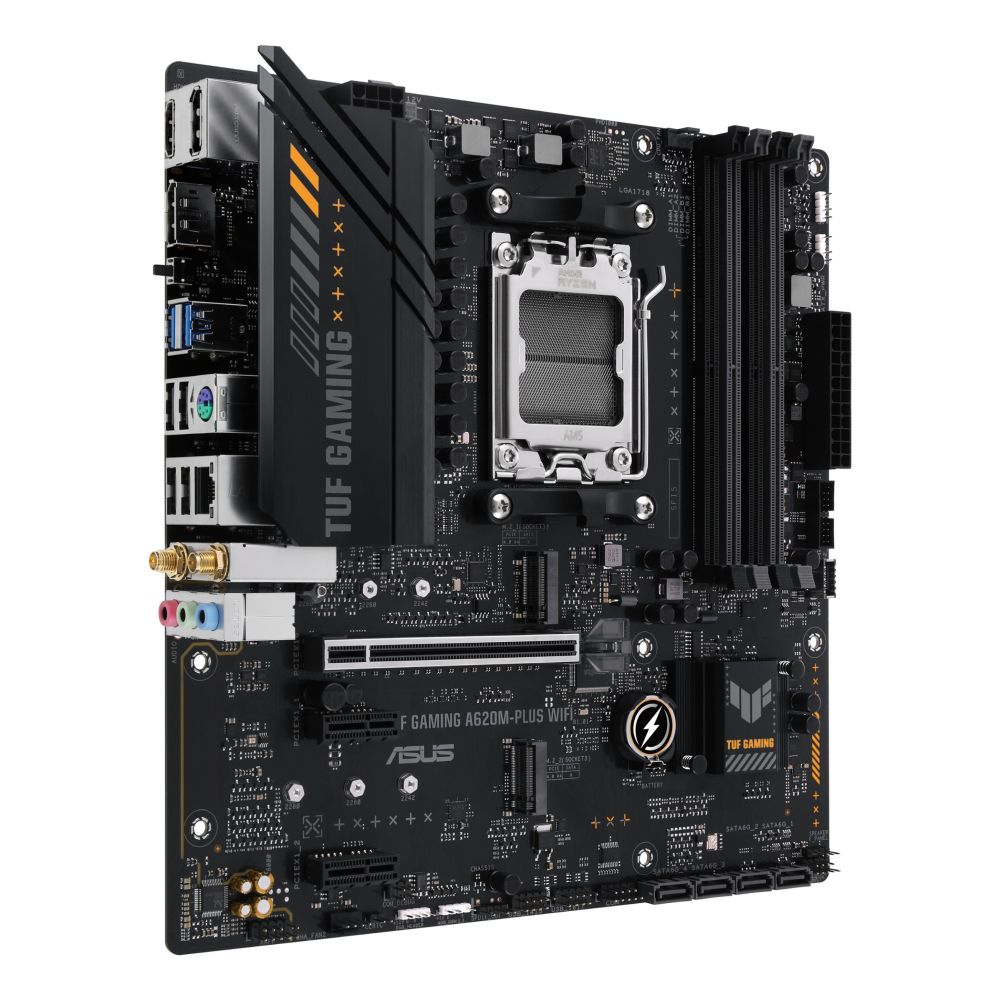

ASUS TUF GAMING A620M-PLUS WIFI micro ATX
£108.32 inc VAT
122 in stock
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- micro ATX motherboard with AMD A620 chipset for AM5 socket
- Supports DDR5-SDRAM with up to 128 GB across 4 dual-channel slots
- 2 M.2 slots plus 4 SATA III connectors for versatile storage
- Wi-Fi 6 and 2.5 Gb Ethernet for fast, reliable connectivity
- Passive cooling design with 7.1 channel audio output
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:
You may also like
ASUS TUF GAMING A620M-PLUS WIFI | Micro ATX Gaming Motherboard
The ASUS TUF GAMING A620M-PLUS WIFI AMD A620 Socket AM5 micro ATX motherboard is engineered for AMD Ryzen 7000 Series processors, delivering a robust foundation for gaming and productivity builds. This micro ATX board combines the AMD A620 chipset with Wi-Fi 6, 2.5 Gb Ethernet, and comprehensive storage options, making it ideal for compact yet powerful systems.
| Metric | Spec |
|---|---|
| Processor Socket | AM5 |
| Memory Support | DDR5, up to 128 GB |
| Storage Interfaces | M.2, SATA III |
| Network | Wi-Fi 6, 2.5 Gb Ethernet |
| Form Factor | micro ATX |
Built for AMD Ryzen 7000 Series
This motherboard supports the latest AMD Ryzen 7000 Series processors via the AM5 socket, unlocking next-generation performance. With support for DDR5 memory at speeds up to 6400 MHz and dual-channel architecture, you can maximise bandwidth for demanding applications and games. The combination of PCIe 4.0-ready M.2 slots and SATA III ports ensures flexible storage configurations, whether you’re prioritising speed or capacity.
Comprehensive Connectivity
Connectivity is a strong point on the ASUS TUF GAMING A620M-PLUS WIFI. It features Wi-Fi 6 (802.11ax) for fast wireless networking, complemented by 2.5 Gb Ethernet for ultra-reliable wired connections. Bluetooth 5.3 support enables seamless pairing with peripherals. For peripherals, you get a mix of USB 3.2 Gen 1 and USB 2.0 ports, HDMI and DisplayPort outputs, and 7.1 channel HD audio, ensuring compatibility with a wide range of devices.
Robust Build & Cooling
TUF Gaming reliability is evident in the motherboard’s construction. The passive cooling design keeps the system quiet while maintaining stable temperatures. Multiple fan headers and chassis fan connectors allow for effective airflow management. The reinforced PCIe slots and durable components are designed to withstand the rigours of daily use, making this board a dependable choice for both new builds and upgrades.

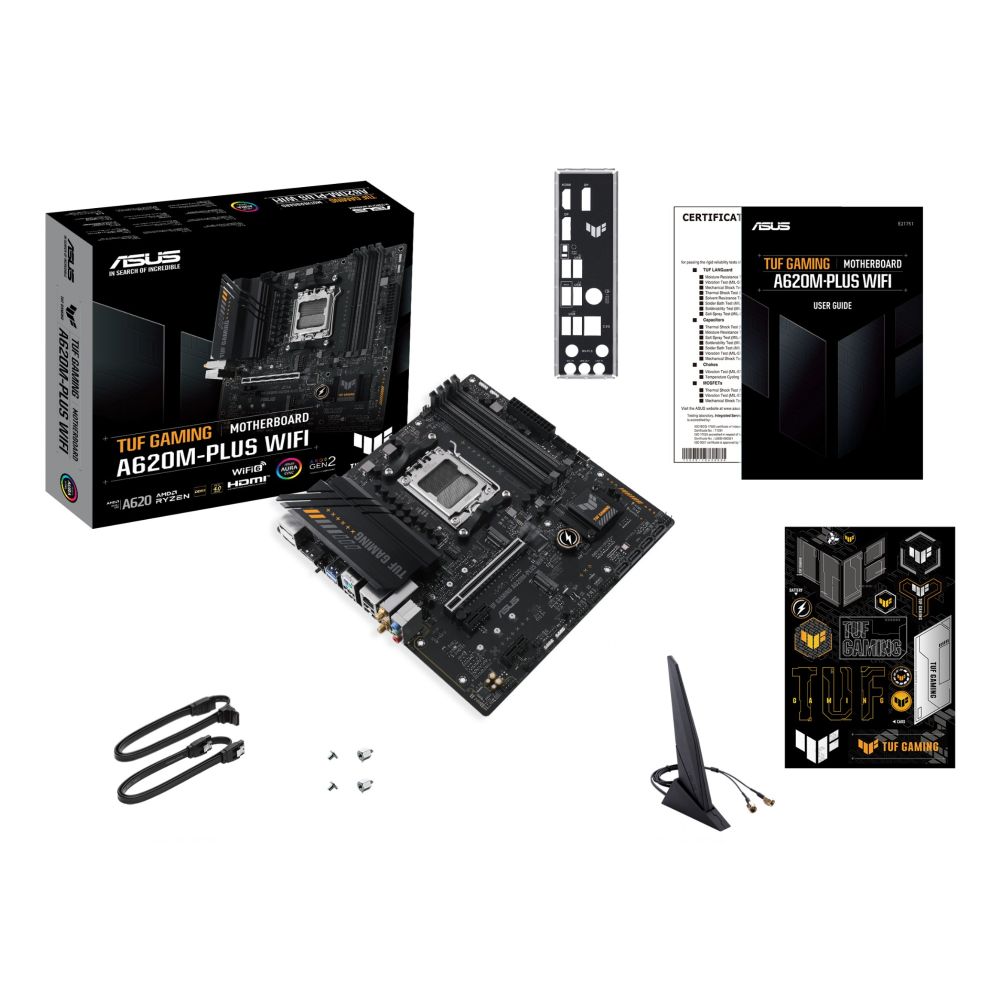

Box contents
- ASUS TUF GAMING A620M-PLUS WIFI motherboard

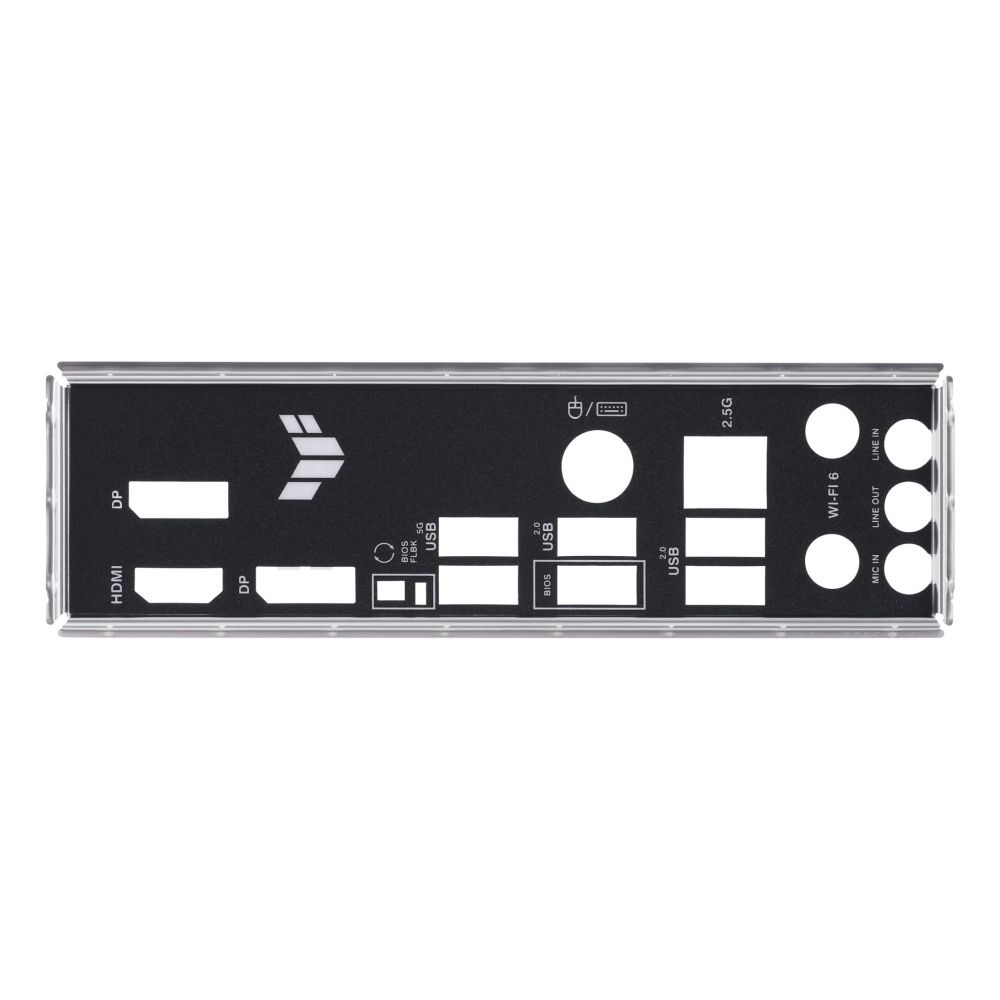

- I/O shield
- User manual
- Warranty card
- SATA cables (quantity not specified)
Check before you buy
- Confirm your AMD Ryzen 7000 Series CPU is compatible with AM5 socket
- Verify your DDR5 memory meets the 4800-6400 MHz speed range
- Check your case supports micro ATX (244 x 244 mm) form factor
- Ensure your PSU has the required 24-pin ATX and 8-pin EPS connectors
Frequently Asked Questions
Q: Does this motherboard support overclocking?
A: No, the AMD A620 chipset does not support CPU overclocking.
Q: Is Wi-Fi 6 included on this board?
A: Yes, it includes Wi-Fi 6 (802.11ax) and Bluetooth 5.3.
Q: How many M.2 drives can I install?
A: The board supports 2 M.2 NVMe drives.
Q: What is the maximum RAM capacity?
A: It supports up to 128 GB of DDR5 memory across 4 slots.
Q: Does it have RGB lighting?
A: Yes, it includes RGB LED headers for custom lighting setups.
The Consultant’s verdict & warranty
The ASUS TUF GAMING A620M-PLUS WIFI is a well-rounded micro ATX motherboard for users building compact AMD Ryzen 7000 systems who want modern connectivity without the need for overclocking. Its blend of Wi-Fi 6, 2.5 Gb Ethernet, and extensive storage support makes it a versatile choice for both gaming and productivity. Covered by the standard Manufacturer Warranty.
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 2 |
| 12V power connector | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| S/PDIF out connector | Yes |
| Number of SATA III connectors | 4 |
| Number of COM connectors | 1 |
| Number of chassis fan connectors | 2 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| Technical details | |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD A620 |
| On-board graphics card | No |
| Cooling type | Passive |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD A620 |
| RAID levels | 0, 1, 10 |
| Cooling type | Passive |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 7000 Series |
| Processor socket | Socket AM5 |
| Memory | |
| Number of memory slots | 4 |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| ECC сompatibility | ECC & Non-ECC |
| Storage controllers | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 0, 1, 10 |
| Number of storage drives supported | 6 |
| RAID support | Yes |
| Graphics | |
| On-board graphics card | No |

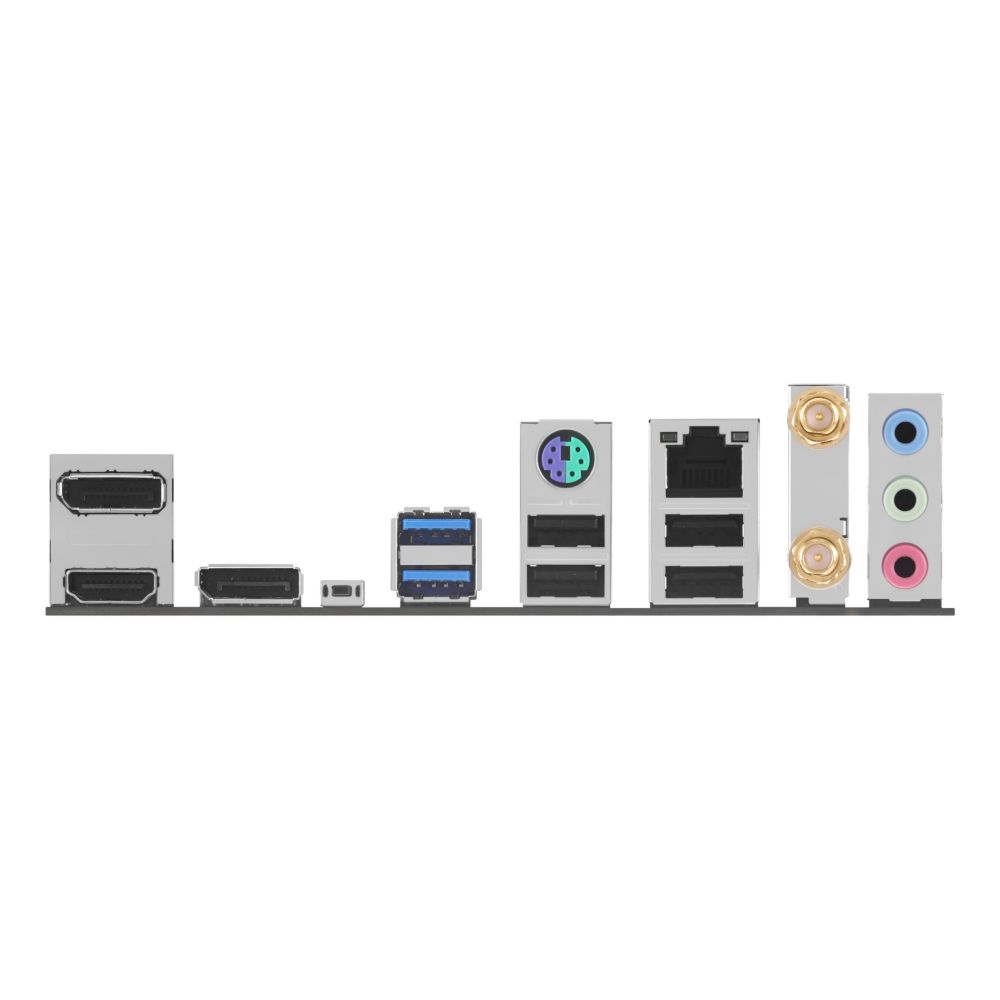

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 4 |
| PS/2 ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 2 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Ethernet interface type | 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Features | |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD A620 |
| Cooling type | Passive |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Expansion slots | |
| Number of M.2 (M) slots | 2 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Packaging data | |
| Package width | 275 mm |
| Package depth | 275 mm |
| Package height | 67.5 mm |
| Package weight | 920 g |
| Software | |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Weight & dimensions | |
| Height | 50 mm |
| Package width | 275 mm |
| Package depth | 275 mm |
| Package height | 67.5 mm |
| Package weight | 920 g |
| Weight | 800 g |
| Width | 244 mm |
| Depth | 244 mm |
| Other features | |
| Height | 50 mm |
| Package width | 275 mm |
| Package depth | 275 mm |
| Package height | 67.5 mm |
| Package weight | 920 g |
| Weight | 800 g |
| Identifiers | |
| Distributor SKUs | MBD-90MB1F00-M0EAY0, 8324405, TUF GAMING A620M-PLUS WIFI, 465650, STD10215900, CL90MB1F00-M0EAY0 |
| Additional EANs | 0197105164260 |
