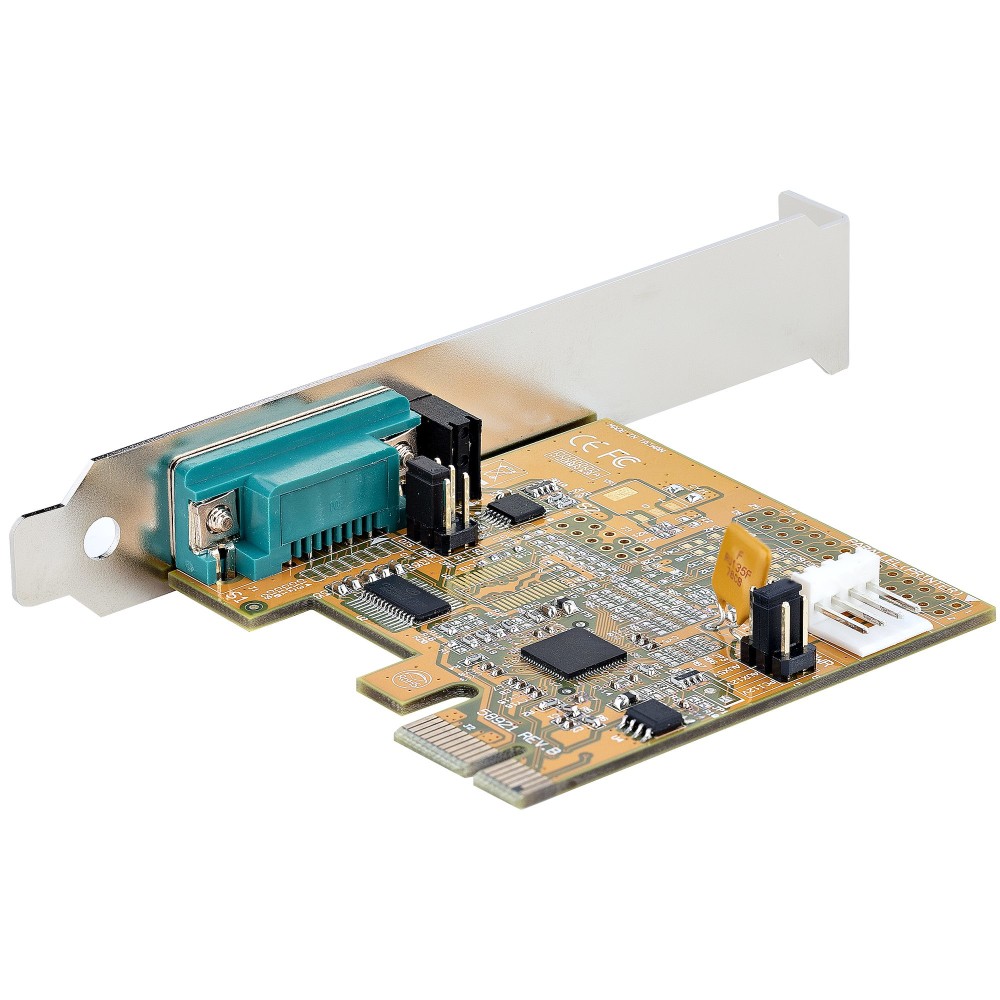

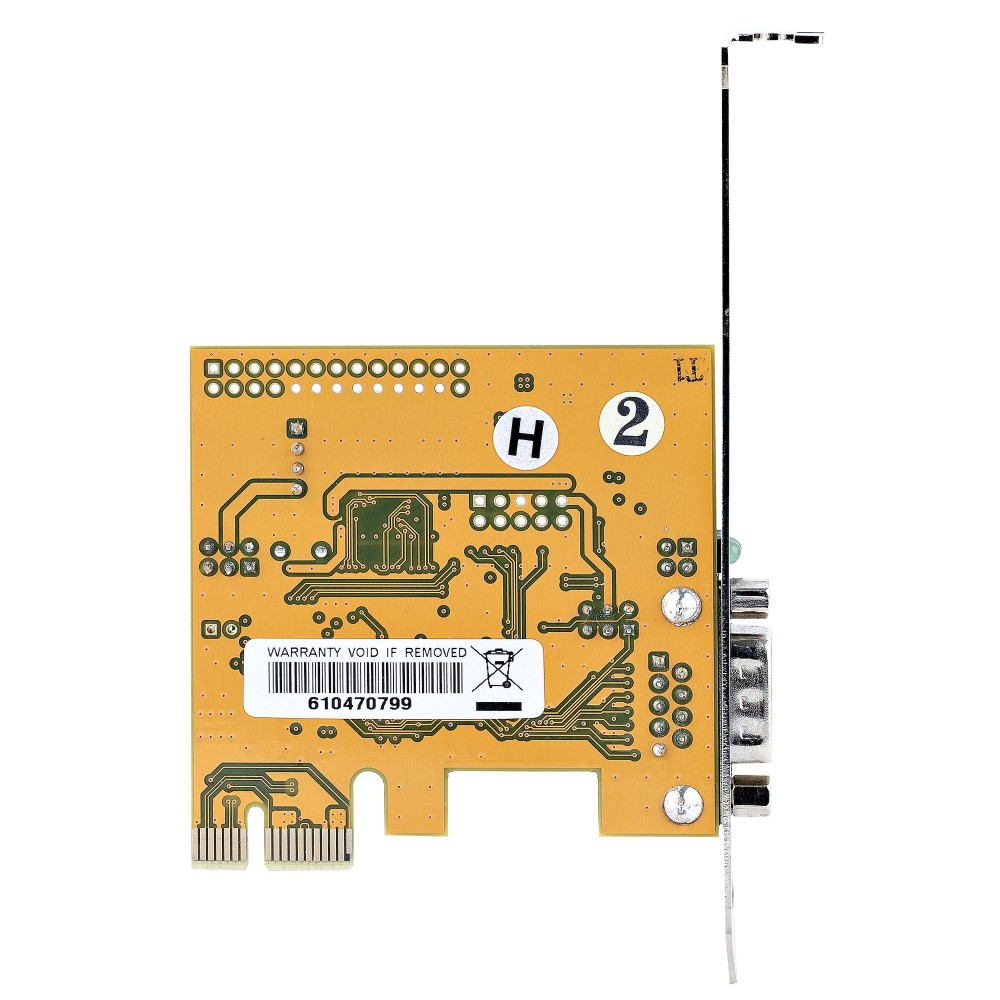

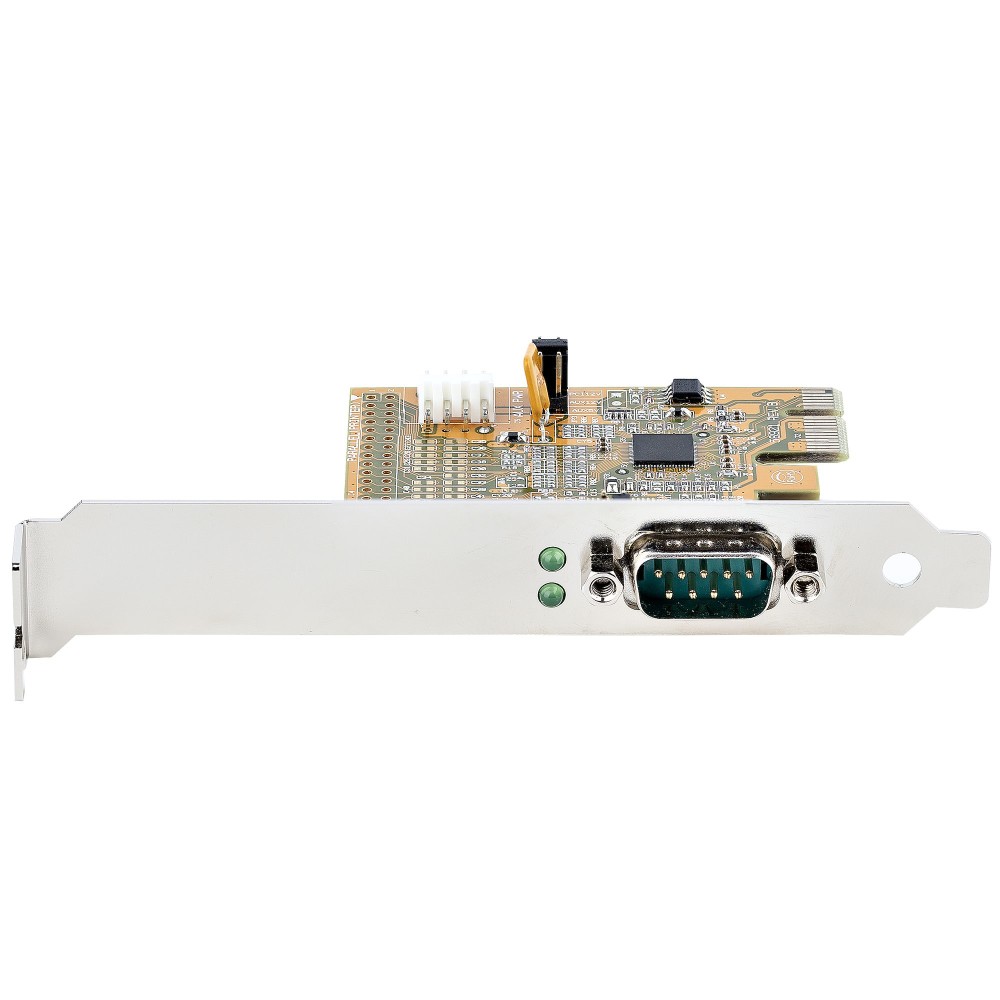

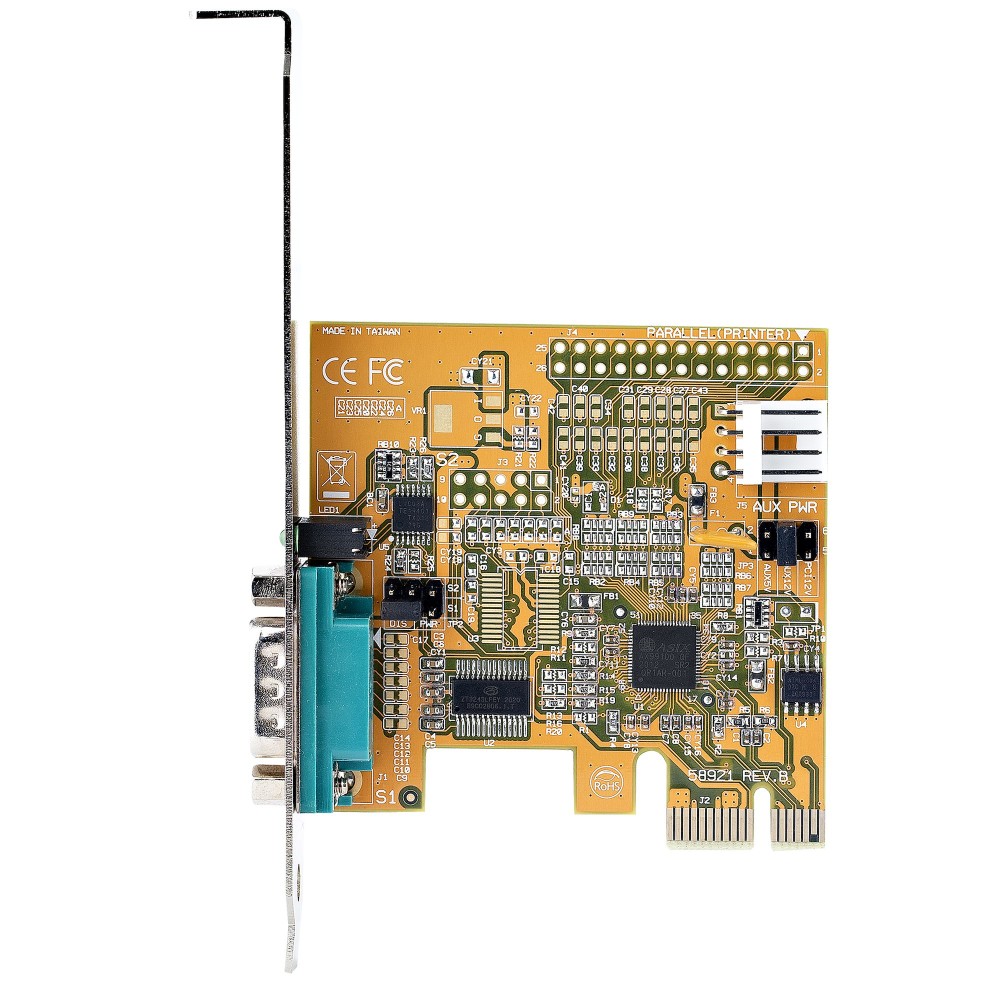

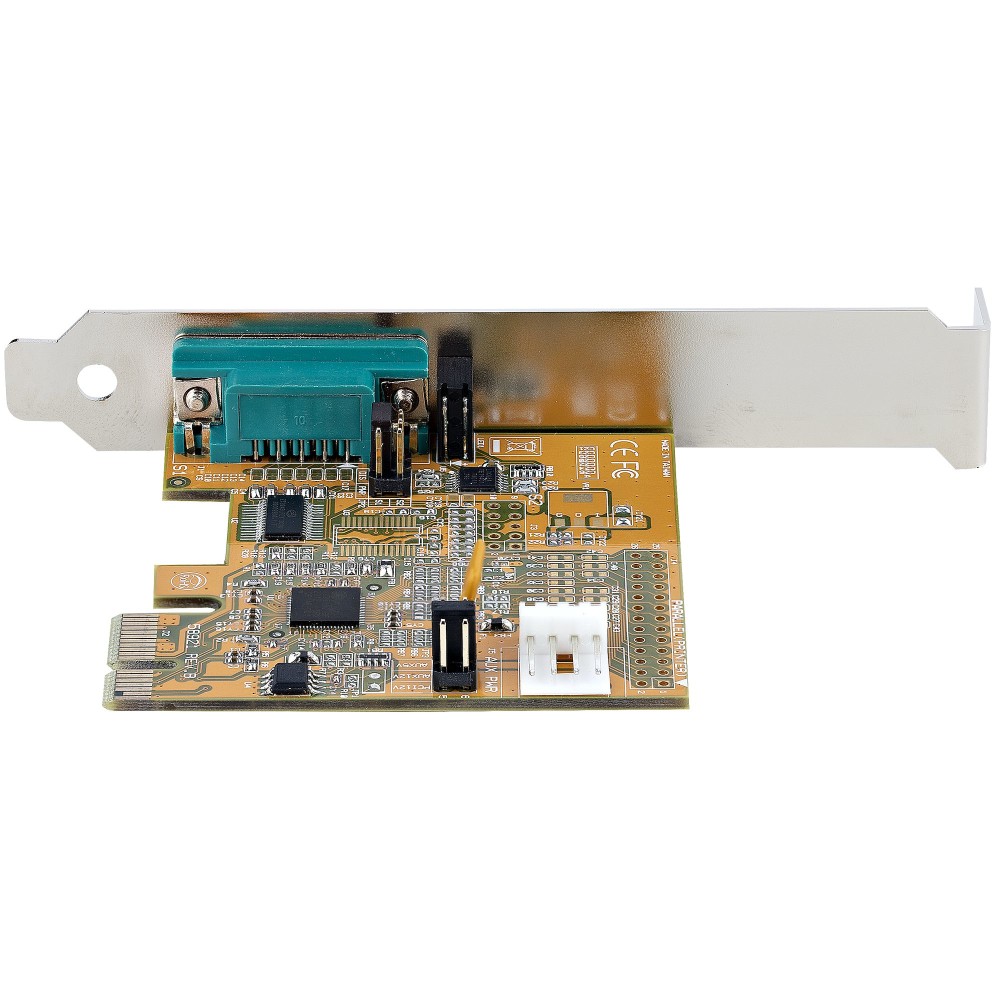

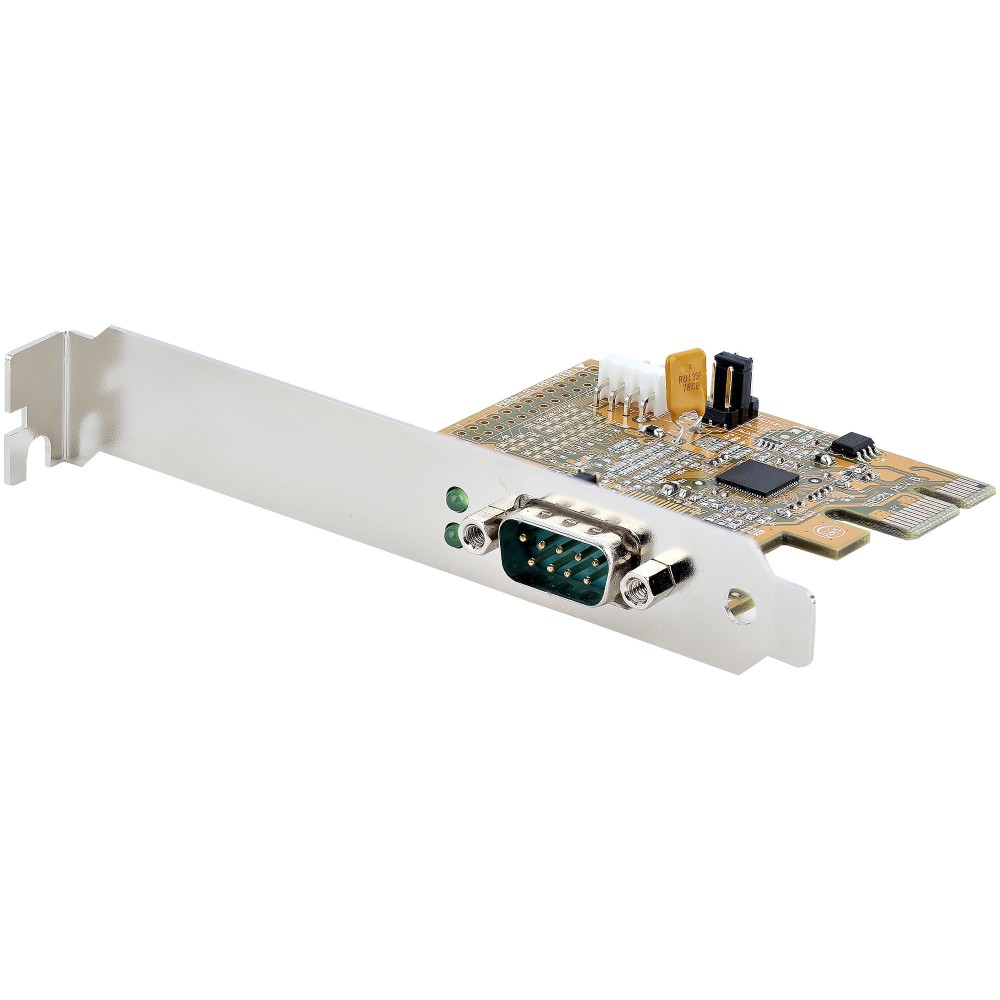

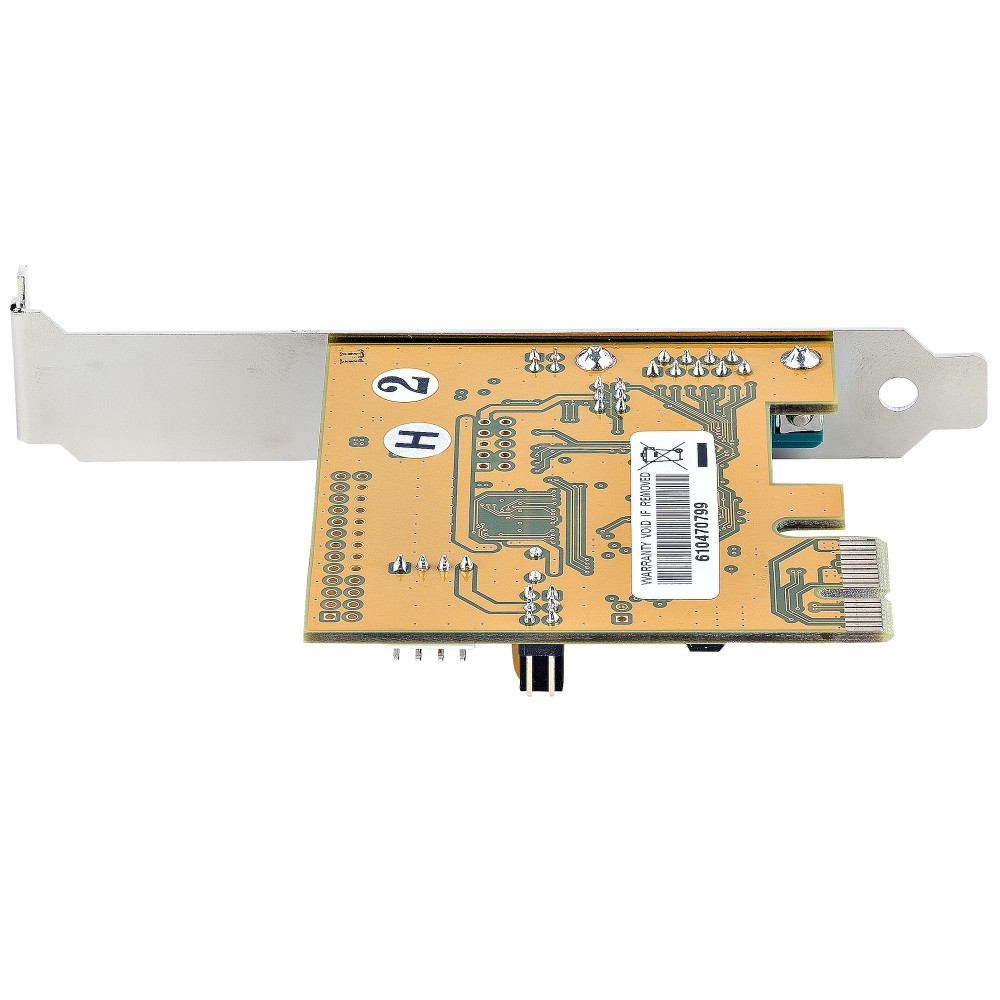

StarTech.com 1-Port PCIe to RS232 Serial Card, 16C1050 UART, 921.6 Kbps, Steel, Yellow
£48.50 inc VAT
Out of stock
Out of stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item
- Single-port RS-232 serial card via PCIe host interface
- Supports full-height and low-profile form factors
- Features ASIX AX99100/ZT3243LFEY chipsets and 256 B FIFO
- Baud rate up to 921.6 Kbit/s with flow control support
- Compatible with Windows (7, 8, 8.1, 10, 11) and Linux operating systems
- Constructed from steel with a yellow finish
- Includes mounting brackets and quick installation guide
Payment Methods:
You may also like
Cables Direct CDL M6 Cage Nuts – Pack of 50
In stock
StarTech.com PCIe Serial Card – Reliable RS232 Expansion
We offer the StarTech.com 1-Port PCIe to RS232 Serial Card, 16C1050 UART, 921.6 Kbps, Steel, Yellow for seamless integration into your desktop or SFF system. This card is ideal for professionals needing to connect legacy serial devices. It ensures reliable communication and avoids costly system upgrades.
Core Interface Details
| Metric | Spec. |
|---|---|
| Host Interface | PCIe 2.0 |
| Serial Ports | 1 (RS-232) |
| Baud Rate | 921.6 Kbps |
| FIFO Buffer | 256 B |
| Material | Steel |
Maintain Legacy Device Compatibility
This serial card provides essential RS-232 (DB9) support. It allows you to continue using existing peripheral devices. This is crucial for environments with specialised or industrial equipment. We understand the importance of avoiding downtime.

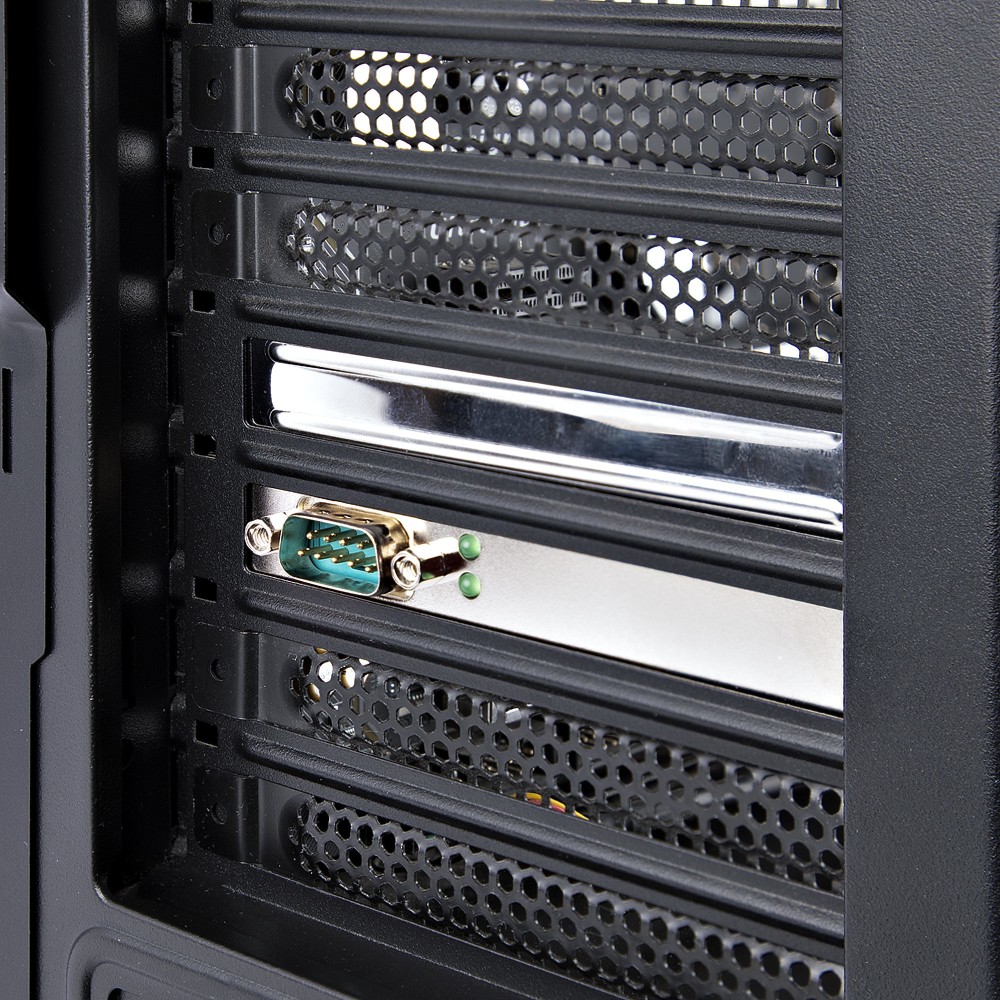

Flexible Installation Options

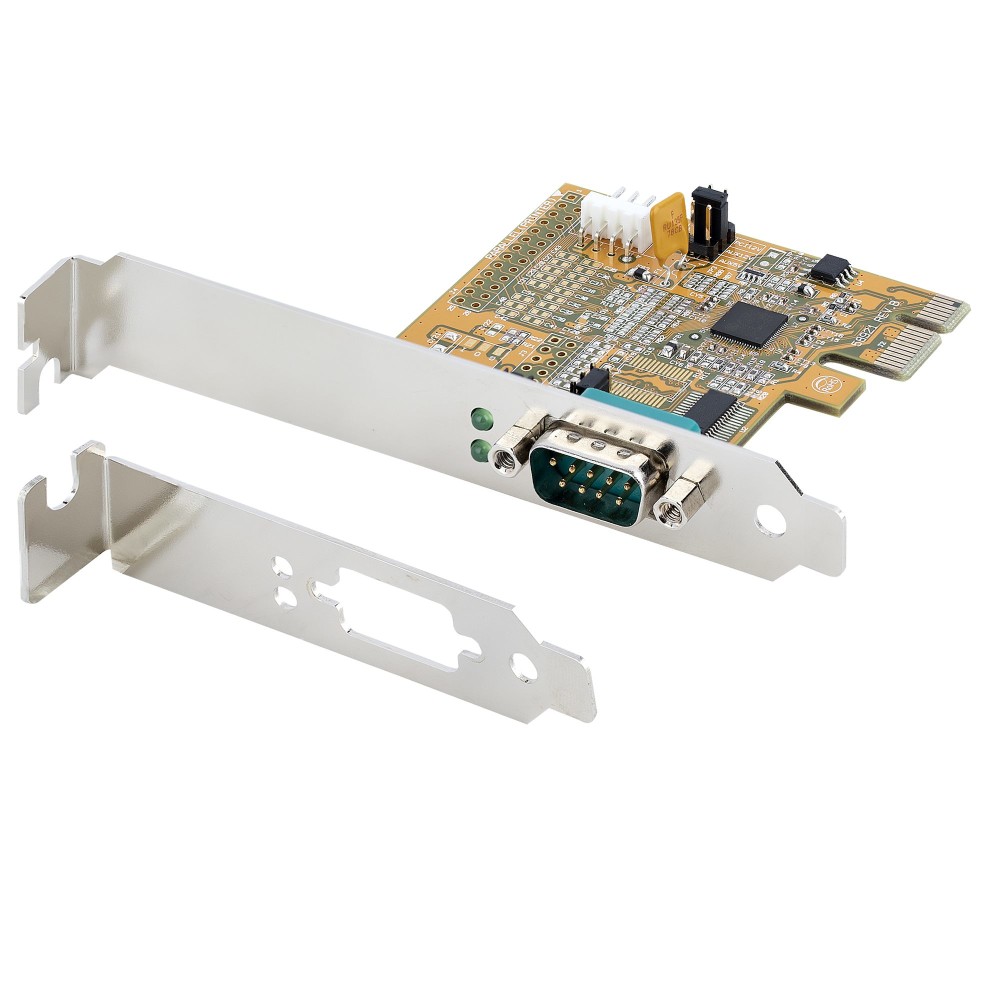

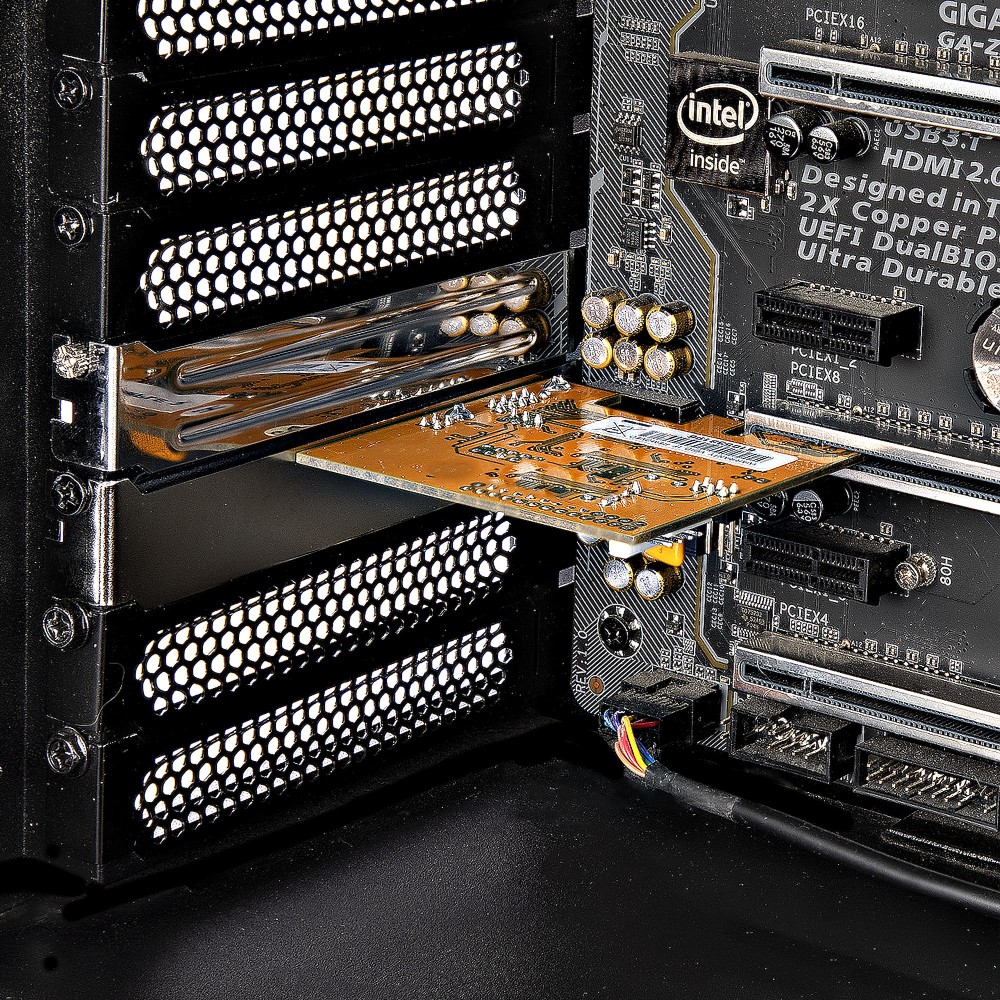

The card includes both full-height and low-profile brackets. This ensures compatibility with various computer cases. It can be fitted into standard desktop towers or compact SFF systems. Installation is straightforward for most PC builds.
High-Speed Data Transfer
Featuring a 16C1050 UART, this card achieves bi-directional speeds up to 921.6 Kbps. The 256-byte FIFO (First-In, First-Out) buffer also improves data handling efficiency. This ensures smooth and rapid communication with connected devices.
Broad Operating System Support
We confirm this card supports a wide range of Windows operating systems. These include Windows 7, 8, 8.1, 10, and 11. Linux and Windows Server 2016/2019 are also supported. This flexibility ensures broad system compatibility.
What is Included
- 1-Port PCIe to RS232 Serial Card
- Low-profile bracket
- Quick installation guide
Before You Order
- Confirm your system has an available PCIe expansion slot.
- Check your operating system is supported.
- Confirm your legacy device requires an RS-232 (DB9) serial port.
- Ensure your case can accommodate a full-height or low-profile card.
Frequently Asked Questions
Q: What is the maximum data transfer rate?
A: This card supports a maximum baud rate of 921.6 Kbps per port.
Q: Does this card work with both standard and small form factor PCs?
A: Yes, it includes both full-height and low-profile brackets for versatile installation.
Q: Which operating systems are compatible?
A: It is compatible with Windows (7-11), Linux, and Windows Server (2016-2019).
Q: What type of serial port does this card provide?
A: It provides a single RS-232 (DB9) serial port.
Q: Is flow control supported by this card?
A: Yes, the card includes support for flow control.
Our Verdict
This StarTech.com PCIe serial card is an excellent choice for maintaining legacy hardware. It suits industrial, POS, or security system applications. Its robust design and broad compatibility make it a reliable upgrade. Warranty cover varies by product, so please contact us to confirm.
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| Output interface | Serial |
| Serial interface type | RS-232 |
| Serial ports quantity | 1 |
| Host interface | PCIe |
| Expansion card form factor | Full-height / Low-profile |
| Expansion card standard | PCIe 2.0 |
| Technical details | |
| Chipset | ASIX - AX99100, ASIX - ZT3243LFEY |
| FIFO (First In, First Out) | 256 B |
| Material | Steel |
| Compliance certificates | CE, RoHS |
| Performance | |
| Data bits | 5, 6, 7, 8, 9 |
| Baud rate | 921.6 Kbit/s |
| Chipset | ASIX - AX99100, ASIX - ZT3243LFEY |
| FIFO (First In, First Out) | 256 B |
| Flow control support | Yes |
| Product colour | Yellow |
| Harmonized System (HS) code | 84733020 |
| Colour | |
| Product colour | Yellow |
| Design | |
| Internal | Yes |
| Product colour | Yellow |
| LED indicators | Activity |
| Features | |
| Data bits | 5, 6, 7, 8, 9 |
| Baud rate | 921.6 Kbit/s |
| Chipset | ASIX - AX99100, ASIX - ZT3243LFEY |
| FIFO (First In, First Out) | 256 B |
| Flow control support | Yes |
| Parity bit | Even, Mark, No, Odd, Space |
| Harmonized System (HS) code | 84733020 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2016, Windows Server 2019 |
| Weight & dimensions | |
| Width | 65 mm |
| Depth | 67 mm |
| Height | 18 mm |
| Weight | 42 g |
| Package width | 145 mm |
| Package depth | 212 mm |
| Package height | 41 mm |
| Package weight | 200 g |
| Packaging data | |
| Mounting brackets included | Yes |
| Package width | 145 mm |
| Package depth | 212 mm |
| Package height | 41 mm |
| Package weight | 200 g |
| Quick installation guide | Yes |
| Logistics data | |
| Products per master (outer) case | 50 pc(s) |
| Master (outer) case width | 530 mm |
| Master (outer) case length | 440 mm |
| Master (outer) case height | 340 mm |
| Harmonized System (HS) code | 84733020 |
| Other features | |
| Material | Steel |
| Chipset | ASIX - AX99100, ASIX - ZT3243LFEY |
| Flow control support | Yes |
| Packaging content | |
| Mounting brackets included | Yes |
| Quick installation guide | Yes |
| Identifiers | |
| Distributor SKUs | V295456, CE72446, 96303, 7451394, 11050PCSRLCARD, 10366793, 416071, NS96303 |
