StarTech.com 3m LC to LC OM4 Multimode Fibre Cable w/Pull Tabs, 100G, LSZH

StarTech.com 3m LC to LC OM4 Multimode Fibre Cable | Push-Pull LSZH

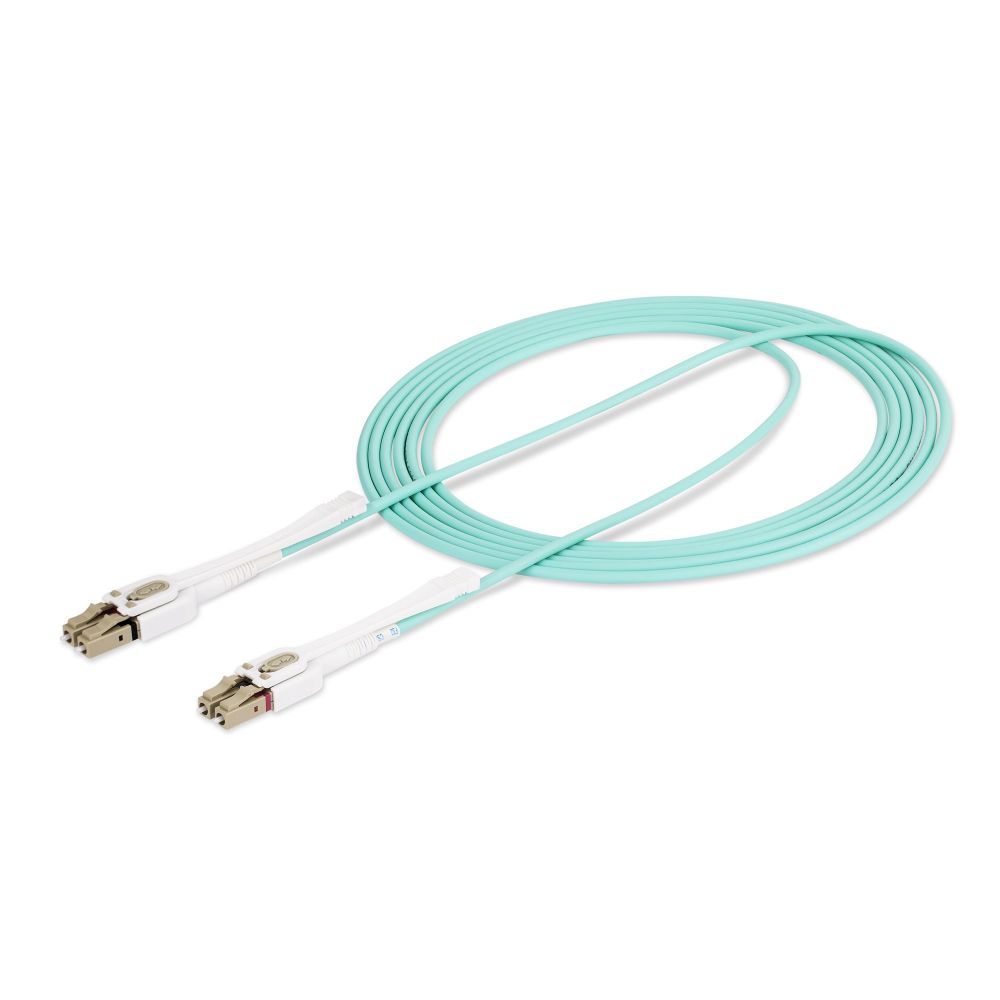

This StarTech.com 3m (9.8ft) LC to LC (UPC) OM4 Multimode Fiber Optic Cable w/Push Pull Tabs, 50/125µm, 100G, Bend Insensitive, Low Insertion Loss – LSZH Fiber Jumper Cord is built for high-density patching. It suits UK data centre engineers and network installers who need reliable 40/100G links. The push-pull tabs speed up connections in crowded racks. Because it uses bend-insensitive fibre, it handles tight cable runs with low attenuation.

Key Specifications

High-Density Push-Pull Connectivity

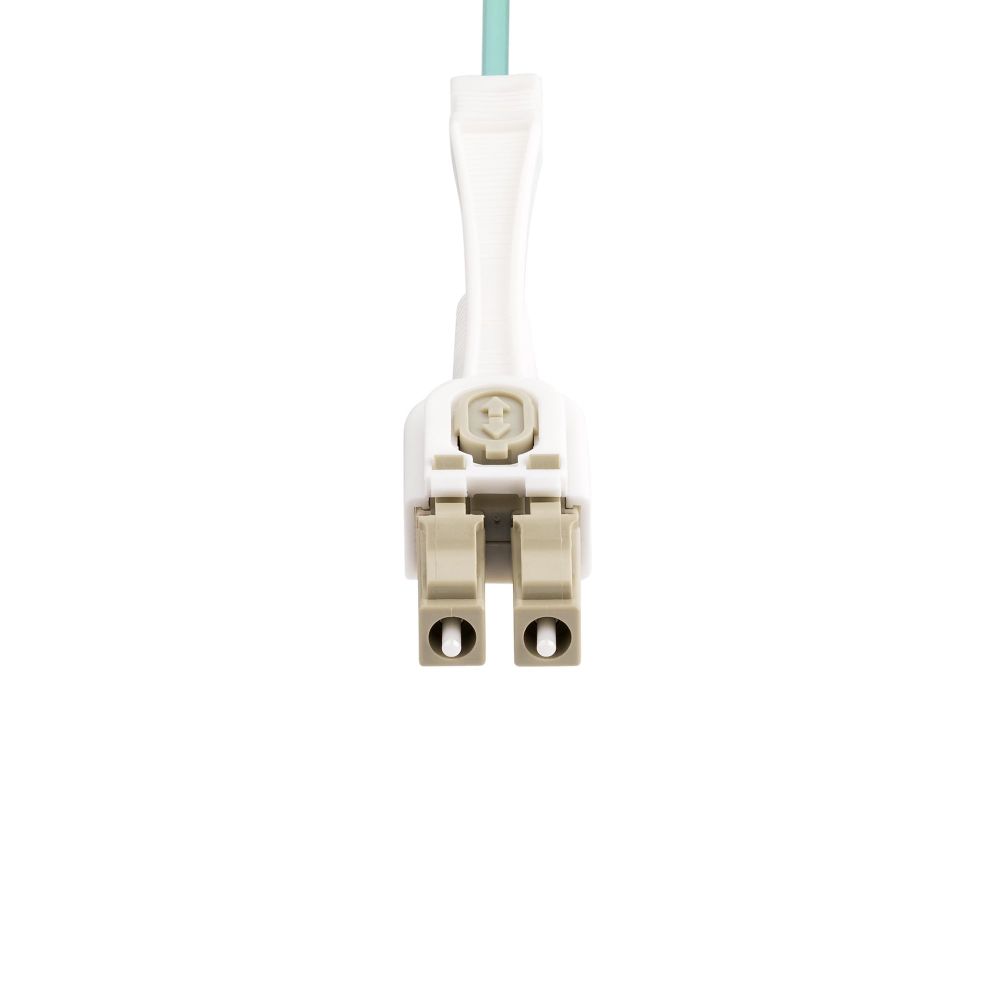

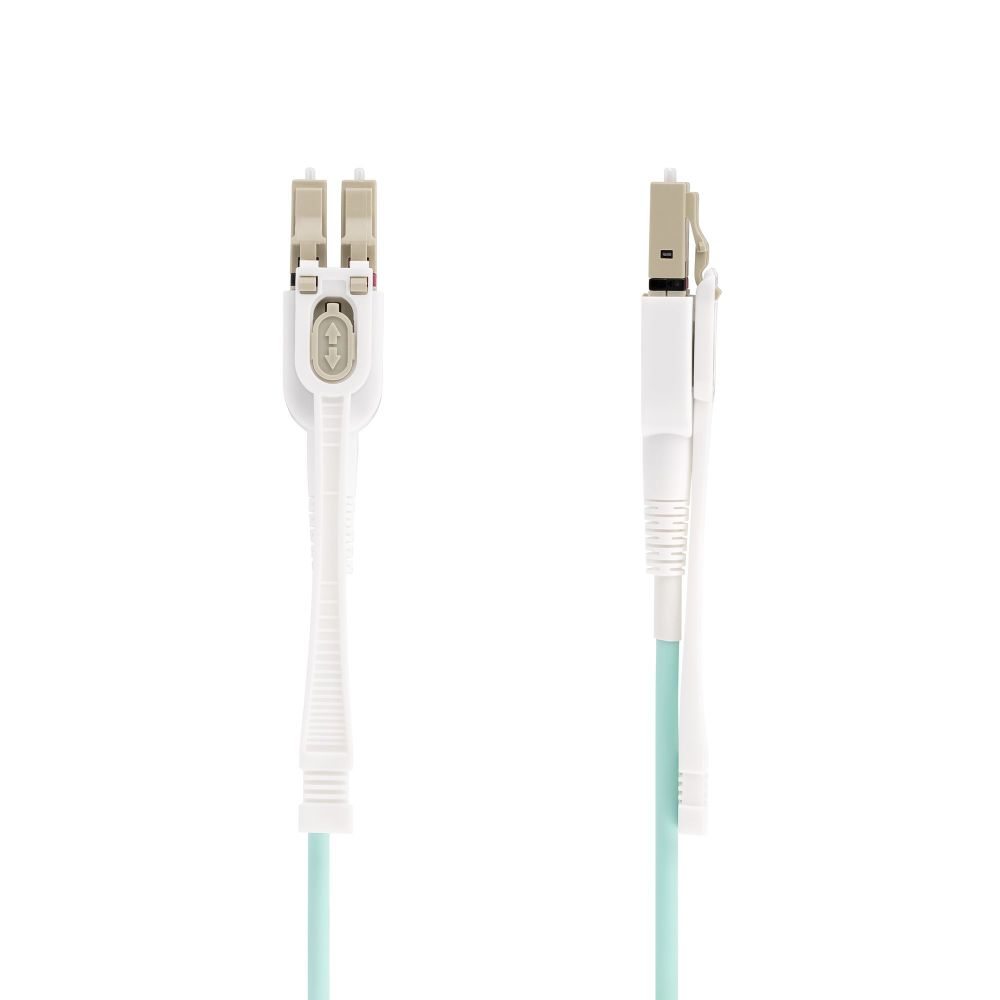

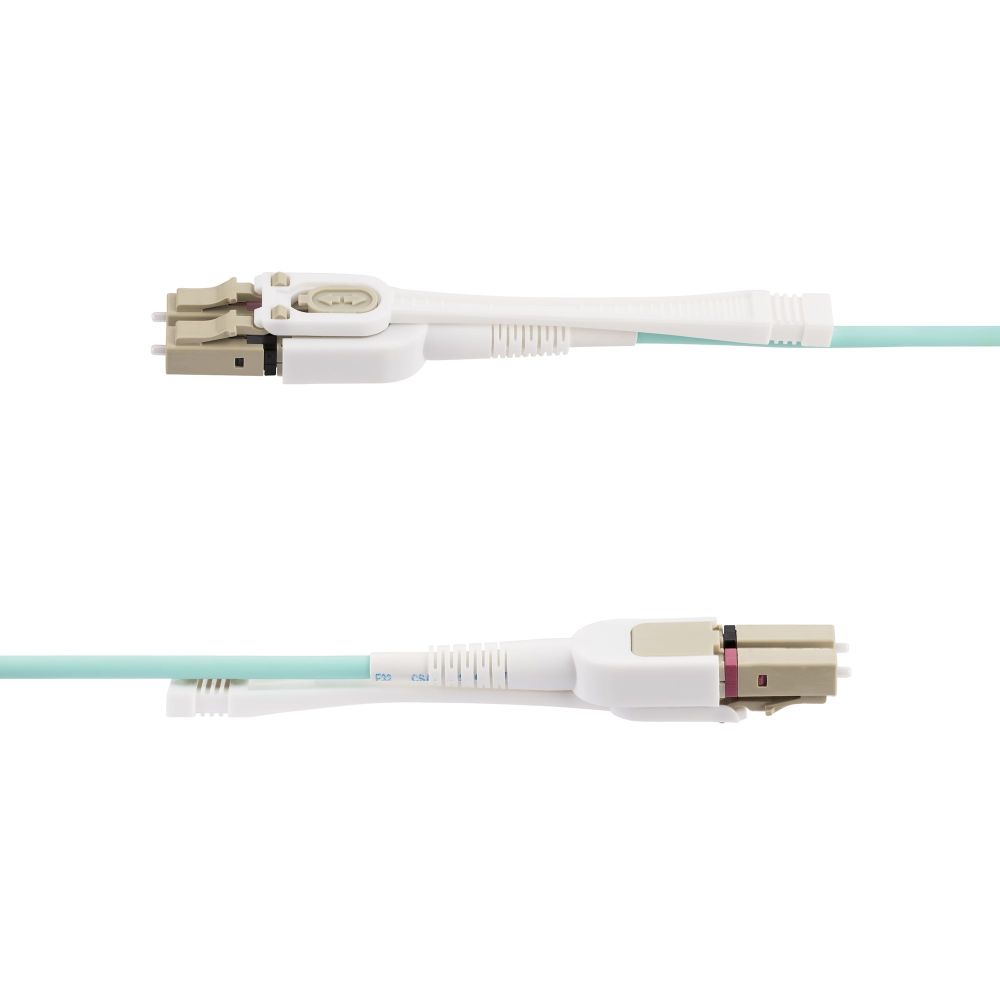

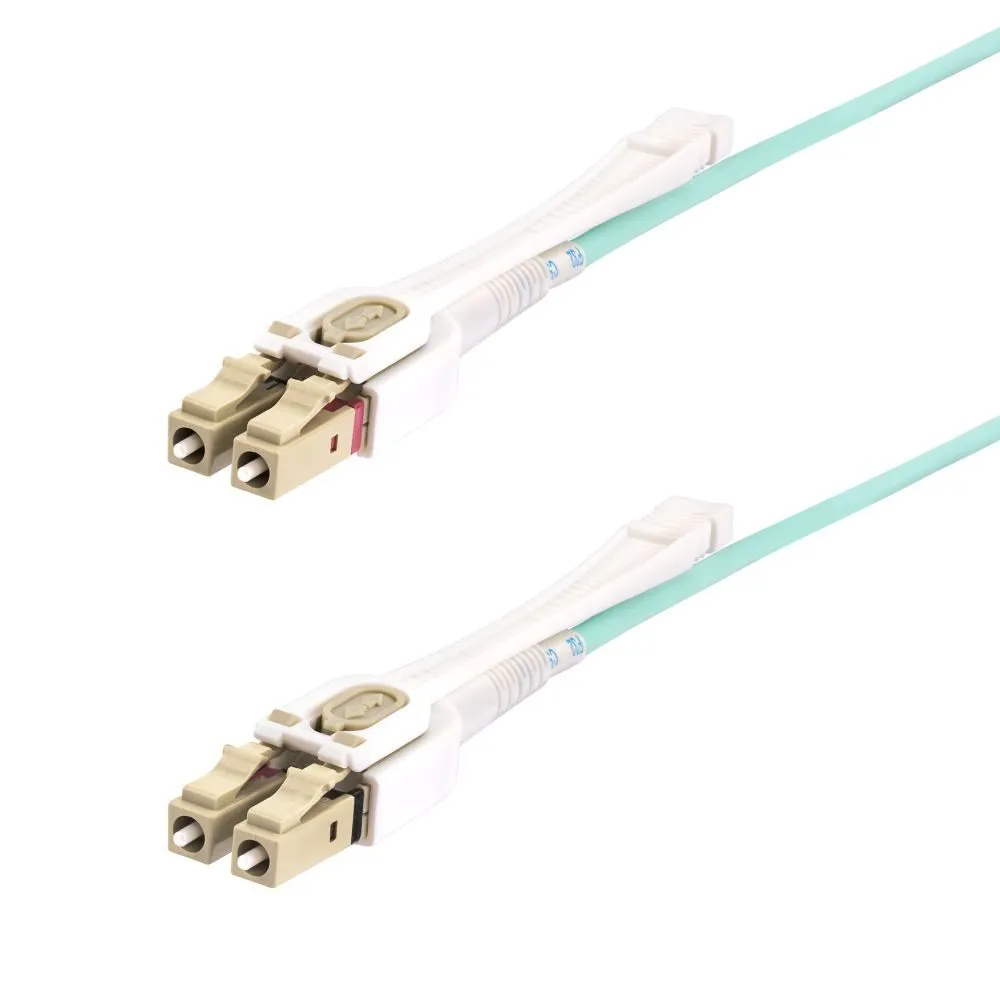

The push-pull tabs on each LC connector allow quick insertion and removal. In practice, this reduces handling time in high-density patch panels. Because the connectors are colour-coded, you can verify polarity at a glance. The retractable strain-relief housings enable toolless in-field polarity swapping. So, you avoid downtime during reconfiguration.

Bend-Insensitive Performance

This cable uses bend-insensitive OM4 fibre to maintain low insertion loss. It supports a bending radius of 6 cm, which helps in tight rack layouts. The molded strain reliefs protect the fibre from micro and macro bends. Therefore, the link stays stable even when routed through cable managers. Precision ceramic ferrules ensure accurate alignment and reduce connectivity issues.

LSZH Safety for UK Installations

The LSZH jacket emits low smoke and zero halogen fumes if exposed to extreme heat. This makes it suitable for trains, aircraft, and poorly ventilated industrial spaces. It also meets building code requirements in many UK settings. Because safety is critical, always confirm local fire regulations before installation. Note that compliance certificates are CE and RoHS, as stated by the manufacturer.

Backward Compatibility with Legacy Fibre

This multimode 50/125µm patch cord is backward compatible with OM3 networks. It also supports 1/10/40G connections in addition to 100G. So, you can integrate it into existing infrastructure without replacing all links. The cable is optimised for 850 nm and 1300 nm VCSEL and LED sources. Confirm your transceiver wavelengths match these values.

Engineered for Reliable Return Loss

LC to LC UPC polished fibre ends improve return loss characteristics. Each cable is tested for insertion loss that meets or exceeds TIA/EIA-568 standards. This ensures consistent performance across batches. The aqua colour identifies OM4 fibre, reducing misconfiguration risks. Because the cable is full duplex, it supports bidirectional data transfer.

Box contents

• 1 x StarTech.com 3m LC to LC OM4 Multimode Fibre Cable with Push-Pull Tabs

Check before you buy

• Confirm your transceivers support OM4 multimode fibre at 850 nm or 1300 nm.
• Verify that LC UPC connectors are compatible with your patch panels.
• Check that the 3 m length suits your rack or cabinet layout.
• Ensure the LSZH jacket meets your site’s fire safety requirements.

Frequently Asked Questions

Q: Is this cable compatible with OM3 networks?

A: Yes, it is backward compatible with OM3 and supports 1/10/40G connections.

Q: Can I use this cable in a high-density patch panel?

A: Yes, the push-pull tabs and 6 cm bending radius suit dense rack environments.

Q: Does the cable meet UK fire safety standards?

A: It has an LSZH jacket, but confirm local building code compliance before installation.

Q: What is the maximum data rate supported?

A: The cable supports up to 100 Gbit/s over OM4 multimode fibre.

Q: Are the connectors male or female?

A: Both LC connectors are male, as specified in the product details.

The Consultant’s Verdict & Warranty

This cable is ideal for UK network engineers who need reliable 100G links in high-density environments. It offers push-pull convenience, bend-insensitive performance, and LSZH safety for confined spaces. Covered by the standard Manufacturer Warranty.
