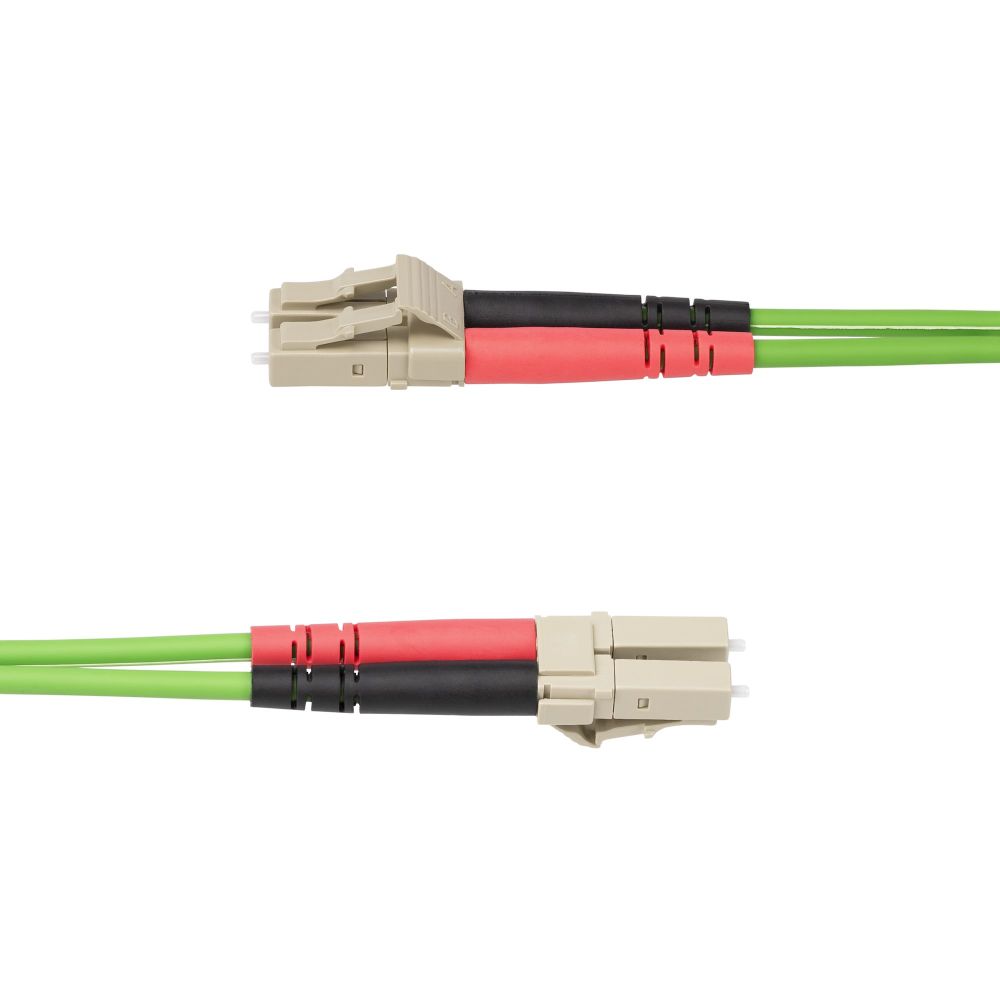

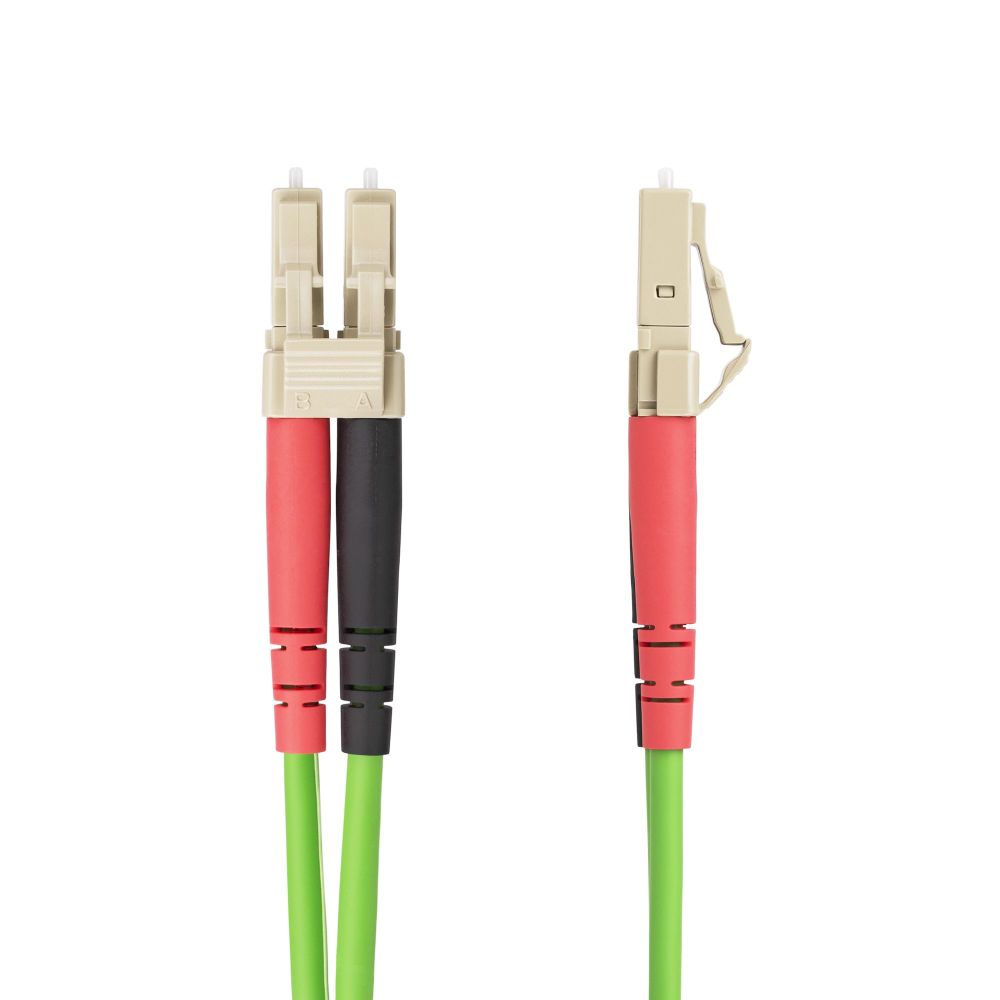

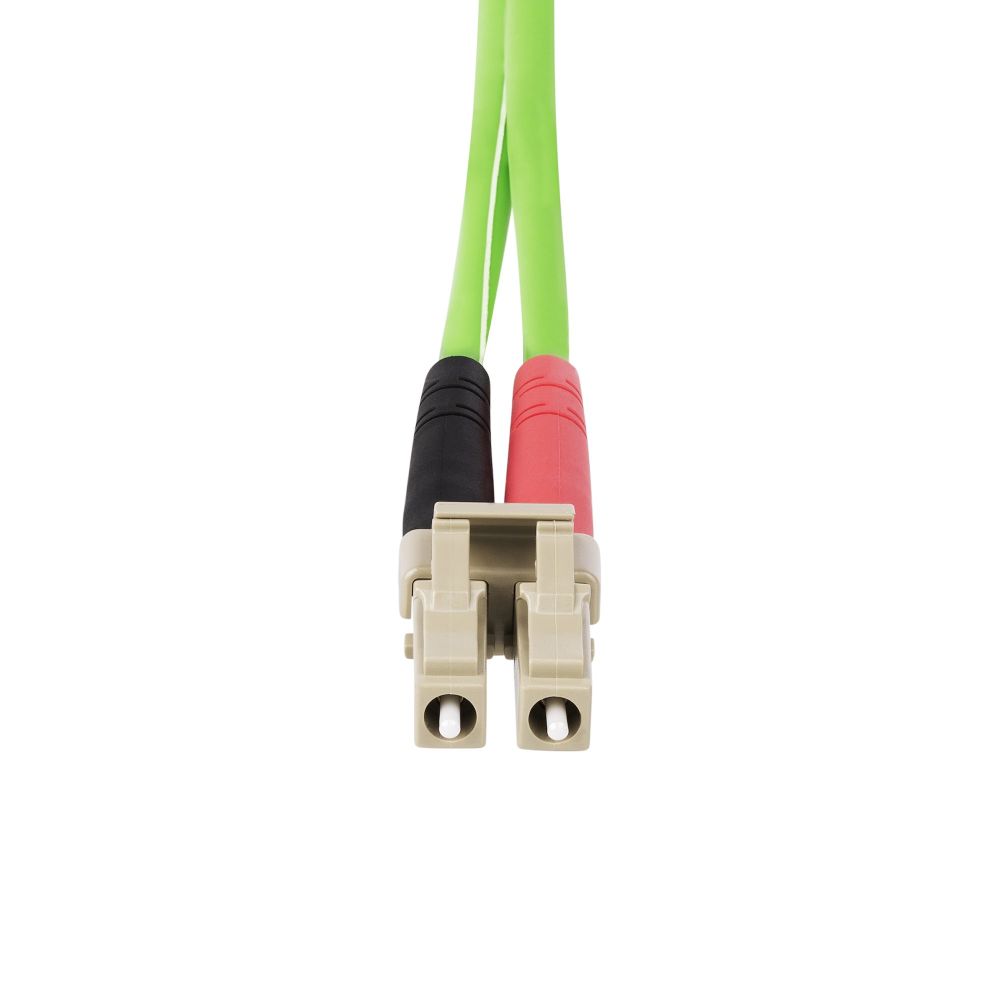

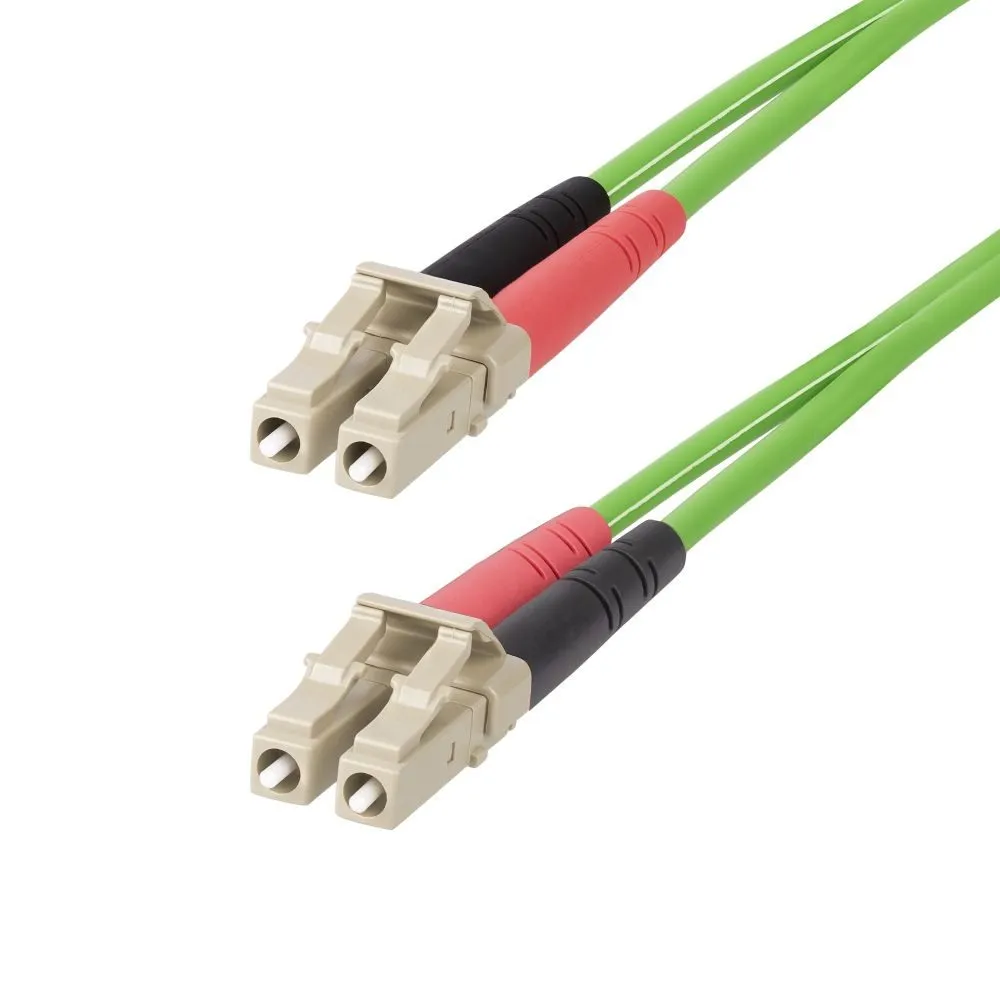

StarTech.com 7m LC to LC OM5 Duplex Fiber Optic Cable, LSZH
£24.60 inc VAT
10 in stock
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- 7m OM5 LC to LC duplex multimode fibre optic cable
- LSZH flame-retardant jacket for low smoke and zero halogen
- Supports 100 Gbit/s data transfer with SWDM over 850-953 nm
- Backward compatible with OM4 and OM3 10G networks
- 50/125µm core/cladding with 30 dB return loss and 6 cm bend radius
- RoHS and CE compliant with -20 to 60 °C storage temperature
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:
You may also like
Acer Predator PO3-665 – Intel Core i5-14400F, 16GB RAM, 512GB SSD, RTX 5060, Windows 11
In stock
Acer Predator Helios 18 AI PH18-73 Ultra 9 275HX 32GB 1TB SSD RTX 5080 18″ WQXGA
In stock
StarTech.com 7m (22.9ft) LC to LC (UPC) OM5 Multimode Fiber Optic Cable | LOMMF LSZH
This StarTech.com 7m (22.9ft) LC to LC (UPC) OM5 Multimode Fiber Optic Cable, 50/125µm Duplex LOMMF Zipcord, VCSEL, 40G/100G, LSZH Fiber Jumper Cord is engineered for SWDM applications in UK data centres. It supports 40G and 100G networks over OM5 fibre. The LSZH jacket provides safer installations in confined spaces. This duplex patch cable ensures reliable connectivity for modern high-density environments.
Slim Specifications
| Metric | Spec. |
|---|---|
| Cable Length | 7 m |
| Fibre Type | OM5 Multimode |
| Connectors | LC to LC (UPC) |
| Core / Cladding | 50 / 125 µm |
| Data Rate | 100 Gbit/s |
| Jacket | LSZH (Low Smoke Zero Halogen) |
SWDM Support for 40G/100G Networks
This OM5 cable supports Shortwave Wavelength Division Multiplexing (SWDM). It operates across 850–953 nm VCSEL wavelengths. This enables 40G and 100G connectivity over fewer strands. It is ideal for modern data centre uplinks. Because it uses OM5 fibre, it offers enhanced bandwidth over OM4.
Precision LC UPC Polishing
The LC connectors feature UPC (Ultra Physical Contact) polishing. This improves return loss compared to older PC standards. Ceramic ferrules ensure precise fibre alignment. So you get minimal insertion loss and stable signal integrity. This is critical for high-speed duplex links.
LSZH Safety for UK Installations
The cable uses a Low Smoke Zero Halogen (LSZH) jacket. In a fire, it emits minimal smoke and no toxic halogen fumes. This is vital for trains, aircraft, and poorly ventilated plant rooms. It helps meet UK building safety codes. Always confirm local compliance for your specific site.
Backward OM3/OM4 Compatibility
This 50/125µm duplex cord is backward compatible with OM3 and OM4 networks. You can deploy it in legacy 10G infrastructure. It supports 1300 nm LED sources as well as VCSEL. This protects your existing fibre investment. It future-proofs your network for higher speeds.
Robust Mechanical Design
The cable has a 6 cm bending radius. This prevents signal degradation during tight pulls. The 2.9 mm diameter suits high-density patch panels. It operates in storage temperatures from -20°C to 60°C. Each cable is tested to TIA/EIA-568 standards.
Box contents
- 1 x StarTech.com LC to LC OM5 Multimode Duplex Patch Cable (7 m)
Check before you buy
- Confirm your patch panel accepts LC duplex connectors.
- Verify your switch supports OM5 fibre for SWDM applications.
- Check UKCA or CE marking is required for your installation site.
- Ensure the 7 m length fits your rack layout without excess slack.
Frequently Asked Questions
Q: Is this cable compatible with OM4 ports?
A: Yes, it is backward compatible with OM4 and OM3 networks for 10G links.
Q: What does LSZH mean for my UK data centre?
A: LSZH means low smoke and zero halogen. It is safer for confined spaces and meets building codes.
Q: Does this support 100G SWDM?
A: Yes, it supports SWDM over 850–953 nm for 40G and 100G applications.
Q: What is the UPC polish on the connectors?
A: UPC is Ultra Physical Contact. It offers better return loss than older PC polish.
Q: Is the cable tested to industry standards?
A: Yes, each cable is tested for insertion loss to meet TIA/EIA-568 standards.
The Consultant’s verdict & warranty
Buy this cable if you are deploying 40G or 100G SWDM links over OM5 fibre in UK environments. It is ideal where LSZH safety is required. It suits data centres, industrial sites, and transport hubs. Do not use it for single-mode applications. Covered by the standard Manufacturer Warranty.
| Technical details | |
|---|---|
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Multi-mode |
| Connector 1 | LC |
| Connector 2 | LC |
| Cable type | LOMM |
| Cable length | 7 m |
| Full duplex | Yes |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Sustainability compliance | Yes |
| Compliance certificates | RoHS, CE |
| Features | |
| Bending radius | 6 cm |
| Fibre optic type | OM5 |
| Return loss | 30 dB |
| Jacket material | Low smoke zero halogen (LSZH) |
| Fiber mode structure | Multi-mode |
| Connector 1 | LC |
| Connector 2 | LC |
| Cable type | LOMM |
| Cable length | 7 m |
| Full duplex | Yes |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Storage temperature (T-T) | -20 - 60 °C |
| Data transfer rate | 100 Gbit/s |
| Wavelengths supported | 953,1300,850 nm |
| Product colour | Green |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Data transmission | |
| Data transfer rate | 100 Gbit/s |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 60 °C |
| Weight & dimensions | |
| Bending radius | 6 cm |
| Cable length | 7 m |
| Package width | 220 mm |
| Package depth | 200 mm |
| Package height | 14 mm |
| Cable diameter | 2.9 mm |
| Package weight | 62 g |
| Packaging data | |
| Package width | 220 mm |
| Package depth | 200 mm |
| Package height | 14 mm |
| Package weight | 62 g |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Master (outer) case width | 410 mm |
| Master (outer) case length | 410 mm |
| Master (outer) case height | 450 mm |
| Products per master (outer) case | 120 pc(s) |
| Quantity per pack | 1 pc(s) |
| Identifiers | |
| Distributor SKUs | CI91370, 9029794, LCLCL7MOM5FIBER, 500332, CLLCLCL7MOM5FIBER |
