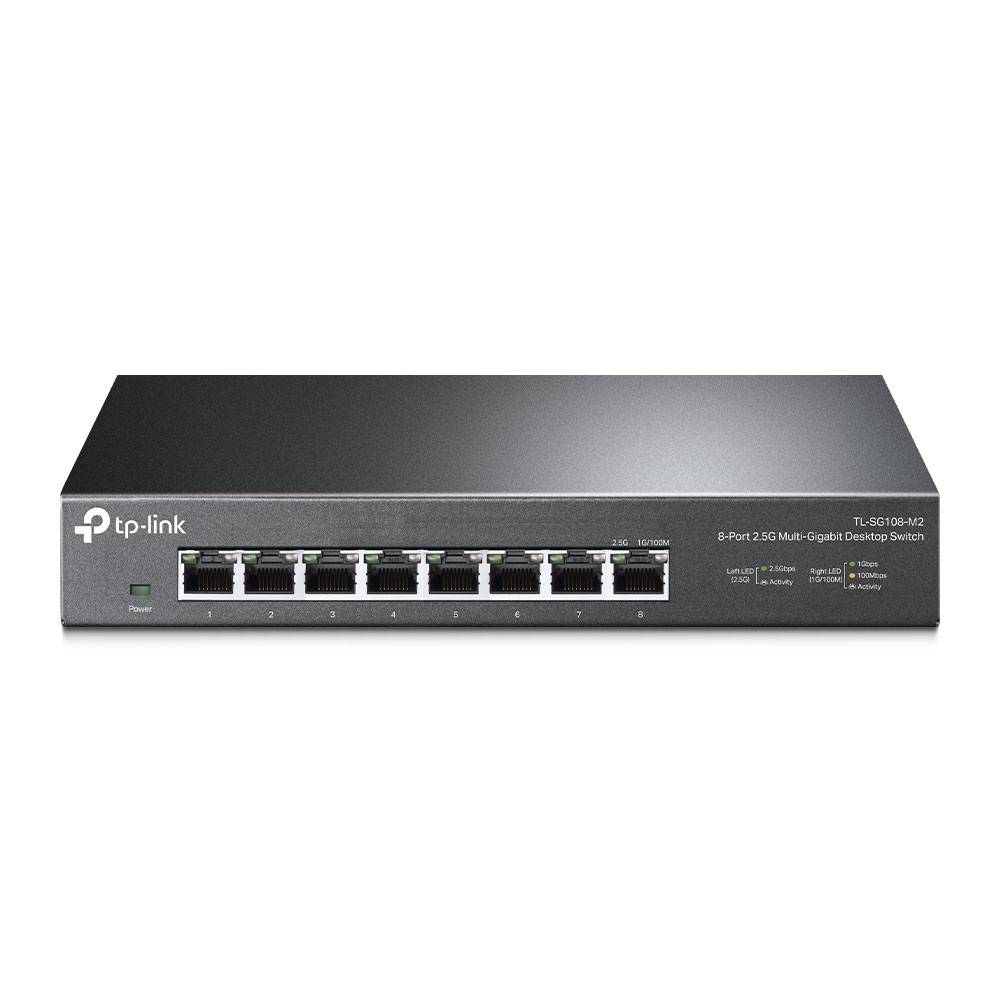

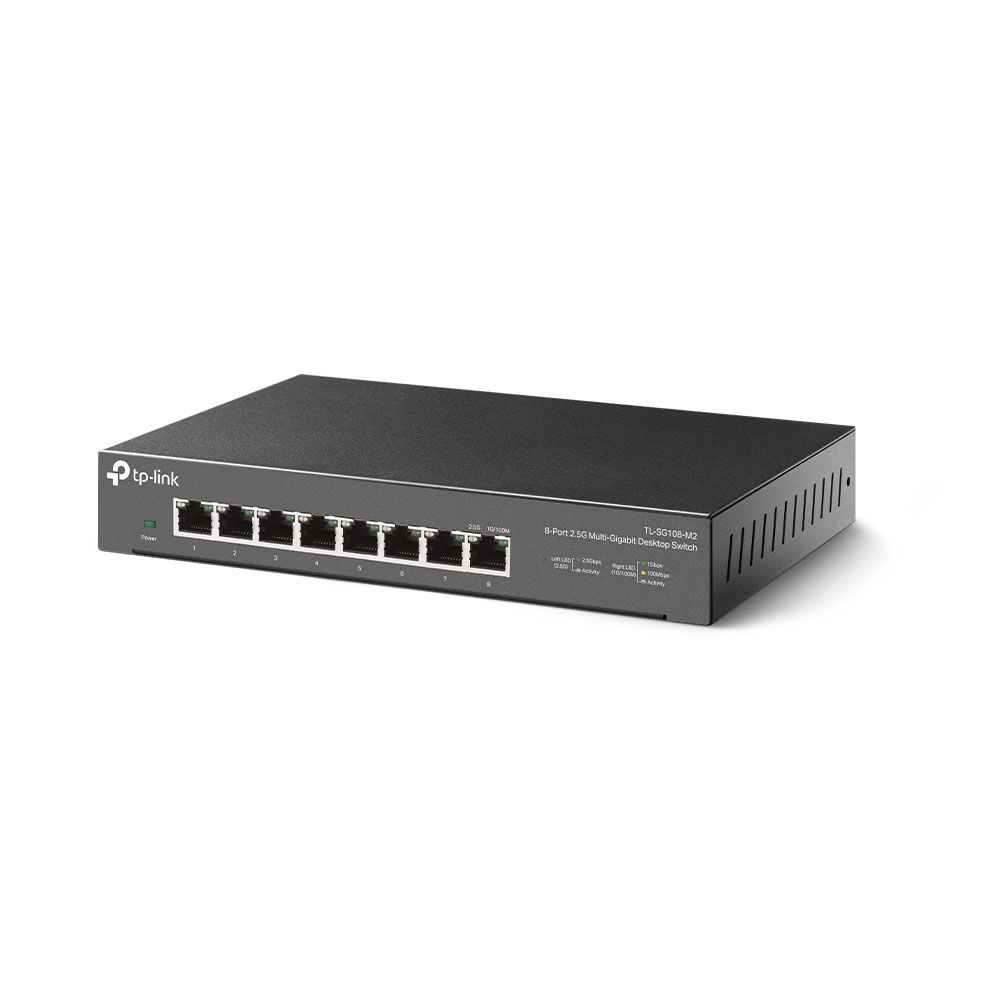

TP-Link TL-SG108-M2 8-Port 2.5G Multi-Gigabit Fanless Unmanaged Desktop Switch
£76.28
Out of stock
Out of stock
-
DPD tracked delivery
-
Buy now, pay later with Klarna
-
Pay in 3 instalments with PayPal
About This Item
- 8× 2.5G Multi-Gigabit RJ-45 ports with 3-speed (100M/1G/2.5G) auto-negotiation and auto MDI/MDI-X
- 40 Gbps switching capacity with 29.8 Mpps forwarding rate, 1.5 MB packet buffer, and 16K MAC address table
- Networking standard compliance including IEEE 802.3bz/ab/u/x with 802.1p Quality of Service (QoS) traffic prioritisation
- Fanless silent design in a durable black housing suitable for desktop or wall-mount placement
- Unmanaged plug-and-play setup providing up to 2.5× faster speeds over standard Cat5e Ethernet cables
- Supplied package contents including external 12 V / 1.5 A DC power adapter, AC cable, and RJ-45 LAN cable
Available alternatives
TP-Link TL-SF1008P Unmanaged PoE Switch
In stock
TP-Link 8-Port PoE+ Desktop Switch
In stock
TP-Link 10-Port Gigabit Switch with PoE
In stock
You may also like
TP-Link JetStream 24-Port Gigabit Managed Switch
In stock
TP-Link 24-Port Gigabit Network Switch
In stock
TP-Link JetStream 24-Port Managed Switch
In stock
TP-Link TL-SG1024 Unmanaged Gigabit Switch
In stock
TP-Link TL-SG108-M2 – High-Speed Multi-Gigabit Switching
Upgrade your local network effortlessly with the TP-Link TL-SG108-M2 8-Port 2.5G Multi-Gigabit Fanless Unmanaged Desktop Switch. This compact switch suits creative studios, home labs, and multi-PC offices seeking faster local data transfers. It delivers 2.5 Gbps bandwidth across all eight copper ports without complex setup routines.
Core Hardware Metrics
| Metric | Spec. |
|---|---|
| Ethernet Ports | 8 × 2.5G RJ-45 |
| Switching Capacity | 40 Gbps |
| Forwarding Rate | 29.8 Mpps |
| Cooling Type | Fanless (Silent) |
| Enclosure Dimensions | 226 × 131 × 35 mm |
| Power Supply | External 12 V DC, 1.5 A |
Deploying the TP-Link TL-SG108-M2 8-Port 2.5G Multi-Gigabit Fanless Unmanaged Desktop Switch

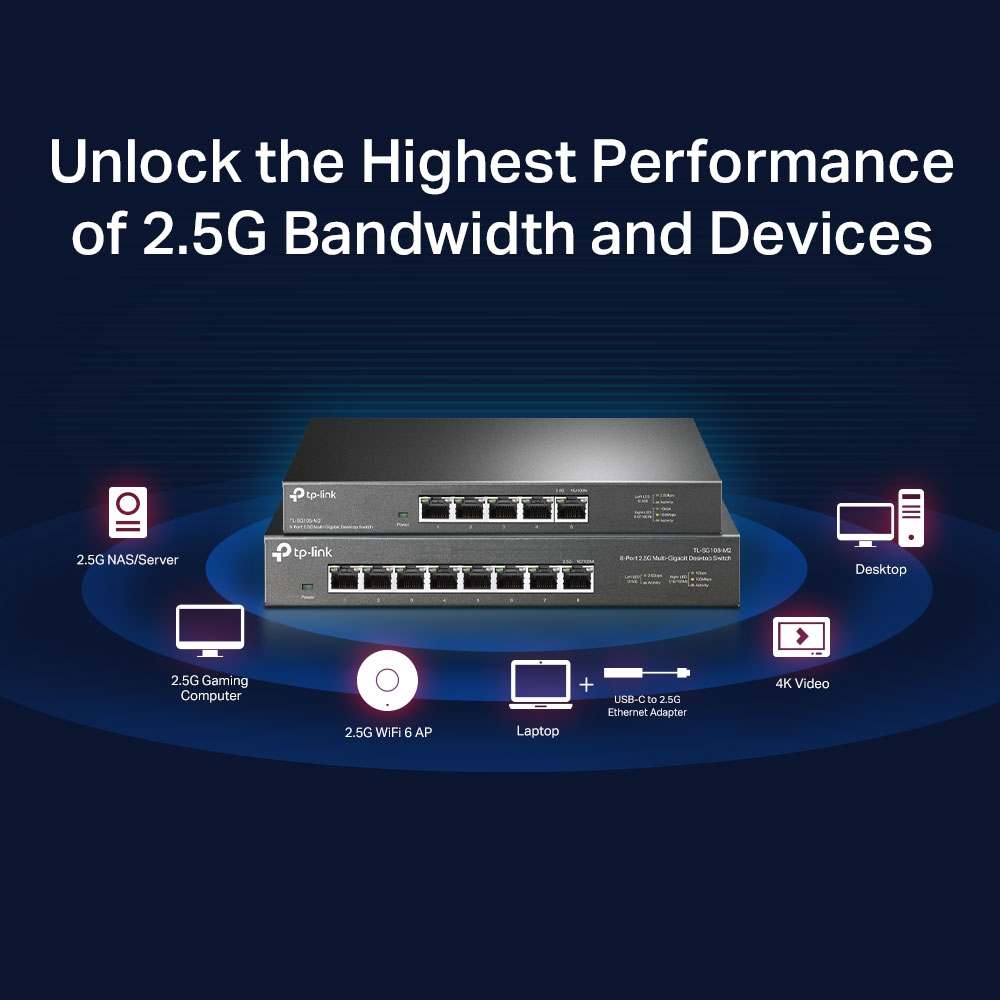

Every port auto-negotiates between 100 Mbps, 1 Gbps, and 2.5 Gbps speeds. As a result, older hardware connects cleanly alongside modern multi-gigabit hardware. You can link high-throughput NAS units, Wi-Fi 6 access points, and workstation motherboards without manual configuration.
Silent Passive Cooling for Quiet Workspaces
The fanless metal chassis operates in total silence. Heat dissipates naturally through the robust casing, keeping internal components cool under load. Consequently, you can position the unit directly on your desk or mount it securely to an office wall.
High-Throughput Switching Capacity for Heavy Traffic
With a 40 Gbps switching capacity and a 1.5 MB packet buffer, the switch handles demanding data transfers simultaneously. Integrated Quality of Service (802.1p QoS) traffic prioritisation keeps real-time streams and gaming packets moving smoothly.

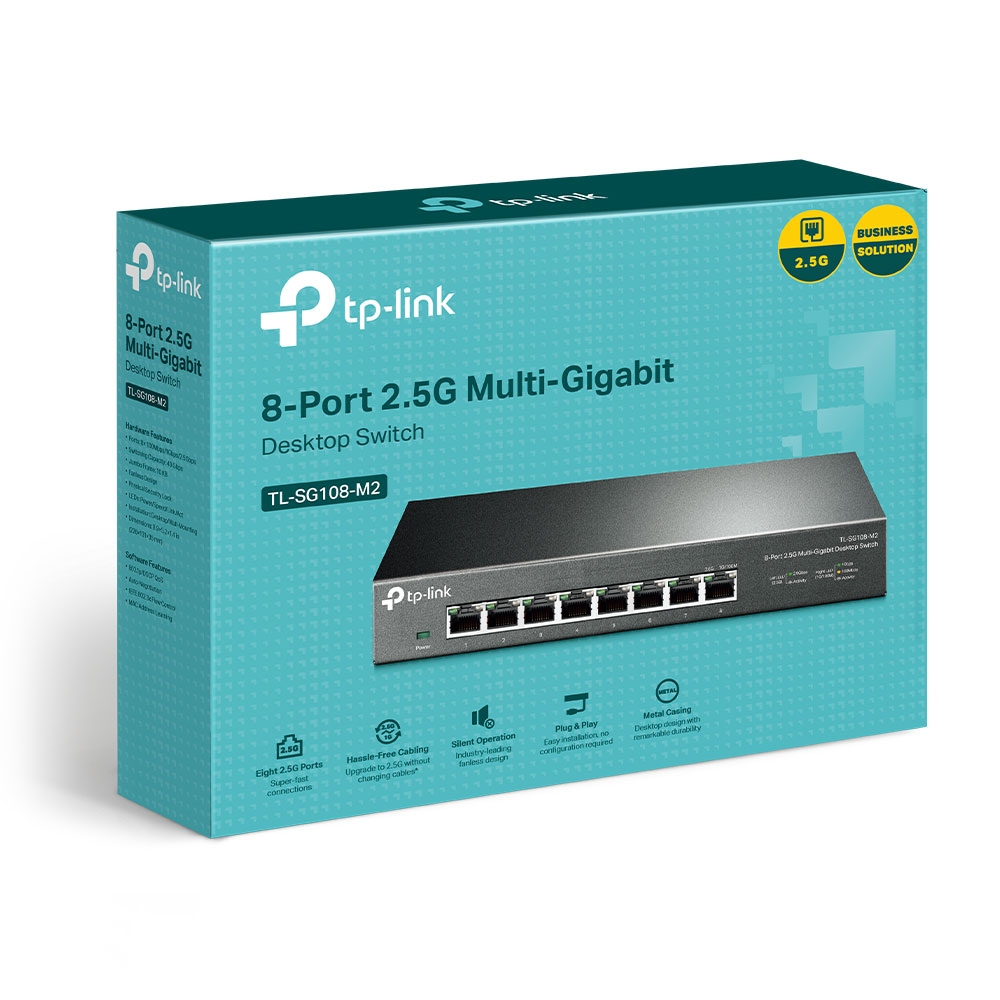

What Is Included
- TP-Link TL-SG108-M2 network switch
- AC power adapter
- RJ-45 LAN cable
Pre-Purchase Compatibility Checks
- Confirm your client devices feature 2.5G Ethernet ports to utilise the maximum transfer rates.
- Confirm your existing Cat5e or Cat6 cabling meets your target distance requirements.
- Confirm you have adequate clearance for desktop placement or wall screw mounting.
- Confirm your connected devices supply their own power, as this switch does not provide PoE.
Frequently Asked Questions
Q: Does this switch require manual software configuration?
A: No, this is an unmanaged plug-and-play switch that works immediately upon connection.
Q: Can I use standard Cat5e Ethernet cables for 2.5G speeds?
A: Yes, standard Cat5e cabling reliably supports 2.5 Gbps network speeds over standard distances.
Q: Does this switch produce any fan noise?
A: No, the fanless metal casing ensures completely silent operation at all times.
Q: Does the unit support Power over Ethernet (PoE)?
A: No, this unit provides high-speed data transmission only and does not deliver PoE power.
Hardvance Consultant Verdict
The TP-Link TL-SG108-M2 provides an ideal multi-gigabit upgrade path for modern offices and home power users. It eliminates network bottlenecks across high-speed storage and workstations with zero configuration required.
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| 2.5G Ethernet (copper) ports quantity | 8 |
| Network | |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Auto-negotiation | Yes |
| Data transmission | |
| Jumbo frames | 10000 |
| Packet buffer memory | 1.5 MB |
| MAC address table | 16000 entries |
| Switching capacity | 40 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Forwarding rate | 29.8 Mpps |
| Design | |
| Wall mountable | Yes |
| Product colour | Black |
| LED indicators | Yes |
| Rack mounting | No |
| Performance | |
| Fanless | Yes |
| Packet buffer memory | 1.5 MB |
| Auto-negotiation | Yes |
| Harmonized System (HS) code | 85176990 |
| Power | |
| Power supply included | Yes |
| Input voltage | 12 V |
| Input current | 1.5 A |
| Power source | DC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 53.4 BTU/h |
| Weight & dimensions | |
| Width | 226 mm |
| Depth | 131 mm |
| Height | 35 mm |
| Packaging content | |
| Cables included | AC, LAN (RJ-45) |
| Packaging data | |
| Package width | 240 mm |
| Package depth | 315 mm |
| Package height | 70 mm |
| Package weight | 1.35 kg |
| Cables included | AC, LAN (RJ-45) |
| Technical details | |
| Product colour | Black |
| Rack mounting | No |
| Memory | |
| Packet buffer memory | 1.5 MB |
| Indication | |
| LED indicators | Yes |
| Other features | |
| Input voltage | 12 V |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Identifiers | |
| Additional EANs | 6935364052911 |
Reviews
Clear filtersThere are no reviews yet.
