ARCTIC P12 120 mm Fan – Pressure-optimised

ARCTIC P12 | Pressure-optimised 120 mm Fan for PC Cases

The ARCTIC P12 – Pressure-optimised 120 mm Fan is designed for computer cases with restricted airflow. It targets builders who need reliable cooling through heatsinks and dense case filters. This model uses redesigned blades to push air against resistance effectively. It is a single black fan for standard 120 mm mounting points.

ARCTIC P12 – Pressure-optimised 120 mm Fan

This fan suits users upgrading a standard PC case. It focuses on static pressure rather than raw volume. Because the blades are re-engineered, it performs well where space is tight. Also, the Fluid Dynamic Bearing (FDB) supports long-term reliability.

Optimised for High Static Pressure

The fan blades are redesigned to handle higher air resistance. This matters most when mounted on heatsinks or behind filters. In practice, it moves air more efficiently through obstructions. So, it maintains cooling where standard fans might stall.

Quiet Operation at 0.3 Sone

The rated noise level is 0.3 sone. This provides a low acoustic profile for most builds. However, actual noise depends on case layout and fan curves. Because the bearing is FDB, it avoids typical motor noise over time.

Compact Form for Standard Cases

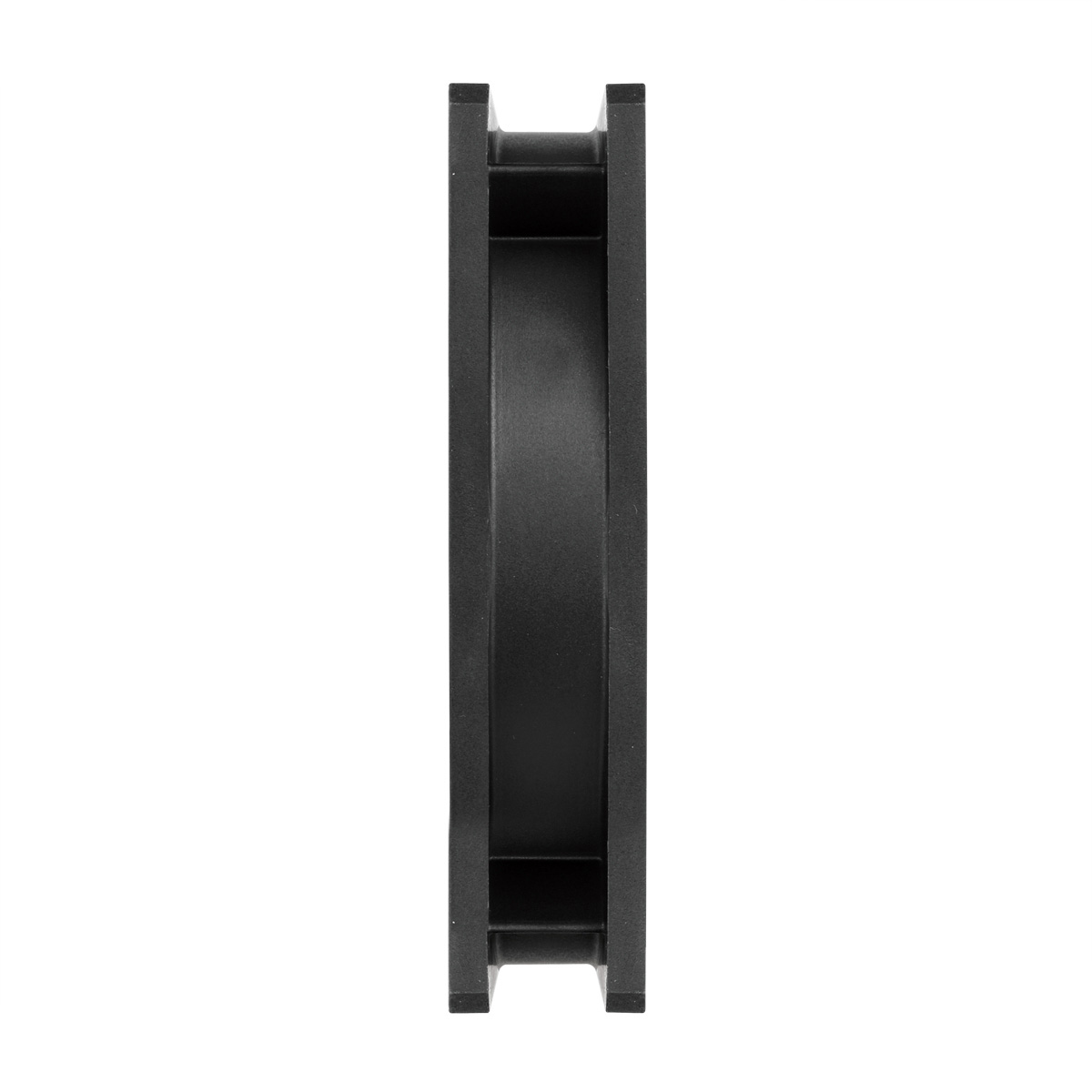

Width, depth, and height are 120 mm × 120 mm × 25 mm. It fits standard 120 mm mounts in UK ATX and mATX cases. The cable length is 0.4 m, which may require routing in larger chassis. Also, the fan uses a 3-pin connector, so verify your motherboard or controller supports DC control.

Reliable Bearing and Power Specs

The Fluid Dynamic Bearing (FDB) supports consistent performance. Starting voltage is 2.8 V, with a rated 12 V and 0.2 A current. This allows stable low-speed operation and typical PWM-style control via DC voltage. However, the 3-pin connector does not provide PWM signal control.

Box contents

• 1 × ARCTIC P12 120 mm Fan (Black)
• 4 × Mounting screws
• Fan connector: 3-pin
• Cable length: 0.4 m
• Package: Box

Check before you buy

• Confirm your case has 120 mm mounting points with standard spacing.
• Verify your motherboard or fan controller supports 3-pin DC speed control.
• Check clearance for the 25 mm fan thickness in your layout.
• Confirm you need static pressure performance, not high airflow without restrictions.

Frequently Asked Questions

Q: Is the ARCTIC P12 – Pressure-optimised 120 mm Fan suitable for CPU coolers?

A: Yes, it is optimised for heatsinks and high air resistance, but it is not a CPU cooler itself.

Q: Does this fan support PWM control?

A: No, it uses a 3-pin connector for DC voltage control; confirm your board supports this.

Q: What is the maximum airflow?

A: Maximum airflow is 56.3 cfm (95.65 m³/h) at 1800 RPM.

Q: Is the fan compatible with UK cases?

A: Yes, it fits standard 120 mm mounts; confirm case clearance for 25 mm thickness.

Q: What warranty applies in the UK?

A: Covered by the standard Manufacturer Warranty.

The Consultant’s verdict & warranty

Buy the ARCTIC P12 if you need a 120 mm fan for heatsinks or restricted case airflow. It suits builders prioritising pressure over raw airflow volume. Covered by the standard Manufacturer Warranty.
