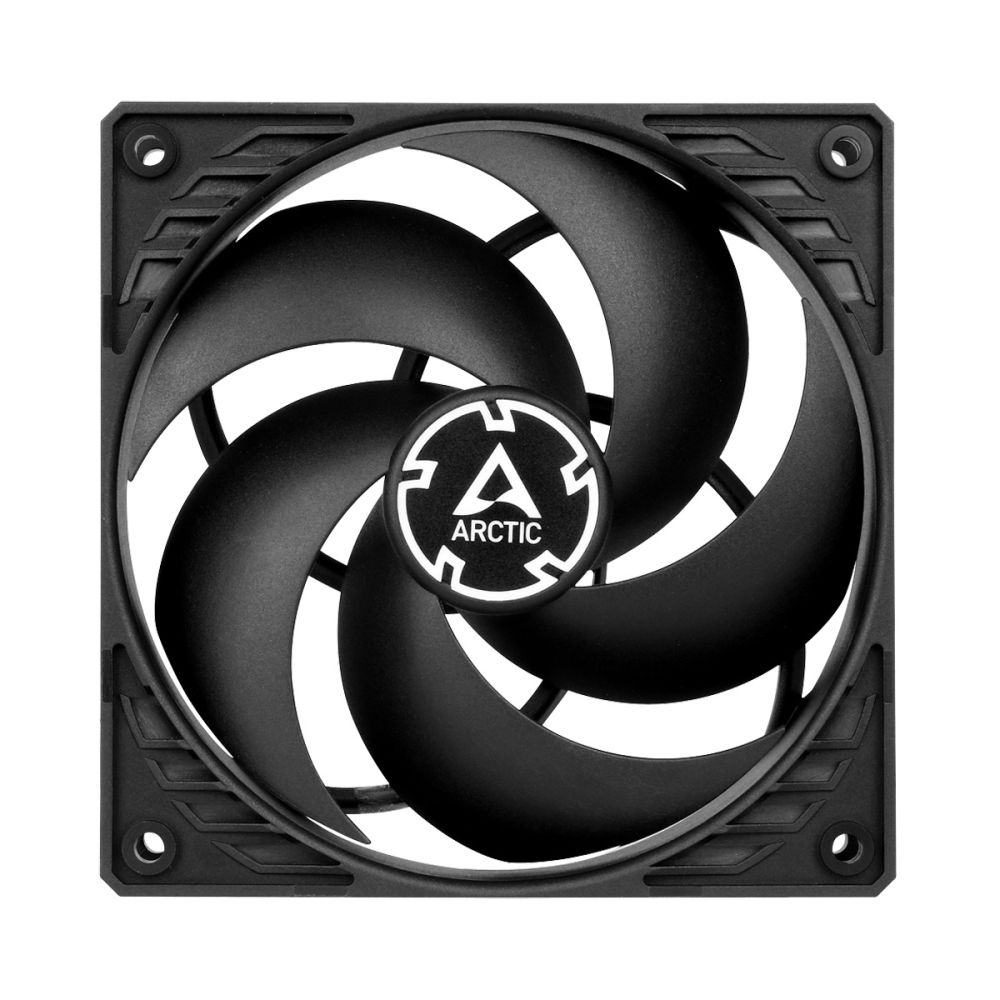

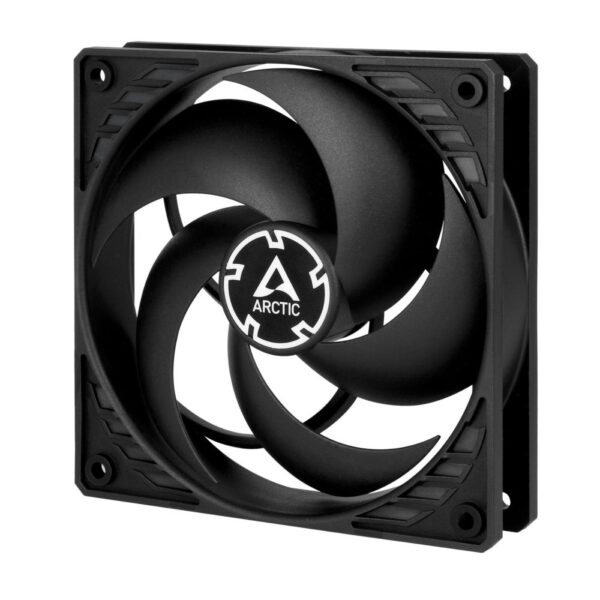

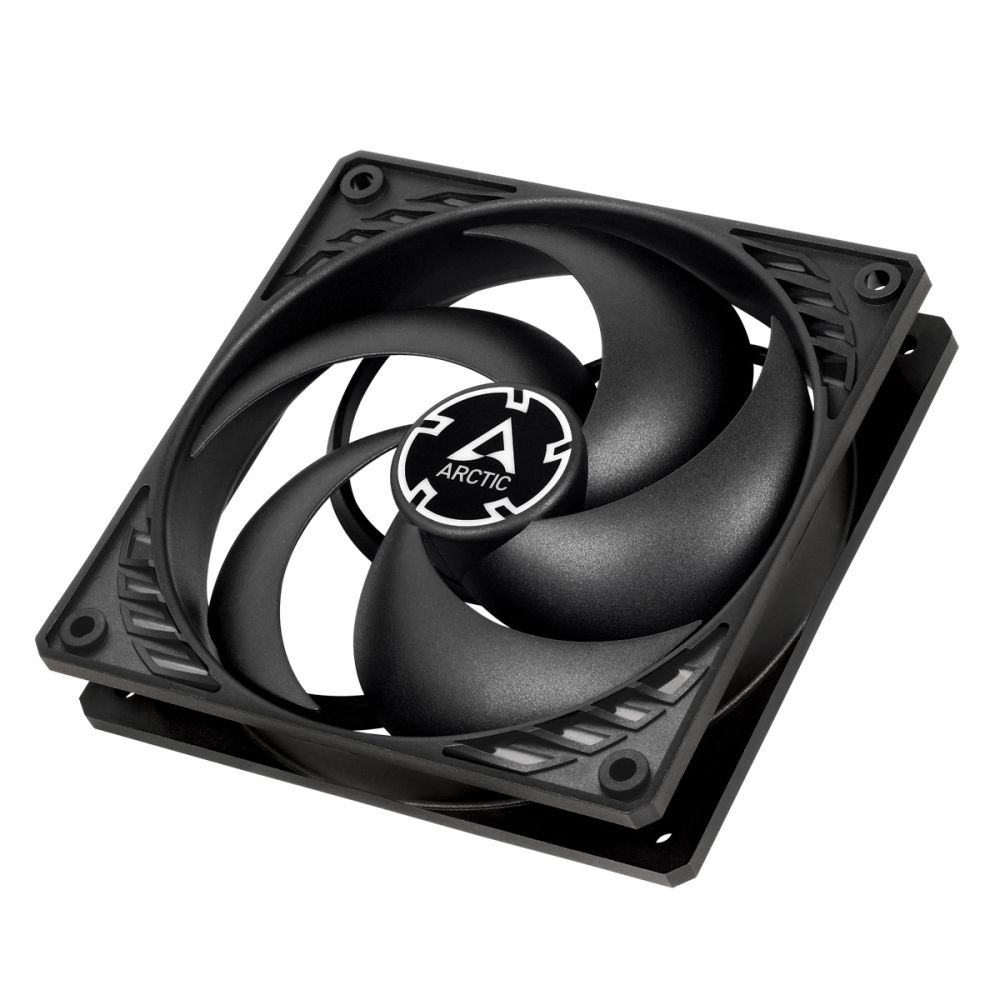

ARCTIC P12 Silent 120 mm Fan

ARCTIC P12 Silent | High-Pressure 120 mm Fan

The ARCTIC P12 Silent – Pressure-optimised Extra Quiet 120 mm Fan delivers quiet cooling performance optimised for heatsinks and high-resistance airflow situations. Designed with a German-engineered motor and fluid dynamic bearing, this fan is ideal for PC builders seeking silent operation without sacrificing static pressure.

Key Specifications

Engineered for High Static Pressure

The P12 Silent’s completely redesigned fan blades focus on generating high static pressure, making it particularly effective when cooling heatsinks or working against restrictive airflow paths. Unlike standard case fans that prioritise volume over pressure, this model maintains strong airflow even when mounted on radiators or dense cooling fins.

German Motor Technology for Silent Operation

Developed in Germany, the P12 Silent’s motor operates with exceptional quietness, producing just 0.08 sone of noise at maximum speed. The fluid dynamic bearing ensures smooth, consistent rotation while extending the fan’s operational lifespan compared to standard sleeve bearings.

Five-Blade Design for Optimal Airflow

The five-blade configuration strikes an ideal balance between airflow volume and static pressure. Each blade is shaped to minimise turbulence while maximising air movement through restricted spaces, resulting in efficient cooling without the high-speed whine associated with smaller, faster-spinning fans.

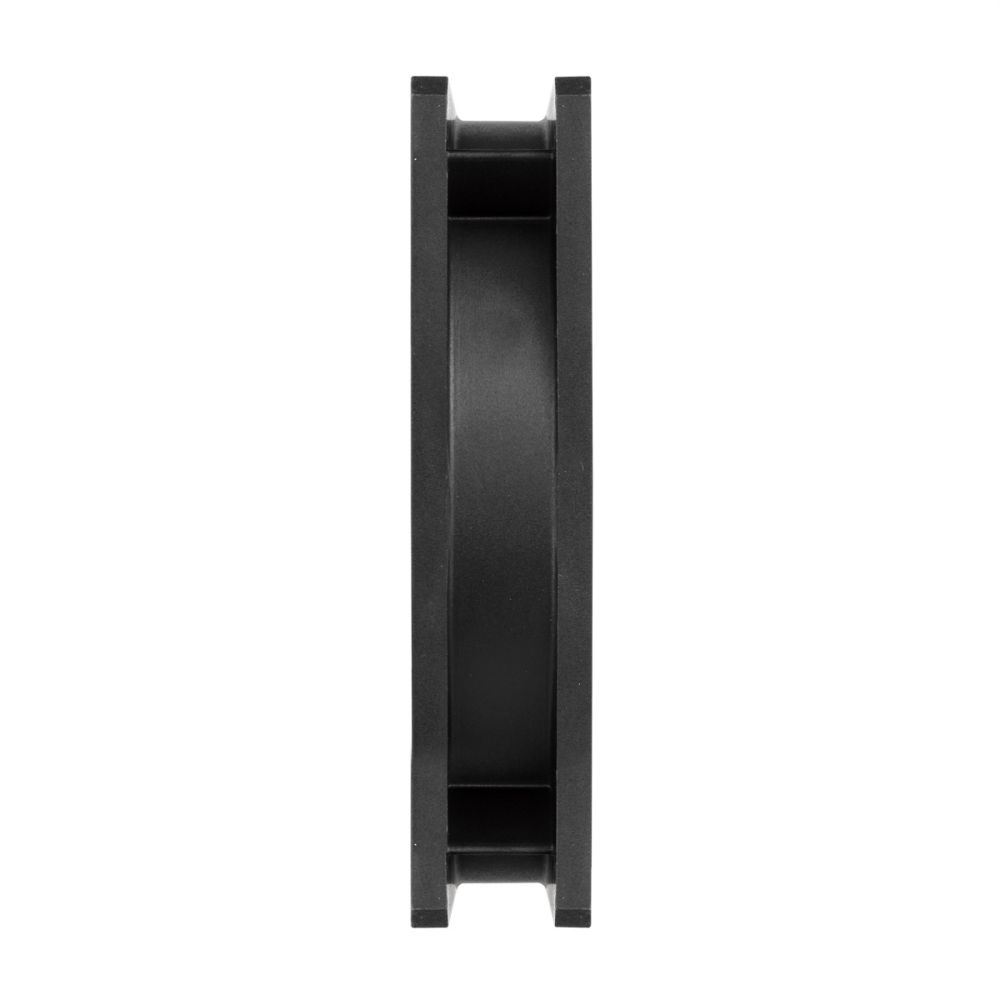

Compact Dimensions for Versatile Installation

Measuring 120 mm x 120 mm x 25 mm, this fan fits standard 120 mm mounting points throughout your PC case. The 0.4 m cable length provides adequate reach for most motherboard headers, while the black finish maintains a clean aesthetic inside your build.

Box Contents

• ARCTIC P12 Silent fan (1 unit)
• Mounting screws (4 pieces)

Check Before You Buy

• Confirm your case has a standard 120 mm fan mounting point
• Verify your motherboard has available 3-pin fan headers
• Check clearance around the mounting area for the 25 mm depth
• Ensure your cooling setup benefits from high static pressure fans

Frequently Asked Questions

Q: Is this fan PWM controlled?

A: No, the P12 Silent uses a 3-pin connector and operates at a fixed maximum speed of 1050 RPM.

Q: What type of bearing does this fan use?

A: It features a Fluid Dynamic Bearing (FDB) for quiet operation and extended lifespan.

Q: Can I use this fan as an exhaust?

A: Yes, it works well as either intake or exhaust, though it’s optimised for high-pressure applications like heatsinks.

Q: What is the power consumption?

A: The fan draws 0.09A at 12V, making it very energy efficient.

Q: Is this fan suitable for radiator cooling?

A: Yes, the high static pressure design makes it excellent for radiator and heatsink applications.

The Consultant’s Verdict & Warranty

The ARCTIC P12 Silent is the right choice for PC builders who need quiet, high-pressure cooling for heatsinks, radiators, or restrictive airflow situations. Its German-engineered motor and fluid dynamic bearing deliver reliable, silent operation where standard fans might struggle. Covered by the standard Manufacturer Warranty.
