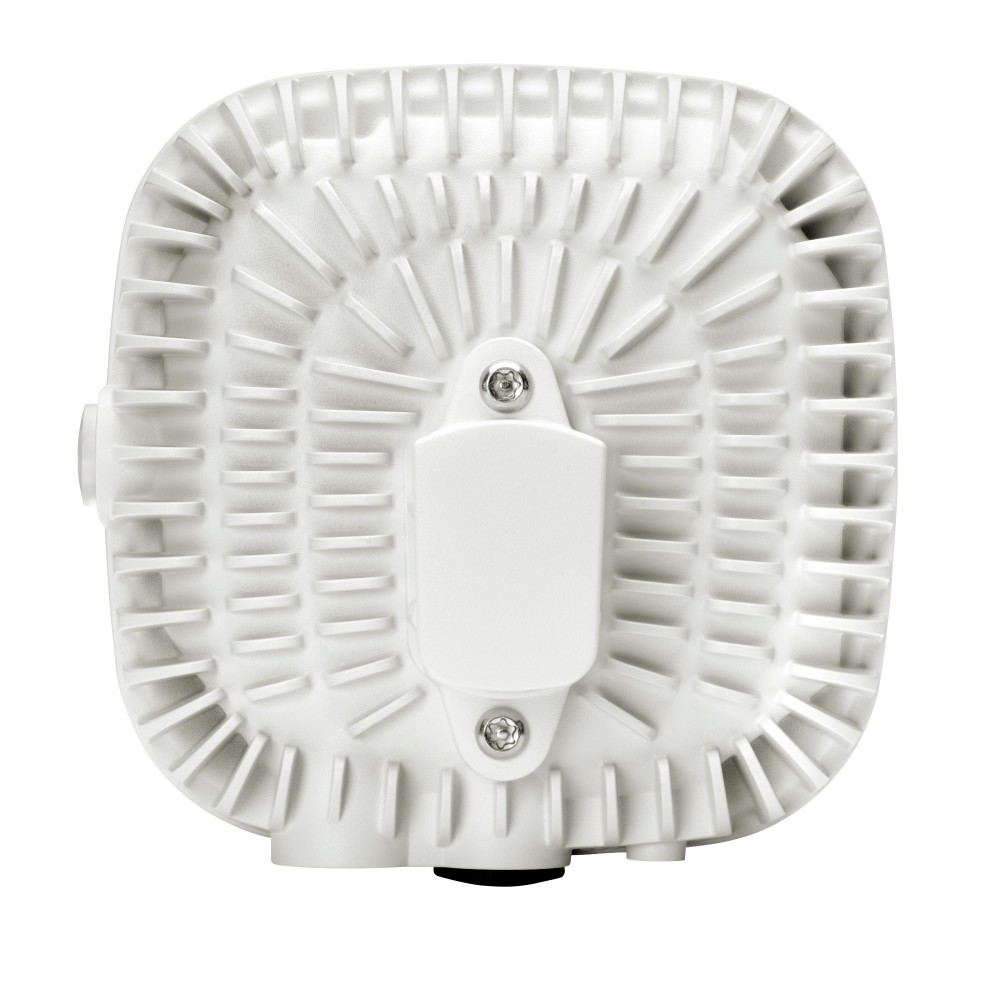

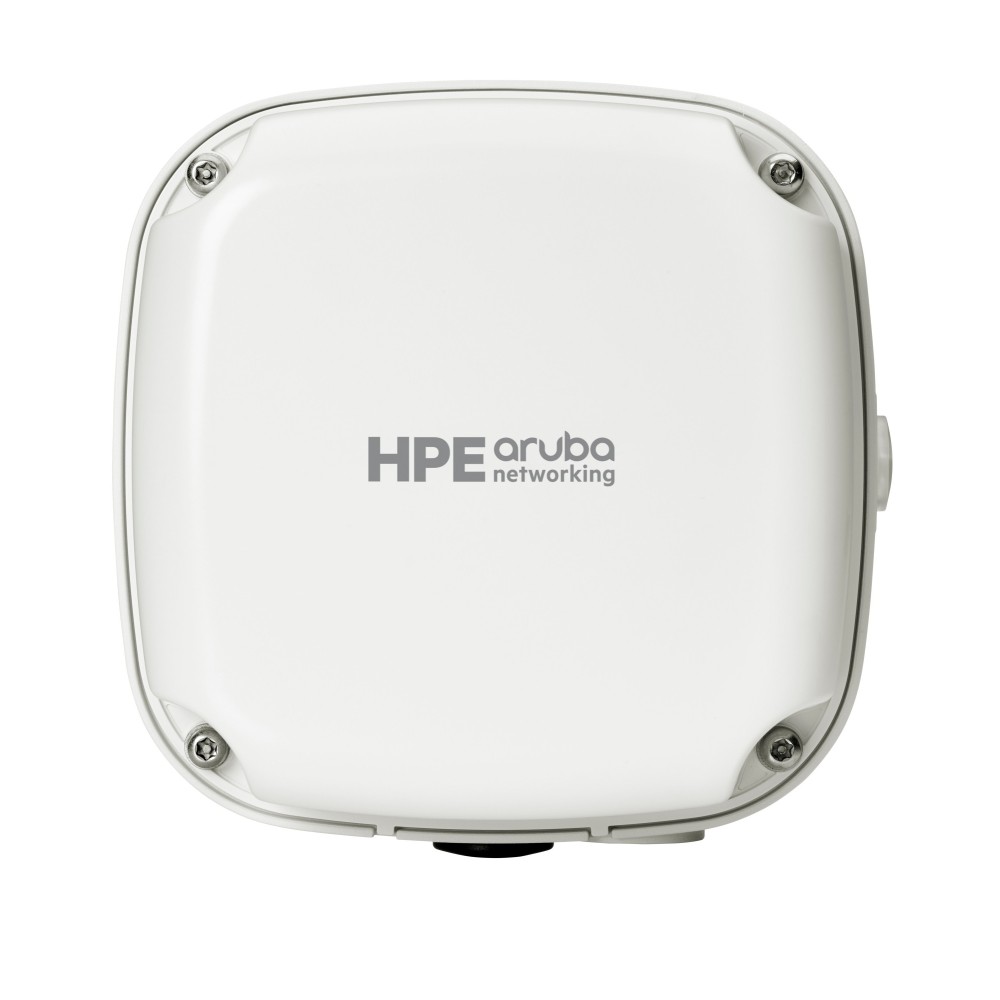

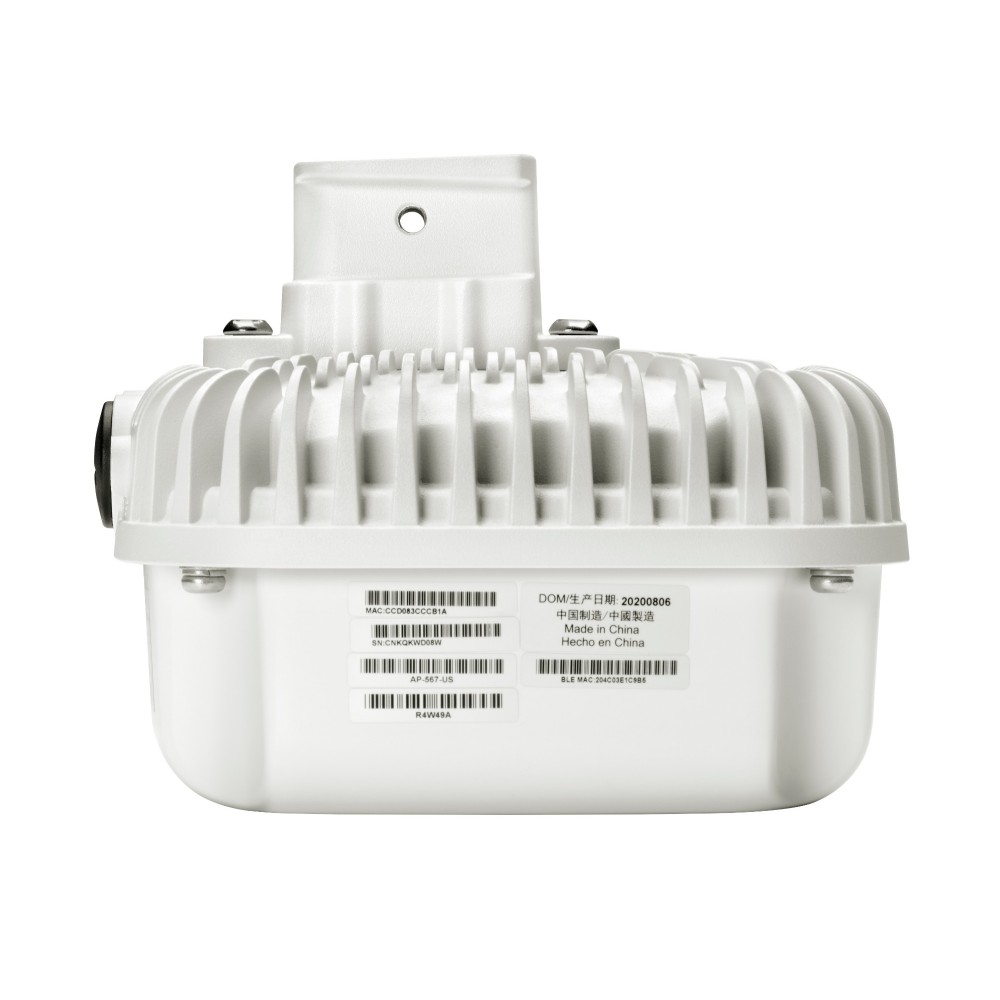

HPE Aruba Networking AP-567 802.11ax Outdoor AP
£1,329.57 inc VAT
In stock
In stock
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- Wi-Fi 6 (802.11ax) support for outdoor and challenging environments
- Maximum data transfer rate of 1774 Mbit/s across 2.4 GHz (574 Mbit/s) and 5 GHz (1200 Mbit/s) bands
- Integrated directional antennas with up to 7 dBi gain
- Operates in extreme temperatures from -40°C to 55°C and 5-95% humidity
- Built-in Bluetooth 5 and 802.15.4/Zigbee radio for IoT applications
- Power over Ethernet (PoE) with a 10/100/1000BASE-T RJ-45 port
- Compatible with HPE Aruba Networking Wireless OS 8 and Instant OS 8.7.1.0/10.3.0.0
Payment Methods:
You may also like
HPE Aruba Networking AP-567 – Rugged Outdoor Wi-Fi 6
We offer the HPE Aruba Networking AP-567 (RW) 802.11ax Dual 2×2 Radio Integrated Directional Antennas Outdoor AP for businesses requiring robust, high-performance Wi-Fi connectivity in demanding outdoor environments. This access point provides reliable Wi-Fi 6 capabilities, even in extreme conditions. It is ideal for warehouses or expansive outdoor areas.
Core Connectivity Metrics
| Metric | Spec. |
|---|---|
| Maximum Data Transfer Rate | 1774 Mbit/s |
| Ethernet LAN Data Rate | 1000 Mbit/s |
| Max. 2.4 GHz Data Rate | 574 Mbit/s |
| Max. 5 GHz Data Rate | 1200 Mbit/s |
| Bluetooth Version | 5.0 |
| Antenna Gain (Max) | 7 dBi |
Resilient Performance in Challenging Climates
This access point is purpose-built for the outdoors. It withstands harsh weather and extreme temperatures. Operating from -40°C to +55°C, it ensures continuous service. This resilience makes it perfect for exposed locations.
Enhanced Speed with Wi-Fi 6
Benefit from the latest Wi-Fi 6 (802.11ax) standard. It delivers a peak aggregate data rate of 1.49 Gbps. This supports medium-density Wi-Fi 6 deployments. Users experience faster, more efficient wireless connections.
Integrated IoT Capabilities
The HPE Aruba Networking AP-567 (RW) 802.11ax Dual 2×2 Radio Integrated Directional Antennas Outdoor AP includes built-in Bluetooth 5.0 and 802.15.4 radios. This supports Zigbee. Therefore, it is ready for your Internet of Things (IoT) applications. This integration simplifies device management.
Flexible Deployment and Management
Its compact form factor allows for flexible mounting options. Pole or wall placement is straightforward. Management is simplified through HPE Aruba Networking Central. This provides a single pane of glass for network oversight.
Before You Order
Confirm your network infrastructure supports PoE for power.Check your existing Aruba OS version for compatibility.Confirm the intended outdoor environment is within the specified temperature range.Review antenna direction requirements for optimal coverage.
Frequently Asked Questions
Q: What operating systems are compatible with this access point?
A: It is compatible with HPE Aruba Networking Wireless Operating System 8, Instant OS 8.7.1.0, and Wireless Operating System 10.3.0.0.
Q: Does this access point support Multi User MIMO?
A: Yes, it supports Multi User MIMO technology for improved network efficiency.
Q: Can this device be managed via a cloud platform?
A: Yes, it supports management via Public Cloud, Virtual Private Cloud (VPC), and as a Service options.
Q: What security standards does it support?
A: It supports WPA2 and WPA3 security algorithms.
Q: Is this access point designed for indoor or outdoor use?
A: This access point is specifically recommended for outdoor usage.
Our Verdict
This HPE Aruba Networking AP is an excellent choice for businesses needing reliable, high-speed outdoor Wi-Fi. It combines rugged durability with advanced Wi-Fi 6 features. It is ideal for demanding industrial or campus environments. Warranty cover varies by product, so please contact us to confirm.
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 1000 Mbit/s |
| Maximum data transfer rate | 1774 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Auto MDI/MDI-X | Yes |
| Spread spectrum method | DSSS, OFDM, OFDMA |
| Frequency band | 20/40 (2.4GHz), 20/40/80 (5GHz), peak data rate 1.49 Gbps, maximum data rate 1.78 Gbps |
| Networking standards | IEEE 802.11ax, IEEE 802.11mc |
| Modulation | 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK |
| Ethernet LAN data rates | 1000 Mbit/s |
| Certification | CB Scheme Safety, cTUVus UL2043 plenum rating Wi-Fi Alliance certified 802.11a/b/g/n/ Wi-Fi Alliance certified Wi-Fi 6 (802.11ax) Wi-Fi CERTIFIED ac (with wave 2 features) Wi-Fi CERTIFIED Location |
| Maximum data transfer rate | 1774 Mbit/s |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Compatible operating systems | HPE Aruba Networking Wireless Operating System 8 and HPE Aruba Networking Instant OS 8.7.1.0 HPE Aruba Networking Wireless Operating System 10.3.0.0 |
| Wireless LAN features | |
| Frequency band | 20/40 (2.4GHz), 20/40/80 (5GHz), peak data rate 1.49 Gbps, maximum data rate 1.78 Gbps |
| Modulation | 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK |
| Network | |
| Spread spectrum method | DSSS, OFDM, OFDMA |
| Networking standards | IEEE 802.11ax, IEEE 802.11mc |
| Ports & interfaces | |

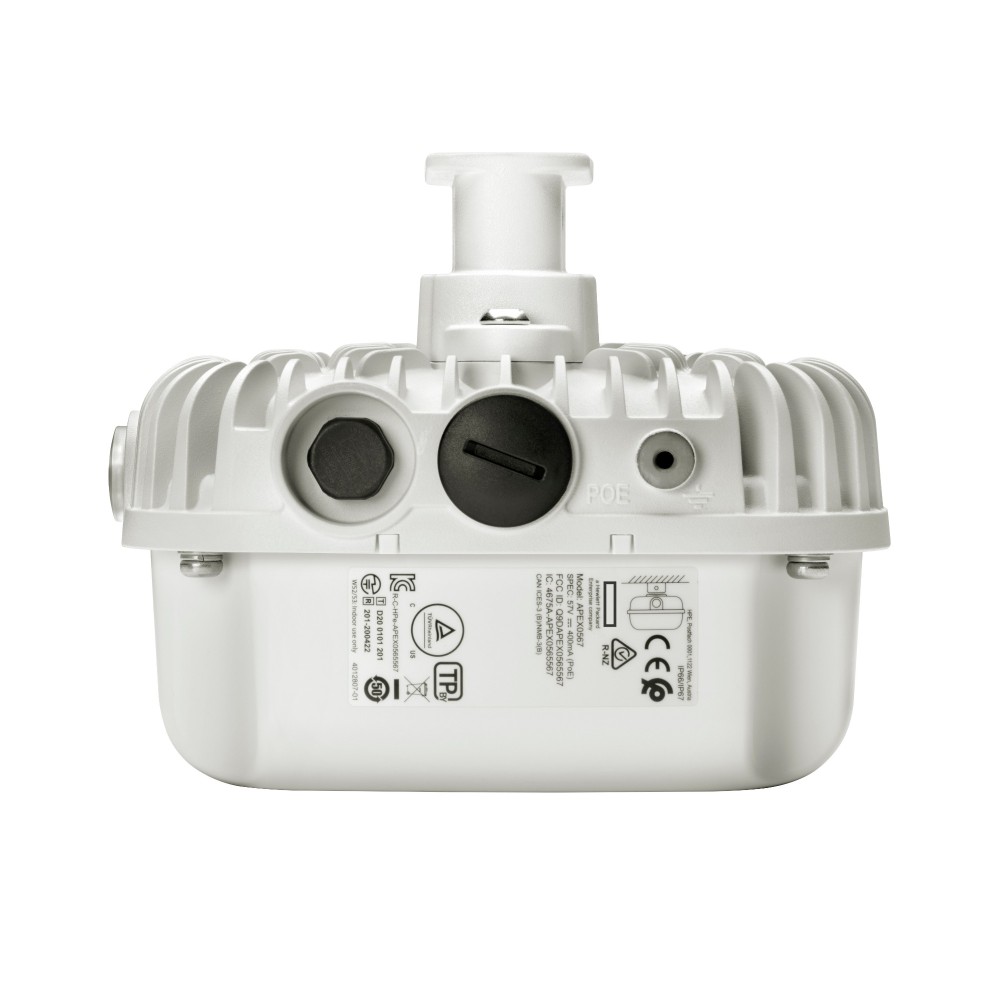

| I/O ports | E0: 10/100/1000BASE-T (RJ-45) USB-C console interface |
| USB connector type | USB Type-C |
| Ethernet LAN (RJ-45) ports | 1 |
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Auto MDI/MDI-X | Yes |
| Spread spectrum method | DSSS, OFDM, OFDMA |
| Frequency band | 20/40 (2.4GHz), 20/40/80 (5GHz), peak data rate 1.49 Gbps, maximum data rate 1.78 Gbps |
| Networking standards | IEEE 802.11ax, IEEE 802.11mc |
| Modulation | 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK |
| Ethernet LAN data rates | 1000 Mbit/s |
| Maximum data transfer rate | 1774 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| MIMO type | Multi User MIMO |
| MIMO | Yes |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1200 Mbit/s |
| MACsec support | No |
| Compatible operating systems | HPE Aruba Networking Wireless Operating System 8 and HPE Aruba Networking Instant OS 8.7.1.0 HPE Aruba Networking Wireless Operating System 10.3.0.0 |
| Security | |
| Security algorithms | WPA2, WPA3 |
| Management features | |
| Access point management | On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Design | |
| Placement | Pole, Wall |
| Product colour | White |
| Certification | CB Scheme Safety, cTUVus UL2043 plenum rating Wi-Fi Alliance certified 802.11a/b/g/n/ Wi-Fi Alliance certified Wi-Fi 6 (802.11ax) Wi-Fi CERTIFIED ac (with wave 2 features) Wi-Fi CERTIFIED Location |
| Recommended usage | Outdoor |
| Antenna | |
| Antenna type | Internal |
| Antenna gain level (max) | 7 dBi |
| Antenna direction type | Directional |
| Antenna features | Integrated antenna |
| Technical details | |
| Weight (imperial) | 1.09 kg (2.4 lbs) |
| Harmonized System (HS) code | 85176990 |
| Compliance certificates | Federal Communications Commission (FCC), ISED, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD) |
| Certificates | |
| Certification | CB Scheme Safety, cTUVus UL2043 plenum rating Wi-Fi Alliance certified 802.11a/b/g/n/ Wi-Fi Alliance certified Wi-Fi 6 (802.11ax) Wi-Fi CERTIFIED ac (with wave 2 features) Wi-Fi CERTIFIED Location |
| Compliance certificates | Federal Communications Commission (FCC), ISED, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD) |
| Weight & dimensions | |
| Width | 165 mm |
| Depth | 130 mm |
| Weight | 1.09 kg |
| Height | 165 mm |
| Other features | |
| I/O ports | E0: 10/100/1000BASE-T (RJ-45) USB-C console interface |
| Weight (imperial) | 1.09 kg (2.4 lbs) |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -40 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating altitude | 0 - 3000 m |
| System requirements | |
| Compatible operating systems | HPE Aruba Networking Wireless Operating System 8 and HPE Aruba Networking Instant OS 8.7.1.0 HPE Aruba Networking Wireless Operating System 10.3.0.0 |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Identifiers | |
| Distributor SKUs | 2M225DV, 6159859, 431819, STD10214572, CLR4W48A |
