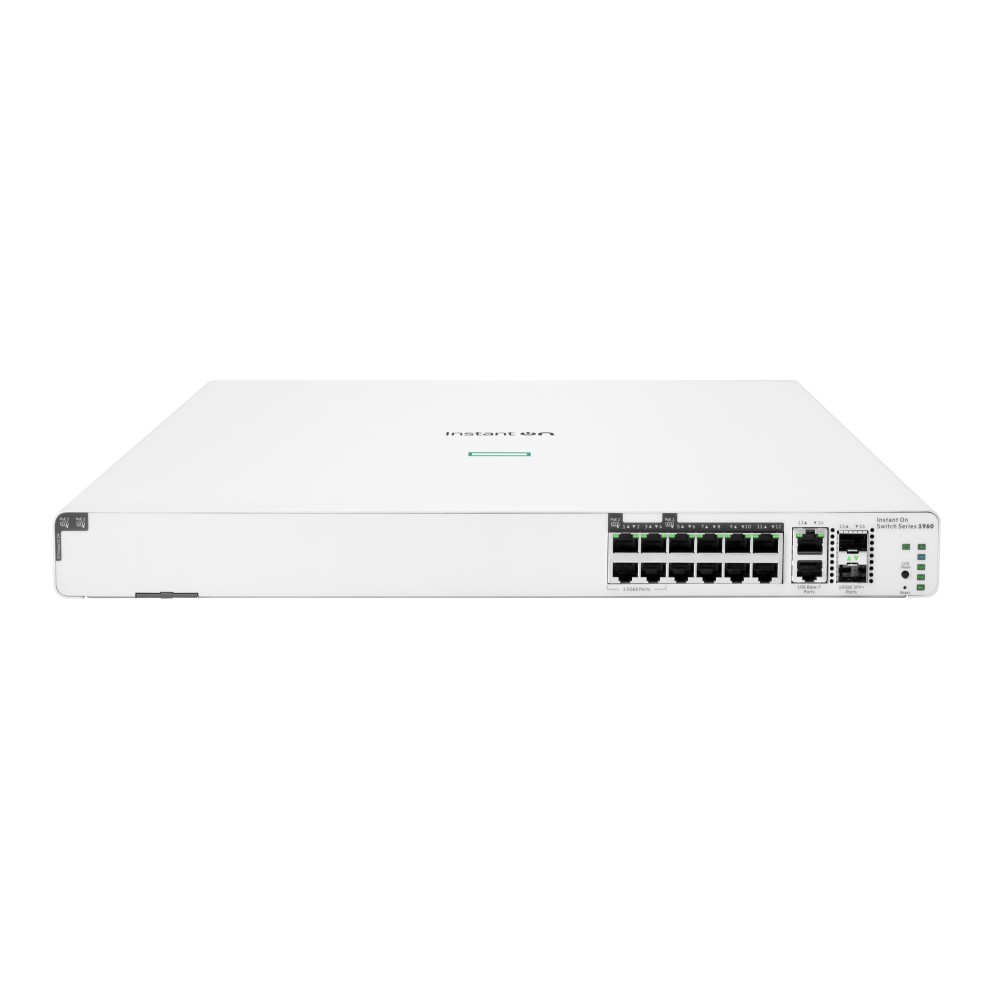

HPE Networking Instant On 1960 Cloud Managed Switch 480W PoE 8x Gigabit 4x 2.5G 2x 10G 2x SFP+
£792.82
Out of stock
Out of stock
-
DPD tracked delivery
-
Buy now, pay later with Klarna
-
Pay in 3 instalments with PayPal
About This Item
- Managed Layer 2+ switch with cloud and web-based management options
- 8 Gigabit and 4 2.5G Ethernet ports plus 2 10G copper and 2 SFP+ uplinks
- 480W total PoE budget supporting IEEE 802.af/at/bt Class 4 and 6 standards
- 116 Gbit/s switching capacity and 172 Mpps throughput for high performance
- 1U form factor with rack or wall mounting and stacking support for up to 4 units
- Built-in security features including ARP inspection DHCP snooping and SSH/SSL support
- Jumbo frames up to 9216 bytes and Quality of Service QoS prioritisation
Available alternatives
You may also like
TP-Link TL-SG1024 Unmanaged Gigabit Switch
In stock
TP-Link 10-Port Smart PoE+ Switch
In stock
TP-Link JetStream 24-Port Managed Switch
In stock
HPE Networking Instant On 1960 – Cloud Managed PoE Switch for Scaling Businesses
We stock the HPE Networking Instant On 1960 Cloud Managed Switch 480W PoE 8x Gigabit 4x 2.5G 2x 10G 2x SFP+ for growing offices. This switch handles heavy traffic loads efficiently. It supports voice and video applications well. You can manage it easily via cloud or local web GUI. Our team helps you integrate it into existing networks.
Core networking metrics
| Metric | Spec. |
|---|---|
| Total PoE Budget | 480 W |
| Port Configuration | 8x Gigabit, 4x 2.5G, 2x 10G, 2x SFP+ |
| Switching Capacity | 116 Gbit/s |
| Management Type | Cloud or Local Web |
| Stackable Units | Up to 4 |
| Form Factor | 1U Rack Mountable |
Power enough for your wired devices
We ensure the 480W PoE budget powers many endpoints. You can connect phones and cameras without extra injectors. This reduces cabling complexity across your site.
Fast links for servers and storage
The 10G and 2.5G ports handle bandwidth demands. Servers connect directly without needing separate uplinks. Traffic bottlenecks become rare in your data paths.
Manage the network from anywhere
Our cloud portal lets you configure settings remotely. You save time on site visits for changes. Real-time monitoring keeps operations smooth and predictable.
Grow your setup without replacing gear
Stack up to four units under one IP address. Adding capacity is simple as your team expands. You avoid costly hardware swaps during growth phases.
What comes in the package
We include the integrated power supply with every unit. Rack mounting accessories are standard for this model. You receive everything needed for immediate installation.
Verify compatibility for the HPE Networking Instant On 1960 Cloud Managed Switch 480W PoE 8x Gigabit 4x 2.5G 2x 10G 2x SFP+
- Confirm your rack space allows 1U depth.
- Confirm your devices need Class 4 or 6 PoE.
- Confirm your internet link uses cloud management.
Frequently Asked Questions
Q: Can I manage this switch via mobile app?
A: Yes, the Instant On mobile app allows onsite management.
Q: How many switches can I stack together?
A: You can stack up to four units under one IP.
Q: Which PoE classes does this model support?
A: It supports Class 4 and Class 6 PoE standards.
Q: Are the 10G ports copper or fibre?
A: Two ports are copper 10G and two are SFP+ fibre.
Who benefits from this switch
Small businesses needing scalable, cloud-managed networking should choose this unit. It balances performance with ease of use. We recommend it for offices expanding their wired infrastructure.
| Management features | |
|---|---|
| ARP inspection | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2+ |
| Cloud-managed | Yes |
| Ports & interfaces | |
| SFP+ module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| 2.5G Ethernet (copper) ports quantity | 4 |
| 10G Ethernet (copper) ports quantity | 2 |
| I/O ports | 4 RJ-45 autosensing 1 G/2.5 GBASE-T ports with IEEE 802.af/at/bt CL6 PoE 8 RJ-45 autosensing 10/100/1000 BASE-T ports with IEEE 802.af/at CL4 PoE (IEEE 802.3u Type 100 BASE-TX, IEEE 802.3ab Type 1000 BASE-T, IEEE 802.3bz Type 2.5 GBase-T, IEEE 802.an 10 GBASE-T); Duplex: 100 BASE-TX: half or full; 1000 BASE-T: full only 10 GBASE-T: full only 2 SFP+ 10 GbE ports 2 RJ-45 autosensing 100/1000/10 GBASE-T ports |
| Network | |
| Auto-sensing | Yes |
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | Yes |
| Auto-negotiation | Yes |
| Half duplex | Yes |
| IGMP snooping | Yes |
| Data transmission | |
| Jumbo frames | 9216 |
| Throughput | 172 Mpps |
| Latency (10-100 Mbps) | 4.1 µs |
| Latency (1 Gbps) | 1.8 µs |
| Latency (10 Gbps) | 2.8 µs |
| Packet buffer memory | 1.5 MB |
| MAC address table | 16000 entries |
| Switching capacity | 116 Gbit/s |
| Jumbo frames support | Yes |
| Security | |
| Authentication | Port-based authentication |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Authentication type | RADIUS |
| DHCP features | DHCP snooping |
| Protocols | |
| Management protocols | SNMPv1, SNMPv2c, SNMPv3 |
| Supported network protocols | HTTP |
| Design | |
| Wall mountable | Yes |
| Form factor | 1U |
| Stackable | Yes |
| Rack mounting | Yes |
| Performance | |
| Physical stacking (units) | 4 |
| Processor frequency | 800 MHz |
| Memory type | DDR3-SDRAM |
| Internal memory | 1024 MB |
| Flash memory | 512 MB |
| Built-in processor | Yes |
| Processor model | ARM Cortex-A9 |
| Packet buffer memory | 1.5 MB |
| Stackable | Yes |
| Auto-negotiation | Yes |
| Power | |
| Power consumption (max) | 623 W |
| Power supply included | Yes |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption note | Maximum: 100-127V: 635W 200-220V: 623W Idle: 100-127V: 34W 200-220V: 40W |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Total Power over Ethernet (PoE) budget | 480 W |
| Power over Ethernet (PoE) | Yes |
| Other features | |
| Performance management | HPE Networking Instant On Cloud; Web browser; SNMP Manager |
| Memory and processor | Single-Core ARM v7 Cortex-A9 @800 MHz; 1 GB DDR3; 512 MB NAND flash; Packet buffer size: 1.5 MB |
| Weight (imperial) | 4.9 kg (10.8 lbs) |
| I/O ports | 4 RJ-45 autosensing 1 G/2.5 GBASE-T ports with IEEE 802.af/at/bt CL6 PoE 8 RJ-45 autosensing 10/100/1000 BASE-T ports with IEEE 802.af/at CL4 PoE (IEEE 802.3u Type 100 BASE-TX, IEEE 802.3ab Type 1000 BASE-T, IEEE 802.3bz Type 2.5 GBase-T, IEEE 802.an 10 GBASE-T); Duplex: 100 BASE-TX: half or full; 1000 BASE-T: full only 10 GBASE-T: full only 2 SFP+ 10 GbE ports 2 RJ-45 autosensing 100/1000/10 GBASE-T ports |
| Dimensions (W x D x H) (imperial) | 402.8 x 442.5 x 43.9 mm (15.9 x 17.4 x 1.73") |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 15 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 15 - 95% |
| Operating altitude | 0 - 3000 m |
| Virtual LAN features | |
| VLAN support | Yes |
| Weight & dimensions | |
| Width | 402.8 mm |
| Depth | 442.5 mm |
| Height | 44 mm |
| Weight | 4.9 kg |
| Weight (imperial) | 4.9 kg (10.8 lbs) |
| Dimensions (W x D x H) (imperial) | 402.8 x 442.5 x 43.9 mm (15.9 x 17.4 x 1.73") |
| Technical details | |
| Physical stacking (units) | 4 |
| Form factor | 1U |
| Stackable | Yes |
| Processor frequency | 800 MHz |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Memory | |
| Packet buffer memory | 1.5 MB |
| Memory type | DDR3-SDRAM |
| Internal memory | 1024 MB |
| Flash memory | 512 MB |
| Identifiers | |
| Additional EANs | 0190017628370 |
