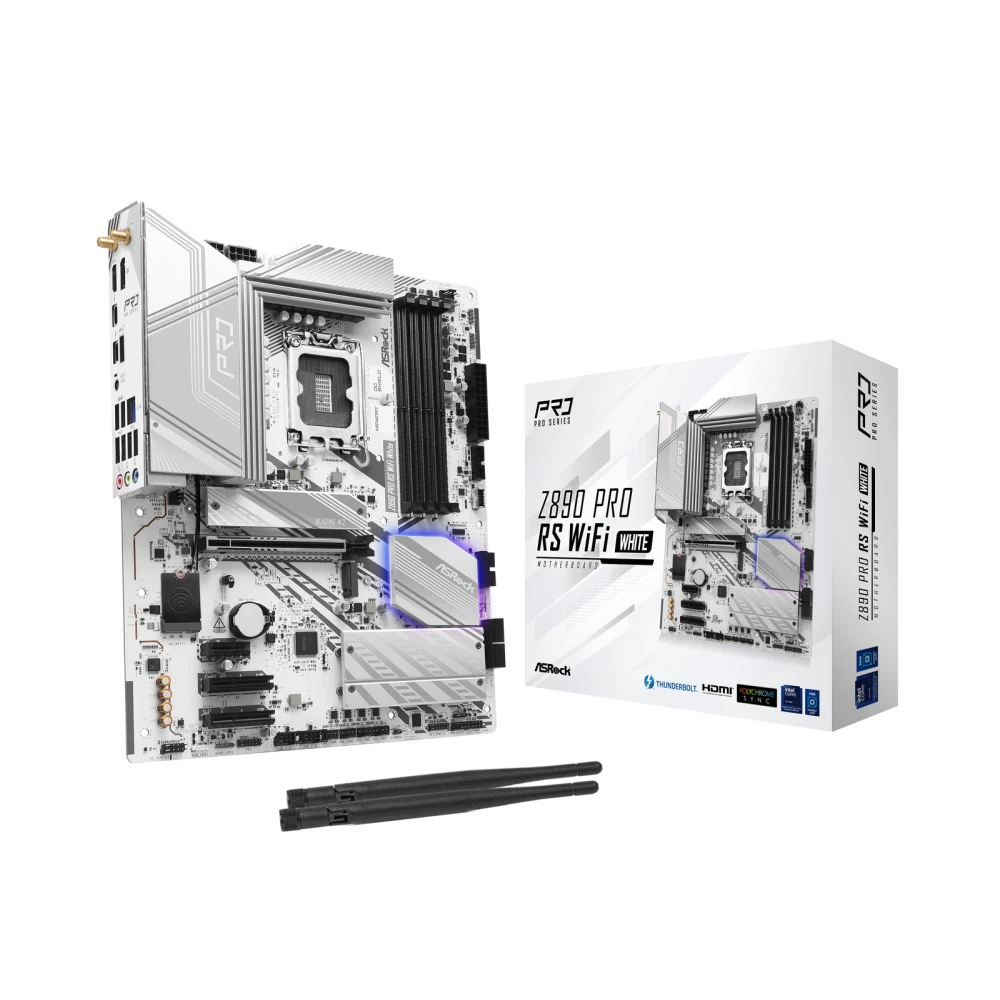

ASRock Z890 Pro RS WIFI Motherboard LGA 1851 Intel Z890 ATX DDR5 White
£235.69
In stock
In stock
-
DPD tracked delivery
-
Buy now, pay later with Klarna
-
Pay in 3 instalments with PayPal
About This Item
- Intel Z890 chipset supports LGA 1851 socket for Core Ultra Series 2 processors
- Dual channel DDR5 memory up to 256GB capacity with speeds reaching 9066MHz overclocking
- ATX form factor features white colour aesthetic with 2oz copper PCB construction
- High speed connectivity includes dual Thunderbolt 4 ports and USB 3.2 Gen2x2 Type-C
- Integrated wireless solutions offer Wi-Fi 6E and Bluetooth 5.3 alongside 2.5G LAN
- Expansion options comprise PCIe 5.0 x16 slot and multiple M.2 storage slots including Gen5x4
- Display outputs support HDMI 2.1 and DisplayPort 1.4 for multi-monitor setups
You may also like
Belkin SoundForm Isolate Wireless In-ear Headphones Active Noise Cancelling Bluetooth Built-in Microphone Grey
In stock
ASRock Z890M Riptide Wi-Fi Intel Z890 Motherboard LGA1851 Socket Micro ATX DDR5 2.5GbE LAN
In stock
Samsung Essential G3 Monitor 27″ Full HD 144Hz IPS Black
In stock
Targus ASF133W9EU Privacy Filter for 13.3″ Laptops Anti-Glare Screen Protector
In stock
Team Group CX2 1 TB 2.5″ Serial ATA SSD 3D NAND Internal 540 MB/s
In stock
Samsung Essential G3 Gaming Monitor 24″ Full HD 144Hz IPS Black
In stock
Apple Sport Band for Apple Watch 38mm 40mm 41mm Sand Rubber M/L Wrist Size
In stock

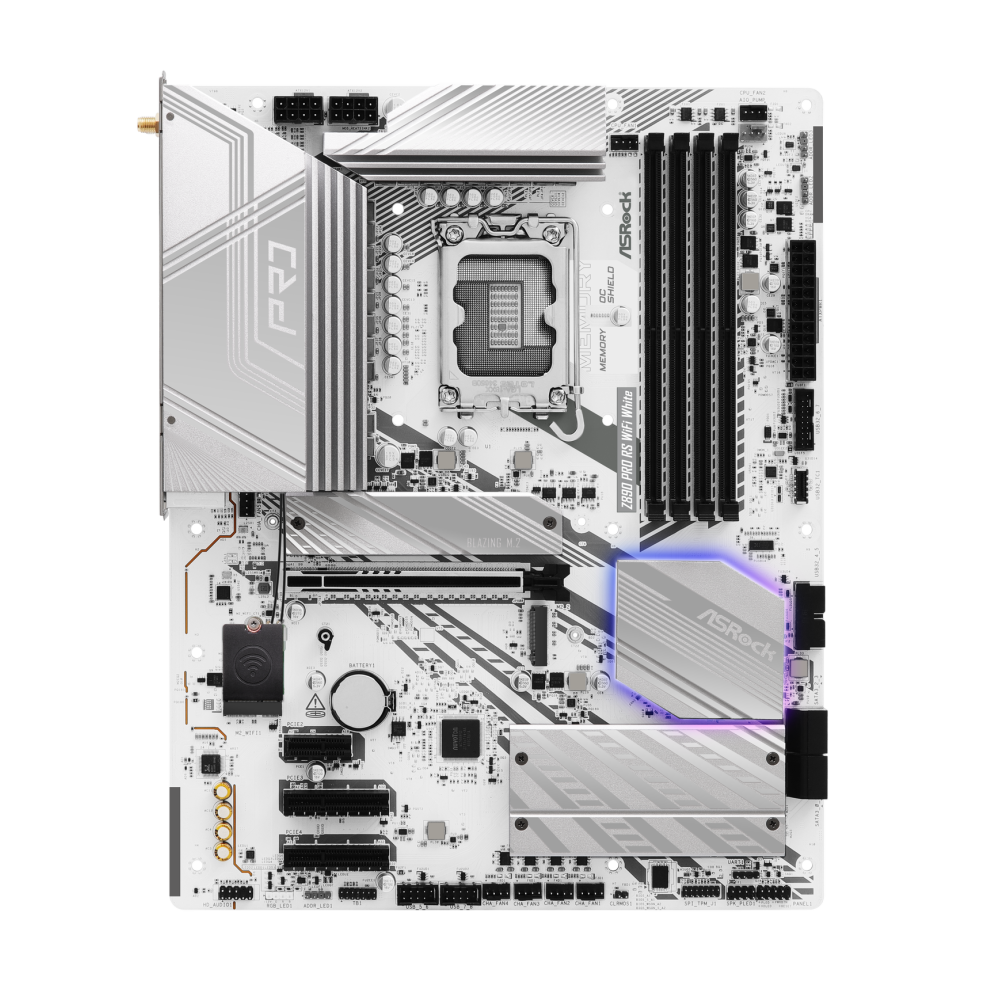

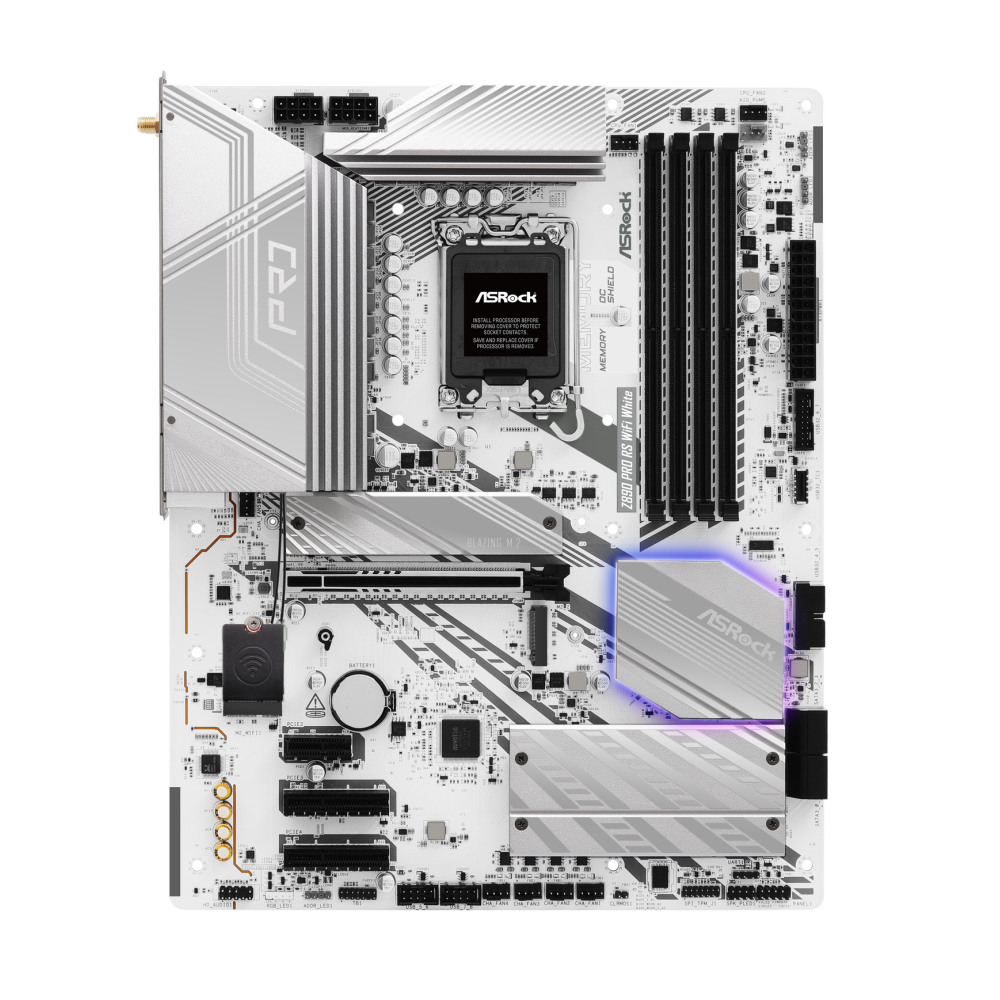

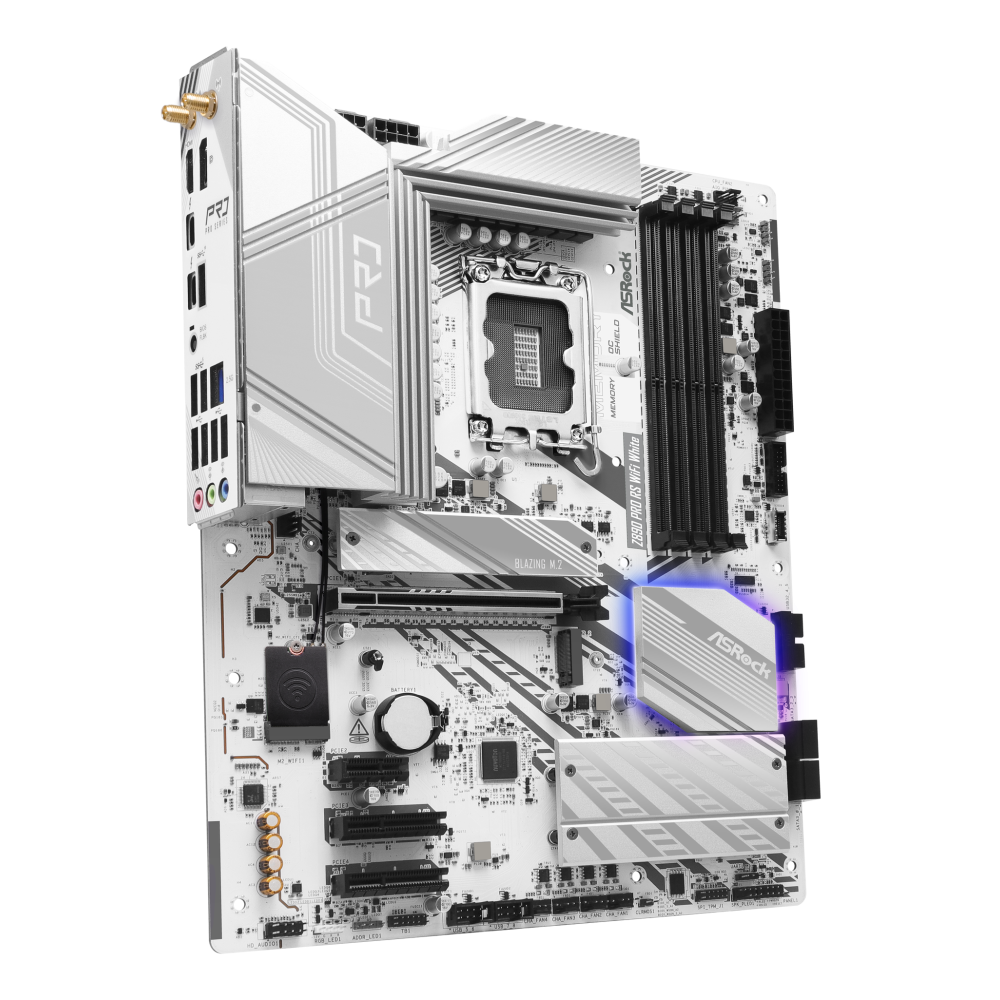

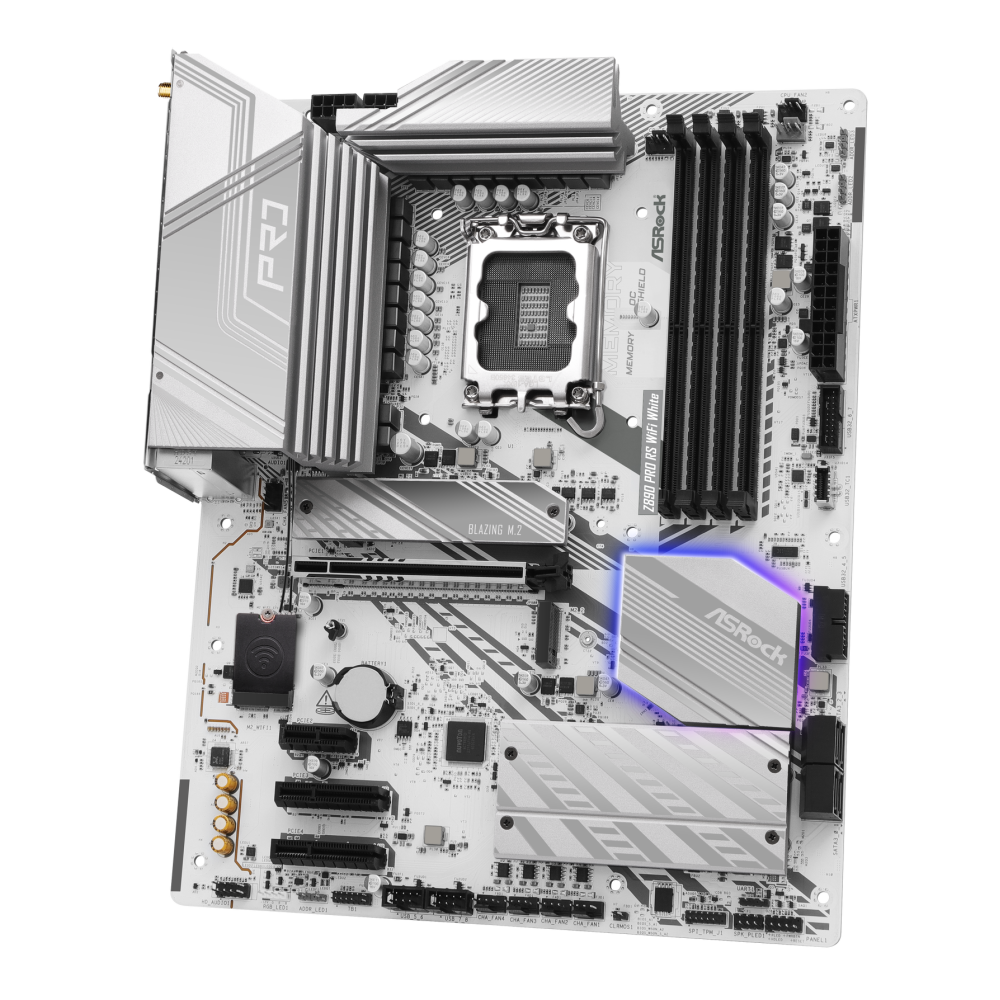

ASRock Z890 Pro RS WIFI – Premium White ATX Platform
We designed the ASRock Z890 Pro RS WIFI Motherboard LGA 1851 Intel Z890 ATX DDR5 White for builders seeking next-gen Intel Core Ultra support. This board delivers robust power delivery and expansive connectivity. It suits enthusiasts upgrading to LGA 1851 sockets. You gain immediate access to PCIe 5.0 storage speeds.
ASRock Z890 Pro RS WIFI Motherboard LGA 1851 Intel Z890 ATX DDR5 White Overview
| Metric | Spec. |
|---|---|
| Socket | LGA 1851 |
| Chipset | Intel Z890 |
| Memory | DDR5 up to 9066MHz+ |
| Form Factor | ATX |
| LAN | 2.5G |
Optimised Power for Intel Core Ultra Series 2
This platform supports the latest Intel processors. You benefit from stable performance during heavy workloads. The VRM heatsinks manage thermal output effectively.
High-Speed Storage and Expansion Options
We include one PCIe 5.0 x16 slot. It accommodates modern graphics cards without bottlenecks. Four M.2 slots allow extensive NVMe storage arrays.
Seamless Connectivity with Thunderbolt and USB
Two Thunderbolt 4 ports appear on the rear. You can connect high-speed peripherals easily. Front Type-C headers support fast device charging.
Reliable Networking and Wireless Integration
The 2.5G LAN ensures quick file transfers. Wi-Fi 6E provides stable wireless connectivity. Bluetooth 5.3 pairs with peripherals effortlessly.
Before You Order
- Confirm your case supports ATX form factor
- Verify your CPU uses the LGA 1851 socket
- Check power supply wattage for your components
Frequently Asked Questions
Q: Does it support DDR5 memory?
A: Yes, this board uses dual channel DDR5 DIMM slots.
Q: Is Wi-Fi included?
A: It includes integrated Wi-Fi 6E and Bluetooth 5.3.
Q: How many M.2 slots are there?
A: There are four M.2 slots for NVMe storage.
Q: What is the maximum memory capacity?
A: You can install up to 256GB of RAM.
Q: Does it support PCIe 5.0?
A: Yes, it includes a PCIe 5.0 x16 slot.
Our Final Recommendation
This board fits users needing modern Intel features. We recommend it for white-themed builds. It offers solid connectivity for future upgrades.
| Brand | ASRock |
|---|---|
| EAN | 4710483947476 |
| MPN | 90-MXBQC0-A0UAYZ |
| Category | Details |
| CPU | Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851), Intel® Hybrid Technology, Turbo Boost Max 3.0, Thermal Velocity Boost (TVB), Adaptive Boost Technology (ABT), Integrated NPU for AI acceleration |
| Chipset | Intel Z890 |
| Memory | Dual Channel DDR5, 4 x DDR5 DIMM Slots, Up to 256GB, Supports DDR5 up to 9066MHz+ (OC), Supports XMP 3.0 |
| Graphics Outputs | 1 x HDMI 2.1 (4K 120Hz), 1 x DisplayPort 1.4 (8K 60Hz), 2 x Thunderboltâ„¢ 4 (8K 60Hz), Supports dual 4K or single 8K display |
| Audio | 7.1 Channel HD Audio (Realtek ALC897), Nahimic Audio |
| Wireless | Wi-Fi 6E (802.11axe), Dual Band 2×2, Bluetooth 5.3 |
| Expansion Slots | 1 x PCIe 5.0 x16, 2 x PCIe 4.0 x4, 1 x PCIe 4.0 x1, 1 x M.2 Key E (WiFi) |
| Storage | 1 x M.2 PCIe Gen5x4, 3 x M.2 PCIe Gen4x4, 4 x SATA3 6Gb/s, Supports RAID 0/1/5/10 |
| USB Ports | 2 x Thunderboltâ„¢ 4 (Rear), 1 x USB 3.2 Gen2x2 Type-C (Front), 1 x USB 3.2 Gen2 Type-A, 6 x USB 3.2 Gen1, 8 x USB 2.0 |

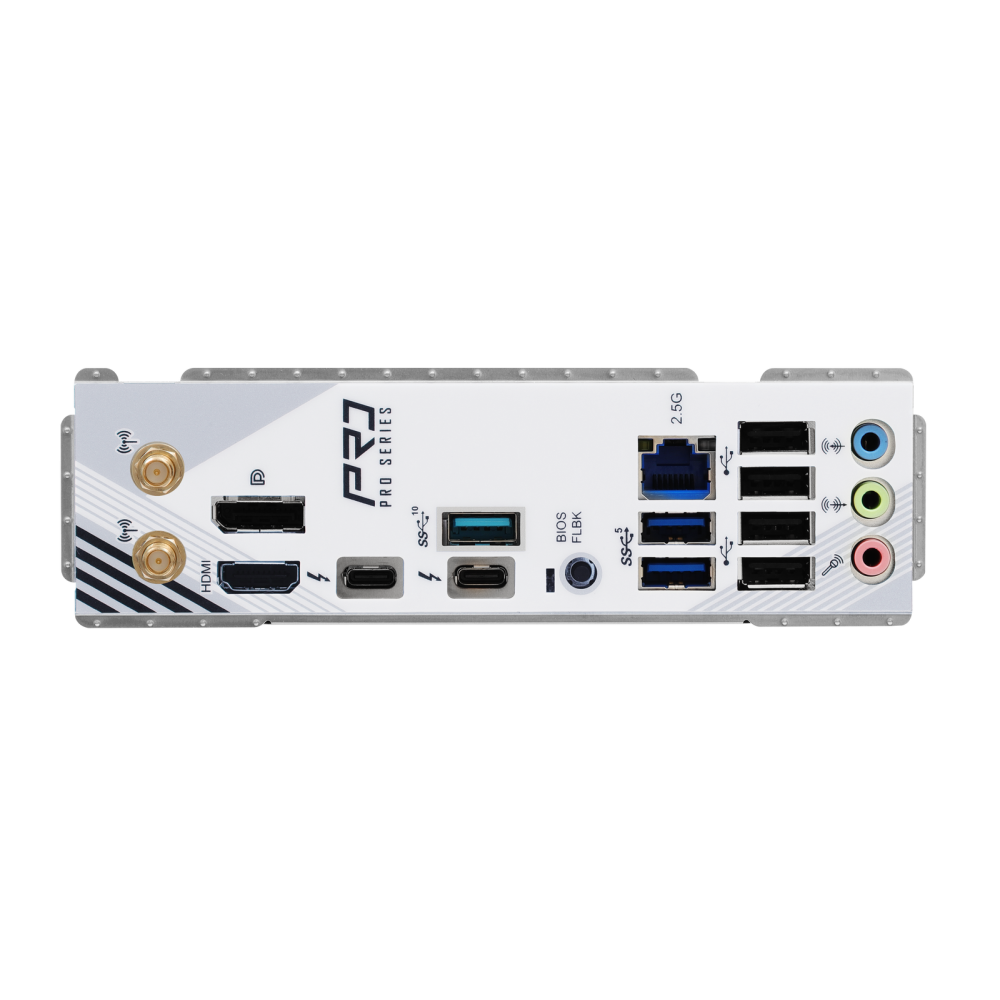

| Rear I/O | HDMI, DisplayPort, 2 x Thunderboltâ„¢ 4, RJ-45 LAN, 7 USB Ports, BIOS Flashback Button, HD Audio Jacks |

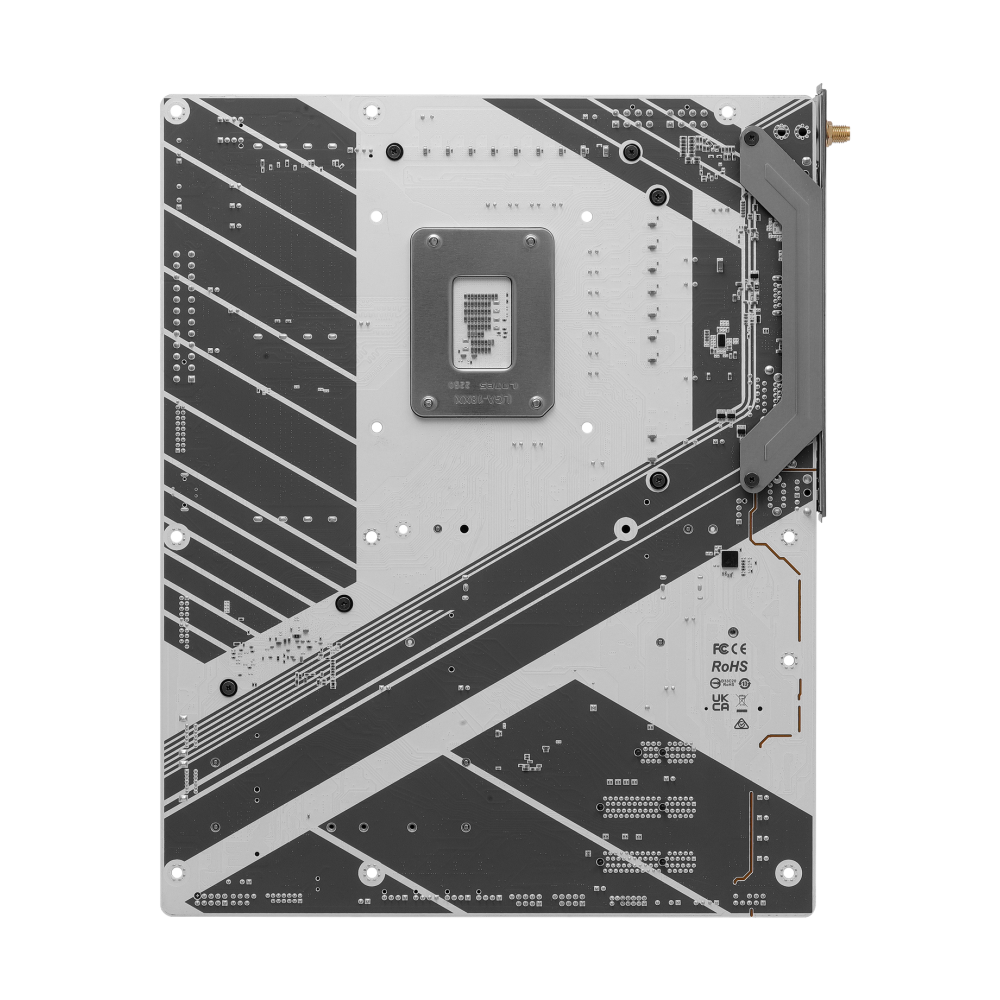

| Form Factor | ATX (12.0″ x 9.6″), 2oz Copper PCB |
| OS Support | Windows® 11 64-bit |
| Certifications | FCC, CE, ErP/EuP Ready |
| Primary Colour | White |
| Motherboard Form Factor | ATX |
| CPU Manufacturer | Intel |
| CPU socket | 1851 |
| Motherboard Chipset | Intel Z890 |
| Max. Memory | 256 GB |
| Memory type | DDR5 |
| Memory form factor | DIMM |
| Max. Memory Speed OC | 8666 MT/s |
| EEC Support | Yes |
| Memory slots | 4x |
| Performance Profile | Intel XMP 3.0 |
| LAN | Yes |
| LAN Ports | 1x 2.5 Gbit/s |
| Wi-Fi / Bluetooth | Yes |
| Wi-Fi standard | Wi-Fi 6E |
| Bluetooth Standard | 5.3 |
| VRM Heatsinks | Yes |
| CPU Power Supply | 2x 8-Pin |
| USB 3.0 / 3.1 / 3.2 internal Type C Header | 1 |
| USB 3.0 / 3.1 / 3.2 internal Type C Possible Ports | 1 |
| USB 3.0 internal Header | 2 |
| USB 3.0 internal Possible Ports | 4 |
| USB 2.0 internal Header | 2 |
| USB 2.0 internal Possible Ports | 4 |
| RGB / LED connectors | 1x RGB (4-Pin 5050 12VGRB), 3x Digital RGB (3-Pin 5VDG) |
| Front Panel Audio Header | Yes |
| USB4 Gen 3x2 external Type C | 2 |
| USB 3.1 external Type A | 1 |
| USB 3.0 external Type A | 2 |
| USB 2.0 external Type A | 4 |
| Display Connectors | Display Port (1x), HDMI (1x) |
| M.2 PCIe 4.0 x4 | 2 |
| M.2 PCIe 4.0 x4 SATA 6G | 1 |
| M.2 PCIe 5.0 x4 | 1 |
| SATA 6G internal | 4 |
| PCIe x16 slots total | 1 |
| PCIe x4 slots total | 2 |
| PCIe x1 slots total | 1 |
| 4 Pin Fan Connectors | 8 |
| Soundchip | Realtek ALC897 |
| Lighting / RGB | Yes |
