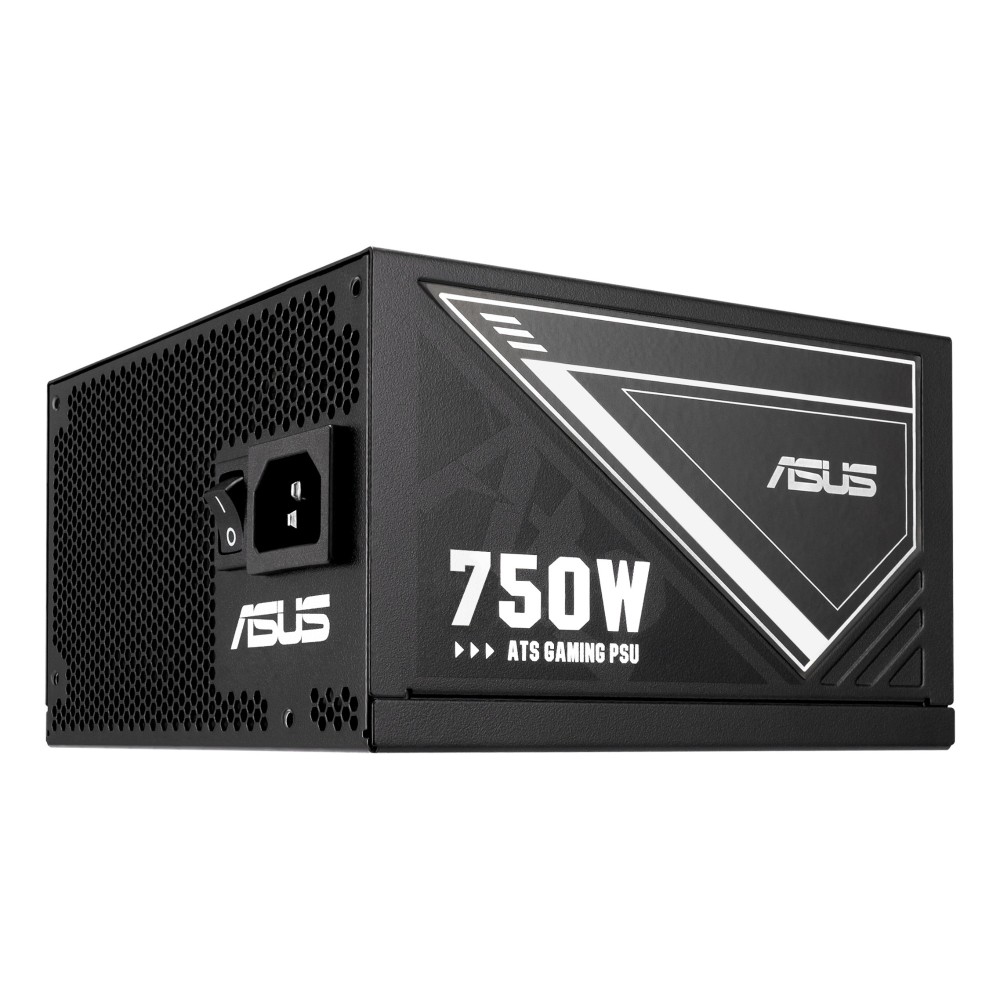

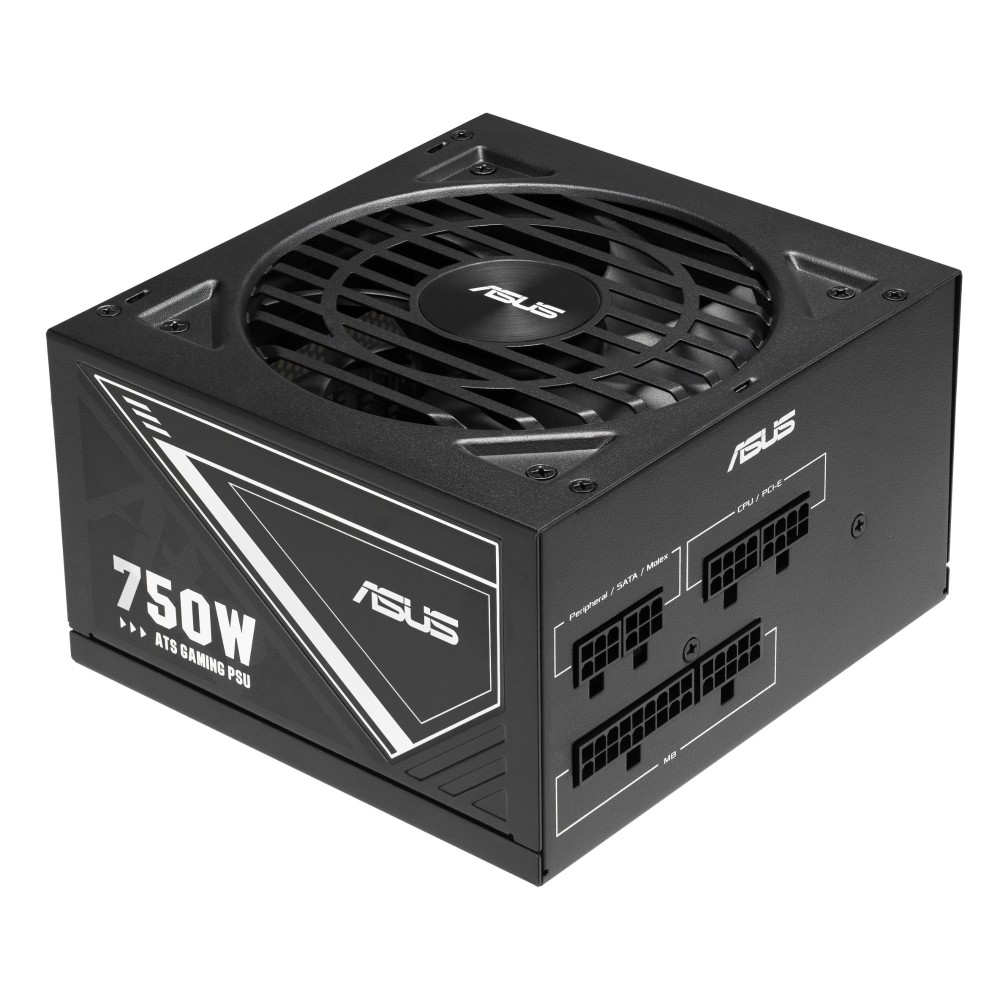

ASUS ATS-750G 750W ATX Power Supply
£63.83 inc VAT
In stock
In stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item
- 750W ATX Power Supply for PC builds
- 80 PLUS Gold certification for up to 92% efficiency
- Active cooling with a single ball bearing fan for extended lifespan
- Fully-modular cabling for easy installation and management
- Comprehensive power protection features including Over Current, Over Voltage, and Short Circuit
- Includes AC, PCIe, and SATA cables for immediate setup
- Compact design measuring 150mm x 140mm x 86mm
Payment Methods:
You may also like

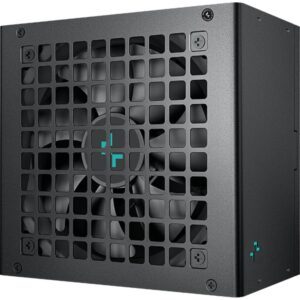

DeepCool PF700 700W ATX Power Supply
In stock
ASUS ATS-750G – Reliable Power Delivery for Modern Builds
The ASUS ATS-750G power supply unit 750 W 20+4 pin ATX ATX Black offers stable and efficient power for both everyday PCs and demanding gaming systems. We developed this PSU to provide consistent performance and peace of mind for your build. It delivers up to 92% efficiency, reducing heat and noise.
Core Power Specifications
| Metric | Spec. |
|---|---|
| Total Power | 750 W |
| 80 PLUS Certification | Gold |
| Cooling Type | Active |
| Motherboard Connector | 20+4 pin ATX |
| Cabling Type | Fully-Modular |
Efficient Operation for Cooler Performance
We chose efficient, low-ESR capacitors for the PSU’s design. This ensures it operates effectively, achieving an 80 PLUS Gold rating. This efficiency means less wasted energy, lower heat generation, and quieter fan operation within your system.

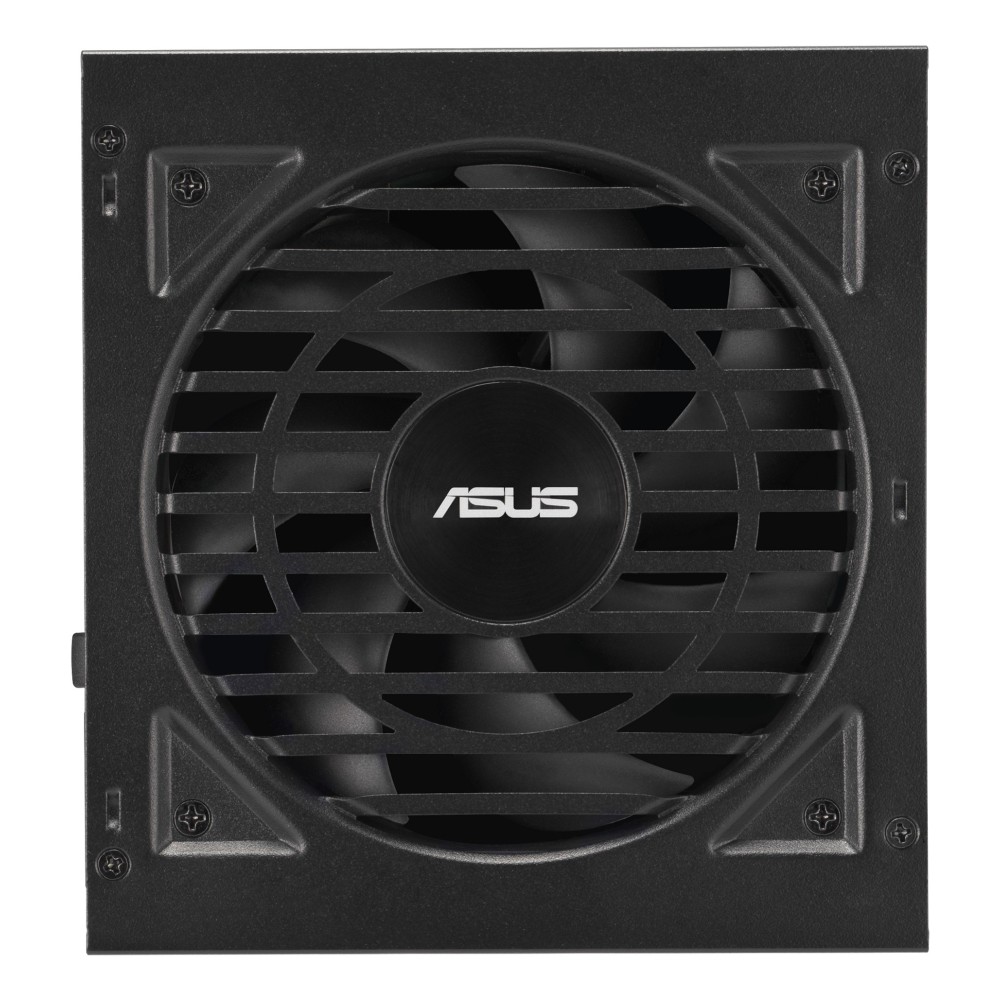

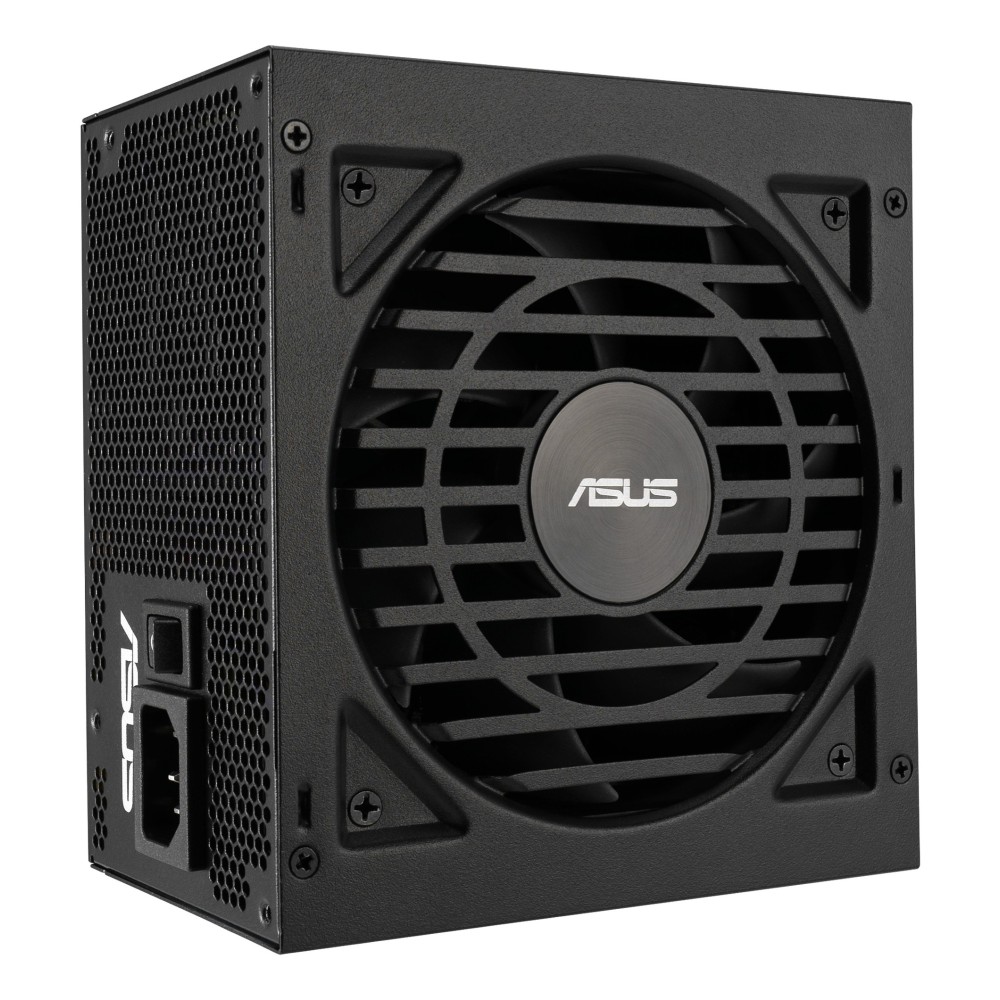

Robust Cooling with Dual Ball Bearings
The integrated fan uses dual ball bearings for enhanced durability. These bearings offer a significantly longer lifespan compared to sleeve bearings. This design choice contributes to consistent and reliable cooling performance over many years.

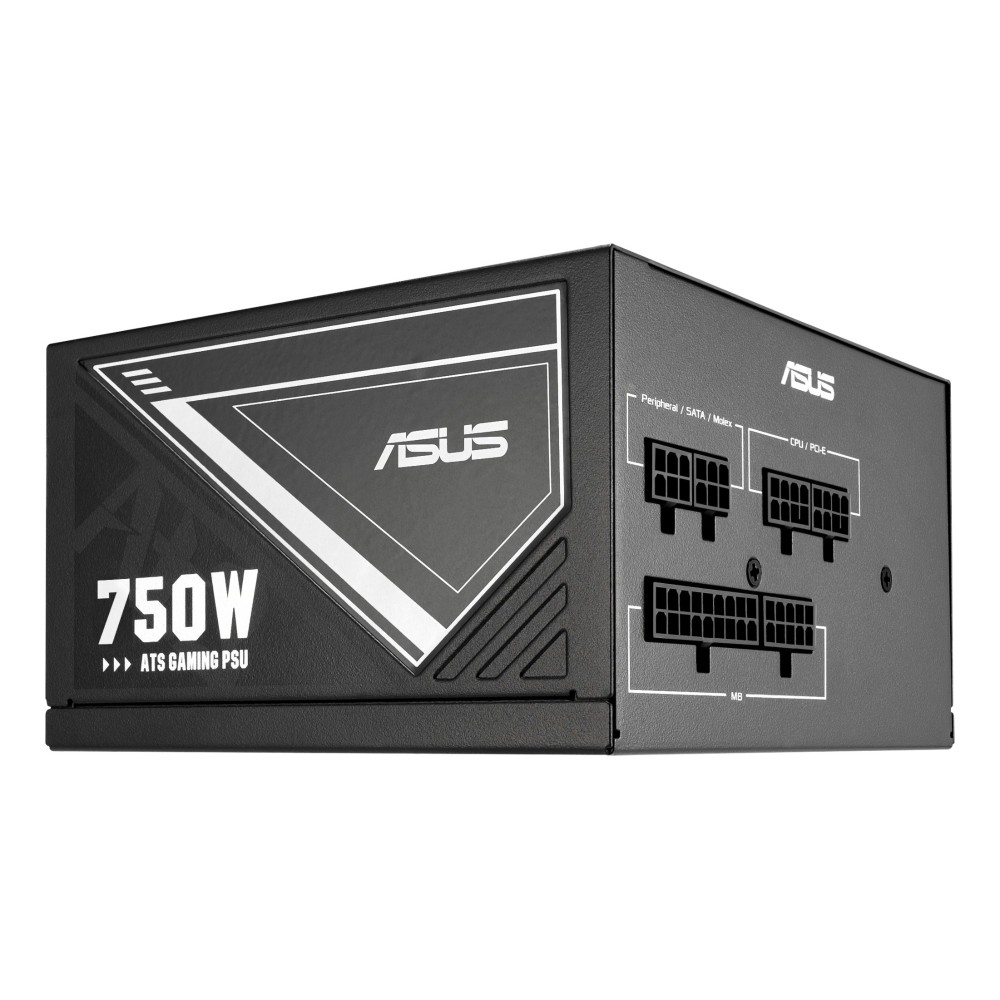

Flexible and Safe Cable Management
Our etched cables are made from a pliable, premium material. This makes them easy to route and manage within your chassis. They also meet strict safety standards, including the UL1581 flame test, ensuring a secure and tidy PC build.
Streamlined CPU Power Connections
The CPU power cable features a unique clip and distinct colour coding. This design simplifies identification and installation of the 4+4 pin connectors. It ensures a secure and confident connection to your motherboard’s CPU power input.
What you receive
- Power Cord x 1
- Motherboard Power Cable x 1 (550mm)
- CPU 1-to-2 Cable x 1 (650+100mm)
- PCI-E 1-to-2 Cable x 1 (675+100mm)
- SATA 1-to-3 Cable x 1 (400+120+120mm)
- Peripheral 1-to-3 Cable x 3 (400+120+120mm)
- Chassis Screws Package x 1
- Quick Start Guide x 1
Before you order
- Confirm your PC case has adequate space for a 150mm x 140mm x 86mm ATX PSU.
- Confirm your motherboard requires a 20+4 pin ATX power connector.
- Confirm your system components require a 750W power supply.
Frequently Asked Questions
Q: What 80 PLUS certification does this PSU have?
A: It has an 80 PLUS Gold certification, indicating high power efficiency.

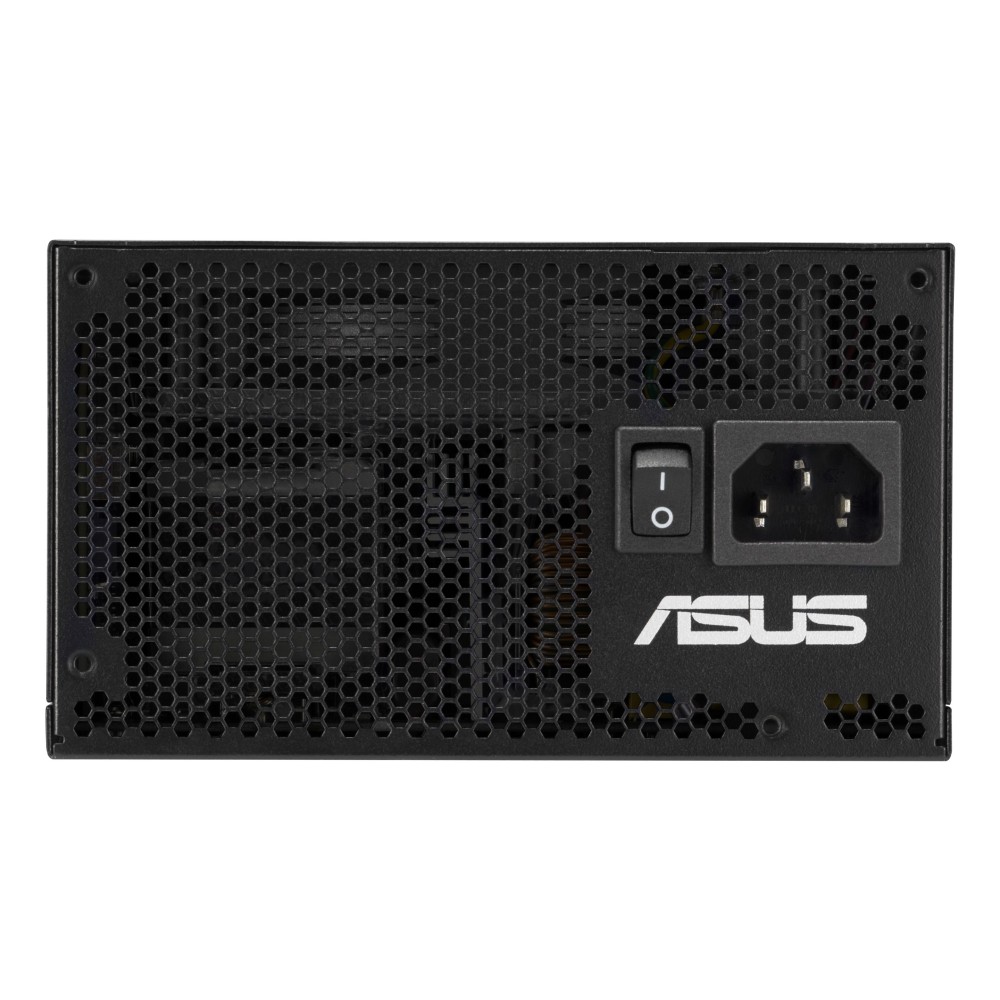

Q: Does this power supply have an On/Off switch?
A: Yes, an On/Off switch is included for convenience.
Q: What type of fan bearing is used?
A: It uses a durable dual ball bearing fan for extended lifespan.
Q: Are the cables fully modular?
A: Yes, this power supply features fully-modular cabling.
Q: What is the MTBF (Mean Time Between Failures) for this unit?
A: The MTBF is 120,000 hours, indicating high reliability.
The Hardvance Verdict
The ASUS ATS-750G power supply unit 750 W 20+4 pin ATX ATX Black is an excellent choice for users building or upgrading a PC. Its 80 PLUS Gold efficiency, robust cooling, and flexible cabling provide a solid foundation. We back this PSU with a 3-year warranty for your peace of mind.
| Cooling | |
|---|---|
| Number of fans | 1 fan(s) |
| Cooling type | Active |
| Performance | |
| On/off switch | Yes |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC |
| Mean time between failures (MTBF) | 120000 h |
| Bearing technology | Ball bearing |
| Design | |
| 80 PLUS certification | 80 PLUS Gold |
| Product colour | Black |
| On/off switch | Yes |
| Number of fans | 1 fan(s) |
| Cooling type | Active |
| Power | |
| Total power | 750 W |
| AC input voltage | 110 - 240 V |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 750 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 62.5 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Efficiency | 92% |
| Ports & interfaces | |
| Motherboard power cable length | 55 cm |
| PCI Express power cable length | 67.5 cm |
| CPU power cable length | 65 cm |

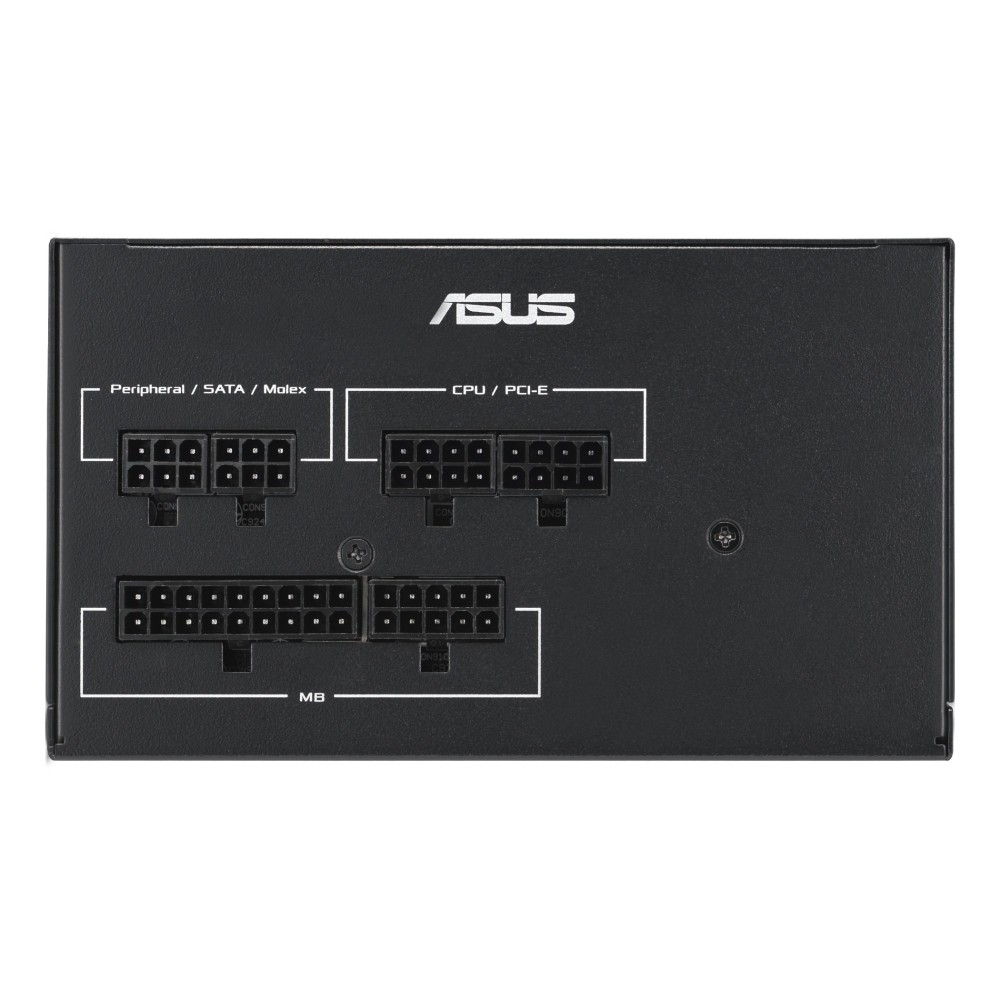

| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 3 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| PCI Express power connectors (6+2 pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| ATX power connector (20+4 pin) | Yes |
| Cabling type | Fully-Modular |
| Certificates | |
| Compliance certificates | RoHS |
| 80 PLUS certification | 80 PLUS Gold |
| Packaging content | |
| Cables included | AC, PCIe, SATA |
| Packaging content | Power Cord x 1 Motherboard Power Cable x 1 (550mm) CPU 1-to-2 Cable x 1 (650+100mm) PCI-E 1-to-2 Cable x 1 (675+100mm) SATA 1-to-3 Cable x 1 (400+120+120mm) Peripheral 1-to-3 Cable x 3 (400+120+120mm) Chassis Screws Package x 1 Quick Start Guide x 1 |
| Weight & dimensions | |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Weight | 1.53 kg |
| Packaging data | |
| Cables included | AC, PCIe, SATA |
| Package depth | 180 mm |
| Package width | 250 mm |
| Package height | 115 mm |
| Package type | Box |
| Package weight | 2.78 kg |
| Technical details | |
| Compliance certificates | RoHS |
| Identifiers | |
| Distributor SKUs | 612820, CL90YE04A1-B0NC00 |
