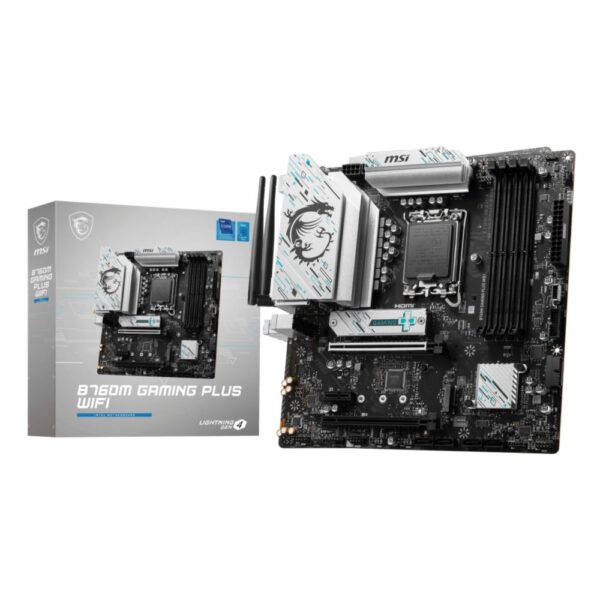

MSI B760M Gaming Plus WiFi Motherboard
£135.86 inc VAT
In stock
In stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item
- Intel B760 chipset for LGA 1700 socket
- micro ATX form factor for compact builds
- DDR5 memory support up to 192 GB
- HDMI 2.1 and DisplayPort 1.4 video outputs
- 2.5 Gigabit Ethernet and Wi-Fi 6E connectivity
Payment Methods:
You may also like
MSI B760M GAMING PLUS WIFI | Intel B760 Micro ATX Gaming Motherboard
The MSI B760M GAMING PLUS WIFI motherboard Intel B760 LGA 1700 micro ATX delivers robust performance for Intel-based gaming builds. Built around the Intel B760 chipset, it supports the latest DDR5 memory and offers comprehensive connectivity including Wi-Fi 6E and 2.5Gb Ethernet. This micro ATX board balances feature-rich design with compact form factor, making it ideal for gamers who want expandable performance without excessive size.
Key Specifications
| Metric | Spec |
|---|---|
| Processor Socket | LGA 1700 |
| Memory Support | DDR5, up to 6800MHz |
| Form Factor | micro ATX |
| Expansion Slots | PCIe 5.0 x16, PCIe 3.0 x1 (2) |
| Wi-Fi Standard | Wi-Fi 6E (802.11ax) |
Lightning Gen 4 PCIe Performance
The PCIe 5.0 x16 slot delivers double the bandwidth of previous generations, reaching up to 64GB/s. This means your graphics card can operate at peak efficiency without bottlenecks. Whether you’re gaming at high resolutions or working with demanding creative applications, the increased data throughput ensures smooth performance under load.
Comprehensive DDR5 Memory Support
With four DIMM slots supporting DDR5-SDRAM up to 6800MHz, this motherboard offers substantial memory bandwidth for modern applications. The dual-channel architecture and support for up to 192GB of RAM provides headroom for intensive multitasking and future upgrades. Non-ECC memory keeps costs manageable while maintaining stability for gaming and general use.
Advanced Connectivity Options
Beyond standard ports, this board includes Wi-Fi 6E for the latest wireless performance and 2.5Gb Ethernet for reliable wired connections. The Realtek ALC897 audio codec delivers 7.1 channel sound, while multiple M.2 slots and four SATA III ports provide flexible storage options. USB 3.2 Gen 2 and Gen 1 ports ensure fast data transfer for peripherals.
Box Contents
- MSI B760M GAMING PLUS WIFI motherboard
- I/O shield
- User manual
- Driver/software disc
- SATA cables
- M.2 screws
- Wi-Fi antenna
Check before you buy
- Confirm your CPU is LGA 1700 compatible (Intel 12th/13th Gen)
- Verify your case supports micro ATX dimensions (243.8 x 243.8mm)
- Check your PSU has a 24-pin ATX connector
- Ensure your CPU cooler fits the LGA 1700 socket
Buyer FAQs
What processors work with this motherboard?
Does it support DDR4 memory?
How many M.2 drives can I install?
Is Wi-Fi included or do I need an adapter?
What’s the maximum RAM capacity?
The bottom line
The MSI B760M GAMING PLUS WIFI motherboard Intel B760 LGA 1700 micro ATX suits gamers and PC builders seeking a balanced micro ATX platform with modern features. Its DDR5 support, Wi-Fi 6E connectivity, and PCIe 5.0 slot provide excellent foundation for current and near-future builds. Covered by the applicable manufacturer warranty, this board delivers reliable performance without excessive complexity.
| Processor manufacturer | Intel |
|---|---|
| Compatible processor series | Intel® Celeron®, Intel® Pentium® Gold |
| Maximum number of SMP processors | 1 |
| Processor socket | LGA 1700 |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800 MHz |
| Maximum internal memory | 192 GB |
| Supported memory clock speed max | 6800 MHz |
| ECC сompatibility | Non-ECC |
| RAID levels | 1, 5, 10 |
| RAID support | Yes |
| USB 3.2 Gen 2 3.1 Gen 2 connectors | 1 |
| Front panel connector | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 4 |
| USB 3.2 Gen 1 3.1 Gen 1 connectors | 4 |
| TPM connector | Yes |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| CPU fan connector | Yes |
| ATX Power connector 24-pin | Yes |
| RGB LED pin header | Yes |
| USB 3.2 Gen 1 3.1 Gen 1 Type-A ports quantity | 2 |
| USB 3.2 Gen 2 3.1 Gen 2 Type-A ports quantity | 2 |
| DisplayPort version | 1.4 |
| USB 2.0 ports quantity | 2 |
| HDMI ports quantity | 2 |
| Ethernet LAN RJ-45 ports | 1 |
| DisplayPorts quantity | 2 |
| Wi-Fi standards | 802.11a, 802.11ad, 802.11b, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Bluetooth version | 5.3 |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Motherboard chipset family | Intel |
| Supported processor sockets | LGA 1700 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Audio chip | Realtek ALC897 |
| PCI Express x1 Gen 3.x slots | 2 |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| BIOS memory size | 256 Mbit |
| ACPI version | 6.4 |
| System Management BIOS SMBIOS version | 3.5 |
| Power source type | ATX |
| Windows operating systems supported | Windows 10, Windows 11 |
| Width | 243.8 mm |
| Depth | 243.8 mm |
| Distributor SKUs | 10429346, 124369, 4711377154017, 7D99-017R, 504050, STD10215883 |
