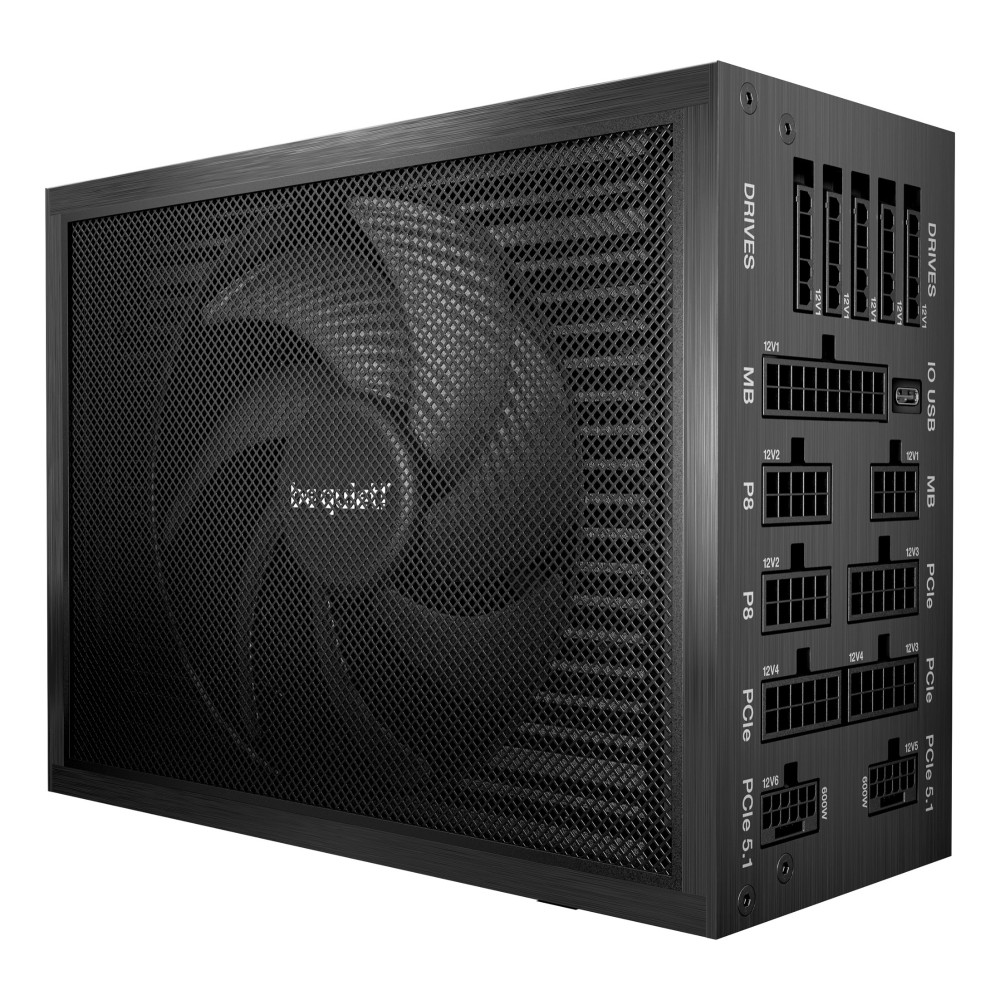

be quiet! Dark Power Pro 14 IO 1600W 80 PLUS Titanium Fully Modular ATX Power Supply – Black
£467.68
Out of stock
Out of stock
-
DPD tracked delivery
-
Buy now, pay later with Klarna
-
Pay in 3 instalments with PayPal
About This Item
- 1600W continuous output power with 80 PLUS Titanium and Cybenetics Titanium certified efficiency
- ATX 3.1 and EPS 2.92 compatibility in a standard fully modular ATX form factor
- 135mm Fluid Dynamic Bearing (FDB) active cooling fan configurable via be quiet! IO Center software
- Six high-power +12V rails delivering up to 1600W combined power

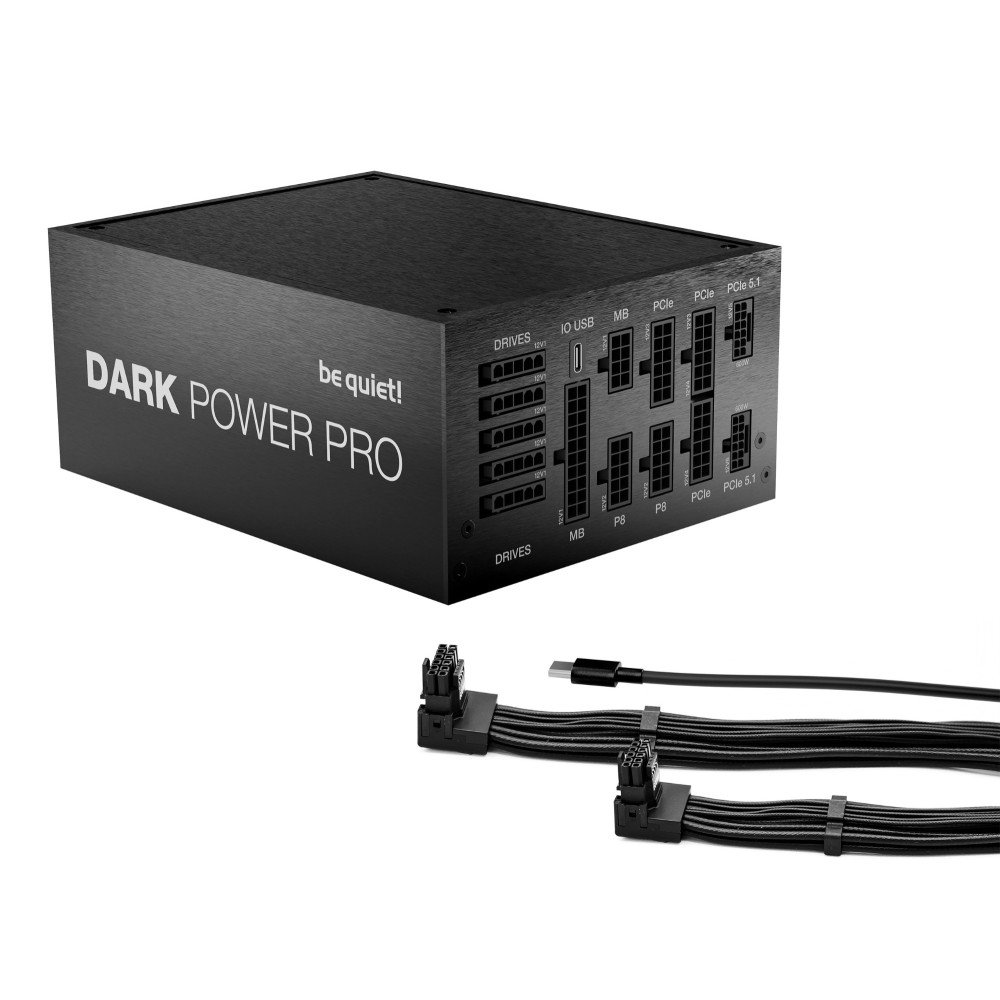

- Extensive connectivity featuring dual 12-pin PCIe, six 6+2-pin PCIe, and 16 SATA connectors
- Comprehensive safety protections including OCP, OVP, OPP, OTP, SCP, UVP, SIP, and a 10-year warranty
Available alternatives
You may also like
be quiet! Dark Power Pro 14 IO – Uncompromising 1600W Titanium Power
We recommend the be quiet! Dark Power Pro 14 IO 1600W 80 PLUS Titanium Fully Modular ATX Power Supply – Black for high-end workstations and extreme multi-GPU gaming rigs. It delivers massive power with certified 80 PLUS Titanium electrical efficiency. Because of its ATX 3.1 architecture, it handles severe transient load spikes with ease.
Core Technical Figures
| Metric | Spec. |
|---|---|
| Continuous Output | 1600 W (1700 W Peak) |
| Efficiency Rating | 80 PLUS Titanium (Up to 93.4%) |
| Form Factor & Standard | ATX 3.1 / EPS 2.92 |
| Cooling Fan | 135 mm FDB (0 – 2600 RPM) |
| Chassis Dimensions | 200 mm x 150 mm x 86 mm |
| Cabling Type | Fully Modular |
Deploying the be quiet! Dark Power Pro 14 IO 1600W 80 PLUS Titanium Fully Modular ATX Power Supply – Black for Heavy Computing
This unit supplies 1600W of continuous wattage across six dedicated 12V rails. Consequently, it easily runs flagship processors alongside multiple high-tier graphics cards. In practice, you gain rock-solid voltage regulation under sustained rendering or compute tasks.
ATX 3.1 Compliance and Native PCIe Power Delivery
Modern GPUs demand robust transient response. This power supply integrates native 12-pin PCIe connectors alongside traditional 6+2-pin cables. Therefore, your workstation remains stable even during sudden graphics power spikes.

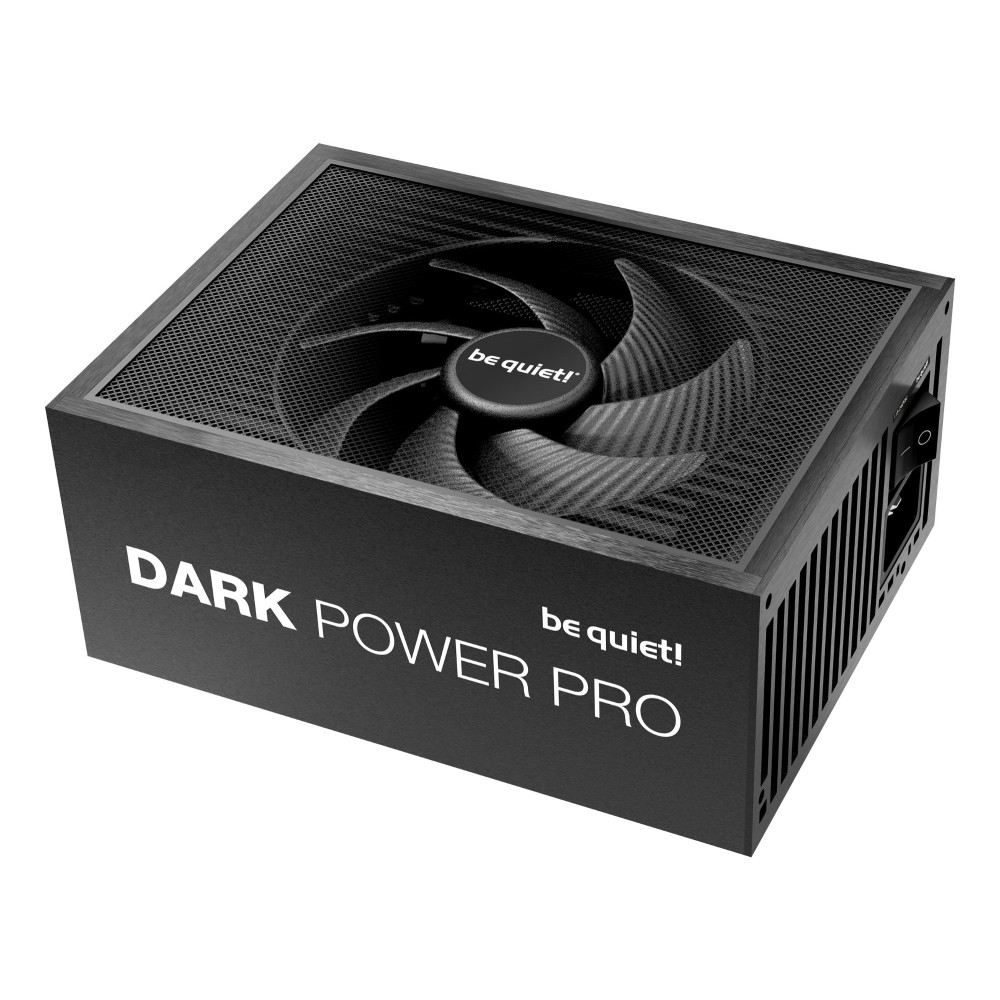

Silent Wings Cooling with Digital Fan Control

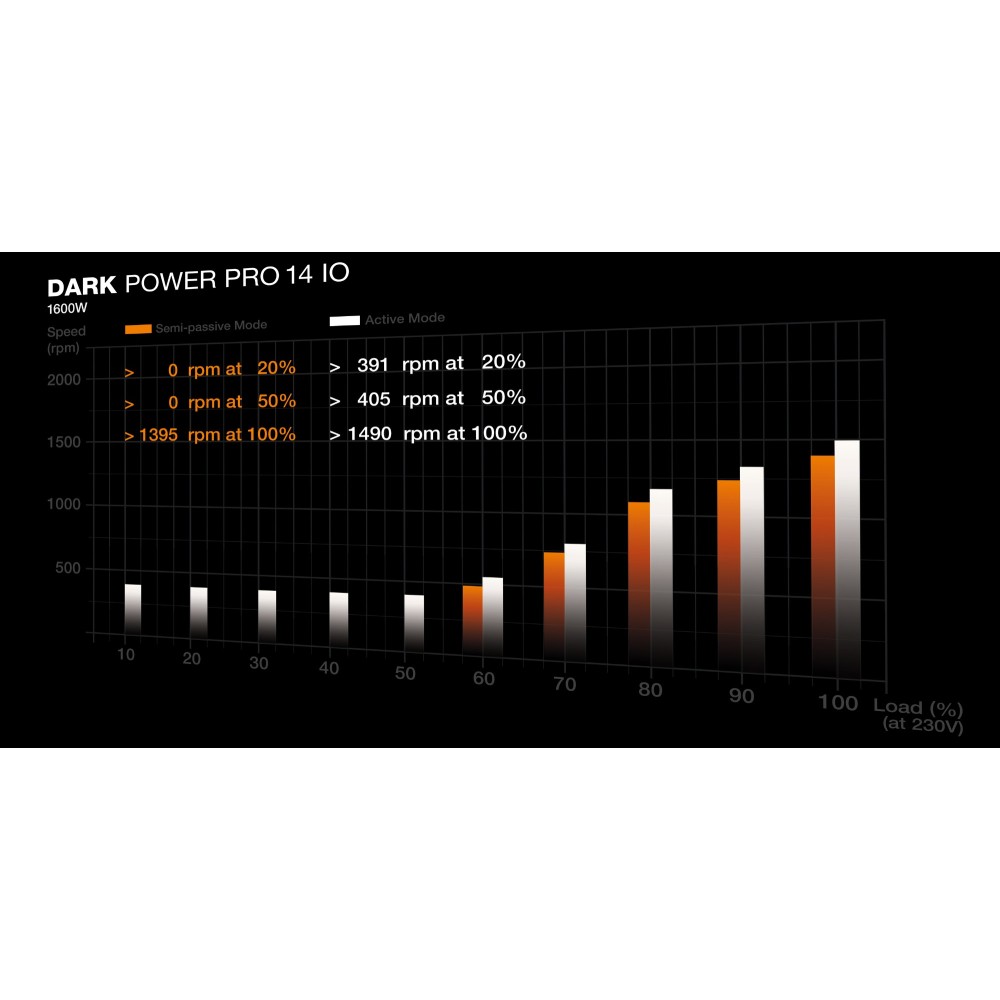

Thermal management uses an internal 135 mm Fluid Dynamic Bearing fan. You can adjust the fan curve directly through the be quiet! IO Center software. As a result, the unit stays virtually inaudible at low loads and tops out at 29.1 dB.
Full Component Protection and Modular Cable Management
Fully modular cables make clean routing simple. You only attach the exact cables your build requires. Furthermore, a comprehensive protection suite guards your hardware against overcurrent, overvoltage, and power surges.

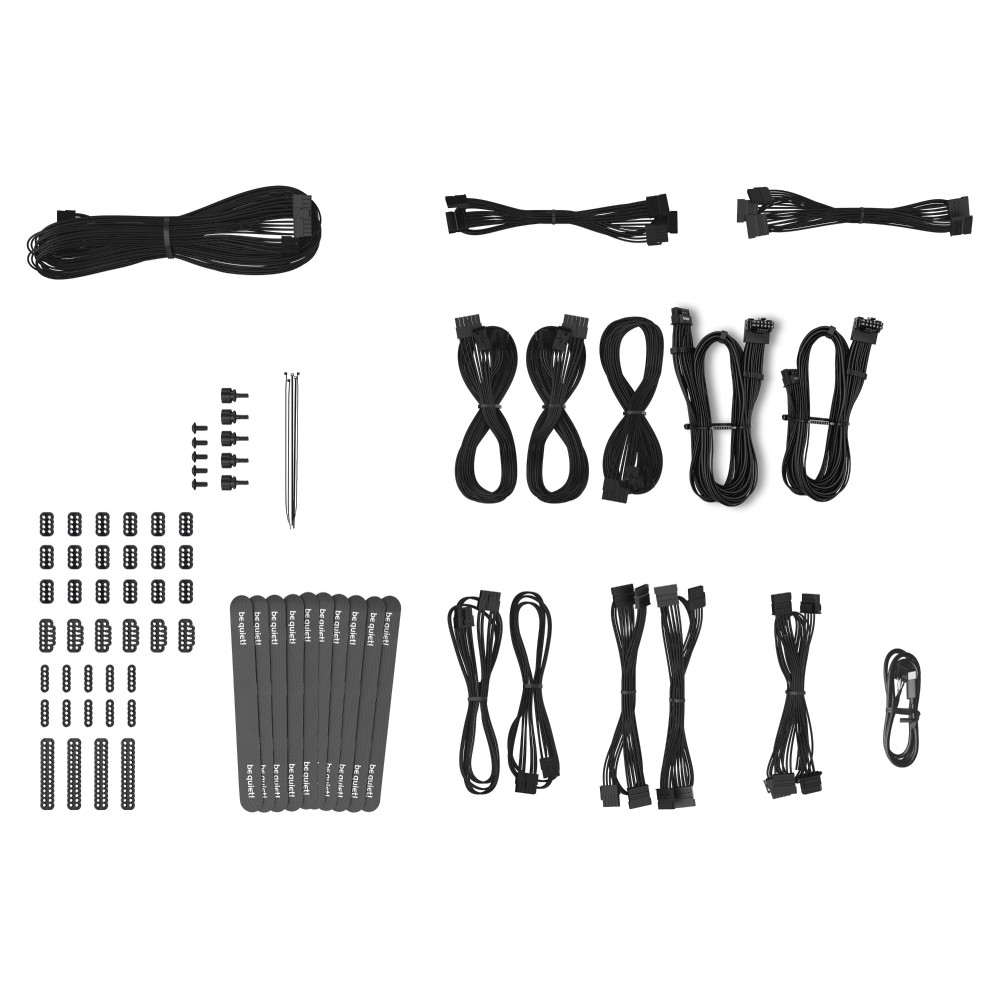

Package Contents
- Power supply unit
- Complete modular cable pack
- 0.8 m USB connection cable
- Fastening screws and cable ties
- User manual
Pre-Purchase Compatibility Checks
- Confirm your PC case has 200 mm of depth plus clearance for modular cables.
- Confirm your graphics cards match the provided PCIe 12-pin or 6+2-pin connections.
- Confirm your motherboard requires standard 20+4 pin ATX and EPS power.
- Confirm you have an available internal USB header for software control.
Frequently Asked Questions
Q: Does this unit support ATX 3.1 standards?
A: Yes, it fully meets ATX 3.1 specifications to handle high transient power excursions safely.
Q: Can I adjust the cooling fan behaviour?
A: Yes, you can configure fan profiles using the be quiet! IO Center software via the included USB cable.
Q: How many SATA devices can I connect?
A: You can connect up to 16 SATA storage drives and accessories across five modular cables.
Q: What is the maximum acoustic output?
A: The integrated 135 mm fan reaches a maximum sound level of 29.1 dB under full load.
Hardware Specialist Assessment
We view this power supply as an exceptional choice for workstation creators and extreme overclockers. It offers class-leading Titanium efficiency, immense 1600W output, and complete ATX 3.1 readiness. This product includes a 10-year warranty for lasting peace of mind.
| Cooling | |
|---|---|
| Fan diameter | 13.5 cm |
| Number of fans | 1 fan(s) |
| Fan speed | 0 - 2600 RPM |
| Cooling type | Active |
| Performance | |
| On/off switch | Yes |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Titanium |
| Purpose | PC |
| ATX version | 3.1 |
| EPS version | 2.92 |
| Noise level | 29.1 dB |
| Mean time between failures (MTBF) | 100000 h |
| Bearing technology | FDB |
| Cybenetics certification | Titanium |
| Design | |
| 80 PLUS certification | 80 PLUS Titanium |
| Product colour | Black |
| Fan diameter | 13.5 cm |
| On/off switch | Yes |
| Number of fans | 1 fan(s) |
| Illumination | No |
| Fan speed | 0 - 2600 RPM |
| Cooling type | Active |
| On/off fan switch | Yes |
| Power | |
| Total power | 1600 W |
| Maximum input current (@220V) | 9 A |
| Peak power | 1700 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power factor | 0.98 |
| Power Factor Correction (PFC) type | Active |
| Maximum input current (@110V) | 15 A |
| Combined power (+3.3V) | 150 W |
| Combined power (+12V) | 1600 W |
| Combined power (+5V) | 150 W |
| Combined power (-12V) | 6 W |
| Combined power (+5Vsb) | 17.5 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V1) | 40 A |
| Max output current (+12V2) | 40 A |
| Max output current (+12V4) | 45 A |
| Max output current (+12V3) | 45 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 3.5 A |
| Power protection features | Over current, Over voltage, Overheating, Short circuit, Surge & inrush protection (SIP), Under voltage, Over power |
| Hold time | 14.5 ms |
| Efficiency | 93.4% |
| Number of +12V rail(s) | 6 |
| Ports & interfaces | |

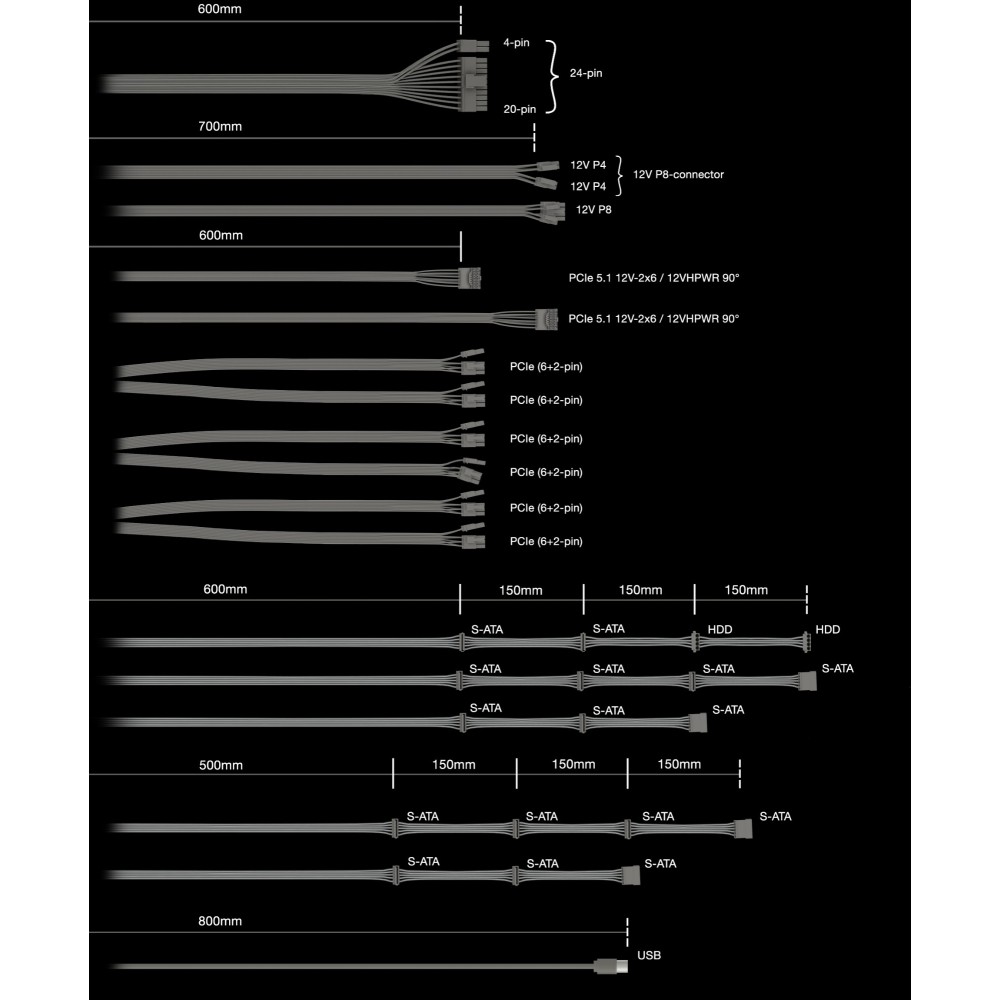

| Motherboard power cable length | 60 cm |
| SATA power cable length | 600,750,900,1050 mm |
| Peripheral (Molex) power cable length | 900,1050 mm |
| PCI Express power cable length | 60 cm |
| CPU power cable length | 70 cm |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 16 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| EPS power connector (8-pin) | Yes |
| PCI Express power connectors (6+2 pin) | 6 |
| CPU power connector (4+4 pin) | Yes |
| PCI Express connector | Yes |
| ATX power connector (20+4 pin) | Yes |
| Cabling type | Fully-Modular |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (12-pin) | 2 |
| Number of SATA power cables | 5 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Technical details | |
| Shipping (inner) case width | 32.5 cm |
| Shipping (inner) case net weight | 15.2 kg |
| Shipping (inner) case length | 44 cm |
| Shipping (inner) case height | 28.3 cm |
| Products per shipping (inner) case | 2 pc(s) |
| Warranty period | 10 year(s) |
| Compliance certificates | CB, Federal Communications Commission (FCC), RoHS, TÜV mark, UKCA, WEEE, cTUVus, BSMI, CCC, CE, RCM |
| Certificates | |
| Compliance certificates | CB, Federal Communications Commission (FCC), RoHS, TÜV mark, UKCA, WEEE, cTUVus, BSMI, CCC, CE, RCM |
| 80 PLUS certification | 80 PLUS Titanium |
| Packaging content | |
| Cable tie(s) included | Yes |
| USB cable length | 0.8 m |
| Screws included | Yes |
| Cable ties included | Yes |
| Manual | Yes |
| Weight & dimensions | |
| Width | 150 mm |
| Depth | 200 mm |
| Height | 86 mm |
| Weight | 2.63 kg |
| Packaging data | |
| Screws included | Yes |
| Cable ties included | Yes |
| Package depth | 417 mm |
| Package width | 253 mm |
| Package height | 152 mm |
| Package weight | 6.68 kg |
| Manual | Yes |
| Manual languages | Simplified Chinese, German, English, Spanish, French, Italian, Japanese, Polish, Russian, Thai |
| Logistics data | |
| Shipping (inner) case width | 32.5 cm |
| Shipping (inner) case net weight | 15.2 kg |
| Shipping (inner) case length | 44 cm |
| Shipping (inner) case height | 28.3 cm |
| Products per shipping (inner) case | 2 pc(s) |
| Warranty period | 10 year(s) |
| Other features | |
| Screws included | Yes |
| Cable ties included | Yes |
| Manual | Yes |
