be quiet! Silent Wings 4 140mm Fan
£20.36 inc VAT
In stock
In stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item
- 140mm PWM fan for computer cases
- Fluid Dynamic Bearing for quiet operation
- Maximum airflow 51.3 CFM at 1100 RPM
- Noise level 13.6 dB at high speed
- 4-pin connector with PWM support
- Black design with anti-vibration mountings
Payment Methods:
You may also like
Antec C120 ARGB Fan 12 cm Black 3 pcs
In stock
be quiet! Silent Wings 4 | 140mm PWM Fan
The be quiet! Silent Wings 4 | 140mm PWM Computer case Fan 14 cm Black 1 pc(s) delivers near-silent cooling with professional-grade performance for demanding PC builds. This 140mm fan combines advanced fluid dynamic bearing technology with optimised blade design to provide exceptional airflow while maintaining whisper-quite operation.
Key Specifications
| Metric | Spec |
|---|---|
| Fan Diameter | 14 cm |
| Maximum Airflow | 51.3 CFM |
| Maximum Air Pressure | 0.92 mmH2O |
| Noise Level (High Speed) | 13.6 dB |
| Bearing Type | Fluid Dynamic Bearing (FDB) |
| Connector | 4-pin PWM |
Advanced Fluid Dynamic Bearing Technology
The Silent Wings 4 features a premium Fluid Dynamic Bearing (FDB) that significantly reduces friction and wear compared to standard sleeve bearings. This technology ensures smooth, quiet operation and extends the fan’s lifespan to an impressive 300,000 hours MTBF. The bearing design also minimises vibration, contributing to the fan’s exceptionally low noise profile even at maximum speed.
PWM Control for Intelligent Cooling
Equipped with 4-pin PWM (Pulse Width Modulation) support, this fan automatically adjusts its rotational speed between 0-1100 RPM based on system temperature. This intelligent control system means the fan runs at minimal speed during light loads, producing virtually no noise, then ramps up only when your system demands maximum cooling. The 6-pole motor design ensures precise speed control and efficient power delivery across all operating speeds.
Anti-Vibration Design for Silent Operation
be quiet! has engineered this fan with anti-vibration mounting corners and optimised blade geometry to eliminate common sources of noise. The specially designed fan blades maximise airflow while minimising turbulence, and the rubberised mounting system prevents vibrations from transferring to your PC case. At just 13.6 dB under full load, this fan operates at a level comparable to a quiet library, making it ideal for noise-sensitive environments.

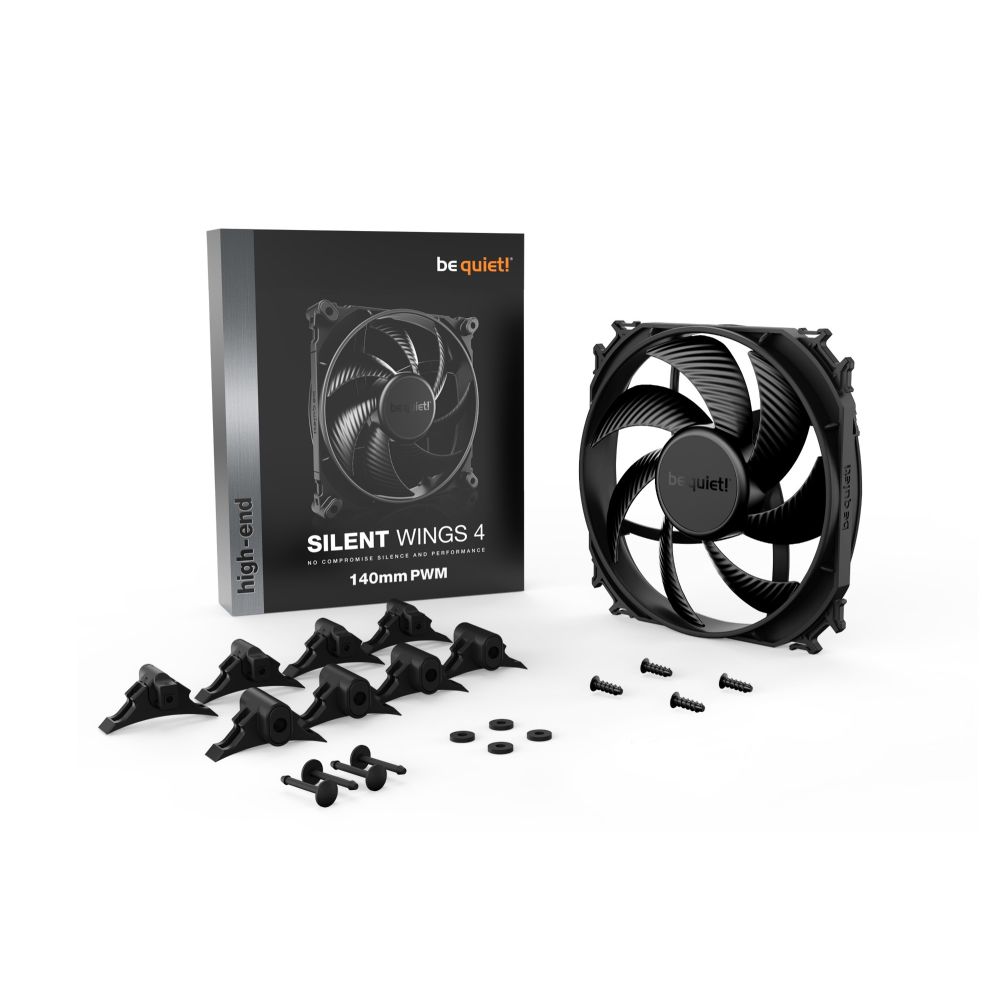

In the Box
- 1 x be quiet! Silent Wings 4 140mm PWM Fan
- 4 x Screws
- 4 x Anti-vibration mounting clips
Key Points to Check
- Confirm your case supports 140mm fan mounting
- Verify your motherboard has a 4-pin PWM header available

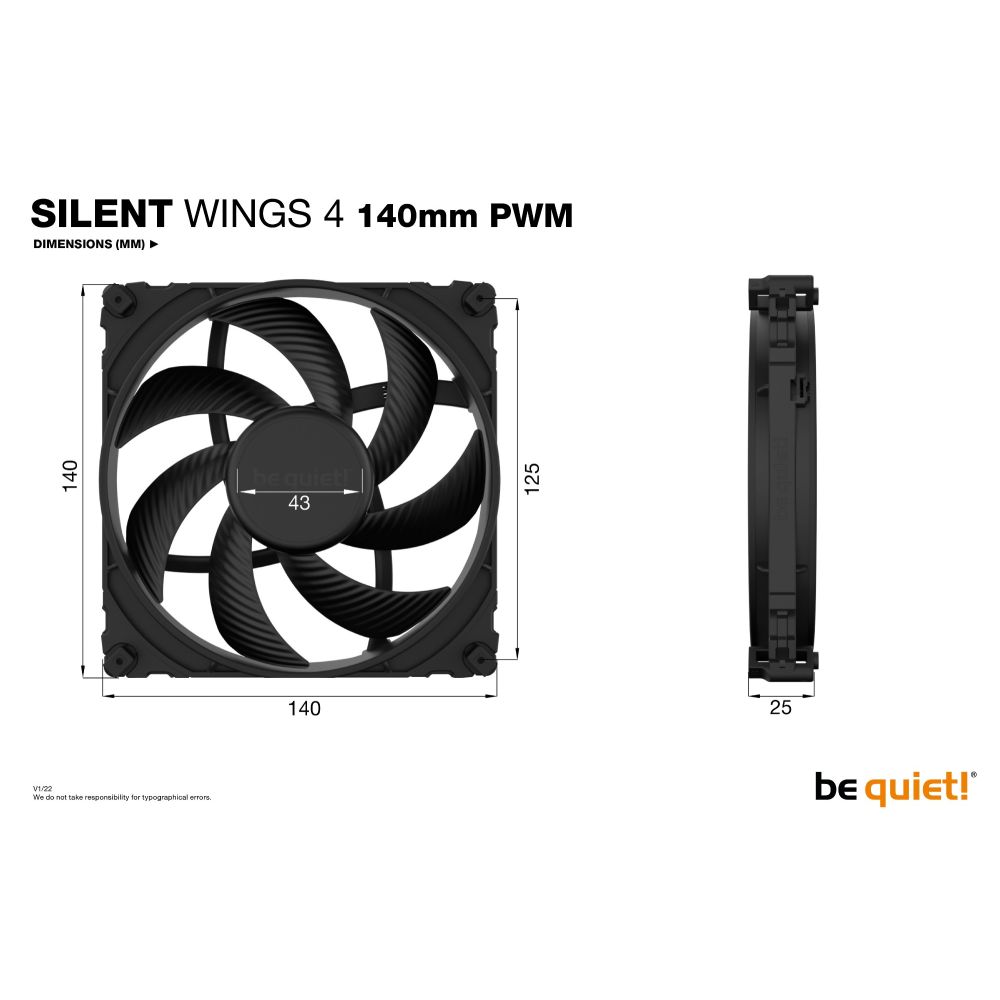

- Check clearance around the mounting area for the 140mm x 25mm dimensions
- Ensure your system can provide the 12V power requirement
Frequently Asked Questions
Is this fan compatible with all PC cases?
What’s the difference between PWM and voltage control?
How does the Fluid Dynamic Bearing compare to other bearing types?
Can I use this fan as an intake or exhaust?
What is the power consumption of this fan?
The short version
The be quiet! Silent Wings 4 140mm PWM fan represents an excellent choice for users who prioritise quiet operation without sacrificing cooling performance. Its combination of FDB technology, PWM control, and anti-vibration design makes it particularly suitable for HTPCs, home offices, and high-end gaming systems where noise reduction is essential. Covered by the applicable manufacturer warranty, this fan delivers professional-grade cooling for demanding applications.
| Weight | 0.4 kg |
|---|---|
| Certification | CE, ROHS, RU, UKCA, TÜV, WEEE |
| Suitable location | Computer case |
| Pulse-width modulation PWM support | Yes |
| Rotational speed max | 1100 RPM |
| Bearing type | Fluid Dynamic Bearing (FDB) |
| Quantity per pack | 1 pc(s) |
| Noise level high speed | 13.6 dB |
| Type | Fan |
| Fan diameter | 14 cm |
| Maximum airflow | 51.3 cfm |
| Maximum air pressure | 0.92 mmH2O |
| Airflow | 87.16 m³/h |
| Fan connector | 4-pin |
| Rated voltage | 12 V |
| Voltage | 5 – 13.2 V |
| Rated current | 0.3 A |
| Power consumption typical | 3.6 W |
| Maximum current | 0.33 A |
| Product colour | Black |
| Width | 140 mm |
| Depth | 140 mm |
| Height | 25 mm |
| Weight | 220 g |
| Cable length | 0.5 m |
| Mean time between failures MTBF | 300000 h |
| Package depth | 206.5 mm |
| Package width | 156 mm |
| Package height | 31 mm |
| Package weight | 387 g |
| Screws included | Yes |
| Number of screws | 4 |
| Number of clips | 4 |
| Country of origin | China |
| Shipping inner case width | 31.7 cm |
| Shipping inner case length | 46.3 cm |
| Shipping inner case height | 38.8 cm |
| Shipping inner case gross weight | 13.6 kg |
| Products per shipping inner case | 32 pc(s) |
| Harmonized System HS code | 84733080 |
| Distributor SKUs | FABEQ-BL096, 574221, CF18057, STD10229120, 1935689 |
