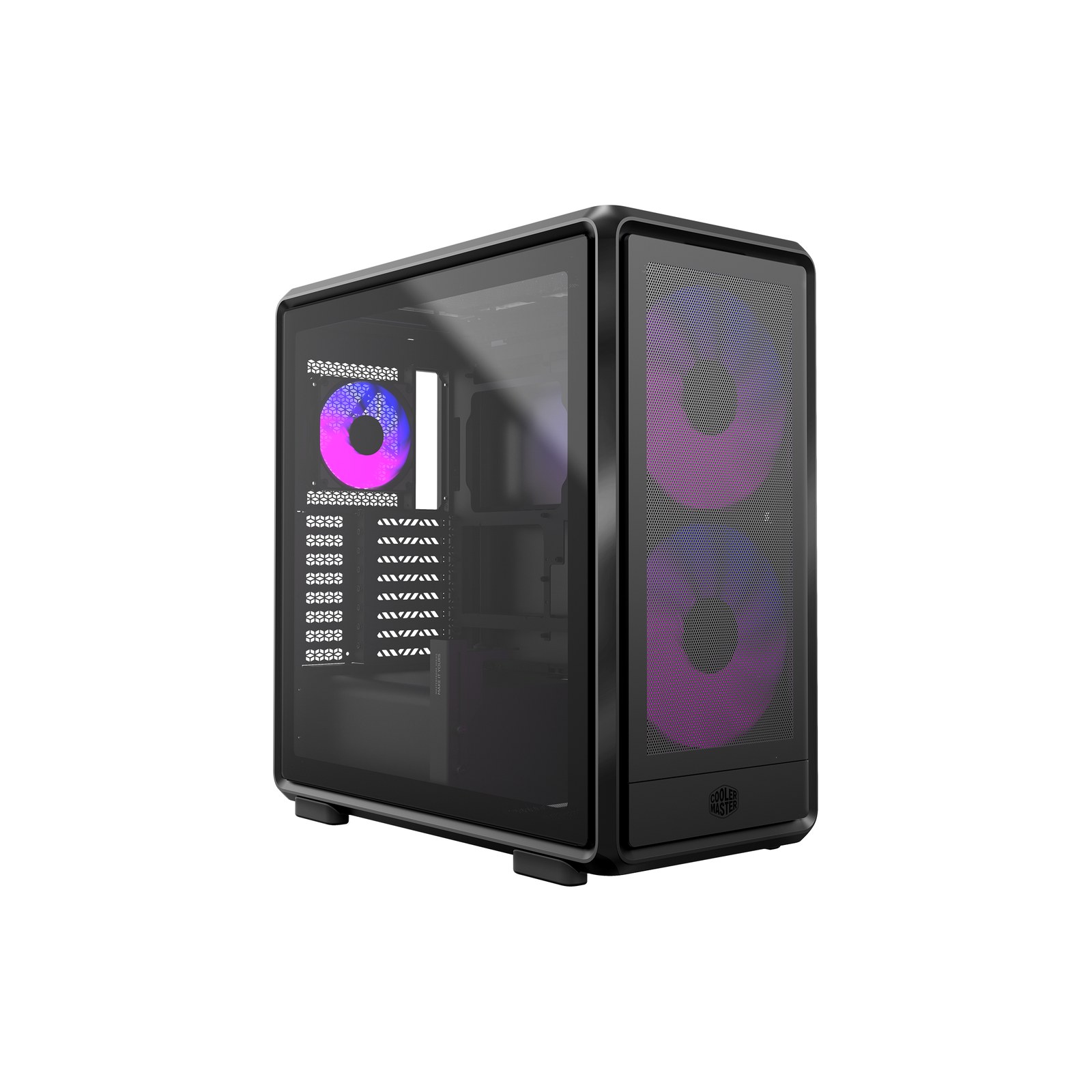

Cooler Master MasterFrame 600 Mesh ARGB Mid Tower Case, Black, 2x 200mm ARGB Fans, 420mm Radiator Support, USB-C 20Gbps
Original price was: £153.59.£145.19Current price is: £145.19.
In stock
In stock
-
DPD tracked delivery
-
Buy now, pay later with Klarna
-
Pay in 3 instalments with PayPal
About This Item
- MasterFrame 600 Mesh in black (MF600M-KGNN-S01), mid tower
- 2 x SickleFlow 200 mm ARGB front fans and 1 x 120 mm ARGB rear fan pre-installed
- Graphics cards up to 485 mm, CPU coolers up to 190 mm, ATX PSUs up to 235 mm
- Radiators up to 420 mm front, top and side
- Front USB 3.2 Gen 2×2 Type-C plus 2 x USB-A
- GPU support bracket and ARGB PWM hub included; 2-year warranty
You may also like

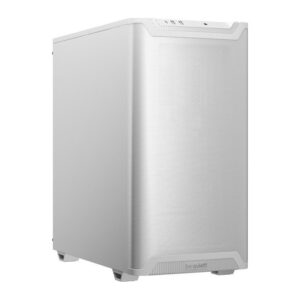

be quiet! PURE BASE 501 White Tower
In stock

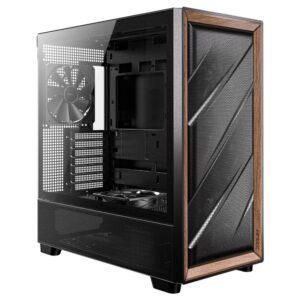

Antec FLUX Mid Tower PC Case with Tempered Glass and 5 PWM Fans
In stock

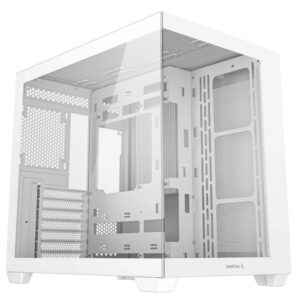

DeepCool CG530 Dual-Chamber Tempered Glass Case
In stock

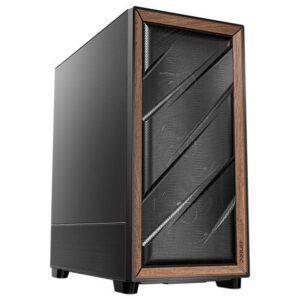

Antec FLUX SE Midi Tower Black
In stock

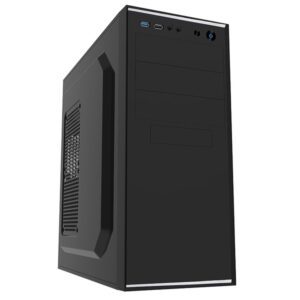

CIT Jet Stream Mid Tower Case with 500W PSU
In stock

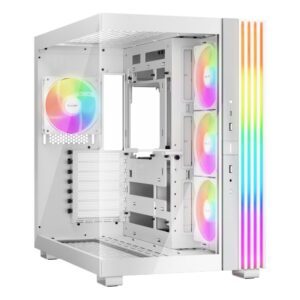

be quiet! LIGHT BASE 600 White
In stock

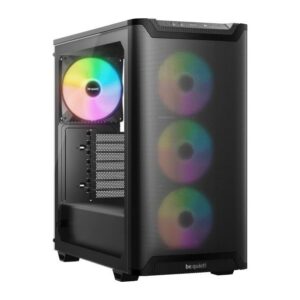

be quiet! Pure Base 501 LX Tower
In stock

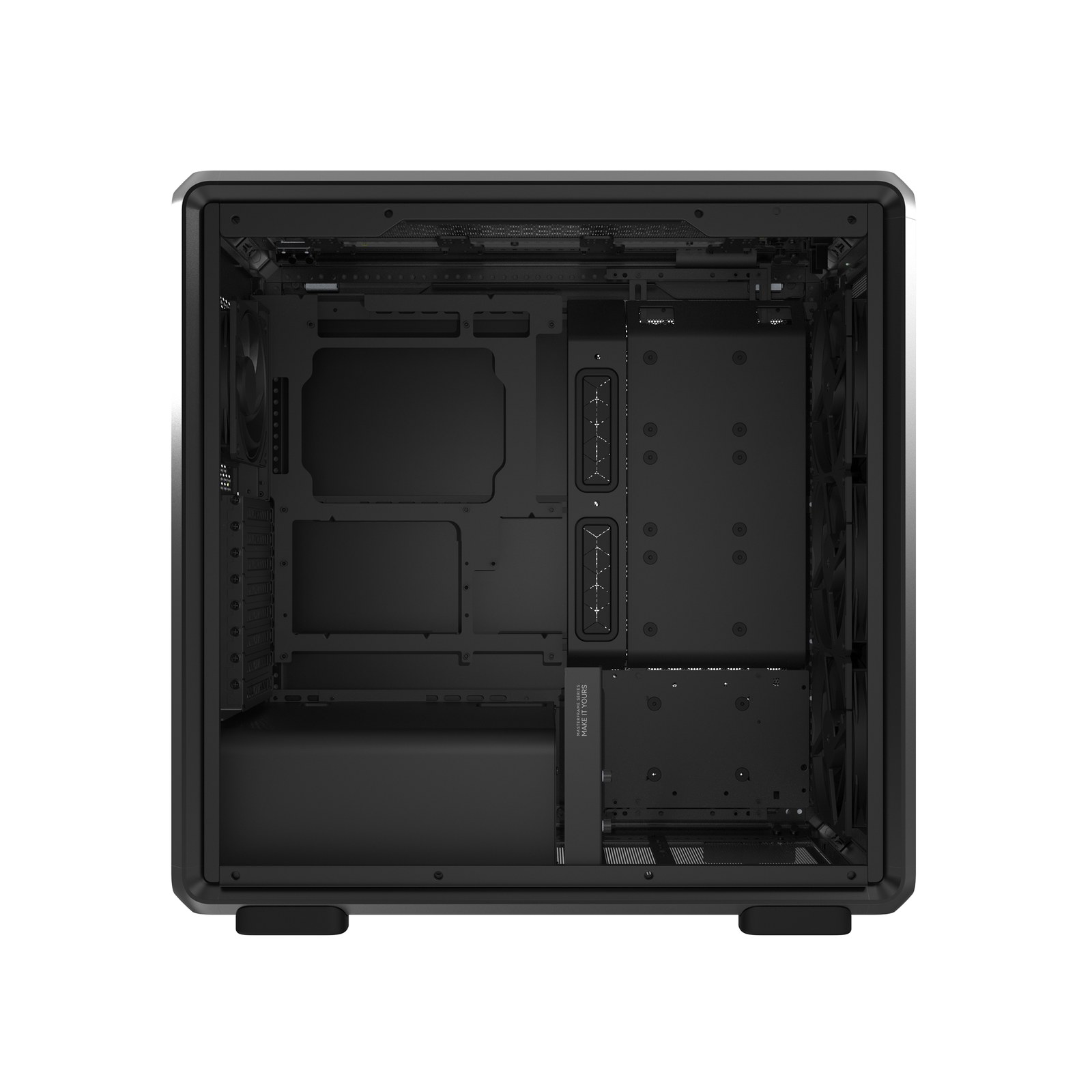

Cooler Master MasterFrame 600 Mesh — Room for the Biggest Builds
The Cooler Master MasterFrame 600 Mesh (MF600M-KGNN-S01) is the black version of Cooler Master’s larger modular mesh tower. It ships with two 200 mm SickleFlow ARGB fans at the front and a 120 mm ARGB fan at the rear, and it has room for 485 mm graphics cards and 420 mm radiators.
Core Numbers — The Specs That Matter
| Metric | Spec |
|---|---|
| Form factor | Mid Tower, 73.6 L |
| Motherboards | Mini-ITX to ATX; E-ATX and SSI-CEB conditional |
| GPU clearance | 485 mm |
| CPU cooler clearance | 190 mm |
| PSU clearance | 235 mm (ATX) |
| Fans included | 2 x 200 mm ARGB front, 1 x 120 mm ARGB rear |
| Radiators | Up to 420 mm front, top and side |
| Front I/O | 1 x USB 3.2 Gen 2×2 Type-C, 2 x USB-A, headset jack |
| Size | 531 x 261 x 544 mm |
| Warranty | 2 years |
Cooling Headroom
Two 200 mm front fans move a lot of air at low speed. Beyond that, the front, top and side each take radiators up to 420 mm (the top needs the I/O module moved to the front panel for 420 mm), so a large AIO and a custom loop are both realistic. Dust filters cover the top, front, bottom and right side panel.
Space for Large Hardware
Graphics cards up to 485 mm long and 190 mm high fit, air coolers up to 190 mm tall and ATX power supplies up to 235 mm. There are 8 expansion slots, two combo 2.5″/3.5″ bays, three 2.5″ bays and 43 mm of cable space behind the motherboard tray.
What’s in the Box
- MasterFrame 600 Mesh case with 3 fans pre-installed
- GPU support bracket
- ARGB PWM hub
Before You Order — Quick Compatibility Check
- Check your desk space: the case is 531 x 261 x 544 mm.
- Check your motherboard: E-ATX and SSI-CEB fit only conditionally.
- Power supply: not included.
Frequently Asked Questions
Q: Is this the MasterFrame 500 or 600?
A: The 600 Mesh (MF600M-KGNN-S01), the larger model with 420 mm radiator support.
Q: Does it include a power supply?
A: No, the power supply is sold separately.
Our Verdict
A big, airy mesh tower for high-end builds that need a very long graphics card or a 420 mm radiator.
| Design | |
|---|---|
| Model | MF600M-KGNN-S01 (Black) |
| Form factor | Mid Tower |
| Colour | Black |
| Exterior materials | SGCC steel, aluminium |
| Side panels | Tempered glass / aluminium |
| Dimensions (L x W x H) | 531 x 261 x 544 mm incl. protrusions |
| Volume | 73.6 L incl. protrusions |
| Compatibility | |
| Motherboard support | Mini-ITX, Mini-DTX, Micro-ATX, ATX; E-ATX and SSI-CEB conditional |
| Power supply support | ATX, up to 235 mm |
| Graphics card clearance | 485 mm long, 190 mm high (incl. power connector) |
| CPU cooler clearance | 190 mm |
| Expansion slots | 8 |
| Cable routing space | 43 mm |
| Storage | |
| 2.5"/3.5" combo bays | 2 |
| 2.5" bays | 3 |
| Front I/O | |
| USB | 2 x USB 3.2 Gen 1 Type-A, 1 x USB 3.2 Gen 2x2 Type-C |
| Audio | 1 x 3.5 mm headset jack |
| Cooling | |
| Pre-installed front fans | 2 x SickleFlow 200 ARGB |
| Pre-installed rear fan | 1 x SickleFlow 120 ARGB |
| Front fan support | 3 x 120, 3 x 140, 2 x 180 or 2 x 200 mm |
| Top fan support | 3 x 120, 2 x 140, 2 x 180 or 1 x 200 mm |
| Side fan support | 3 x 120 or 3 x 140 mm |
| Front radiator support | 120 to 420 mm |
| Top radiator support | 120 to 420 mm (420 mm with I/O module moved to the front) |
| Side radiator support | 240 / 280 / 360 / 420 mm |
| Rear radiator support | 120 mm |
| Dust filters | Top, front, bottom, right side panel |
| Packaging content | |
| Included accessories | GPU support bracket, ARGB PWM hub |
| Warranty | |
| Manufacturer warranty | 2 years |
