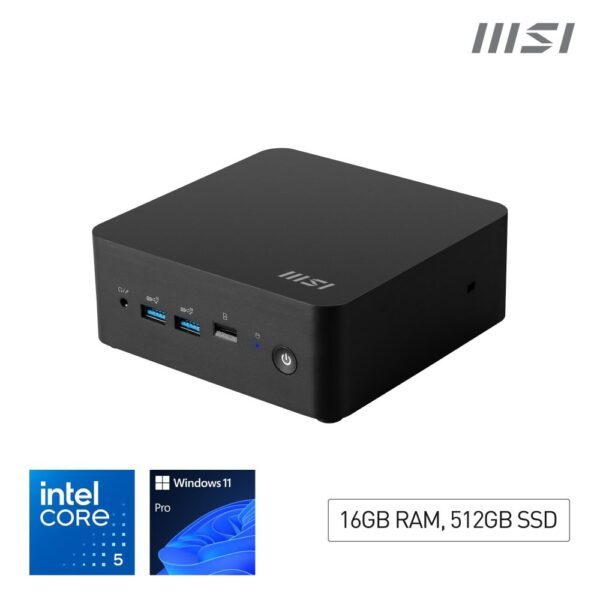

MSI Cubi NUC 1M Intel Core 5 120U Desktop PC, 16GB RAM, 512GB Storage, Win 11 Pro
£721.92 inc VAT
100 in stock
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- Intel Core 5 120U processor with 10 cores (2 Performance, 8 Efficient) and up to 5 GHz turbo frequency
- 16 GB DDR5-5200 MHz RAM (2 x 8 GB) with 2 SO-DIMM slots supporting up to 64 GB
- 512 GB NVMe M.2 SSD storage with support for three drives including 2.5-inch HDD
- Compact 0.84 L mini PC chassis with VESA mounting and Kensington lock slot
- Dual Thunderbolt 4, dual HDMI 2.1, and Wi-Fi 6E connectivity with Bluetooth 5.3
- Windows 11 Pro pre-installed with 3-year warranty and sustainability certifications
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:
You may also like
MSI Cubi NUC 1M | Compact Intel Core 5 Business Mini PC
The MSI Cubi NUC 1M Intel Core 5 120U Desktop PC, NUC, SFF, Mini Computer, HTPC, (16GB RAM, 512GB Storage, Windows 11 PRO), Intel Graphics/DDR5/Dual ThunderBolt 4/Dual HDMI/Dual… is designed for commercial offices and home-theatre setups. It offers a compact 0.84 L chassis, energy-efficient operation, and a 3-year warranty. This system suits users needing a reliable, small-form-factor desktop with modern connectivity and upgrade potential.
Slim Specifications
| Metric | Spec. |
|---|---|
| Processor | Intel Core 5 120U (10-core) |
| Memory | 16 GB DDR5-5200 (2x SO-DIMM) |
| Storage | 512 GB M.2 NVMe SSD |
| Connectivity | Wi-Fi 6E, Bluetooth 5.3, 2.5G LAN |
| Video Outputs | 2x HDMI 2.1, 2x Thunderbolt 4 |
| Dimensions | 132.5 x 135.6 x 50.1 mm (0.84 L) |
Energy-Efficient Performance for Business
The Intel Core 5 120U processor balances power and efficiency. It uses 2 performance cores and 8 efficient cores. This design delivers strong performance for office tasks while keeping power consumption low. The 15 W base power helps reduce energy costs in commercial environments.
Expansive Connectivity for Multi-Monitor Setups
This MSI Cubi NUC 1M supports quadruple-monitor configurations. It features two HDMI 2.1 ports and two Thunderbolt 4 ports with DisplayPort Alternate Mode. You can connect high-resolution displays for productivity or entertainment. The dual 2.5G Ethernet ports provide stable, high-speed networking.
Flexible Storage and Memory Upgrade Paths
The mini PC houses two M.2 slots (2280 and 2242) and supports a 2.5-inch drive. You can expand storage beyond the installed 512 GB SSD. The two SO-DIMM slots accept up to 64 GB of DDR5 memory. This future-proofs the system for demanding applications.
Compact Design with VESA Mounting
The 0.84 L chassis fits discreetly on or under a desk. It supports VESA mounting for a cleaner workspace. The plastic housing is made with Post-Consumer Recycled (PCR) materials. A Kensington lock slot adds physical security for business deployments.
Advanced Connectivity and Security
Front I/O includes a combo audio jack, two USB 10Gbps Type-A ports, and a MicroSD card reader. The rear panel adds four USB 10Gbps Type-A ports, dual 2.5G LAN, and dual Thunderbolt 4. Wi-Fi 6E and Bluetooth 5.3 ensure wireless flexibility. TPM 2.0 and Windows 11 Pro provide business-grade security.
Box contents
- MSI Cubi NUC 1M Mini PC
- VESA mount included
- AC power cable
- Screws included
Check before you buy
- Confirm the keyboard and mouse are included or required for your setup.
- Verify UK plug compatibility for the power adapter.
- Check warranty region coverage for UK customers.
- Confirm Wi-Fi 6E band support matches your router.
Frequently Asked Questions
Q: Does this model include a discrete graphics card?
A: No, it uses integrated Intel Graphics only.
Q: Can I install a 2.5-inch hard drive?
A: Yes, the chassis supports one 2.5-inch storage drive.
Q: Is the memory upgradeable?
A: Yes, it has two SO-DIMM slots supporting up to 64 GB DDR5.
Q: Does it support dual-band Wi-Fi?
A: It features Wi-Fi 6E, but confirm band support with your network.
Q: Is a keyboard or mouse included?
A: No, input devices are not included in the box.
The Consultant’s verdict & warranty
This MSI Cubi NUC 1M is ideal for UK businesses and home users needing a compact, upgradeable PC with modern connectivity and security features. It suits office work, digital signage, or home-theatre use. Covered by the standard Manufacturer Warranty.
| Processor | |
|---|---|
| Processor generation | Intel Core (Series 1) |
| Processor cache | 12 MB |
| Processor model | 120U |
| Number of processors installed | 1 |
| Processor manufacturer | Intel |
| Processor cores | 10 |
| Processor family | Intel Core 5 |
| Performance cores | 2 |
| Efficient cores | 8 |
| Performance-core base frequency | 1.4 GHz |
| Efficient-core base frequency | 0.9 GHz |
| Processor base power | 15 W |
| Maximum turbo power | 55 W |
| Efficient-core Max Turbo Frequency | 3.8 GHz |
| Performance-core Max Turbo Frequency | 5 GHz |
| Memory | |
| Memory layout (slots x size) | 2 x 8 GB |
| Internal memory | 16 GB |
| Maximum internal memory | 64 GB |
| Memory slots | 2x SO-DIMM |
| Internal memory type | DDR5-SDRAM |
| Memory clock speed | 5200 MHz |
| Storage | |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Number of storage drives supported | 3 |
| Optical drive type | No |
| SSD interface | M.2 |
| SSD capacity | 512 GB |
| Number of SSDs installed | 1 |
| HDD size | 2.5" |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Total storage capacity | 512 GB |
| SSD form factor | M.2 |
| Total SSDs capacity | 512 GB |
| NVMe | Yes |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Graphics | |
| Discrete graphics card | No |
| On-board graphics card family | Intel® Graphics |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board graphics card model | Intel® Graphics |
| On-board GPU manufacturer | Intel |
| Optical drive | |
| Optical drive type | No |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Wake-on-LAN ready | Yes |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| WLAN controller manufacturer | Intel |
| LAN controller | Intel I226-V |
| Ports & interfaces | |
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| HDMI version | 1.4/2.1 |
| S/PDIF out port | No |
| Microphone in | No |
| Line-out | No |
| Line-in | No |
| Headphone outputs | 1 |
| HDMI ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| DVI port | No |
| DC-in jack | Yes |
| PowerShare | No |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Intel® Thunderbolt 4 | Yes |
| Thunderbolt 4 ports quantity | 2 |
| Fiber NIC port (Flex I/O) | No |
| Number of rear USB ports | 4 |
| Number of front USB ports | 2 |
| Number of front audio ports | 1 |
| Technical details | |
| Cable lock slot type | Kensington |
| Product type | Mini PC |
| Trusted Platform Module (TPM) | Yes |
| Product colour | Black |
| Chassis type | Mini PC |
| Motherboard form factor | NUC |
| Placement supported | Horizontal |
| Cable lock slot | Yes |
| Motherboard chipset | Intel SoC |
| Locale | English |
| Sustainability certificates | ENERGY STAR, Forest Stewardship Council (FSC), Post-Consumer Recycled Plastic |
| Warranty period | 3 year(s) |
| Design | |
| VESA mounting | Yes |
| Housing material | Plastic |
| Volume | 0.84 L |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Chassis type | Mini PC |
| Placement supported | Horizontal |
| Cable lock slot | Yes |
| Viewing window | No |
| Colour name | Black |
| Country of origin | China |
| RGB memory lighting | No |
| Introduction year | 2024 |
| Introduction month | July |
| Performance | |
| Market positioning | Business |
| Product type | Mini PC |
| Trusted Platform Module (TPM) | Yes |
| Motherboard form factor | NUC |
| Motherboard chipset | Intel SoC |
| Powered by | MSI |
| Trusted Platform Module (TPM) version | 2.0 |
| Software | |
| Operating system installed | Windows 11 Pro |
| Power | |
| Power supply input frequency | 50-60 Hz |
| Power supply input voltage | 100-240 V |
| Power supply | 120 W |
| Sustainability | |
| Sustainability certificates | ENERGY STAR, Forest Stewardship Council (FSC), Post-Consumer Recycled Plastic |
| Ergonomics | |
| VESA mounting | Yes |
| Weight & dimensions | |
| Volume | 0.84 L |
| Package width | 205 mm |
| Package depth | 220 mm |
| Package height | 94 mm |
| Width | 132.5 mm |
| Depth | 135.6 mm |
| Height | 50.1 mm |
| Package weight | 1.45 kg |
| Weight | 625 g |
| Packaging data | |
| Package width | 205 mm |
| Package depth | 220 mm |
| Package height | 94 mm |
| Package weight | 1.45 kg |
| Packaging content | |
| VESA mount included | Yes |
| Cables included | AC, Power |
| Mouse included | No |
| Display included | No |
| Keyboard included | No |
| Screws included | Yes |
| Display | |
| Display included | No |
| Features | |
| Country of origin | China |
| Other features | |
| VESA mounting | Yes |
| Trusted Platform Module (TPM) | Yes |
| On-board graphics card | Yes |
| Processor manufacturer | Intel |
| TV tuner integrated | No |
| Built-in microphone | No |
| Country of origin | China |
| Locale | English |
| Warranty period | 3 year(s) |
| Identifiers | |
| Distributor SKUs | 4711377385855, CL4711377385855 |
