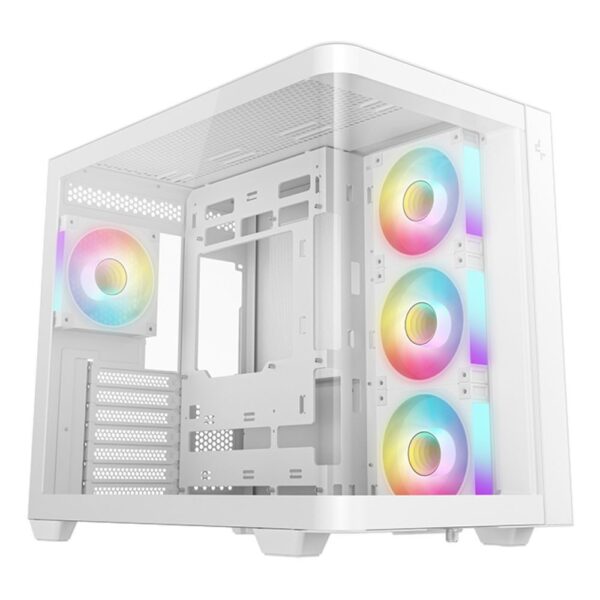

DeepCool CG530U 4F White Tower Case

DeepCool CG530U 4F | Mid-Tower White Chassis

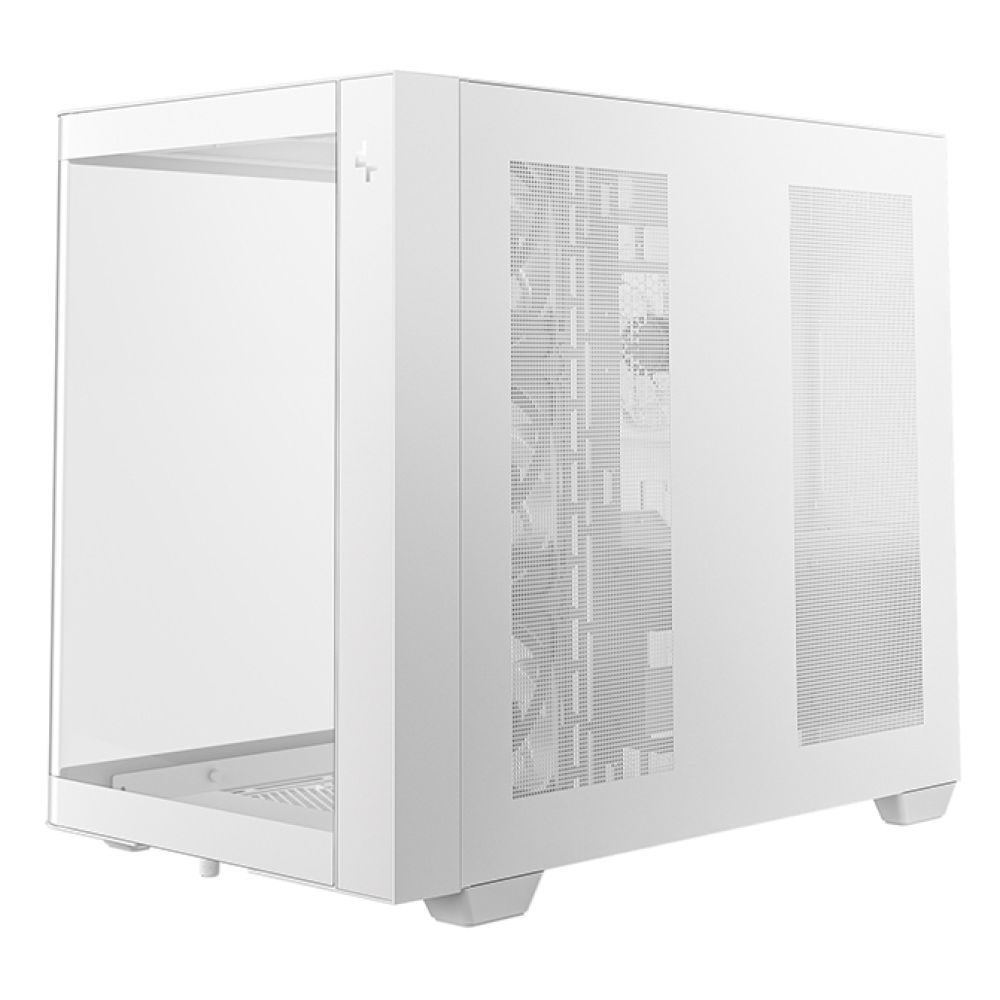

The DeepCool CG530U 4F Tower White is a mid-tower case designed for builders seeking a clean aesthetic and solid airflow. It suits users building ATX, micro-ATX, or ITX systems who prioritise component visibility and thermal performance. This model features a tempered glass side window and comes equipped with four fans for immediate cooling capacity. The white finish provides a distinct look for custom PC setups.

Technical Overview & Core Metrics

This table highlights the critical dimensions and capacities for system planning.

Optimised Airflow & Cooling Layout

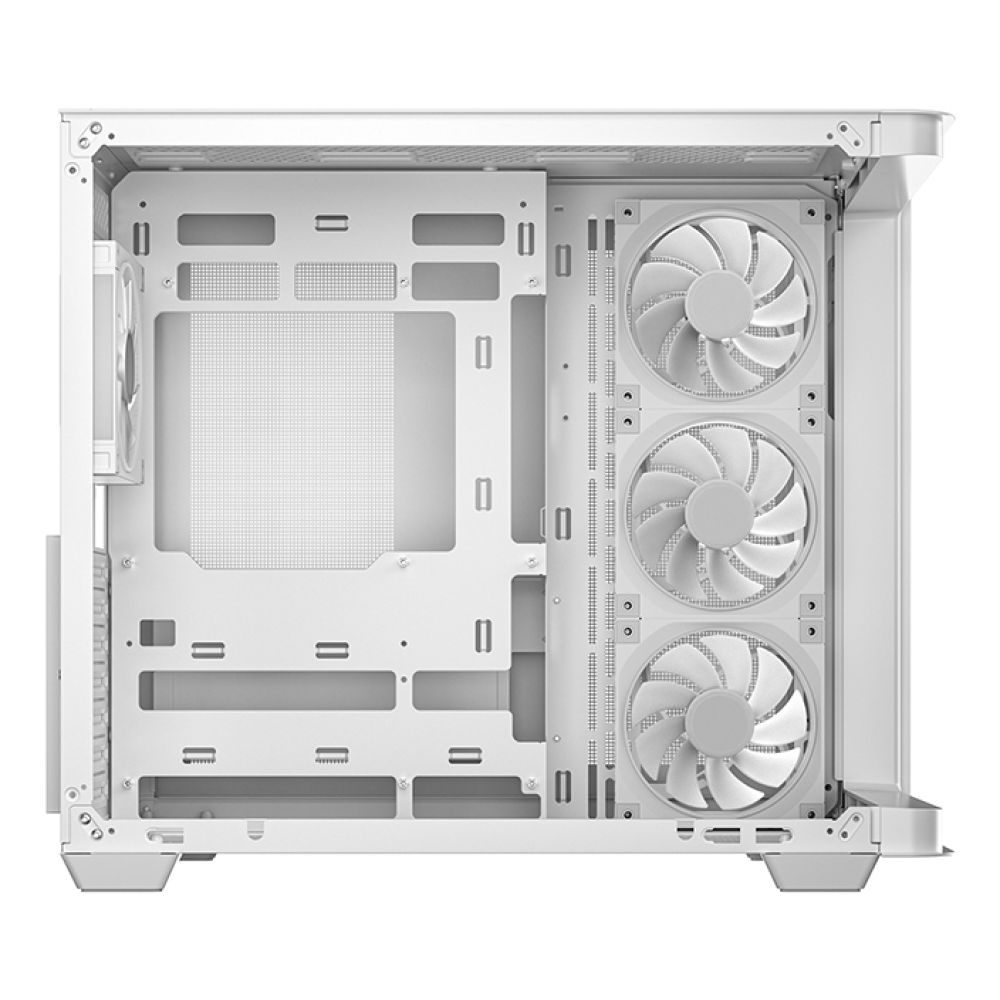

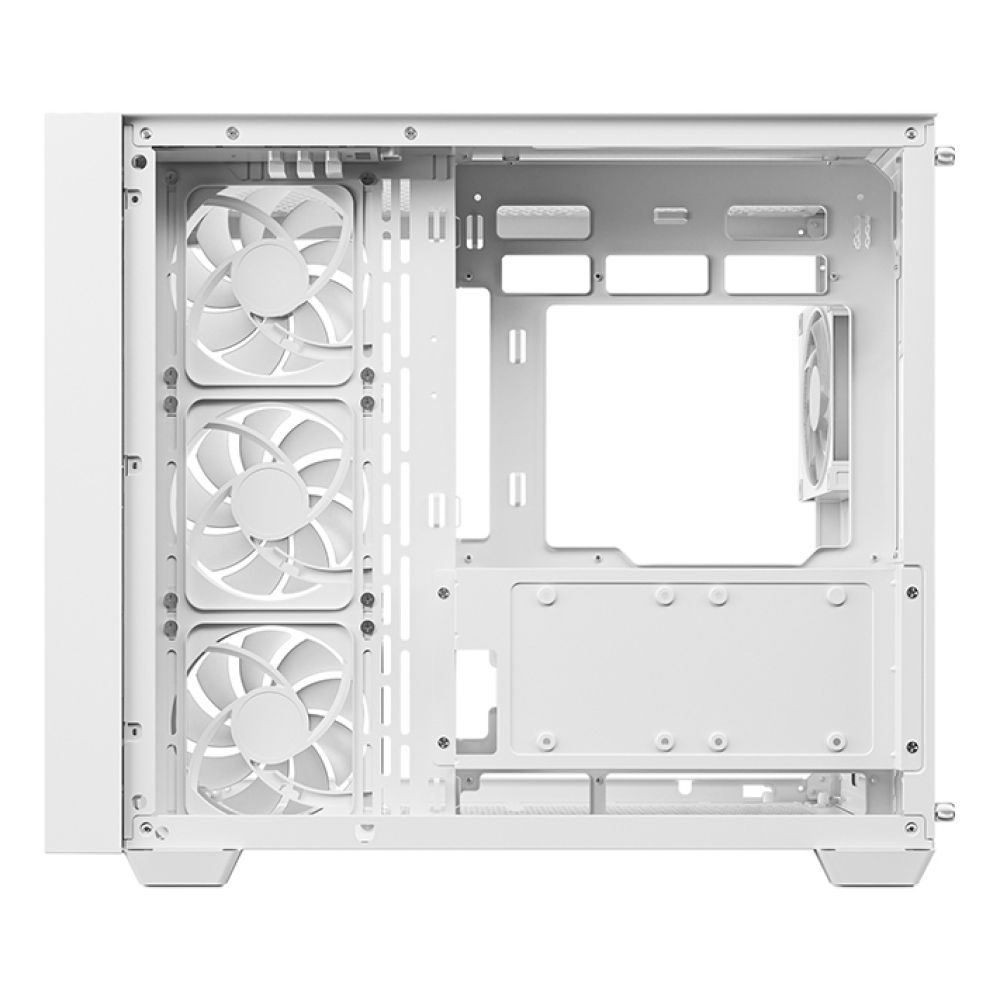

The CG530U 4F focuses on direct cooling performance. It arrives with three 120 mm fans on the side panel and one 120 mm fan at the rear. This configuration draws cool air directly across your components. You can expand this setup significantly. The case supports up to three 120 mm fans in the top and three in the bottom. Radiator support is extensive, accommodating up to 360 mm radiators at the bottom and 280 mm on the side. Because the PSU is mounted at the rear, the bottom area is free for intake fans or radiators.

Component Clearance & Build Flexibility

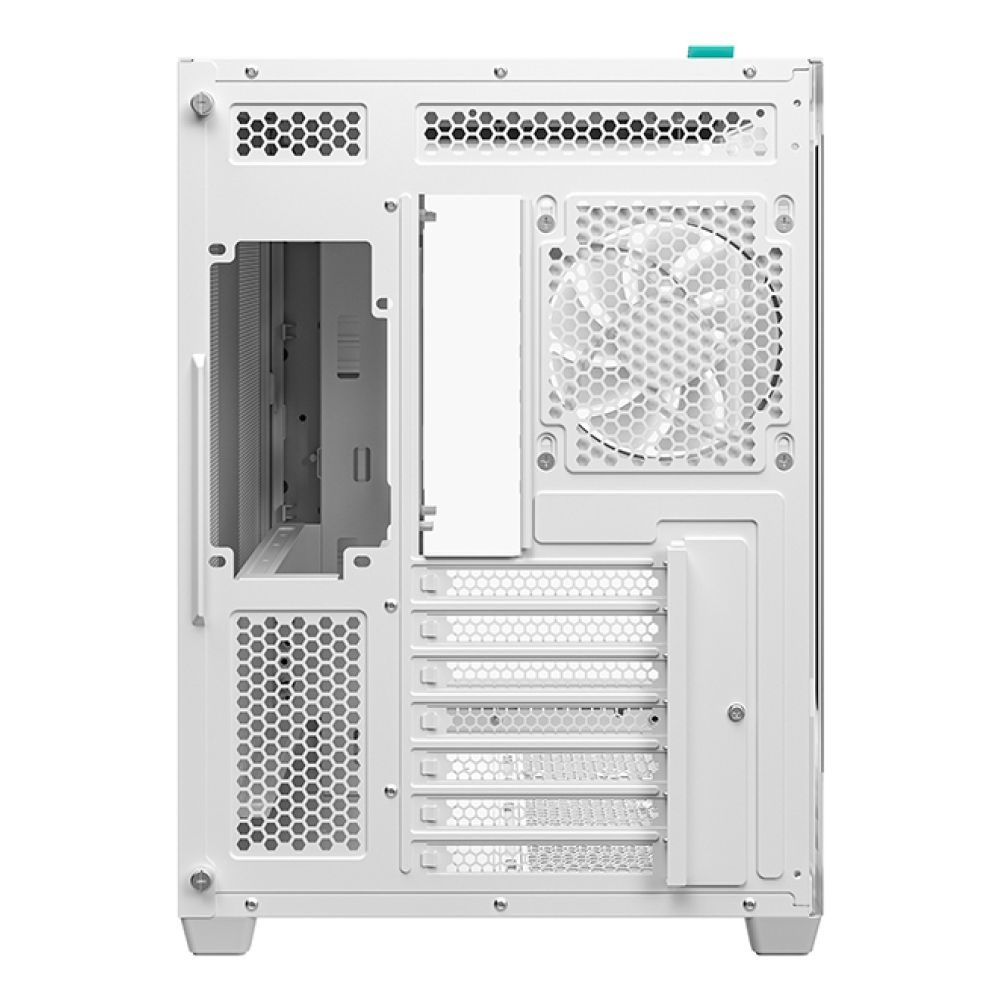

Space is a priority in this tower. The chassis supports graphics cards up to 410 mm long, fitting most high-end GPUs. CPU coolers up to 160 mm tall are compatible, allowing for substantial air coolers. Storage options are practical for modern builds. You get two 3.5″ bays and three 2.5″ bays for SSDs or HDDs. The seven expansion slots provide room for multi-GPU setups or additional PCIe cards. Because the layout is standard, cable routing is straightforward.

Design Features & User Interface

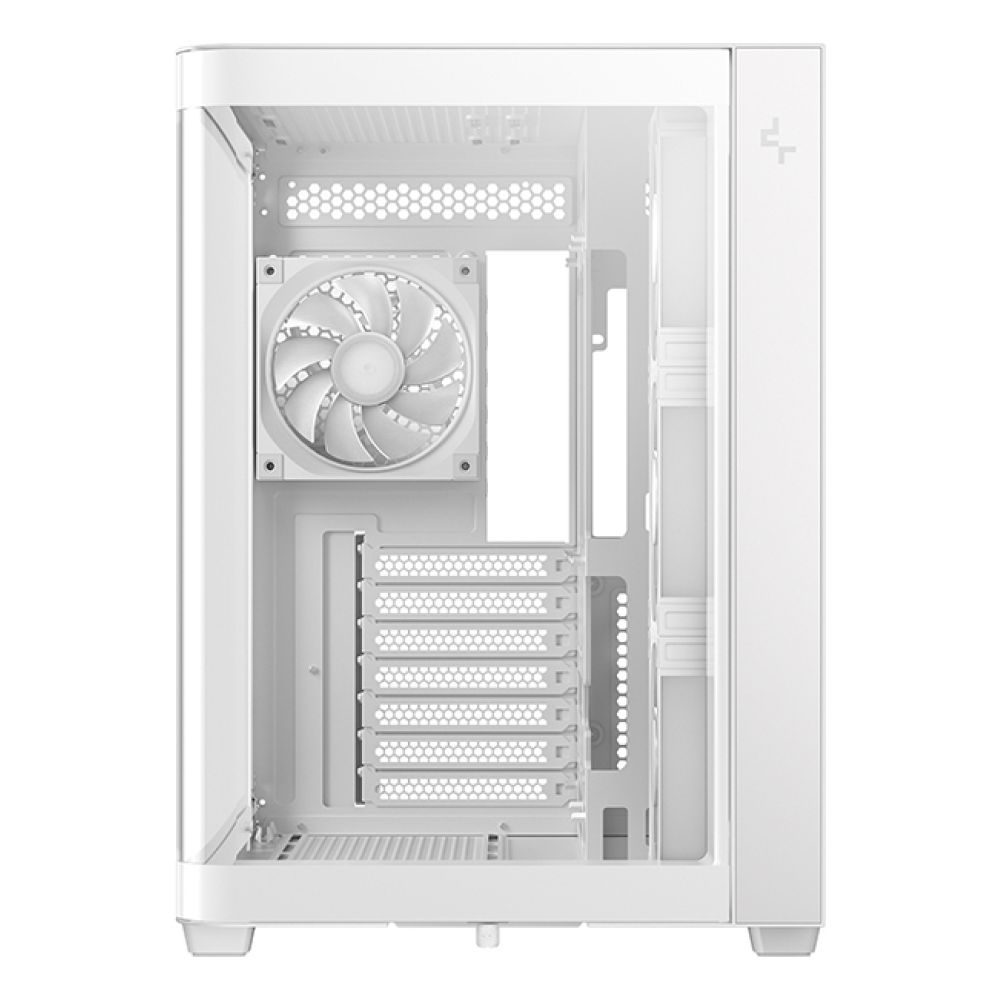

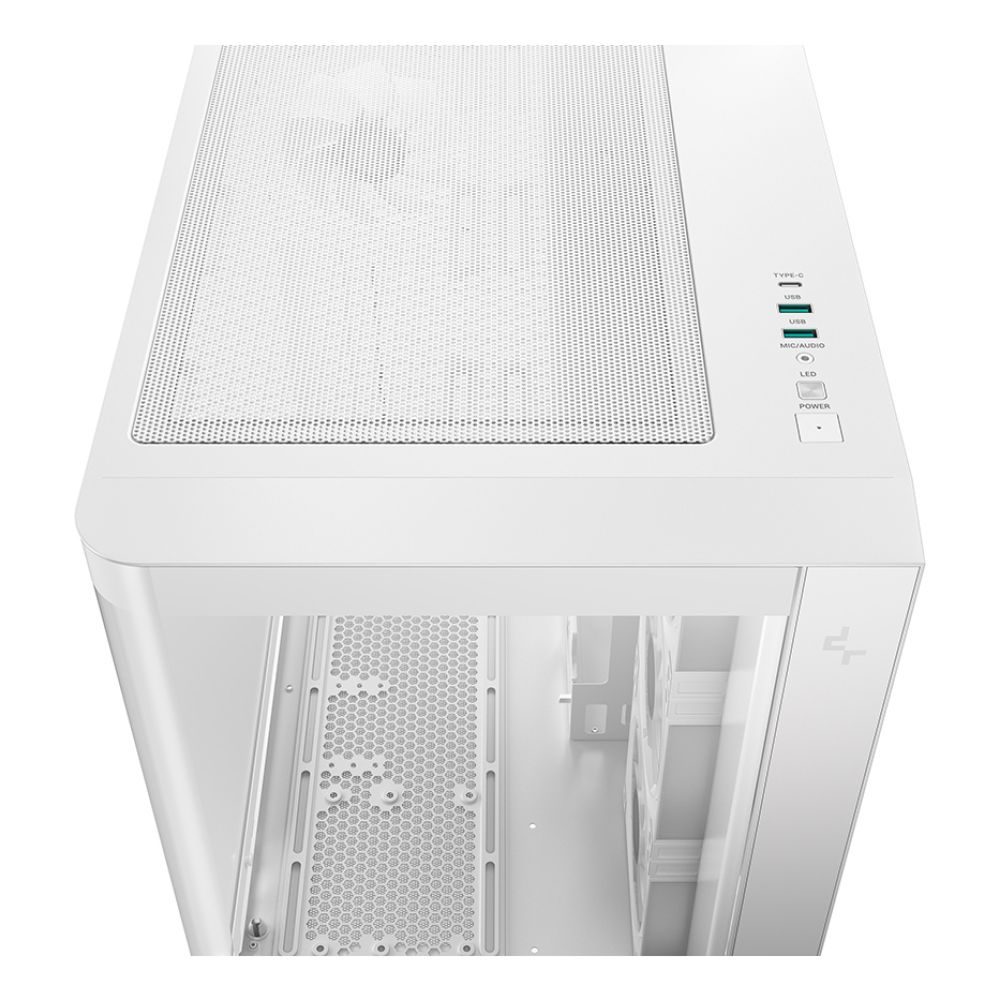

The white exterior is matched by a clean internal layout. A tempered glass side panel showcases your components. Cable management channels help keep the interior tidy. The top I/O panel includes one USB 3.2 Gen 2 Type-C port and two USB 3.2 Gen 1 Type-A ports. An RGB control button is present for lighting management. However, the power supply is not included; verify your PSU length does not exceed 210 mm. Dust filters are installed to reduce maintenance.

Build Quality & Compliance

The chassis uses a mix of ABS plastic, SPCC steel, and tempered glass. It carries CE and UKCA compliance certificates for the UK market. The structure feels solid at 7.3 kg. Anti-dust filters are included on the intake areas. Because the side fans are pre-installed, ensure your motherboard has sufficient fan headers or use a splitter. The white finish is consistent across the panels.

Box contents

• DeepCool CG530U 4F Tower White Chassis
• 3x 120 mm side fans (pre-installed)
• 1x 120 mm rear fan (pre-installed)
• Accessory kit (screws included)

Check before you buy

• Confirm your motherboard fits ATX, micro-ATX, or ITX form factors.
• Verify your graphics card is under 410 mm in length.
• Check your CPU cooler height does not exceed 160 mm.
• Ensure your power supply is under 210 mm long (PSU not included).

Frequently Asked Questions

Q: Does the DeepCool CG530U 4F Tower White include a power supply?

A: No, this case does not include a power supply. You must purchase one separately.

Q: What motherboards fit in this case?

A: It supports ATX, micro-ATX, and ITX motherboards. Verify your board’s dimensions.

Q: How many fans are pre-installed?

A: It has four 120 mm fans installed: three on the side and one at the rear.

Q: Is the side panel tempered glass?

A: Yes, it features a tempered glass window for component visibility.

Q: What USB ports are on the front panel?

A: It has one USB 3.2 Gen 2 Type-C and two USB 3.2 Gen 1 Type-A ports.

The Consultant’s verdict & warranty

The DeepCool CG530U 4F Tower White is ideal for builders wanting a white-themed system with strong stock cooling and room for upgrades. It suits gamers and creators who need space for large GPUs and radiators. The pre-installed fans and tempered glass offer immediate value. Covered by the standard Manufacturer Warranty.
