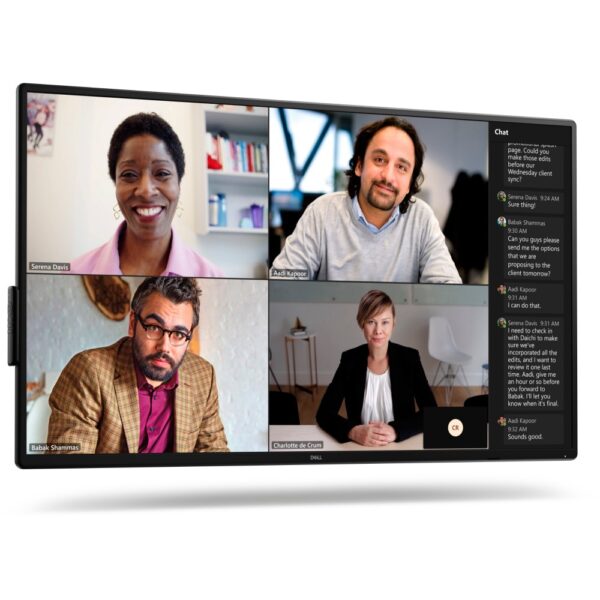

DELL P5525QC 54.6″ 4K Ultra HD Digital Signage Display
£930.50 inc VAT
In stock
In stock
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- 54.6-inch 4K Ultra HD IPS digital signage display with 400 cd/m² brightness and 1.07 billion colours
- Edge-LED backlight with anti-glare screen, 1200:1 contrast ratio and 178° viewing angles
- USB-C with 90W power delivery and DisplayPort Alternate Mode plus two HDMI 2.0 and two DisplayPort 1.4 inputs
- Integrated 20 W speakers, Ethernet LAN and RS-232C for commercial control
- VESA 300 x 400 mm mounting, slim 79.8 mm depth and indoor placement for flexible installation
- Includes remote control, AC/DisplayPort/HDMI/USB/USB-C cables and complies with ENERGY STAR, TCO and RoHS
Payment Methods:
You may also like
DELL P5525QC – 4K collaboration display with USB-C power

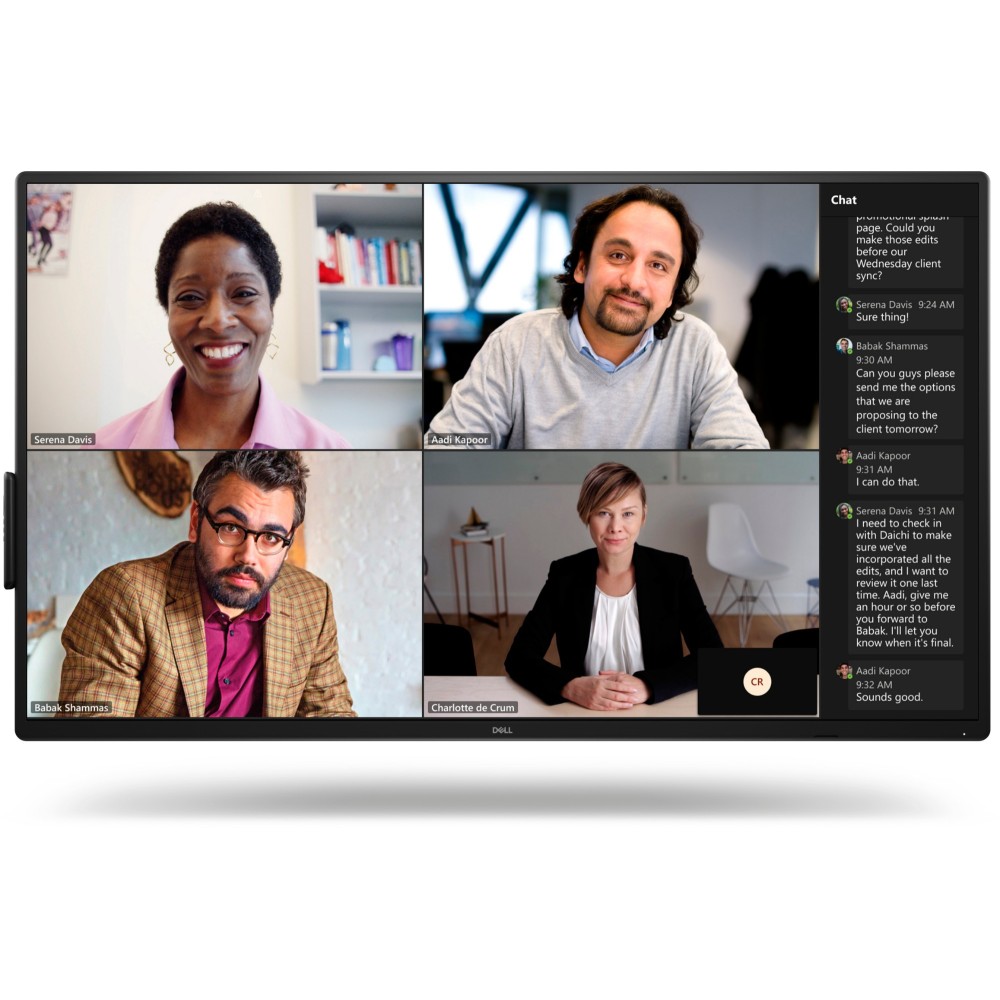

We supply the DELL P5525QC Digital signage flat panel 138.8 cm (54.6″) LCD 400 cd/m² 4K Ultra HD Black for teams that need sharp visuals and simple connectivity. This panel suits meeting rooms, lobbies and shared workspaces that rely on laptops or micro form factor PCs. Its strongest benefit is single-cable operation that delivers 4K video, data and up to 90W power over USB-C.
Core numbers
| Metric | Spec. |
|---|---|
| Display size | 138.8 cm (54.6″) |
| Resolution | 3840 x 2160 (4K Ultra HD) |
| Brightness | 400 cd/m² |
| Panel type | IPS |
| Contrast ratio | 1200:1 |
| USB-C power delivery | Up to 90 W |
Clean sightlines with an ultra-thin bezel
The top and side bezels measure just 1.89 cm, so content looks seamless across multiple screens. This aids readability in digital signage layouts and keeps focus on the image in video calls. The anti-glare surface and 25% haze reduce reflections under bright office lighting. In practice, viewers get clear visuals from almost any seat.
Consistent colour from wide viewing angles
The IPS panel delivers 1.07 billion colours and a 72% colour gamut for reliable accuracy. Horizontal and vertical viewing angles reach 178°, so images stay stable when people move around the room. The 8 ms response time handles typical business video without noticeable blur. This combination suits presentations, menus and information displays.
Flexible connectivity for modern setups

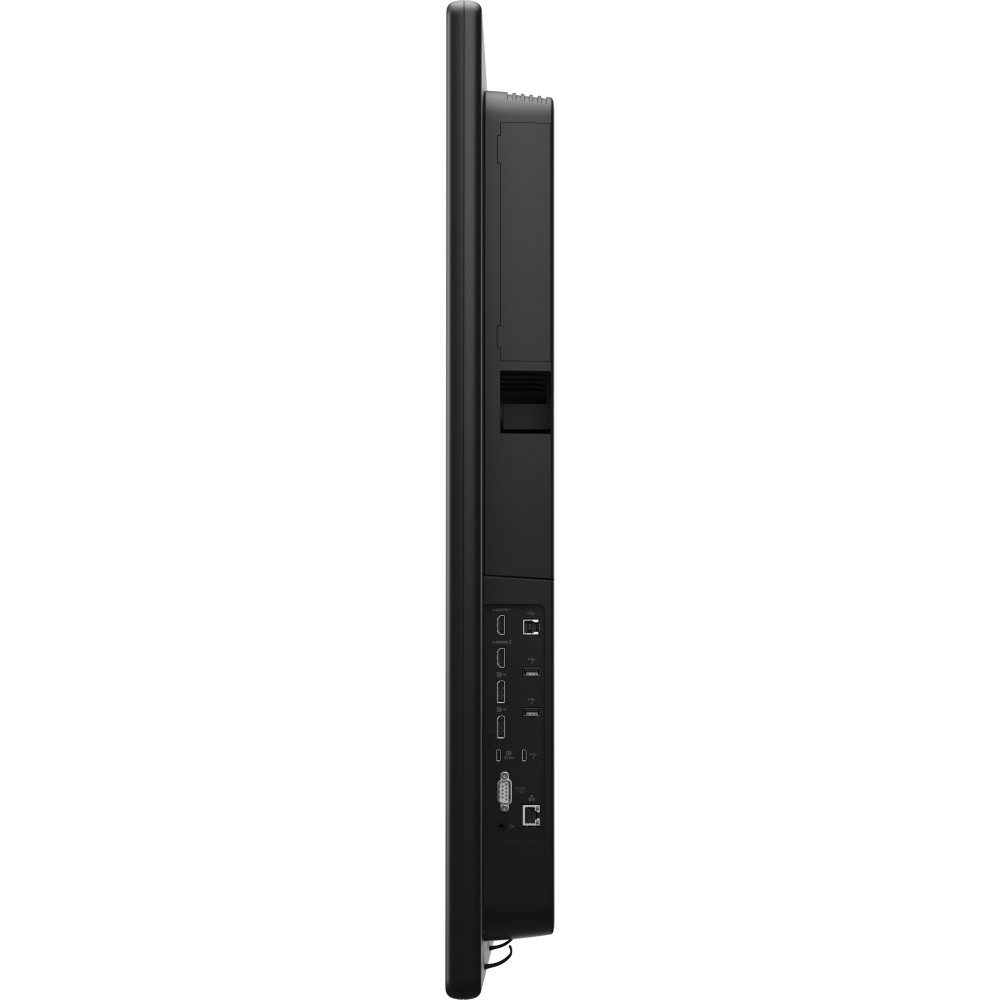

You get two DisplayPort 1.4 ports and two HDMI 2.0 ports for high-resolution sources. USB-C supports DisplayPort Alt Mode and power delivery up to 90 W, enabling single-cable laptop use. The USB hub includes Type-A and Type-B ports for peripherals, plus a further USB-C port. An RJ-45 Ethernet port and RS-232C allow easy network and control integration.
Built-in audio and tidy mounting

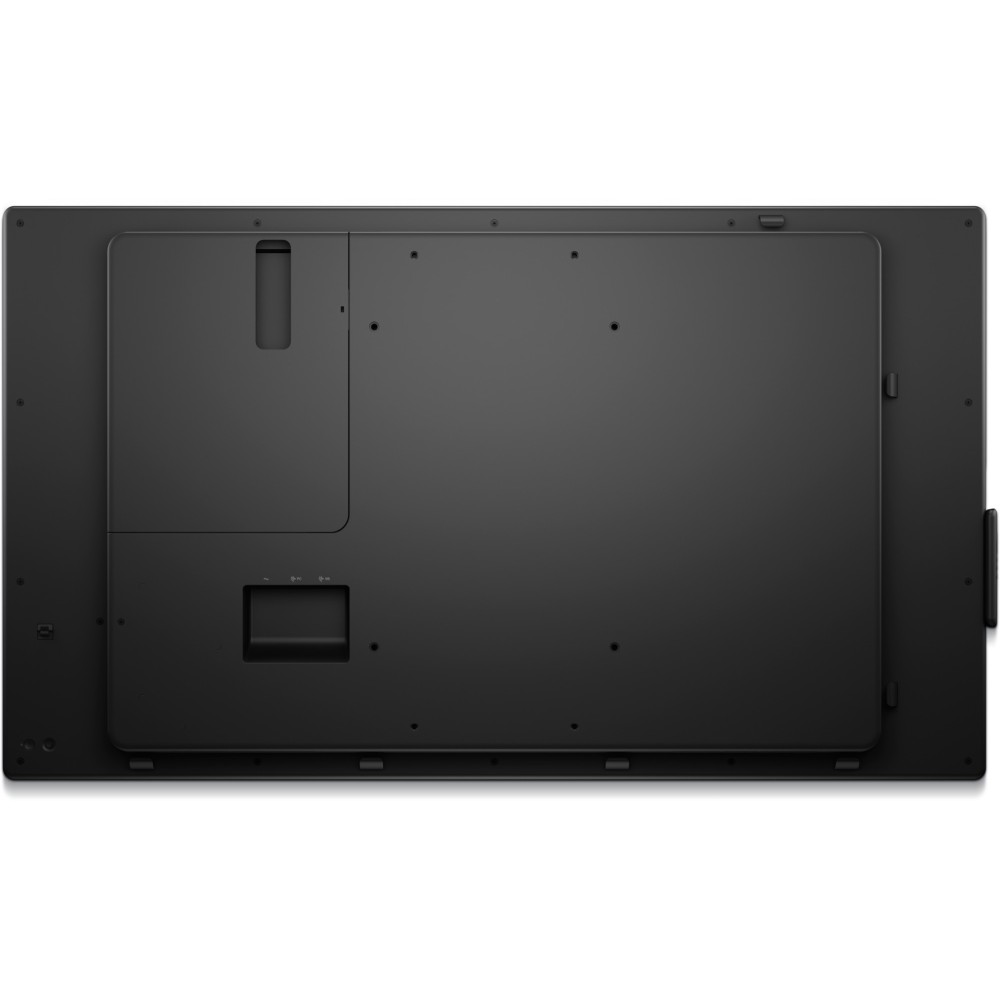

Two 10 W speakers provide audio for meetings and signage without extra hardware. The panel mounts on a 300 x 400 mm VESA interface for wall or bracket installation. Package weight is 33.8 kg and the bezel bottom is slightly deeper at 2.85 cm for cable routing. We include an AC cable, DisplayPort cable, HDMI cable, USB cable and USB Type-C cable.
Before you order
- Confirm your desk or mount can support the 22.4 kg panel weight.
- Check that your laptop supports USB-C DisplayPort Alt Mode.
- Ensure your cabling reach suits the 1247.4 mm width and 727.8 mm height.
- Verify your source device outputs 3840 x 2160 at 60 Hz.
Frequently Asked Questions
Q: Does this panel work with laptops that charge via USB-C?
A: Yes, it delivers up to 90 W USB-C power to compatible laptops.
Q: Can I chain multiple displays for a video wall?
A: Yes, DisplayPort 1.4 and HDMI 2.0 support multi-screen setups.
Q: Is the screen suitable for bright reception areas?
A: Yes, the 400 cd/m² brightness and anti-glare coating help in bright spaces.
Q: Are speakers built in?
A: Yes, there are two 10 W speakers for basic audio.
Q: What mounting options are supported?
A: The panel uses a 300 x 400 mm VESA interface for brackets and wall mounts.
Who this is for
This DELL P5525QC Digital signage flat panel 138.8 cm (54.6″) LCD 400 cd/m² 4K Ultra HD Black suits UK businesses that need a reliable 4K display with strong connectivity. It fits meeting rooms, retail areas and shared workspaces that use USB-C laptops or micro PCs. Warranty cover varies by product, so please contact us to confirm.
| Display | |
|---|---|
| LED backlight | Yes |
| Panel type | IPS |
| Display number of colours | 1.07 billion colours |
| LED backlighting type | Edge-LED |
| Touchscreen | No |
| Active display area (W x H) | 1209.6 x 680.4 mm |
| Display technology | LCD |
| Colour gamut | 72% |
| Display diagonal | 138.8 cm (54.6") |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 400 cd/m² |
| HD type | 4K Ultra HD |
| Response time | 8 ms |
| Contrast ratio (typical) | 1200:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.315 x 0.315 mm |
| Display diagonal (metric) | 138.787 cm |
| Vertical scan range | 24 - 75 Hz |
| Supported video modes | 480p, 576p, 720p, 1080i, 1080p, 2160p |
| Supported graphics resolutions | 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 800, 1600 x 1200 (UXGA), 1920 x 1080 (HD 1080), 2048 x 1152, 2560 x 1440, 3840 x 2160 |
| Native aspect ratio | 16:9 |
| Horizontal scan range | 30 - 140 kHz |
| Anti-glare screen | Yes |
| Colour depth | 8 bit |
| Surface hardness | 3H |
| Haze rate | 25% |
| Ports & interfaces | |
| USB connector type | USB Type-A, USB Type-B, USB Type-C |
| DisplayPort version | 1.4 |
| USB port | Yes |
| HDMI version | 2.0 |
| RS-232C | Yes |
| DisplayPorts quantity | 2 |
| DC-in jack | Yes |
| Ethernet LAN | Yes |
| HDMI ports quantity | 2 |
| DVI port | No |
| Ethernet LAN (RJ-45) ports | 1 |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| USB 2.0 Type-B ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 90 W |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Audio | |
| Number of built-in speakers | 2 |
| RMS rated power | 20 W |
| Built-in speaker(s) | Yes |
| Design | |
| Product design | Digital signage flat panel |
| Placement supported | Indoor |
| Bezel width (top) | 1.89 cm |
| Bezel width (side) | 1.89 cm |
| Bezel width (bottom) | 2.85 cm |
| Product colour | Black |
| Panel mounting interface | 300 x 400 mm |
| VESA mounting | Yes |
| Anti-glare screen | Yes |
| Performance | |
| Purpose | Commercial |
| Power | |
| Power consumption (max) | 300 W |
| Power consumption (off) | 0.3 W |
| Power consumption (typical) | 77.1 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50/60 Hz |
| Energy efficiency class (SDR) | E |
| Energy consumption (SDR) per 1000 hours | 77 kWh |
| Weight & dimensions | |
| Width | 1247.4 mm |
| Depth | 79.8 mm |
| Height | 727.8 mm |
| Weight | 22.4 kg |
| Packaging data | |
| Package weight | 33.8 kg |
| Quick start guide | Yes |
| Remote control included | Yes |
| Cables included | AC, DisplayPort, HDMI, USB, USB Type-C |
| Packaging content | |
| Quick start guide | Yes |
| Remote control included | Yes |
| Cables included | AC, DisplayPort, HDMI, USB, USB Type-C |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Technical details | |
| VESA mounting | Yes |
| USB connector type | USB Type-A, USB Type-B, USB Type-C |
| Panel type | IPS |
| DisplayPort version | 1.4 |
| Remote control battery | AAA x 2 |
| LED backlighting type | Edge-LED |
| Sustainability certificates | ENERGY STAR, TCO |
| Doesn't contain | Arsenic, Mercury, PVC/BFR |
| Total carbon footprint (kg of CO2e) | 927 |
| Compliance certificates | RoHS |
| Network | |
| Ethernet LAN | Yes |
| Carbon footprint | |
| Total carbon footprint (kg of CO2e) | 927 |
| PAIA version | GaBi version 1, 2024 |
| Carbon emissions, energy usage (kg of CO2e) | 373.58 |
| Carbon emissions, manufacturing (kg of CO2e) | 377.29 |
| Carbon emissions, logistics (kg of CO2e) | 63.04 |
| Carbon emissions, end-of-life (kg of CO2e) | 112.17 |
| Other features | |
| USB connector type | USB Type-A, USB Type-B, USB Type-C |
| Panel type | IPS |
| DisplayPort version | 1.4 |
| Remote control battery | AAA x 2 |
| Power consumption (max) | 300 W |
| Display technology | LCD |
| DC-in jack | Yes |
| Bezel width (top) | 1.89 cm |
| Bezel width (side) | 1.89 cm |
| Bezel width (bottom) | 2.85 cm |
| Quick start guide | Yes |
| Identifiers | |
| Distributor SKUs | CL70697, 10498201, 537280, STD10220956 |
| Additional EANs | 0884116469438 |
