TP-Link Omada ER603WP-4G-OUTD 4G LTE Wireless Gateway Gigabit 10/100/1000 Mbit/s PoE Wall Mount White
£195.59
In stock
In stock
-
DPD tracked delivery
-
Buy now, pay later with Klarna
-
Pay in 3 instalments with PayPal
About This Item
- Forwarding rate of 1419519 Mpps for high throughput
- Supports Gigabit Ethernet LAN data rates up to 1000 Mbit/s
- Integrated 4G LTE mobile network with NanoSIM card slot
- Wall mounting design in white colour for flexible deployment
- Passive Power over Ethernet PoE support with IEEE 802.3af standards
- Web-based management interface with DHCP server functionality
- Two external antennas for enhanced 2.4 GHz Wi-Fi connectivity
You may also like
TP-Link AX5400 Ceiling WiFi 6 AP
In stock
TP-Link Omada EAP225 1350Mbps PoE Access Point
In stock
TP-Link Omada ER703WP-4G Outdoor Gateway/Controller, 4G LTE, Wi-Fi 6, 300/50 Mbit/s, Wall Mounting, White
In stock
TP-Link Omada EAP610 WiFi 6 Access Point
In stock
TP-Link Omada DR3650V Wi-Fi 6 Router
In stock
TP-Link Omada 24-Port 2.5G/10G Managed PoE Switch
In stock
TP-Link Omada Controller Device
In stock
DrayTek Vigor 2763 Firewall Router
In stock
TP-Link Omada BE9300 Tri-Band Wi-Fi 7 AP
In stock
TP-Link Gigabit PCI Network Adapter
In stock
TP-Link Omada EAP725-WALL Wi-Fi 7 Access Point
In stock
TP-Link Omada EAP610-Outdoor PoE White
In stock
TP-Link Omada AX3000 Gigabit VPN Router
In stock
TP-Link Omada ER603WP-4G-OUTD – Robust Outdoor Gateway
We supply the TP-Link Omada ER603WP-4G-OUTD 4G LTE Wireless Gateway Gigabit 10/100/1000 Mbit/s PoE Wall Mount White. It suits sites requiring dependable outdoor network access. The unit integrates 4G LTE with wired Ethernet. This model connects your wired and wireless networks efficiently.
Key performance figures
| Metric | Spec. |
|---|---|
| Ethernet LAN data rates | 10, 100, 1000 Mbit/s |
| Mobile network generation | 4G |
| Internal memory | 256 MB |
| Operating temperature | -30 to 60 °C |
| Power over Ethernet | Passive |
| Dimensions | 174.8 x 100.4 x 38.7 mm |
TP-Link Omada ER603WP-4G-OUTD 4G LTE Wireless Gateway Gigabit 10/100/1000 Mbit/s PoE Wall Mount White Overview
Engineered for outdoor conditions

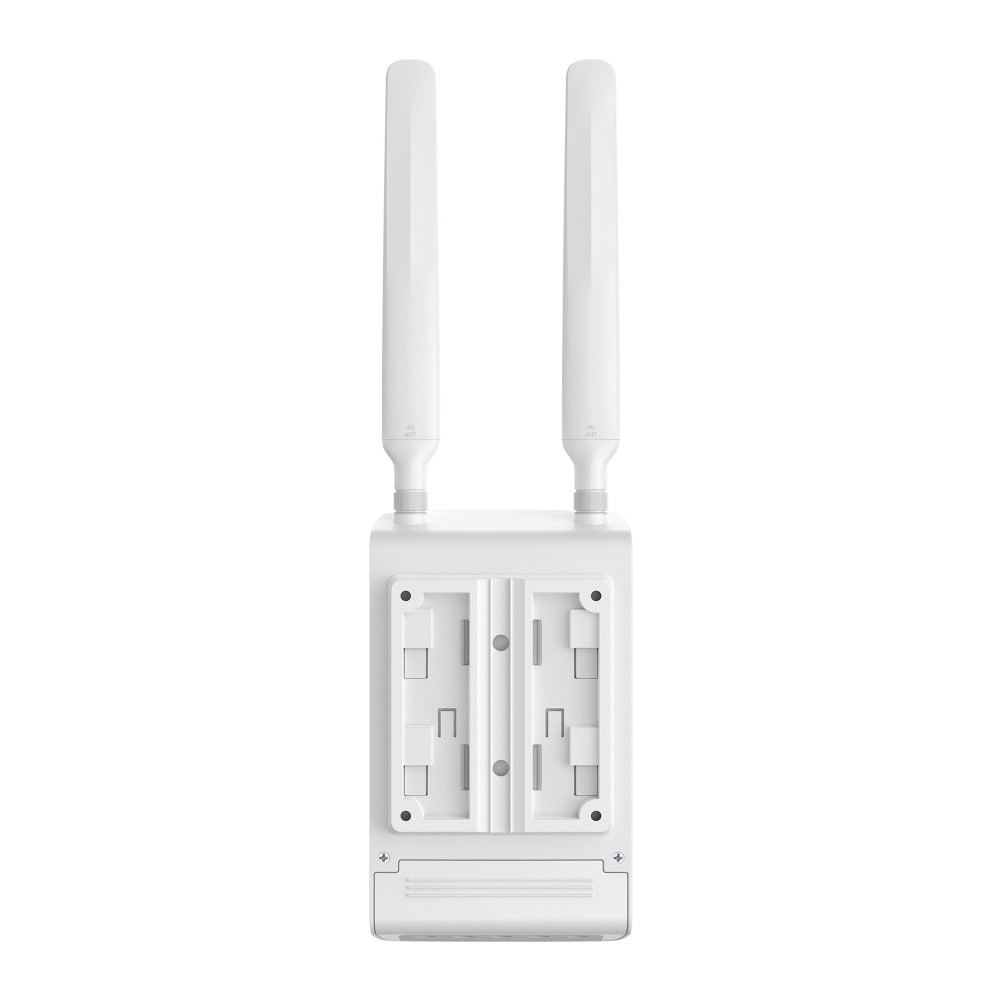

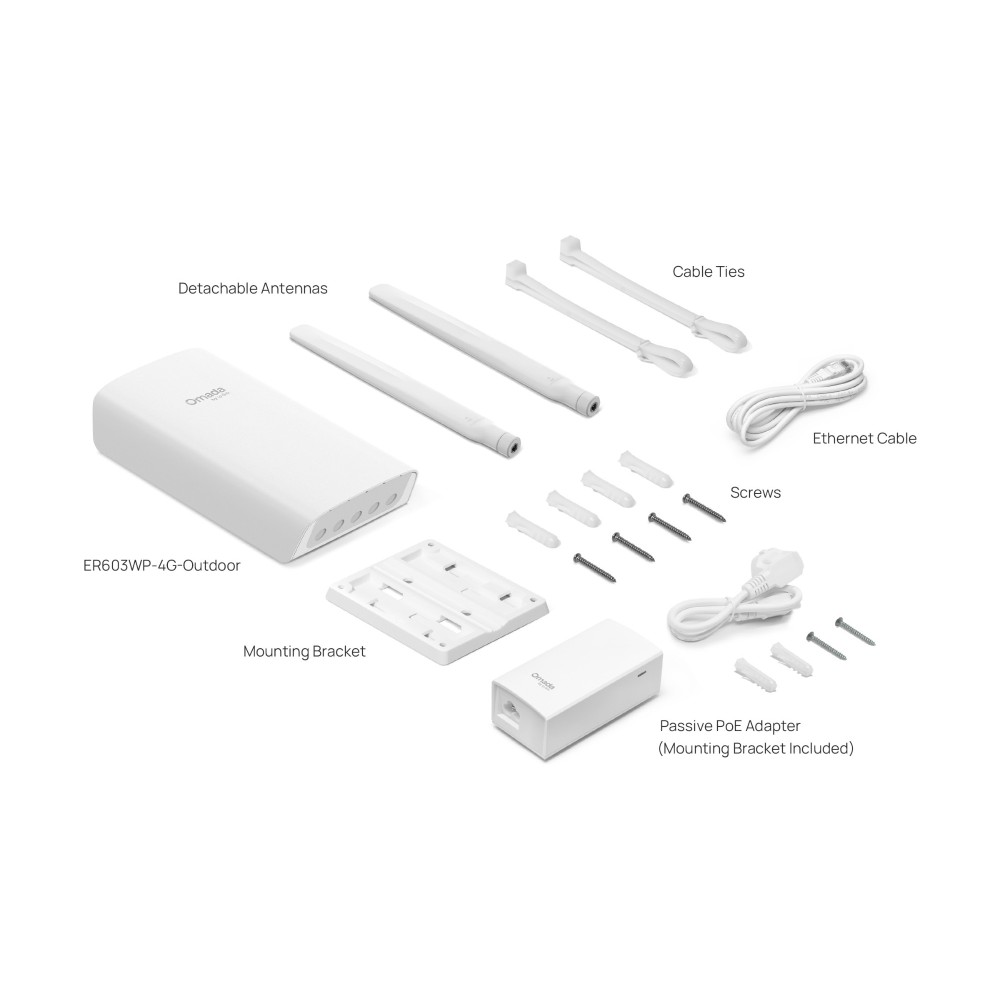

The enclosure handles temperatures from -30 to 60 °C. It features a white finish for discreet mounting. Wall mounting brackets are included for installation.
Flexible connectivity options

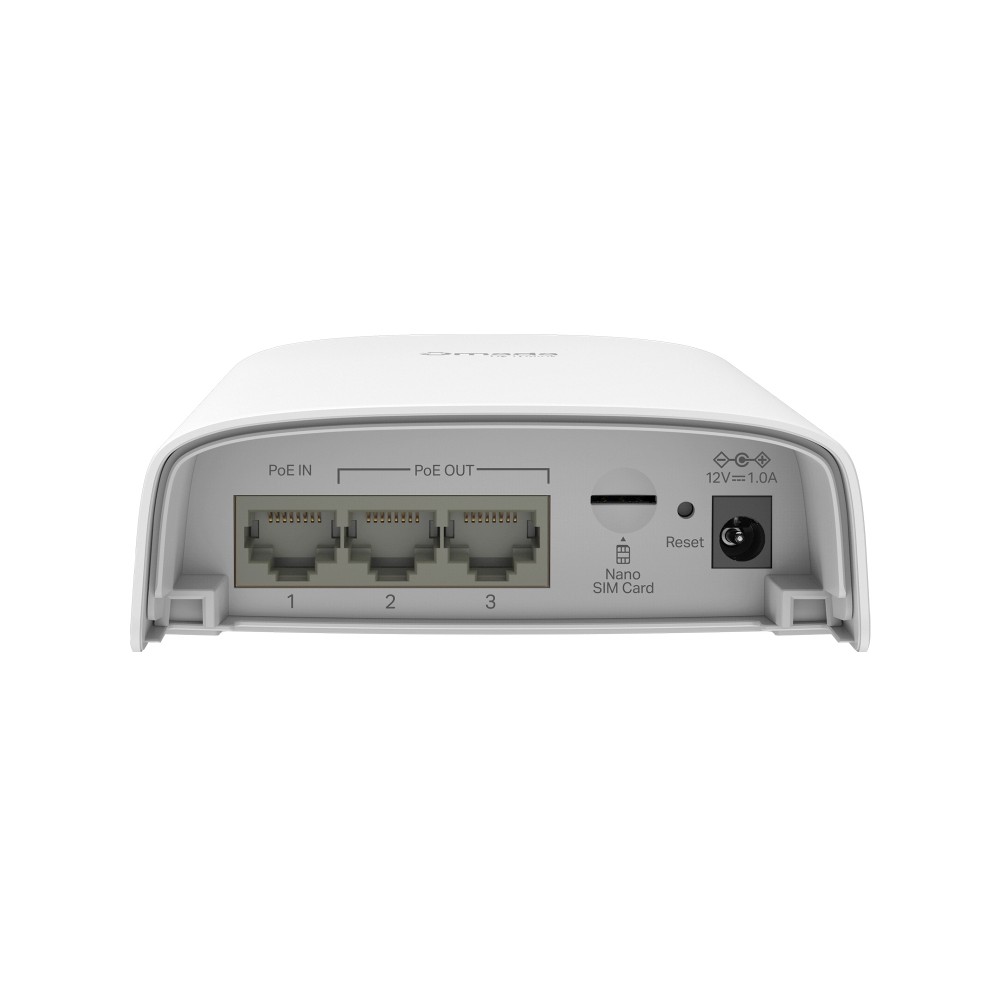

Gigabit Ethernet ports support speeds up to 1000 Mbit/s. Two external antennas improve signal reception significantly. You can insert a NanoSIM for mobile data.
Efficient administrative control
Web-based management simplifies configuration tasks. SMS functionality allows remote notifications. The reset button enables quick recovery if needed.
Pre-purchase checks
- Confirm your SIM card is Nano size.
- Ensure your power source supports Passive PoE.
- Verify wall space matches the device depth.
Frequently Asked Questions
Q: Does it support Wi-Fi?
A: Yes, it includes built-in Wi-Fi capabilities.
Q: What memory does it have?
A: It features 256 MB DDR3 internal memory.
Q: Can it manage other devices?
A: Yes, it operates as an Omada controller.
Q: Is it weatherproof?
A: It is designed for outdoor operating conditions.
The final recommendation
This gateway fits outdoor setups needing 4G backup. We recommend it for remote UK sites. It provides reliable performance where cabling is difficult.
| Design | |
|---|---|
| LED indicators | Status |
| Certification | CE, RoHS |
| Mounting type | Wall mounting |
| Product colour | White |
| Features | |
| Antenna type | External |
| Short Message Service (SMS) | Yes |
| Antennas quantity | 2 |
| Performance | |
| Internal memory type | DDR3 |
| Internal memory | 256 MB |
| Flash memory | 128 MB |
| Control display unit | No |
| Certification | CE, RoHS |
| Mounting type | Wall mounting |
| Product colour | White |
| Data transmission | |
| Forwarding rate | 1419519 Mpps |
| Protocols | |
| DHCP server | Yes |
| Network | |
| Networking standards | IEEE 802.3at, IEEE 802.3bt, IEEE 802.3af |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Frequency band | 2.4 GHz |
| Wi-Fi | Yes |
| Forwarding rate | 1419519 Mpps |
| Mobile network generation | 4G |
| Data network | LTE |
| Downlink/uplink speed | 150/50 Mbit/s |
| Ports & interfaces | |
| SIM card type | NanoSIM |
| SIM card slot | Yes |
| Management features | |
| Web-based management | Yes |
| Reset button | Yes |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Power consumption (max) | 10 W |
| Power over Ethernet (PoE) type supported | Passive PoE |
| Weight & dimensions | |
| Width | 100.4 mm |
| Height | 174.8 mm |
| Depth | 38.7 mm |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 90% |
| Technical details | |
| Antenna type | External |
| Wi-Fi | Yes |
| Short Message Service (SMS) | Yes |
| Indication | |
| LED indicators | Status |
| Memory | |
| Internal memory type | DDR3 |
| Internal memory | 256 MB |
| Flash memory | 128 MB |
| Display | |
| Control display unit | No |
| Certificates | |
| Certification | CE, RoHS |
| Antenna | |
| Antenna type | External |
| Antennas quantity | 2 |
| Identifiers | |
| Distributor SKUs | 95921, ER603WP-4G-OUTD, NS95921 |
| Additional EANs | 0840460607438 |
