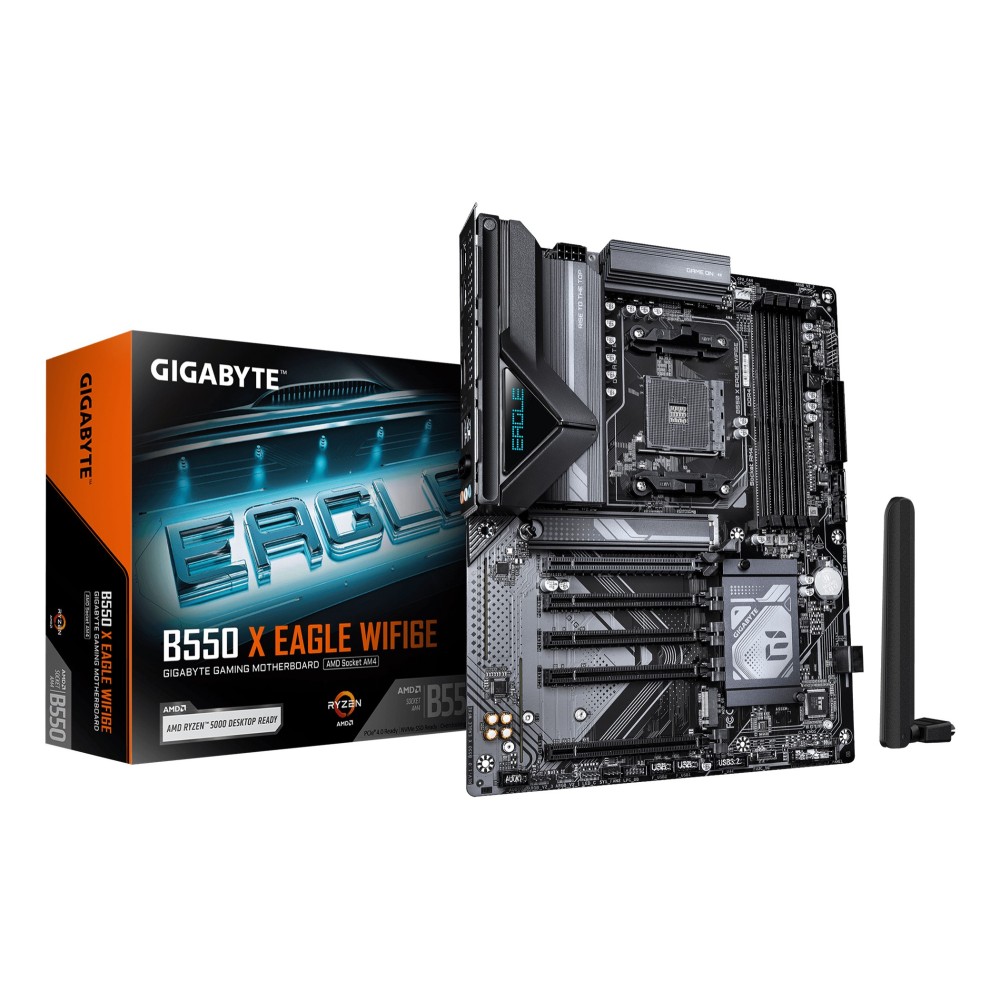

GIGABYTE B550 X EAGLE WIFI6E Motherboard AMD B550 Chipset AM4 Socket ATX DDR4 Wi-Fi 6E Dark brown
£146.39
In stock
In stock
Order now, get it by Tue 6 Oct
-
DPD tracked delivery
-
Buy now, pay later with Klarna
-
Pay in 3 instalments with PayPal
About This Item
- AMD B550 chipset supporting Socket AM4 Ryzen 5000 4000 and 3000 series processors
- ATX form factor with four DDR4 memory slots holding up to 128 GB capacity at 3200 MHz speeds
- Two M.2 slots including one PCIe 4.0 interface alongside four SATA III connectors for HDD and SSD configurations
- Integrated Wi-Fi 6E and Bluetooth 5.3 wireless connectivity plus 2.5 Gigabit Ethernet LAN port
- HDMI 2.1 output supporting 4K resolution and 7.1 channel audio
- Four RGB LED pin headers for custom lighting setups and multiple PCIe x16 slots for graphics cards
- Three year manufacturer warranty with PC health monitoring for CPU fan temperature voltage and water cooling
You may also like
Save £12
MSI PRO Z890-A WIFI Motherboard LGA 1851 Intel Z890 ATX DDR5 Black
In stock
Original price was: £227.99.£215.99Current price is: £215.99.
Save £53
GIGABYTE TRX50 AI TOP-2B Motherboard – AMD sTR5, DDR5, PCIe 5.0, Wi-Fi 7
In stock
Original price was: £925.19.£872.39Current price is: £872.39.
Save £30
ASRock TRX50 WS Extended ATX Motherboard, Socket sTR5, AMD TRX50, DDR5, Wi-Fi 6E, Black
In stock
Original price was: £586.79.£556.79Current price is: £556.79.
Save £17
Gigabyte Z890 Aero G ATX Motherboard, LGA 1851, Intel Z890, DDR5, Wi-Fi 7, White
In stock
Original price was: £299.99.£283.19Current price is: £283.19.
Description
GIGABYTE B550 X EAGLE WIFI6E – Reliable AM4 Platform
We supply the GIGABYTE B550 X EAGLE WIFI6E Motherboard AMD B550 Chipset AM4 Socket ATX DDR4 Wi-Fi 6E Dark brown for builders needing solid connectivity. This board supports Ryzen processors up to 5000 series. It delivers stable power delivery and modern wireless speeds. You get robust expansion options for storage and graphics.
Detailed specification overview
Here is how this unit performs across critical categories.
| Metric | Spec. |
|---|---|
| Socket | AM4 |
| Chipset | AMD B550 |
| Maximum RAM | 128 GB DDR4 |
| Wireless | Wi-Fi 6E |
| Warranty | 3 years |
Modern wireless connectivity included
This model includes Wi-Fi 6E and Bluetooth 5.3. You enjoy faster downloads and lower latency. Bluetooth connects peripherals without cables. The onboard antenna ensures a strong signal range.
Fast storage interface options
One M.2 slot supports PCIe 4.0 speeds. This reduces load times for games and apps. SATA ports remain available for bulk drives. You can install multiple high speed modules.
Substantial memory capacity
Four DIMM slots accept up to 128 GB. Dual-channel architecture boosts data throughput. It supports ECC and Non-ECC modules. This allows significant scaling for workloads.
Efficient thermal management
Passive cooling covers critical voltage areas. Multiple fan headers help manage airflow. Water pump connectors support custom loops. You can monitor temperatures reliably via software.
Package contents
- Antenna
- Screws
- Documentation
Before you order
- Confirm your CPU uses the AM4 socket.
- Check your case supports ATX form factors.
- Verify your RAM uses DDR4 standards.
Frequently Asked Questions
Q: Which CPUs work with this board?
A: It supports AMD Ryzen 3000, 4000, and 5000 series.
Q: What is the maximum RAM size?
A: You can install up to 128 GB of DDR4 memory.
Q: Does it support the latest Wi-Fi standard?
A: Yes, it supports Wi-Fi 6E for faster wireless networking.
Q: How many M.2 slots are available?
A: There are two M.2 slots for high speed storage.
Our verdict
This board suits AMD Ryzen builders seeking Wi-Fi 6E. It offers solid features for the price point. Warranty cover is 3 years. We recommend it for modern home and office PCs.
Specifications
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 2 |
| Front panel connector | Yes |
| 12V power connector | Yes |
| Supported storage drive interfaces | M.2, NVMe, PCI Express 3.0, PCI Express 4.0, SATA |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 4 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| Number of CPU fan connectors | 2 |
| Number of EPS power connectors (8-pin) | 1 |
| Number of water pump connectors | 2 |
| Number of RGB LED pin headers | 4 |
| Technical details | |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B550 |
| Supported processor sockets | Socket AM4 |
| PC health monitoring | CPU, Fan, Temperature, Voltage, Water cooling |
| Parallel processing technology support | Not supported |
| HDMI version | 2.1 |
| Cooling type | Passive |
| Motherboard form factor | ATX |
| Component for | PC |
| Warranty period | 3 year(s) |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 11 x64, Windows 10 x64 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B550 |
| RAID levels | 0, 1, 10 |
| Supported processor sockets | Socket AM4 |
| PC health monitoring | CPU, Fan, Temperature, Voltage, Water cooling |
| Cooling type | Passive |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 5000 Series, AMD Ryzen 3000 Series, AMD Ryzen 4000 Series |
| Supported processor sockets | Socket AM4 |
| Processor socket | Socket AM4 |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 2133,2400,2667,2933,3200 MHz |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed (max) | 3200 MHz |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory per slot | 32 GB |
| Storage controllers | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, NVMe, PCI Express 3.0, PCI Express 4.0, SATA |
| RAID levels | 0, 1, 10 |
| Number of storage drives supported | 6 |
| RAID support | Yes |
| Graphics | |
| Parallel processing technology support | Not supported |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |
| DirectX version | 12.0 |
| HDCP version | 2.3 |

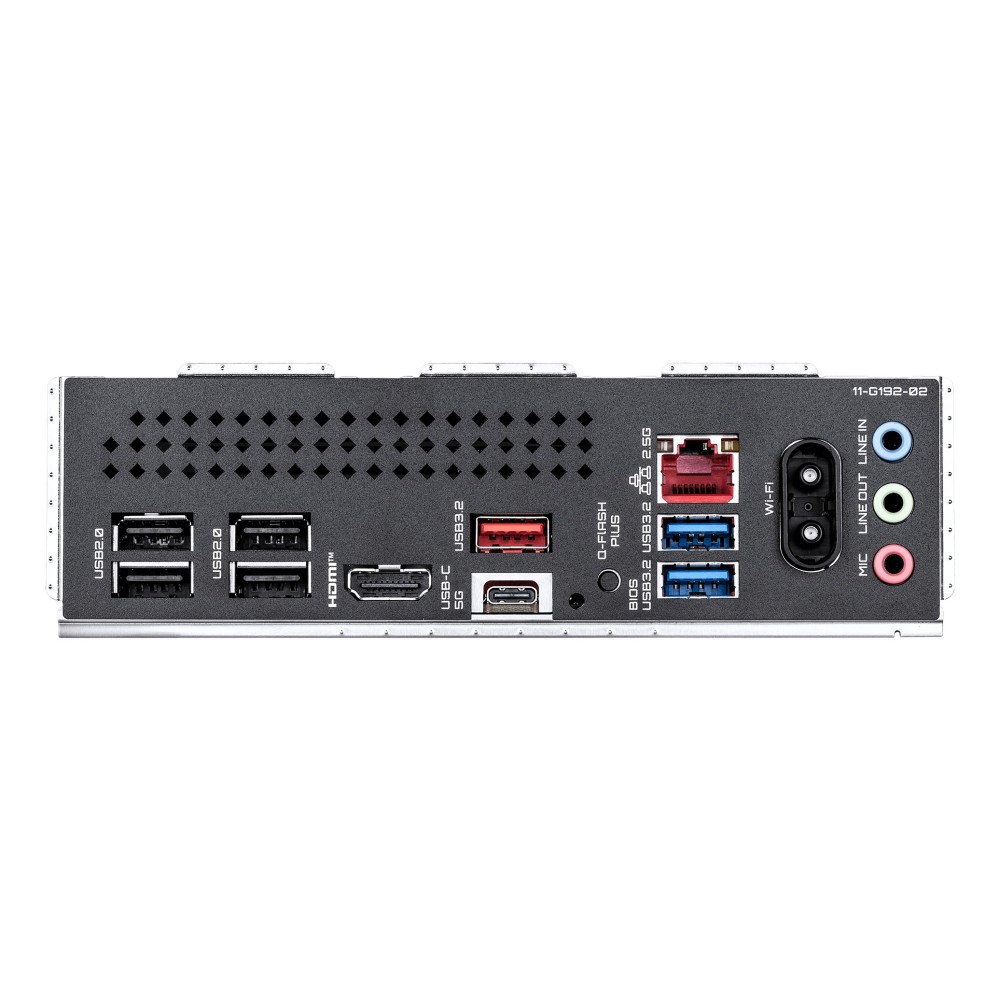

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 2.0 ports quantity | 4 |
| WiFi-AP antenna jack | 2 |
| Headphone outputs | 1 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Line-in | Yes |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| LAN controller | Realtek RTL8125 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| WLAN controller model | MediaTek MT7902 |
| Features | |
| Power source type | ATX |
| Windows operating systems supported | Windows 11 x64, Windows 10 x64 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B550 |
| Supported processor sockets | Socket AM4 |
| PC health monitoring | CPU, Fan, Temperature, Voltage, Water cooling |
| Cooling type | Passive |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Audio chip | Realtek ALC897 |
| Product colour | Dark brown |
| Expansion slots | |
| Number of M.2 (M) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 4 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| 1st M.2 largest key size | 22110 |
| 1st M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 3.0 |
| BIOS | |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery capacity | 220 mAh |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| BIOS memory size | 128 Mbit |
| ACPI version | 5.0 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Desktop Management Interface (DMI) version | 2.7 |
| Power | |
| Power source type | ATX |
| Video | |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |
| DirectX version | 12.0 |
| Packaging data | |
| Package width | 345 mm |
| Package depth | 294 mm |
| Package height | 80 mm |
| Package weight | 2.46 kg |
| Software | |
| Windows operating systems supported | Windows 11 x64, Windows 10 x64 |
| Bundled software | Norton® Internet Security (OEM version) |
| Battery | |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery capacity | 220 mAh |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Lithium weight per battery | 0.07 g |
| Battery type | CR2032 |
| Logistics data | |
| Products per shipping (inner) case | 1 pc(s) |
| Country of origin | China |
| Weight & dimensions | |
| Height | 35 mm |
| Package width | 345 mm |
| Package depth | 294 mm |
| Package height | 80 mm |
| Package weight | 2.46 kg |
| Weight | 2.04 kg |
| Width | 305 mm |
| Depth | 244 mm |
| Packaging content | |
| Bundled software | Norton® Internet Security (OEM version) |
| Batteries included | Yes |
| Screws included | Yes |
| Antenna included | Yes |
| Other features | |
| Height | 35 mm |
| Package width | 345 mm |
| Package depth | 294 mm |
| Package height | 80 mm |
| Package weight | 2.46 kg |
| Weight | 2.04 kg |
