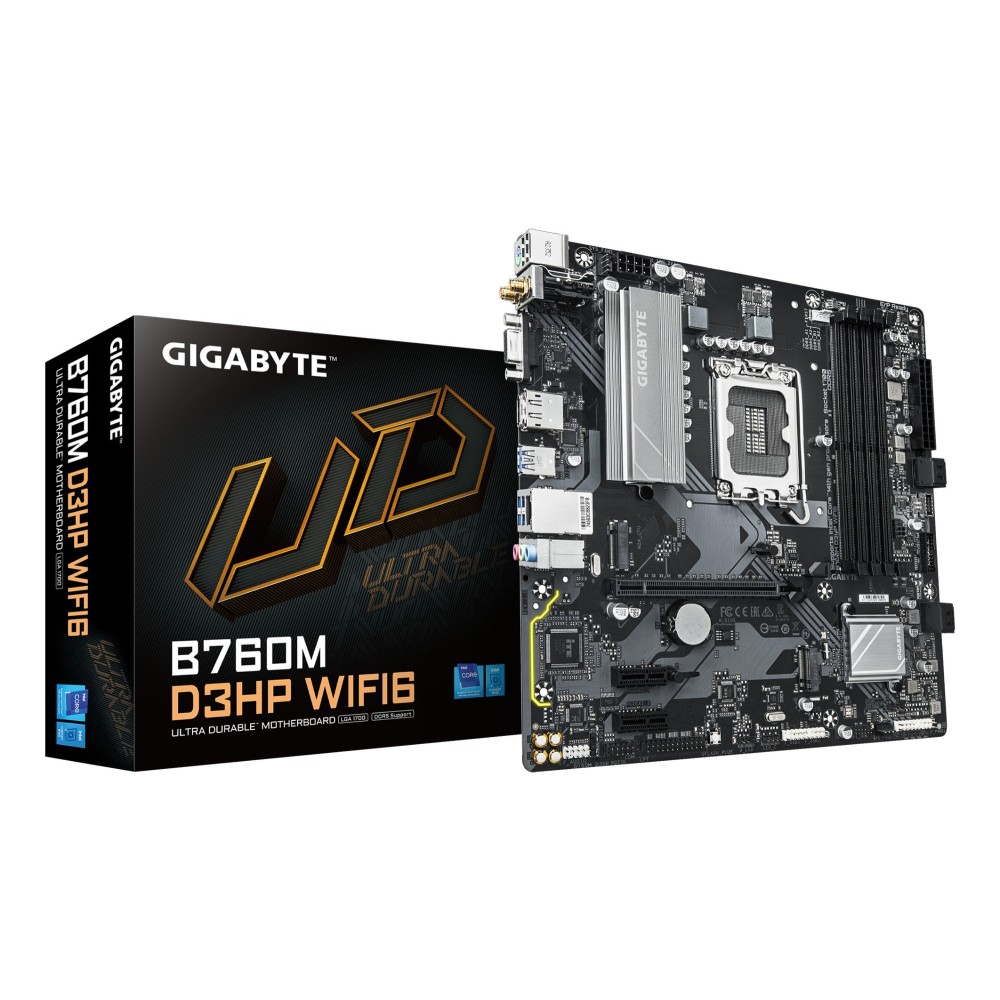

GIGABYTE B760M D3HP WIFI6 Motherboard – LGA1700, DDR5, Wi-Fi 6
£105.42 inc VAT
In stock
In stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item
- Intel B760 Express chipset for LGA 1700 processors (12th, 13th, and 14th Gen Core, Celeron, Pentium Gold)
- DDR5 memory support up to 192GB at 5600MHz (dual-channel)
- Integrated Wi-Fi 6 (802.11ax) and Bluetooth 5.3 for wireless connectivity
- Two M.2 slots (PCIe 4.0), four SATA III connectors, RAID support
- Micro ATX form factor with 7.1 channel audio and Gigabit Ethernet
- Multiple USB ports (3x USB 3.2 Gen 1 Type-A, 2x USB 2.0), HDMI 2.1, DisplayPort 1.2
- 3-year warranty and includes Norton Internet Security (OEM)
Payment Methods:
You may also like

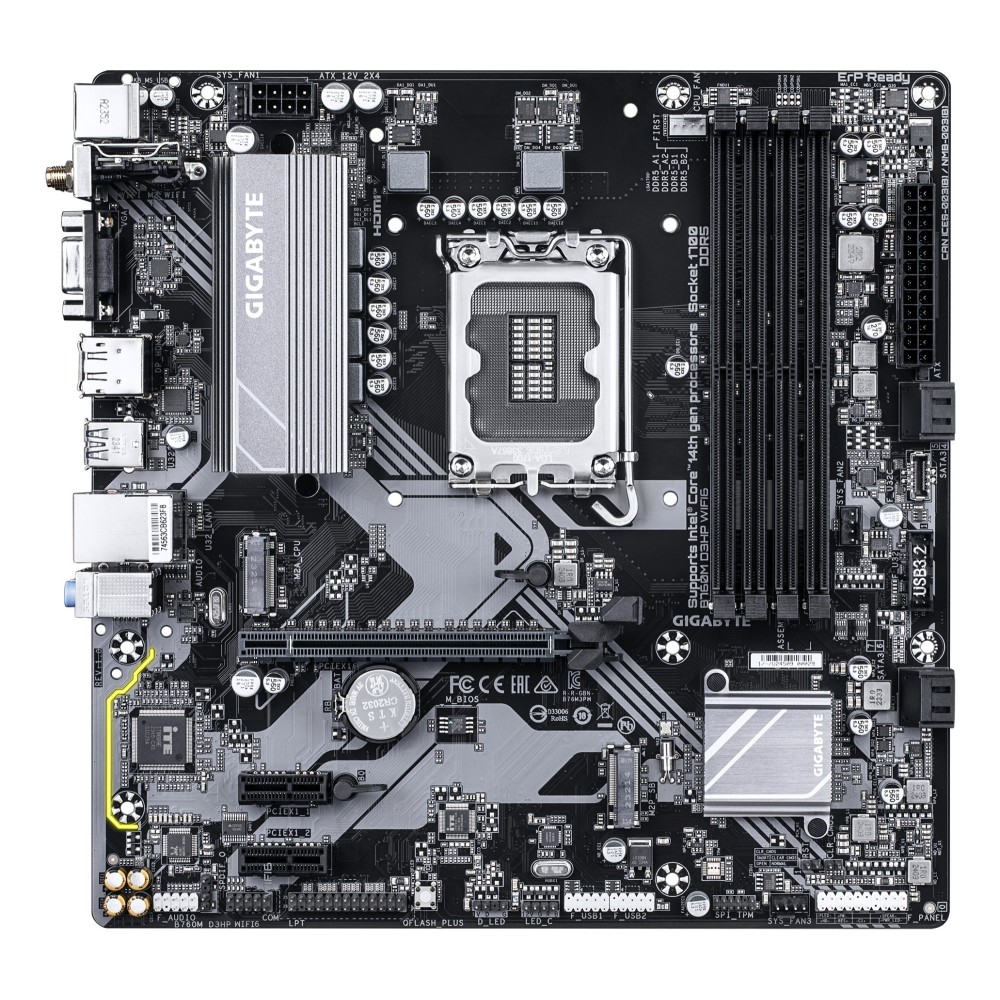

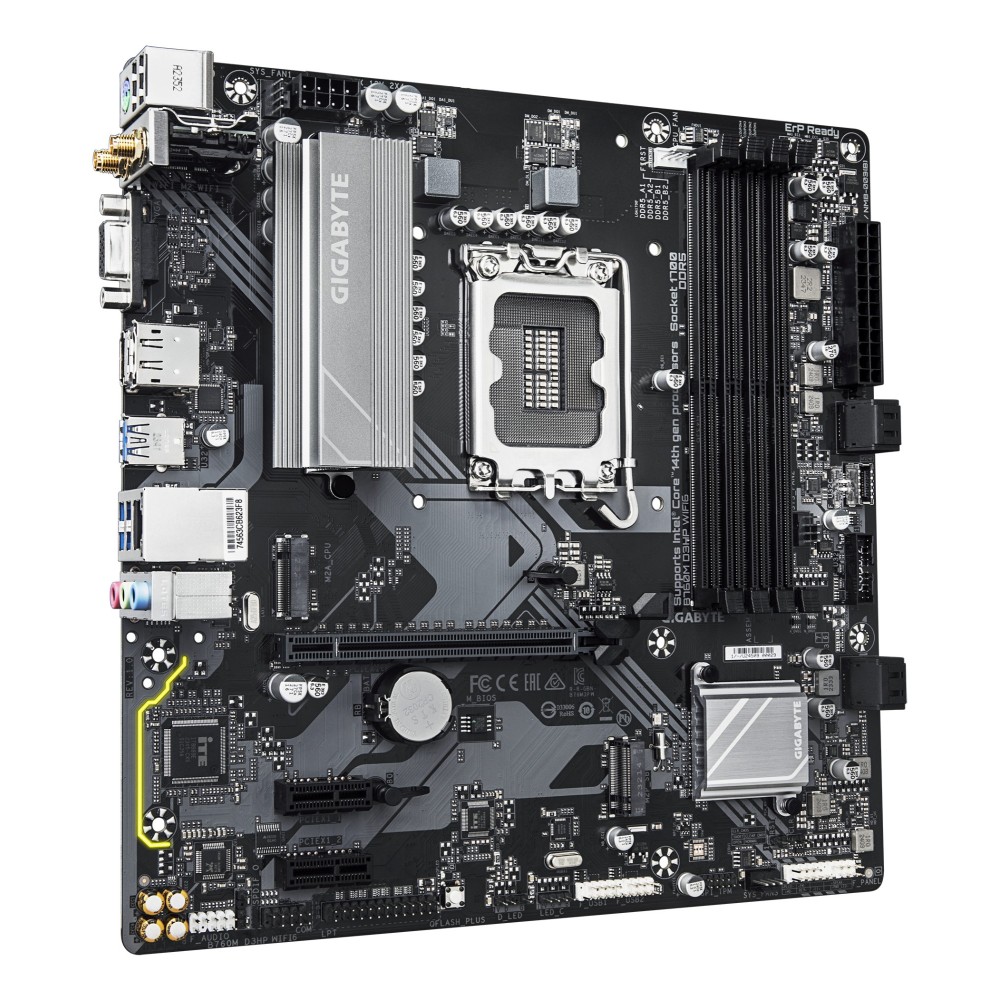

GIGABYTE B760M D3HP – Advanced Micro-ATX Platform
The GIGABYTE B760M D3HP WIFI6 Motherboard – Supports Intel Core 14th Gen CPUs, 4+1+1 Phases Digital VRM, up to 5600MHz DDR5, 2xPCIe 4.0 M.2, Wi-Fi 6, GbE LAN, USB 3.2 Gen1 is ideal for building a robust and efficient PC. It offers excellent connectivity and performance for everyday computing and gaming. This board provides a solid foundation for your Intel 12th, 13th, or 14th Gen system.
Essential System Metrics
| Metric | Spec. |
|---|---|
| Motherboard Form Factor | Micro ATX |
| Processor Socket | LGA 1700 |
| Memory Type | DDR5-SDRAM |
| Maximum Internal Memory | 192 GB |
| M.2 Slots | 2 |
| Wi-Fi Standard | Wi-Fi 6 (802.11ax) |
Power Delivery for Stable Performance
Our motherboard features a 4+1+1 phases digital VRM design. This ensures stable power delivery to your CPU. It is crucial for maintaining performance under load. You can rely on consistent power for demanding tasks.
Blazing Fast Storage Options
Benefit from two PCIe 4.0 M.2 slots. These slots deliver rapid data transfer speeds. This is perfect for NVMe SSDs. Experience quicker boot times and faster application loading.
Seamless Wireless Connectivity
Integrated Wi-Fi 6 (802.11ax) provides fast and reliable wireless networking. Bluetooth 5.3 is also included for peripheral connections. Enjoy smooth online gaming and streaming. A Gigabit Ethernet LAN port provides wired options as well.
Enhanced System Monitoring
We have included comprehensive PC health monitoring. You can track fan speeds, temperatures, and voltages. Water cooling monitoring is also available. Keep your system running optimally with these features.
What’s in the Box
- Antenna
- Screws
Before You Order
- Confirm your chosen CPU uses the LGA 1700 socket.
- Check your memory modules are DDR5-SDRAM.
- Ensure your PC case supports the micro ATX form factor.
- Verify your power supply includes an 8-pin EPS connector.
Frequently Asked Questions
Q: Which Intel CPU generations does this motherboard support?
A: It supports Intel Core 12th, 13th, and 14th Gen CPUs, along with Celeron and Pentium Gold.
Q: What is the maximum memory speed supported?
A: This board supports DDR5 memory speeds up to 5600 MHz.
Q: Does this motherboard have integrated Wi-Fi?
A: Yes, it features Wi-Fi 6 (802.11ax) for high-speed wireless connectivity.
Q: How many M.2 slots are available for storage?
A: There are two PCIe 4.0 M.2 slots for fast SSDs.
Q: What is the audio output channel support?
A: It provides 7.1 channels of high-definition audio output.
The Hardvance Recommendation
This GIGABYTE B760M D3HP WIFI6 Motherboard is an excellent choice for users seeking a stable and feature-rich micro ATX platform. It supports the latest Intel CPUs and offers modern connectivity. It is well-suited for both productivity and gaming builds. Warranty cover varies by product, so please contact us to confirm.
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 2 |
| Front panel connector | Yes |
| 12V power connector | Yes |
| Supported storage drive interfaces | M.2, PCI Express 4.0, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| TPM connector | Yes |
| Serial port headers | 1 |
| S/PDIF out connector | Yes |
| Parallel connector | Yes |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 3 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| Number of CPU fan connectors | 1 |
| Number of EPS power connectors (8-pin) | 1 |
| Number of RGB LED pin headers | 2 |
| Technical details | |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B760 Express |
| Supported processor sockets | LGA 1700 |
| Serial port headers | 1 |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Parallel processing technology support | Not supported |
| HDMI version | 2.1 |
| Cooling type | Passive |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Warranty period | 3 year(s) |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B760 Express |
| RAID levels | 0, 1, 5, 10 |
| Supported processor sockets | LGA 1700 |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Cooling type | Passive |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel® Pentium® Gold |
| Supported processor sockets | LGA 1700 |
| Processor socket | LGA 1700 |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 4400,4800,5200,5600 MHz |
| Maximum internal memory | 192 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed (max) | 5600 MHz |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory per slot | 48 GB |
| Storage controllers | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express 4.0, SATA III |
| RAID levels | 0, 1, 5, 10 |
| Number of storage drives supported | 6 |
| RAID support | Yes |
| Graphics | |
| Parallel processing technology support | Not supported |
| Maximum resolution | 4096 x 2304 pixels |
| HDCP | Yes |
| DirectX version | 12.0 |

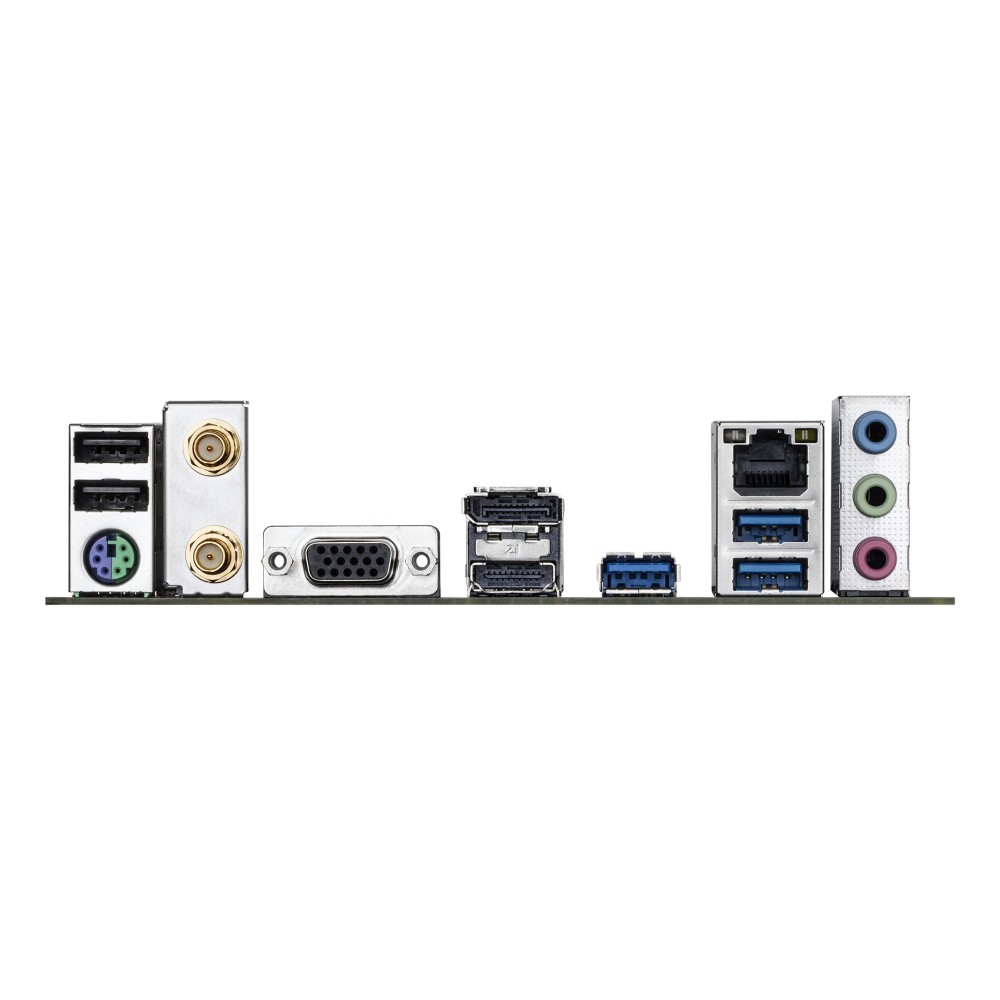

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| DisplayPort version | 1.2 |
| USB 2.0 ports quantity | 2 |
| WiFi-AP antenna jack | 2 |
| VGA (D-Sub) ports quantity | 1 |
| PS/2 ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 1 |
| Line-in | Yes |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| LAN controller | Realtek RTL8111H |
| Ethernet interface type | Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| WLAN controller model | Realtek RTL8851BE |
| Features | |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B760 Express |
| Supported processor sockets | LGA 1700 |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Cooling type | Passive |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Audio chip | Realtek ALC897 |
| Product colour | Dark brown |
| Expansion slots | |
| Number of M.2 (M) slots | 2 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| BIOS | |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| BIOS memory size | 128 Mbit |
| ACPI version | 5.0 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Desktop Management Interface (DMI) version | 2.7 |
| Power | |
| Power source type | ATX |
| Video | |
| Maximum resolution | 4096 x 2304 pixels |
| HDCP | Yes |
| DirectX version | 12.0 |
| Packaging data | |
| Package width | 265 mm |
| Package depth | 265 mm |
| Package height | 54 mm |
| Package weight | 1.2 kg |
| Software | |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Battery | |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Lithium weight per battery | 0.07 g |
| Battery type | CR2032 |
| Logistics data | |
| Products per shipping (inner) case | 1 pc(s) |
| Weight & dimensions | |
| Height | 35 mm |
| Package width | 265 mm |
| Package depth | 265 mm |
| Package height | 54 mm |
| Package weight | 1.2 kg |
| Weight | 1.11 kg |
| Width | 244 mm |
| Depth | 244 mm |
| Packaging content | |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Batteries included | Yes |
| Screws included | Yes |
| Antenna included | Yes |
| Other features | |
| Height | 35 mm |
| Package width | 265 mm |
| Package depth | 265 mm |
| Package height | 54 mm |
| Package weight | 1.2 kg |
| Weight | 1.11 kg |
| Identifiers | |
| Distributor SKUs | MBGIG-B760MD3W6, 126660, 552531 |
