GIGABYTE GeForce RTX 5070 AERO OC 12G Graphics Card

GIGABYTE RTX 5070 AERO OC | 12GB GDDR7 Gaming Graphics Card

The GIGABYTE GeForce RTX 5070 AERO OC 12G Graphics Card – 12GB GDDR7, 192bit, PCI-E 5.0, 2625 MHz Core Clock, 3 x DP 2.1a, 1 x HDMI 2.1b, NVIDIA DLSS 4, GV-N5070AERO OC-12GD delivers high-end gaming performance with advanced cooling and overclocked factory settings. Designed for gamers and creators, this RTX 5070 model combines NVIDIA’s latest architecture with GIGABYTE’s WINDFORCE 3X cooling system for stable, high-frame-rate gameplay.

Product Specifications

Advanced Cooling for Sustained Performance

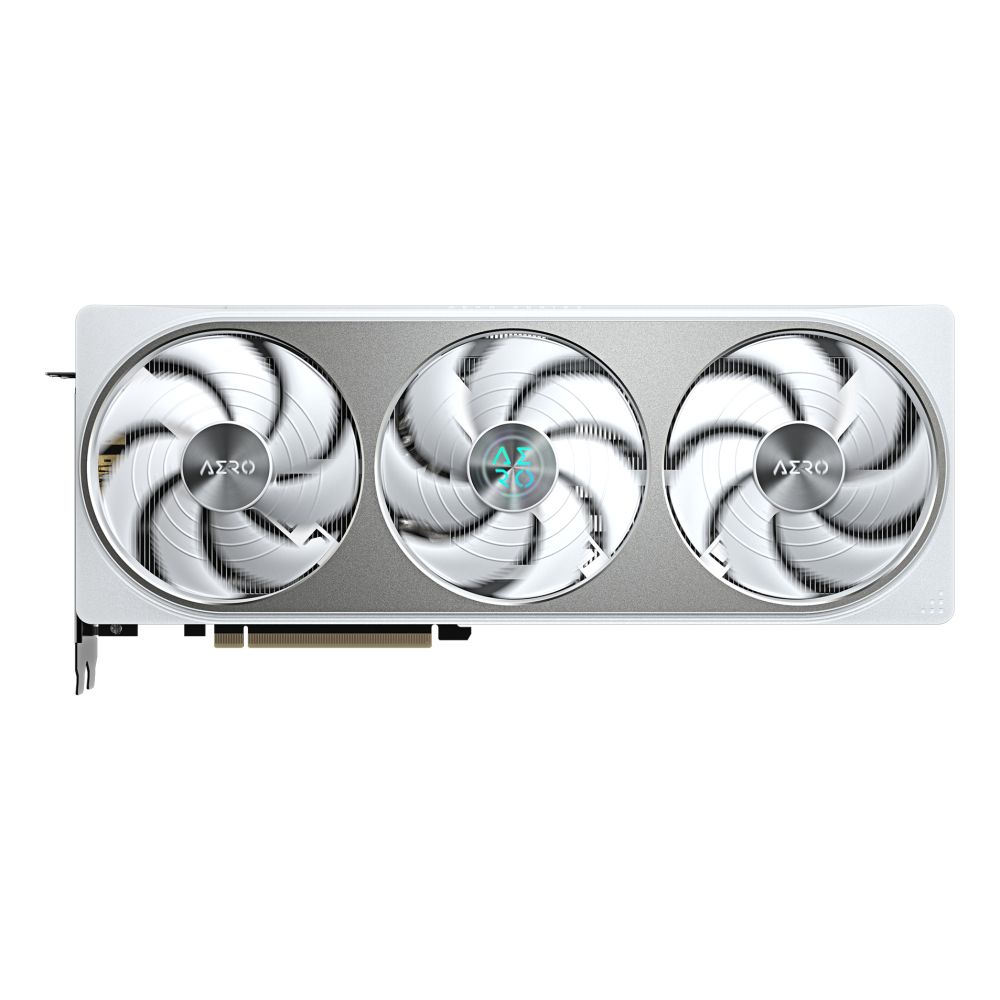

The GIGABYTE RTX 5070 AERO OC features WINDFORCE 3X cooling technology with three fans to maintain optimal temperatures during intense gaming sessions. This active cooling system prevents thermal throttling, ensuring consistent performance even under heavy workloads. The full-height design with a dual-slot footprint allows for efficient heat dissipation in standard ATX cases.

Overclocked Performance Right Out of the Box

This OC edition comes factory overclocked to 2625 MHz core clock, delivering enhanced performance compared to reference models. The 6144 CUDA cores and 192-bit memory bus provide the computational power needed for modern gaming titles at high resolutions. DLSS 4 support further boosts frame rates while maintaining visual quality.

Extensive Display Connectivity

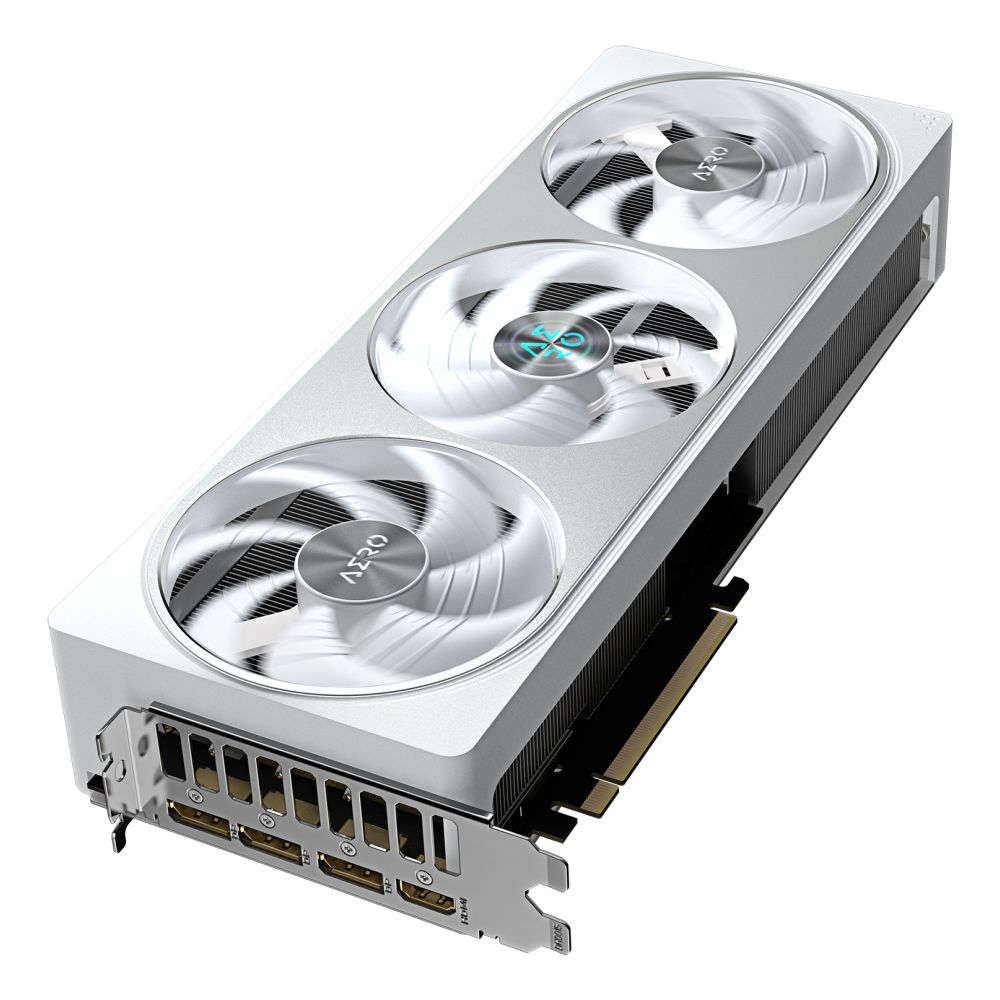

With three DisplayPort 2.1a outputs and one HDMI 2.1b port, this graphics card supports up to four simultaneous displays. The HDMI 2.1b connection enables 4K gaming at 120Hz and compatibility with the latest gaming consoles. DisplayPort 2.1a offers support for multiple high-refresh-rate monitors, perfect for immersive gaming setups or productivity workflows.

Compact Yet Powerful Design

Measuring 324mm x 130mm x 56mm and weighing 2kg, the RTX 5070 AERO OC fits in most full-tower and mid-tower cases while delivering substantial performance. The white colour scheme with subtle illumination adds a modern aesthetic to your build. The card requires a minimum 750W power supply and connects via a single 16-pin supplementary power connector.

Box contents

• GIGABYTE GeForce RTX 5070 AERO OC 12G Graphics Card
• Quick installation guide
• Power cables

Key points to check

• Confirm your case has at least 324mm clearance for GPU length
• Verify your power supply provides minimum 750W capacity
• Check you have an available PCI-E 5.0 x16 slot
• Ensure your display supports HDMI 2.1b or DisplayPort 2.1a

Common questions

Q: What power supply do I need for this graphics card?

A: You need a minimum 750W power supply with a 16-pin supplementary connector.

Q: How many monitors can I connect?

A: This card supports up to four displays via three DisplayPort 2.1a and one HDMI 2.1b connections.

Q: Does this card support ray tracing?

A: Yes, as an RTX 5070 model, it supports real-time ray tracing and DLSS 4 technology.

Q: What are the dimensions of this graphics card?

A: The card measures 324mm in length, 130mm in height, and 56mm in depth.

Q: Is this card overclocked?

A: Yes, this is an OC edition with a factory overclocked core clock of 2625 MHz.

Our verdict & warranty

The GIGABYTE RTX 5070 AERO OC 12G offers excellent value for gamers seeking high-performance graphics without extreme pricing. The factory overclocking, advanced cooling system, and modern connectivity make it suitable for 1440p and 4K gaming. Covered by the applicable manufacturer warranty.
