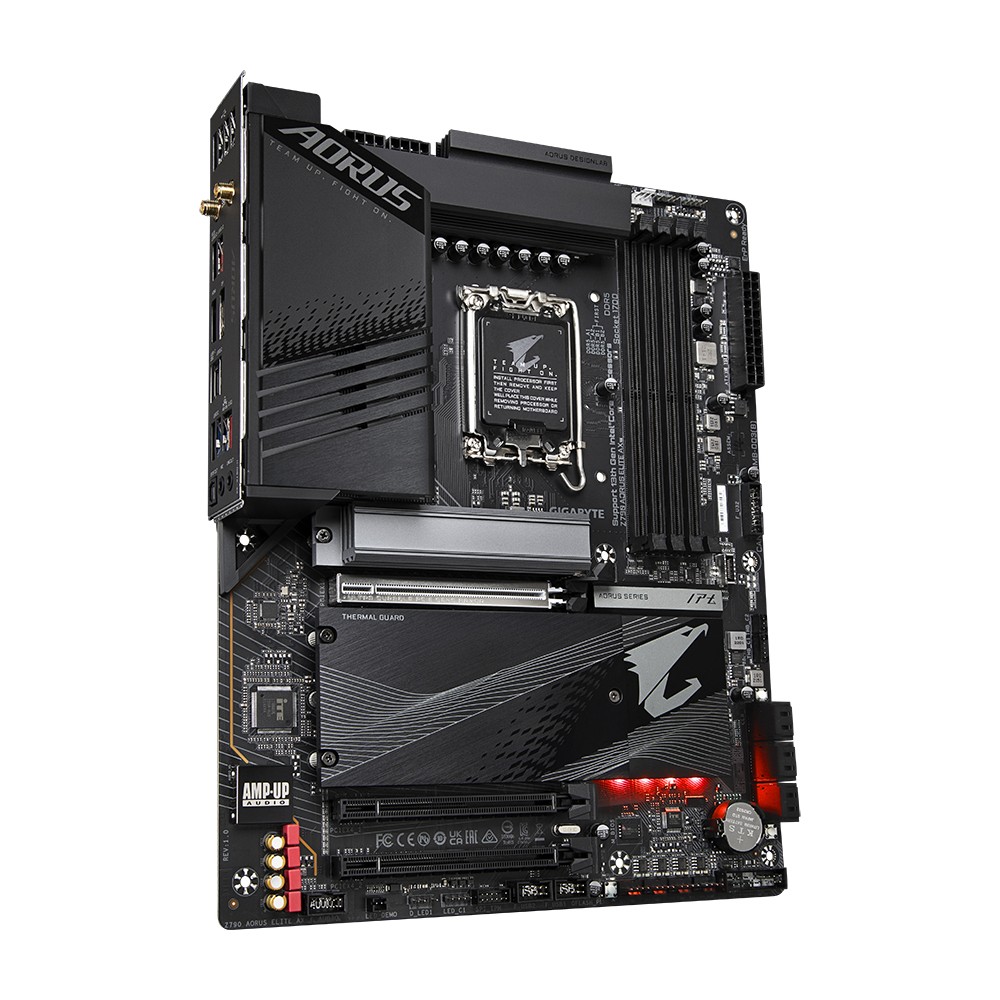

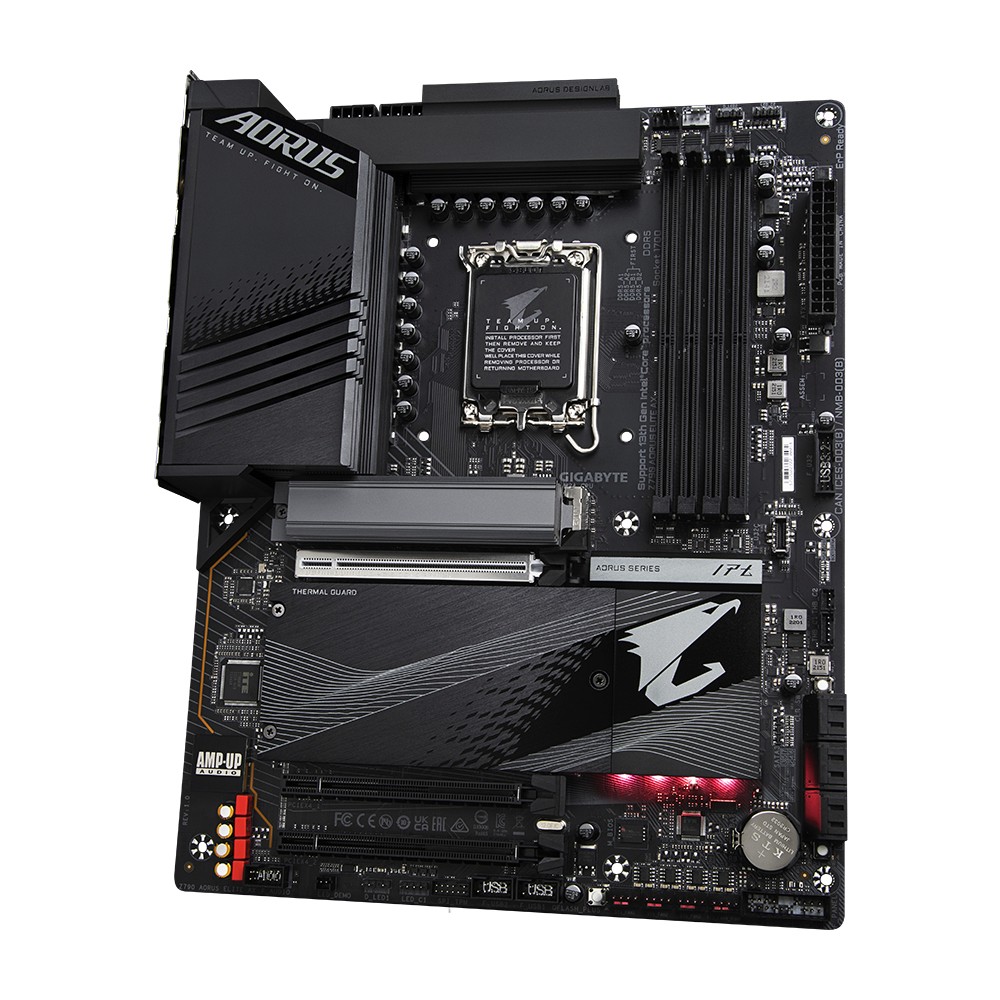

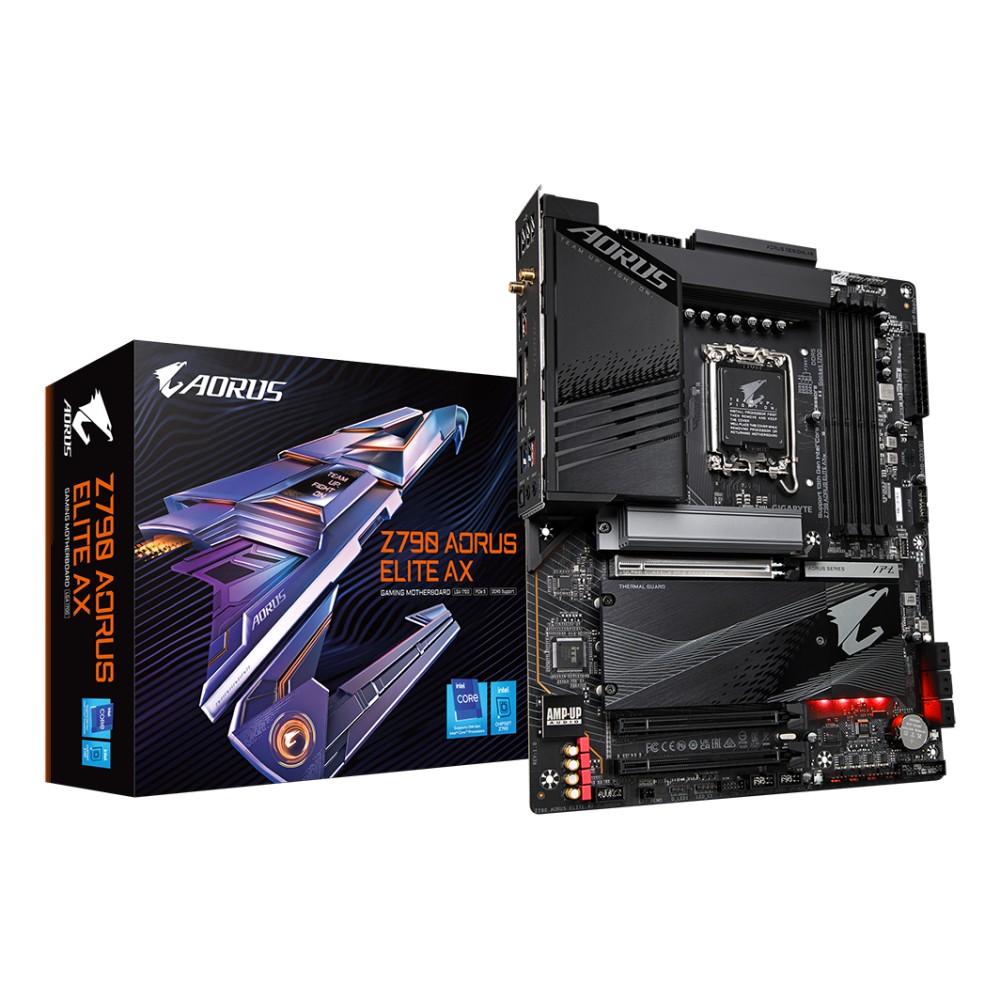

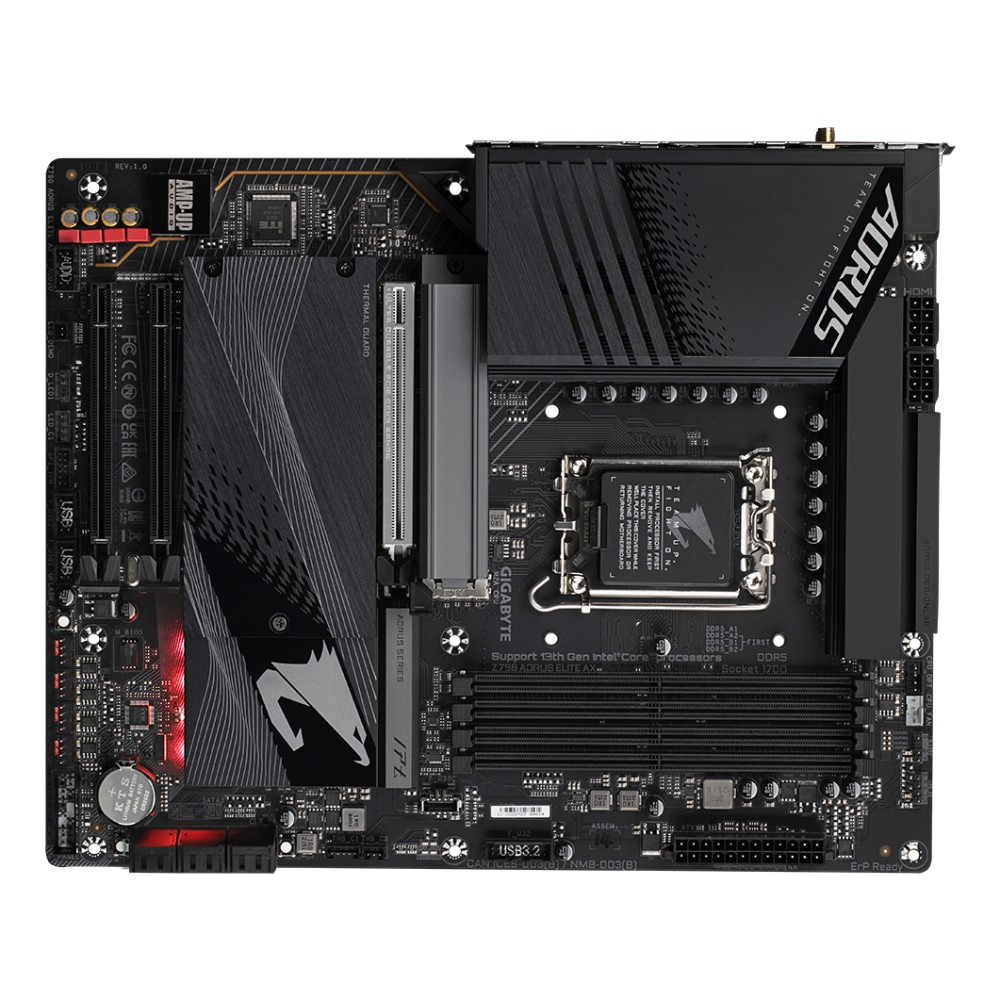

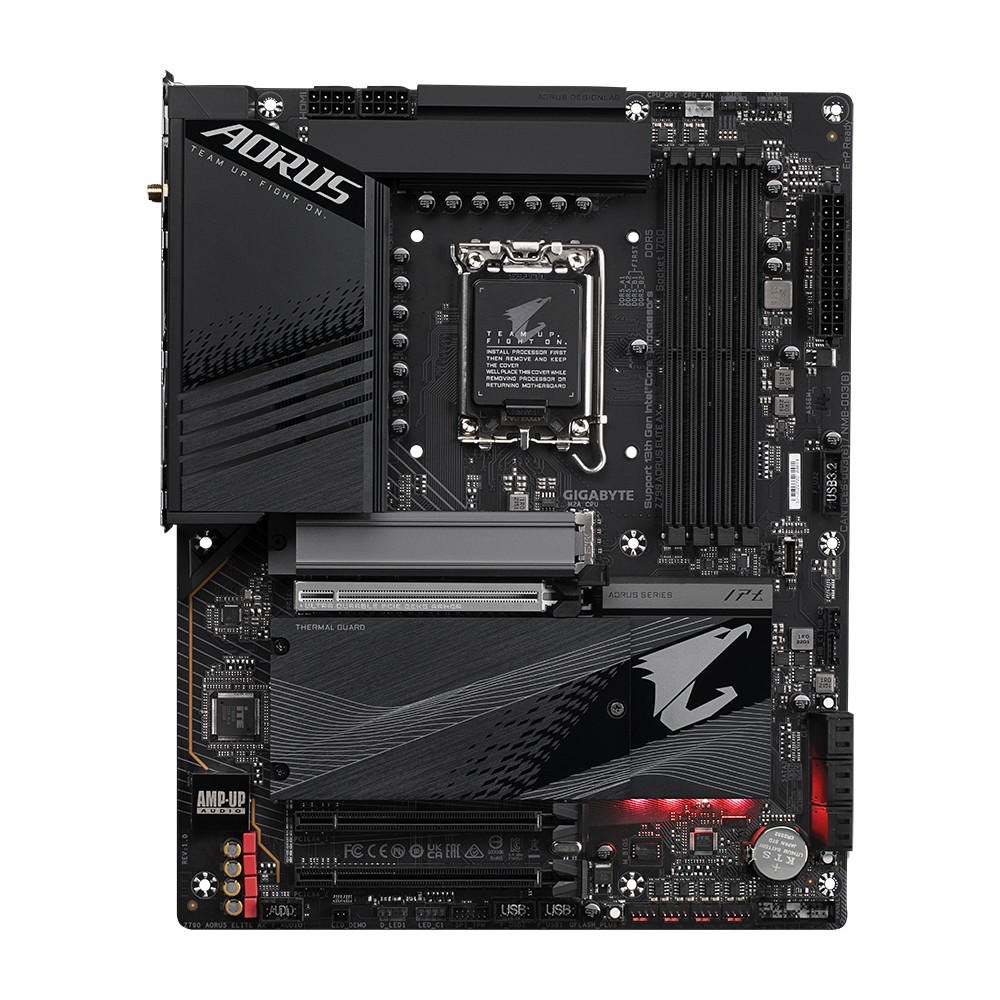

GIGABYTE Z790 AORUS ELITE AX Motherboard – LGA1700, DDR5, Wi-Fi 6E
£224.72 inc VAT
Out of stock
Out of stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item
- Supports Intel Core 14th Gen CPUs and LGA 1700 socket
- DDR5 memory support up to 7600MHz (OC) with 4 DIMM slots
- Features 4 M.2 M slots and 6 SATA III connectors for extensive storage
- Integrated Wi-Fi 6E, Bluetooth 5.3, and 2.5 Gigabit Ethernet
- ATX form factor with 7.1 channel audio output
- Crossfire support for multi-GPU configurations
- 3-year warranty for peace of mind
Payment Methods:
You may also like
GIGABYTE H610M S2H V2 Motherboard – Intel Core 14th CPUs, DDR5, PCIe 3.0 M.2
In stock
GIGABYTE Z790 AORUS ELITE AX – High-Performance Foundation
We present the GIGABYTE Z790 AORUS ELITE AX Motherboard – Supports Intel Core 14th CPUs, 16*+2+１ Phases Digital VRM, up to 7600MHz DDR5 (OC), 4xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2×2. This motherboard is ideal for PC builders and enthusiasts seeking robust performance. It provides a stable and powerful platform for demanding applications and gaming.
Core Platform Metrics
| Metric | Spec. |
|---|---|
| Processor Socket | LGA 1700 |
| Memory Type | DDR5-SDRAM |
| Max Memory Speed | 7600 MHz (OC) |
| M.2 Slots | 4 |
| LAN | 2.5 Gigabit Ethernet |
| Wi-Fi Standard | Wi-Fi 6E |
Power Delivery for Next-Gen CPUs
This board features a 16*+2+1 Phases Digital VRM design. This ensures stable and efficient power delivery to your CPU. It is particularly important for Intel Core 14th Gen processors. Stable power helps maintain peak performance under heavy loads.
Advanced Connectivity for Speed
Benefit from integrated Wi-Fi 6E and 2.5GbE LAN. Wi-Fi 6E offers excellent wireless speeds and lower latency. The 2.5 Gigabit Ethernet provides a fast and reliable wired connection. This is crucial for online gaming and large file transfers.
Rapid Storage Options
Four PCIe 4.0 M.2 slots are available. These slots support high-speed NVMe SSDs. This configuration allows for extremely fast boot times and application loading. It also offers ample storage expansion.
Future-Proof USB Interface
The inclusion of USB 3.2 Gen 2×2 Type-C ports provides versatile connectivity. This standard offers data transfer speeds up to 20Gbps. It is ideal for connecting the latest high-performance peripherals.
Comprehensive System Monitoring
Monitor your PC’s health with integrated tools. These include fan speed, temperature, voltage, and water cooling. This helps in maintaining optimal system conditions. It also aids in troubleshooting potential issues.
Before you order
- Confirm your CPU uses the LGA 1700 socket.
- Verify your RAM is DDR5-SDRAM for compatibility.
- Ensure your PC case supports an ATX motherboard form factor.
- Check your power supply has the necessary 24-pin ATX and 8-pin EPS connectors.
Frequently Asked Questions
Q: Which Intel CPUs are compatible with this motherboard?
A: It supports Intel Core i3, i5, i7, i9, Celeron, and Pentium Gold processors for the LGA 1700 socket.
Q: What is the maximum supported memory speed?
A: The motherboard supports DDR5 memory speeds up to 7600MHz when overclocked.
Q: Does this motherboard have an integrated graphics card?
A: No, this motherboard does not have an on-board graphics card.
Q: How many M.2 slots are available for storage?
A: There are four M.2 M slots available for high-speed storage drives.
Q: What operating systems does this motherboard support?
A: It supports both Windows 10 x64 and Windows 11 x64 operating systems.
Our final thoughts
This GIGABYTE Z790 AORUS ELITE AX motherboard is for users demanding robust performance and extensive connectivity. It provides a solid foundation for high-end gaming or content creation systems. Warranty cover varies by product, so please contact us to confirm.
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 4 |
| Thunderbolt headers | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Total number of SATA connectors | 6 |
| Front panel connector | Yes |
| 12V power connector | Yes |
| Supported storage drive interfaces | M.2, PCI Express 4.0, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| TPM connector | Yes |
| Number of SATA III connectors | 6 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| Technical details | |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z790 |
| Supported processor sockets | LGA 1700 |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Parallel processing technology support | Crossfire |
| On-board graphics card | No |
| HDMI version | 2.0 |
| Motherboard form factor | ATX |
| Component for | PC |
| Total number of SATA connectors | 6 |
| Maximum internal memory supported by processor | 192 GB |
| Warranty period | 3 year(s) |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Number of HDDs supported | 6 |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z790 |
| RAID levels | 0, 1, 5, 10 |
| Supported processor sockets | LGA 1700 |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | Intel |
| Maximum internal memory supported by processor | 192 GB |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Supported processor sockets | LGA 1700 |
| Processor socket | LGA 1700 |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 7600,7400,7200,4000,4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000 MHz |
| Maximum internal memory | 192 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed (max) | 7600 MHz |
| ECC сompatibility | ECC & Non-ECC |
| Storage controllers | |
| Number of HDDs supported | 6 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express 4.0, SATA III |
| RAID levels | 0, 1, 5, 10 |
| Number of storage drives supported | 10 |
| RAID support | Yes |
| Graphics | |
| Parallel processing technology support | Crossfire |
| On-board graphics card | No |
| Maximum resolution | 4096 x 2304 pixels |
| HDCP | Yes |
| DirectX version | 12.0 |

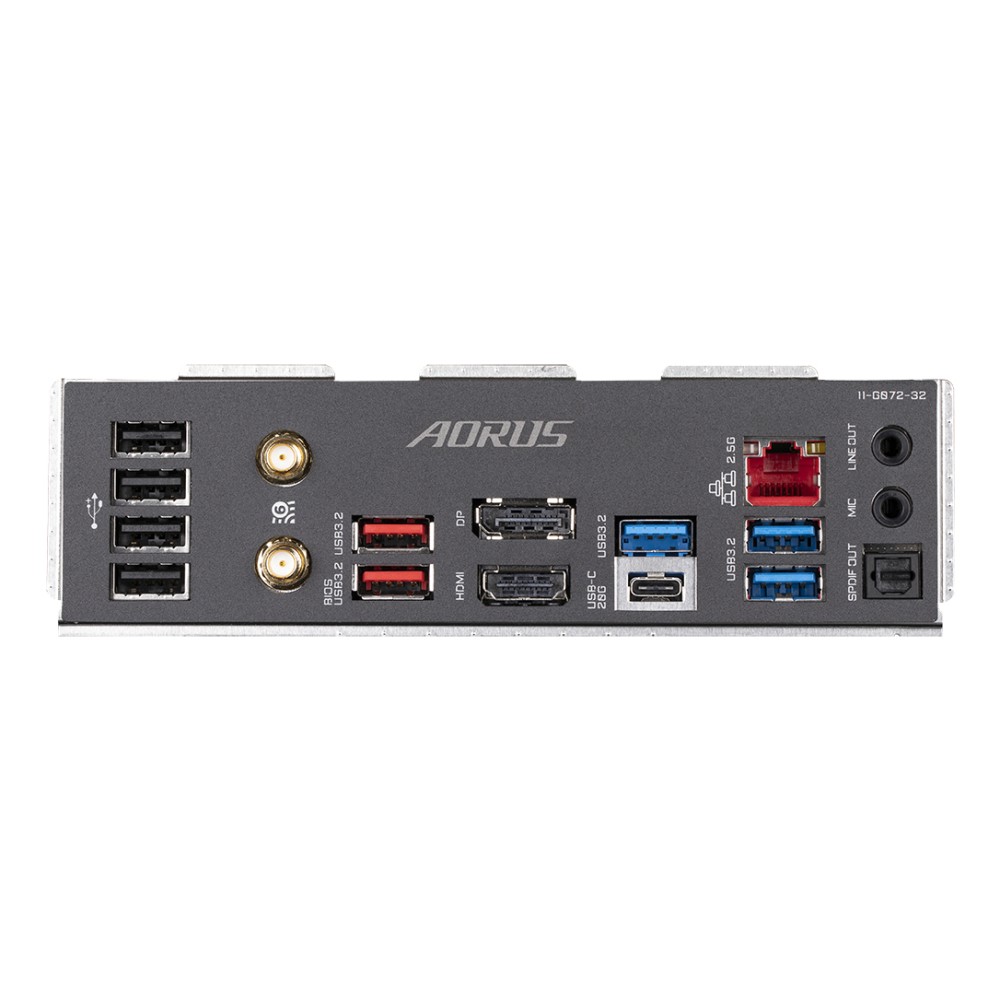

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| DisplayPort version | 1.2 |
| USB connector type | USB Type-A, USB Type-C |
| USB 2.0 ports quantity | 4 |
| WiFi-AP antenna jack | 2 |
| S/PDIF out port | Yes |
| Microphone in | Yes |
| Headphone outputs | 2 |
| HDMI version | 2.0 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Features | |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z790 |
| Supported processor sockets | LGA 1700 |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Product colour | Black |
| Expansion slots | |
| Number of M.2 (M) slots | 4 |
| PCI Express x16 slots | 3 |
| BIOS | |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| BIOS memory size | 256 Mbit |
| ACPI version | 5.0 |
| Clear CMOS button | Yes |
| System Management BIOS (SMBIOS) version | 2.7 |
| Desktop Management Interface (DMI) version | 2.7 |
| Video | |
| Maximum resolution | 4096 x 2304 pixels |
| HDCP | Yes |
| DirectX version | 12.0 |
| Packaging data | |
| Package width | 335 mm |
| Package depth | 270 mm |
| Package height | 80 mm |
| Package weight | 2.32 kg |
| Software | |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Bundled software | Norton Internet Security |
| Battery | |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Lithium weight per battery | 0.07 g |
| Battery type | CR2032 |
| Logistics data | |
| Products per shipping (inner) case | 1 pc(s) |
| Country of origin | China |
| Weight & dimensions | |
| Height | 35 mm |
| Package width | 335 mm |
| Package depth | 270 mm |
| Package height | 80 mm |
| Package weight | 2.32 kg |
| Width | 305 mm |
| Depth | 244 mm |
| Packaging content | |
| Cables included | SATA |
| Bundled software | Norton Internet Security |
| Batteries included | Yes |
| Other features | |
| Height | 35 mm |
| Package width | 335 mm |
| Package depth | 270 mm |
| Package height | 80 mm |
| Package weight | 2.32 kg |
| Identifiers | |
| Distributor SKUs | MBGIG-Z790AEAX, 122685, Z790 AORUS ELITE AX 1.0, 445533, STD10130089, 2120770, 1795478 |
| Additional EANs | 4719331849955 |
