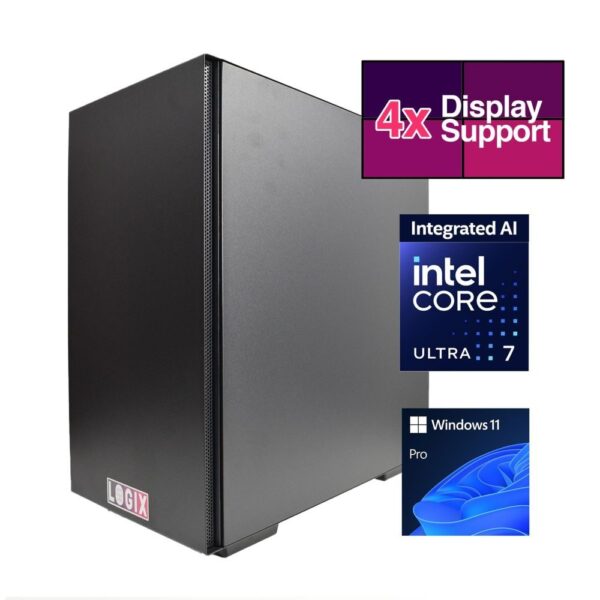

LOGIX Intel Core Ultra 7 20-Core, 32GB DDR5, 1TB NVMe, RTX 4060 8GB

LOGIX CCT-U732P | Intel Ultra 7 AI Workstation & CCTV PC

The LOGIX Intel Core Ultra 7 AI Powered 20 Core, 3.90GHz (5.50GHz Boost) NPU with 13 TOPS, 32GB Kingston DDR5 Memory, 1TB Kingston NVMe, Gigabyte RTX 4060 8GB 4xMonitor, 2 x 2.5GB… is a specialist Micro Tower built for modern UK home offices and security setups. It combines next-gen processing with dedicated AI acceleration. This system is designed for users requiring high multitasking power and reliable multi-screen support.

Slim Specs Table

AI-Accelerated Productivity

The integrated Intel AI Boost NPU handles background tasks efficiently. It supports Windows Studio Effects for video calls, such as automatic framing and noise filtering. Because these tasks run on the NPU, your CPU and GPU remain free for demanding applications. This ensures smoother performance during heavy multitasking.

Multi-Screen CCTV & Display Capability

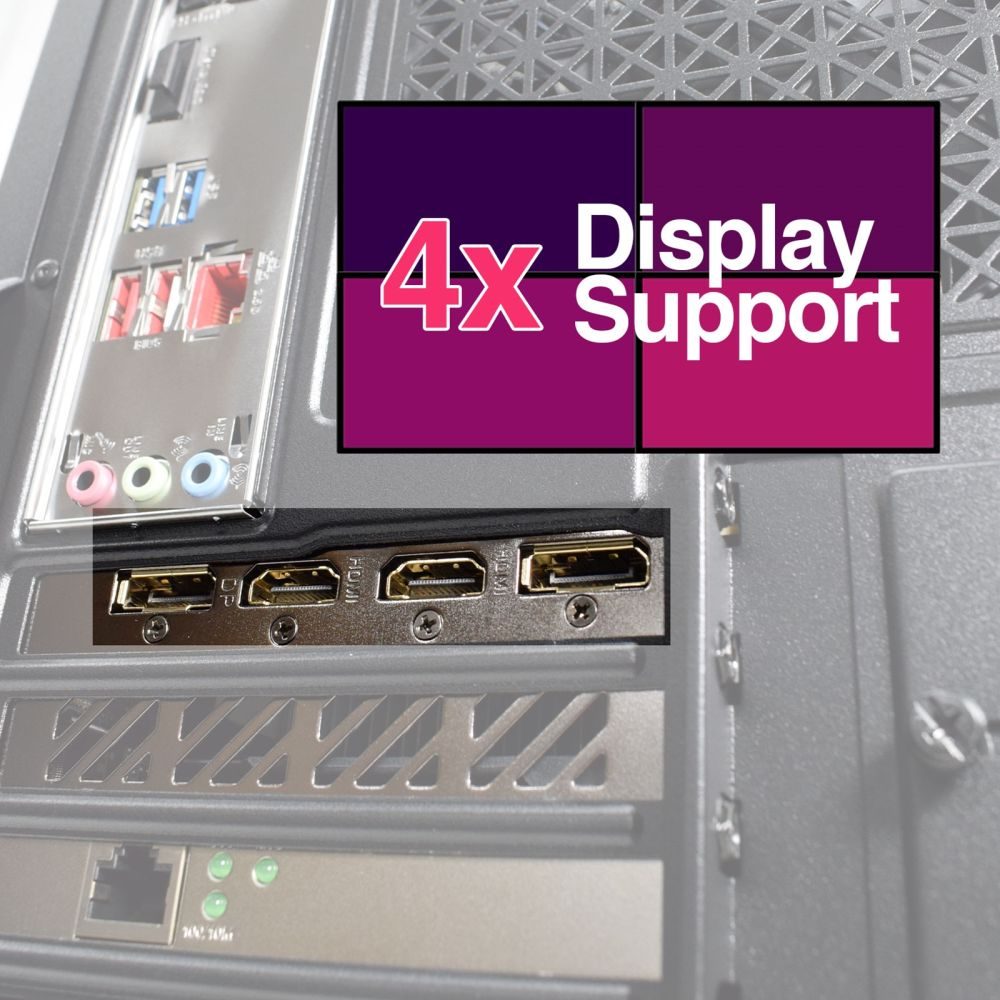

The Gigabyte RTX 4060 provides robust graphics performance. It features 2x HDMI 2.1 and 2x DisplayPort 1.4a outputs. In practice, this supports up to four distinct displays. It is an ideal solution for CCTV monitoring hubs or financial trading desks requiring high-resolution real-time data feeds.

Rapid Storage and Memory

This system utilizes 32GB of Kingston DDR5 RAM. It offers fast response times for large spreadsheets and browser tabs. The 1TB Kingston NVMe SSD delivers read speeds up to 6000MB/s. Consequently, boot times and file transfers are significantly reduced compared to older SATA drives.

Connectivity and Expansion

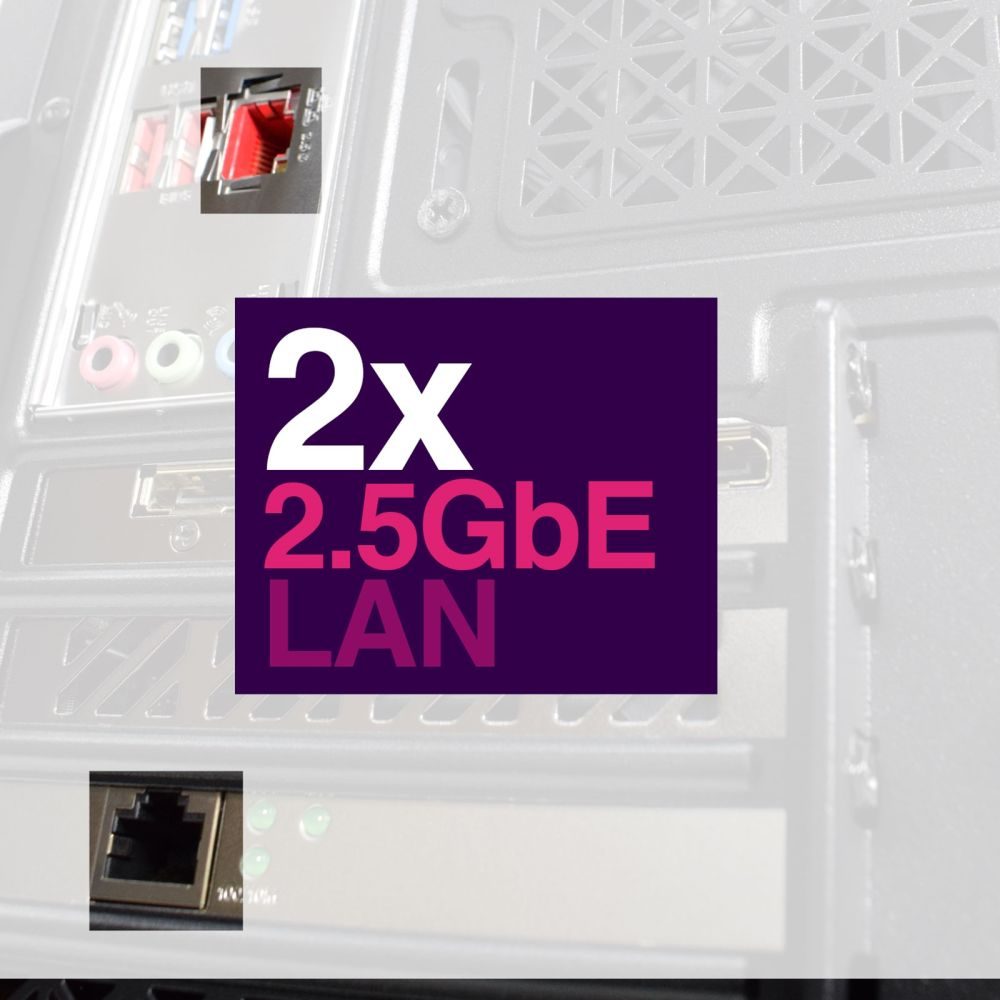

The Gigabyte B860M DS3H motherboard includes dual 2.5GbE LAN ports. This provides high-speed wired networking for stable internet or local server access. There are also 2x M.2 sockets for future storage upgrades. Additionally, the chassis supports 2x 3.5″ and 2x 2.5″ internal drives for bulk storage needs.

UK Build and Thermal Design

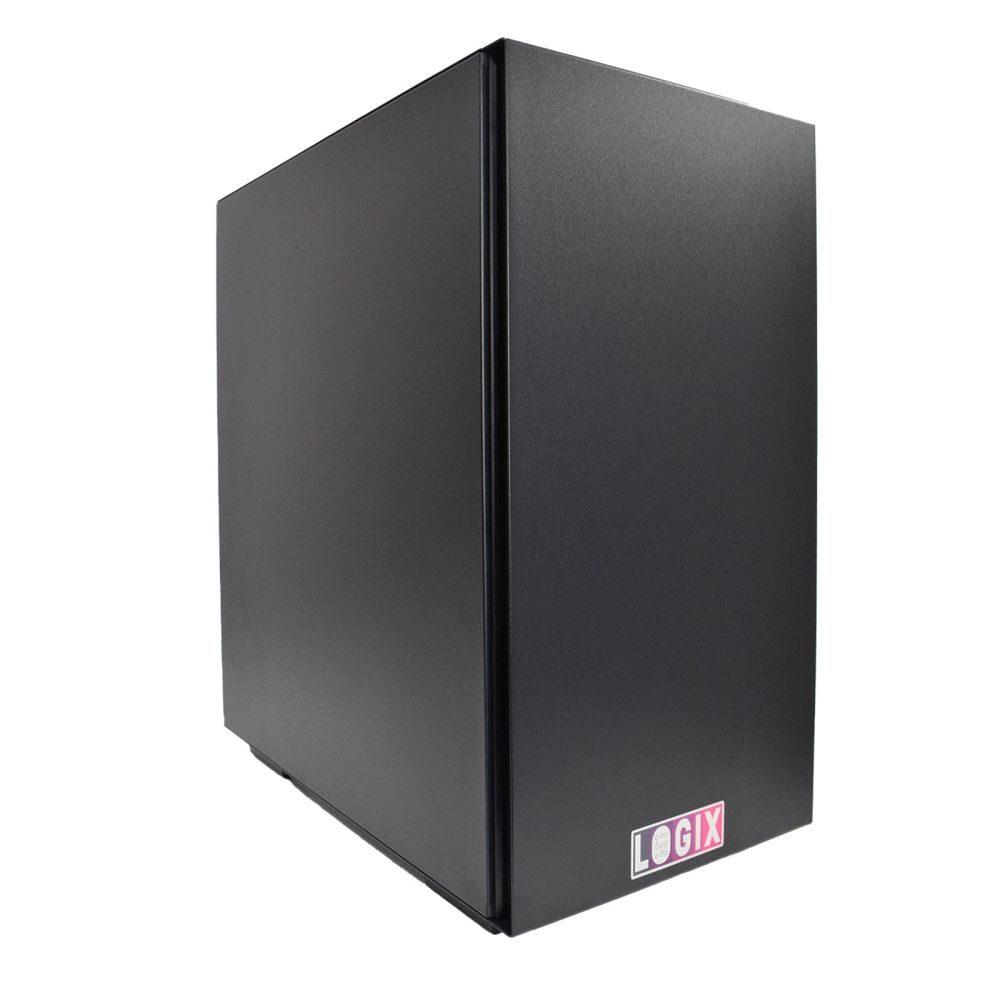

Housed in a DeepCool Macube 110 Micro Tower, the chassis is compact yet functional. It features a solid panel design to reduce dust ingress. Cooling is handled by a pre-installed 120mm rear fan, with support for additional front and top fans if required. The unit is hand-assembled in the UK.

Box contents

• LOGIX CCT-U732P Micro Tower PC
• DeepCool PF500 500W Power Supply (UK Plug)
• Gigabyte NVIDIA GeForce RTX 4060 Graphics Card
• TP-Link TX201 2.5 Gigabit PCIe Network Adapter
• Microsoft Windows 11 Pro Installation Media (OEI DVD)

Check before you buy

• Confirm your monitor inputs match the available HDMI 2.1 or DisplayPort 1.4a ports.
• Confirm you require a wired network connection; this unit does not have built-in Wi-Fi.
• Confirm the physical dimensions (400mm x 225mm x 431mm) fit your intended workspace.
• Confirm your keyboard and mouse preferences; PS/2 ports are available alongside USB.

Frequently Asked Questions

Q: Does this PC come with Wi-Fi?

A: No, it features dual 2.5GbE LAN ports for wired networking. You can add Wi-Fi via a USB adapter or PCIe card.

Q: Is the memory upgradeable?

A: Yes, the motherboard has 4 DDR5 slots. It currently uses 1x 32GB stick, leaving space for expansion up to 128GB.

Q: What is the warranty coverage?

A: It includes a 3-year parts and collection warranty for UK mainland addresses.

Q: Is the operating system pre-installed?

A: Yes, Windows 11 Pro is installed and updated. The manufacturer states it is bloatware-free.

The Consultant’s verdict & warranty

This LOGIX system is best suited for UK users needing a powerful workstation for AI-assisted tasks or a reliable multi-screen CCTV monitoring station. It offers a balanced mix of next-gen CPU performance and specific GPU connectivity. Covered by the standard Manufacturer Warranty.
