ASUS PRIME B650-PLUS WIFI AM5 ATX Motherboard
£137.35 inc VAT
Out of stock
Out of stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item
- AMD B650 chipset for AM5 socket Ryzen 7000/8000/9000 series
- Dual-channel DDR5 memory up to 7600 MHz, 192 GB max
- 2 M.2 slots (PCIe 5.0 + 4.0) + 4 SATA III for storage
- Wi-Fi 6E + Bluetooth 5.3 + 2.5 Gb Ethernet connectivity
- 2 PCIe x16 Gen 4 + 2 PCIe x1 Gen 4 expansion slots
- ATX form factor with 7.1-channel audio, USB 3.2 Gen 2 Type-C
Payment Methods:
You may also like
GIGABYTE B650 GAMING X AX V2 Motherboard – AMD Ryzen 9000, DDR5, PCIe 5.0 M.2
In stock
ASUS PRIME B650-PLUS WIFI | AMD B650 AM5 ATX Motherboard

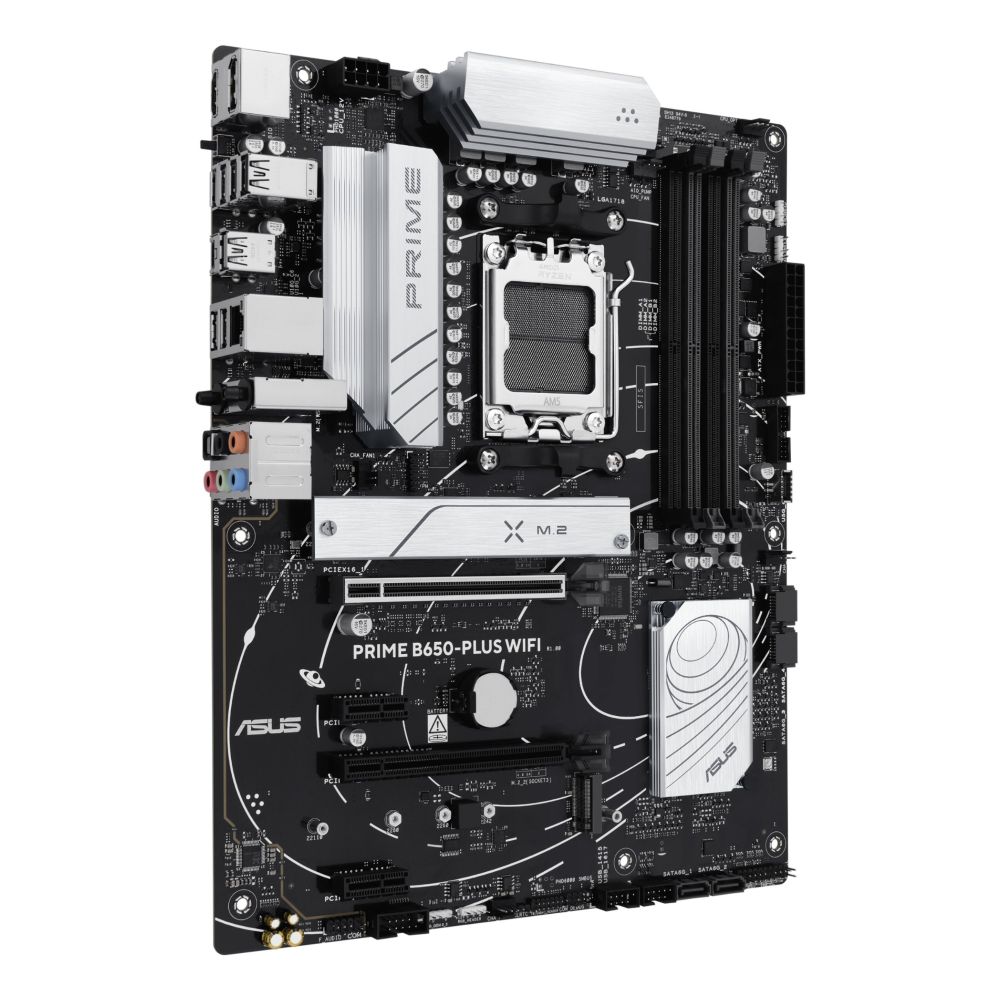

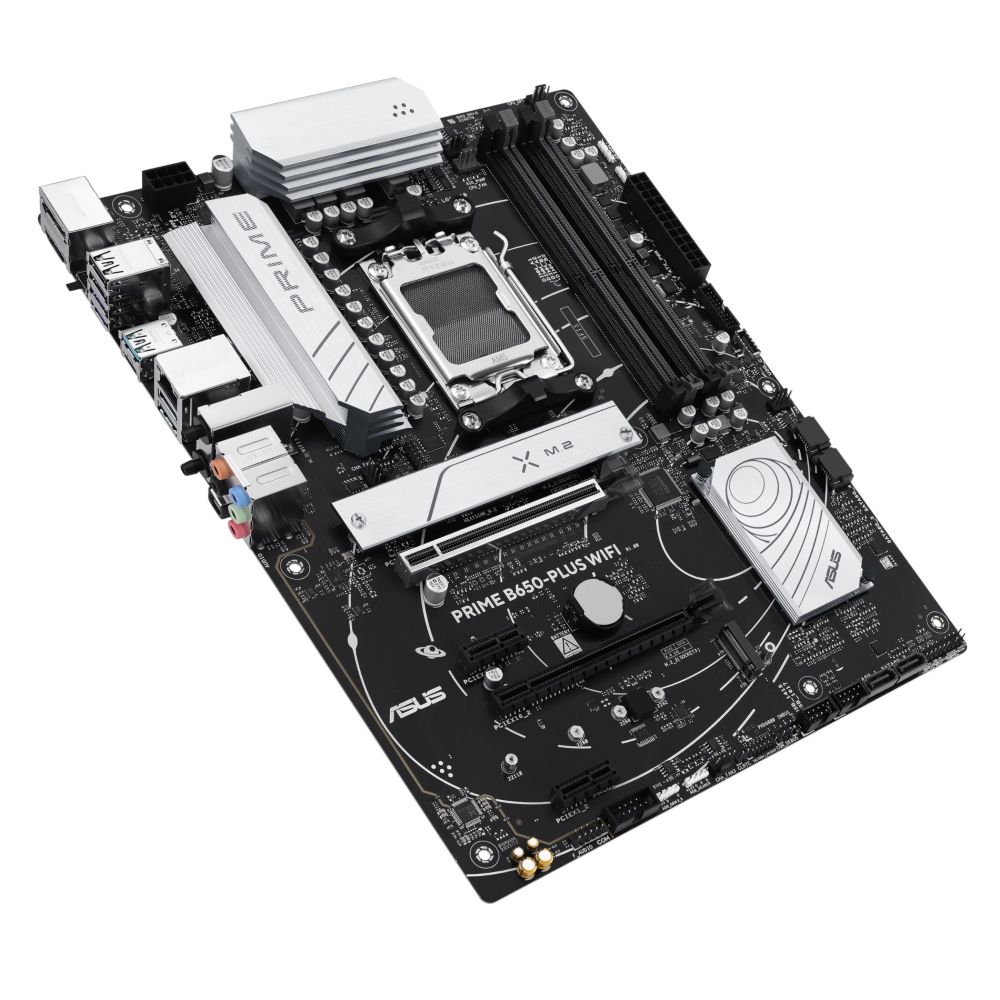

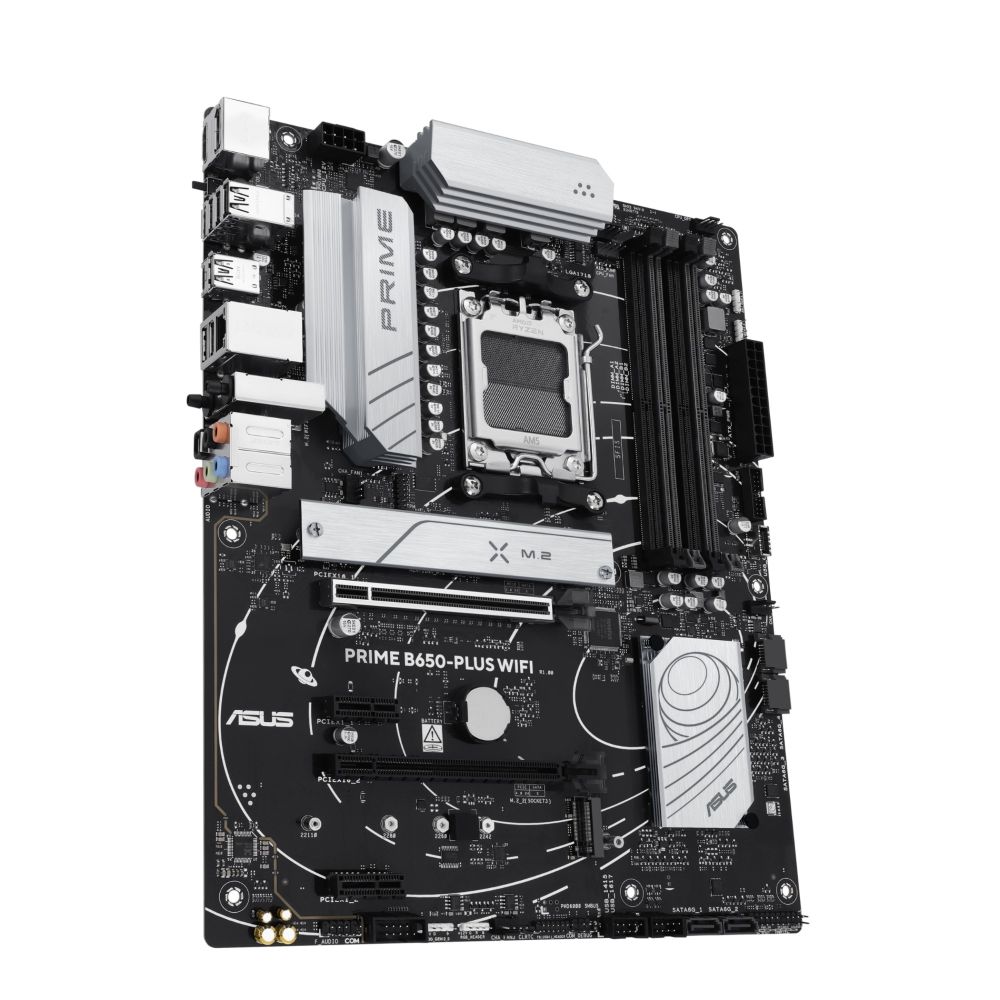

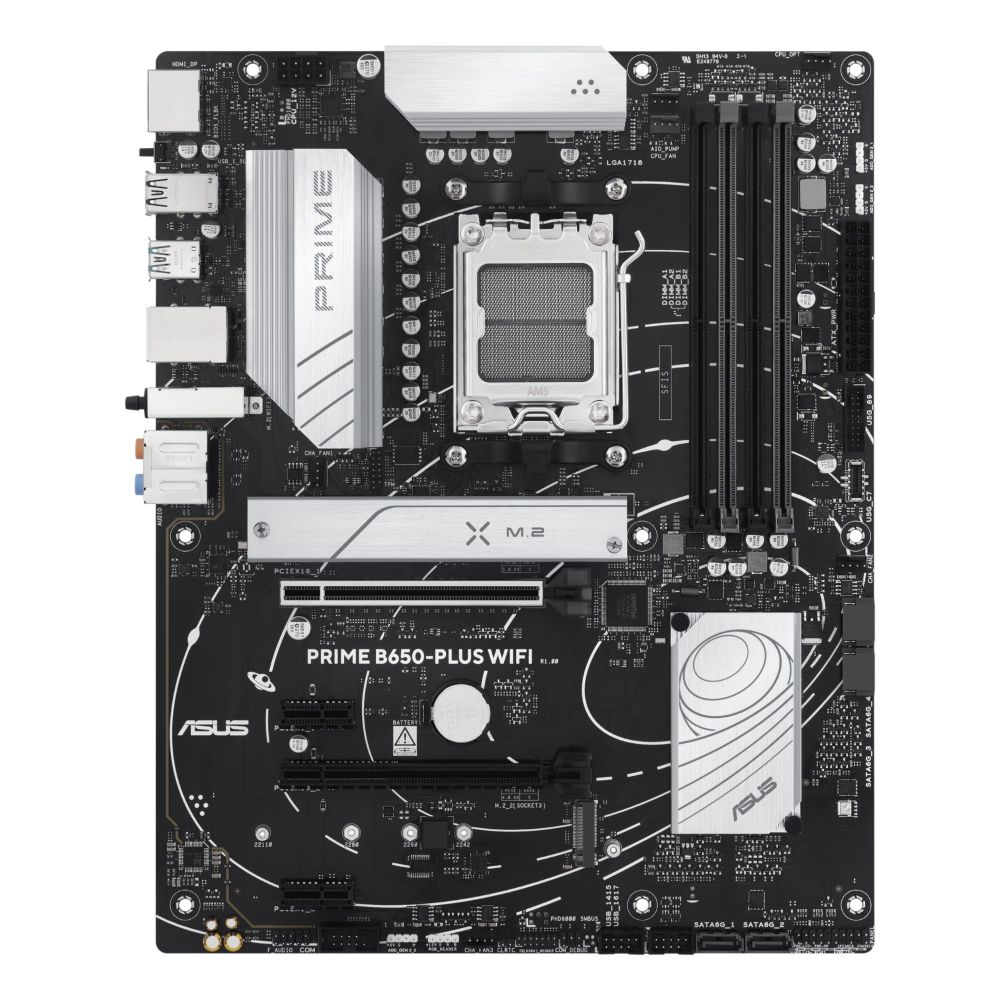

The ASUS PRIME B650-PLUS WIFI AMD B650 Socket AM5 ATX is a versatile ATX motherboard engineered for AMD Ryzen 7000, 8000, and 9000 Series processors. It combines robust power delivery, comprehensive cooling, and advanced connectivity to deliver reliable performance for gaming, content creation, and everyday computing.
Key Specs
| Metric | Spec. |
|---|---|
| Processor Socket | AM5 |
| Memory Support | DDR5 up to 7600 MHz |
| Maximum Memory | 192 GB |
| M.2 Slots | 2 (Gen 5.0 + Gen 4.0) |
| Wi-Fi Standard | Wi-Fi 6E (802.11ax) |
| Ethernet | 2.5 Gigabit |
AI-Ready Performance with AM5 Platform
The ASUS PRIME B650-PLUS WIFI is built on AMD’s B650 chipset and supports the latest AM5 socket, enabling compatibility with AMD’s Ryzen 7000, 8000, and 9000 Series CPUs. This platform unlocks advanced AI computing capabilities, making it ideal for users running machine learning workloads, content creation, or next-gen gaming. With dual-channel DDR5 memory support and speeds up to 7600 MHz, the motherboard ensures fast, responsive performance for demanding applications.
Advanced Cooling and Power Delivery
ASUS has equipped this motherboard with a comprehensive cooling solution, including multiple fan headers and intelligent thermal management. The robust VRM design delivers stable power to your processor, even under heavy loads, while the included cooling options help maintain optimal operating temperatures. This ensures consistent performance during extended gaming sessions or intensive workloads.
Future-Proof Connectivity
Connectivity is a strong point of the ASUS PRIME B650-PLUS WIFI. It features two M.2 slots—one supporting PCIe 5.0 for ultra-fast NVMe SSDs and another with PCIe 4.0—alongside four SATA III ports for additional storage flexibility. The onboard 2.5 Gigabit Ethernet and Wi-Fi 6E provide fast, reliable network connections, while Bluetooth 5.3 enables seamless pairing with peripherals. Multiple USB ports, including USB 3.2 Gen 2 Type-C, cater to modern devices and accessories.
Expandable Storage and RAID Support
With support for up to six storage drives and RAID 0, 1, and 10 configurations, the ASUS PRIME B650-PLUS WIFI offers excellent flexibility for building a storage-rich system. Whether you’re setting up a high-speed boot drive, mass storage, or a mirrored array for data security, this motherboard provides the necessary interfaces and support.

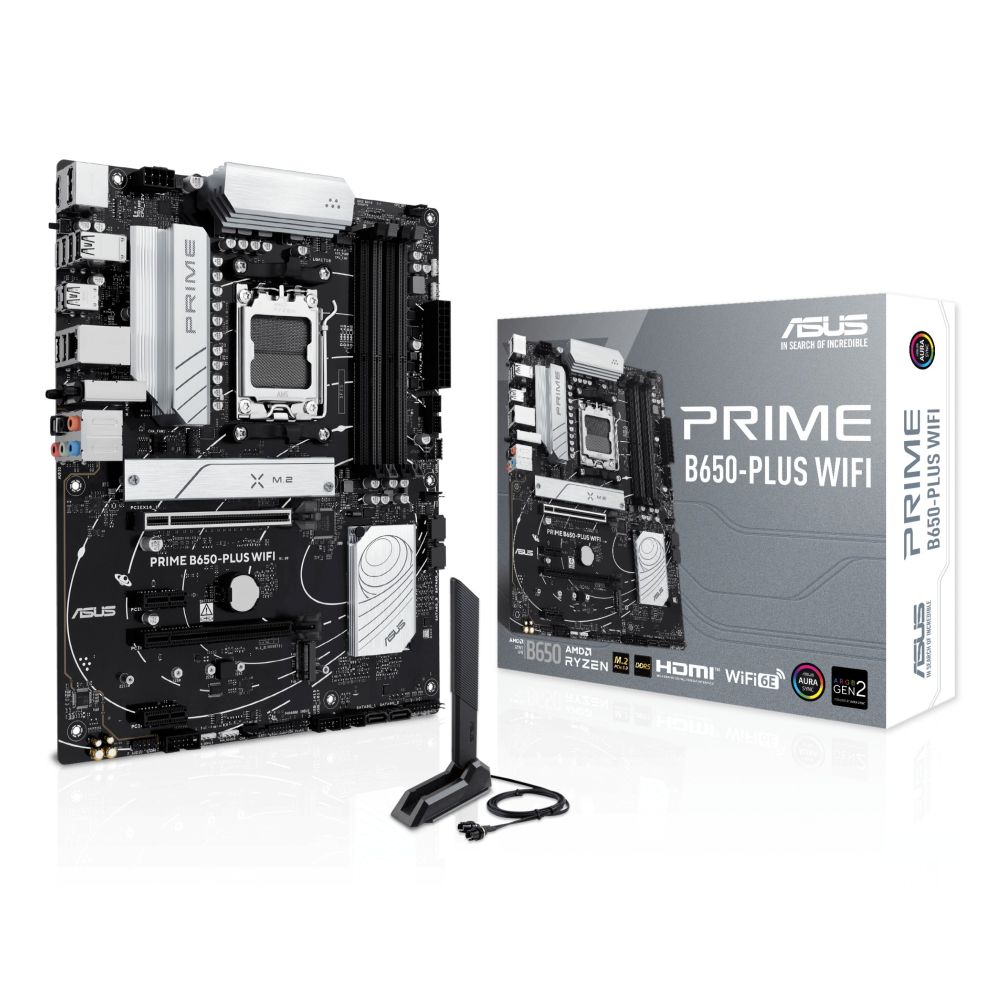

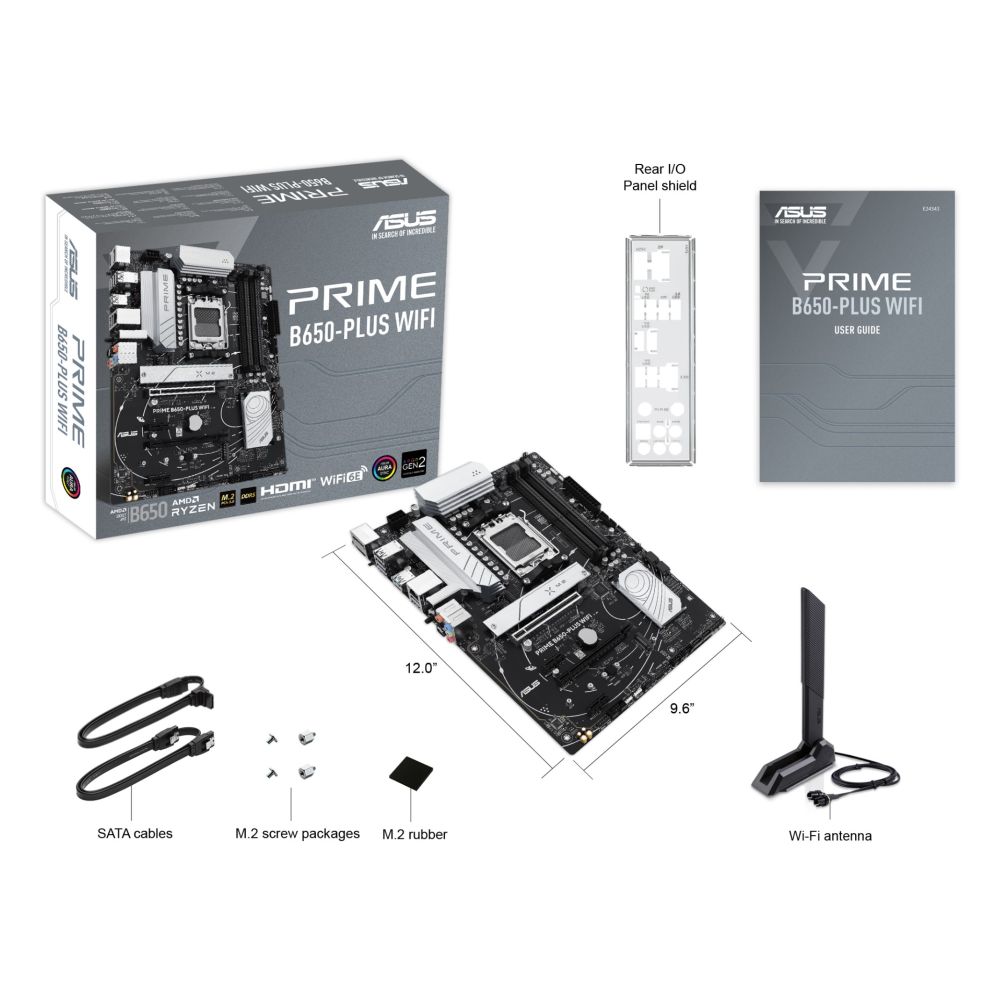

Box Contents
- ASUS PRIME B650-PLUS WIFI motherboard
- SATA cables (quantity not specified)

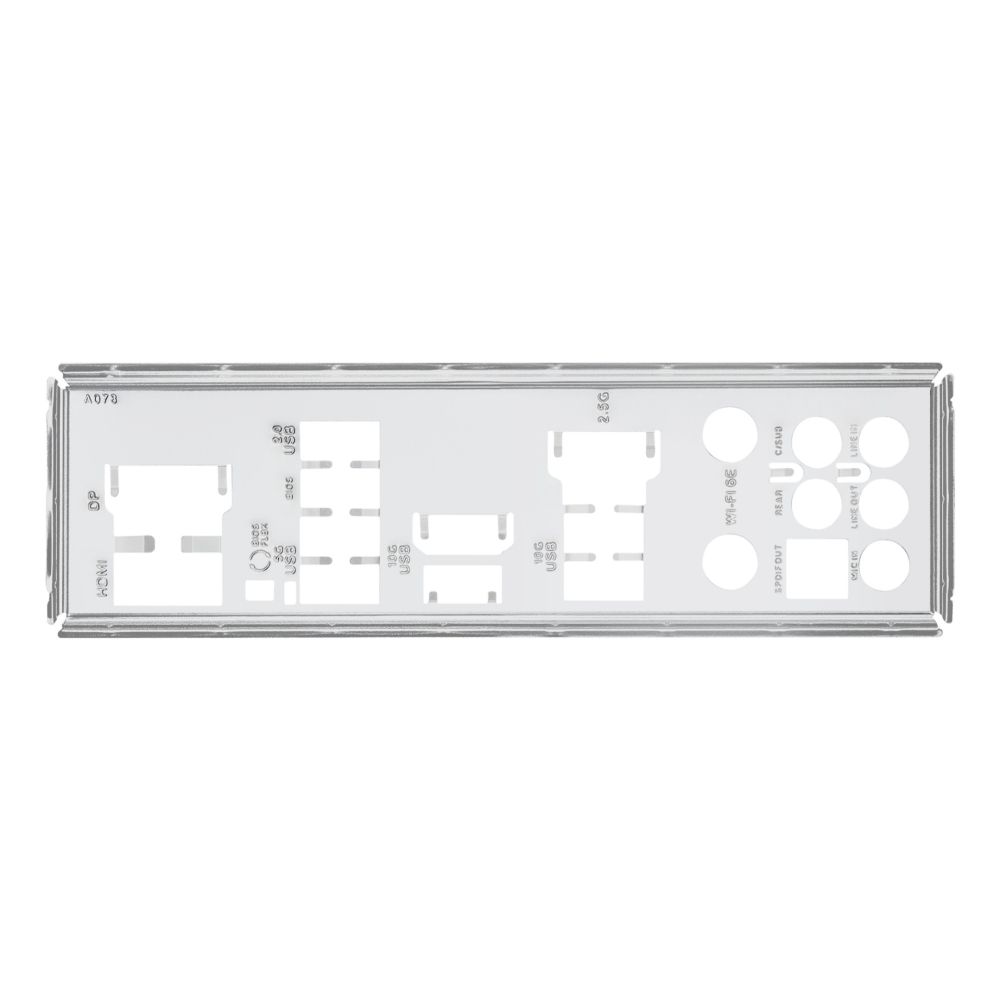

- I/O shield
- Wi-Fi antenna
- User manual and warranty documents
- Mounting screws
Check before you buy
- Confirm your AMD Ryzen processor is compatible with the AM5 socket.
- Verify your PSU has the required 24-pin ATX and 8-pin EPS connectors.
- Check your case supports ATX form factor (305 x 244 mm).
- Ensure your CPU cooler is compatible with the AM5 socket.
Buyer FAQs
Does this motherboard support DDR4 memory?
Can I use this motherboard for gaming?
Is Wi-Fi included or do I need a separate card?
How many M.2 SSDs can I install?
What is the maximum memory capacity?
Does it support ECC memory?
Is there RGB lighting control?
What RAID levels are supported?
Final thoughts
The ASUS PRIME B650-PLUS WIFI is an excellent choice for users seeking a reliable, feature-rich motherboard for AMD’s AM5 platform. Its combination of DDR5 memory support, PCIe 5.0 storage, and advanced connectivity makes it suitable for gamers, creators, and professionals alike. Covered by the applicable manufacturer warranty, this motherboard delivers both performance and peace of mind for your next PC build.
| Thunderbolt headers | 1 |
|---|---|
| Front panel connector | Yes |
| 12V power connector | Yes |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 3.1 Gen 1 connectors | 2 |
| TPM connector | Yes |
| Number of SATA III connectors | 4 |
| Number of COM connectors | 1 |
| Number of chassis fan connectors | 3 |
| Front panel audio connector | Yes |
| EPS power connector 8-pin | Yes |
| CPU fan connector | Yes |
| ATX Power connector 24-pin | Yes |
| RGB LED pin header | Yes |
| Number of CPU fan connectors | 2 |
| Number of RGB LED pin headers | 1 |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Processor socket | Socket AM5 |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 7400,4800,7600,7800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz |
| Maximum internal memory | 192 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed max | 7600 MHz |
| ECC сompatibility | ECC & Non-ECC |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 1, 10 |
| Number of storage drives supported | 6 |
| RAID support | Yes |
| Parallel processing technology support | Not supported |

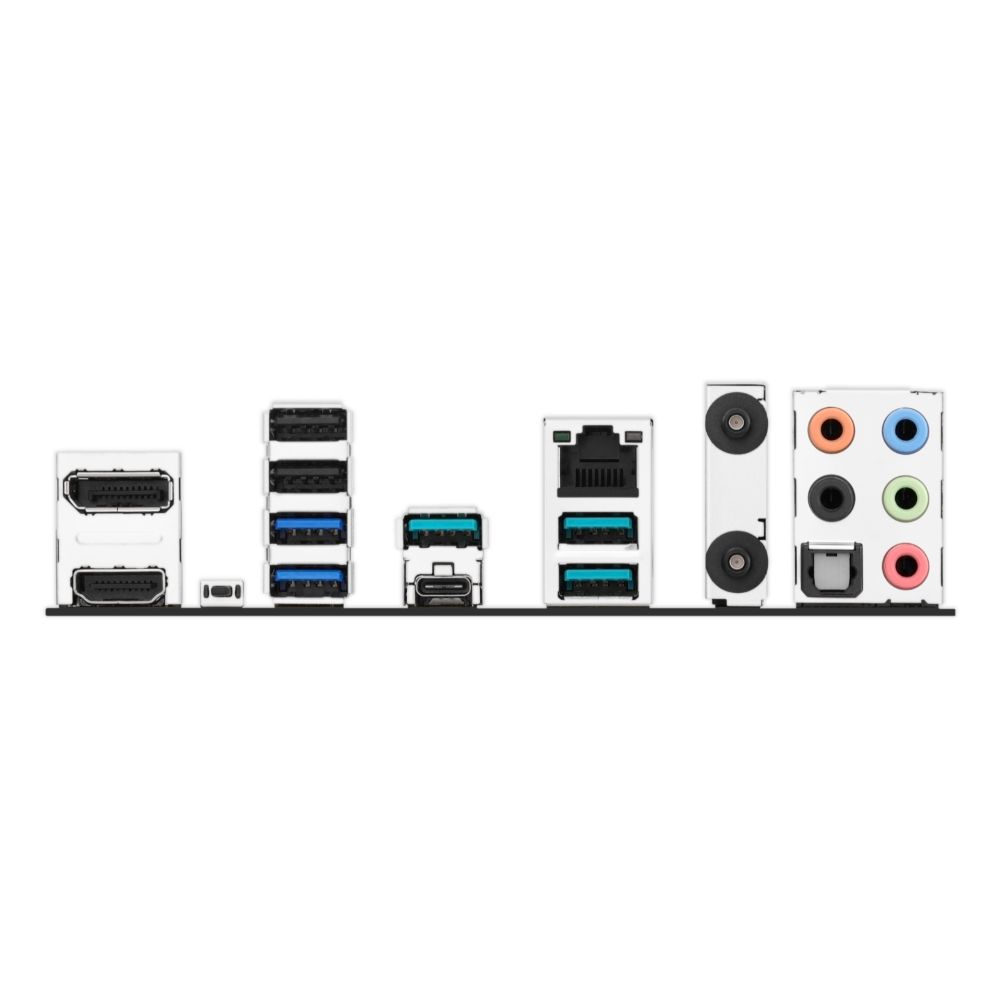

| USB 3.2 Gen 1 3.1 Gen 1 Type-A ports quantity | 2 |
| USB 3.2 Gen 2 3.1 Gen 2 Type-A ports quantity | 3 |
| USB 3.2 Gen 2 3.1 Gen 2 Type-C ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| WiFi-AP antenna jack | 1 |
| S/PDIF out port | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN RJ-45 ports | 1 |
| DisplayPorts quantity | 1 |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Bluetooth version | 5.3 |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Motherboard chipset family | AMD |
| Supported processor sockets | Socket AM5 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Number of M.2 M slots | 2 |
| PCI Express x16 Gen 4.x slots | 2 |
| 1st M.2 largest key size | 22110 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Width | 305 mm |
| Depth | 244 mm |
| Cables included | SATA |
| Screws included | Yes |
| Antenna included | Yes |
| Package width | 338 mm |
| Package depth | 373 mm |
| Package height | 68 mm |
| Package weight | 1.35 kg |
| PCI Express x1 Gen 4.x slots | 2 |
| Distributor SKUs | MBD-90MB1KP0-M0EAY0, 126856, W129042232, 548231, STD10228559, M2MMBD-90MB1KP0-M0EAY0 |
