ASUS H610M-A D4-CSM Micro ATX Motherboard
£85.15 inc VAT
In stock
In stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item
- Intel H610 chipset with LGA 1700 socket for 12th Gen Intel Core processors
- Micro ATX form factor with dual M.2 slots and PCIe 4.0 x16 support
- 64 GB DDR4 memory capacity across two DIMM slots with dual-channel support
- HDMI 2.1 and DisplayPort 1.4 for high-resolution multi-display setups
- Integrated Intel Gigabit Ethernet with LANGuard surge protection
Payment Methods:
You may also like
ASUS PRIME H610M-A D4-CSM | Micro ATX Intel Motherboard
The ASUS PRIME H610M-A D4-CSM Intel H610 LGA 1700 micro ATX motherboard is engineered for stable 12th Gen Intel builds, offering robust power delivery, comprehensive cooling, and versatile connectivity in a compact micro ATX form factor.
Key Specifications
| Metric | Spec |
|---|---|
| Processor Socket | LGA 1700 |
| Memory Support | DDR4, up to 64 GB |
| PCIe Slots | 1x PCIe 4.0 x16, 1x PCIe 3.0 x1 |
| M.2 Slots | 2 (PCIe 3.0) |
| Network | Intel Gigabit Ethernet |
| USB Ports | 4x USB 2.0, 2x USB 3.2 Gen 2 |
Stable Power for Reliable Performance
Built on the Intel H610 chipset, this motherboard delivers stable power delivery for 12th Gen Intel Core processors. The Digi+ VRM ensures precise voltage regulation, reducing droop and improving system stability under load. This makes it ideal for business environments or home offices where uptime matters.
Compact Micro ATX Design with Expandability
The micro ATX layout provides a space-saving footprint without sacrificing connectivity. Two M.2 slots allow for fast NVMe storage, while four SATA III ports support additional drives. A single PCIe 4.0 x16 slot accommodates the latest graphics cards, making it suitable for both productivity and light gaming setups.
Comprehensive Cooling and Durability
Multiple fan headers and ASUS Fan Xpert 2+ software provide flexible cooling control. VRM heatsinks and thermal pads improve heat dissipation, while stainless-steel back I/O and overvoltage protection enhance long-term durability. These features help maintain consistent performance during extended use.
Connectivity and Expansion Options

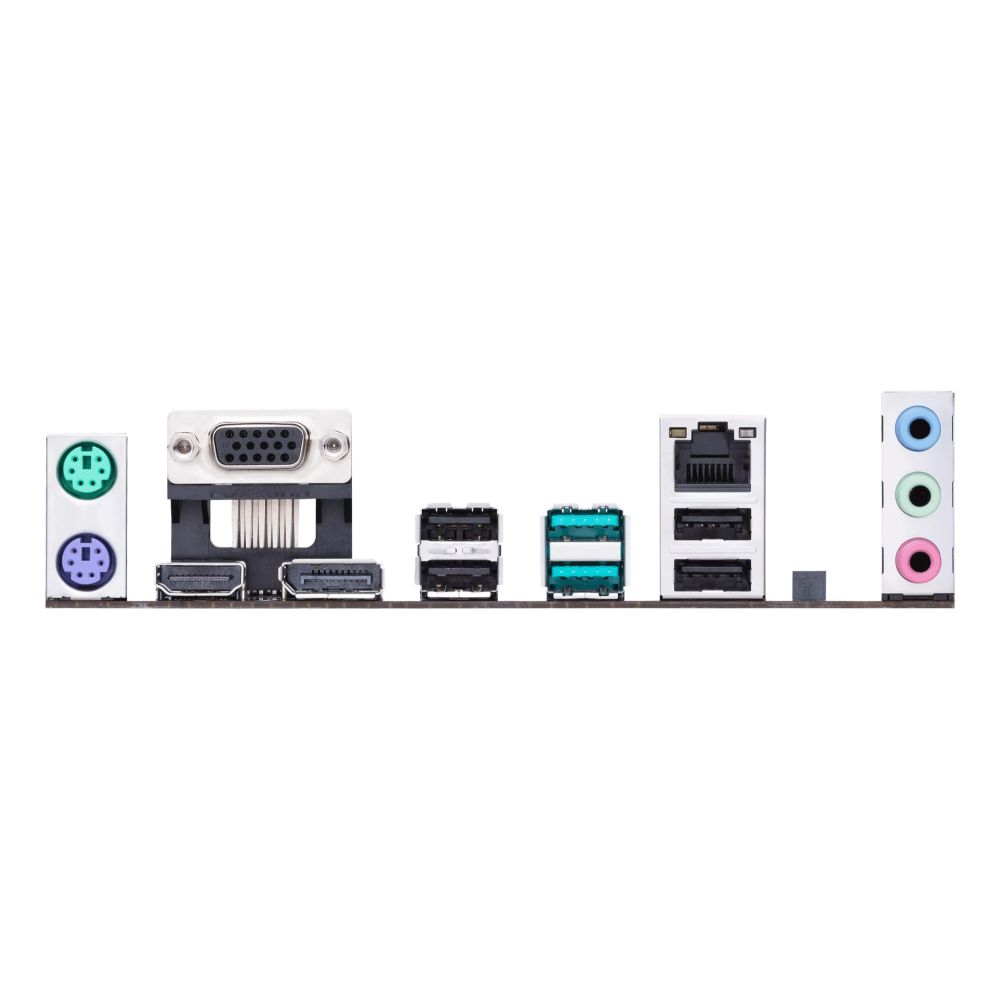

With HDMI 2.1, DisplayPort 1.4, and legacy VGA outputs, this board supports multiple display configurations. Intel Gigabit Ethernet ensures reliable wired networking, while USB 3.2 Gen 2 ports offer up to 10 Gbps transfer speeds. Note that Wi-Fi is not included, so a separate adapter may be needed for wireless connectivity.
What Is in the Box

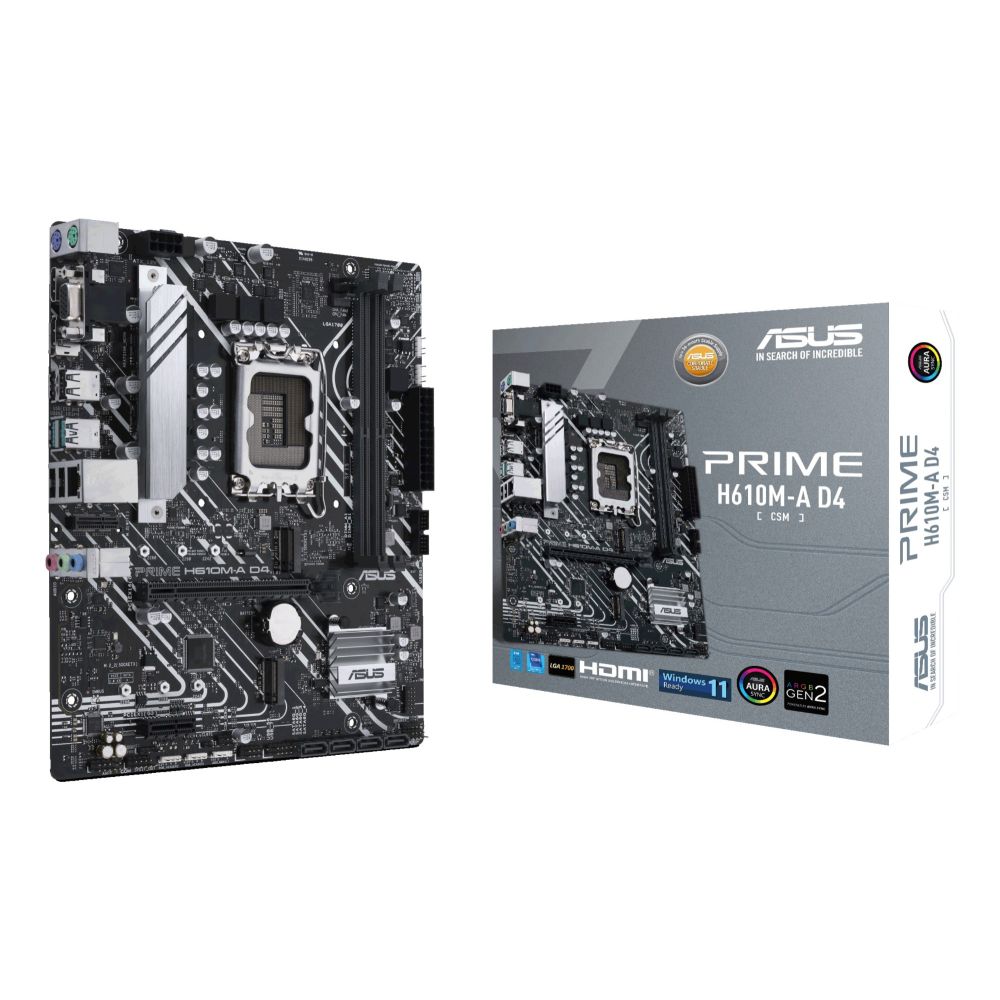

- ASUS PRIME H610M-A D4-CSM motherboard
- SATA cables (quantity not specified)

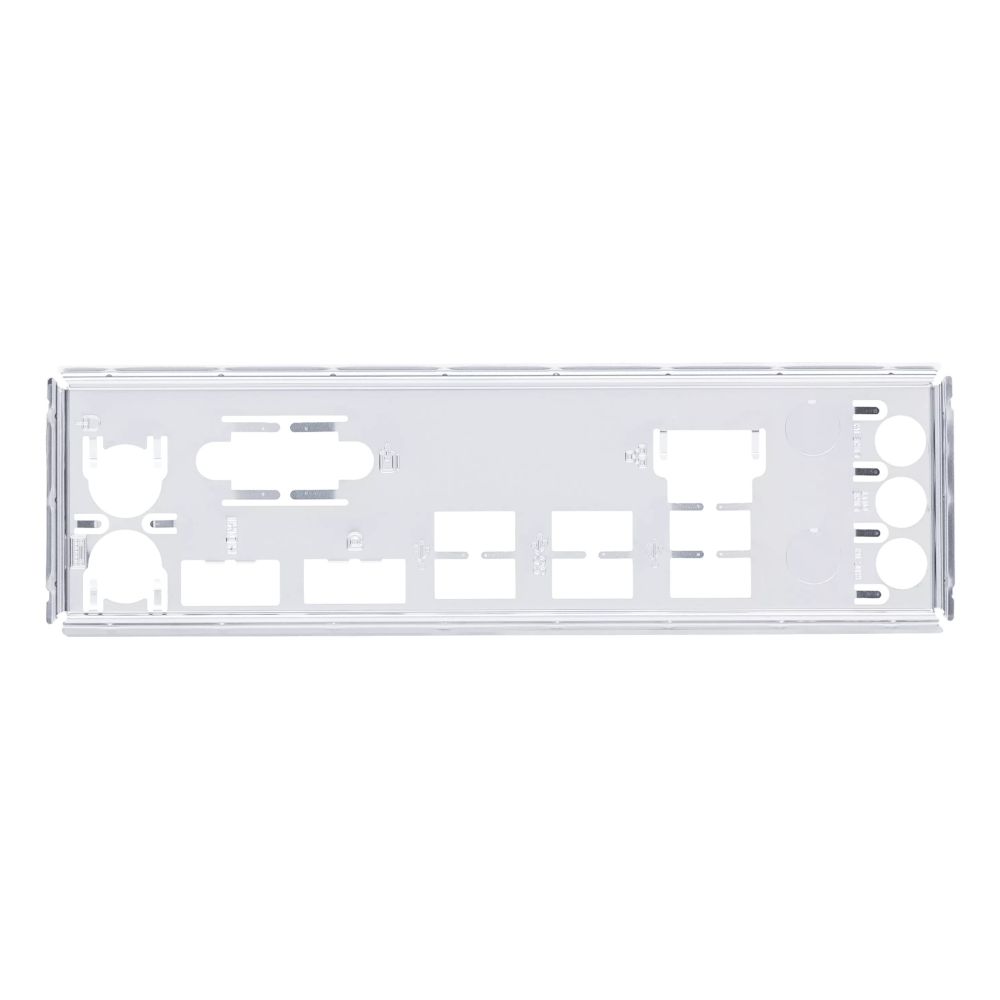

- I/O shield
- User manual and warranty card
Before you order
- Confirm your CPU is LGA 1700 compatible (Intel 12th Gen)
- Verify DDR4 memory is installed (DDR5 not supported)
- Ensure your case supports micro ATX dimensions (244 x 221 mm)
- Check if you need Wi-Fi separately (not included)
Buyer FAQs
Does this motherboard support DDR5 memory?
Can I use this board for gaming?
Is there built-in Wi-Fi?
What size case do I need?
Does it come with RGB lighting?
Why we rate it
The ASUS PRIME H610M-A D4-CSM is a dependable micro ATX motherboard for 12th Gen Intel systems, offering stable performance, solid build quality, and essential features for both business and home use. Covered by the applicable manufacturer warranty.
| 12V power connector | Yes |
|---|---|
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 3.1 Gen 1 connectors | 1 |
| TPM connector | Yes |
| S/PDIF out connector | Yes |
| Number of SATA III connectors | 4 |
| Number of COM connectors | 1 |
| Number of chassis fan connectors | 2 |
| Front panel audio connector | Yes |
| CPU fan connector | Yes |
| ATX Power connector 24-pin | Yes |
| RGB LED pin header | Yes |
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® |
| Maximum number of SMP processors | 1 |
| Processor socket | LGA 1700 |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 2133,2400,2666,2800,2933,3000,3200 MHz |
| Maximum internal memory | 64 GB |
| Unbuffered memory | Yes |
| ECC сompatibility | Non-ECC |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| USB 3.2 Gen 2 3.1 Gen 2 Type-A ports quantity | 2 |
| DisplayPort version | 1.4 |
| USB 2.0 ports quantity | 4 |
| VGA D-Sub ports quantity | 1 |
| PS/2 ports quantity | 2 |
| HDMI ports quantity | 1 |
| Ethernet LAN RJ-45 ports | 1 |
| DisplayPorts quantity | 1 |
| Wake-on-LAN ready | Yes |
| Motherboard chipset family | Intel |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Number of M.2 M slots | 2 |
| PCI Express x1 Gen 3.x slots | 1 |
| PCI Express x16 Gen 4.x slots | 1 |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Harmonized System HS code | 84733020 |
| Width | 244 mm |
| Depth | 211 mm |
| Cables included | SATA |
| Height | 221 mm |
| Weight | 382 g |
| Distributor SKUs | MBD-90MB19P0-M0EAYC, 8604916, 122794, PRIME H610M-A D4-CSM, 10391455, STD10214976, STD10228138, 2110335, M2MMBD-90MB19P0-M0EAYC |
