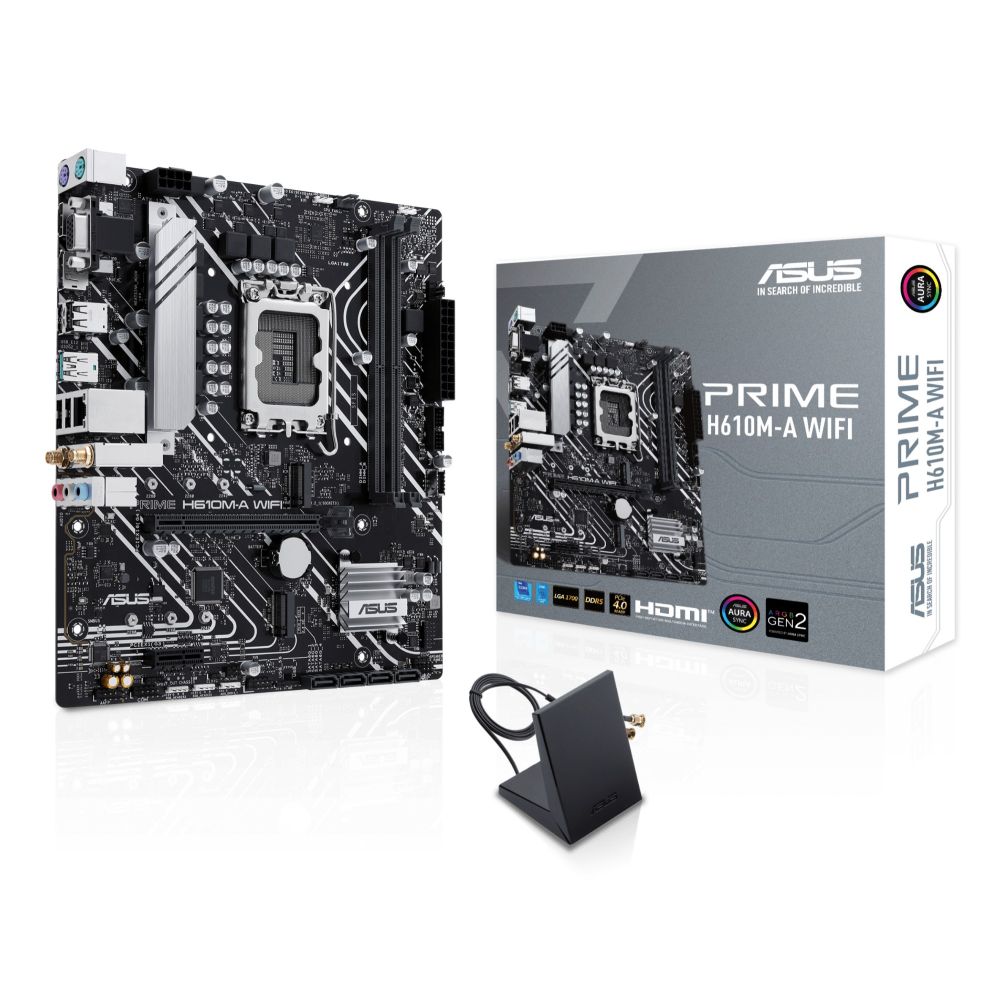

ASUS H610M-A WiFi Micro ATX Motherboard
£90.46 inc VAT
In stock
In stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item
- Micro ATX motherboard for Intel LGA 1700 processors with DDR5 memory support
- 2 M.2 slots and 4 SATA III ports for versatile storage options
- Wi-Fi 5 and Gigabit Ethernet for reliable connectivity
- 7.1 channel audio with front panel audio support
- PCIe 4.0 x16 and PCIe 3.0 x1 slots for expansion
Payment Methods:
You may also like

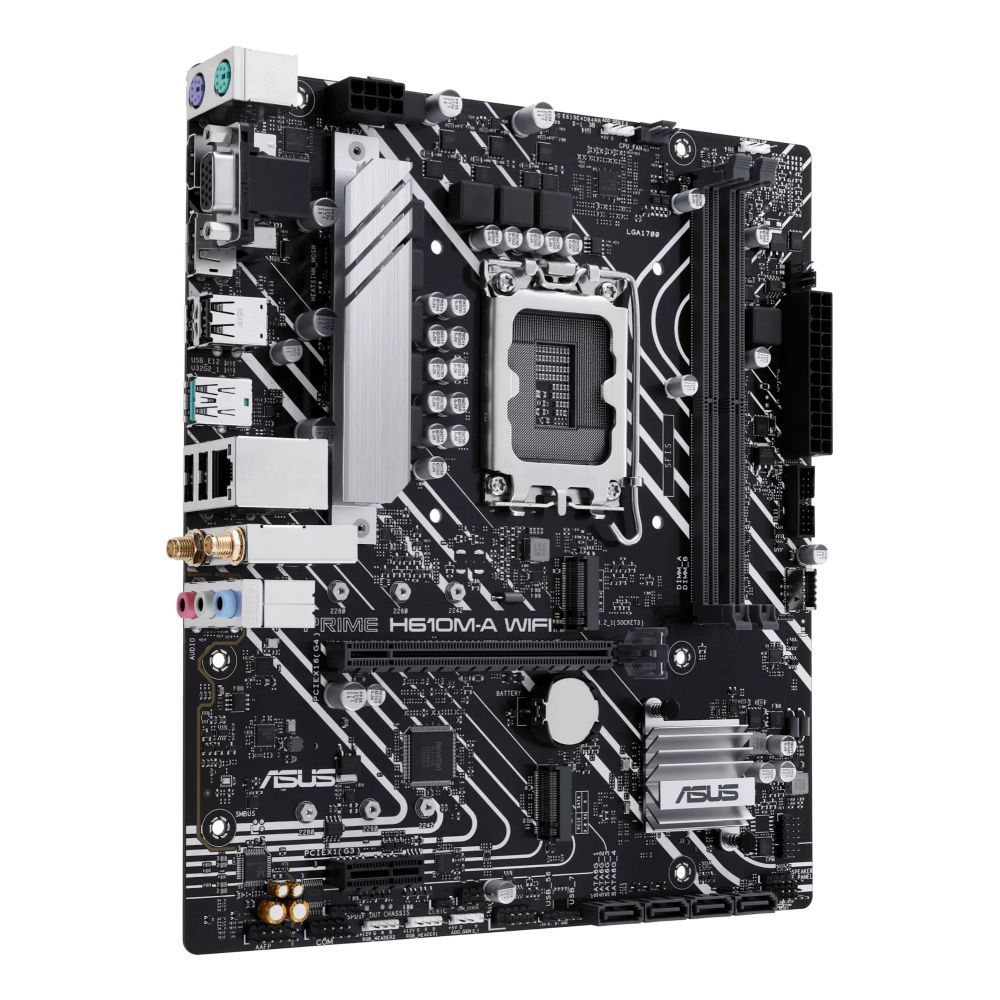

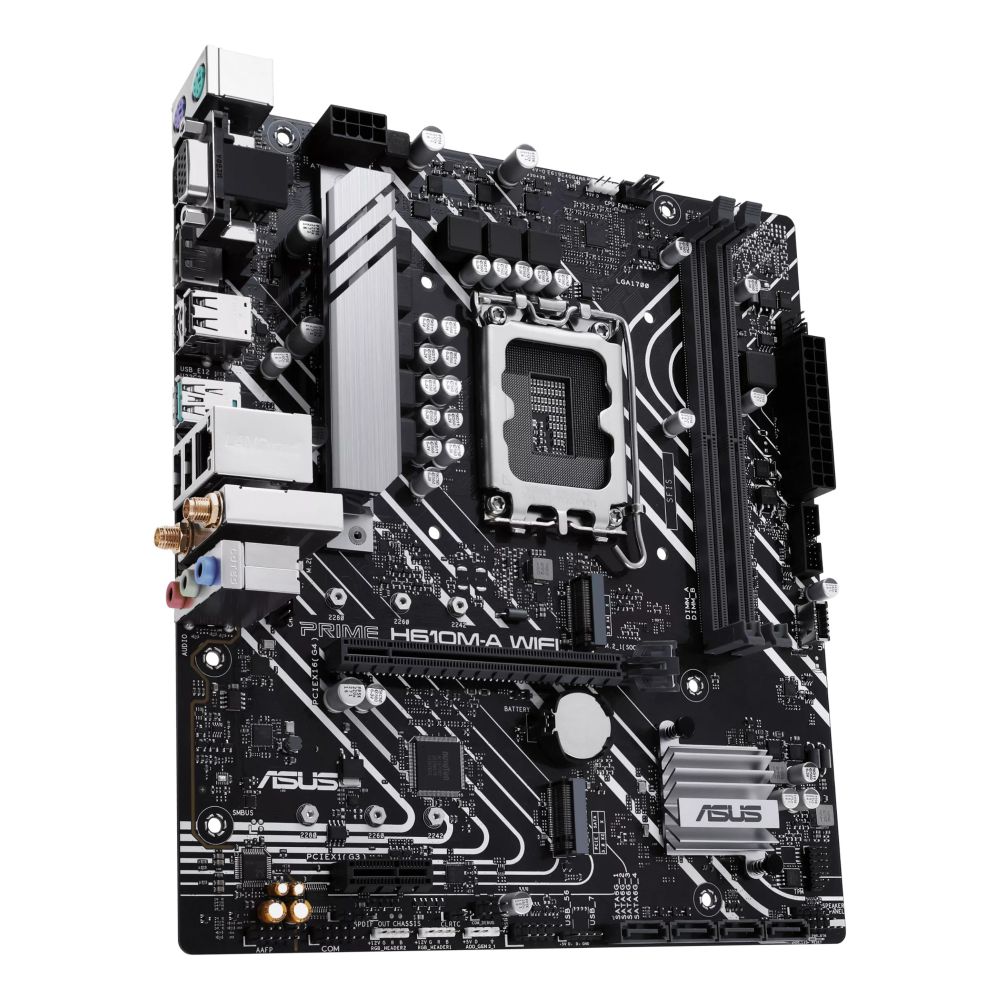

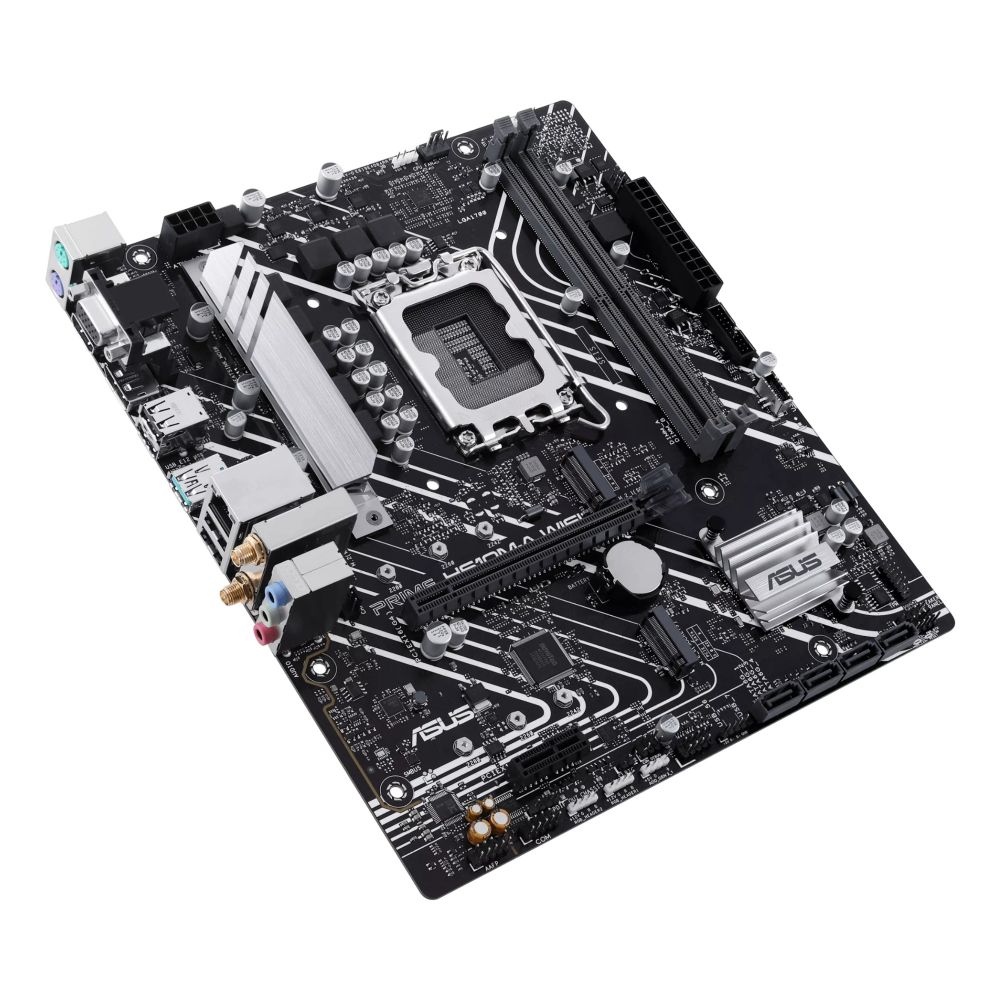

ASUS PRIME H610M-A WIFI | Micro ATX Motherboard for Intel LGA 1700
The ASUS PRIME H610M-A WIFI Intel H610 LGA 1700 micro ATX motherboard is designed for DIY builders and professionals seeking a compact, feature-rich foundation for Intel 12th and 13th Gen processors. Combining robust power delivery, Wi-Fi 5 connectivity, and ASUS’s signature tuning tools, it delivers stable performance in a micro ATX form factor.
Key Specifications
| Metric | Spec |
|---|---|
| Socket | LGA 1700 |
| Chipset | Intel H610 |
| Memory | 2 x DDR5 slots, up to 96 GB, 5600 MHz max |
| Wi-Fi | Wi-Fi 5 (802.11ac) + Bluetooth 5.0 |
| M.2 Slots | 2 x M.2 (PCIe 3.0) |
| USB Ports | 4 x USB 2.0, 1 x USB 3.2 Gen 1 Type-A |
| Display Output | HDMI 2.1, DisplayPort 1.4, VGA |
| LAN | Intel 1 Gb Ethernet |
Compact Design, Full-Featured Performance
The micro ATX layout of the ASUS PRIME H610M-A WIFI makes it ideal for space-conscious builds without sacrificing expandability. It supports dual-channel DDR5 memory for fast data throughput and includes two M.2 slots for high-speed NVMe SSDs, ensuring quick boot times and responsive application loading. The board’s PCIe 4.0 x16 slot is ready for the latest discrete graphics cards, while the integrated Intel Wi-Fi 5 and Bluetooth 5.0 provide wireless flexibility straight out of the box.
Intelligent Cooling for Stability
ASUS equips the H610M-A WIFI with a comprehensive cooling solution tailored for sustained workloads. A VRM heatsink with thermal pad efficiently dissipates heat from power delivery components, while Fan Xpert 2+ software allows precise control over system fans. The board also includes a dedicated CPU fan header and two chassis fan connectors, ensuring optimal airflow whether you’re gaming, streaming, or working on creative projects.
Built-In Connectivity & Expansion

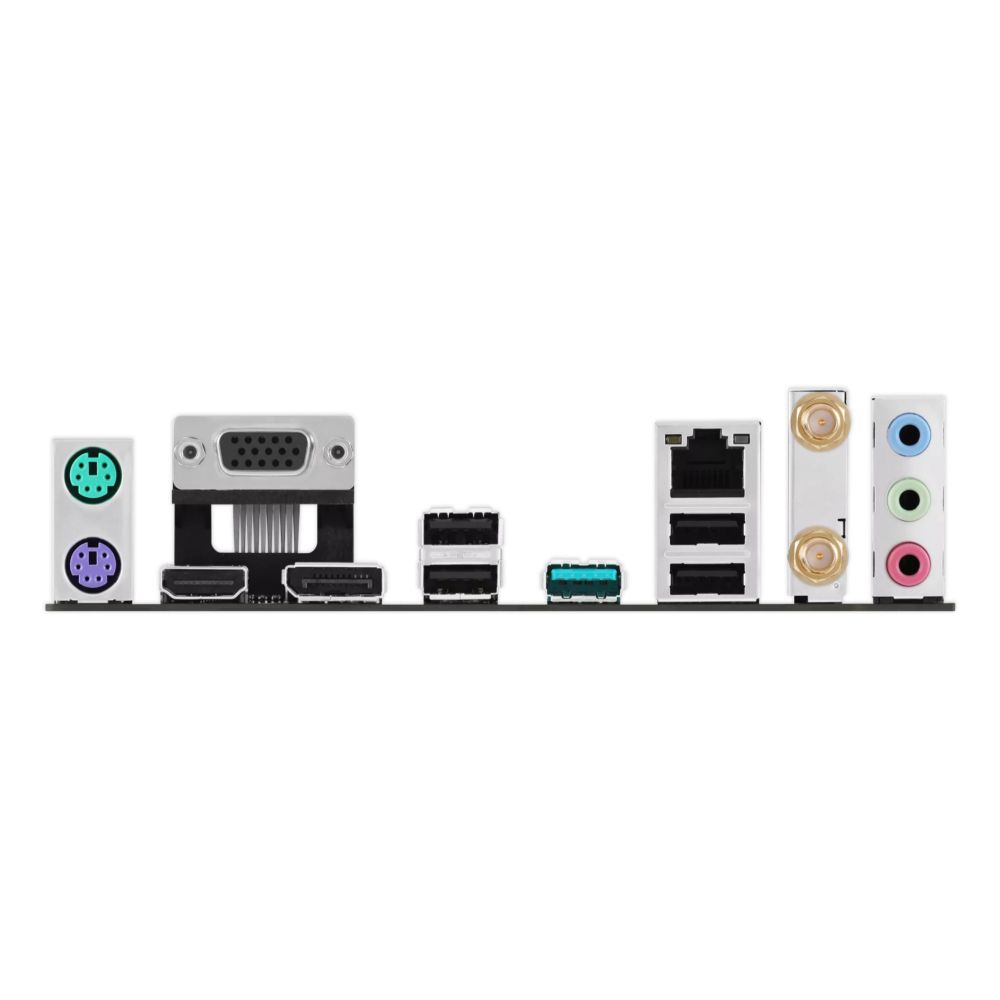

This motherboard offers a versatile I/O complement suited for modern setups. Rear panel ports include HDMI 2.1, DisplayPort 1.4, VGA, and multiple USB options for peripherals. The Gigabit Ethernet port, powered by Intel’s I219-V controller, reduces CPU overhead for smoother online experiences. For storage, you get four SATA III ports alongside the dual M.2 slots, supporting a mix of HDDs and SSDs for ample capacity and speed.
Aura Sync RGB Lighting
Personalise your build with ASUS Aura Sync, which offers a spectrum of lighting effects for onboard RGB LEDs and connected strips. The three onboard addressable Gen 2 headers automatically detect connected devices, making setup seamless. If you prefer a stealthier look, Aura On/Off Mode lets you disable all lighting with a single click.

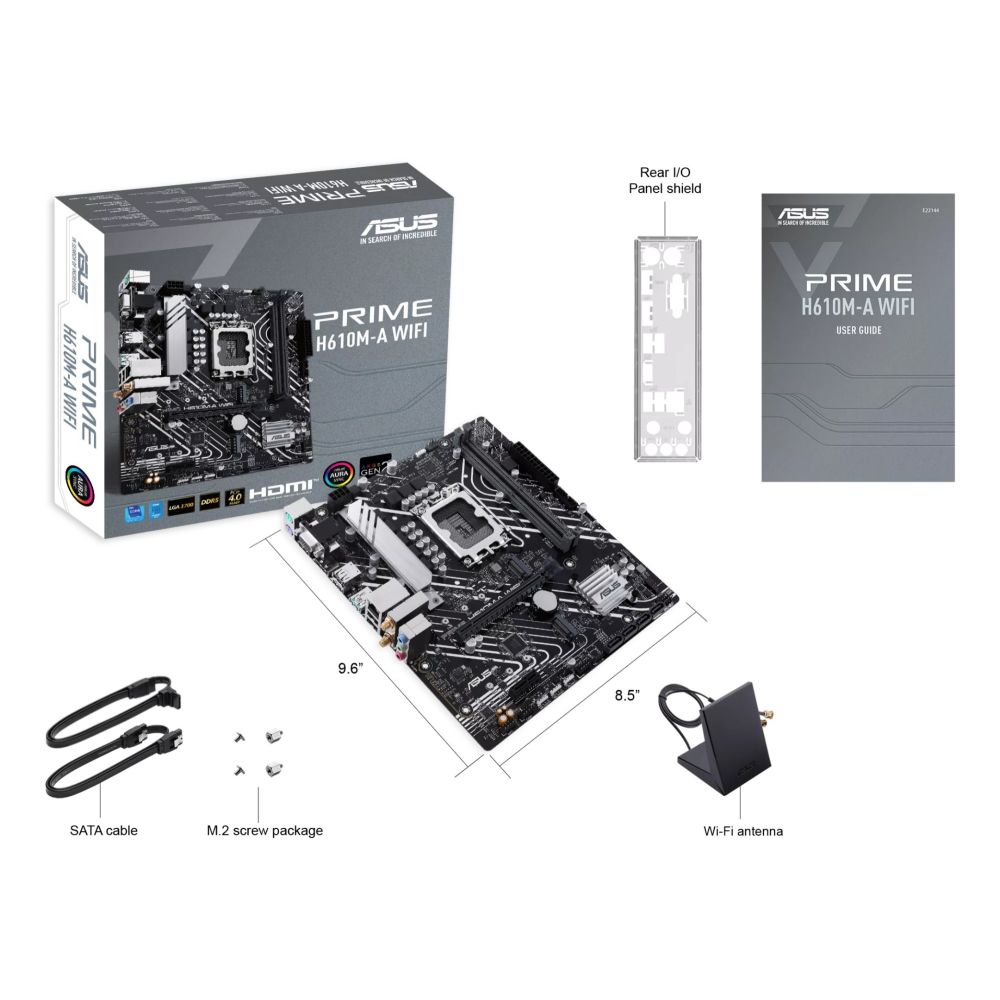

What Is in the Box
- ASUS PRIME H610M-A WIFI motherboard
- SATA cable(s)
- User manual and warranty card

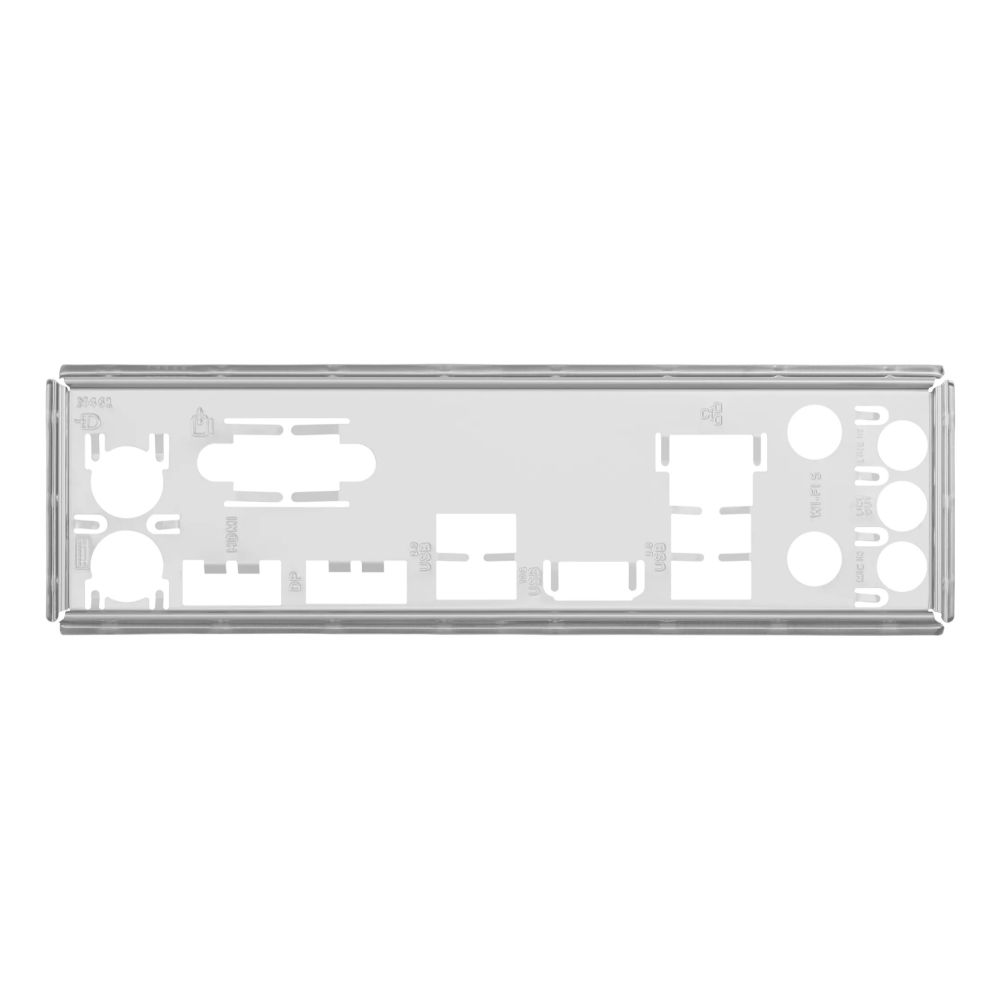

- I/O shield
Before you order
- Confirm your CPU is compatible with LGA 1700 socket and Intel H610 chipset.
- Verify your case supports micro ATX (244 mm x 216 mm) dimensions.
- Ensure your power supply has the required 24-pin ATX and 8-pin EPS connectors.
- Check that your DDR5 memory modules are on the motherboard’s qualified vendor list.
Buyer FAQs
Does this motherboard support DDR4 memory?
Can I use Wi-Fi 6 with this board?
How many graphics cards can I install?
Is the BIOS UEFI?
Does it come with RGB headers for custom lighting?
Final thoughts
The ASUS PRIME H610M-A WIFI is a well-rounded micro ATX motherboard for Intel’s 12th and 13th Gen CPUs, offering strong connectivity, modern DDR5 support, and effective cooling in a compact footprint. It suits home offices, media centres, and compact gaming rigs where space and performance matter equally. Covered by the applicable manufacturer warranty.
| 12V power connector | Yes |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 3.1 Gen 1 connectors | 2 |
| TPM connector | Yes |
| S/PDIF out connector | Yes |
| Number of SATA III connectors | 4 |
| Number of COM connectors | 1 |
| Number of chassis fan connectors | 2 |
| Front panel audio connector | Yes |
| EPS power connector 8-pin | Yes |
| CPU fan connector | Yes |
| ATX Power connector 24-pin | Yes |
| RGB LED pin header | Yes |
| Audio connector | Yes |
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9 |
| Processor socket | LGA 1700 |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 4800,5000,5200,5400,5600 MHz |
| Maximum internal memory | 96 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed max | 5600 MHz |
| ECC сompatibility | Non-ECC |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 6 |
| Parallel processing technology support | Not supported |
| USB 3.2 Gen 1 3.1 Gen 1 Type-A ports quantity | 1 |
| DisplayPort version | 1.4 |
| USB 2.0 ports quantity | 4 |
| WiFi-AP antenna jack | 1 |
| VGA D-Sub ports quantity | 1 |
| PS/2 ports quantity | 2 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN RJ-45 ports | 1 |
| DisplayPorts quantity | 1 |
| Line-in | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Bluetooth version | 5.0 |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Motherboard chipset family | Intel |
| Supported processor sockets | LGA 1700 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Number of M.2 M slots | 2 |
| PCI Express x1 Gen 3.x slots | 1 |
| PCI Express x16 Gen 4.x slots | 1 |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Clear CMOS button | Yes |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Width | 244 mm |
| Depth | 216 mm |
| Cables included | SATA |
| Package width | 270 mm |
| Package depth | 263 mm |
| Package height | 51.5 mm |
| Package weight | 1.07 kg |
| Distributor SKUs | MBD-90MB1G00-M0EAY0, 8635917, 123873, W128564605, STD10215083, M2MMBD-90MB1G00-M0EAY0 |
